Description

DELL Latitude 5530. Product type: Notebook, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1235U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 10 Pro. Product colour: Grey. Weight: 1.59 kg

Windows 10 Pro 64-bit
Intel Core i5-1235U (12MB Cache)
39.6 cm (15.6") Full HD 1920 x 1080 WVA
8GB (3200MHz) DDR4-SDRAM (1 x 8) & 256GB SSD

The confidence to work anywhere

ExpressConnect Be on 2 networks at once with the world’s first simultaneous multi-network connection for faster data and video downloads. 4G & Wi-Fi 6E connections Wi-Fi 6E allows 7 more channels for more bandwidth which provides faster, smoother Wi-Fi, especially in high-density areas while 4G LTE options keep you connected wherever you work. Work remote for longer Long battery life with ExpressCharge that provides up to 80% charge within 40 minutes.

The reliability to collaborate everywhere

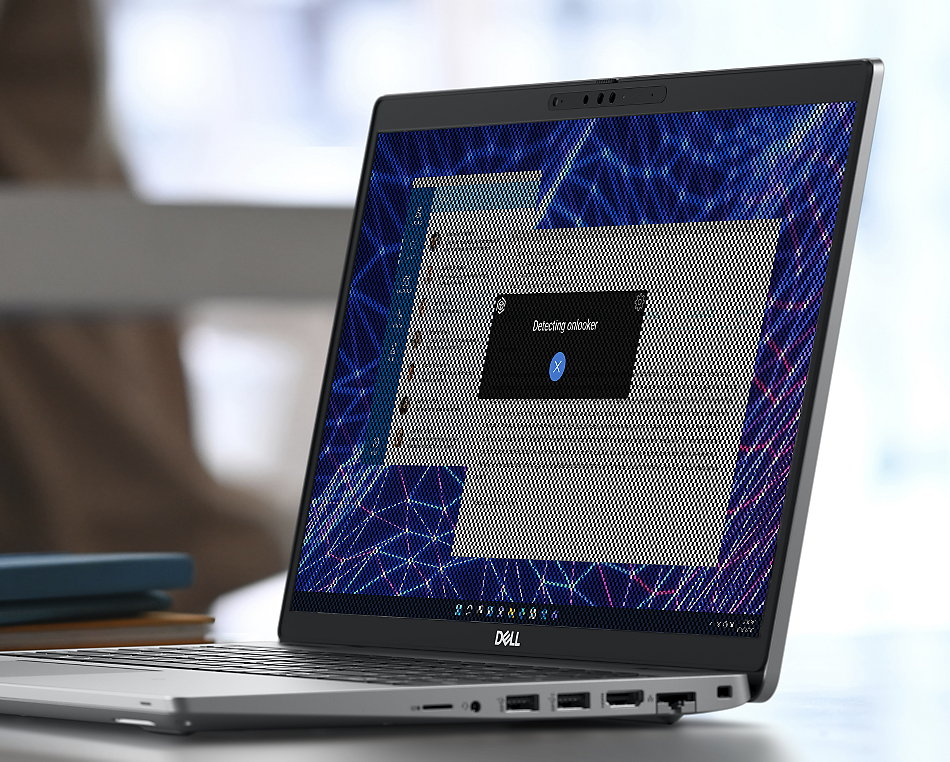

Intelligent Privacy Onlooker detection notifies you when someone is peering at your screen and will texturize your screen. Look Away Detect knows when your focus is elsewhere and dims to further protect privacy and save battery life. Enhanced Camera Look great on every video call with improved FHD IR camera options. Available Temporal Noise Reduction enhances image quality in any light. ExpressSign-In A camera-based proximity sensor wakes your system on approach and locks when you walk away. Intelligent Audio Artificial intelligence improves audio and voice quality and adjusts for different environments. Neural Noise Cancellation eliminates unwanted background noise as well as the background noise of the participants on your call.

Performance perfected

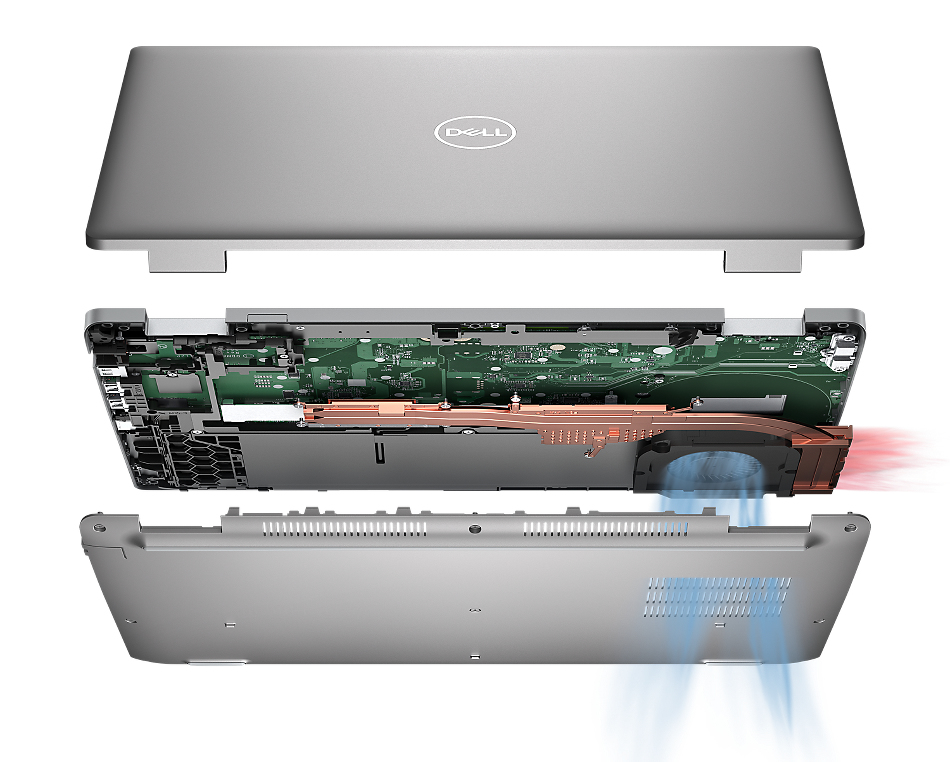

ExpressResponse Based on user behavior, ExpressResponse prioritizes your CPU to improve the performance of the apps you’re currently using. Cool under pressure New larger dual opposite outlet fan with optimized venting and other thermal improvements keep your system cool even when working with multiple applications. We offer the broadest range of settings so you can finely tune for the perfect balance of performance, cooling and battery run time Power for every project Enable maximum productivity in more places with 12th Gen Intel®️ up to Core™️ i7 U-series processors and available Intel vPro®. Storage and memory to spare With up to 64GB DDR4 memory and up to 2TB SSD storage or up to 4TB with dual SSD, no project is too big.

Our most sustainable Latitude portfolio: Working toward our goals, so you can meet yours

New 100% recycled or renewable packaging Packaging that looks good and feels good. The first design to meet our 2030 moonshot goals. Dell’s 1st PCs made with bio-based materials Our 5000 Series were the 1st PCs in the world made with tree-based bioplastic. The lid contains 21% bioplastic, 30% recycled plastic and 20% reclaimed carbon fiber. We also added 39% bio-based rubber bumpers. Innovating with even more recycled material The new Latitude 5000 series have the world's most innovative use of sustainable materials in mainstream business laptops, featuring recycled plastics, recycled carbon fiber, bio-based materials, and ocean bound plastics. Recycling e-waste Help us in our mission to make our products with at least 50% recycled or renewable content. Send your e-waste (old electronics of any brand) to us for recycling or reuse in support of a circular economy.

A screen for productivity

Easy on the eyes Choose the bright 400 nit super low power panel for long battery run time, featuring ComfortView Plus low blue light technology to reduce eye strain for all day working. Expansive screen in a small footprint The world’s smallest 15” mainstream business laptop also has impressive screen to body ratio.

Product Properties

Manufacturer
Dell

Model
NKPX1

EAN
5397184729403

Audio

Audio chip
Realtek ALC3204

Audio system
MaxxAudio Pro

Built-in microphone
Y

Number of built-in speakers
2

Number of microphones
2

Speaker power
2 W

Speakers manufacturer
Waves

Battery

Battery capacity
58 Wh

Battery charge indicator
Y

Battery recharge time
4 h

Battery technology
Lithium-Ion (Li-Ion)

Battery voltage
7.6 V

Battery weight
230 g

Number of battery cells
4

Bullet points

Point
39.6 cm (15.6") Full HD 1920 x 1080 WVA

8GB (3200MHz) DDR4-SDRAM (1 x 8) & 256GB SSD

Intel Core i5-1235U (12MB Cache)

Windows 10 Pro 64-bit

Camera

Front camera
Y

Front camera HD type
Full HD

Front camera resolution
1920 x 1080 pixels

Front camera resolution (numeric)
0.92 MP

Infrared (IR) camera
Y

Video capturing speed
30 fps

Design

Form factor
Clamshell

Intel® vPro™ Platform Eligibility
Y

Market positioning
Business

Product colour
Grey

Product type
Notebook

Display

Anti-glare screen
Y

Colour gamut
45%

Contrast ratio (typical)
700:1

Display brightness
250 cd/m²

HD type
Full HD

LED backlight
Y

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
WVA

Pixel density
141 ppi

RGB colour space
NTSC

Screen Resolution
1920 x 1080 pixels

Screen Size
39.6 cm (15.6")

Touchscreen
N

Graphics

Discrete graphics card
N

Discrete graphics card model
Not available

On-board graphics card
Y

On-board graphics card model
Intel Iris Xe Graphics

Keyboard

Keyboard backlit
Y

Keyboard language
UK English

Keyboard number of keys
100

Numeric keypad
Y

Pointing device
SinglePoint

Logistics data

Harmonized System (HS) code
84713000

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Single-channel

Memory clock speed
3200 MHz

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
64 GB

Memory slots
2x SO-DIMM

Non-ECC
Y

Network

Antenna type
2x2

Bluetooth
Y

Bluetooth version
5.2

Ethernet LAN
Y

Ethernet LAN data rates
10,1000,100 Mbit/s

Mobile network connection
N

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi data rate (max)
2400 Mbit/s

Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)

WLAN controller manufacturer
Intel

WLAN controller model
Intel Wi-Fi 6E AX211

Operational conditions

Non-operating altitude
-15.2 - 10668 m

Non-operating shock
160 G

Non-operating vibration
1.3 G

Operating altitude
-15.2 - 3048 m

Operating relative humidity (H-H)
10 - 90%

Operating shock
140 G

Operating temperature (T-T)
0 - 40 °C

Operating vibration
0.66 G

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 65 °C

Packaging content

Cables included
AC

Ports & interfaces

Charging port type
USB Type-C

Combo headphone/mic port
Y

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

HDMI version
2.0

Intel® Thunderbolt 4
Y

PowerShare
Y

Thunderbolt 4 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB Power Delivery
Y

USB Type-C DisplayPort Alternate Mode
Y

Power

AC adapter frequency
50 - 60 Hz

AC adapter input voltage
100 - 240 V

AC adapter power
65 W

USB charging current
3.25 A

USB charging voltage
20,5,9,15 V

Processor

Configurable TDP-down
12 W

Number of Cores
10

Processor
i5-1235U

Processor boost frequency
4.4 GHz

Processor cache
12 MB

Processor family
Intel® Core™ i5

Processor generation
12th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Embedded options available
N

Execute Disable Bit
Y

Intel Flex Memory Access
Y

Intel Trusted Execution Technology
Y

Intel Virtualization Technology (VT-x)
Y

Intel Virtualization Technology for Directed I/O (VT-d)
Y

Intel VT-x with Extended Page Tables (EPT)
Y

Security

Cable lock slot
Y

Fingerprint reader
Y

Password protection
Y

Trusted Platform Module (TPM)
Y

Trusted Platform Module (TPM) version
2.0

Software

Operating system architecture
64-bit

Operating system installed
Windows 10 Pro

Operating system language
Multilingual

Trial software
No Microsoft Office License Included 30 day Trial Offer Only

Windows 11 free upgrade
Y

Storage

Card reader integrated
Y

Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC

Number of SSDs installed
1

NVMe
Y

Optical drive type
N

SSD capacity
256 GB

SSD form factor
M.2

SSD interface
NVMe, PCI Express

SSD performance class
35

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Weight & dimensions

Depth
233.3 mm

Height (front)
2.08 cm

Height (rear)
2.21 cm

Weight
1.59 kg

Width
357.8 mm

DELL Latitude 5530 i5-1235U Notebook 39.6 cm (15.6") Full HD Intel® Core™ i5 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 10 Pro Grey
