DELL PowerConnect S3124F Managed L2/L3 None 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-AIMS

DELL PowerConnect S3124F Managed L2/L3 None 1U Black

Manufacturer:
Dell
DELL PowerConnect S3124F, Managed, L2/L3, None, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL PowerConnect S3124F. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: None, Installed SFP+ modules quantity: 24. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE.... Rack mounting, Form factor: 1U
  • Dell Networking S3124
  • 24 RJ45 10/100/1000Mb auto-sensing ports
  • Two integrated 10GbE SFP+ ports
  • Two GbE combo media ports for copper or fiber flexibility
  • Two dedicated rear stacking ports
  • One hot-swap expansion module bay
  • One hot-swap power supply (200W AC)
  • Dual hot-swap power supply bays (optional power supply available)

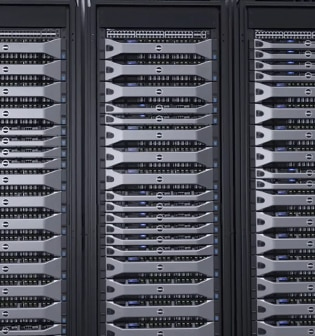

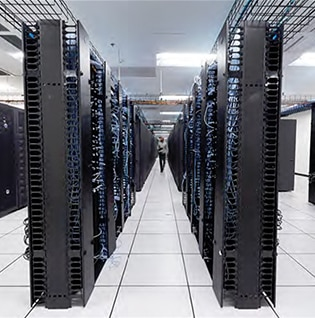

Data-center-optimized, high-performance 1GbE switches
Data-center-optimized, high-performance 1GbE switches
Optimized for high-performance data center environments, Dell Networking S-Series 1GbE switches: Deliver low latency, superb performance and high density with hardware and software redundancy Offer Active Fabric designs using S- or Z-Series core switches to create a two-tier, 1/10/40 GbE data center network architecture Provide ideal solutions for ToR applications in enterprise, Web 2.0 and cloud service providers’ data center networks
Optimized for the open networking era
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches. Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center. Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems. Your choice of network operating system helps simplify data-center fabric orchestration and automation. A broad ecosystem of applications and tools, open-source and Linux-based, provides more options to optimize and manage your network.
Built for cost-effective deployment
Built for cost-effective deployment
Select S-Series Managed 1/10GbE switches are supported by the Dell Open Automation Framework, a suite of interrelated network management tools that can be used together or independently to provide a flexible, available and manageable network while helping reduce operational expenses. The Open Automation Framework takes full advantage of Dell Networking Operating System OS9 software capabilities to bring network automation into virtual data center environments. This helps the S-Series switches efficiently respond and adapt to changes in application requirements.

Product Properties

  • Model
  • 210-AIMS
  • Bullet points
  • Point
  • 24 RJ45 10/100/1000Mb auto-sensing ports
    Dell Networking S3124
    Dual hot-swap power supply bays (optional power supply available)
    One hot-swap expansion module bay
    One hot-swap power supply (200W AC)
    Two dedicated rear stacking ports
    Two GbE combo media ports for copper or fiber flexibility
    Two integrated 10GbE SFP+ ports
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Error
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Management features
  • Configuring Location Settings (CLI)
  • Y
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 85%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Other features
  • Dell E-Value Code
  • DNS3124F
  • Ports & interfaces
  • Installed SFP+ modules quantity
  • 24
  • SFP+ module slots quantity
  • 1
  • Switch Port Speed
  • None
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Security
  • Supports separation
  • PoE+
