DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-AEDP

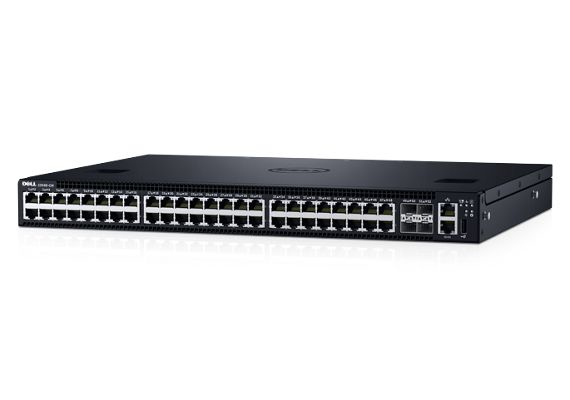

DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

Manufacturer:
Dell
DELL S-Series Networking S3048-ON with reversed Air-Flow, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL S-Series Networking S3048-ON with reversed Air-Flow. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 80000 entries, Switching capacity: 260 Gbit/s. Networking standards: IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... Rack mounting, Form factor: 1U
  • 1RU, 260Gbps, 131Mpps
  • 48 x 1GbE, 4 x SFP+ 10GbE
  • OS9

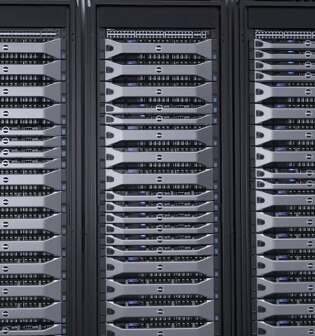

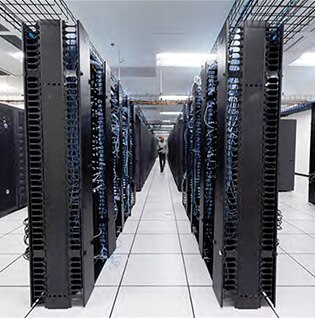

Data-center-optimized, high-performance 1GbE switches
Data-center-optimized, high-performance 1GbE switches
Optimized for high-performance data center environments, Dell Networking S-Series 1GbE switches: - Deliver low latency, superb performance and high density with hardware and software redundancy - Offer Active Fabric designs using S- or Z-Series core switches to create a two-tier, 1/10/40 GbE data center network architecture - Provide ideal solutions for ToR applications in enterprise, Web 2.0 and cloud service providers’ data center networks
Optimized for the open networking era
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches. - Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center. - Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems. - Your choice of network operating system helps simplify data-center fabric orchestration and automation. - A broad ecosystem of applications and tools, open-source and Linux-based, provides more options to optimize and manage your network.
Built for cost-effective deployment
Built for cost-effective deployment
Select S-Series Managed 1/10GbE switches are supported by the Dell Open Automation Framework, a suite of interrelated network management tools that can be used together or independently to provide a flexible, available and manageable network while helping reduce operational expenses. The Open Automation Framework takes full advantage of Dell Networking Operating System OS9 software capabilities to bring network automation into virtual data center environments. This helps the S-Series switches efficiently respond and adapt to changes in application requirements.
Dell EMC PowerSwitch S3048-ON
Dell EMC PowerSwitch S3048-ON
Accelerate applications in high-performance environments with a low-latency ToR switch that features 48 x 1GbE and 4 x 10GbE ports, a dense 1U design and up to 260Gbps performance. The S3048-ON also supports Open Network Installation Environment (ONIE) for zero-touch installation of alternate network operating systems.

Product Properties

  • Model
  • 210-AEDP
  • Bullet points
  • Point
  • 1RU, 260Gbps, 131Mpps
    48 x 1GbE, 4 x SFP+ 10GbE
    OS9
  • Data transmission
  • Forwarding rate
  • 131 Mpps
  • Latency (1 Gbps)
  • 3.7 µs
  • Latency (10 Gbps)
  • 1.8 µs
  • MAC address table
  • 80000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 4 MB
  • Switching capacity
  • 260 Gbit/s
  • Design
  • Certification
  • ASNZS CISPR 22, ICES-003, EN 55022, VCCI V3, EN300 386 V1.4.1, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, RoHS
  • Form factor
  • 1U
  • LED indicators
  • Y
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Safety
  • UL/CSA 60950-L, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FDA 21 CFR 1040.10/1040.11
  • Stackable
  • Y
  • Ventilation system
  • Back-to-front airflow
  • Management features
  • MIB support
  • Y
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • System event log
  • Y
  • Web-based management
  • Y
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Copper ethernet cabling technology
  • 1000BASE-T,1000BASE-TX,100BASE-T
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Routing entries
  • 16000
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 290 BTU/h
  • Operating altitude
  • 0 - 3048 m
  • Operating relative humidity (H-H)
  • 5 - 85%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Built-in processor
  • Y
  • Internal memory
  • 2048 MB
  • Noise level
  • 36 dB
  • Physical stacking (units)
  • 6
  • Ports & interfaces
  • Console port
  • RJ-45
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 90 - 264 V
  • Input current
  • 1 A
  • Number of power supply units
  • 1
  • Power consumption (max)
  • 87 W
  • Power consumption (typical)
  • 65 W
  • Power supply included
  • Y
  • Redundant power supply (RPS) support
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • Management protocols
  • SMIv1, SMIv2, SNMPv1, SNMPv2, SNMPv3, OSPF, OSPFv2, OSPFv3, IGMPv1, IGMPv2, IGMPv3, RMON, RMONv2
  • Supported network protocols
  • IPv4, IPv6, ICMP, ARP, DNS, LLDP, MSTP, RSTP, UDP, TCP, Telnet, FTP, NTPv3, TACACS, CIDR, BOOTP, MLD, MLDv2, RIPv1, RIPv2, OSPFv2, OSPFv3, NSSA, MD5, MSDP, SSH
  • Weight & dimensions
  • Depth
  • 320 mm
  • Height
  • 44 mm
  • Weight
  • 5.84 kg
  • Width
  • 434 mm
