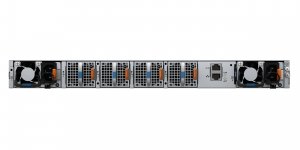

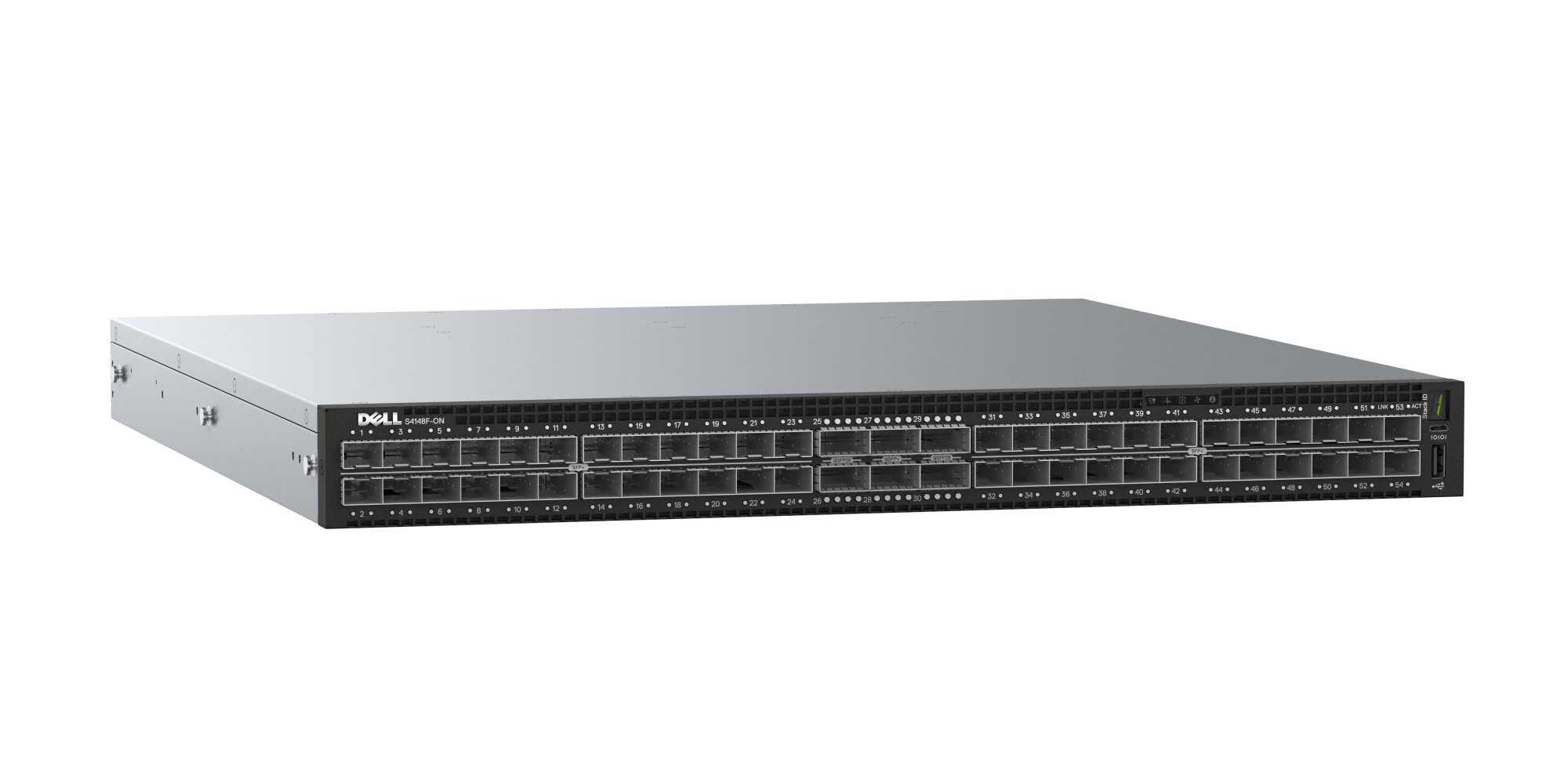

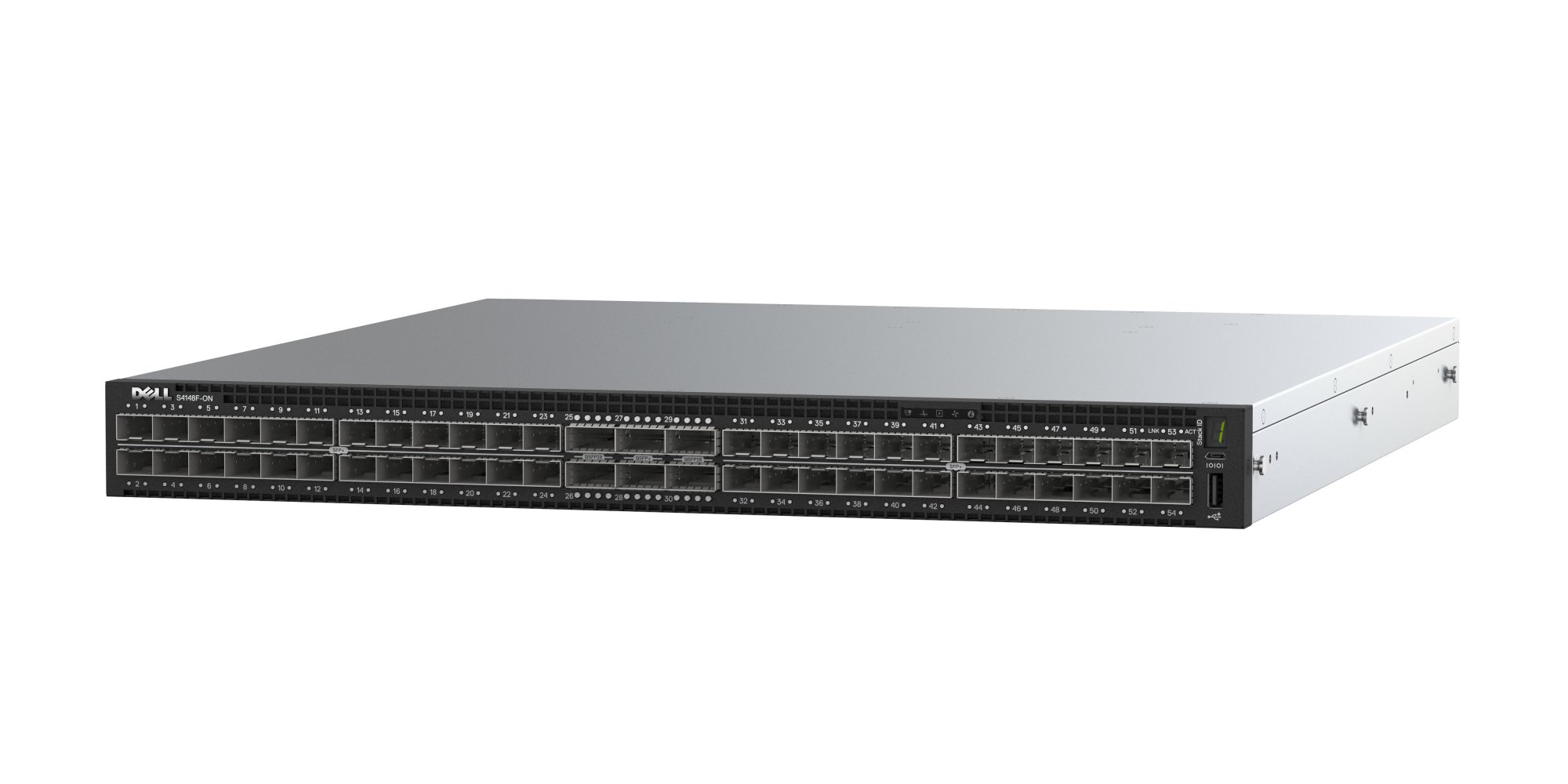

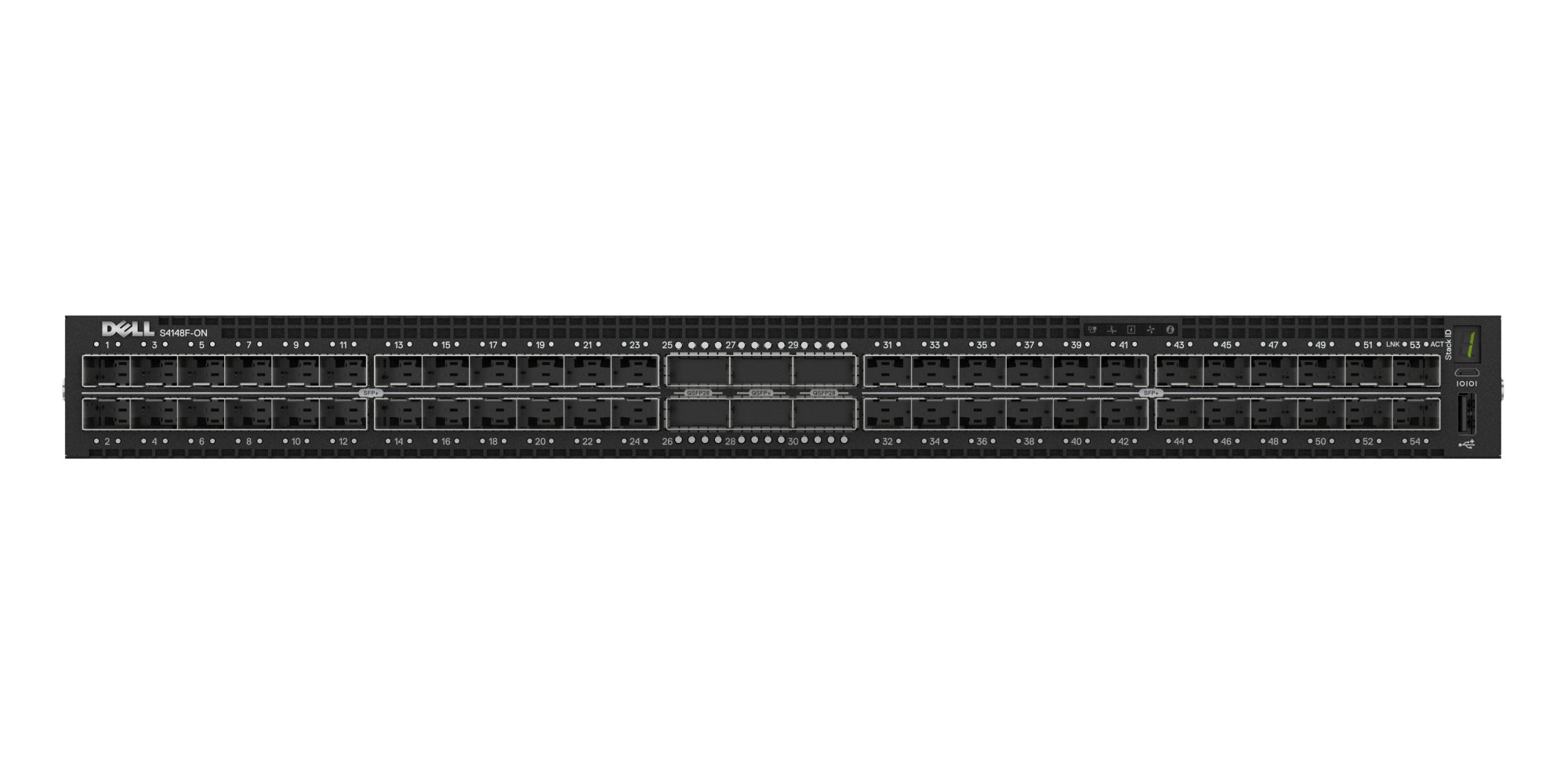

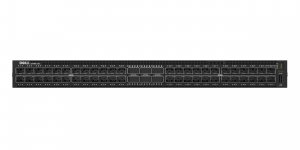

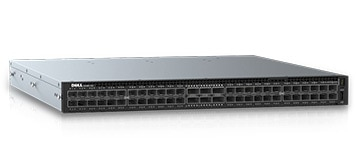

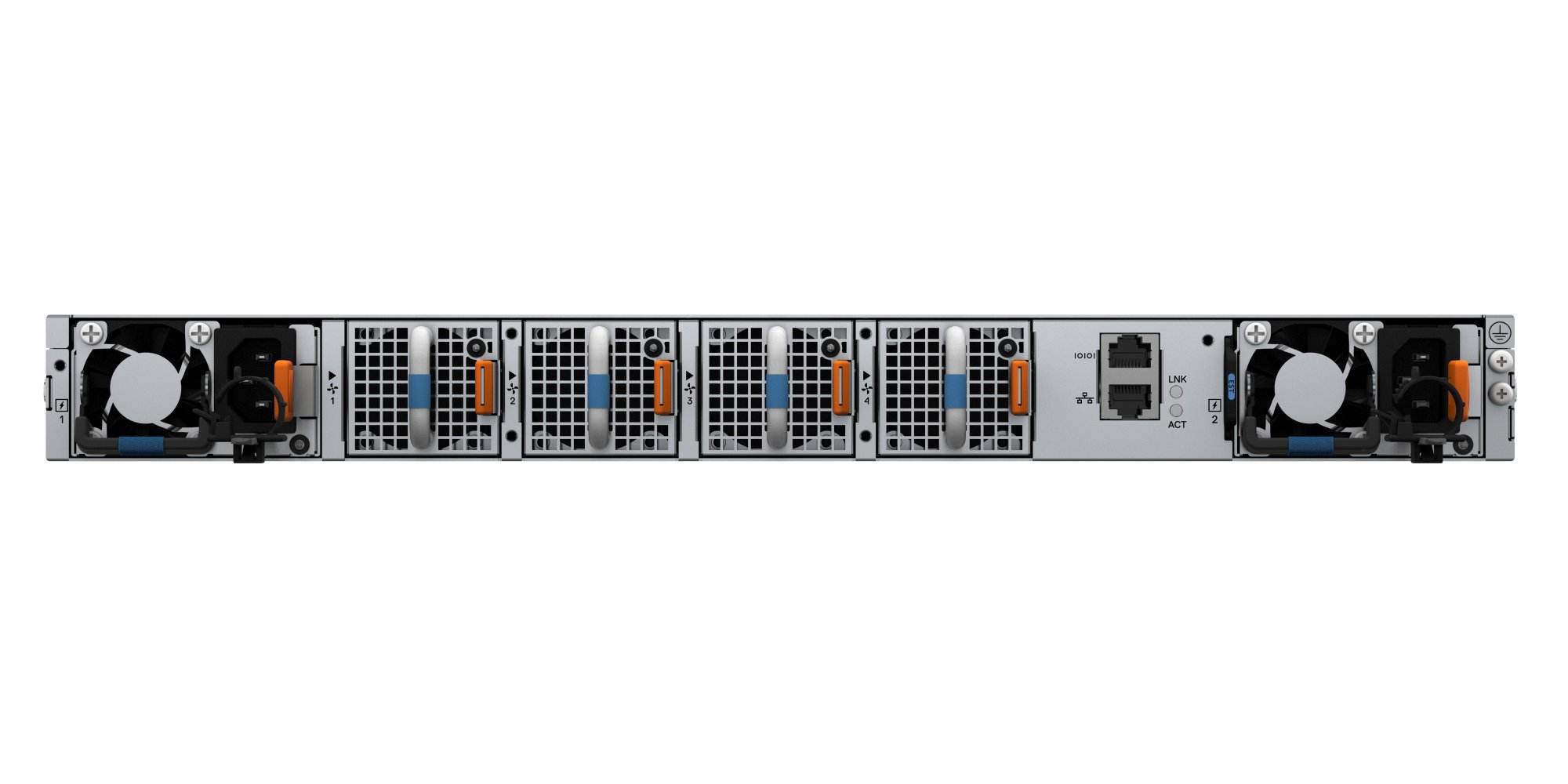

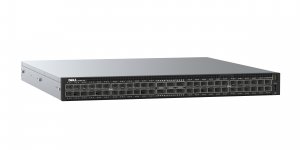

DELL S-Series S4148F-ON Managed L2/L3 None 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-ALSI
EAN: 5397184219645

DELL S-Series S4148F-ON Managed L2/L3 None 1U Black

Manufacturer:
Dell
DELL S-Series S4148F-ON, Managed, L2/L3, None, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL S-Series S4148F-ON. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: None, USB 2.0 ports quantity: 1, Console port: RJ-45/Micro-USB. MAC address table: 272000 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.3. Power connector: AC-in jack. Rack mounting, Form factor: 1U
  • 1U, L2/L3, 1760Gbits, 1320 Mpps
  • 48 x 10GbE SFP+, 4 x QSFP28, 2 x QSFP+,
  • OS10
Dell EMC: Open Networking Switch Market Leader
Dell EMC: Open Networking Switch Market Leader
IT Brand Pulse 2019 Networking Brand Leaders
Dell EMC: Open Networking Switch Performance Leader
Dell EMC: Open Networking Switch Performance Leader
IT Brand Pulse 2019 Networking Brand Leaders
Dell EMC: Open Networking Switch Innovation Leader
Dell EMC: Open Networking Switch Innovation Leader
IT Brand Pulse 2019 Networking Brand Leaders
2017 CRN Annual Report Card: SMB Networking Winner
2017 CRN Annual Report Card: SMB Networking Winner
"Dell EMC swept the SMB Networking category this year, claiming all three subcategories." — CRN®

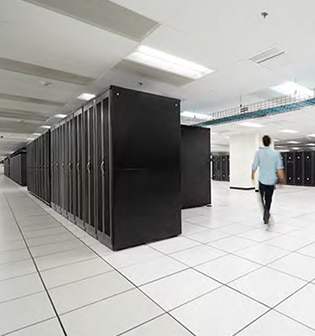

Flexible, powerful 10GbE ToR switches for data centers of all sizes
Flexible, powerful 10GbE ToR switches for data centers of all sizes
Deploy modern workloads and applications designed for the open networking era with an optimized data center top-of-rack (ToR) networking solution that: -Includes the 10GbE S4000-ON Series and S4100-ON Series switches,1/10G BASE-T S4048T-ON, S4128T-ON and S4148T-ON switches, and 10GbE S4148FE, S4248FB-ON, and S4248FLB-ON switch -Delivers low latency, superb performance and high density with hardware and software redundancy -Offers Active Fabric designs using S- or Z-Series core switches to create a two-tier 1/20/40/100GbE data center network architecture -The S4148U-ON has Fibre Channel ports for connections to Storage Area Networks -Provides an ideal solution for applications in high-performance data center and computing environments
Optimized for the open networking era
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches. -Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center. -Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems. -Your choice of network operating system helps simplify data-center fabric orchestration and automation. -A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.
Developed for flexibility
Developed for flexibility
The Dell EMC Networking S-Series 10/40GbE switches offer a family of products that enable you to find the ideal solution for your specific needs. -Line-rate performance from 1/10G BASE-T to 40GbE and port densities from 28 to 48 -Efficient stacking offered in many S-Series models -Industry-hardened and feature-rich operating system for maximum dependability and uptime with select third-party OS options -Full support for iSCSI storage area networks, including DCB

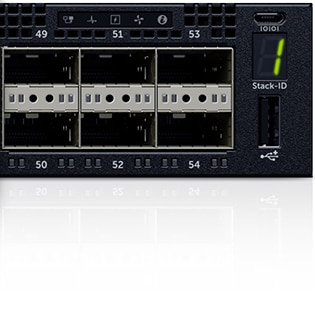

Dell EMC PowerSwitch S4148F-ON
Dell EMC PowerSwitch S4148F-ON
Maximize performance, flexibility and cost-effectiveness with this ToR switch that features 48 x 10GbE SFP+ ports, 2 x 40GbE QSFP+ ports, and 4 x 100GbE QSFP28 ports, and ONIE for zero-touch installation of alternate network operating systems.

Product Properties

  • Model
  • 210-ALSI
  • EAN
  • 5397184219645
  • Bullet points
  • Point
  • 1U, L2/L3, 1760Gbits, 1320 Mpps
    48 x 10GbE SFP+, 4 x QSFP28, 2 x QSFP+,
    OS10
  • Data transmission
  • Jumbo frames
  • 9416
  • Jumbo frames support
  • Y
  • MAC address table
  • 272000 entries
  • Packet buffer memory
  • 12 MB
  • Switching capacity
  • 1760 Gbit/s
  • Throughput
  • 1320 Mpps
  • Design
  • Form factor
  • 1U
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Ventilation system
  • Front-to-back airflow
  • Management features
  • Configuring Location Settings (CLI)
  • Y
  • MIB support
  • IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Flow control support
  • Y
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.3
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 85%
  • Operating temperature (T-T)
  • 5 - 45 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 65 °C
  • Performance
  • Built-in processor
  • Y
  • Internal memory
  • 4000 MB
  • Ports & interfaces
  • Console port
  • RJ-45/Micro-USB
  • Gigabit Ethernet (copper) ports quantity
  • 1
  • Power connector
  • AC-in jack
  • QSFP+ module slots quantity
  • 2
  • SFP+ module slots quantity
  • 48
  • Switch Port Speed
  • None
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 2
  • Power consumption (max)
  • 370 W
  • Power consumption (typical)
  • 200 W
  • Power supply included
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Y
  • Management protocols
  • CLI, SNMP, REST, API’s
  • Weight & dimensions
  • Depth
  • 457 mm
  • Height
  • 44 mm
  • Weight
  • 9.46 kg
  • Width
  • 431 mm
