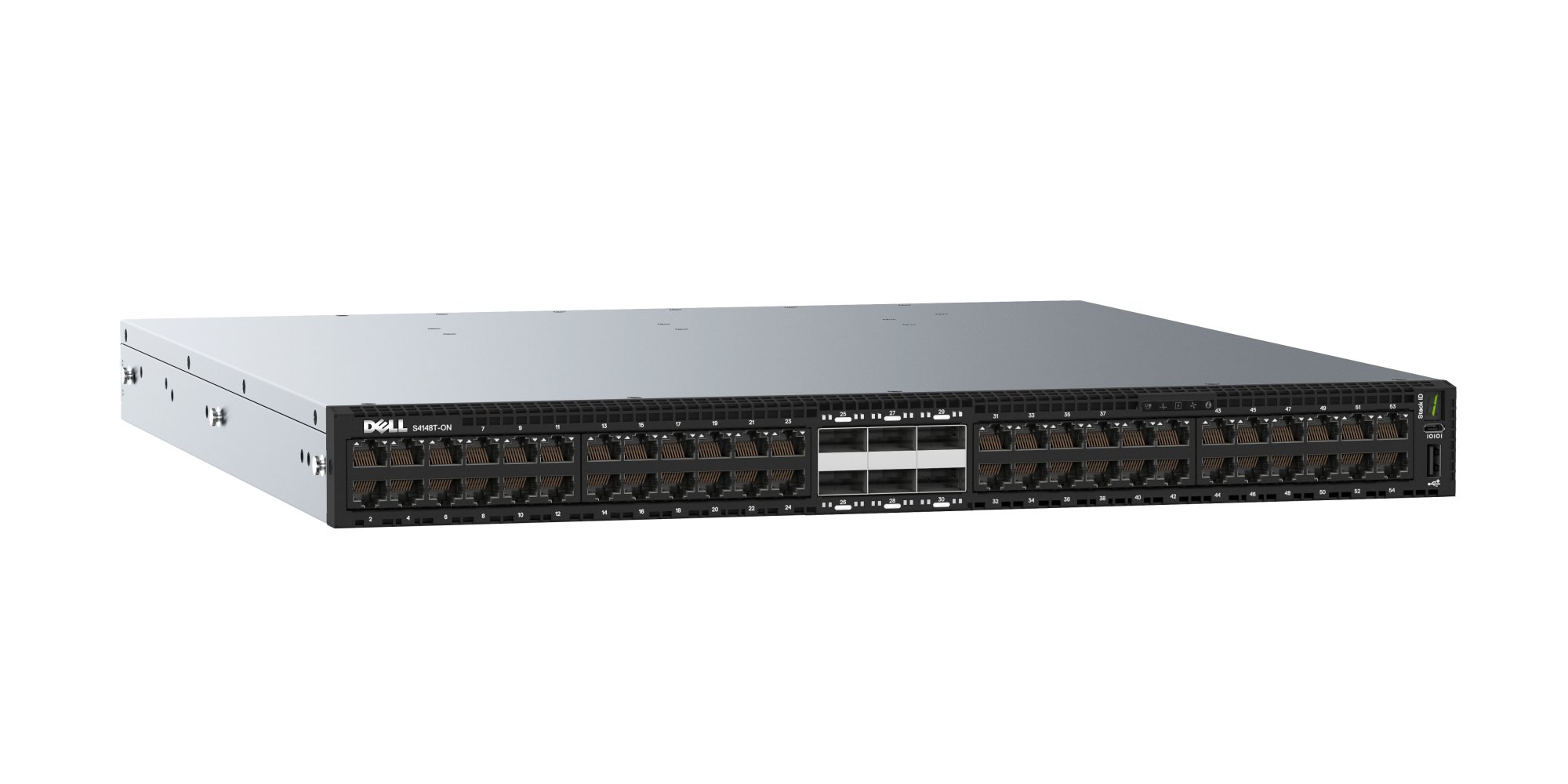

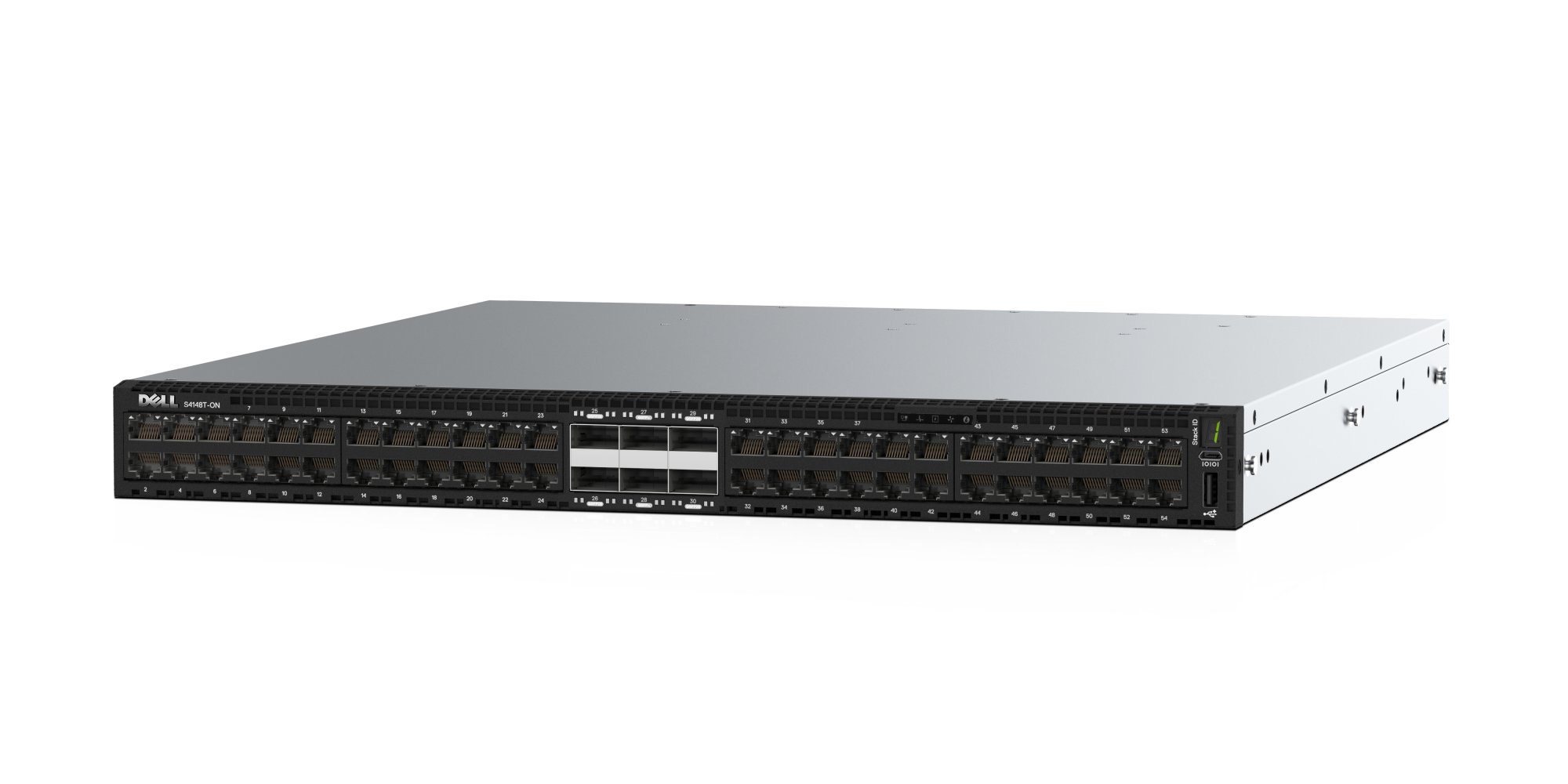

DELL S-Series S4148T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-ALSM

DELL S-Series S4148T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black

Manufacturer:
Dell
DELL S-Series S4148T-ON, Managed, L2/L3, 10G Ethernet (100/1000/10000), 100 Gigabit Ethernet, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL S-Series S4148T-ON. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching optical modules type: 100 Gigabit Ethernet. USB 2.0 ports quantity: 1, Console port: RJ-45/micro-USB. MAC address table: 272000 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

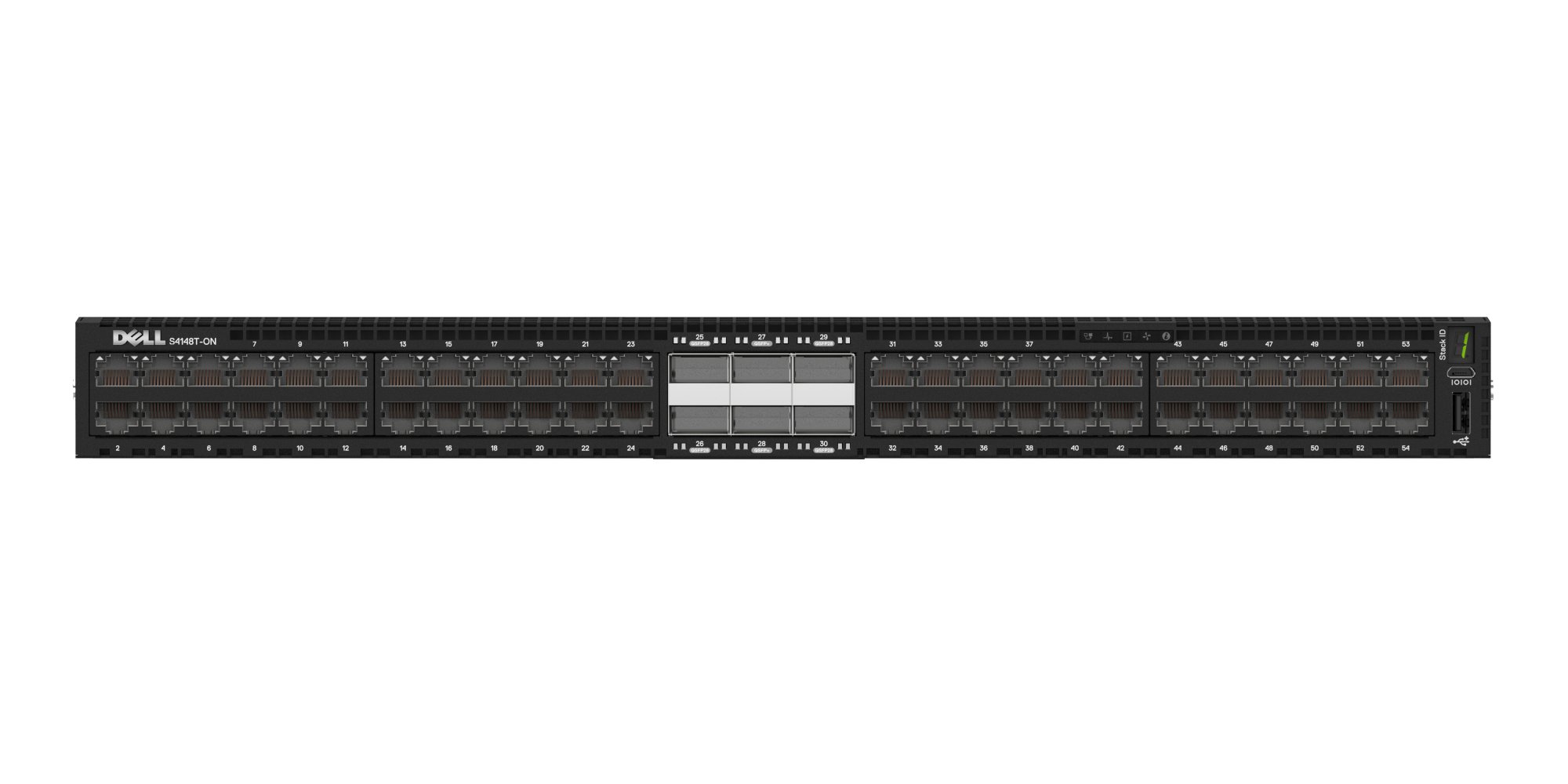

  • 48 x RJ-45

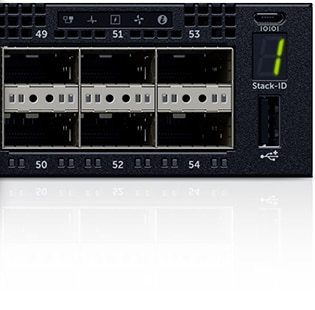

  • 4 x QSFP28
  • 2 x QSFP+
  • OS10
Flexible, powerful 10GbE ToR switches for data centers of all sizes
Flexible, powerful 10GbE ToR switches for data centers of all sizes
Deploy modern workloads and applications designed for the open networking era with an optimized data center top-of-rack (ToR) networking solution that: -Includes the 10GbE S4000-ON Series and S4100-ON Series switches,1/10G BASE-T S4048T-ON, S4128T-ON and S4148T-ON switches, and 10GbE S4148FE, S4248FB-ON, and S4248FLB-ON switch -Delivers low latency, superb performance and high density with hardware and software redundancy -Offers Active Fabric designs using S- or Z-Series core switches to create a two-tier 1/20/40/100GbE data center network architecture -The S4148U-ON has Fibre Channel ports for connections to Storage Area Networks -Provides an ideal solution for applications in high-performance data center and computing environments
Optimized for the open networking era
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches. -Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center. -Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems. -Your choice of network operating system helps simplify data-center fabric orchestration and automation. -A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.
Developed for flexibility
Developed for flexibility
The Dell EMC Networking S-Series 10/40GbE switches offer a family of products that enable you to find the ideal solution for your specific needs. -Line-rate performance from 1/10G BASE-T to 40GbE and port densities from 28 to 48 -Efficient stacking offered in many S-Series models -Industry-hardened and feature-rich operating system for maximum dependability and uptime with select third-party OS options -Full support for iSCSI storage area networks, including DCB

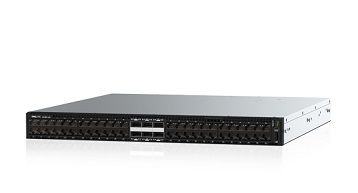

Dell EMC Networking S4148T-ON
Dell EMC Networking S4148T-ON
Achieve maximum density and value for 10 GbE copper terminations to servers and storage devices with this ToR switch, which supports 48 x 10GBase-T ports, 2 x 40GbE QFSP+ ports, 4 x 100GbE QFSP28 ports, and ONIE for zero-touch installation of alternate network operating systems.

Product Properties

  • Model
  • 210-ALSM
  • Bullet points
  • Point
  • 2 x QSFP+
    4 x QSFP28
    48 x RJ-45
    OS10
  • Data transmission
  • MAC address table
  • 272000 entries
  • Packet buffer memory
  • 12 MB
  • Switching capacity
  • 1760 Gbit/s
  • Throughput
  • 1320 Mpps
  • Design
  • Display type
  • LED
  • Form factor
  • 1U
  • LED indicators
  • Y

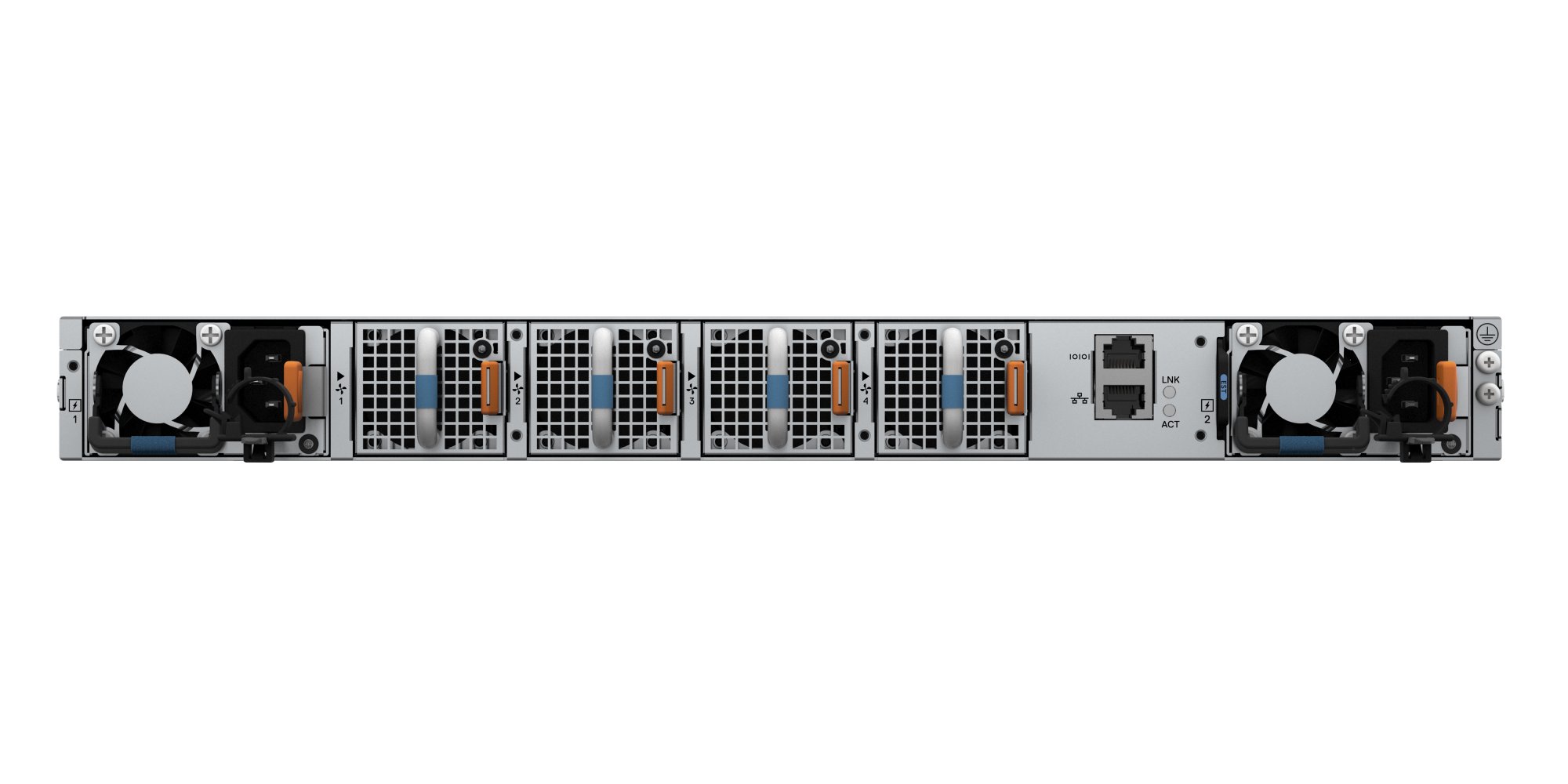

  • Number of fans
  • 4 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Stackable
  • Y
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Address Resolution Protocol (ARP) entries (max)
  • 200000
  • Copper ethernet cabling technology
  • 10GBASE-T
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Port mirroring
  • Y
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 1500 BTU/h
  • Operating relative humidity (H-H)
  • 5 - 85%
  • Operating temperature (T-T)
  • 5 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 65 °C
  • Optical fiber
  • Switching optical modules type
  • 100 Gigabit Ethernet
  • Performance
  • Built-in processor
  • Y
  • Compatible operating systems
  • Debian Linux version 8.4
  • Internal memory
  • 4000 MB
  • List of RFCs
  • IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
  • Minimum system requirements
  • Linux Kernel 3.16
  • Ports & interfaces
  • Console port
  • RJ-45/Micro-USB
  • Fiber optic connector
  • QSFP28
  • Power connector
  • AC-in jack
  • QSFP+ module slots quantity
  • 2
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V

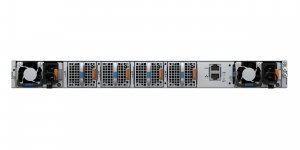

  • Number of power supply units
  • 2
  • Power consumption (max)
  • 440 W
  • Power consumption (typical)
  • 320 W
  • Power supply included
  • Y
  • Redundant power supply (RPS) support
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Y
  • Management protocols
  • CLI, SNMP, REST, API’s
  • Security
  • DHCP features
  • DHCP server,DHCP relay
  • Security algorithms
  • IPSec
  • Weight & dimensions
  • Depth
  • 457 mm
  • Height
  • 44 mm
  • Width
  • 431 mm
