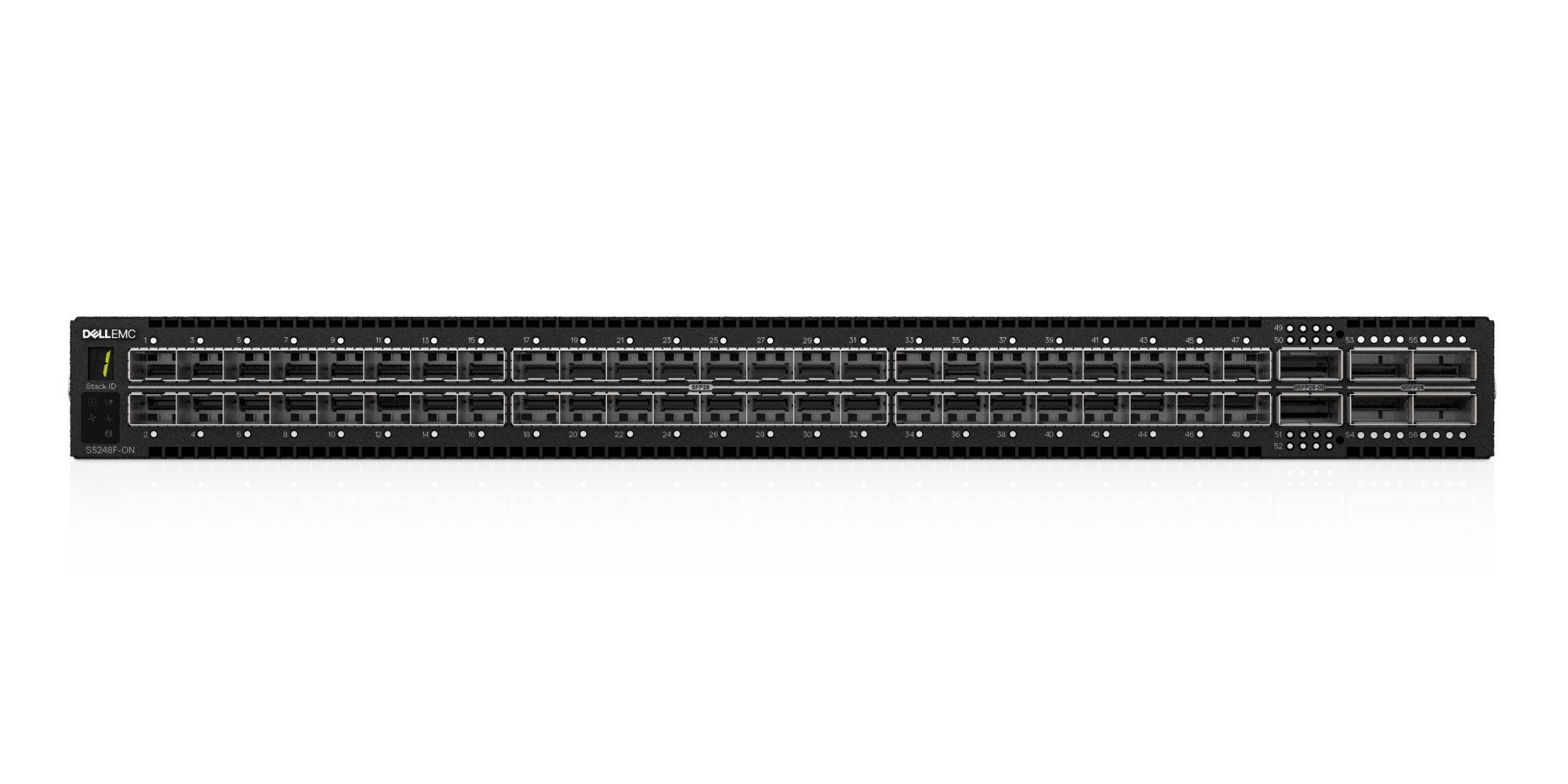

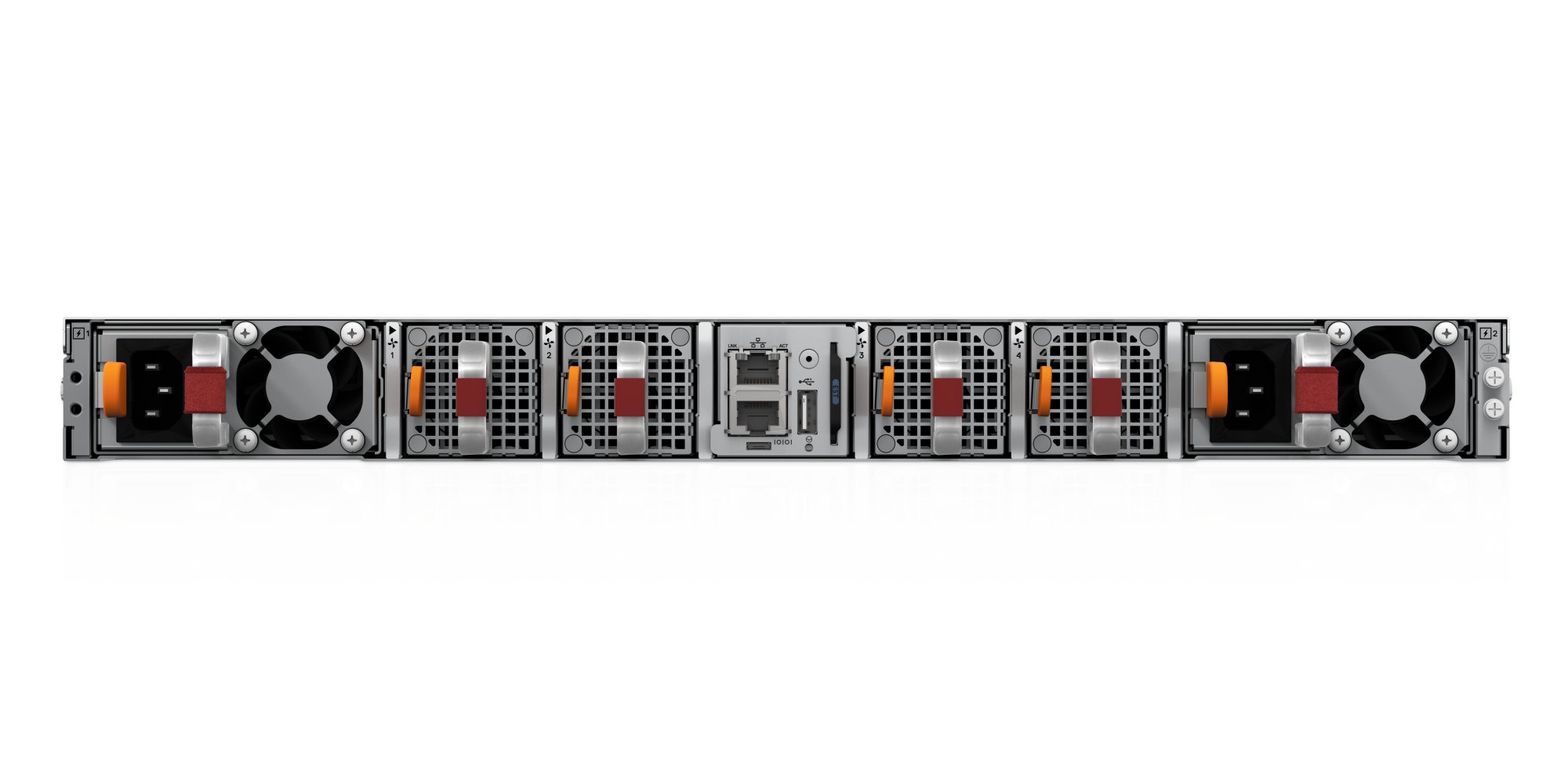

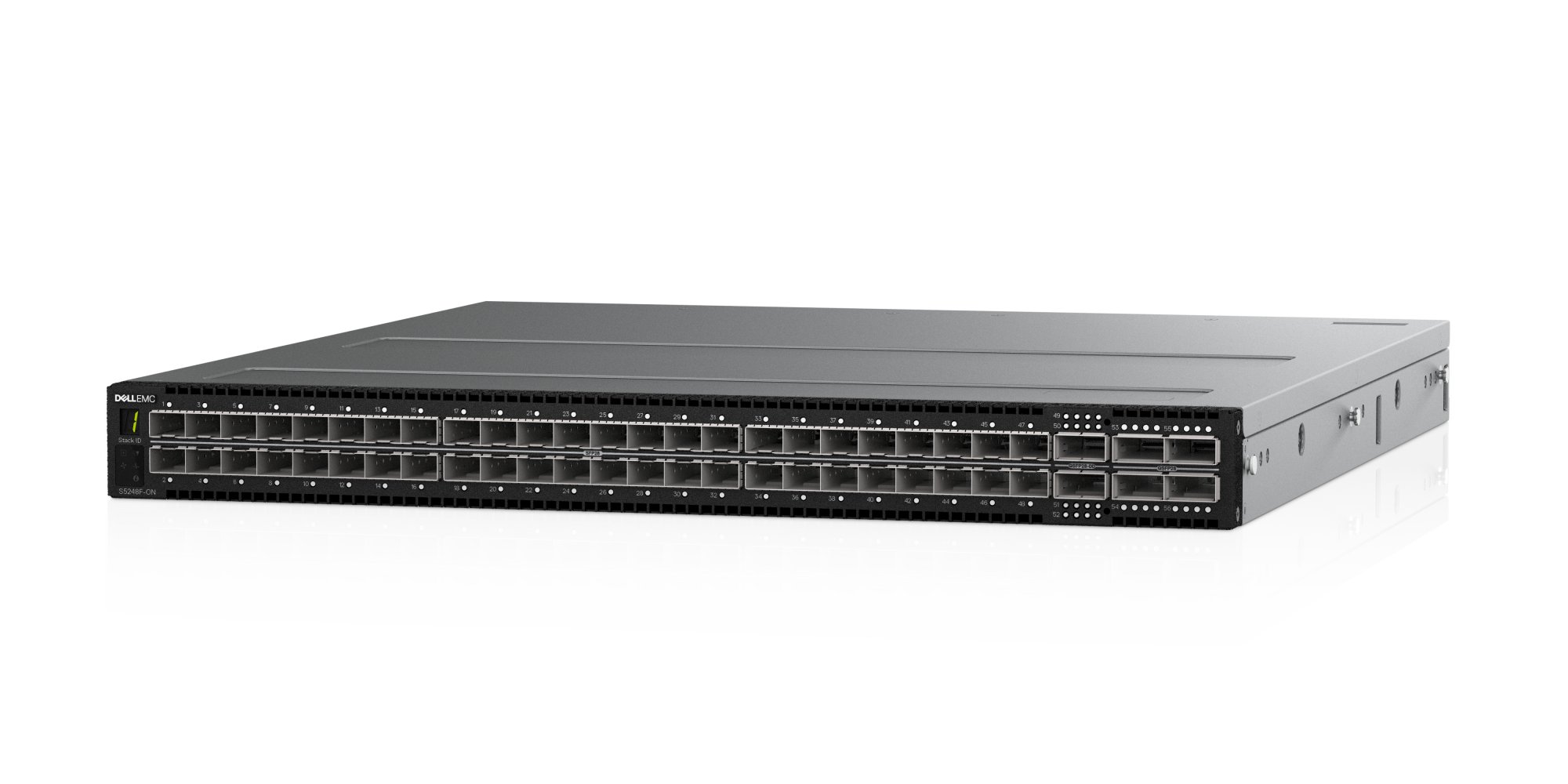

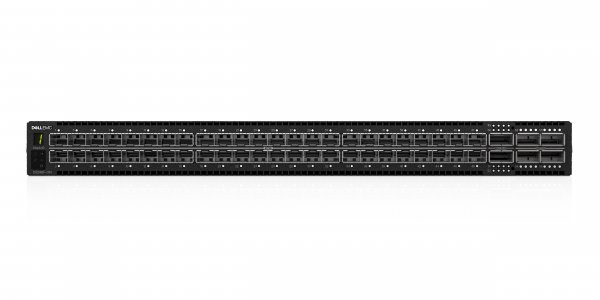

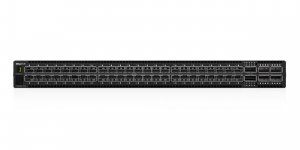

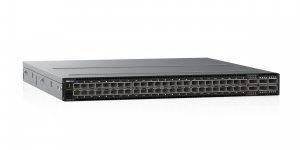

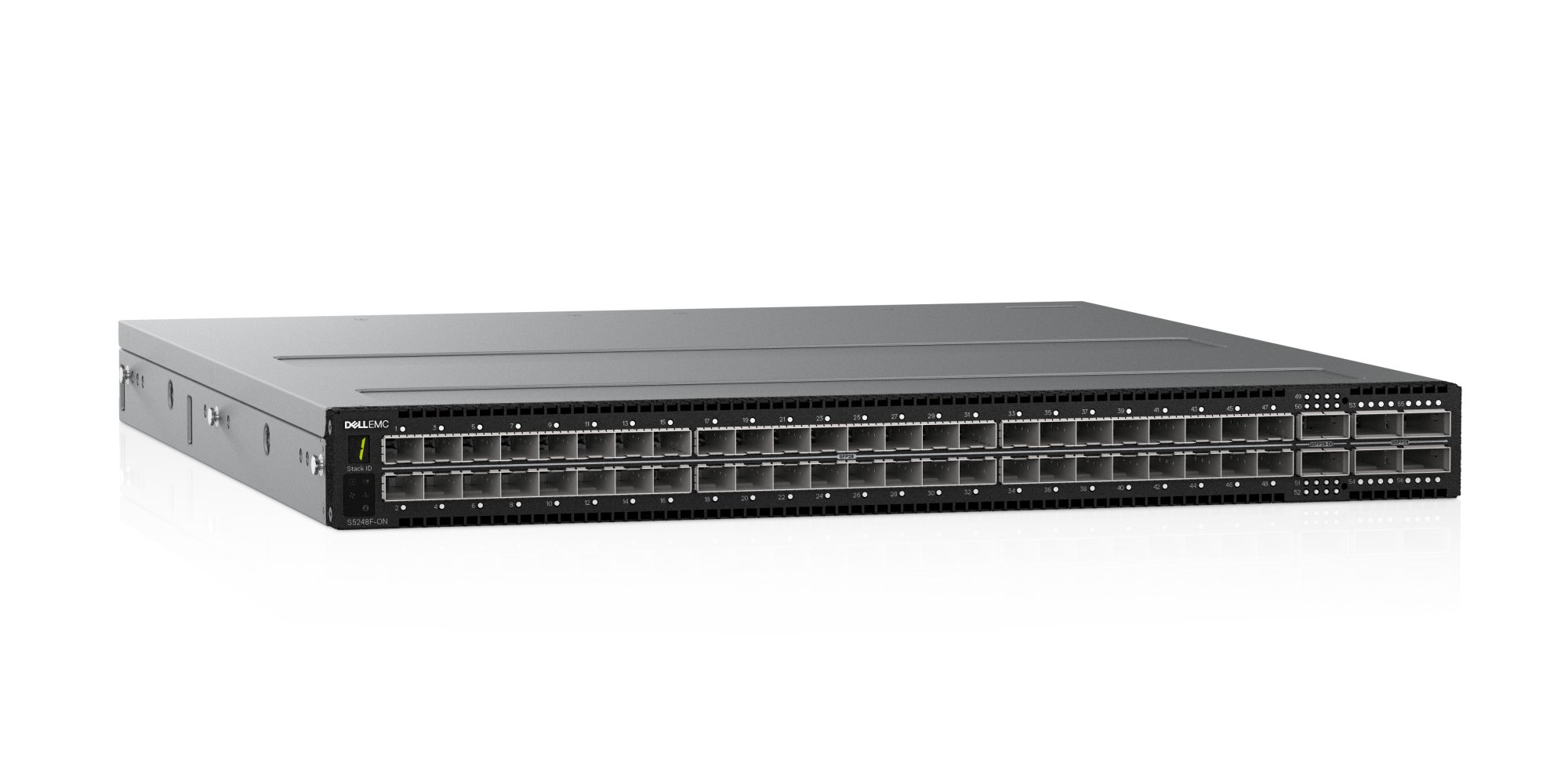

DELL S-Series S5248F-ON Managed L2/L3 None 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-APEX

DELL S-Series S5248F-ON Managed L2/L3 None 1U Black

Manufacturer:
Dell
DELL S-Series S5248F-ON, Managed, L2/L3, None, 100 Gigabit Ethernet, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL S-Series S5248F-ON. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: None. Switching optical modules type: 100 Gigabit Ethernet. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 2000 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
  • 48 x SFP28
  • 4 x QSFP28
  • 2 x QSFP-DD
  • OS10

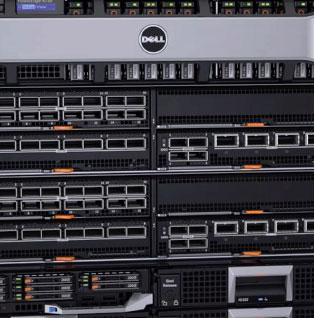

Innovative data center architectural agility with 25/40/50/100GbE switches
Innovative data center architectural agility with 25/40/50/100GbE switches
Gain the flexibility to transform your data centers with high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center. They offer: - High density for 25/40/50/100GbE deployments in top-of-rack, middle-of-row, and end-of-row deployments - A choice of S5048F-ON, S5148F-ON, S5248F-ON, S5296F-ON and S5232F-ON 25 &100GbE, S6000-ON and S6010-ON 40GbE switches and the S6100-ON 10/25/40/50/100GbE modular switch - An ideal solution for modern workloads and applications designed for the open networking era

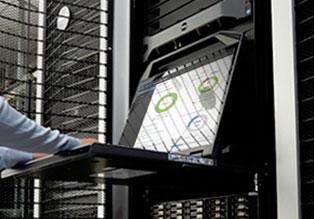

Optimized for the open networking era
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select open-standards-based ON (open networking) switches. - Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center. - Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems. - Your choice of network operating system helps simplify data-center fabric orchestration and automation. - A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.
Ready for software-defined networking
Ready for software-defined networking
Deploy modern workloads and applications while providing an easy on-ramp to software-defined networking (SDN). - Support for OpenFlow v1.3 provides interoperability with industry-standard OpenFlow controllers. - VXLAN Layer 2 Gateway enabling allows connection to hypervisor-based overlay networks. - Third-party OS support provides an easy entry point to SDN for part or all of your production environment.
Dell EMC Networking S5248F-ON
Dell EMC Networking S5248F-ON
Provide optimum flexibility and cost-effectiveness for demanding compute and storage traffic environments with this ToR switch that features 48 x 25GbE SFP28 ports, 4 x 100GbE QSFP28 ports and 2 x 100GbE QFSP28-DD ports. The S5248F-ON also supports Open Network Install Environment (ONIE) for zero-touch installation of network operating systems.

Product Properties

  • Model
  • 210-APEX
  • Bullet points
  • Point
  • 2 x QSFP-DD
    4 x QSFP28
    48 x SFP28
    OS10
  • Data transmission
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 32 MB
  • Switching capacity
  • 2000 Gbit/s
  • Design
  • Backlight display
  • Y
  • Cable management
  • Y
  • Certification
  • RoHS
  • Display type
  • LED
  • Form factor
  • 1U
  • LED indicators
  • Y
  • Number of fans
  • 4 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Stackable
  • Y
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • 10G support
  • Y
  • Address Resolution Protocol (ARP) entries (max)
  • 128000
  • Link aggregation
  • Y
  • Networking standards
  • IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3x
  • Port mirroring
  • Y
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 2054 BTU/h
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Optical fiber
  • Switching optical modules type
  • 100 Gigabit Ethernet
  • Performance
  • Built-in processor
  • Y
  • Compatible operating systems
  • Debian Linux version 9
  • Internal memory
  • 16000 MB
  • List of RFCs
  • IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
  • Minimum system requirements
  • Linux Kernel 4.9
  • Ports & interfaces
  • Console port
  • RJ-45
  • Fiber optic connector
  • QSFP-DD,QSFP28-DD,QSFP28,SFP28
  • Power connector
  • AC-in jack
  • SFP module slots quantity
  • 48
  • Switch Port Speed
  • None
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 2
  • Power consumption (max)
  • 602 W
  • Power consumption (typical)
  • 400 W
  • Power supply included
  • Y
  • Redundant power supply (RPS) support
  • Y
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • Management protocols
  • CLI, SNMP, REST, API’s
  • Security
  • Security algorithms
  • 802.1x RADIUS,AES,EAP
  • Weight & dimensions
  • Depth
  • 460 mm
  • Height
  • 44 mm
  • Weight
  • 9.7 kg
  • Width
  • 434 mm
