Description

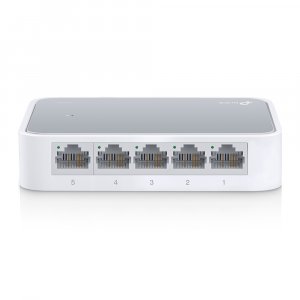

TP-Link 5-Port 10/100Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 68%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SF1005DV14

EAN
6935364083090

Bullet points

Point
5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 68%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop design

Plug and play, no configuration required

Data transmission

MAC address table
1000 entries

Maximum data transfer rate
0.1 Gbit/s

Store-and-forward
Y

Supported data transfer rates
10/100 Mbps

Switching capacity
1 Gbit/s

Design

Certification
FCC, CE, RoHS

Product colour
White

Rack mounting
N

Stackable
N

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
N

Auto MDI/MDI-X
Y

Copper ethernet cabling technology
100BASE-TX, 10BASE-T

Full duplex
Y

Networking standards
IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
6.38 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Other features

Connectivity LEDs
Y

Packaging data

Package depth
91 mm

Package height
85 mm

Package width
108 mm

Ports & interfaces

Power connector
DC-in jack

Switch Number of Ports
5

Switch Port Speed
Fast Ethernet (10/100)

Power

Input current
0.6 A

Input voltage
5 V

Power consumption (max)
1.48 W

Power source
DC

Power supply included
Y

Power over Ethernet (PoE)

Power over Ethernet (PoE)
N

Protocols

Supported network protocols
CSMA/CD, TCP/IP

Weight & dimensions

Depth
69.5 mm

Height
22 mm

Width
103.5 mm
