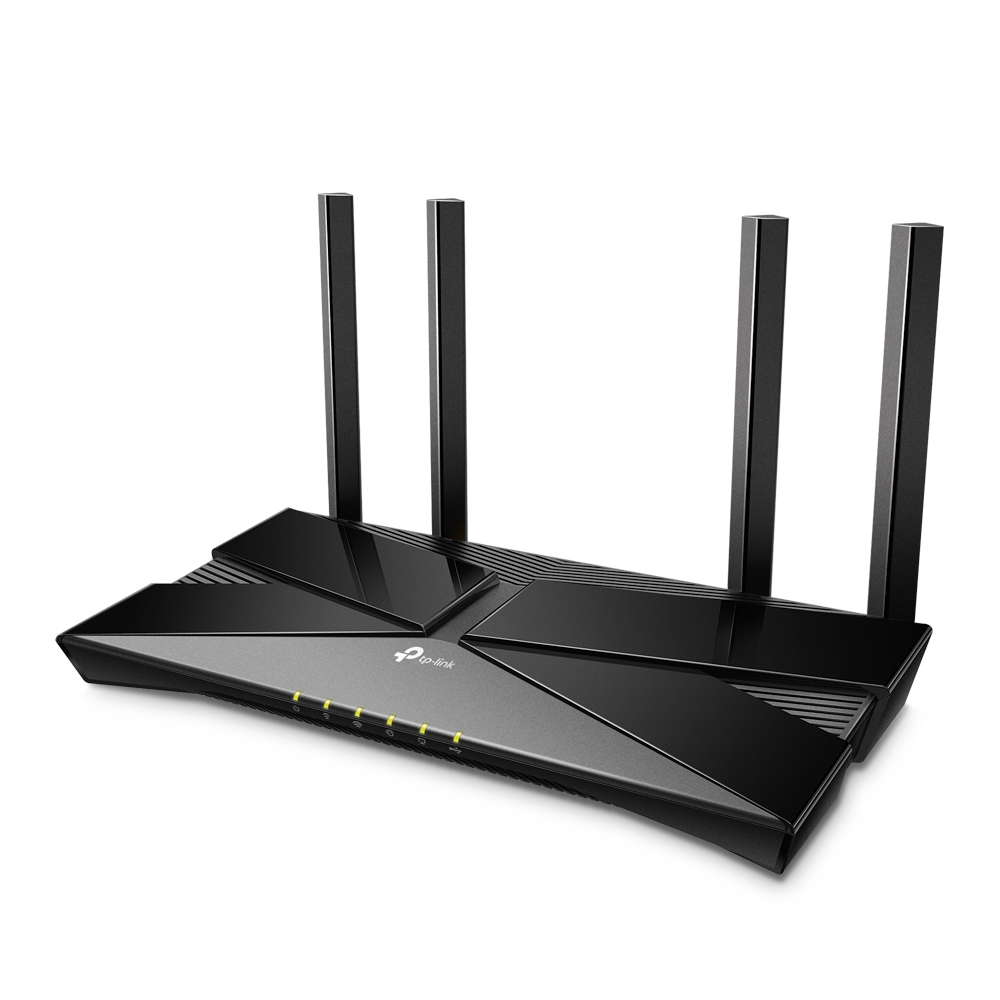

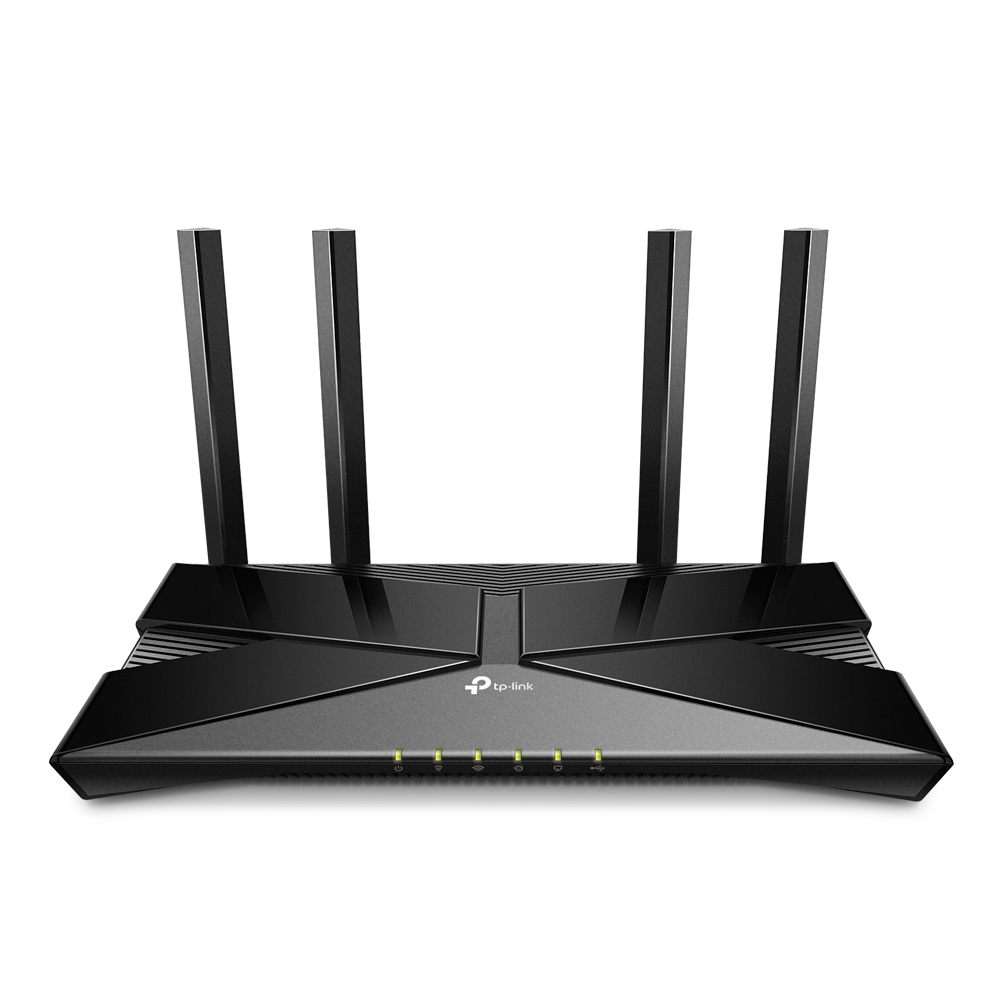

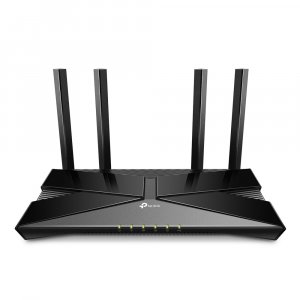

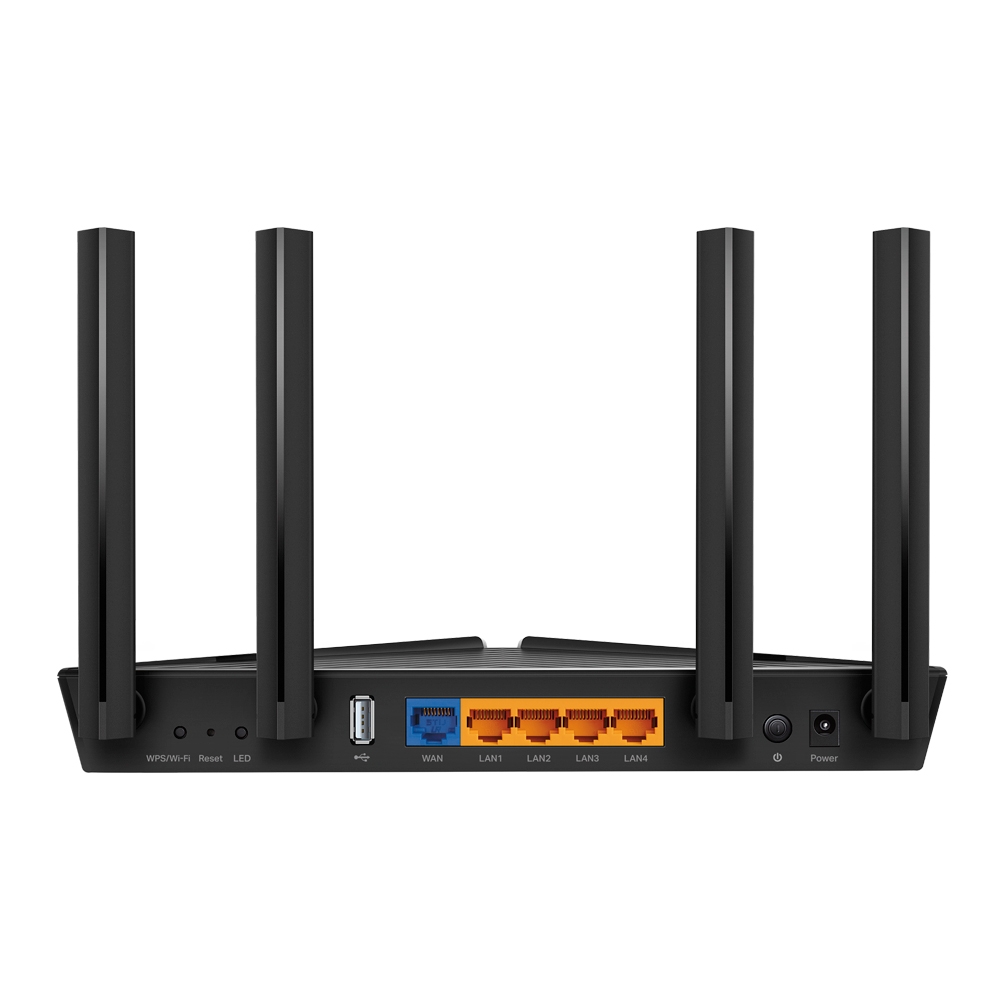

TP-LINK AX1800 Dual-Band Wi-Fi 6 Router
Roll over image to zoom inClick to Open expanded view
Model: ARCHER AX20
EAN: 6935364089771

TP-LINK AX1800 Dual-Band Wi-Fi 6 Router

Manufacturer:
TP-LINK
TP-LINK AX1800 Dual-Band Wi-Fi 6 Router, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router
Please log in to see your price
Related products

Description

TP-LINK AX1800 Dual-Band Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n. Security algorithms: 64-bit WEP,128-bit WEP,WMM,WPA,WPA-PSK,WPA2,WPA2-PSK, NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN, WLAN
  • Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
  • Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.†
  • Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§
  • Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth

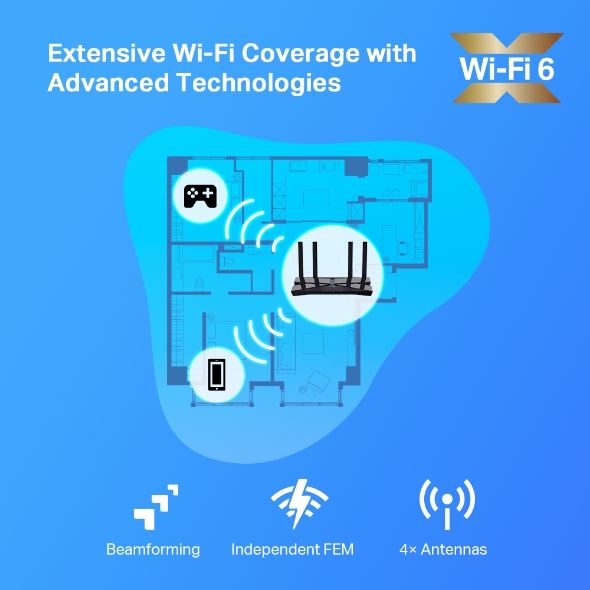

  • Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away
  • Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.‡
  • USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
  • Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices

Product Properties

  • Model
  • ARCHER AX20
  • EAN
  • 6935364089771
  • Antenna
  • Antenna type
  • External
  • Bullet points
  • Point
  • Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices
    Connect More Devices
    Dual-Band Wi-Fi 6
    Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
    Extensive Coverage
    Increased Battery Life
    Next-Gen 1.8 Gbps Speeds
    Quad-Core Processing
    USB Easy Sharing
  • Design
  • LED indicators
  • LAN, Power, WAN, WLAN
  • On/off switch
  • Y
  • Product colour
  • Black
  • Product type
  • Tabletop router
  • Features
  • Built-in processor
  • Y
  • Certification
  • FCC, CE, RoHS
  • Processor frequency
  • 1500 MHz
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Reset button
  • Y
  • Web-based management
  • Y
  • Web-based setup wizard
  • Y
  • WPS push button
  • Y
  • Mobile network
  • 3G
  • N
  • 4G
  • N
  • Network
  • Dynamic DNS (DDNS)
  • Y
  • Ethernet LAN
  • Y
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Ethernet LAN interface type
  • Gigabit Ethernet
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Networking standards
  • IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
  • Port forwarding
  • Y
  • Static route
  • Y
  • Other features
  • Compatible operating systems
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
  • Minimum system requirements
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access)
  • Packaging data
  • AC adapter included
  • Y
  • Cables included
  • LAN (RJ-45)
  • Package depth
  • 240 mm
  • Package height
  • 73 mm
  • Package weight
  • 890 g
  • Package width
  • 330 mm
  • Quick installation guide
  • Y
  • Warranty card
  • Y

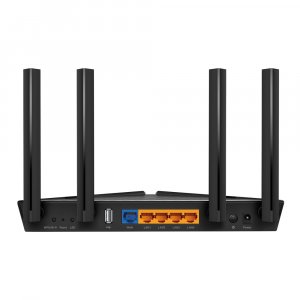

  • Ports & interfaces
  • DC-in jack
  • Y
  • Ethernet LAN (RJ-45) ports
  • 4
  • Memory card slot(s)
  • N
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Y
  • Power
  • Output current
  • 1.5 A
  • Output voltage
  • 12 V
  • Power source type
  • AC
  • Protocols
  • DHCP client
  • Y
  • DHCP server
  • Y
  • Universal Plug and Play (UPnP)
  • Y
  • Security
  • Access Control List (ACL)
  • Y
  • DMZ support
  • Y
  • Guest access
  • Y
  • IP address filtering
  • Y
  • NAT functionality
  • Port Forwarding, Port Triggering, UPnP, DMZ
  • Network address translation (NAT)
  • Y
  • Security algorithms
  • 64-bit WEP,128-bit WEP,WMM,WPA,WPA-PSK,WPA2,WPA2-PSK
  • System event log
  • Y
  • URL filtering
  • Y
  • System requirements
  • Linux operating systems supported
  • Y
  • Mac operating systems supported
  • Y
  • Windows operating systems supported
  • Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows
  • WAN connection
  • 3G/4G USB modem compatibility
  • N
  • DSL WAN
  • N
  • Ethernet WAN
  • Y
  • SIM card slot
  • N
  • WAN connection type
  • RJ-45
  • Weight & dimensions
  • Depth
  • 135 mm
  • Height
  • 38.6 mm
  • Width
  • 260.2 mm
  • Wireless LAN features
  • Top Wi-Fi standard
  • Wi-Fi 6 (802.11ax)
  • Wi-Fi band
  • Dual-band (2.4 GHz / 5 GHz)
  • Wi-Fi standards
  • 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (first band)
  • 574 Mbit/s
  • WLAN data transfer rate (max)
  • 1800 Mbit/s
  • WLAN data transfer rate (second band)
  • 1201 Mbit/s
