Model: EAP650
EAN: 4897098682081

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point

Manufacturer:
TP-LINK
TP-Link AX3000 Ceiling Mount WiFi 6 Access Point, 2976 Mbit/s, 574 Mbit/s, 2402 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x,...
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point. Maximum data transfer rate: 2976 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 2402 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise,..., Service Set Identifier (SSID) features: Multiple SSIDs. Output voltage: 12 V, Output current: 1 A. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5 dBi
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

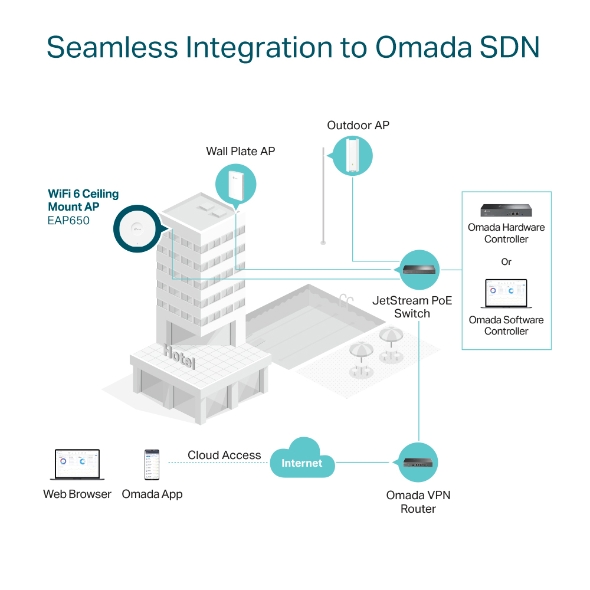

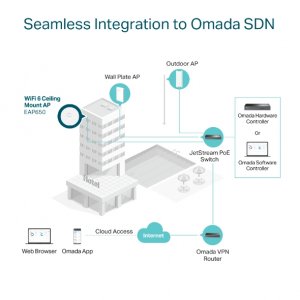

  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.

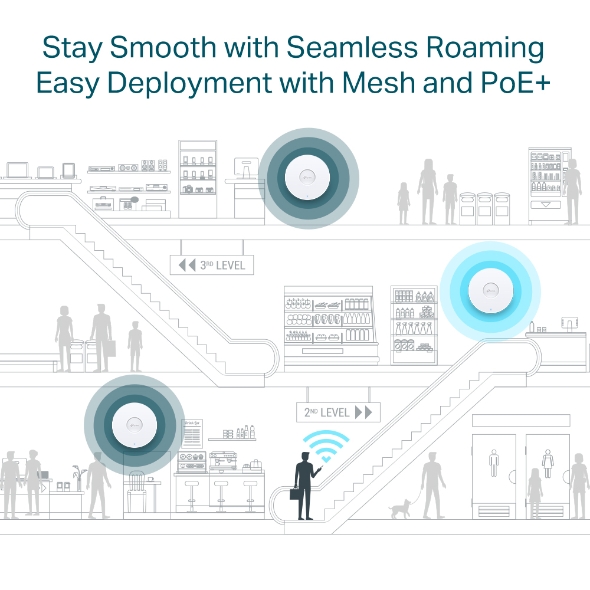

  • Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

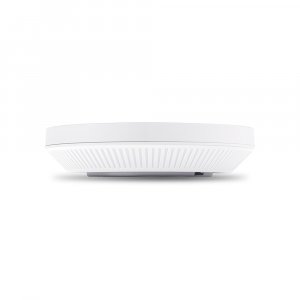

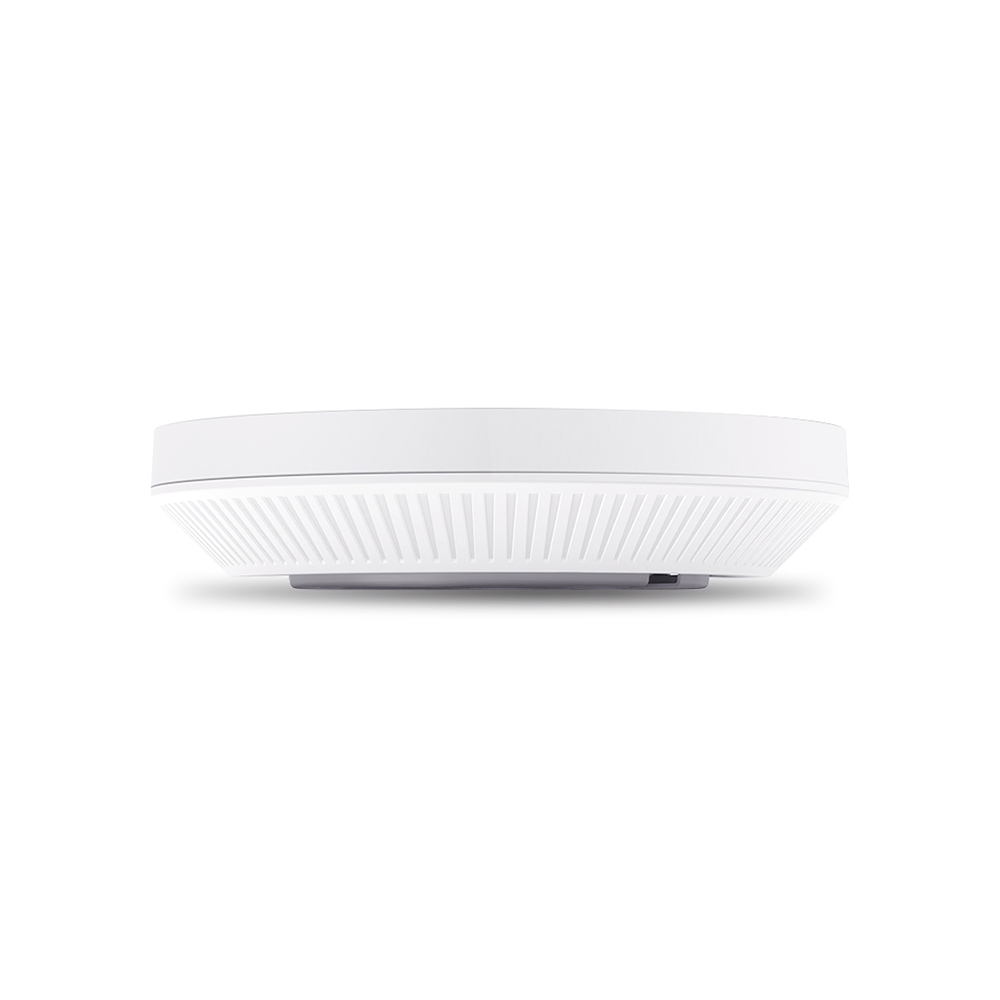

  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

Product Properties

  • Model
  • EAP650
  • EAN
  • 4897098682081
  • Antenna
  • Antenna direction type
  • Omni-directional
  • Antenna gain level (max)
  • 5 dBi
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
    Centralized Cloud Management
    High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
    Omada Mesh
    PoE+ Powered
    Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
    Ultra-Fast WiFi 6 Speeds
    Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
  • Design
  • Certification
  • CE, FCC, RoHS
  • LED indicators
  • Yes
  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Frequency band
  • 2.4 - 5 GHz
  • Maximum data transfer rate
  • 2976 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 574 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 2402 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Modulation
  • 1024-QAM, OFDM
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
  • Quality of Service (QoS) support
  • Yes
  • Rate limiting
  • Yes
  • Spread spectrum method
  • OFDMA
  • Transmitting power (CE)
  • <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)
  • Transmitting power (FCC)
  • <25 dBm (2.4 GHz) <25 dBm (5 GHz)
  • VLAN support
  • Yes
  • Wi-Fi Multimedia (WMM)/(WME)
  • Yes
  • Wireless isolation
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Web-based management
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Number of products included
  • 1 pc(s)
  • Quick start guide
  • Yes
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Power
  • Output current
  • 1 A
  • Output voltage
  • 12 V
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • MAC address filtering
  • Yes
  • Number of SSID supported
  • 16
  • Security algorithms
  • SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
  • Service Set Identifier (SSID) features
  • Multiple SSIDs
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 33.6 mm
  • Width
  • 160 mm
