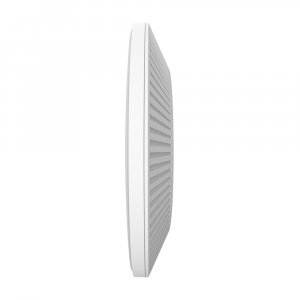

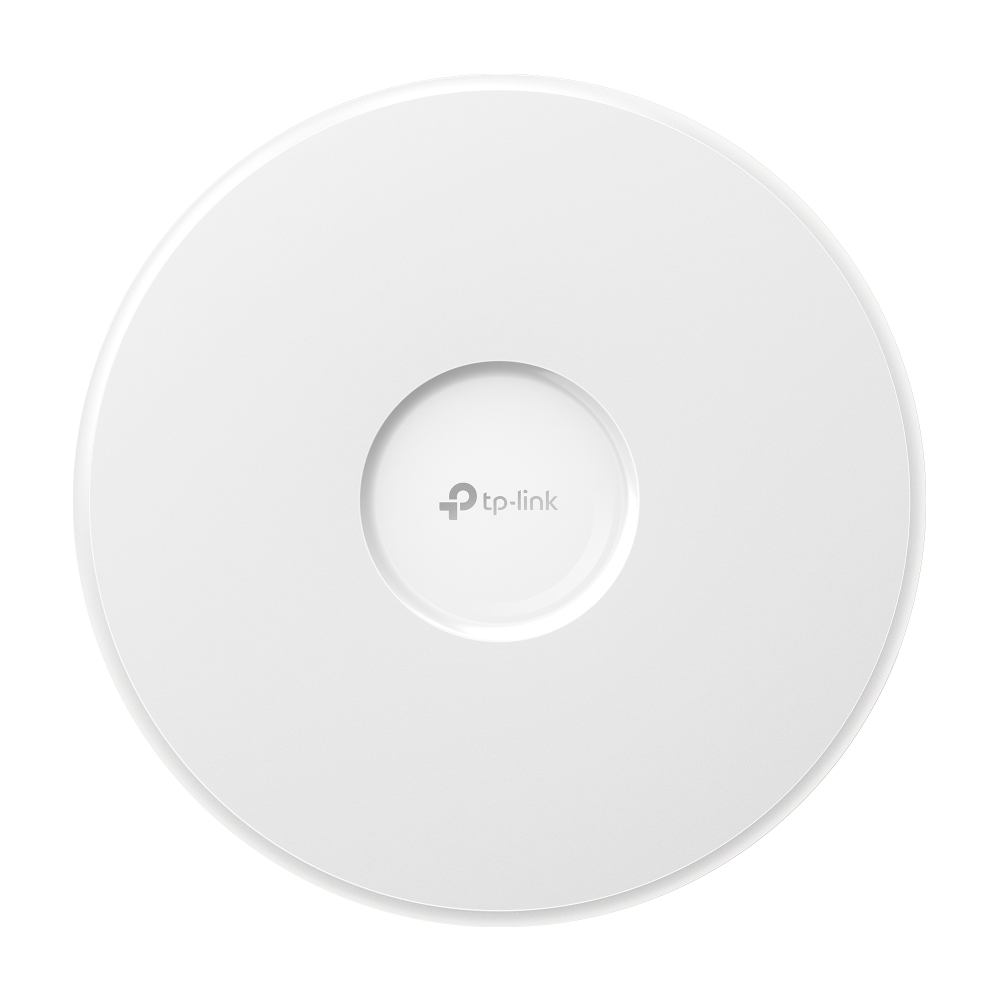

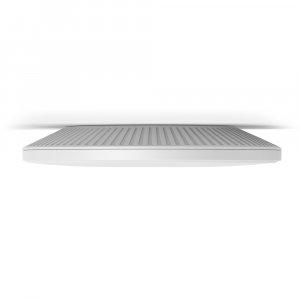

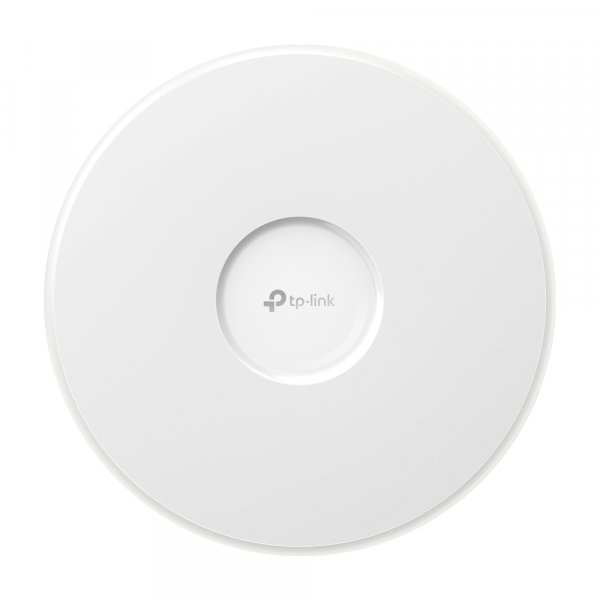

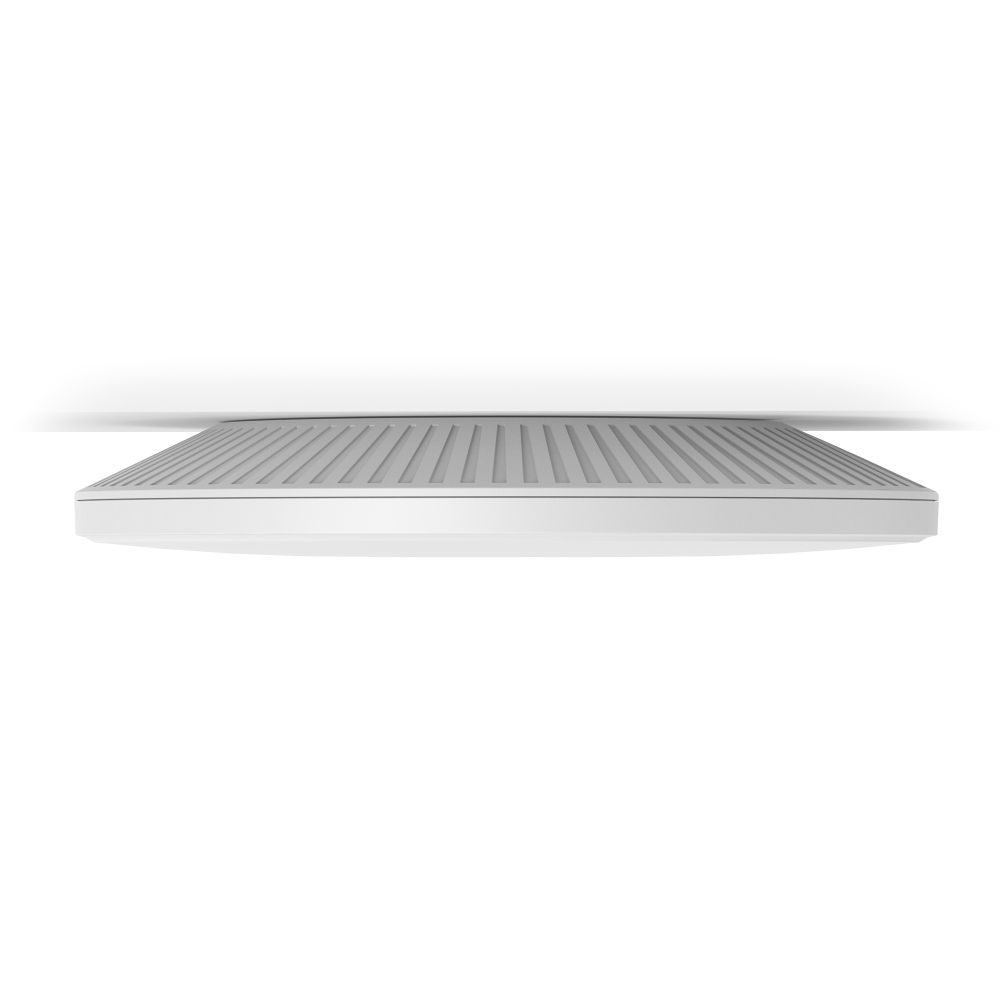

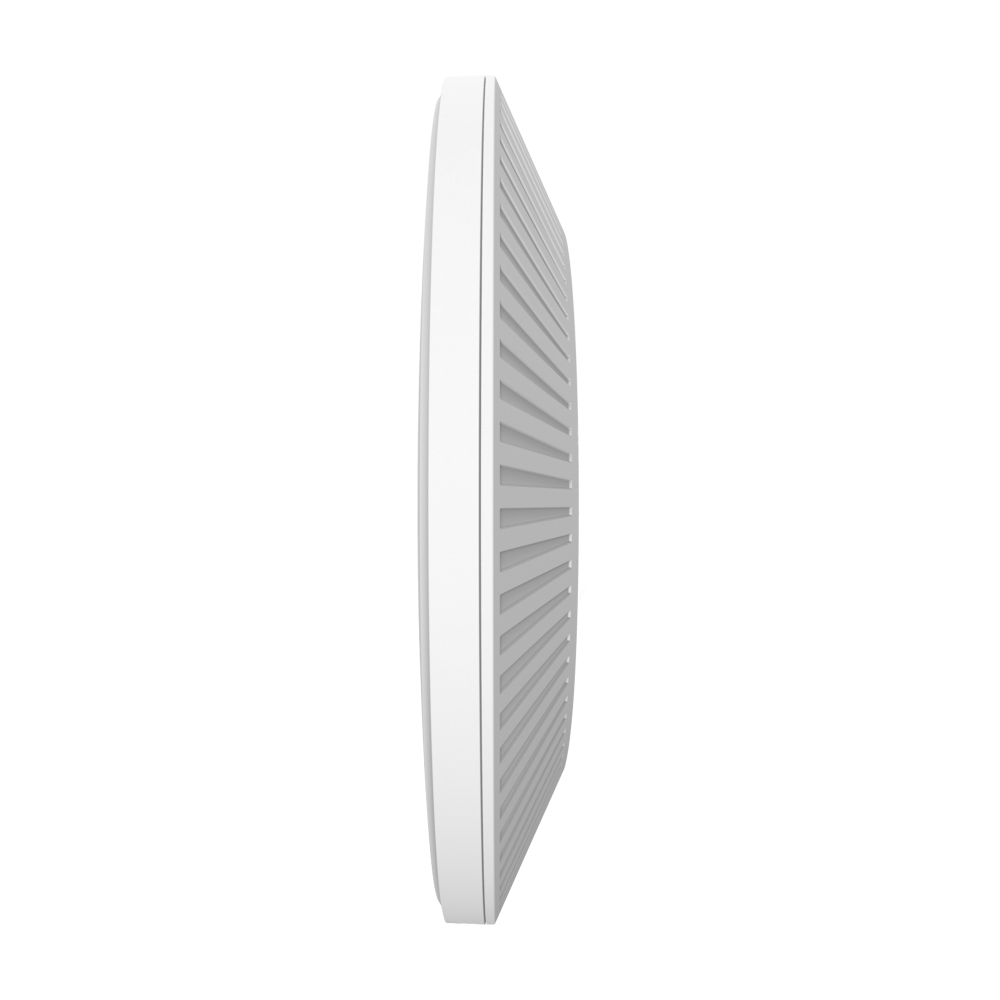

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Roll over image to zoom inClick to Open expanded view
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Print
Model: EAP772
EAN: 8885020623062

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Manufacturer:
TP-LINK
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 9300 Mbit/s, SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,..., 2500 Mbit/s
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 9300 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 2500 Mbit/s. Product colour: White
  • BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
  • A clear 6 GHz band brings cleaner and wider band resources
  • 1× 2.5G Port unlocks the full potential of Wi-Fi 7
  • 320 MHz bandwidth enables many more simultaneous transmissions
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network
  • Advanced Functions: Centralized management, mesh, and AI roaming

Product Properties

  • Model
  • EAP772
  • EAN
  • 8885020623062
  • Antenna
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • 1× 2.5G Port unlocks the full potential of Wi-Fi 7
    320 MHz bandwidth enables many more simultaneous transmissions
    A clear 6 GHz band brings cleaner and wider band resources
    Advanced Functions: Centralized management, mesh, and AI roaming
    BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
    Multi-Link Operation and Multi-RUs ensure the high performance of your network
  • Certificates
  • Certification
  • CE, FCC, RoHS, IC
  • Design
  • LED indicators
  • Yes
  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • 6 GHz
  • Yes
  • Airtime Fairness (ATF)
  • Yes
  • BeamForming
  • Yes
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.2
  • Ethernet LAN data rates
  • 2500 Mbit/s
  • Maximum data transfer rate
  • 9300 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 574 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 2880 Mbit/s
  • Maximum data transfer rate (6 GHz)
  • 5760 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
  • Number of users
  • 380 user(s)
  • Quality of Service (QoS) support
  • Yes
  • VLAN support
  • Yes
  • Management features
  • Web-based management
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • AC adapter included
  • No

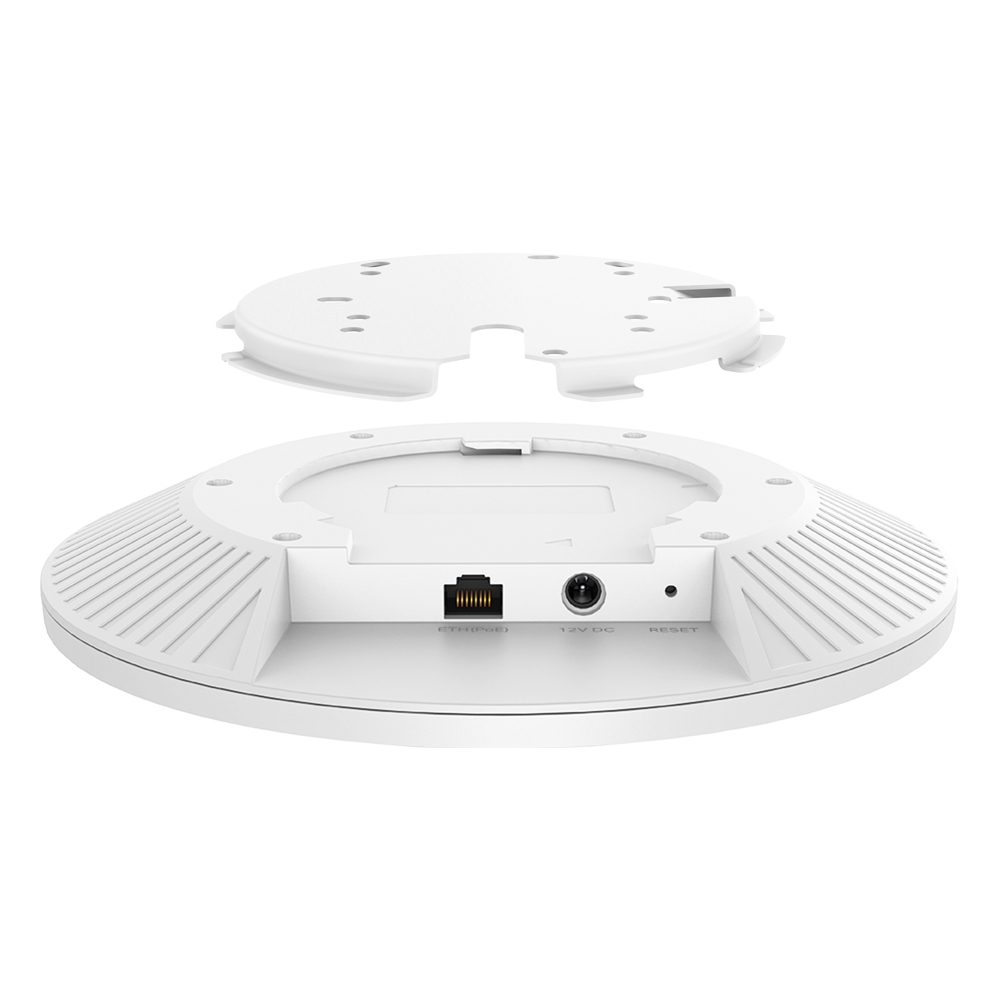

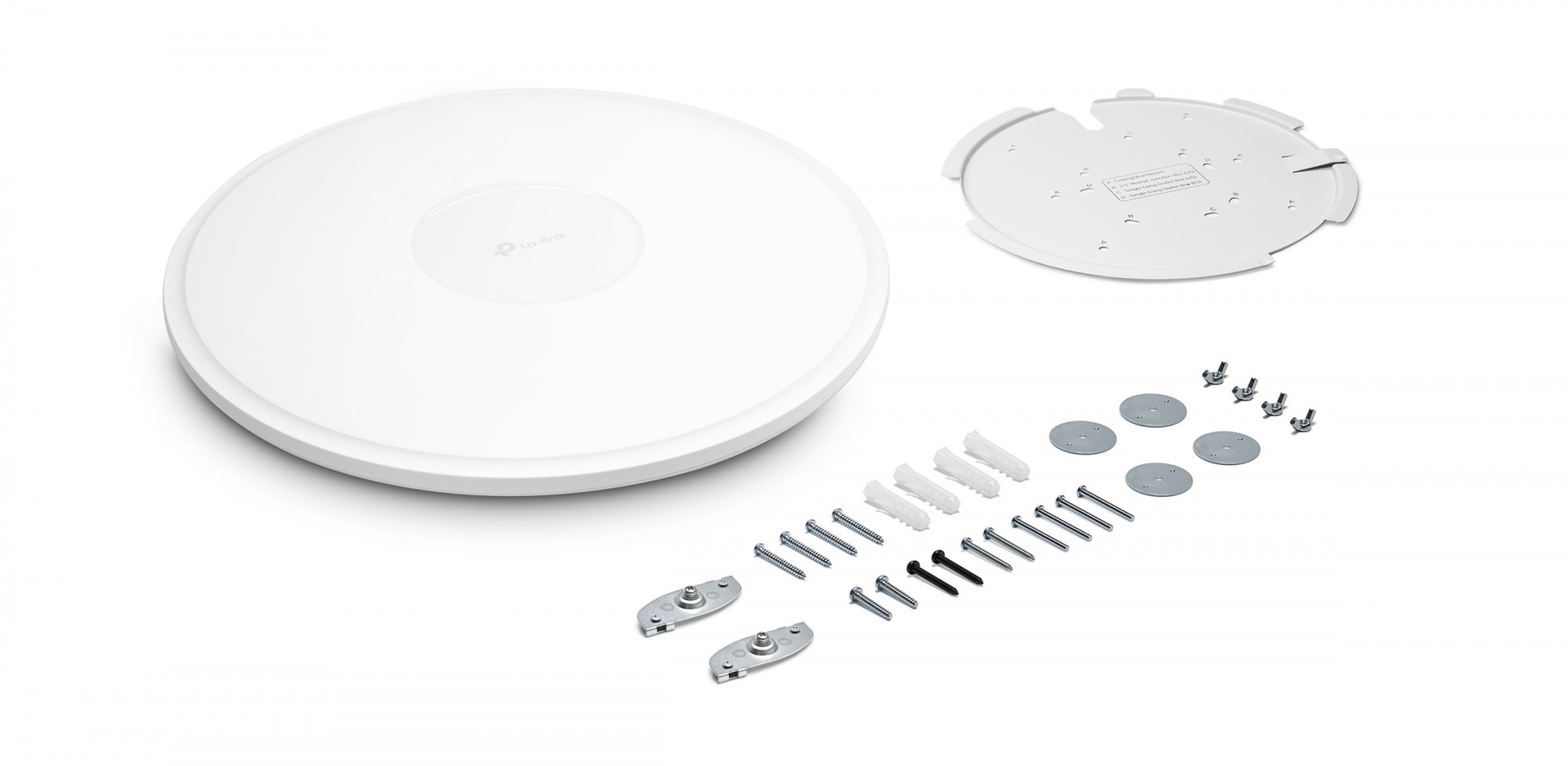

  • Mounting kit
  • Yes
  • Quantity per pack
  • 1 pc(s)
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 2.0 ports quantity
  • 0
  • Security
  • Access Control List (ACL)
  • Yes
  • MAC address filtering
  • Yes
  • Number of SSID supported
  • 24
  • Remote Authentication Dial-In User Service (RADIUS)
  • Yes
  • Security algorithms
  • SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
  • Service Set Identifier (SSID) features
  • Multiple SSIDs

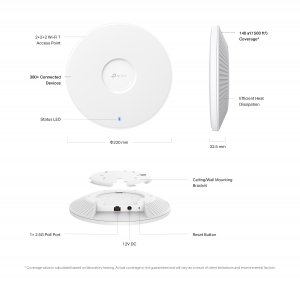

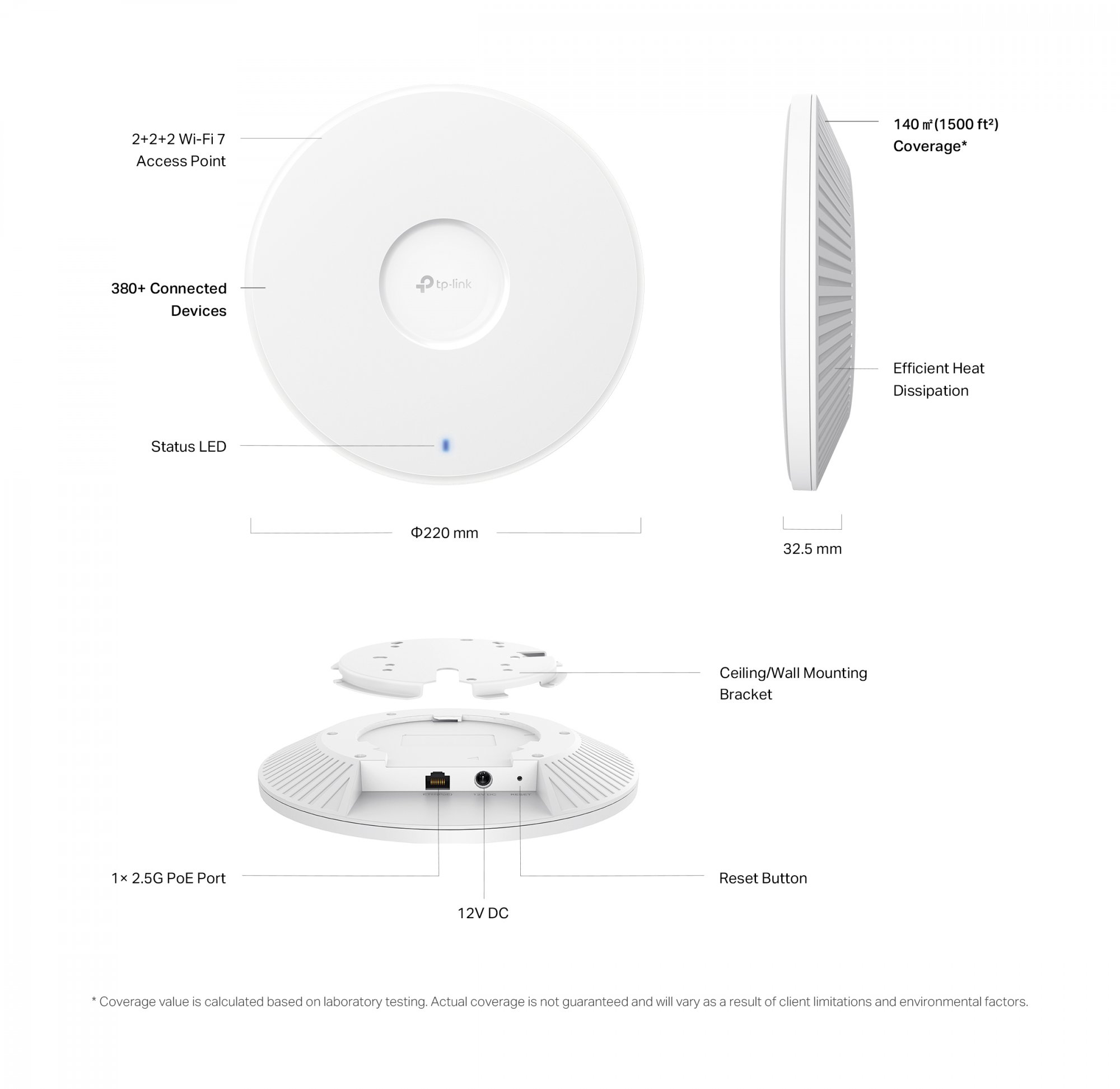

  • Weight & dimensions
  • Depth
  • 220 mm
  • Height
  • 32.5 mm
  • Width
  • 220 mm
