Description

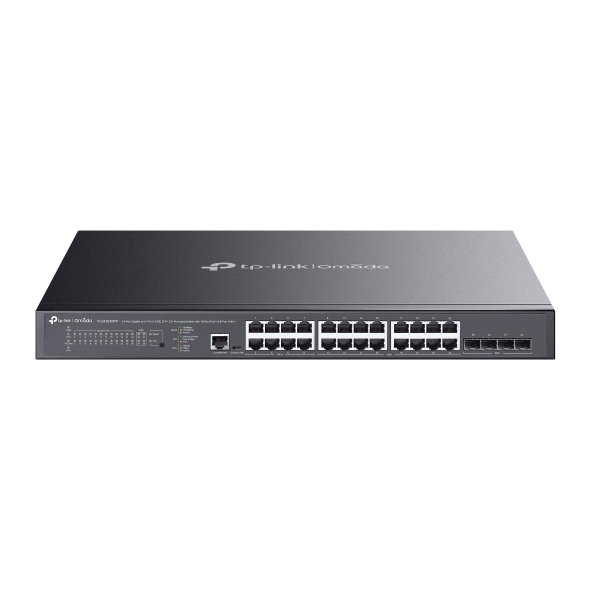

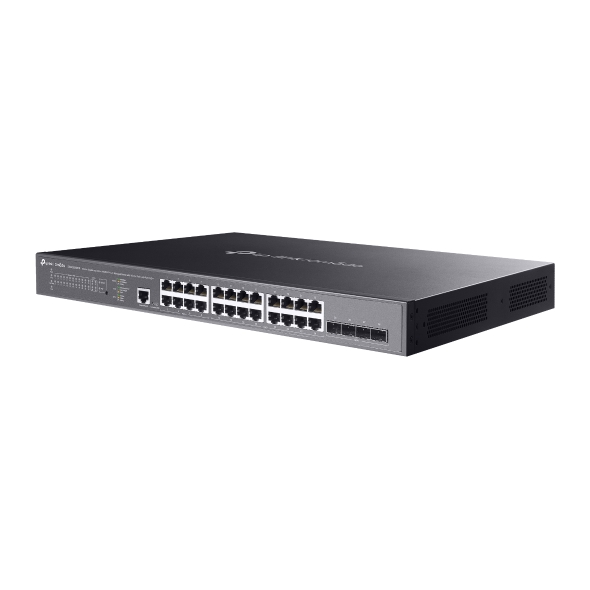

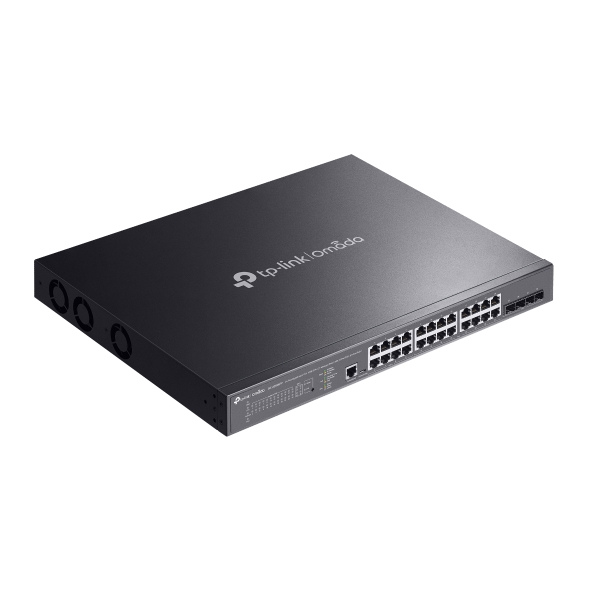

TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
500 W total PoE budget*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Product Properties

Manufacturer
TP-LINK

Model
SG3428XMPP

EAN
8885020620863

Bullet points

Point
16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)

500 W total PoE budget*

8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)

Centralized cloud management via the web or the Omada app†

Durable metal casing and rack-mountable design

ERPS supports rapid protection and recovery in a ring topology

Standalone management via web, CLI, SNMP, and RMON

Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM

Certificates

Certification
CE, FCC, RoHS

Data transmission

Forwarding rate
95.23 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Packet buffer memory
12 MB

Store-and-forward
Yes

Switching capacity
128 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Rack mounting
Yes

Reset button
Yes

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

Quality of Service (QoS) support
Yes

Switch layer
L2+

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Broadcast storm control
Yes

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
1658.78 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Quick start guide
Yes

Ports & interfaces

Console port
RJ-45/Micro-USB

Power connector
AC-in jack

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
486.2 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet 4PPoE (PoE++) ports quantity
8

Power over Ethernet plus (PoE+) ports quantity
16

Total Power over Ethernet (PoE) budget
500 W

Security

Access Control List (ACL)
Yes

Authentication
Auto VLAN, Guest VLAN

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP server

IGMP snooping
Yes

IP-MAC-Port binding
Yes

MAC address filtering
Yes

SSH/SSL support
Yes

Static port security
Yes

Weight & dimensions

Depth
330 mm

Height
44 mm

Width
440 mm

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
