Description

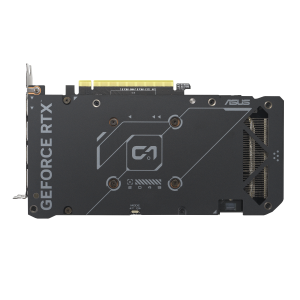

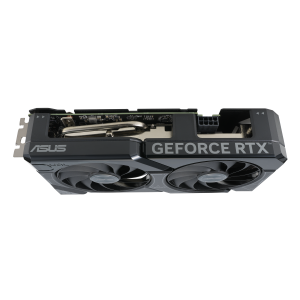

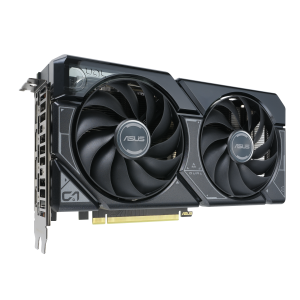

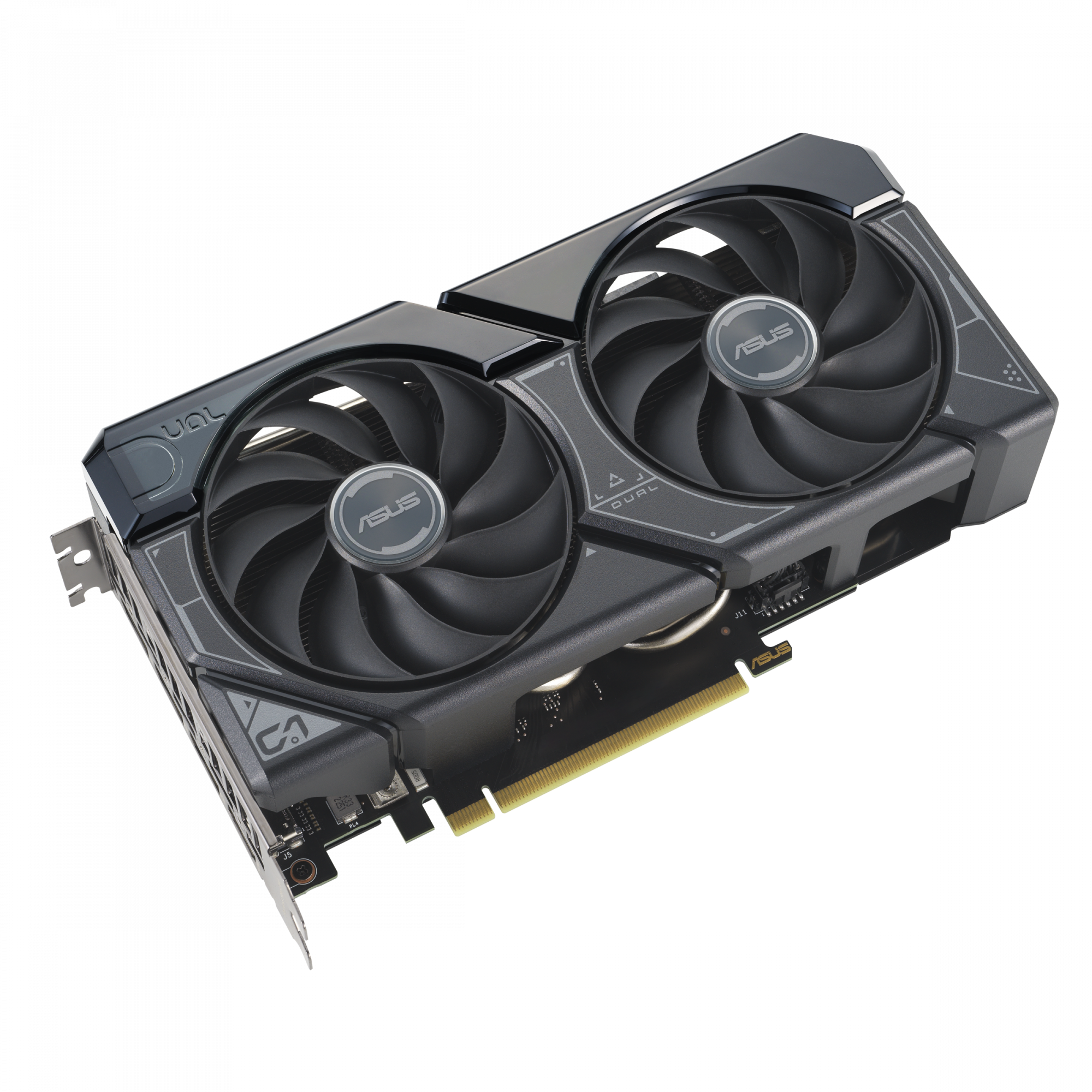

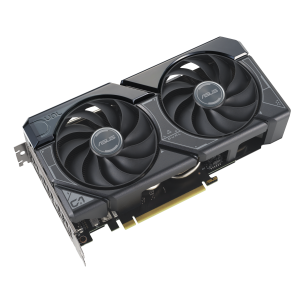

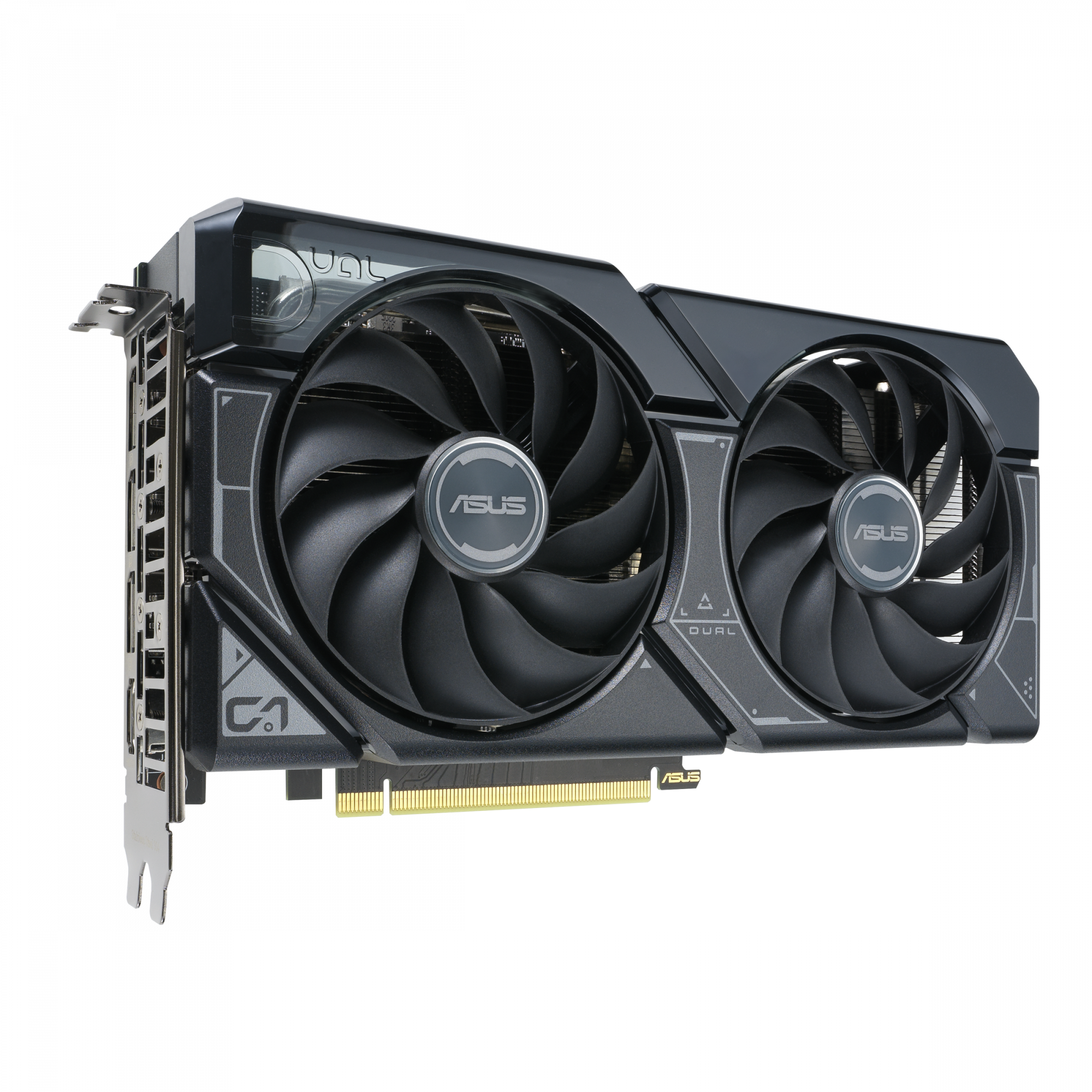

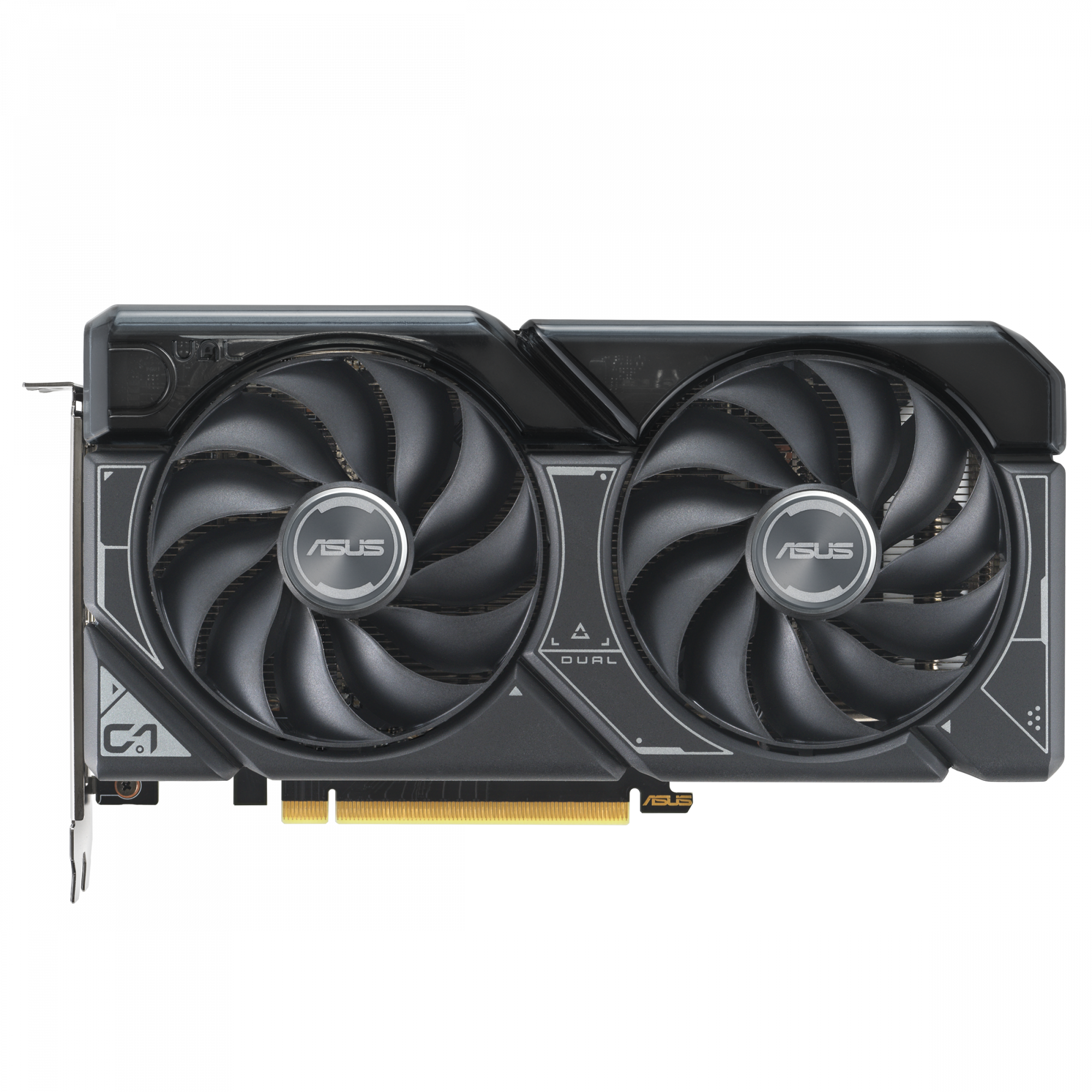

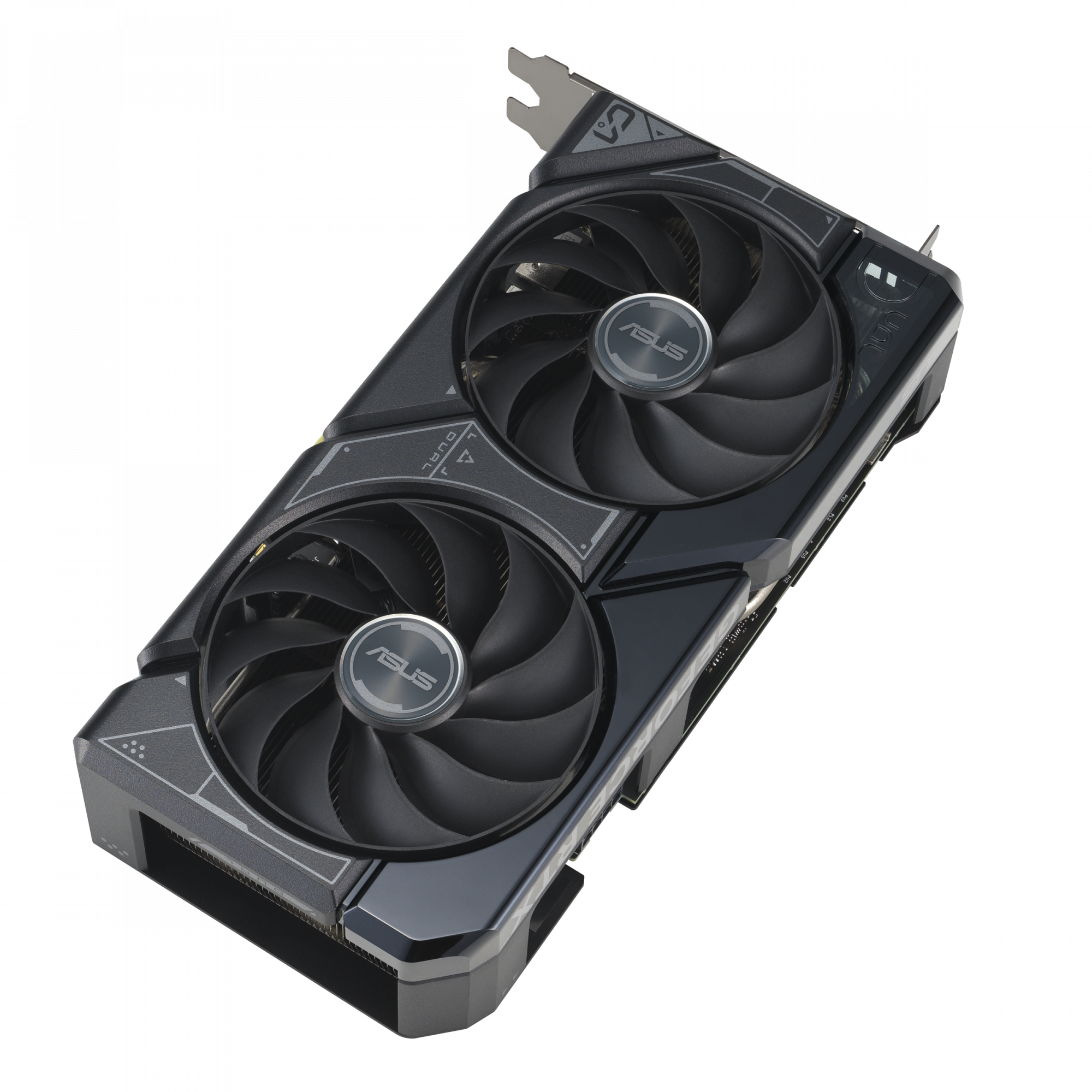

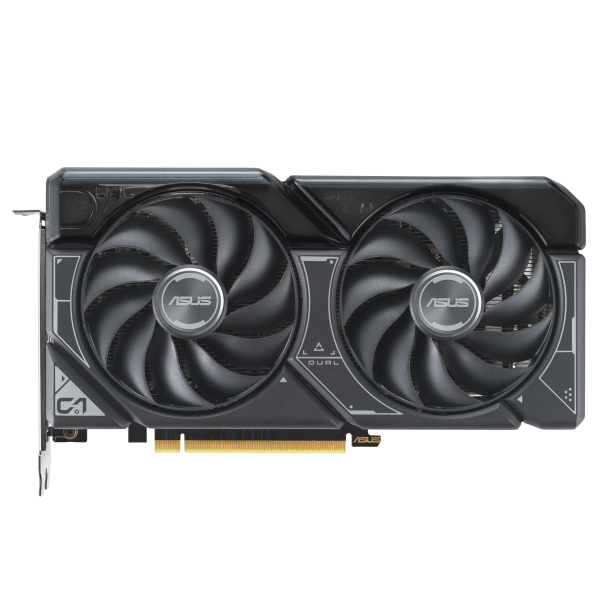

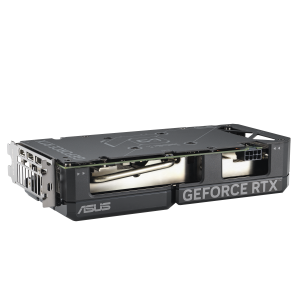

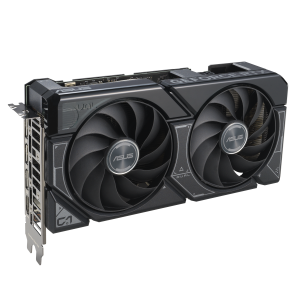

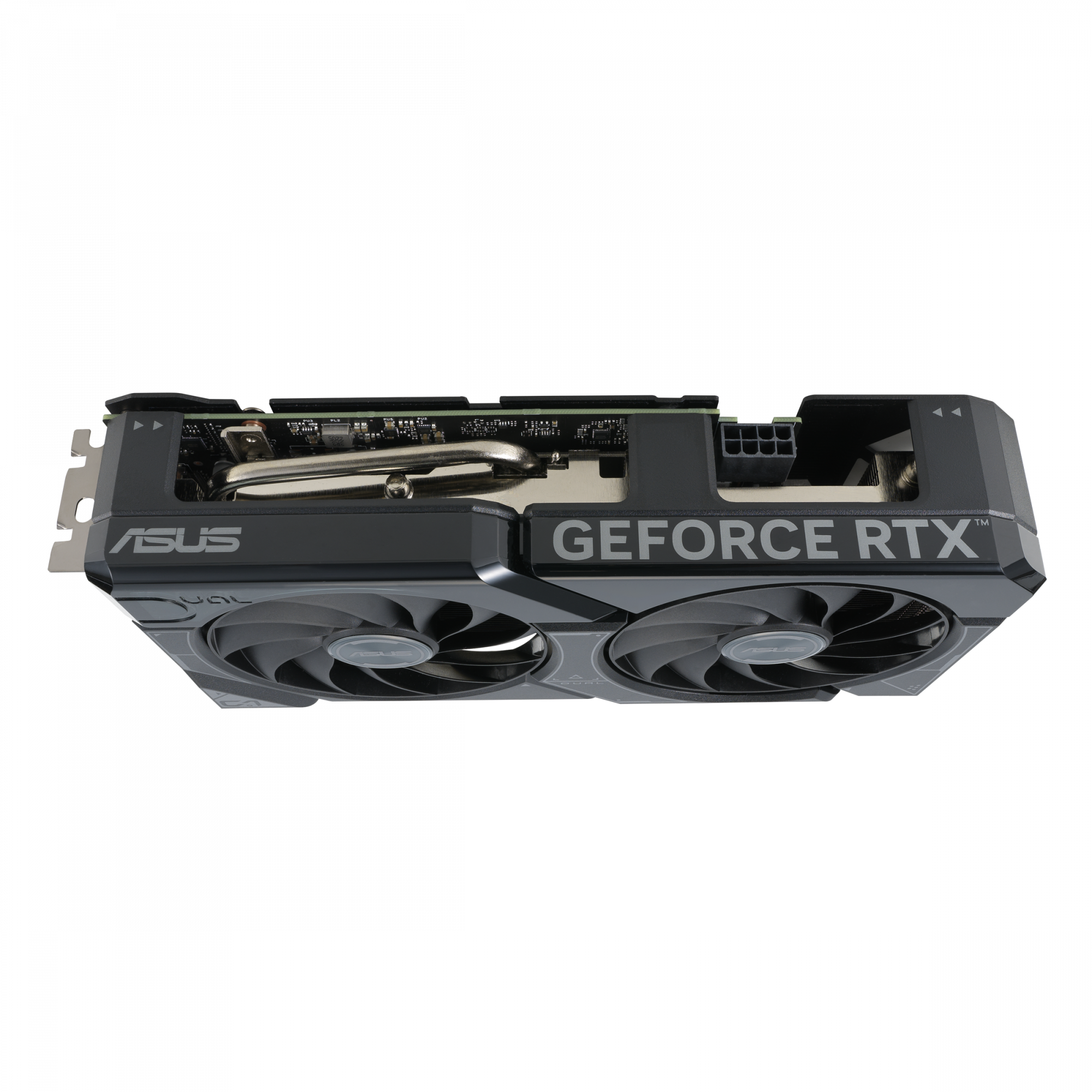

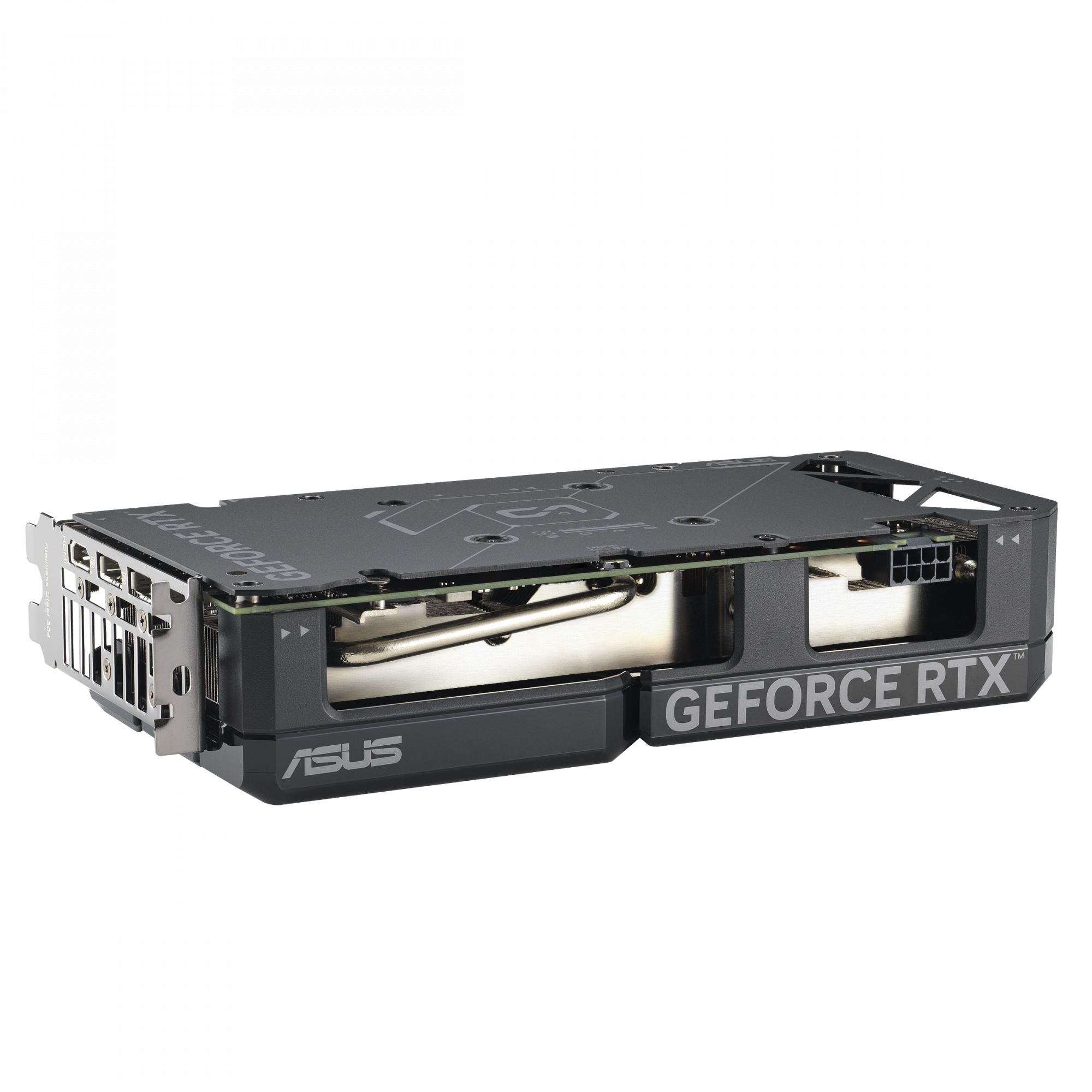

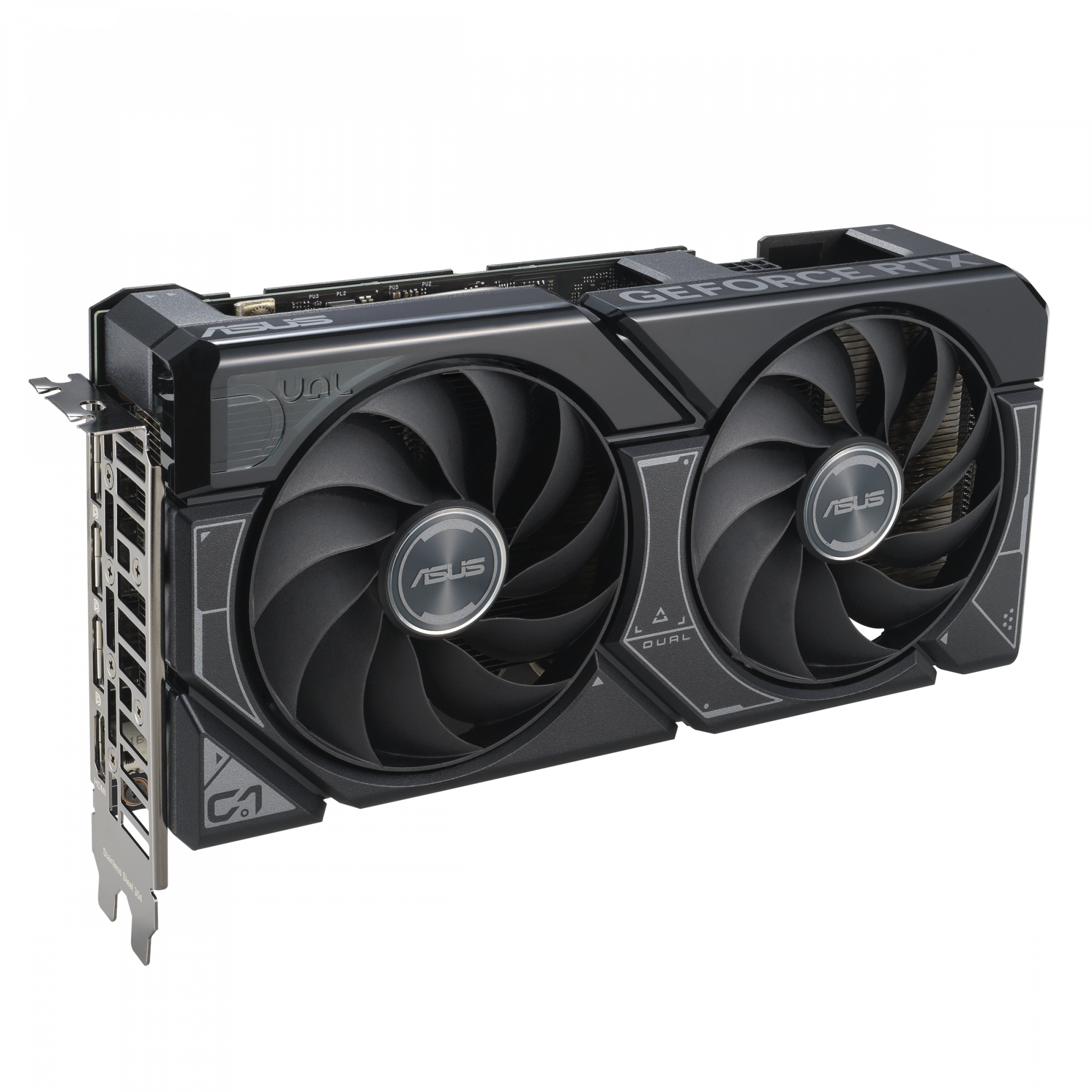

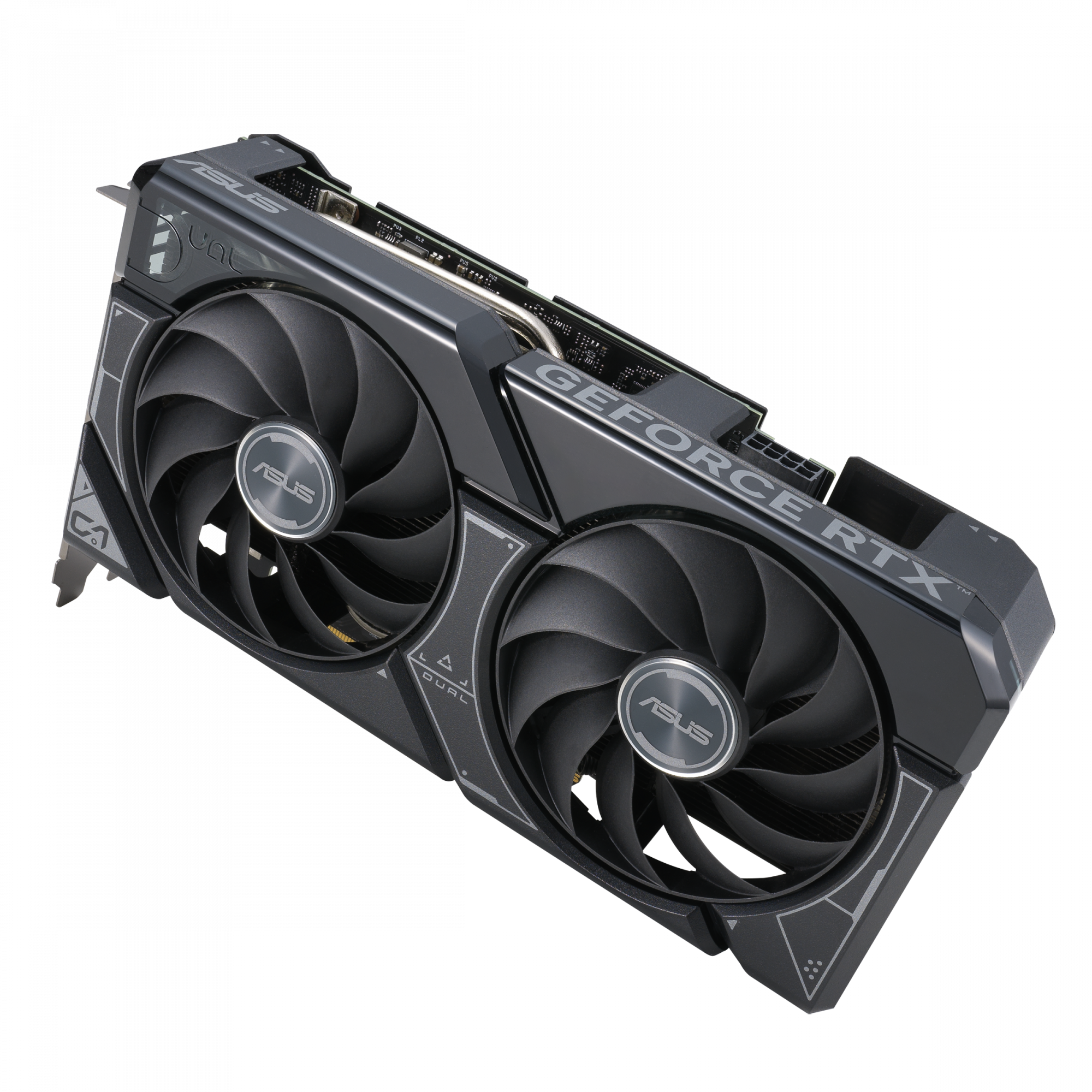

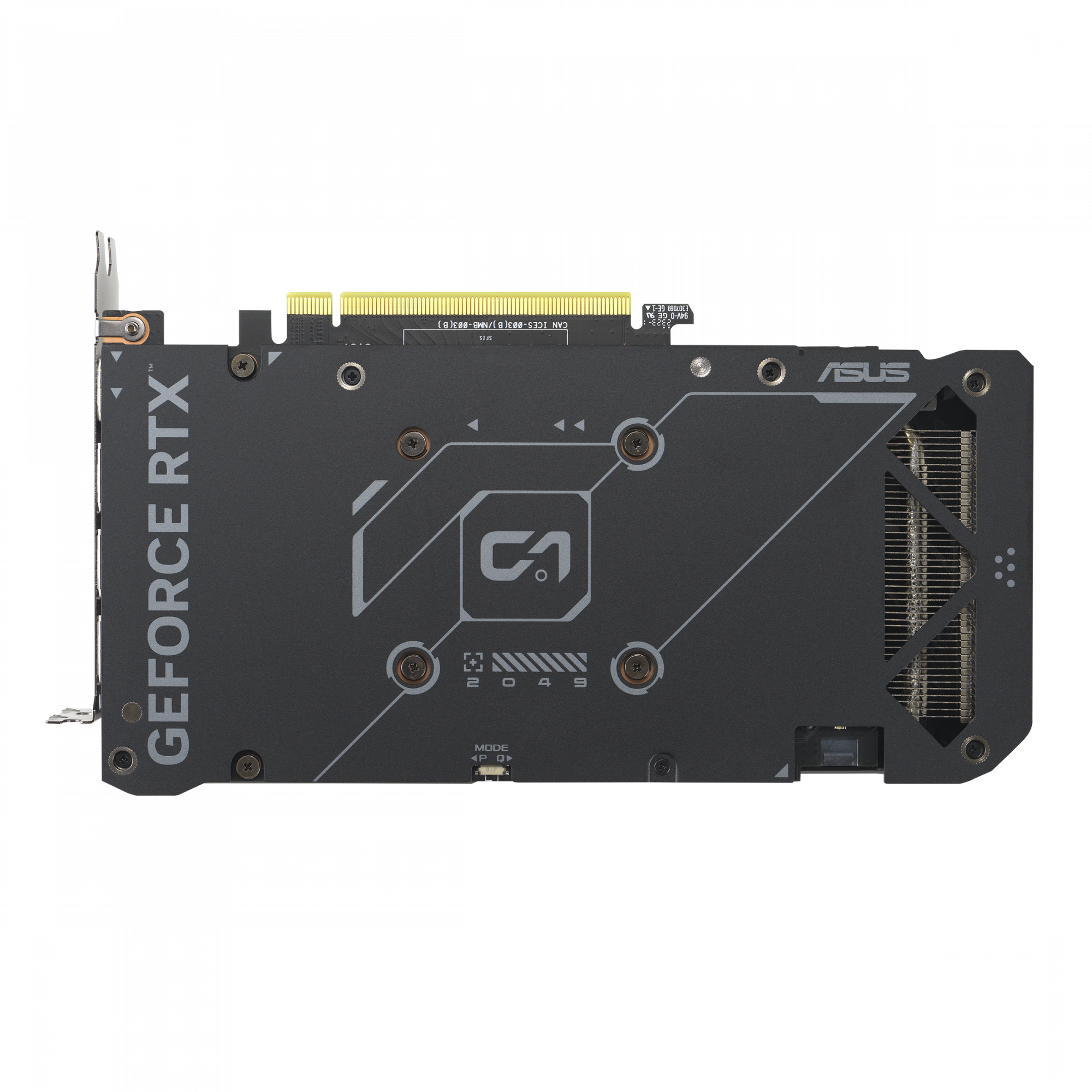

ASUS Dual -RTX4060TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: 2625 MHz (OC mode)/ 2595 MHz (Default mode)
Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
0dB technology lets you enjoy light gaming in relative silence

Product Properties

Manufacturer
Asus

Model
DUAL-RTX4060TI-O16

EAN
4711387275290

Bullet points

Point
0dB technology lets you enjoy light gaming in relative silence

3rd Generation RT Cores: Up to 2x ray tracing performance

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

OC edition: 2625 MHz (OC mode)/ 2595 MHz (Default mode)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Half-Length (FH/HL)

Number of fans
2 fan(s)

Number of slots
2.5

Product colour
Black

Memory

Discrete graphics card memory
16 GB

Graphics card memory type
GDDR6

Memory bandwidth (max)
18 GB/s

Memory bus
128 bit

Packaging data

Manual
Yes

Package depth
220.5 mm

Package height
68 mm

Package type
Box

Package weight
1.15 kg

Package width
368 mm

Performance

AMD FreeSync
No

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

NVIDIA Ansel
Yes

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

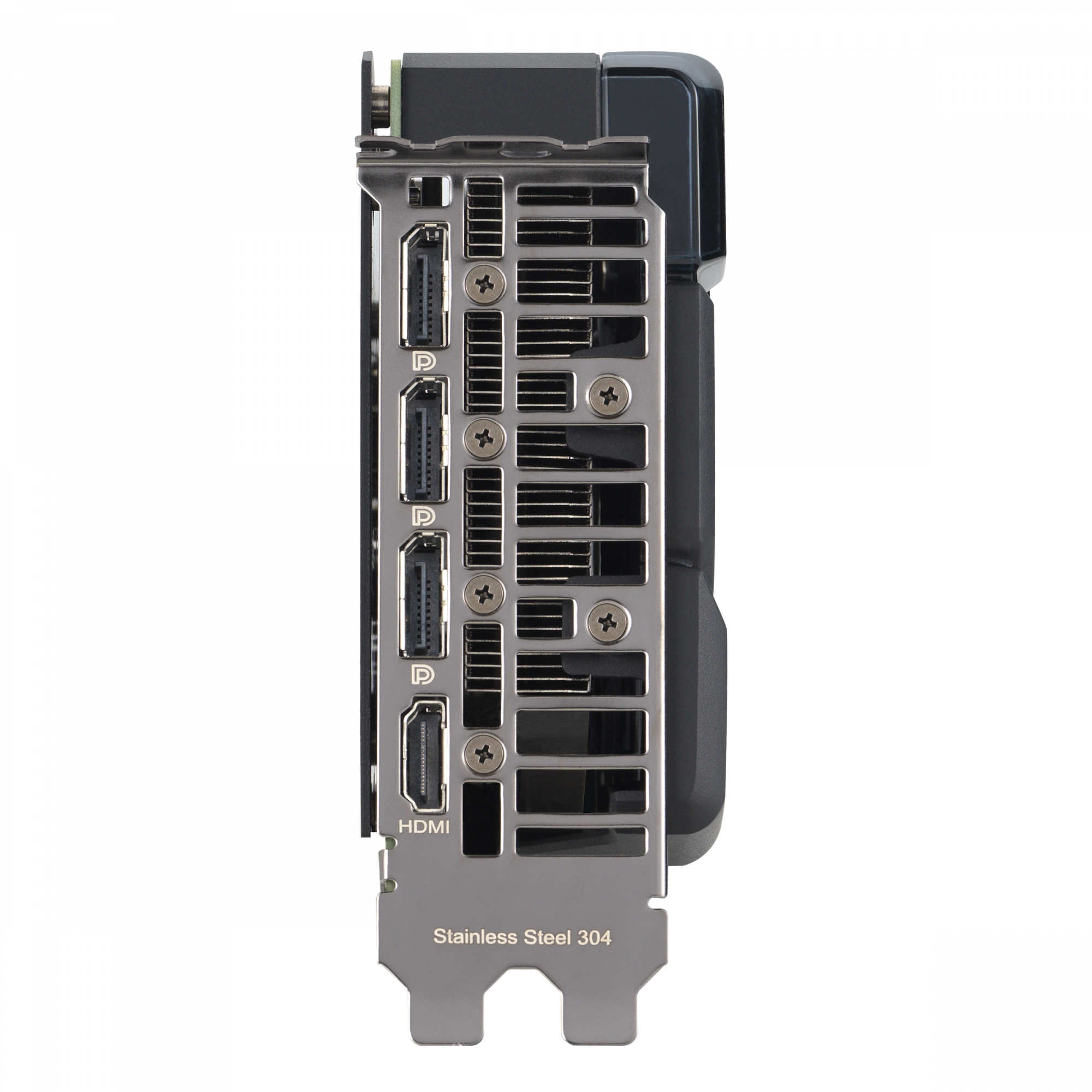

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1a

Interface type
PCI Express 4.0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
4352

Graphics processor
GeForce RTX 4060 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2595 MHz

Processor frequency (OC mode)
2625 MHz

Weight & dimensions

Depth
227.2 mm

Height
49.6 mm

Weight
699 g

Width
123.2 mm

ASUS Dual -RTX4060TI-O16G NVIDIA GeForce RTX 4060 Ti 16 GB GDDR6
