Description

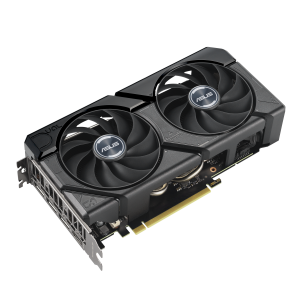

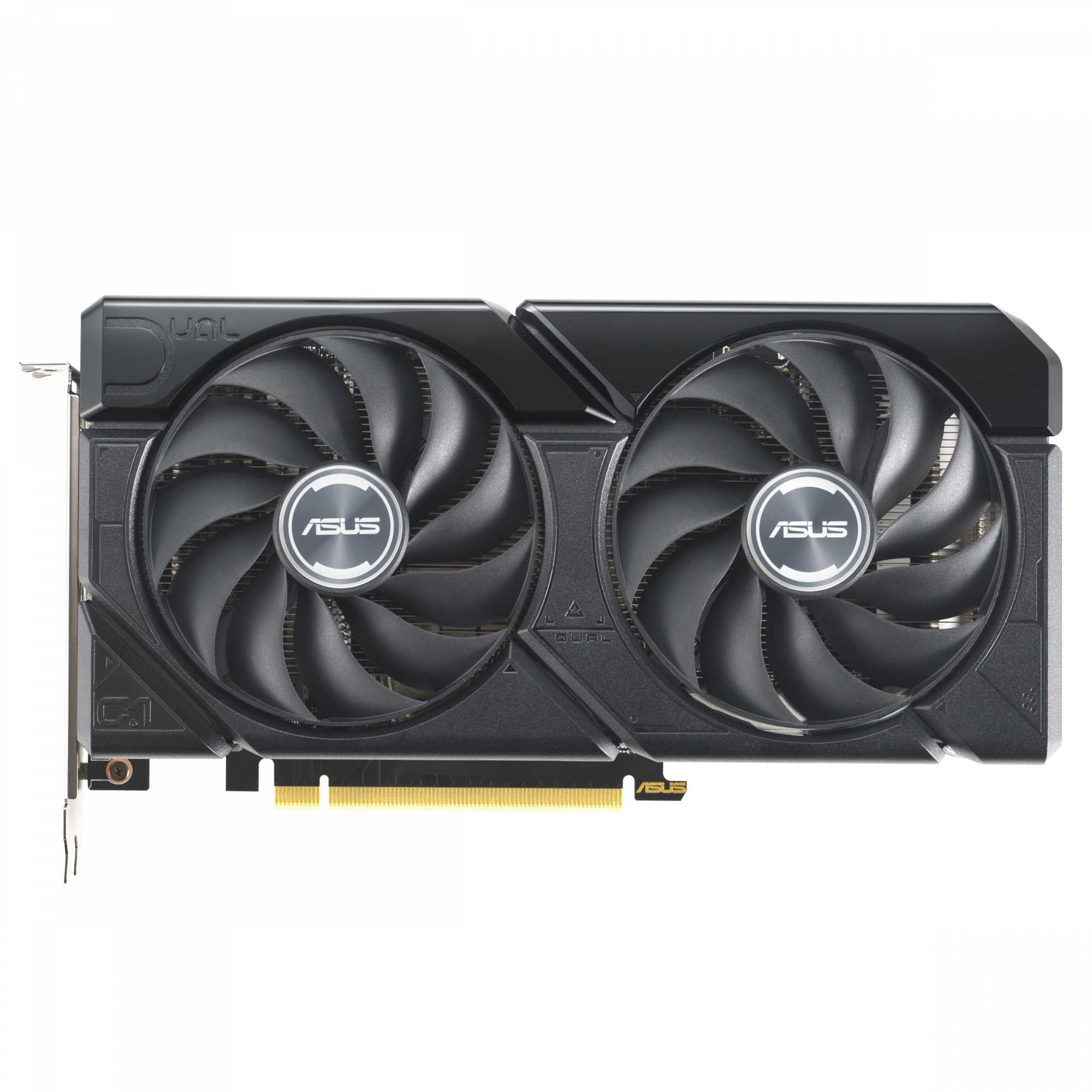

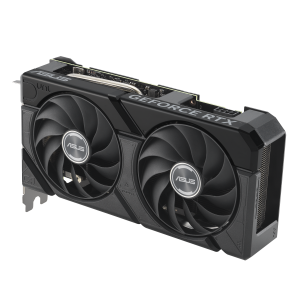

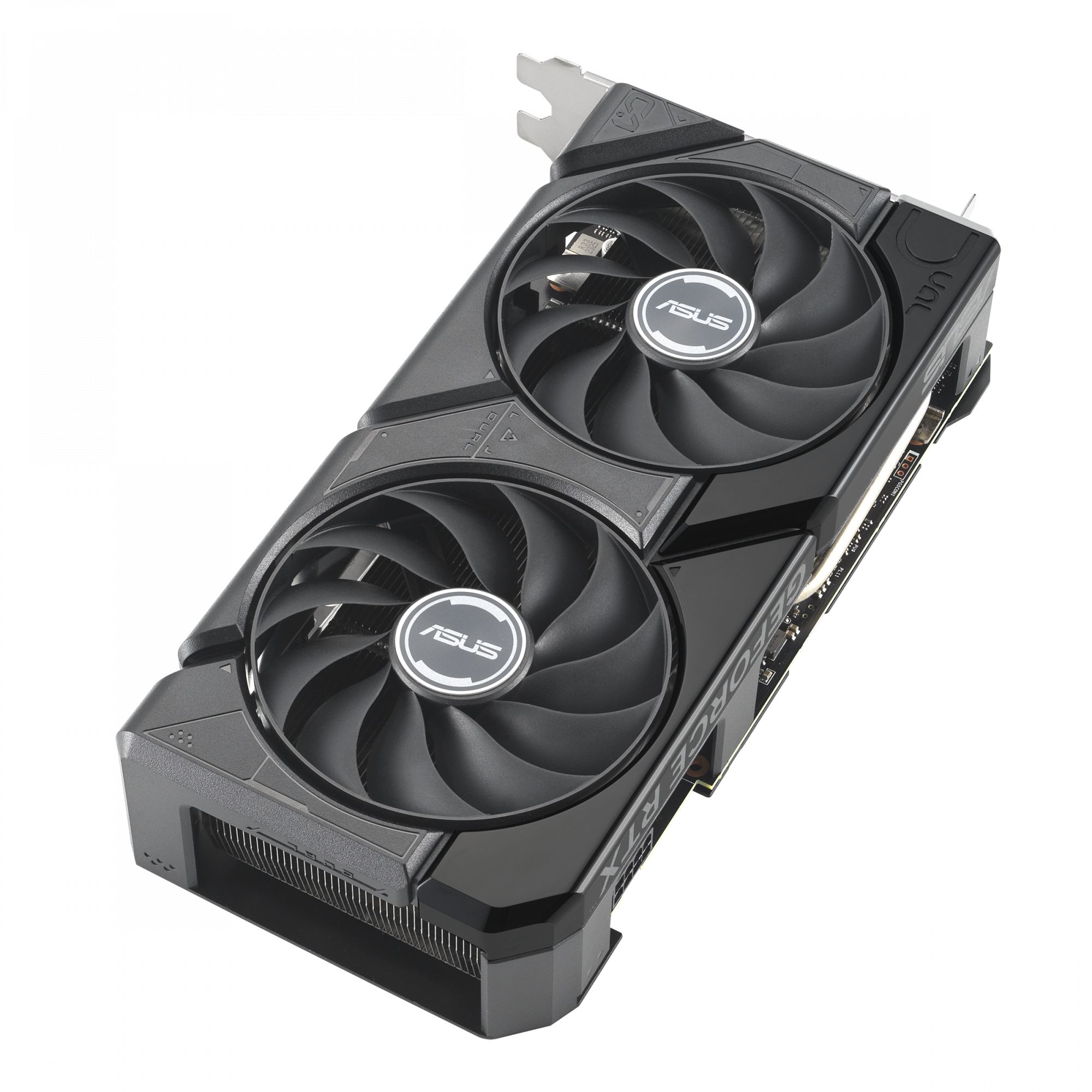

ASUS Dual -RTX4060TI-O8G-EVO. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: Boost Clock 2595 MHz (OC Mode)/ 2565 MHz (Default Mode)

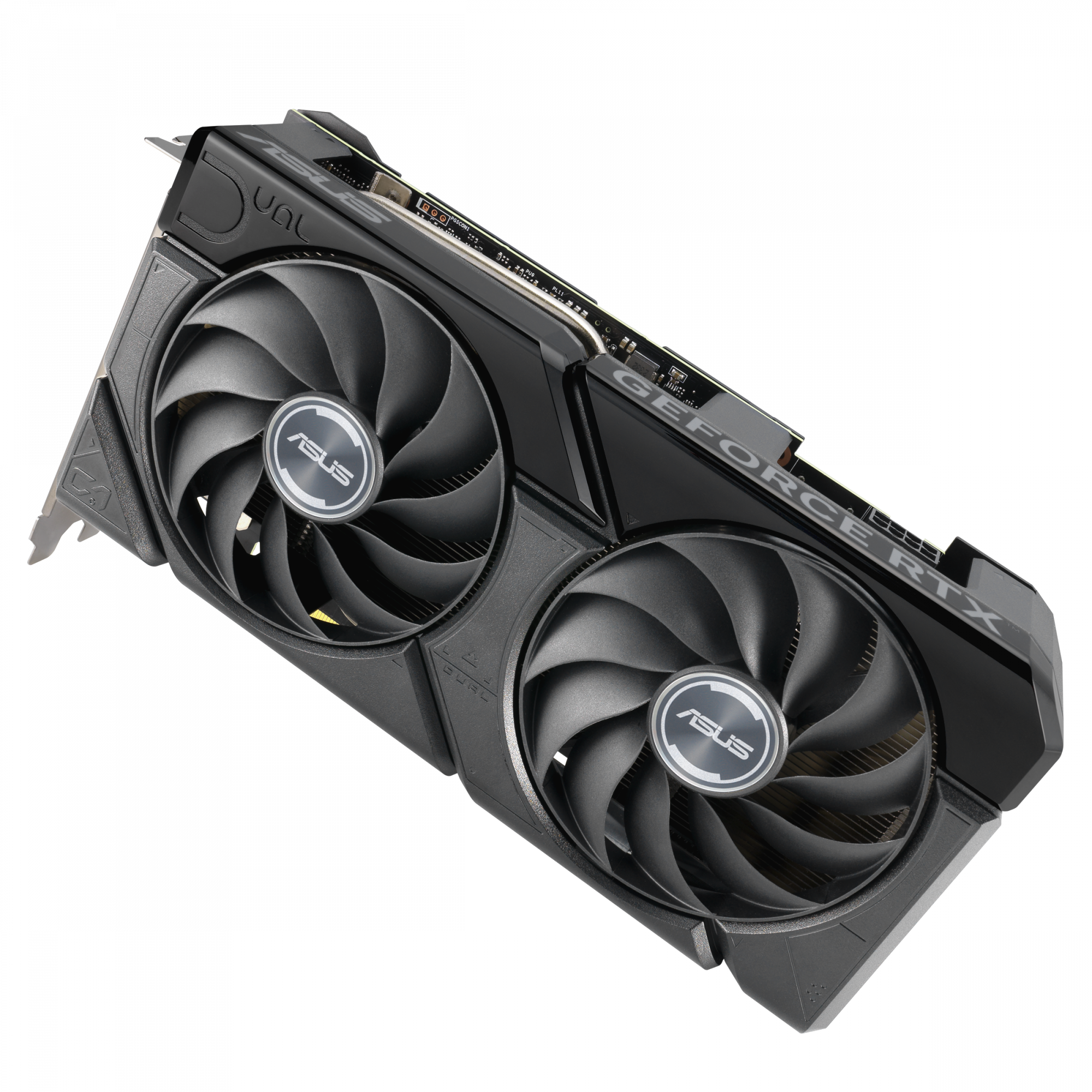

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
0dB technology lets you enjoy light gaming in relative silence
Dual ball fan bearings can last up to twice as long as sleeve bearing designs

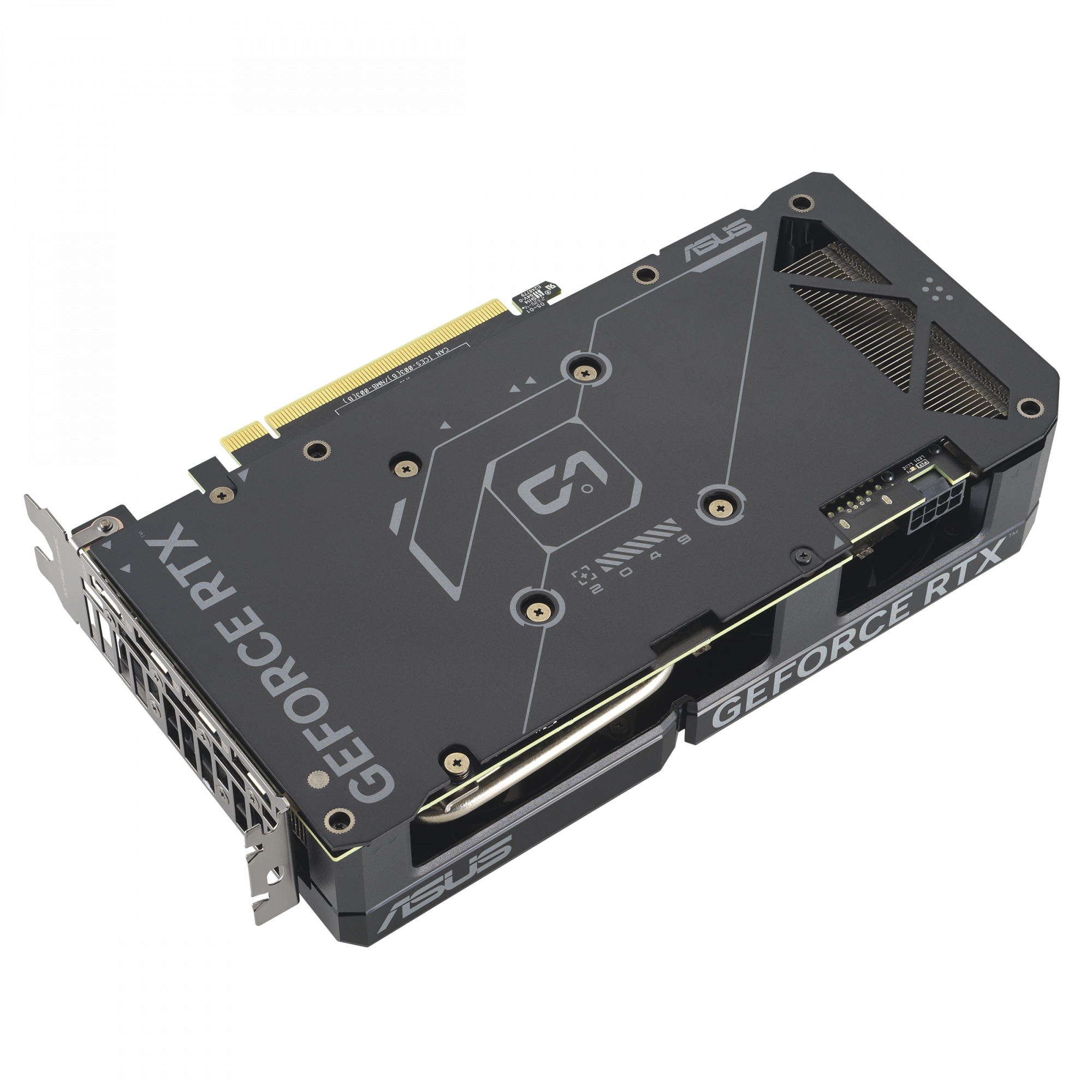

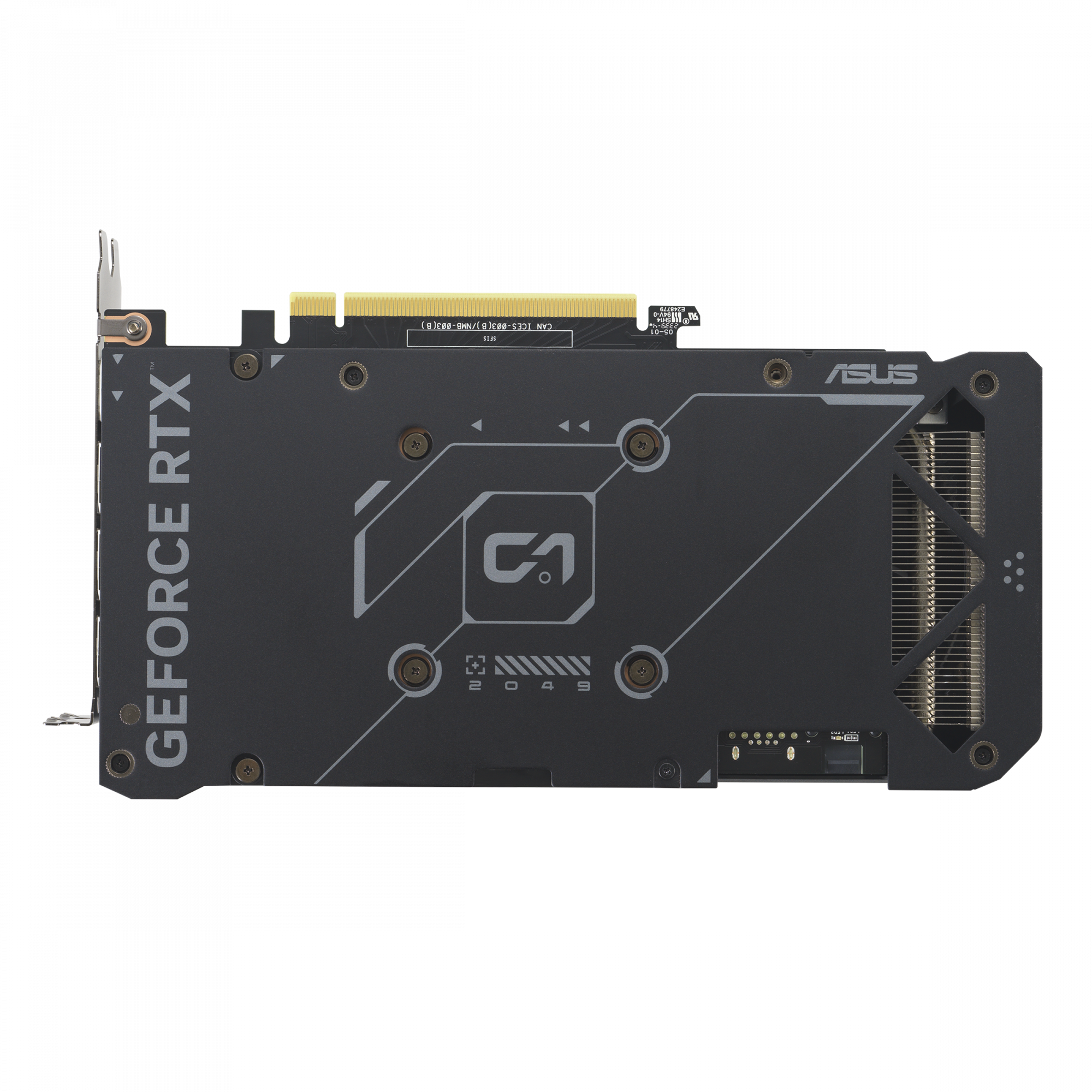

A protective backplate secures components during transportation and installation
Auto-Extreme Technology uses automation to enhance reliability

Product Properties

Manufacturer
Asus

Model
DLRTX4060TIO8GEVO

EAN
4711387459232

Bullet points

Point
0dB technology lets you enjoy light gaming in relative silence

3rd Generation RT Cores: Up to 2x ray tracing performance

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

A protective backplate secures components during transportation and installation

Auto-Extreme Technology uses automation to enhance reliability

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

OC edition: Boost Clock 2595 MHz (OC Mode)/ 2565 MHz (Default Mode)

Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Half-Length (FH/HL)

Number of fans
2 fan(s)

Number of slots
2.5

Product colour
Black

Memory

Data transfer rate
18 Gbit/s

Discrete graphics card memory
8 GB

Graphics card memory type
GDDR6

Memory bus
128 bit

Packaging content

Manual
Yes

Packaging data

Package depth
220.5 mm

Package height
68 mm

Package type
Box

Package weight
1.09 kg

Package width
368 mm

Performance

DirectX version
12 Ultimate

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

NVIDIA Ansel
Yes

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

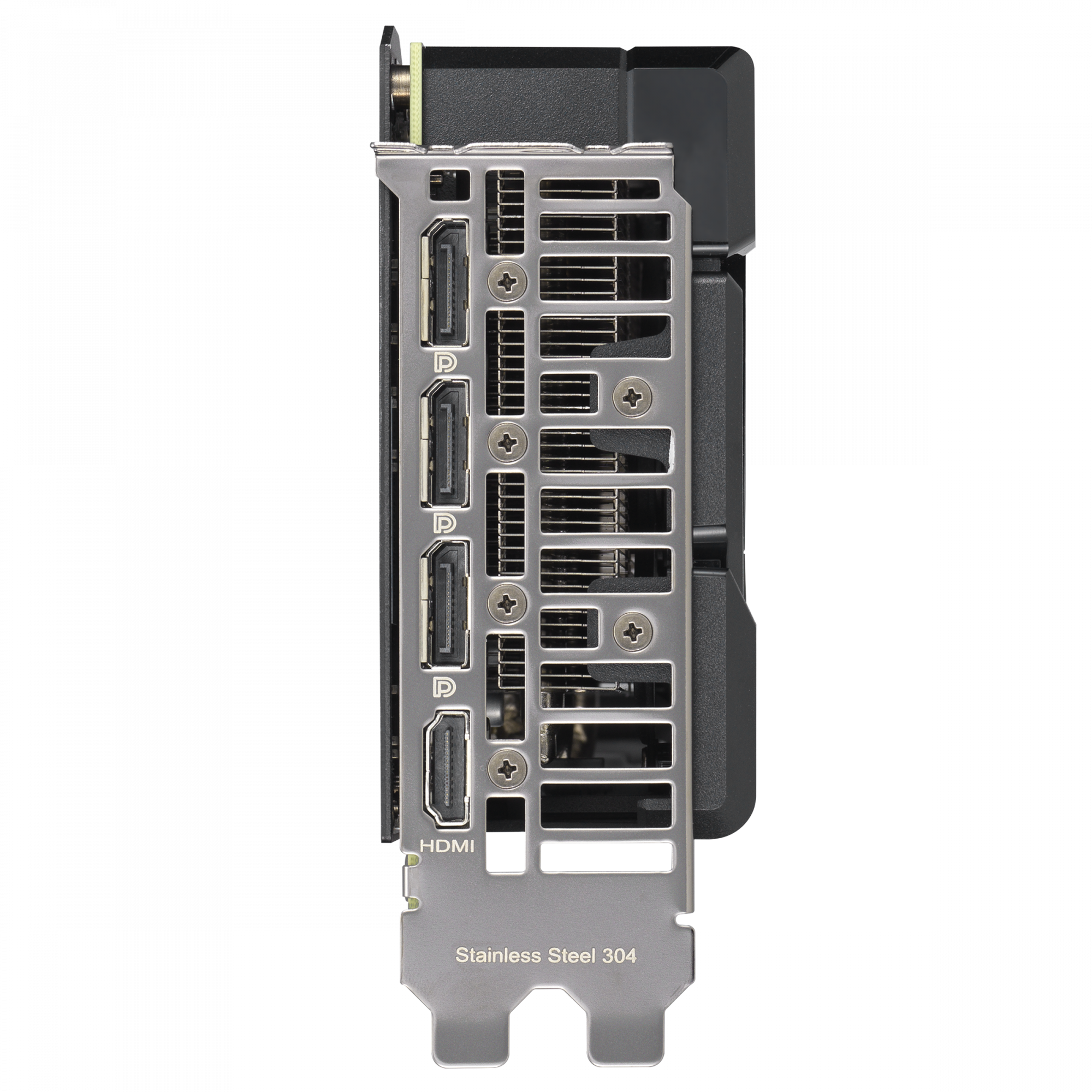

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1a

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
4352

Graphics processor
GeForce RTX 4060 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2565 MHz

Processor frequency (OC mode)
2595 MHz

System requirements

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Weight & dimensions

Depth
49.6 mm

Height
123.2 mm

Length
227.2 mm

Weight
644 g

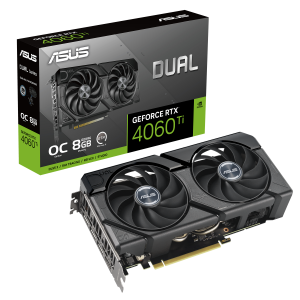

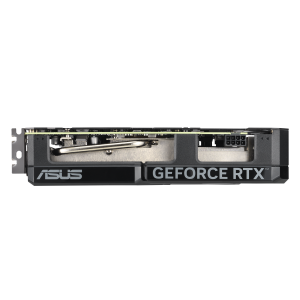

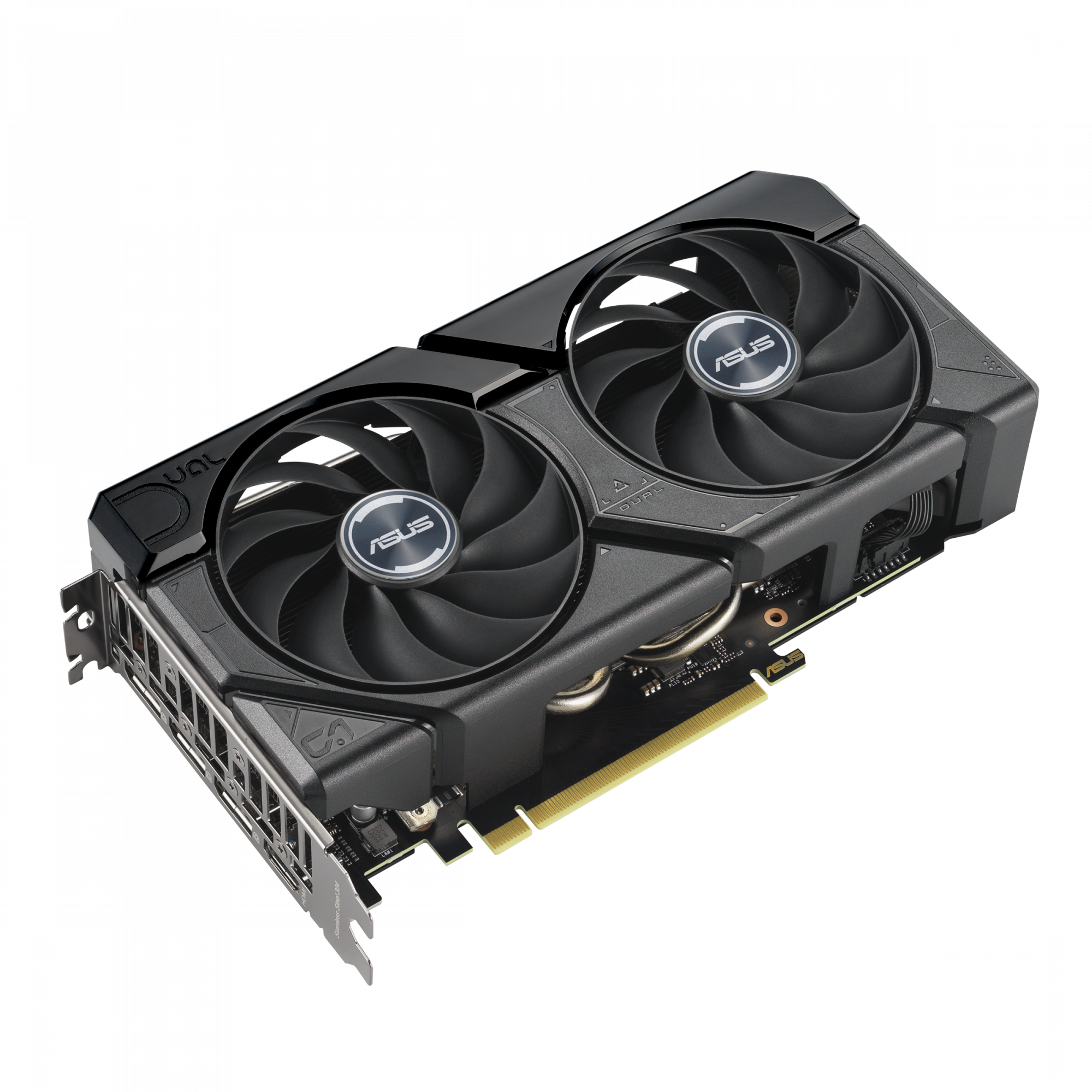

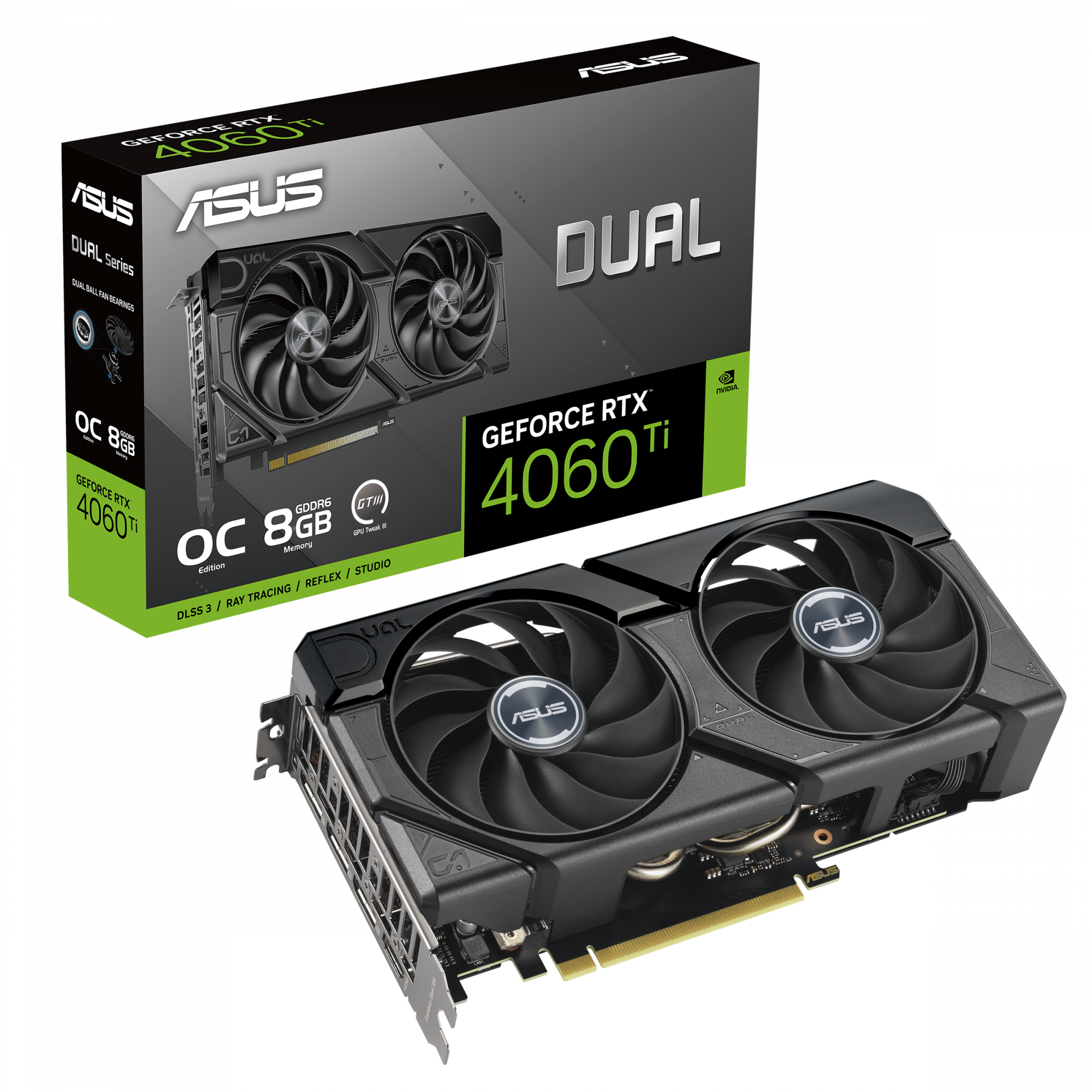

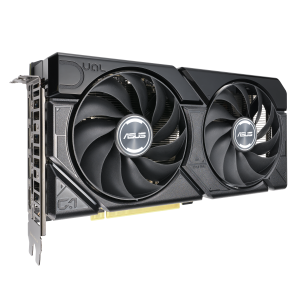

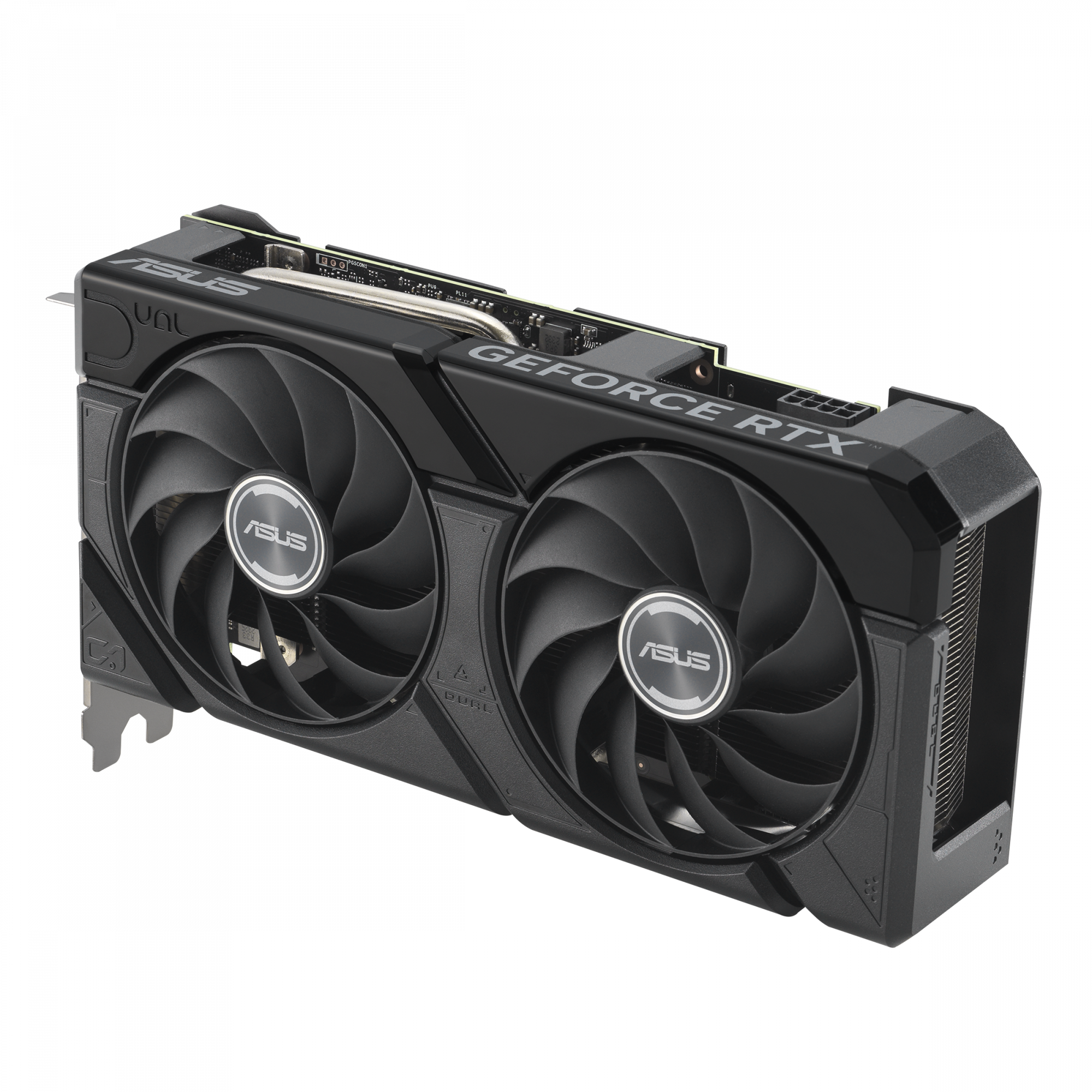

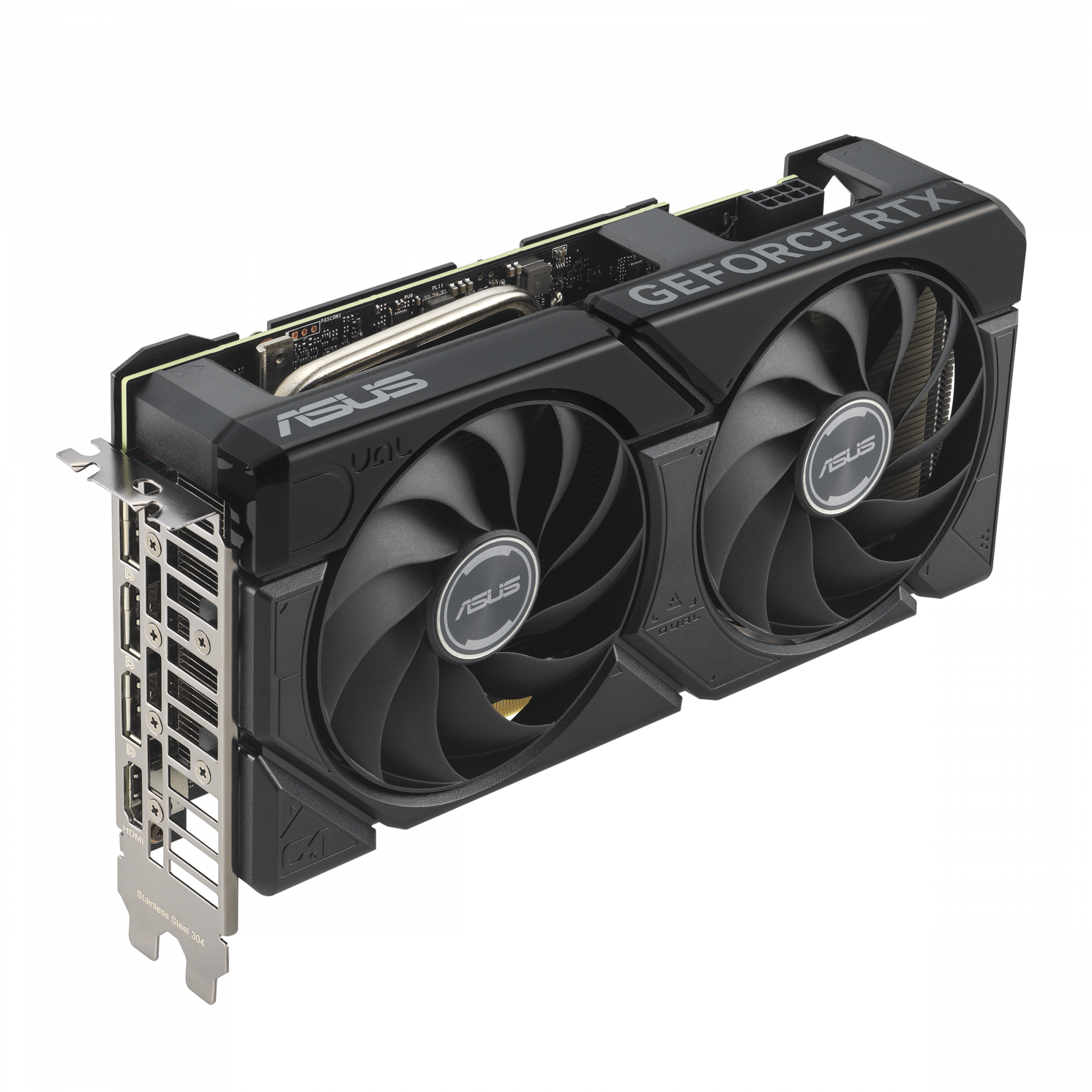

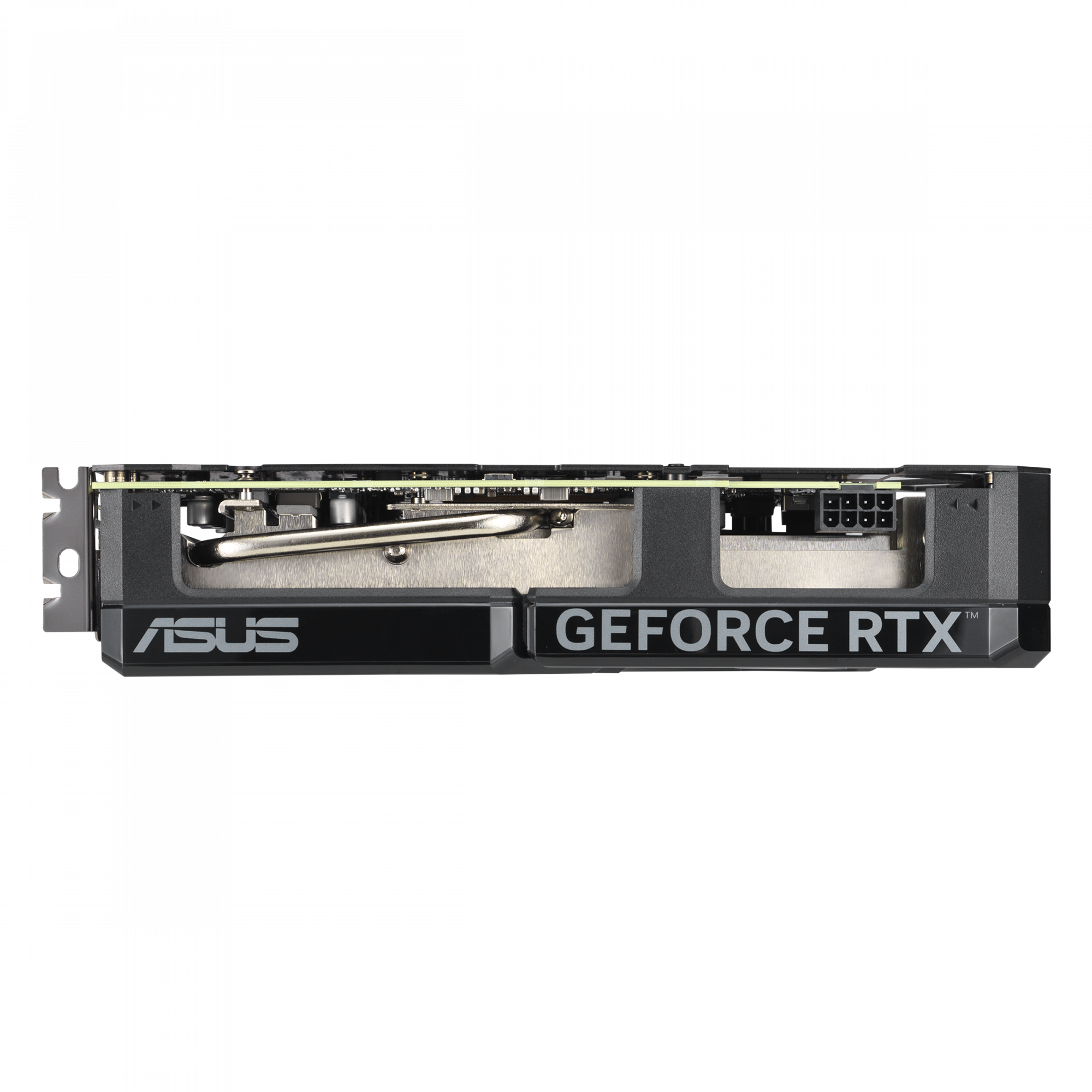

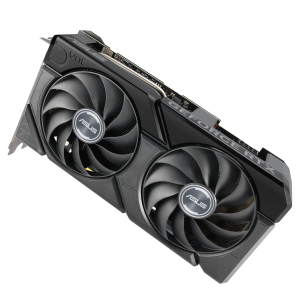

ASUS Dual -RTX4060TI-O8G-EVO NVIDIA GeForce RTX 4060 Ti 8 GB GDDR6
