Description

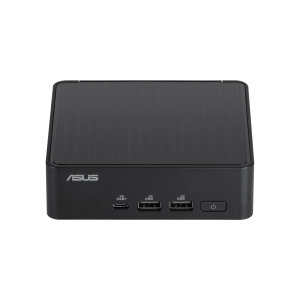

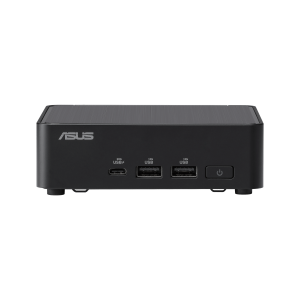

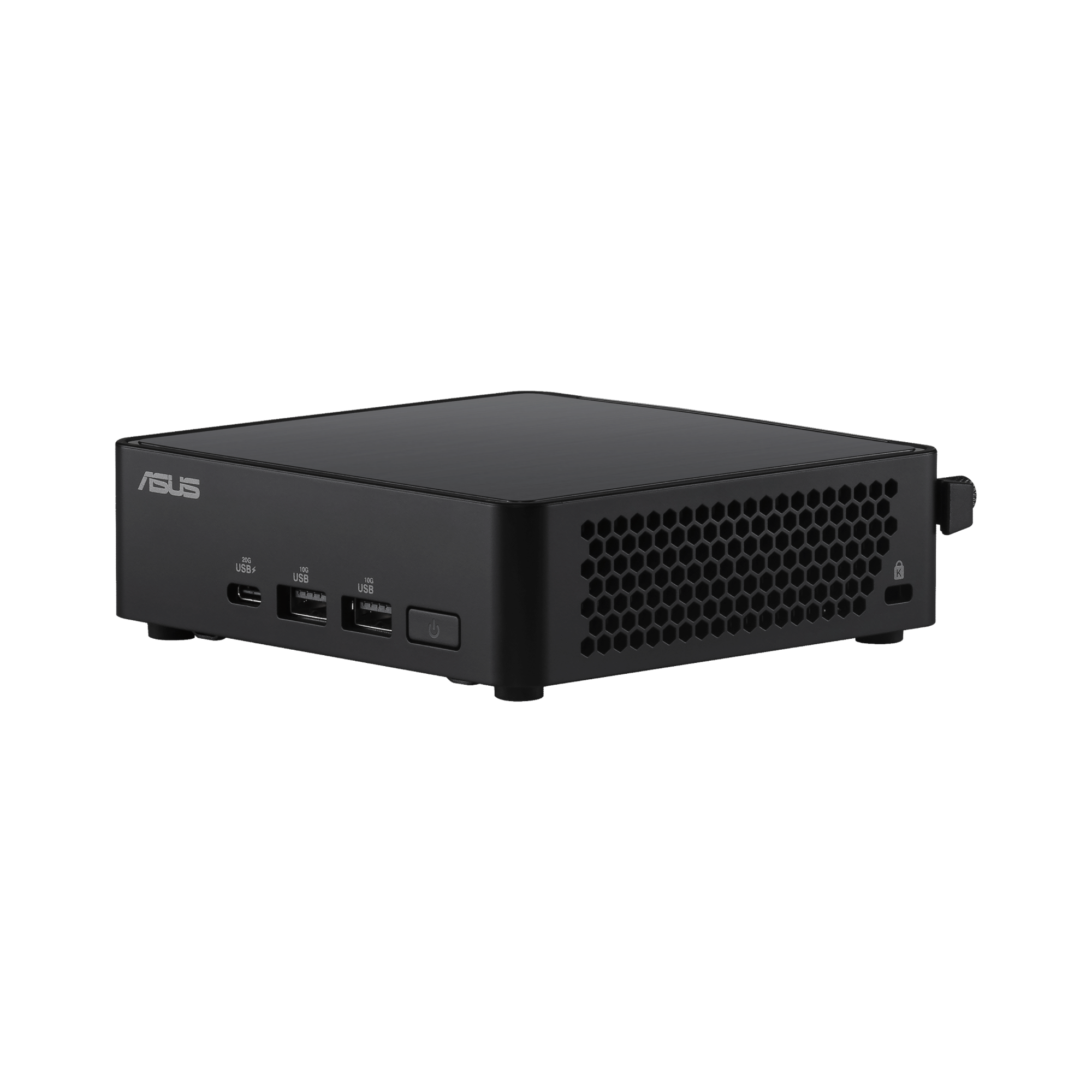

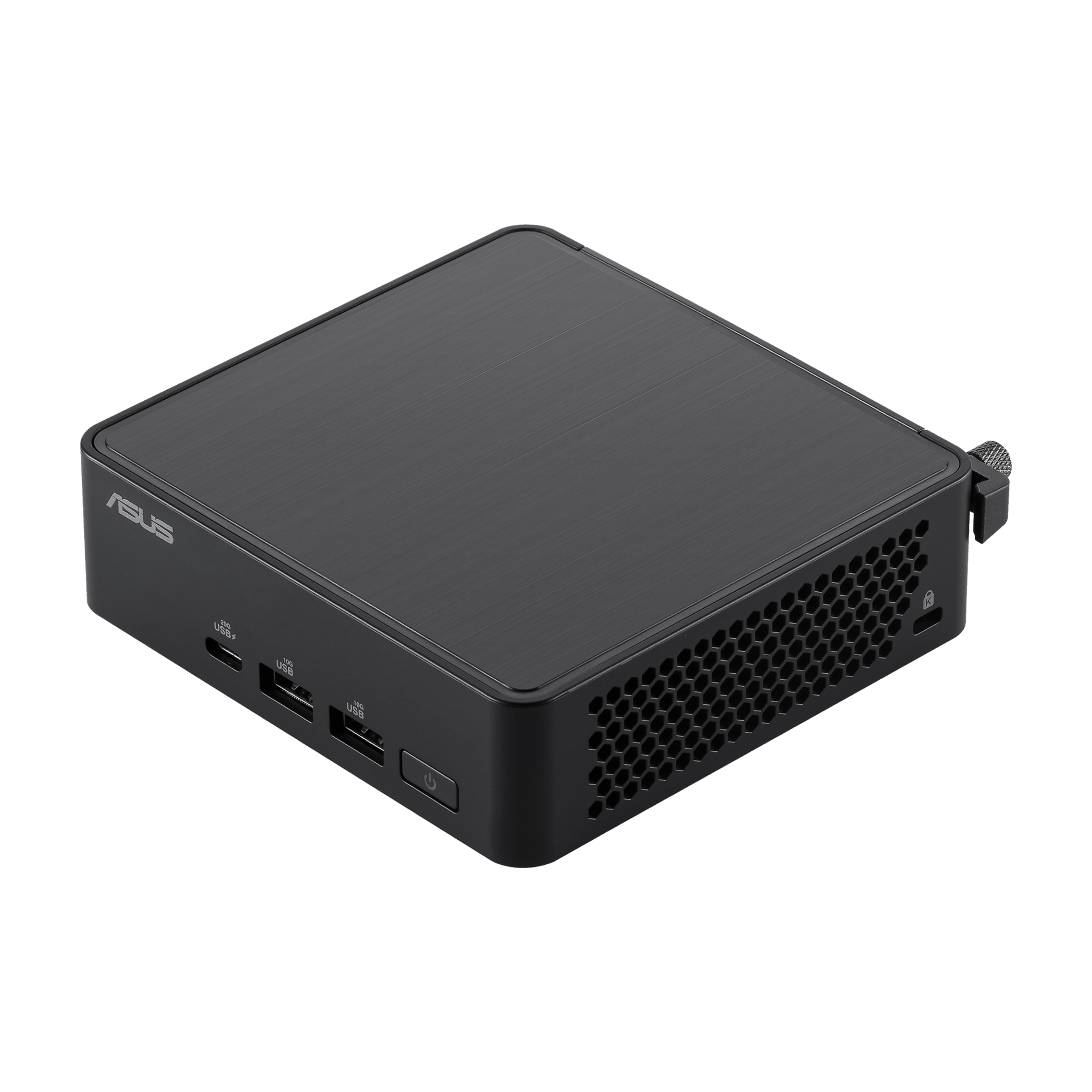

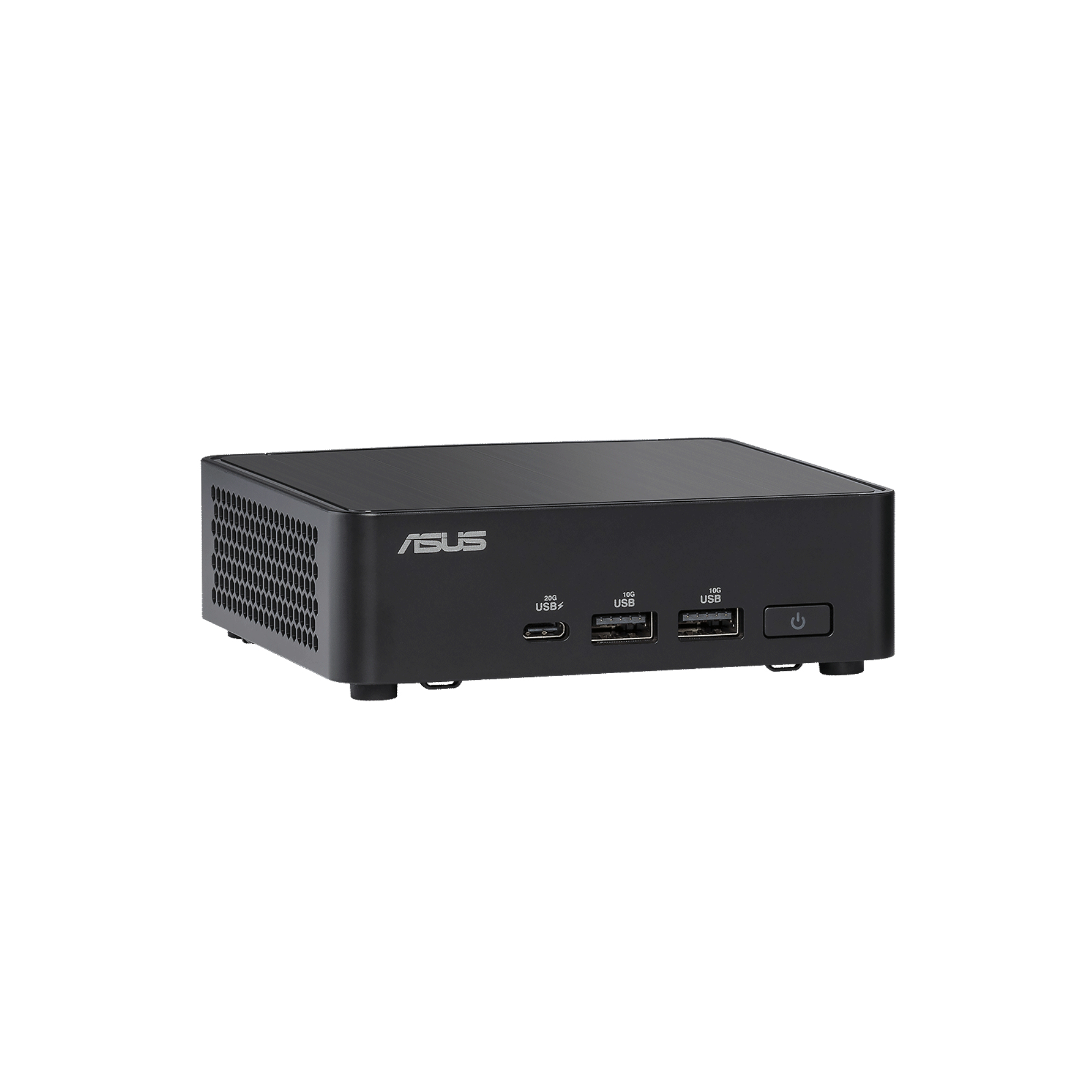

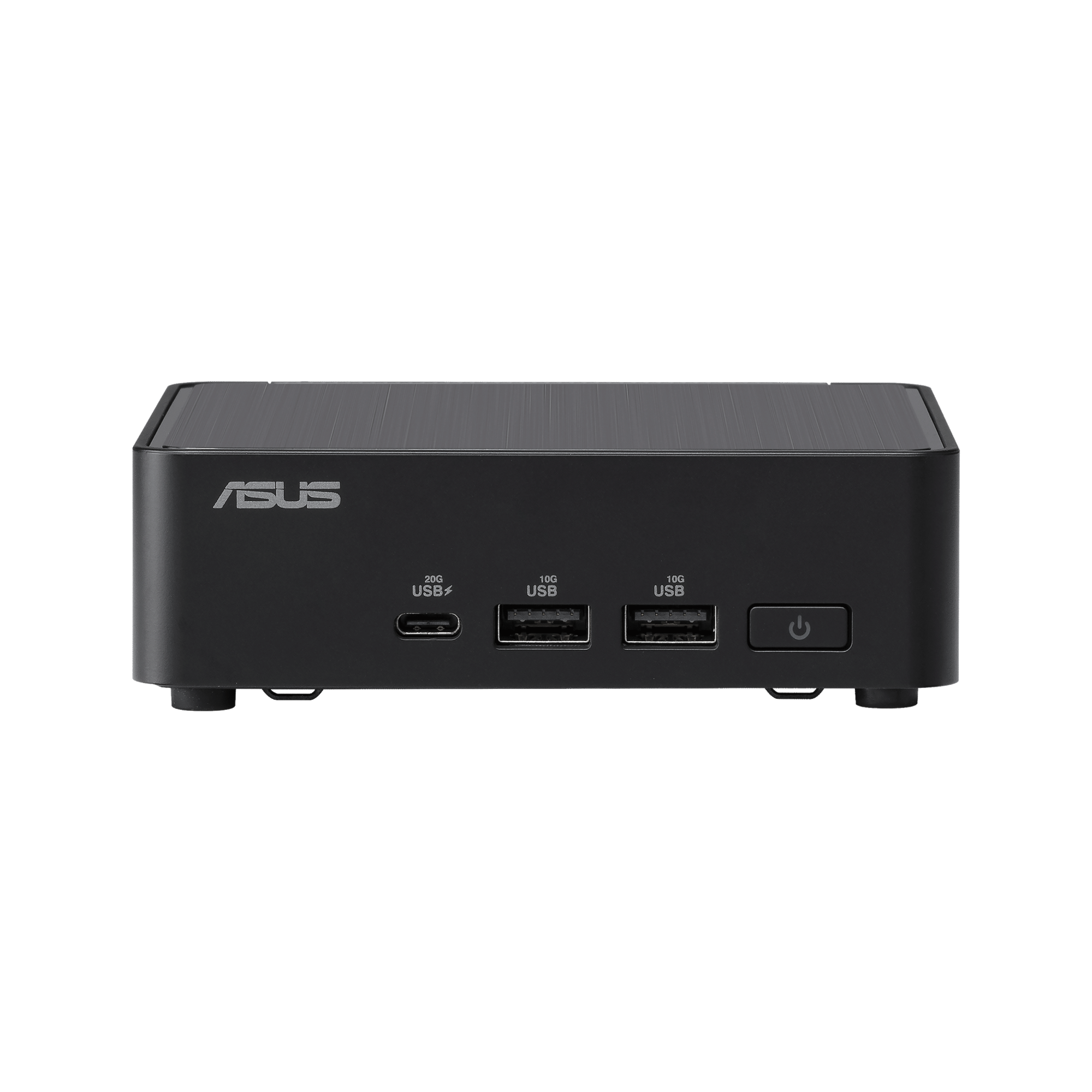

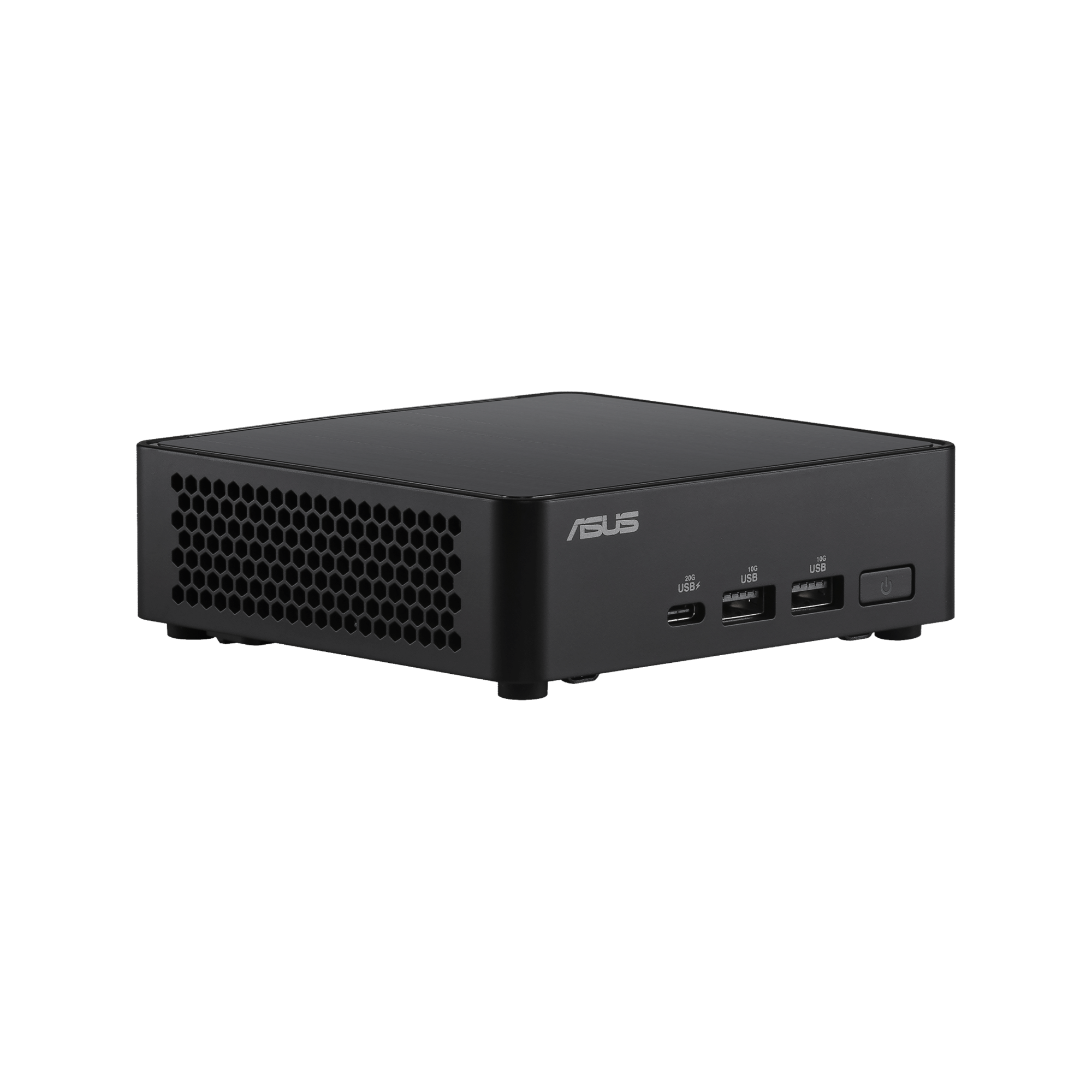

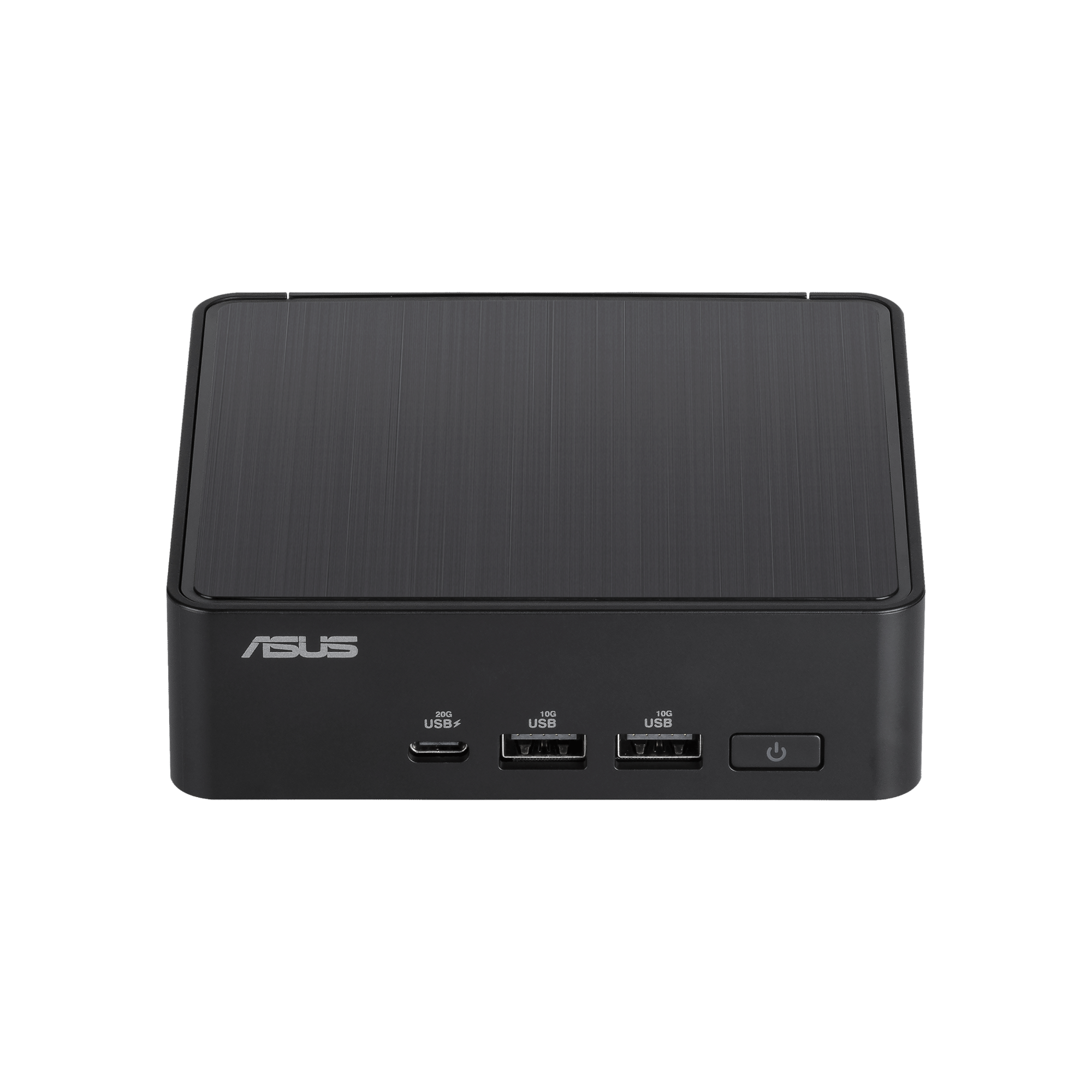

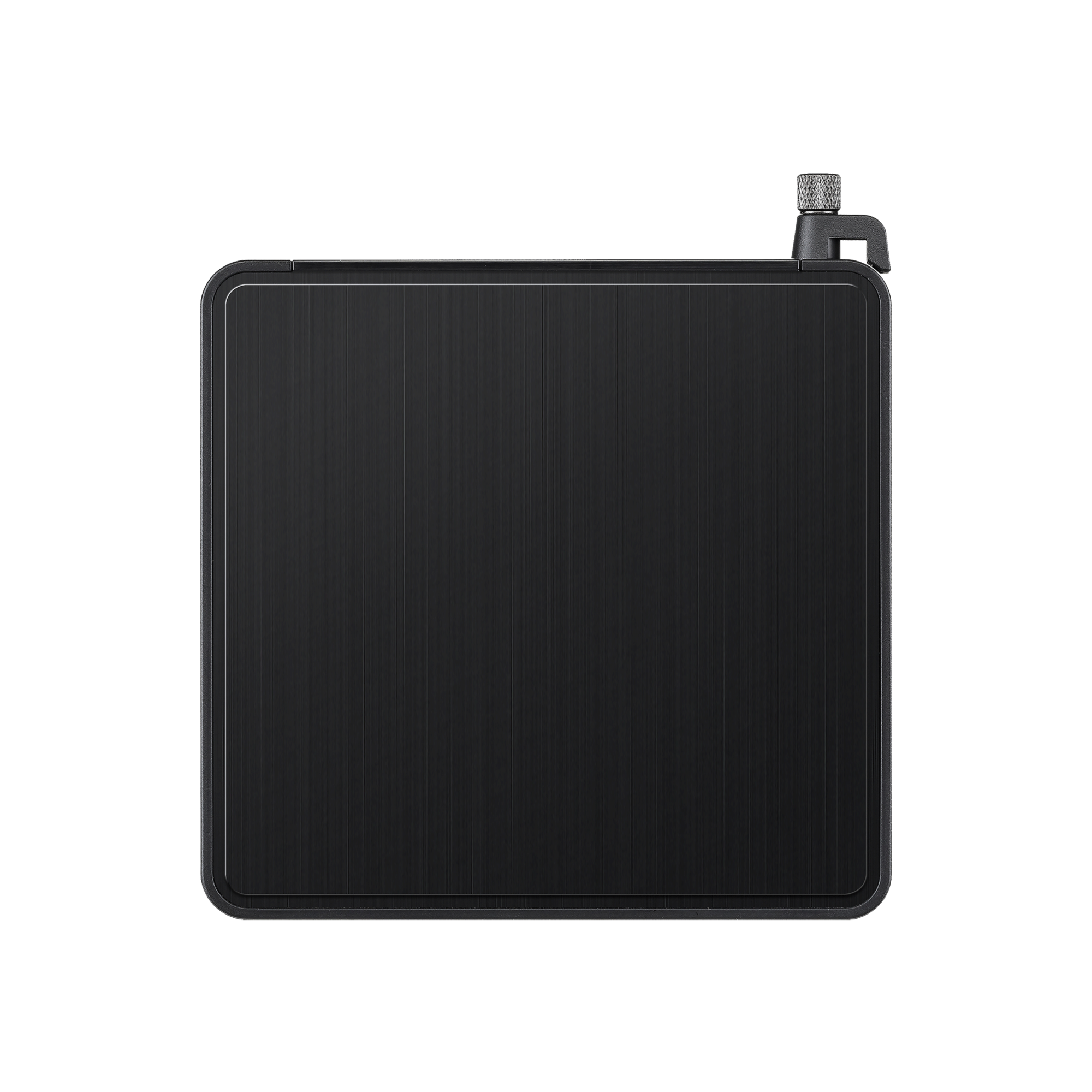

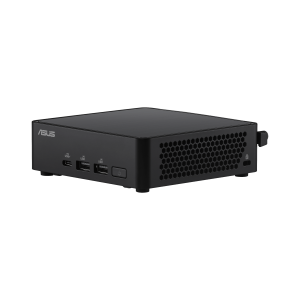

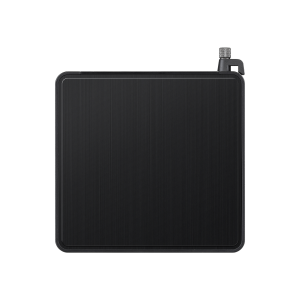

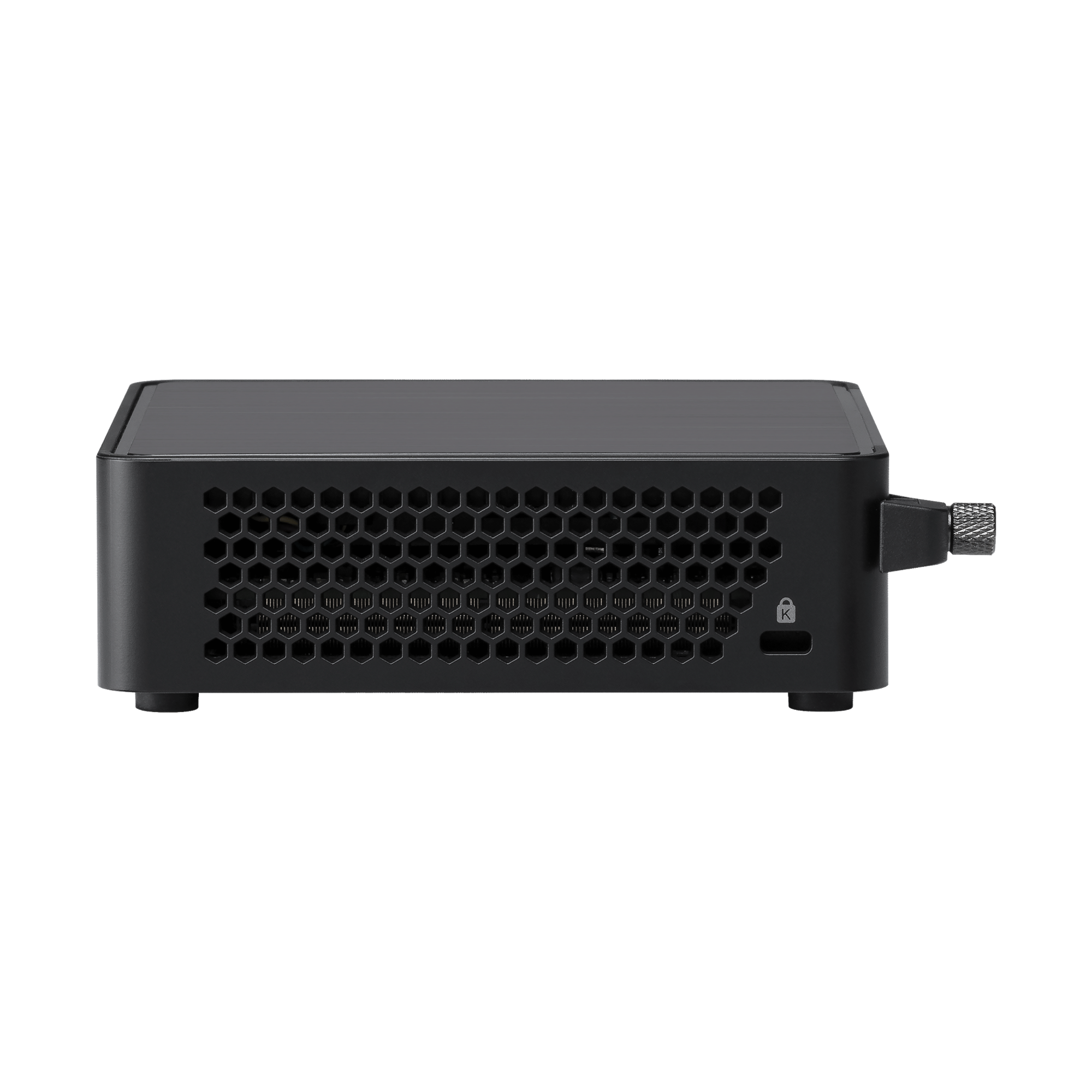

ASUS NUC 14 Pro RNUC14RVKU500003I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

Performance: Delivers best-in-class performance among comparable mini-PC offerings
Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences

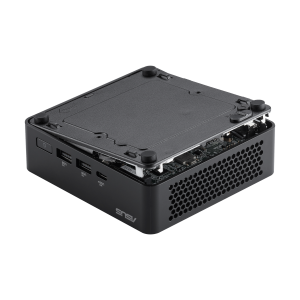

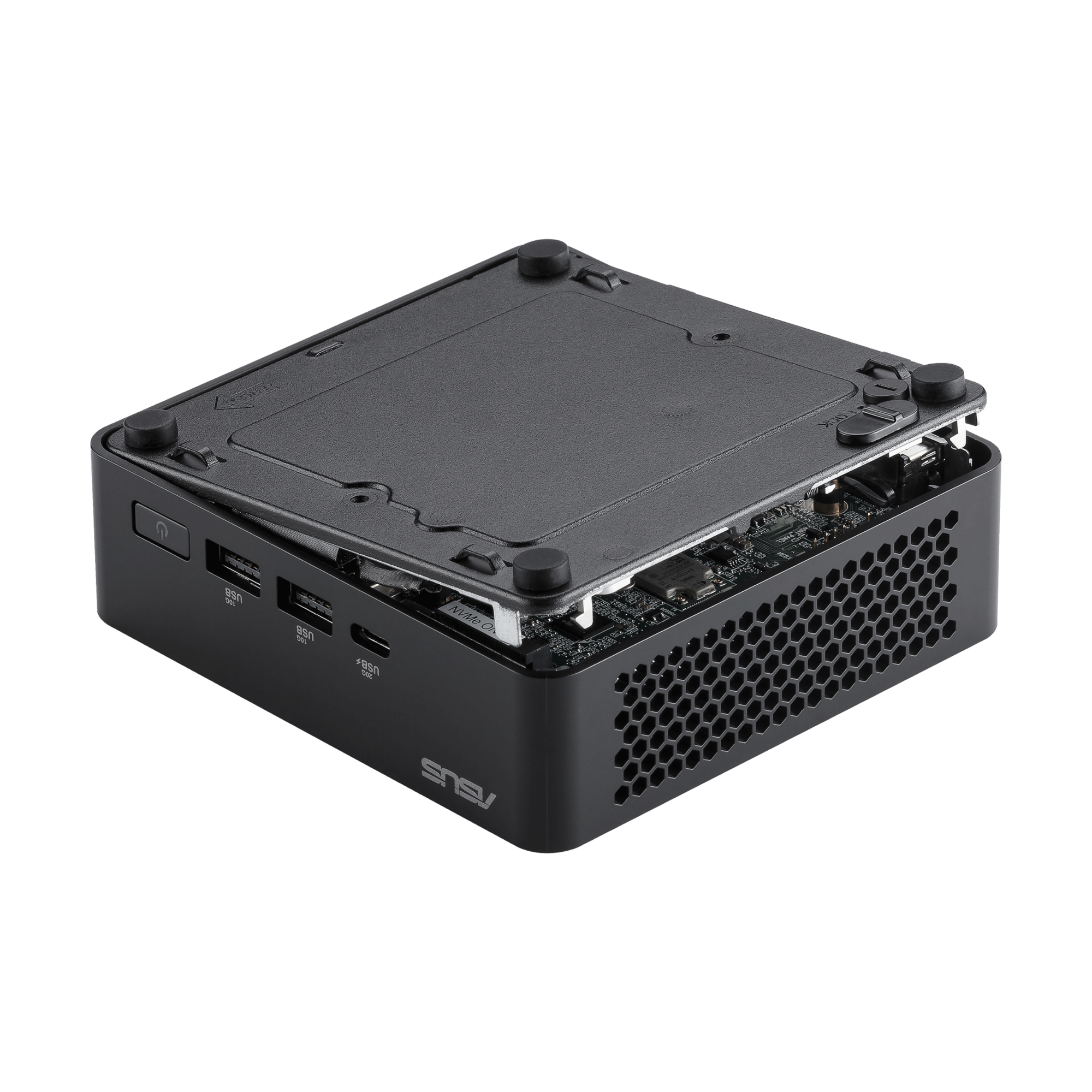

Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Product Properties

Manufacturer
Asus

Model
90AR0062-M000A0

EAN
4711387492321

Audio

Built-in speaker(s)
No

Bullet points

Point
AI Ready

Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Manageability

Performance: Delivers best-in-class performance among comparable mini-PC offerings

Wi-Fi Sensing

Wireless connectivity

Design

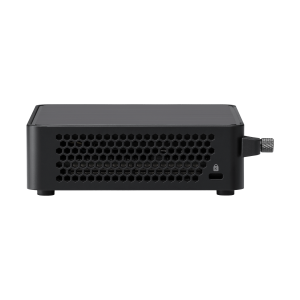

Cable lock slot
Yes

Cable lock slot type
Kensington

Chassis type
UCFF

Cooling type
Active

Product colour
Black

Product type
Mini PC barebone

VESA mounting
Yes

Graphics

Graphics card family
Intel

On-board graphics card
Yes

On-board graphics card model
Intel Graphics

Memory

Memory channels
Dual-channel

Memory Slot Support
96 GB

Memory slots type
SO-DIMM

Number of memory slots
2

Supported memory clock speeds
5600 MHz

Supported memory types
DDR5-SDRAM

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller model
Intel Wi-Fi 6E AX211

Packaging content

Power cord included
Yes

Quick start guide
Yes

Performance

Number of processors supported
1

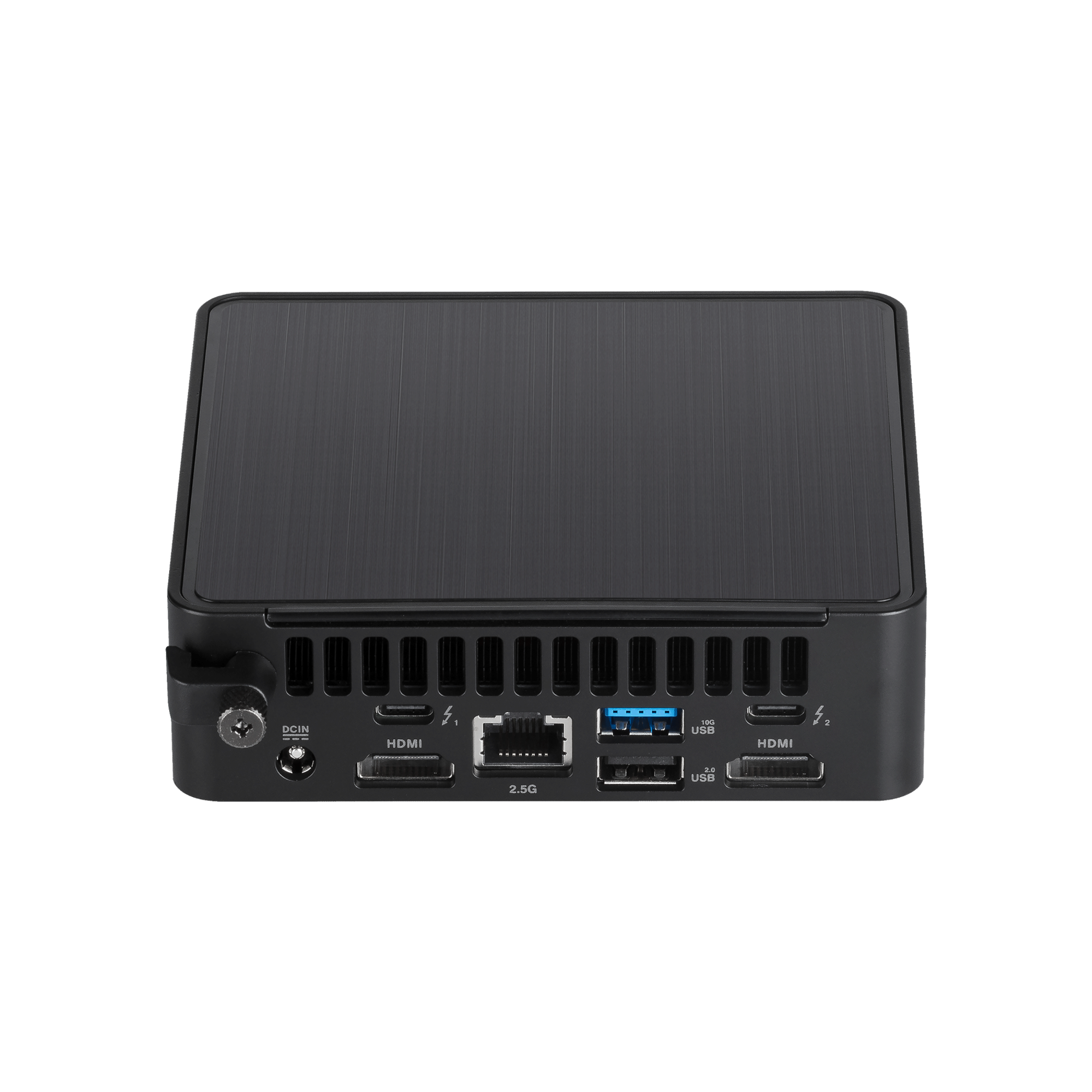

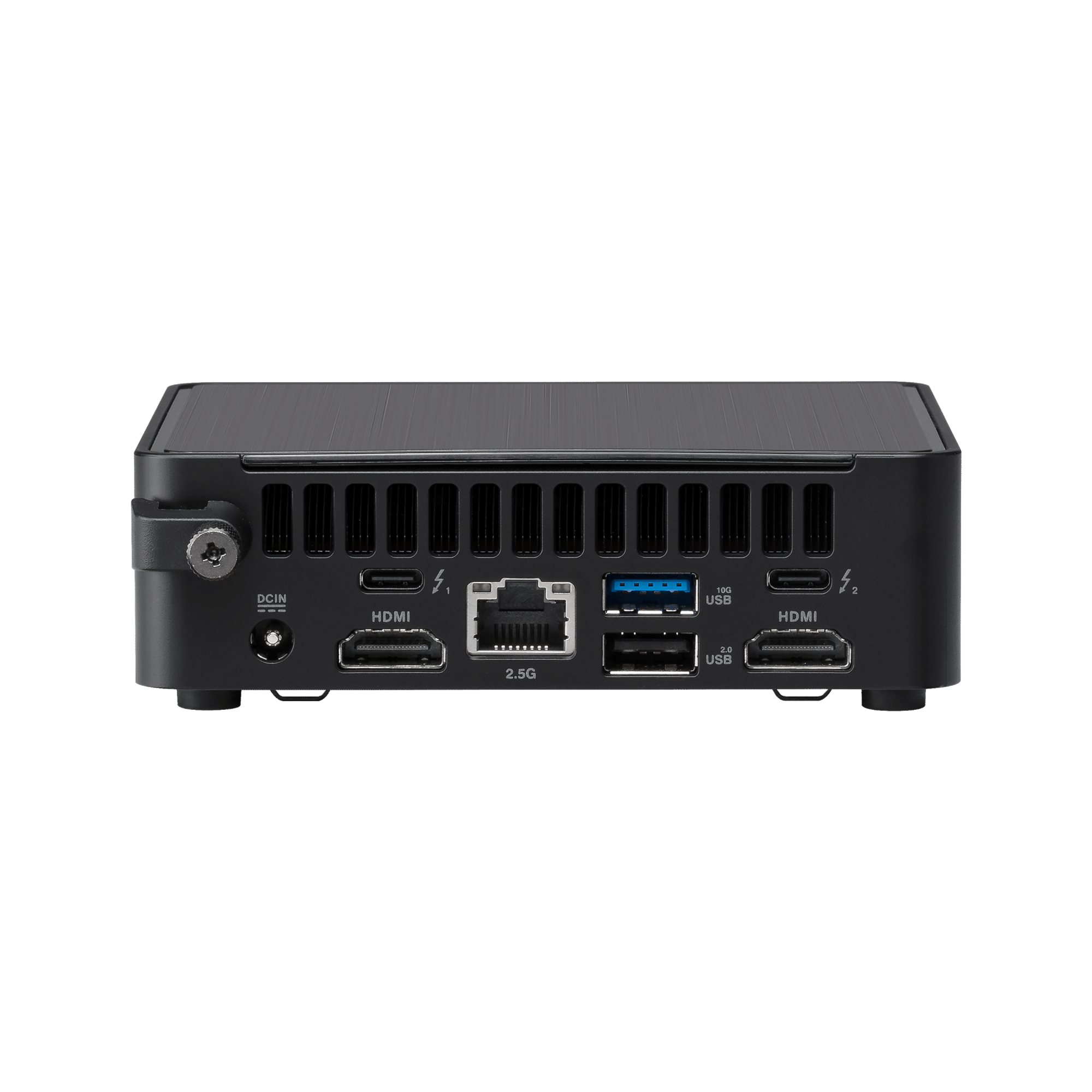

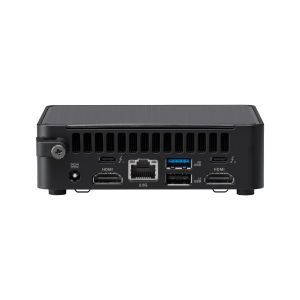

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

HDMI ports
2

HDMI version
2.1

Thunderbolt 4 ports quantity
2

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB4 Gen 2x2 ports quantity
1

VGA (D-Sub) ports quantity
0

Power

Power supply
120 W

Power supply type
External AC adapter

Processor

Built-in processor
Yes

Efficient cores
8

Efficient-core boost frequency
3.6 GHz

Low Power Efficient-core Max Turbo Frequency
2.5 GHz

Low Power Efficient-cores
2

Number of Cores
14

Performance cores
4

Performance-core boost frequency
4.5 GHz

Processor
125H

Processor cache
18 MB

Processor family
Intel Core Ultra 5

Processor generation
Intel® Core™ Ultra (Series 1)

Processor manufacturer
Intel

Processor threads
18

Thermal Design Power (TDP)
28 W

Software

Windows operating systems supported
Windows 11

Storage

NVMe
Yes

Storage drive interface
PCI Express

Storage drive sizes supported
M.2

Supported storage drive types
SSD

Weight & dimensions

Depth
112 mm

Height
37 mm

Weight
480 g

Width
117 mm

ASUS NUC 14 Pro RNUC14RVKU500003I UCFF Black 125H
