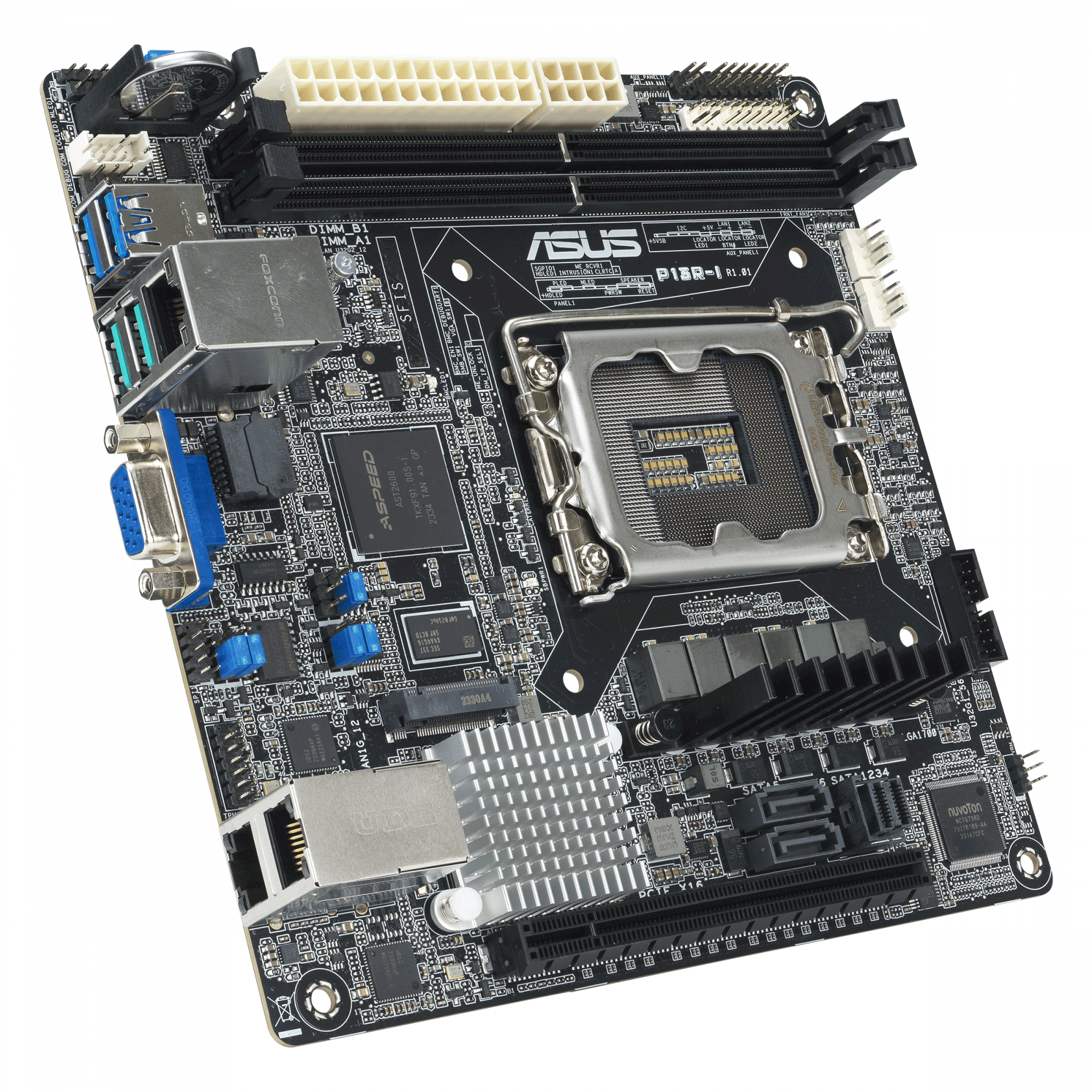

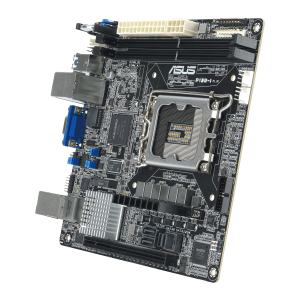

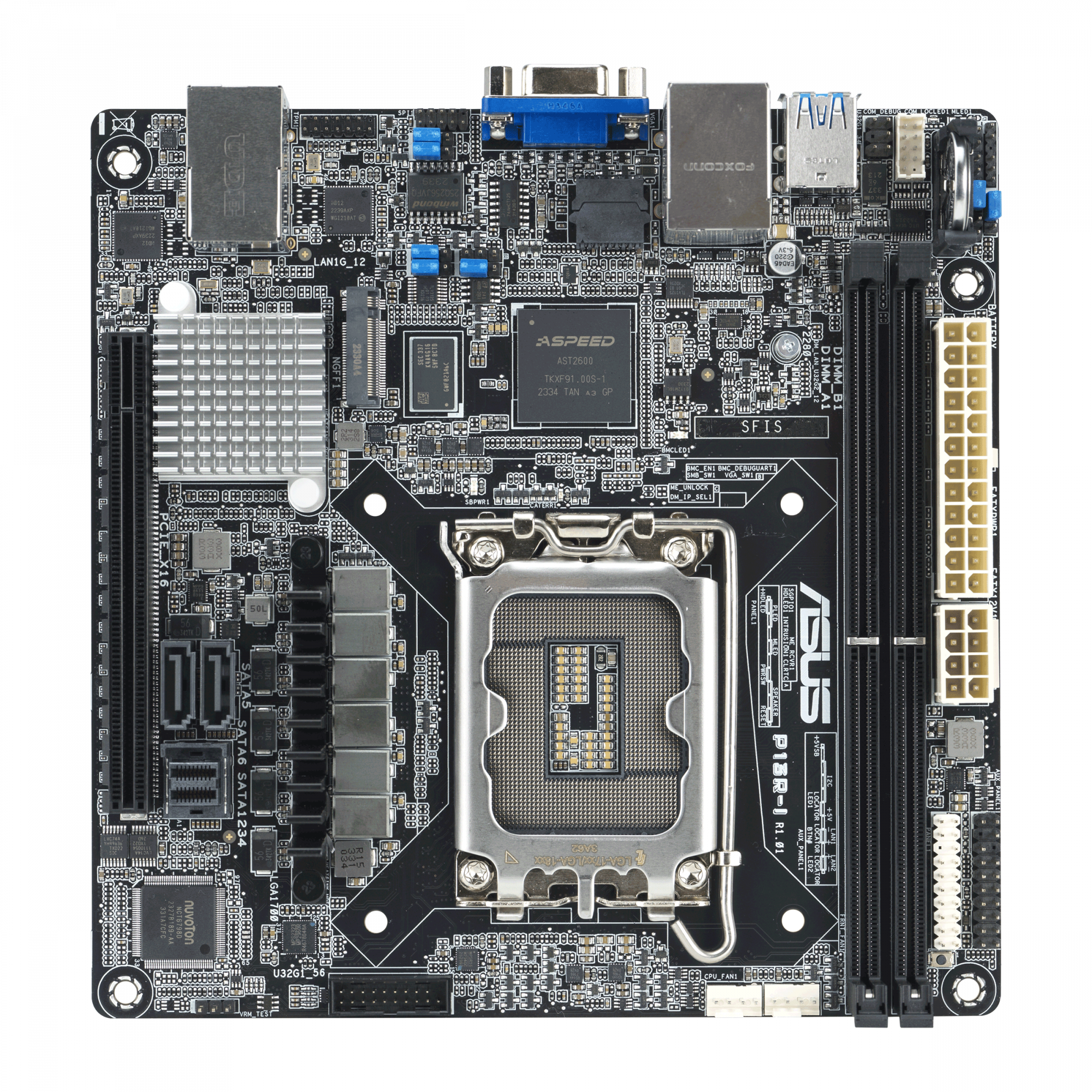

ASUS P13R-I Intel C262 LGA 1700 mini ITX
Roll over image to zoom inClick to Open expanded view
ASUS P13R-I Intel C262 LGA 1700 mini ITX
ASUS P13R-I Intel C262 LGA 1700 mini ITX
ASUS P13R-I Intel C262 LGA 1700 mini ITX
ASUS P13R-I Intel C262 LGA 1700 mini ITX
Print
Model: 90SB0CR0-M0UAY0
EAN: 4711387372340

ASUS P13R-I Intel C262 LGA 1700 mini ITX

Manufacturer:
Asus
ASUS P13R-I, Intel, LGA 1700, Intel® Pentium®, Intel® Xeon®, Intel Xeon E, LGA 1700, DDR5-SDRAM, 64 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS P13R-I. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Pentium®, Intel® Xeon®, Intel Xeon E. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD. Graphics card: AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: Gigabit Ethernet
  • Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP
  • Flexible expandability with six native SATA ports and one PCIe 5.0 x16 slot
  • Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
  • One M.2 slot for faster OS booting, and two DDR5 ECC UDIMM slots up to 64 Gbps
  • Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
  • Mini-ITX board in a compact footprint, making it a popular choice for SMB general purpose, mail and storage applications

Product Properties

  • Model
  • 90SB0CR0-M0UAY0
  • EAN
  • 4711387372340
  • Bullet points
  • Point
  • Dual Intel I210-AT2 gigabit Ethernet ports with teaming support
    Flexible expandability with six native SATA ports and one PCIe 5.0 x16 slot
    Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
    One M.2 slot for faster OS booting, and two DDR5 ECC UDIMM slots up to 64 Gbps
  • Expansion slots
  • 1st M.2 highest PCI Express generation
  • 4.0
  • 1st M.2 largest key size
  • 2280
  • Number of M.2 (M) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Chip Set
  • Intel
  • Component for
  • Server
  • Cooling type
  • Passive
  • Motherboard chipset
  • Intel C262
  • Motherboard form factor
  • mini ITX
  • Product colour
  • Black
  • Graphics
  • Graphics card
  • AST2600
  • On-board graphics card memory
  • 64 MB
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • Front panel connector
  • Yes
  • Number of chassis fan connectors
  • 2
  • Number of COM connectors
  • 1
  • Number of CPU fan connectors
  • 1
  • Number of SATA III connectors
  • 6
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Memory
  • ECC сompatibility
  • ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 2
  • Supported memory clock speed (max)
  • 4800 MHz
  • Supported memory clock speeds
  • 3600,4000,4400,4800 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Network
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Operational conditions
  • Operating temperature (T-T)
  • 10 - 50 °C
  • Storage relative humidity (H-H)
  • 20 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Processor
  • Compatible processor series
  • Intel® Pentium®, Intel® Xeon®, Intel Xeon E
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700
  • Rear panel I/O ports
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 3
  • HDMI ports quantity
  • 0
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 6
  • Number of storage drives supported
  • 7
  • Supported storage drive interfaces
  • PCI Express 4.0, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 170 mm
  • Width
  • 170 mm
