Description

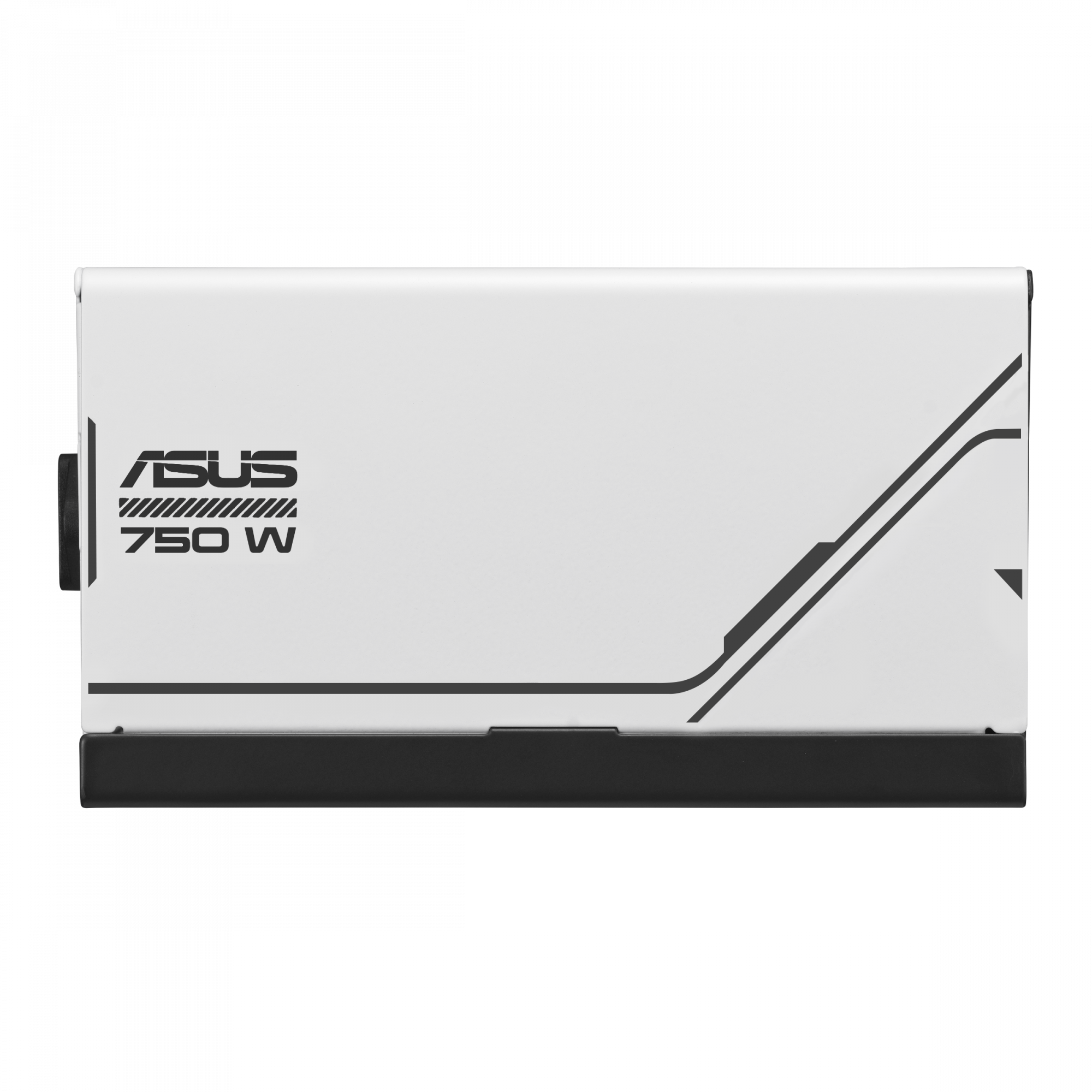

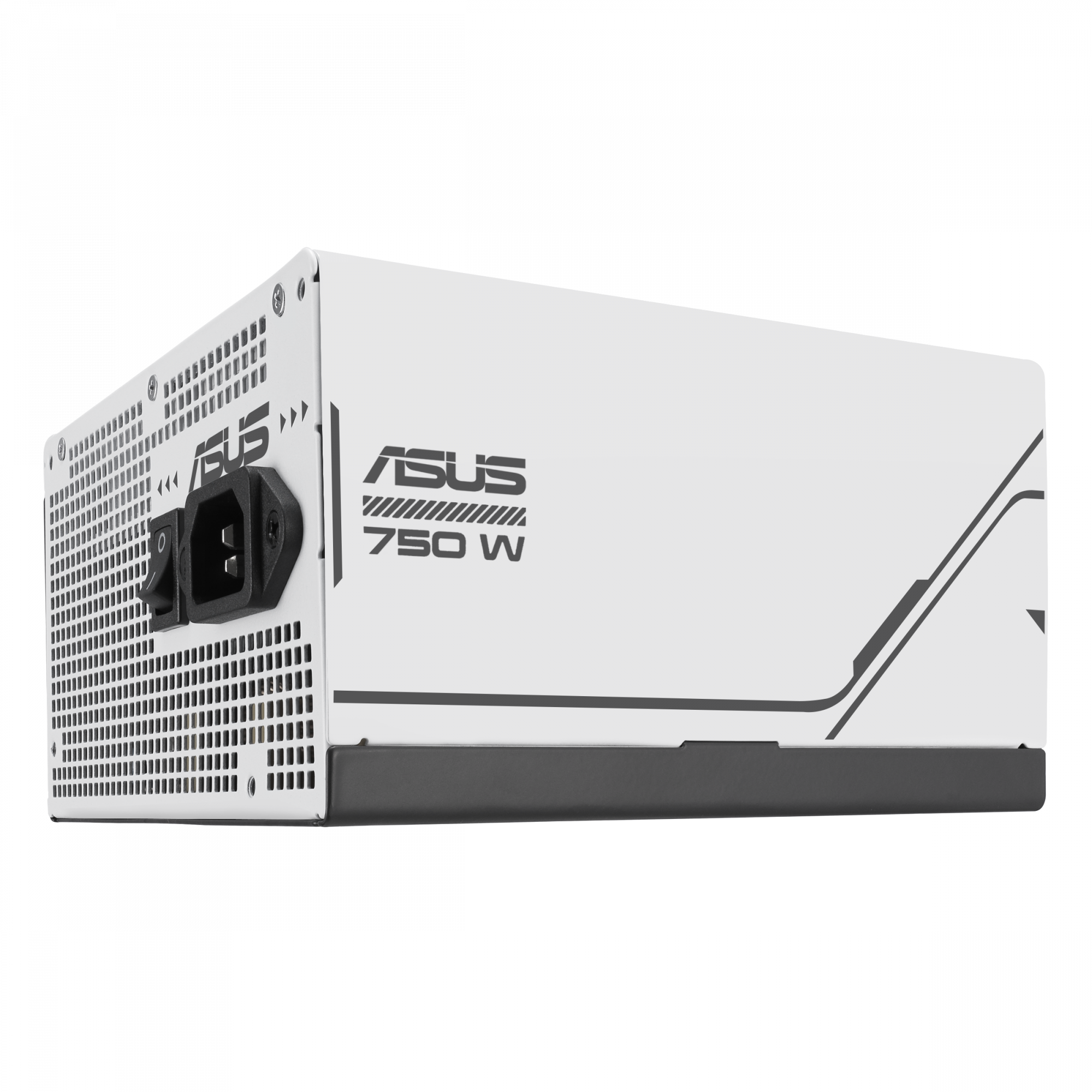

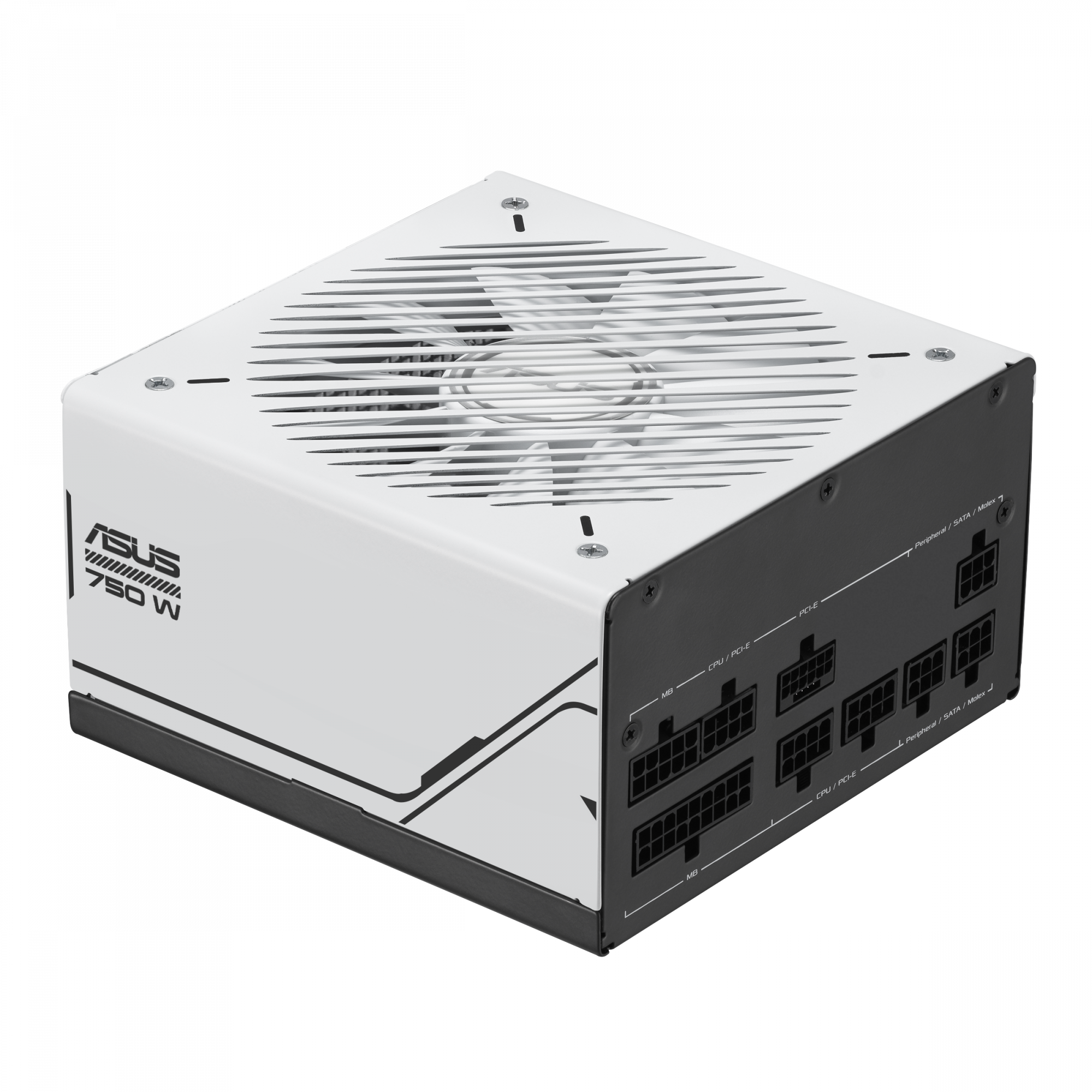

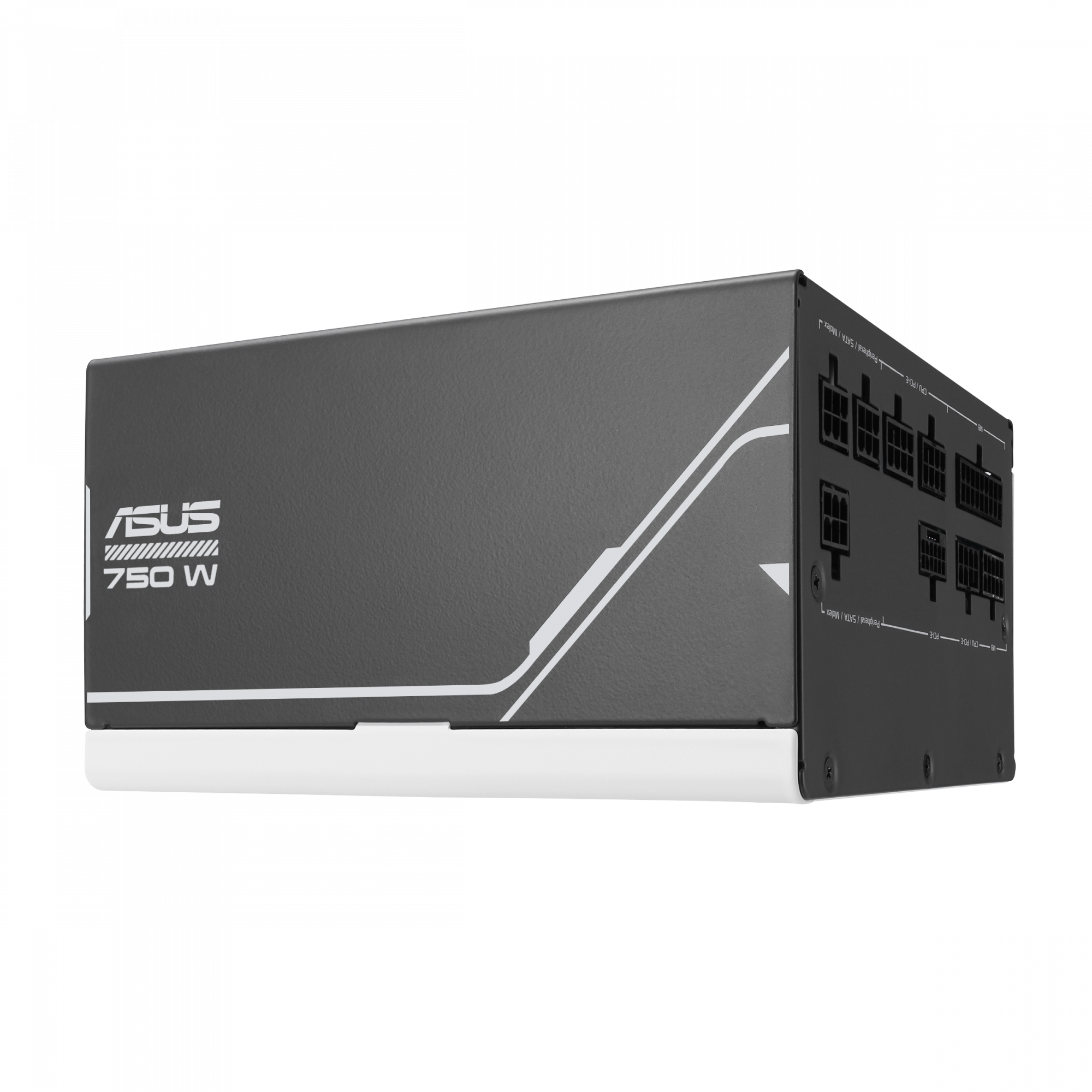

ASUS Prime AP-750G. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

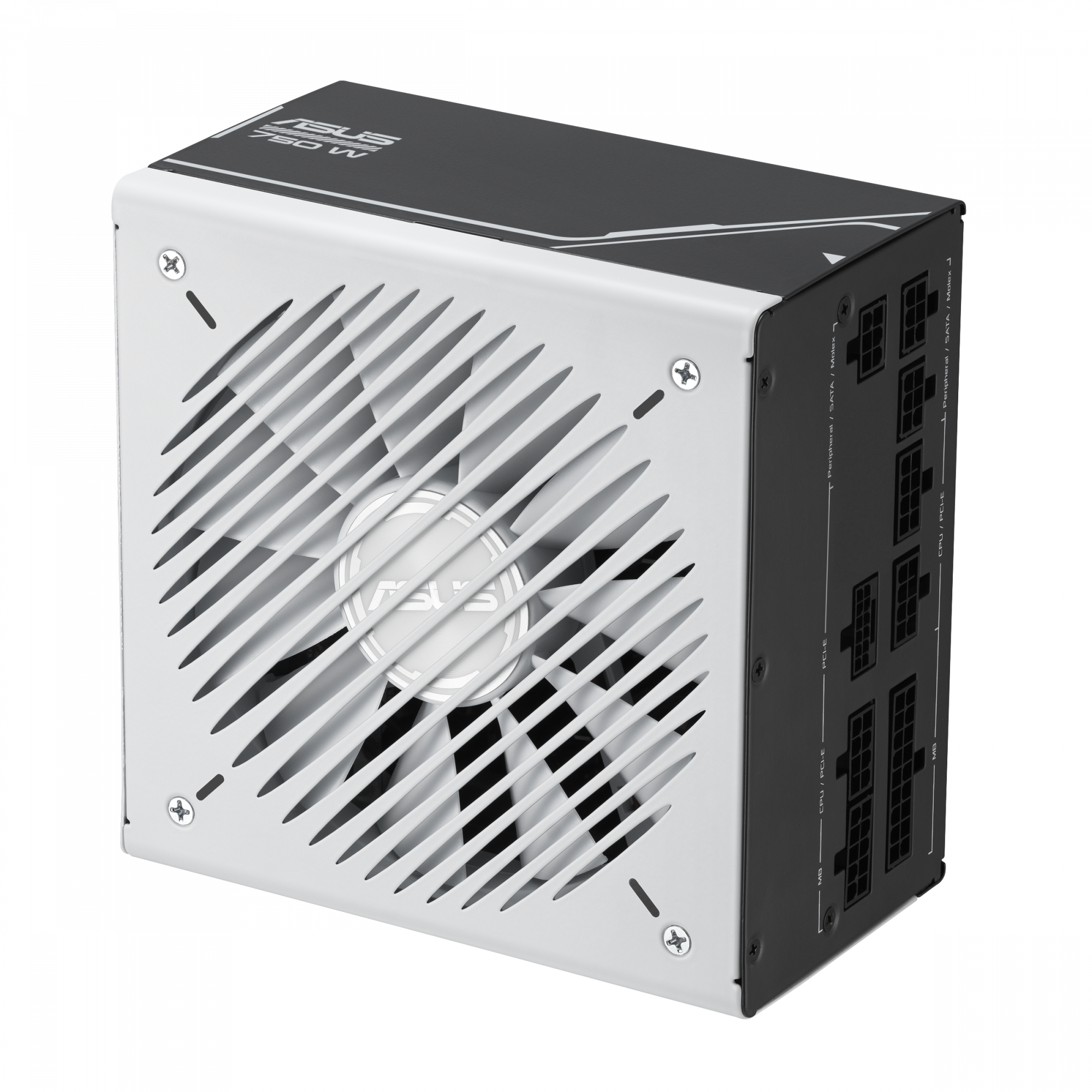

Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards

Product Properties

Manufacturer
Asus

Model
90YE00U1-B0NA00

EAN
4711387192962

Bullet points

Point
An 80 Plus gold certification is the result of low-ESR capacitors and other premium components

ATX 3.0 compatible

Dual ball fan bearings that can last up to twice as long as sleeve bearing designs

Design

Cooling type
Active

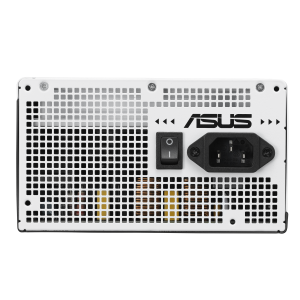

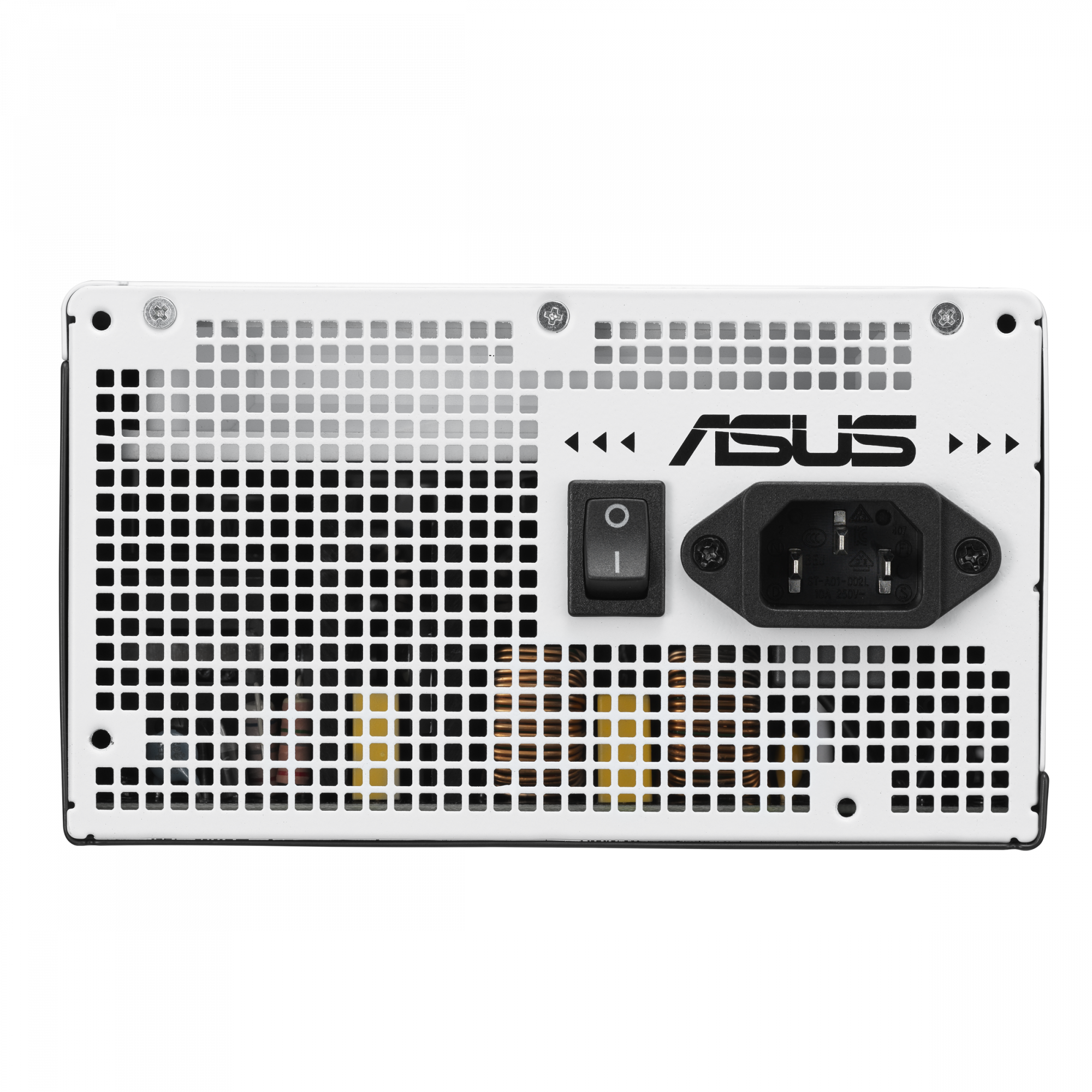

On/off switch
Yes

Product colour
Black, White

Packaging content

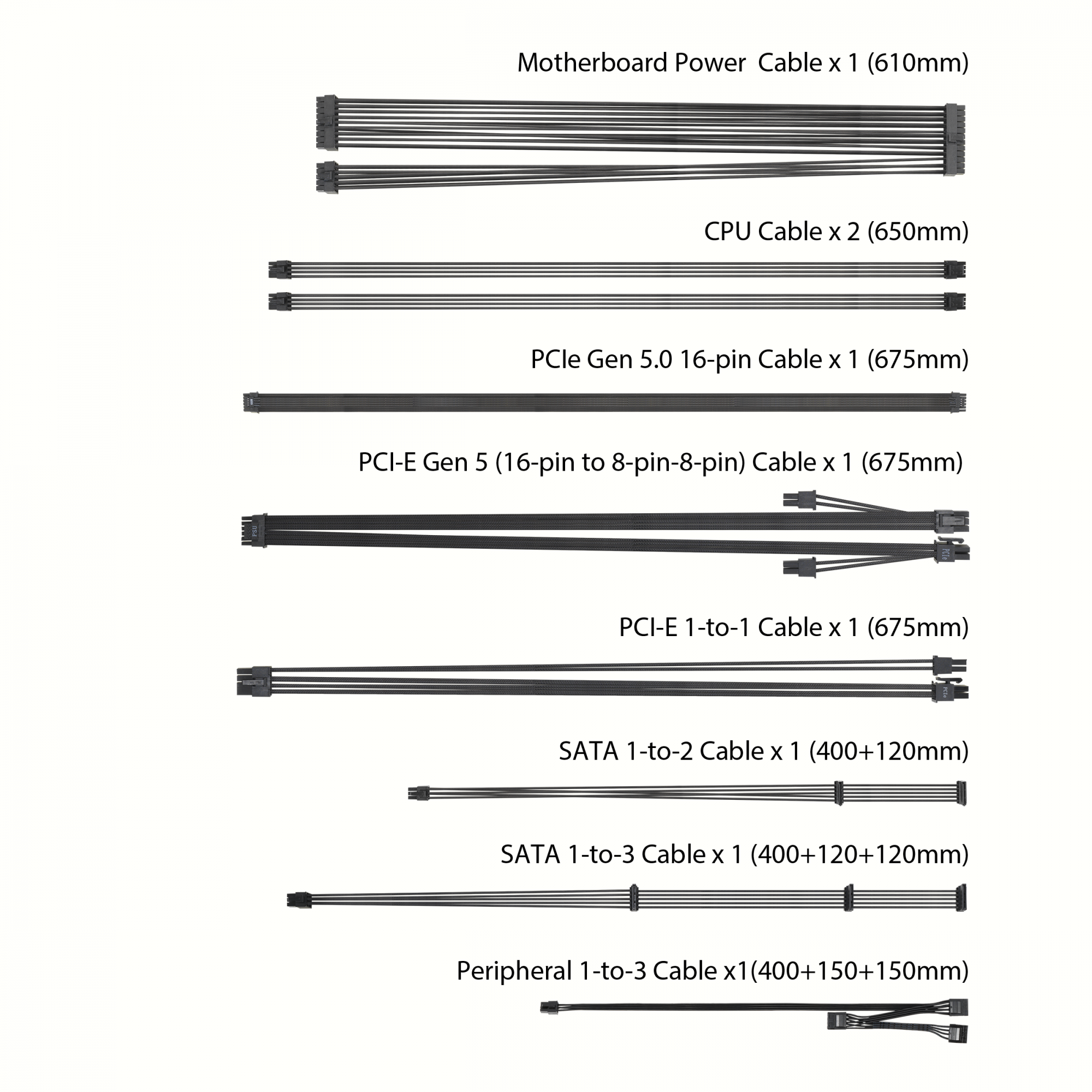

Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA

Packaging data

Package depth
208 mm

Package height
144 mm

Package type
Box

Package weight
2.88 kg

Package width
346 mm

Performance

80 PLUS certification
80 PLUS Gold

ATX version
3.0

Bearing technology
Ball bearing

Mean time between failures (MTBF)
120000 h

Power supply unit (PSU) form factor
ATX

Purpose
PC

Ports & interfaces

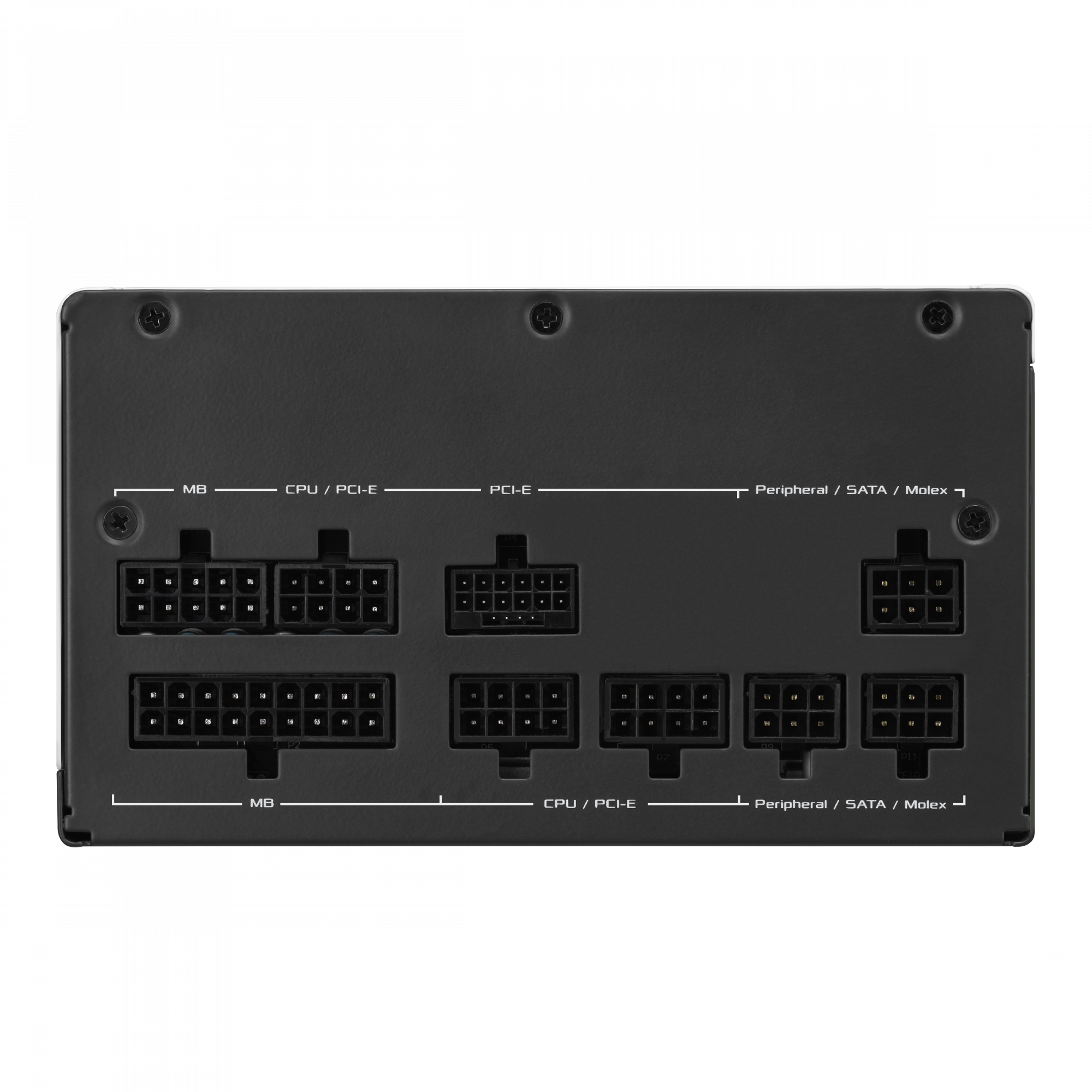

ATX power connector (20+4 pin)
Yes

Cabling type
Fully-Modular

CPU P4 connector (4-pin)
2

CPU power cable length
65 cm

CPU power connector (4+4 pin)
Yes

Motherboard power cable length
61 cm

Motherboard power connector
20+4 pin ATX

Number of SATA power connectors
5

PCI Express power connectors (16-pin)
1

PCI Express power connectors (8-pin)
3

Peripheral (Molex) power cable length
150,400 mm

Peripheral (Molex) power connectors (4-pin)
3

SATA power cable length
120,400 mm

Power

AC input voltage
100 - 240 V

Combined power (+12V)
744 W

Combined power (+3.3V)
110 W

Combined power (+5V)
110 W

Combined power (+5Vsb)
12.5 W

Combined power (-12V)
3.6 W

Efficiency
92%

Max output current (+12V)
62 A

Max output current (+3.3V)
20 A

Max output current (+5V)
20 A

Max output current (+5Vsb)
2.5 A

Max output current (-12V)
0.3 A

Power Factor Correction (PFC) type
Active

Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

Total power
750 W

Weight & dimensions

Depth
150 mm

Height
86 mm

Weight
1.47 kg

Width
150 mm

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White
