Description

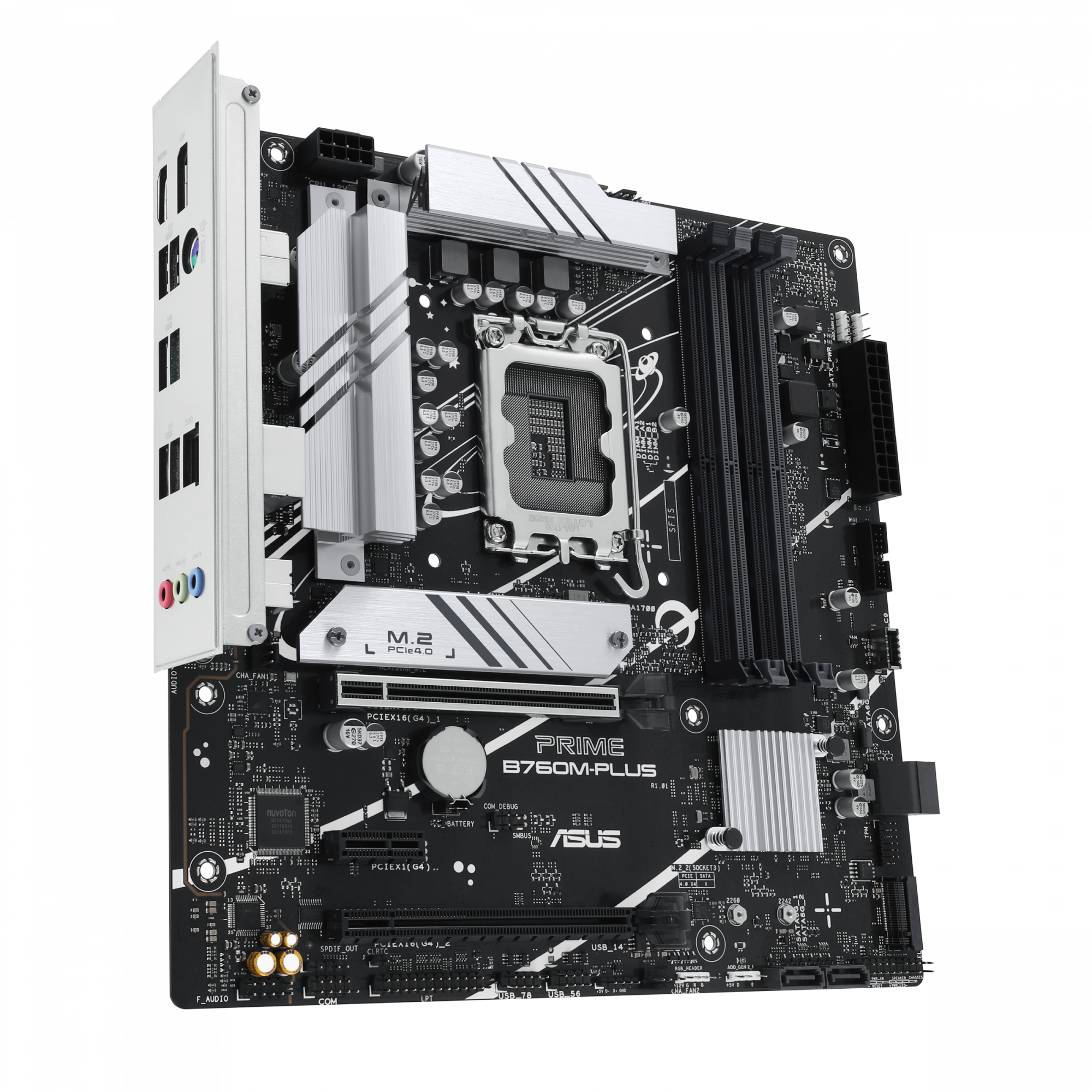

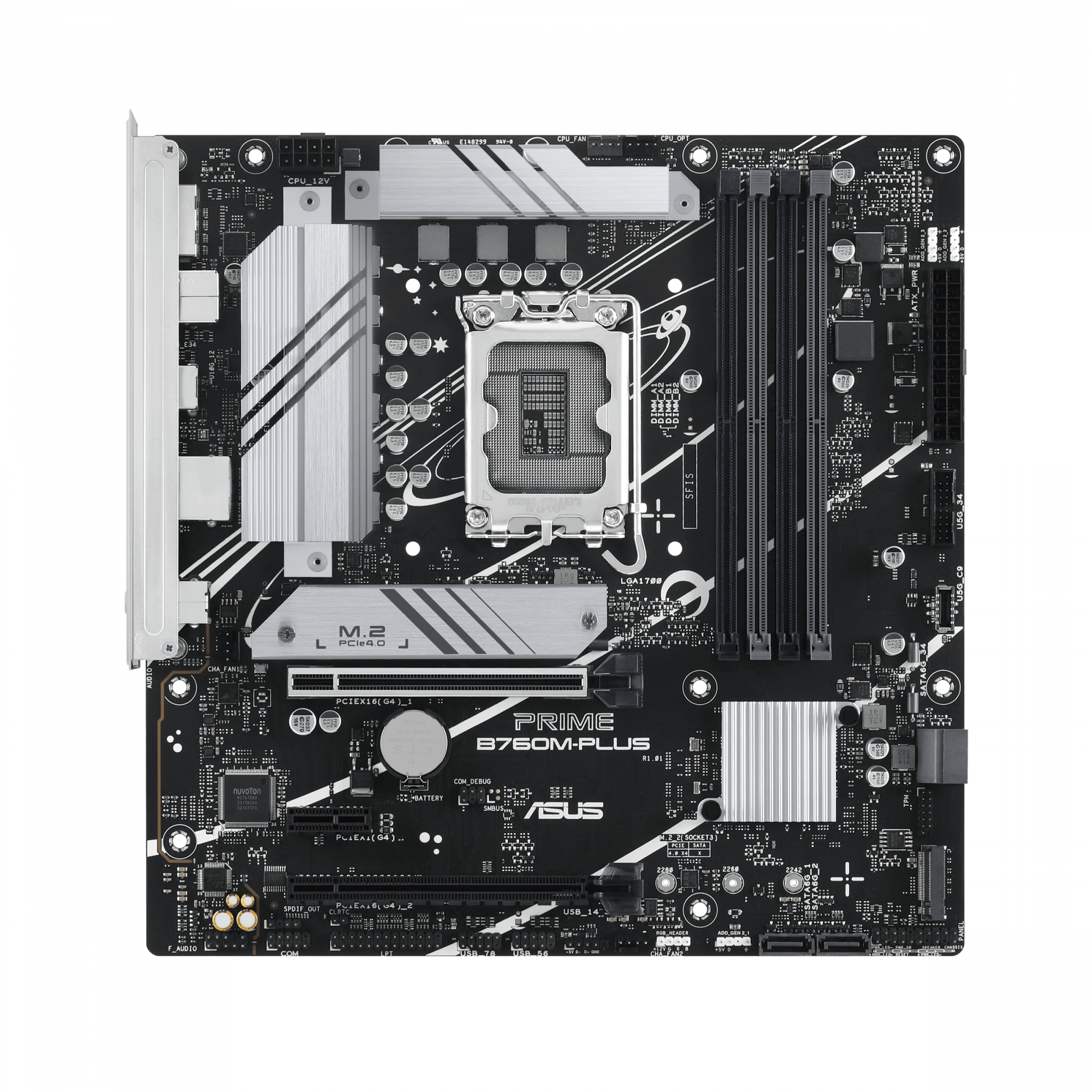

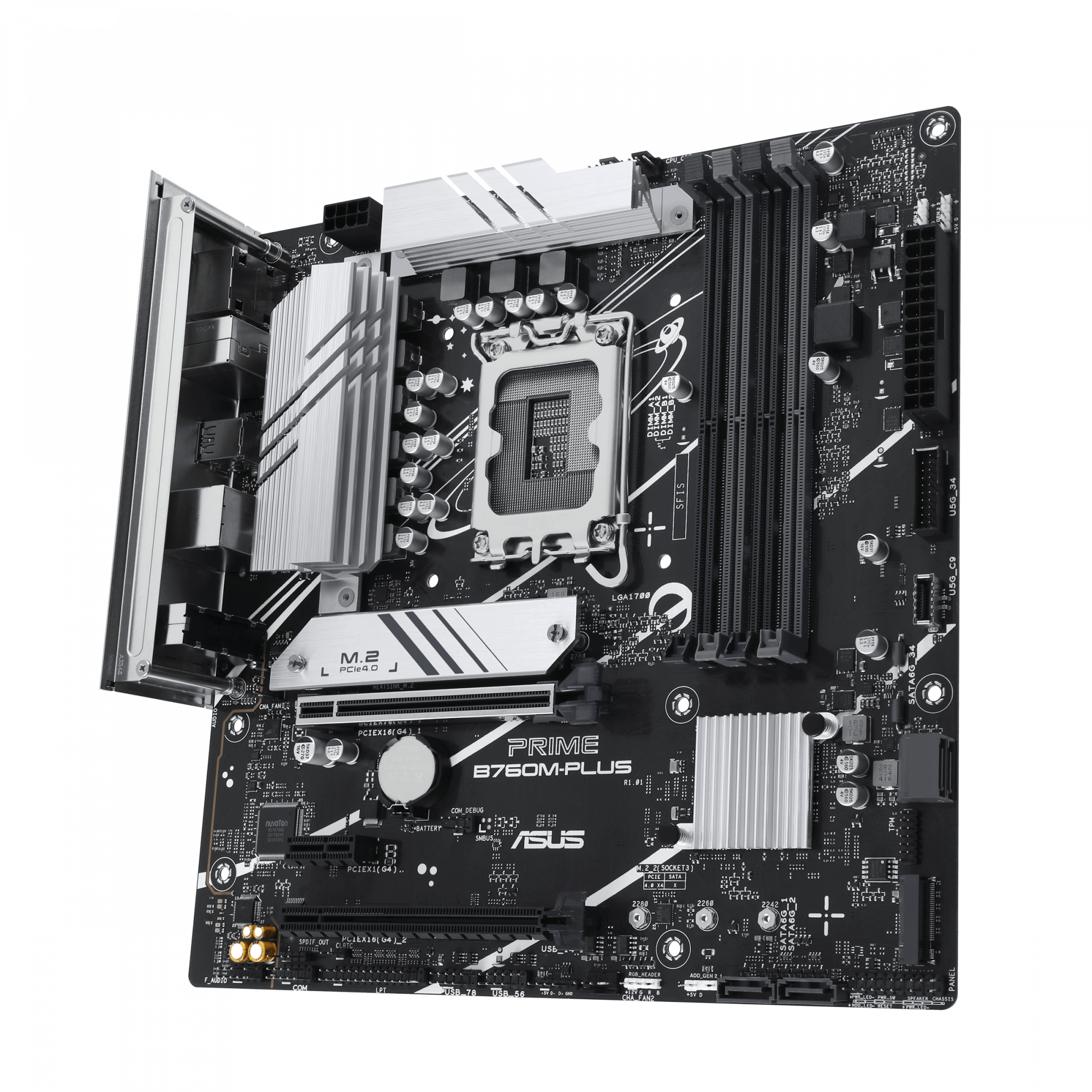

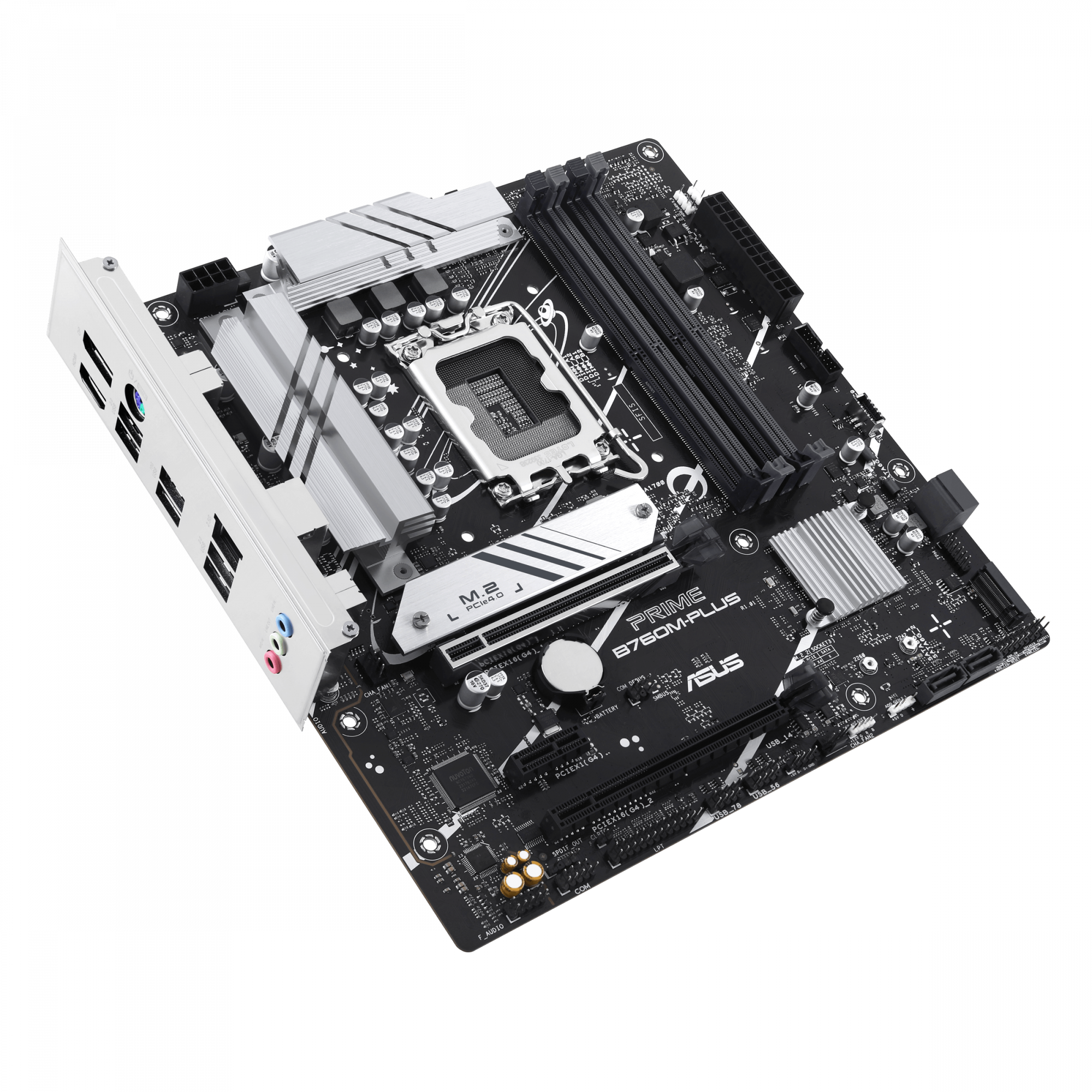

ASUS PRIME B760M-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Product Properties

Manufacturer
Asus

Model
PRIME B760M-PLUS

EAN
4711387469910

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Bullet points

Point
Aura Sync RGB Lighting

Comprehensive cooling

Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors

Two-way AI Noise Cancelation

Ultrafast connectivity

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 4.x) slots
1

PCI Express x16 (Gen 4.x) slots
2

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B760

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
3

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

Memory

ECC сompatibility
Non-ECC

Memory channels
Dual-channel

Memory Slot Support
192 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speed (max)
7200 MHz

Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Packaging content

Cables included
SATA

Screws included
Yes

Processor

Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

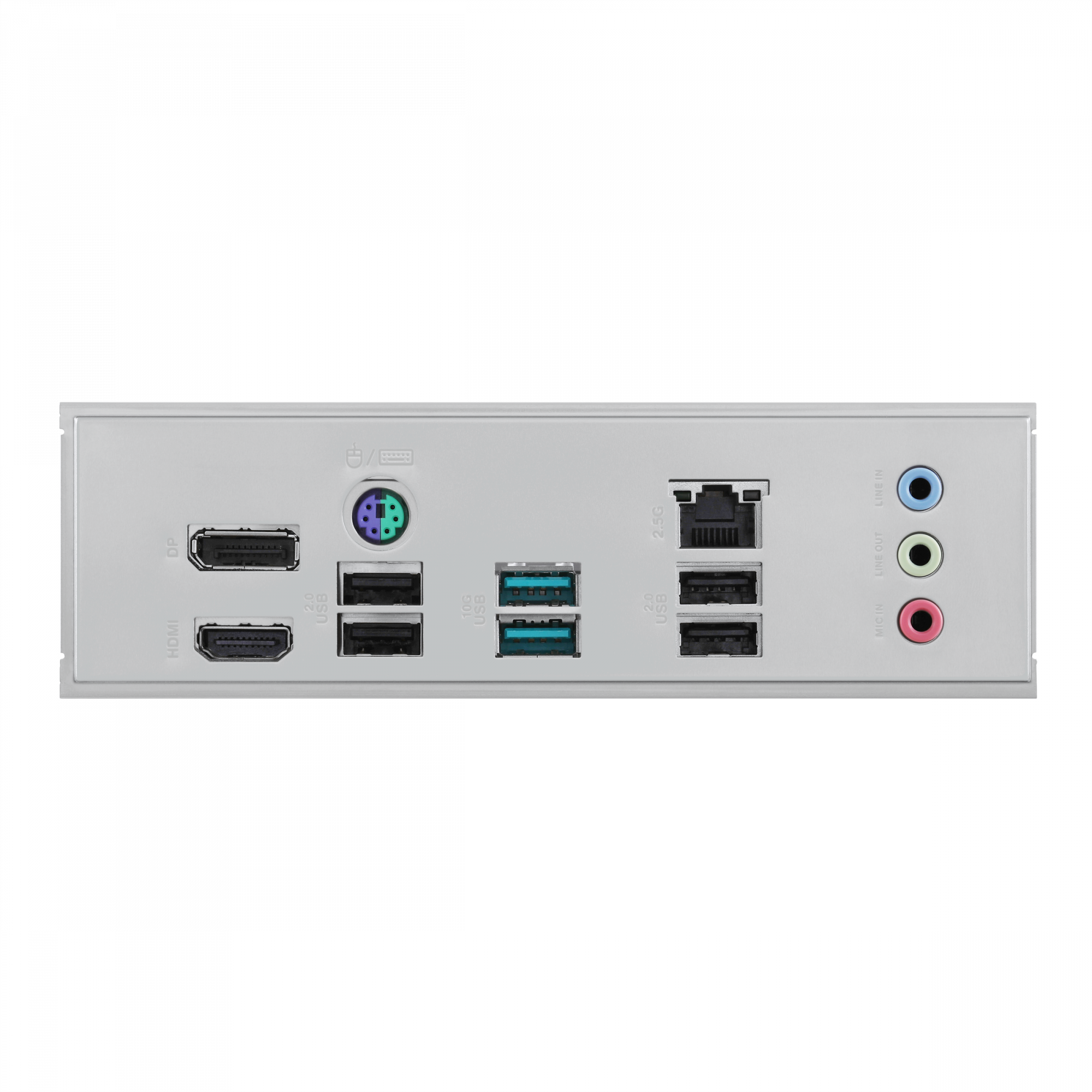

Rear panel I/O ports

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

VGA (D-Sub) ports quantity
0

Storage controllers

Number of storage drives supported
6

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
244 mm
