ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Print
Model: 90MB1IZ0-M0EAY0
EAN: 4711387797273

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX

Manufacturer:
Asus
ASUS PRIME B840-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 192 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

    Description

    ASUS PRIME B840-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

    Product Properties

    • Model
    • 90MB1IZ0-M0EAY0
    • EAN
    • 4711387797273
    • BIOS
    • BIOS memory size
    • 256 Mbit
    • BIOS type
    • UEFI AMI
    • Expansion slots
    • 1st M.2 highest PCI Express generation
    • 4.0
    • 1st M.2 largest key size
    • 2280
    • 2nd M.2 highest PCI Express generation
    • 4.0
    • 2nd M.2 largest key size
    • 2280
    • 3rd M.2 highest PCI Express generation
    • 3.0
    • 3rd M.2 largest key size
    • 2280
    • Number of M.2 (M) slots
    • 3
    • PCI Express x1 (Gen 3.x) slots
    • 1
    • PCI Express x16 (Gen 3.x) slots
    • 3
    • PCI Express x16 (Gen 4.x) slots
    • 1
    • Features
    • Audio output channels
    • 7.1 channels
    • Chip Set
    • AMD
    • Component for
    • PC
    • Motherboard chipset
    • AMD B840
    • Motherboard form factor
    • ATX
    • Product colour
    • Aluminium, Black
    • Windows operating systems supported
    • Windows 10 x64, Windows 11
    • Graphics
    • On-board graphics card
    • No
    • Parallel processing technology support
    • Not supported
    • Internal I/O
    • 12V power connector
    • Yes
    • ATX Power connector (24-pin)
    • Yes
    • Chassis intrusion connector
    • Yes
    • CPU fan connector
    • Yes
    • Front panel audio connector
    • Yes
    • Number of chassis fan connectors
    • 4
    • Number of COM connectors
    • 1
    • Number of SATA connectors
    • 0
    • Number of SATA II connectors
    • 0
    • Number of SATA III connectors
    • 4
    • S/PDIF out connector
    • Yes
    • Thunderbolt headers
    • 1
    • TPM connector
    • Yes
    • USB 2.0 connectors
    • 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors
    • 2
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    • 0
    • Memory
    • ECC сompatibility
    • ECC & Non-ECC
    • Memory channels
    • Dual-channel
    • Memory Slot Support
    • 192 GB
    • Memory slots type
    • DIMM
    • Number of memory slots
    • 4
    • Supported memory types
    • DDR5-SDRAM
    • Unbuffered memory
    • Yes
    • Network
    • Bluetooth
    • Yes
    • Bluetooth version
    • 5.3
    • Ethernet interface type
    • 2.5 Gigabit Ethernet
    • Ethernet LAN
    • Yes
    • Top Wi-Fi standard
    • Wi-Fi 6E (802.11ax)
    • Wi-Fi
    • Yes
    • Wi-Fi standards
    • Wi-Fi 6E (802.11ax)
    • Other features
    • mSATA ports quantity
    • 0

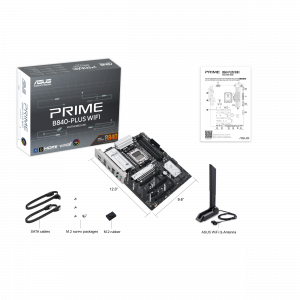

    • Packaging content
    • Antenna included
    • Yes
    • Cables included
    • SATA
    • Screws included
    • Yes
    • Packaging data
    • Package depth
    • 273 mm
    • Package height
    • 68 mm
    • Package weight
    • 1.26 kg
    • Package width
    • 353 mm
    • Processor
    • Compatible processor series
    • AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
    • Processor manufacturer
    • AMD
    • Processor socket
    • Socket AM5
    • Supported processor sockets
    • Socket AM5

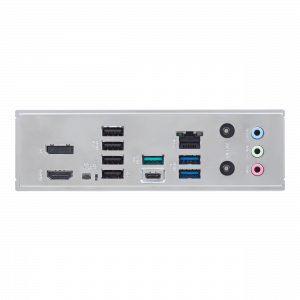

    • Rear panel I/O ports
    • DisplayPorts quantity
    • 1
    • DVI-D ports quantity
    • 0
    • Ethernet LAN (RJ-45) ports
    • 1
    • HDMI ports quantity
    • 1
    • USB 2.0 ports quantity
    • 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    • 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
    • 0
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
    • 1
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
    • 1
    • VGA (D-Sub) ports quantity
    • 0
    • WiFi-AP antenna jack
    • 1
    • Storage controllers
    • Number of HDDs supported
    • 4
    • Number of storage drives supported
    • 7
    • RAID levels
    • 0, 1, 5, 10
    • RAID support
    • Yes
    • Supported storage drive interfaces
    • M.2, SATA III
    • Supported storage drive types
    • HDD & SSD
    • Weight & dimensions
    • Depth
    • 244 mm
    • Width
    • 305 mm
