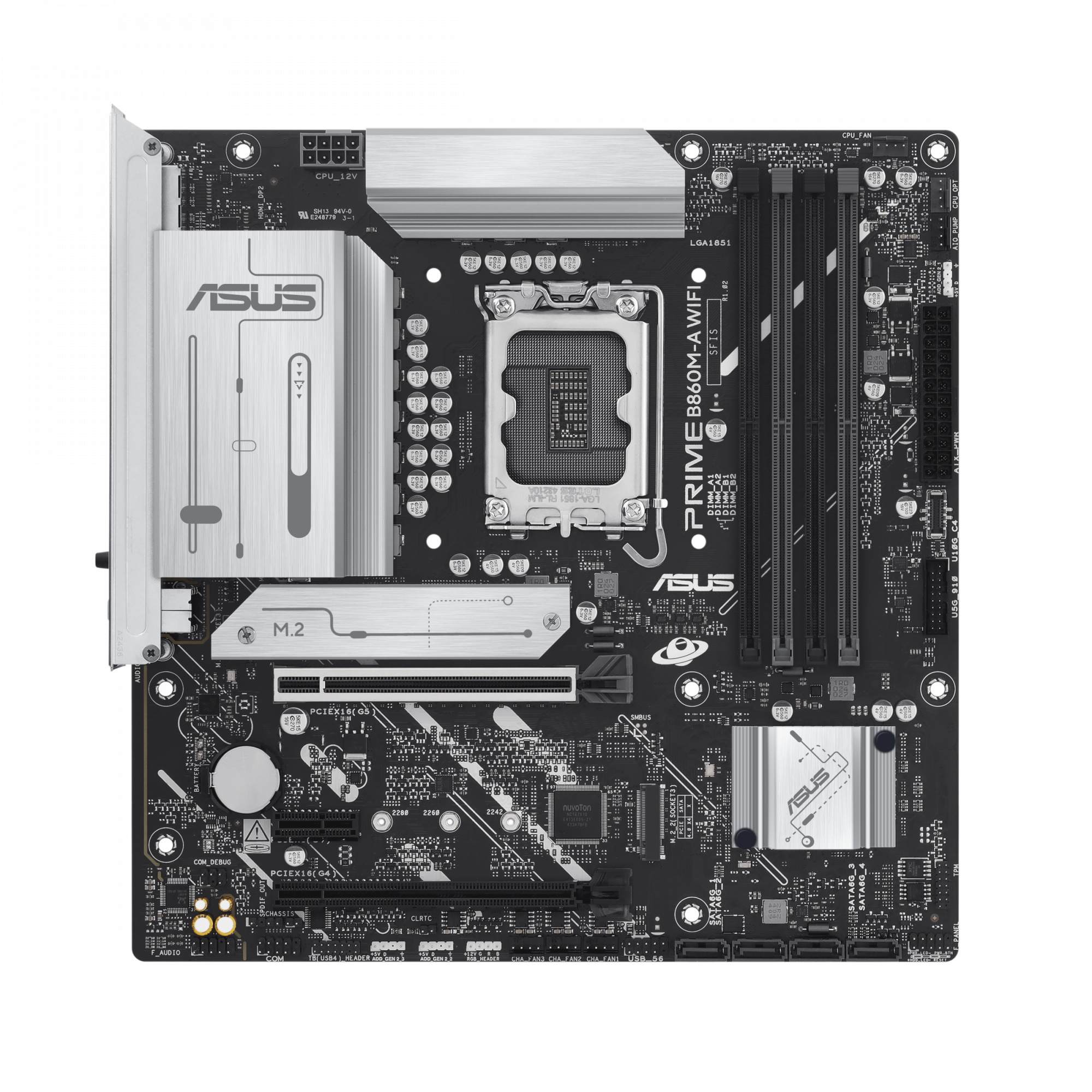

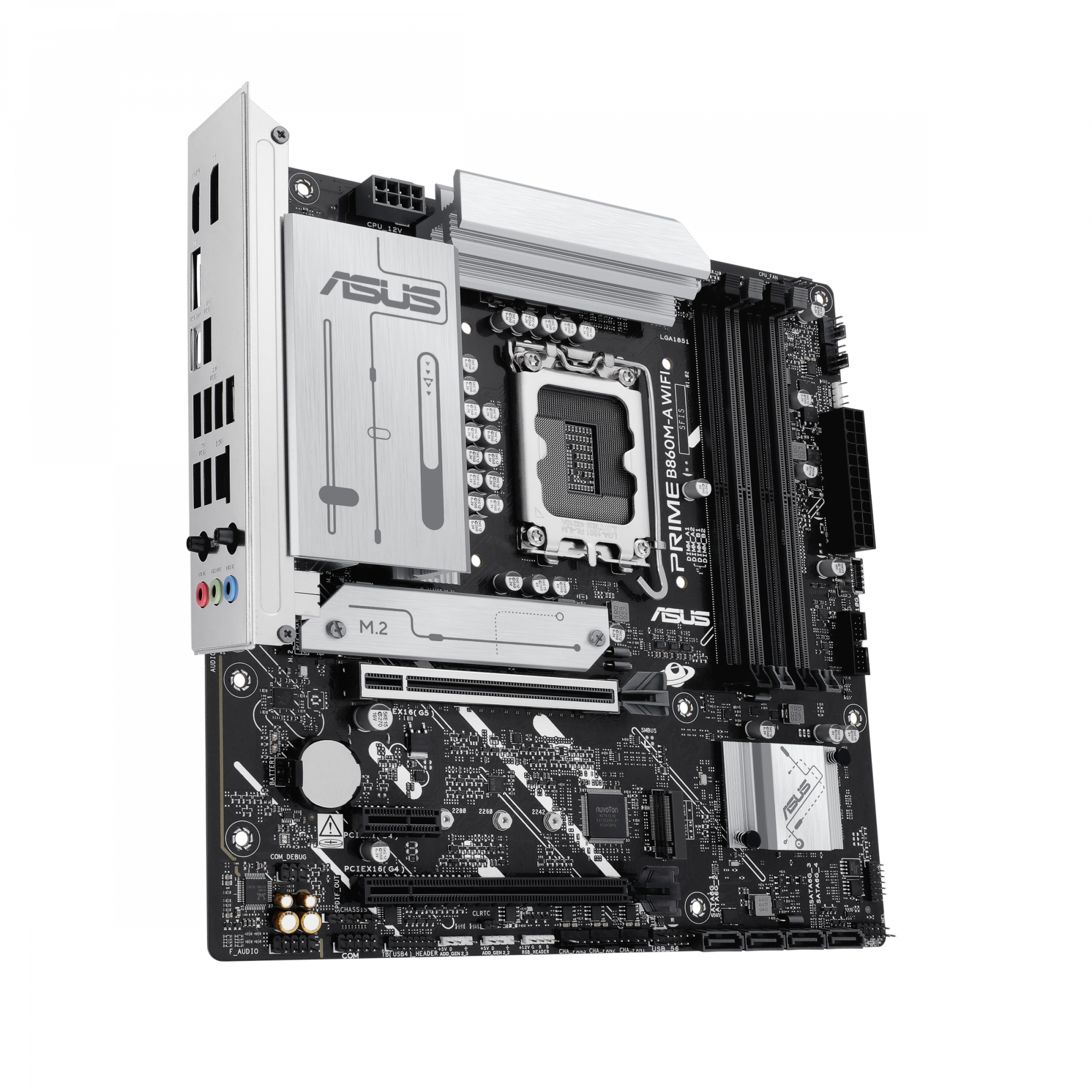

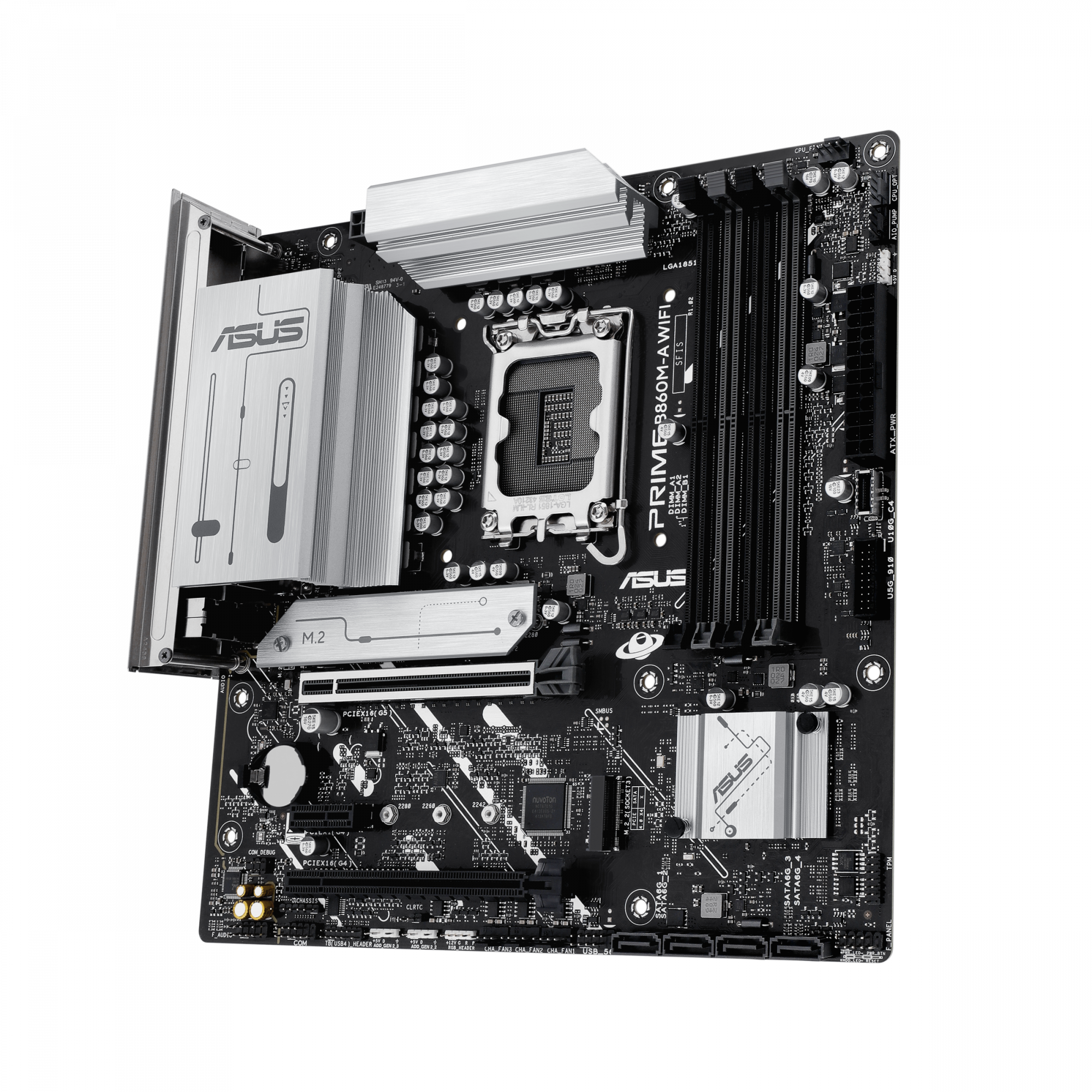

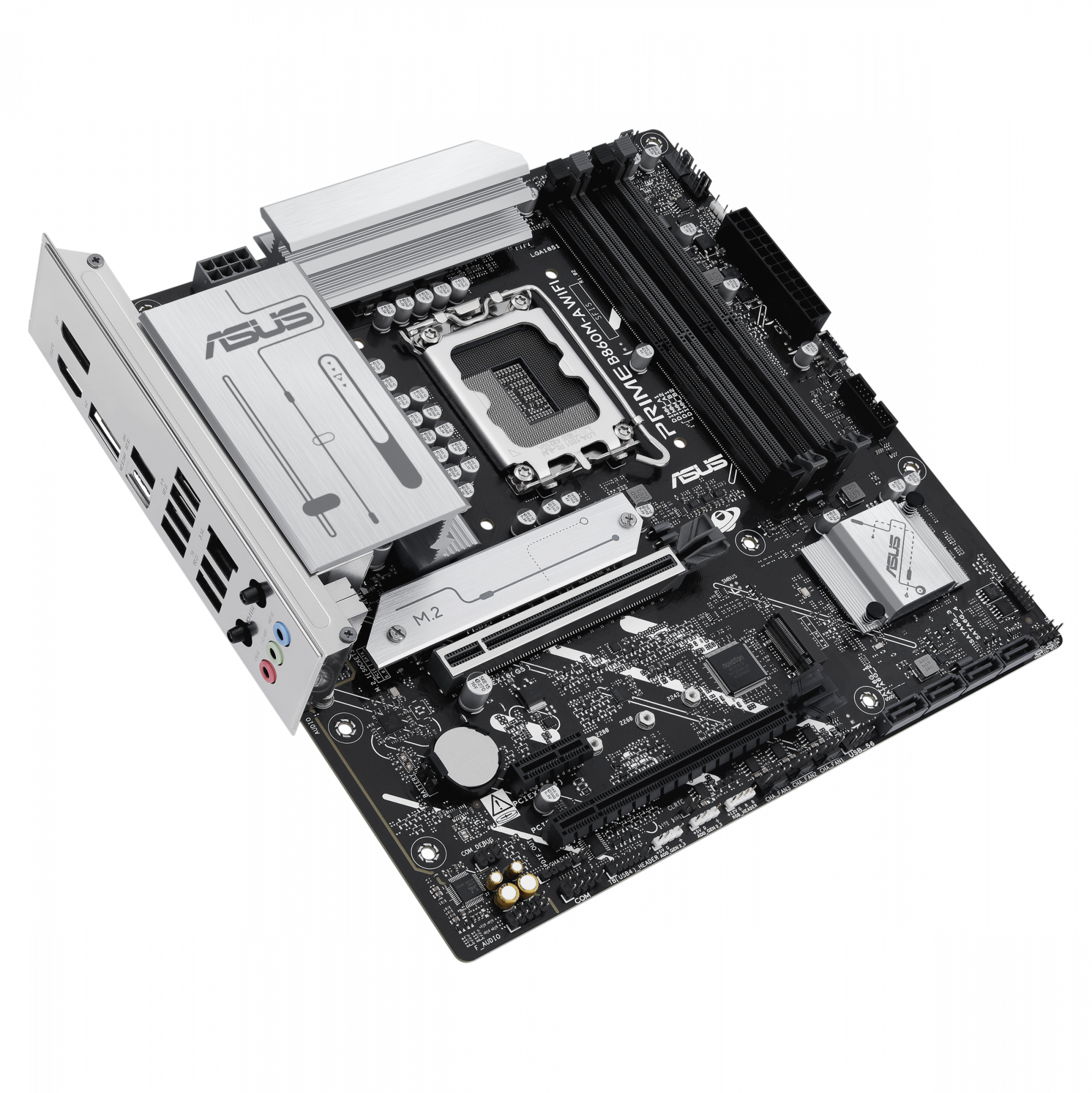

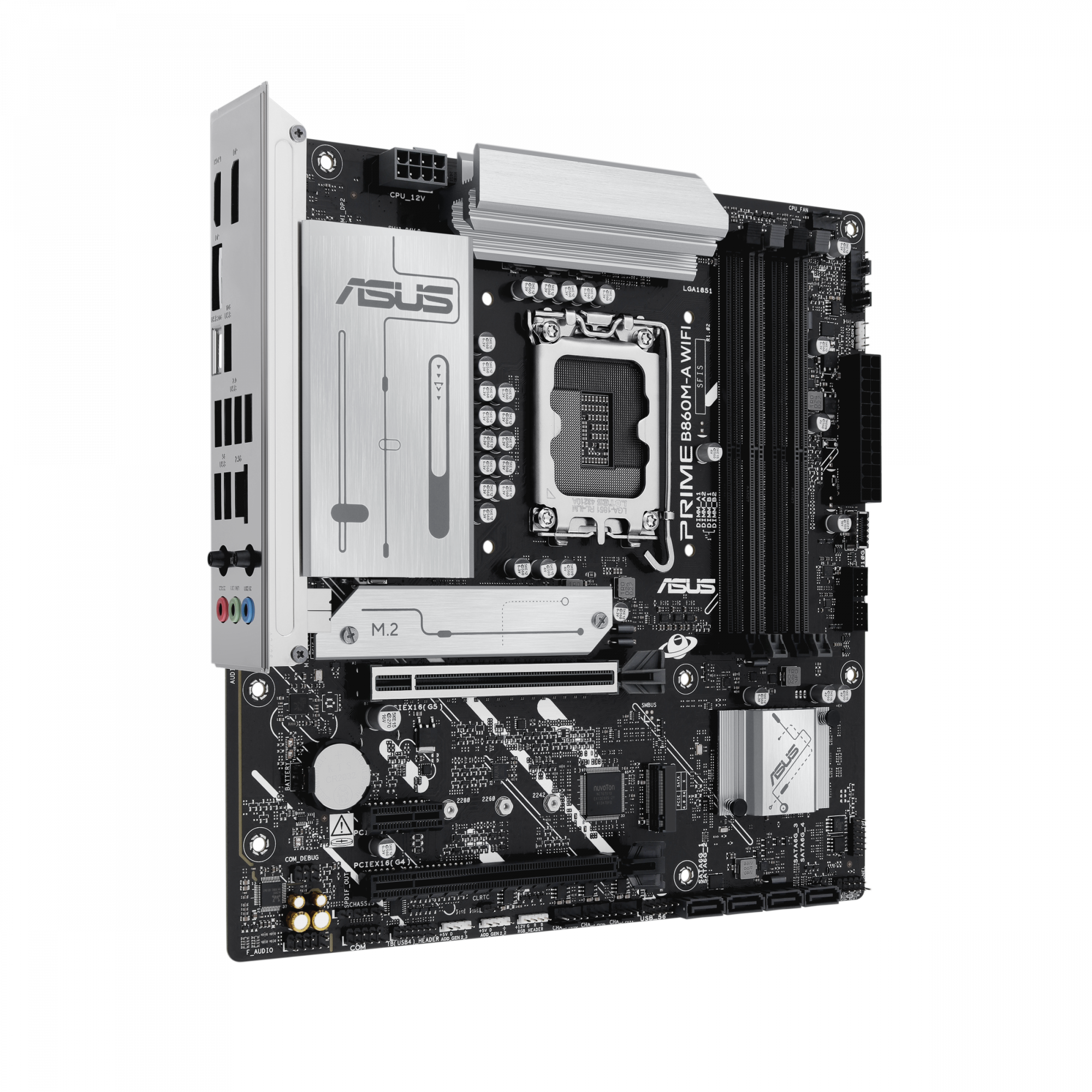

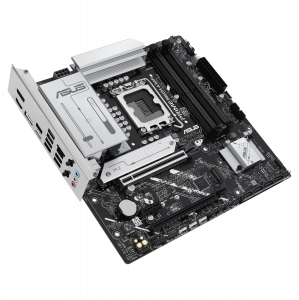

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
Print
Model: 90MB1JY0-M0EAY0
EAN: 4711387806289

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Manufacturer:
Asus
ASUS PRIME B860M-A WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS PRIME B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • 90MB1JY0-M0EAY0
  • EAN
  • 4711387806289
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • 1st M.2 highest PCI Express generation
  • 5.0
  • 1st M.2 largest key size
  • 2280
  • 2nd M.2 highest PCI Express generation
  • 4.0
  • 2nd M.2 largest key size
  • 2280
  • Number of M.2 (M) slots
  • 2
  • PCI Express x1 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel B860
  • Motherboard form factor
  • micro ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • Front panel audio connector
  • Yes
  • Front panel connector
  • Yes
  • Number of chassis fan connectors
  • 3
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • Thunderbolt headers
  • 1
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 256 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.3
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 6E (802.11ax)

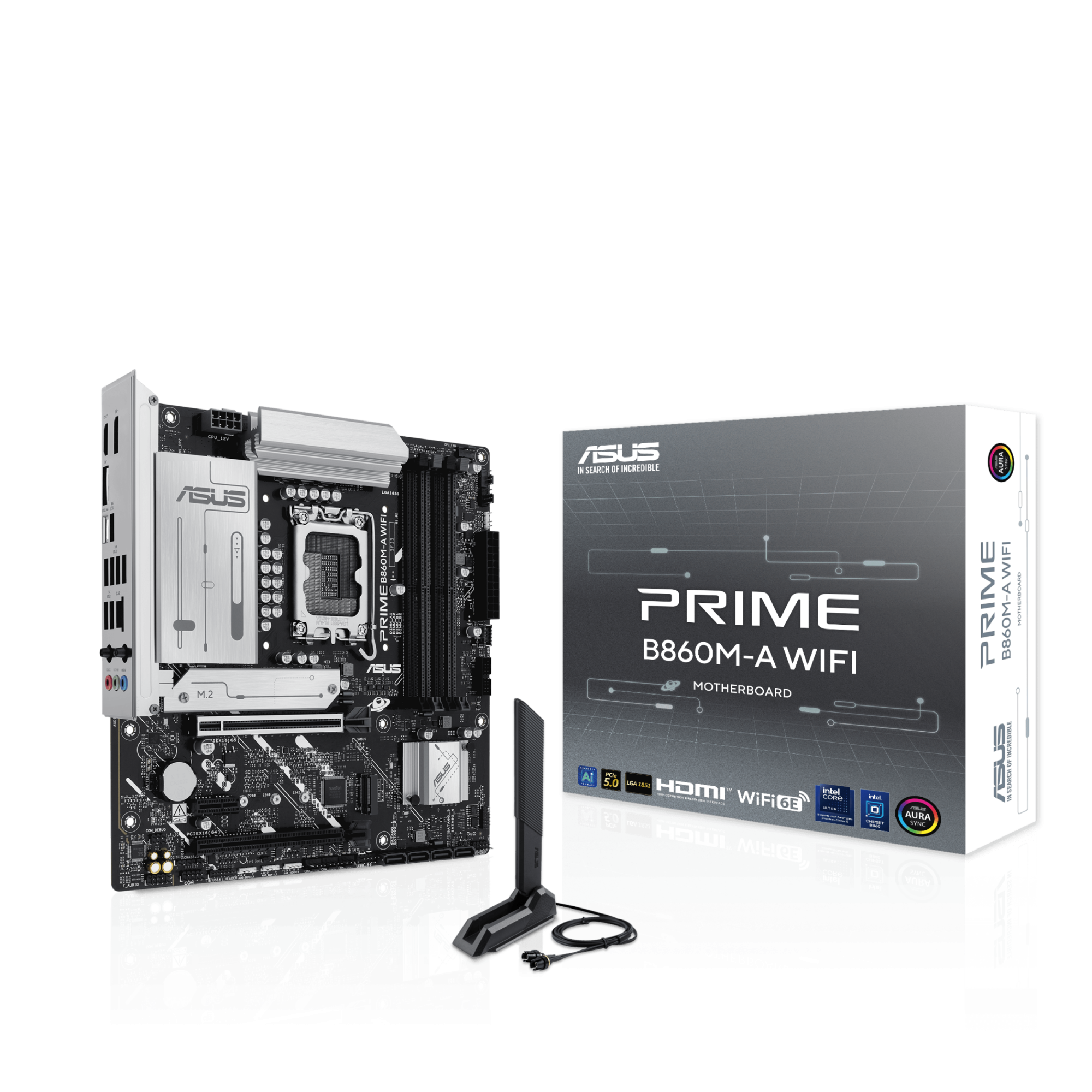

  • Packaging content

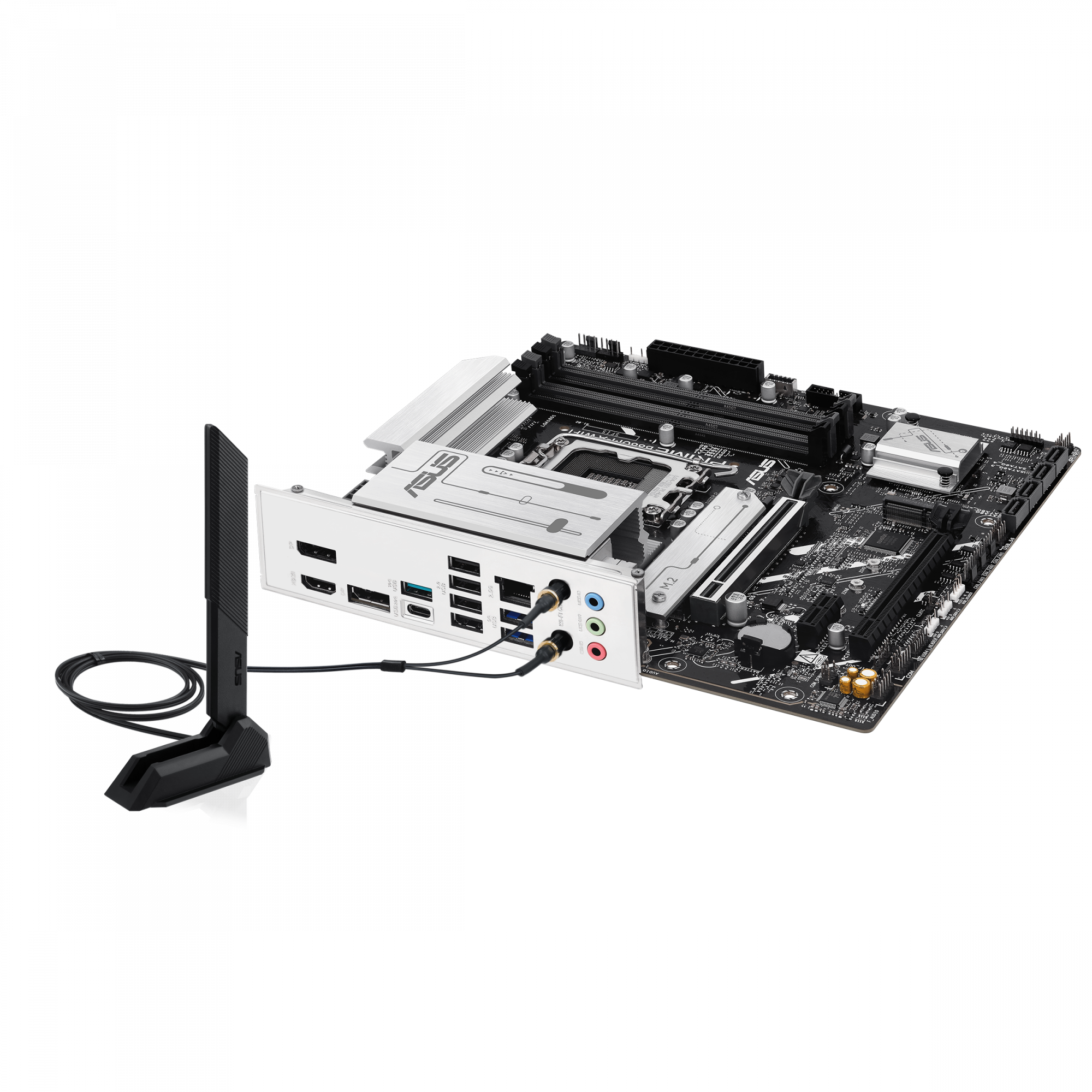

  • Antenna included
  • Yes
  • Cables included
  • SATA
  • Screws included
  • Yes
  • Packaging data
  • Package depth
  • 275 mm
  • Package height
  • 67.5 mm
  • Package weight
  • 1.44 kg
  • Package width
  • 275 mm
  • Processor
  • Compatible processor series
  • Intel Core Ultra (Series 2)
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1851 (Socket V1)
  • Supported processor sockets
  • LGA 1851

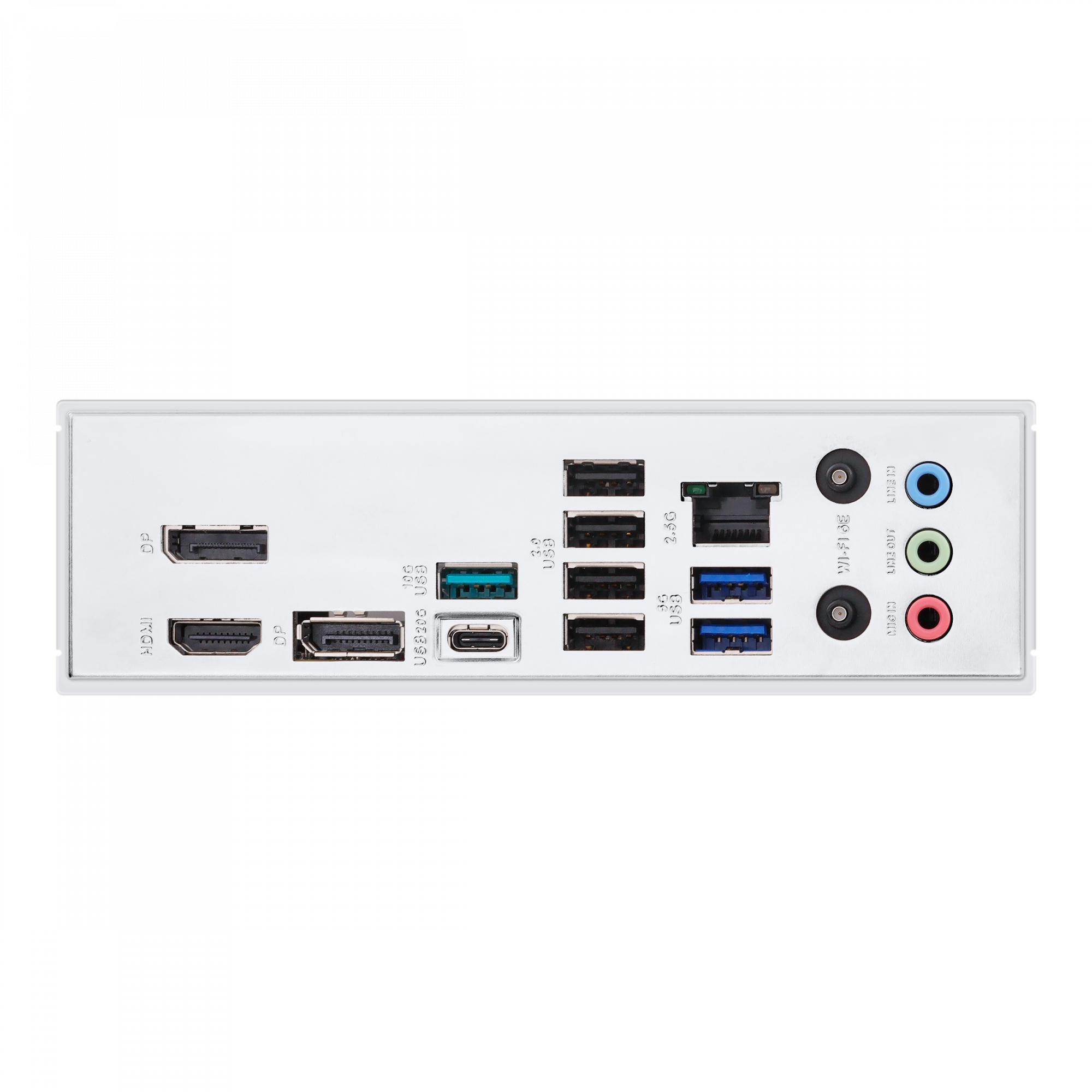

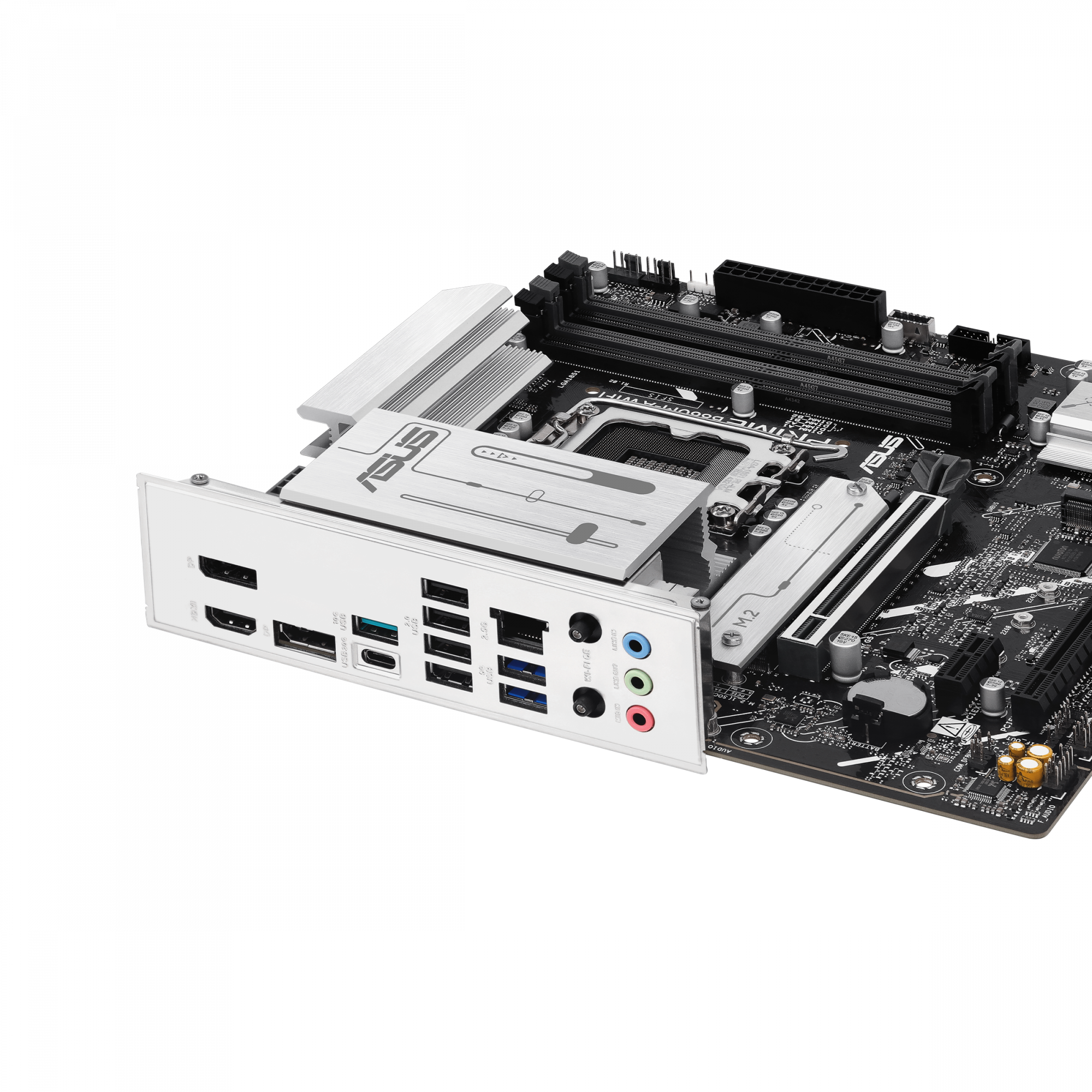

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 2
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • WiFi-AP antenna jack
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 6
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 244 mm
