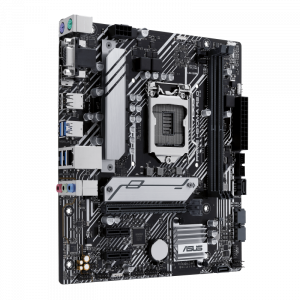

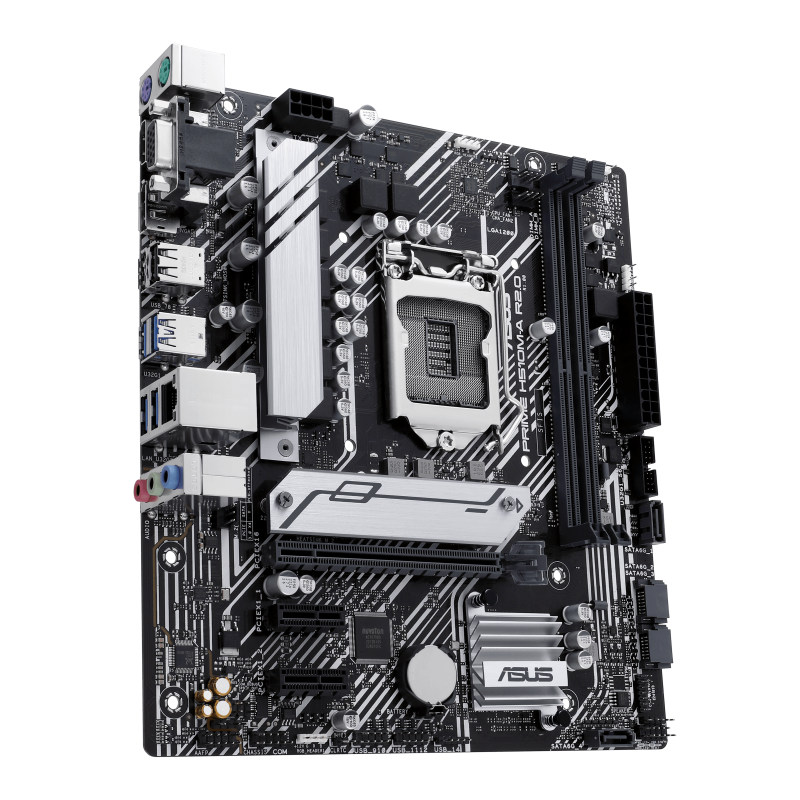

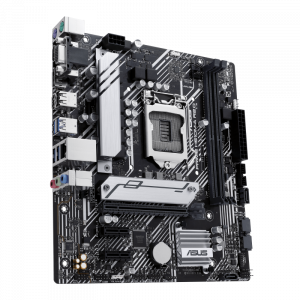

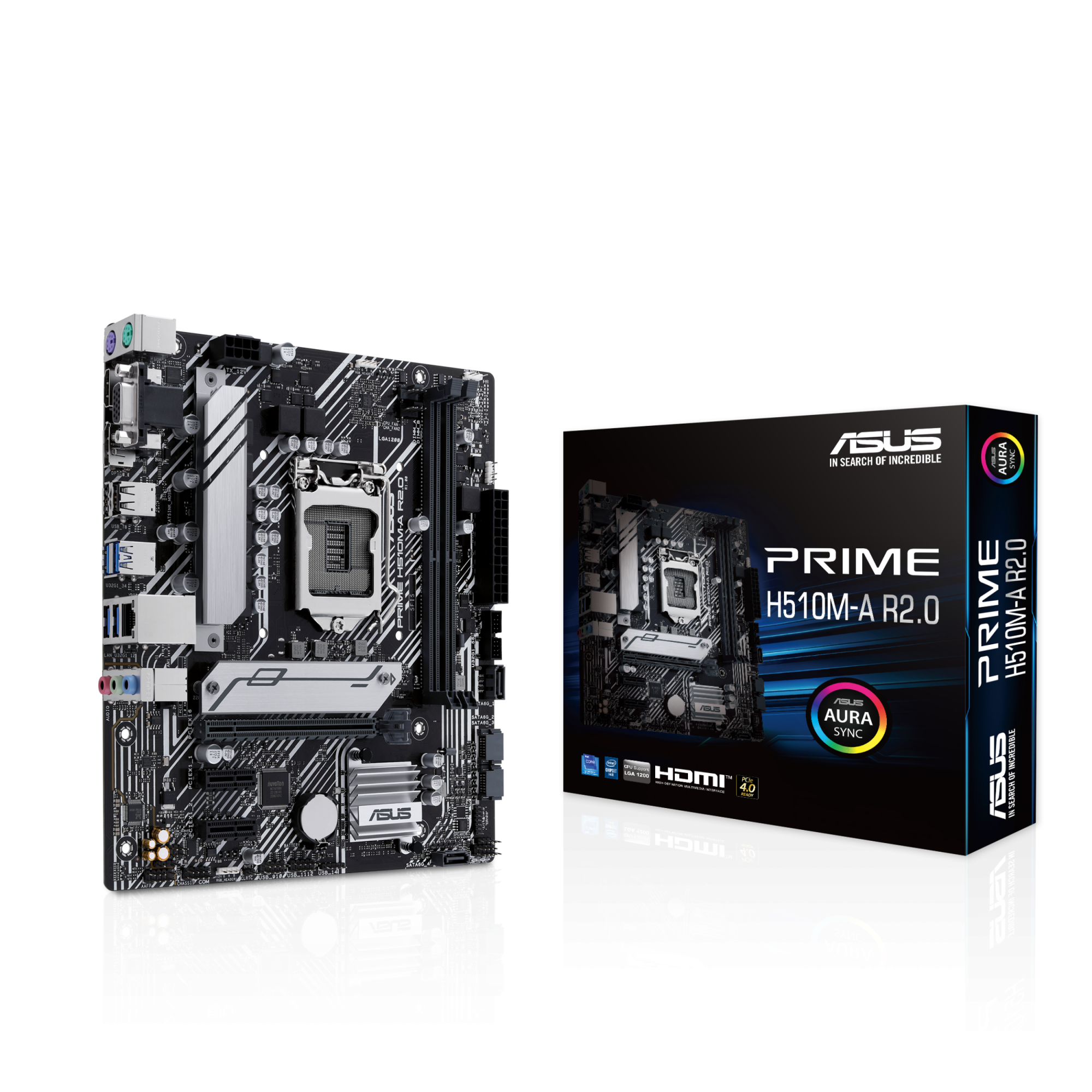

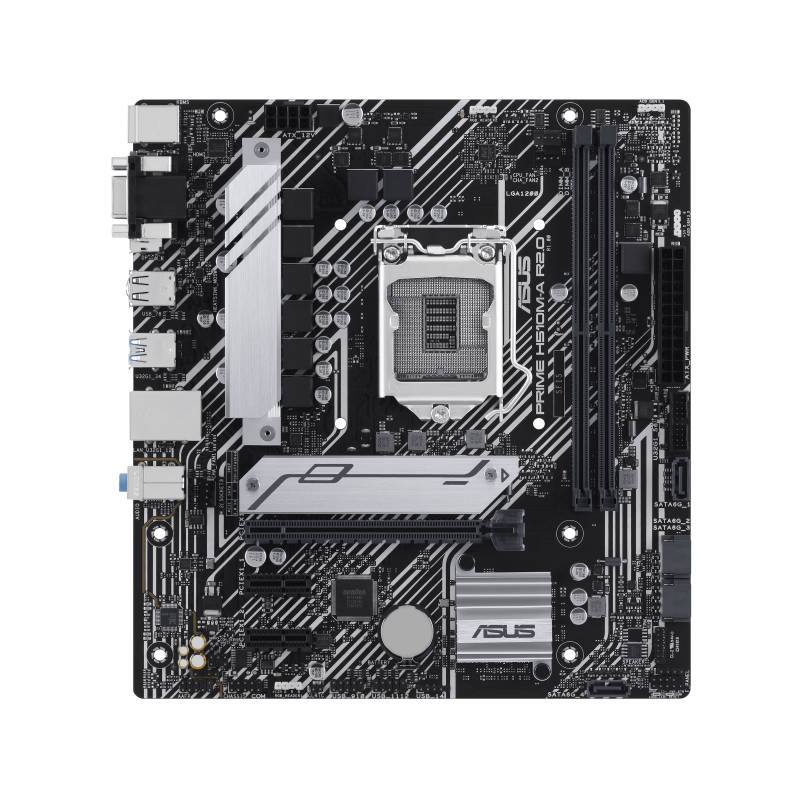

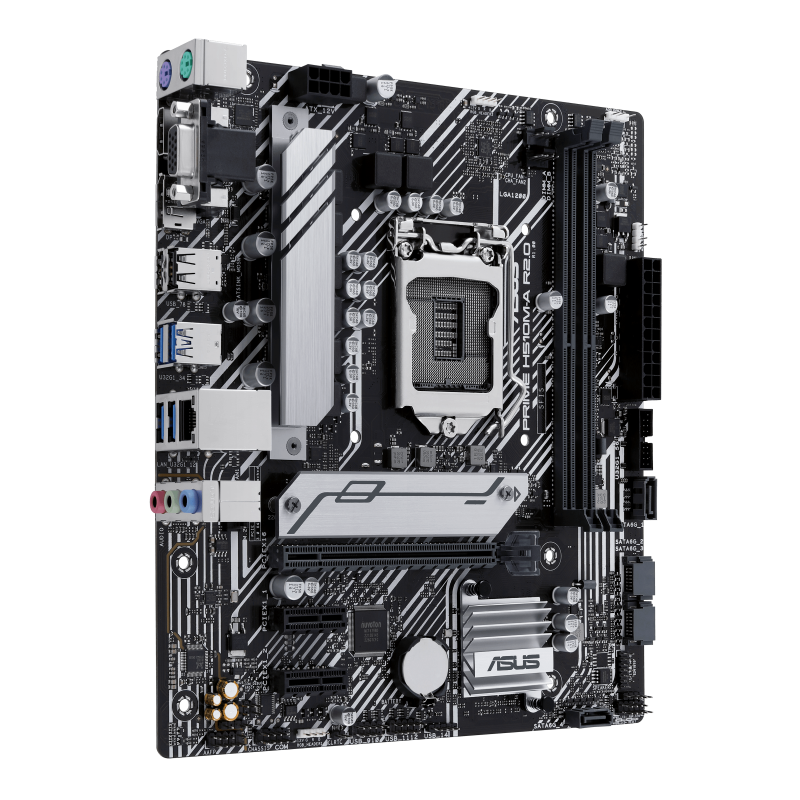

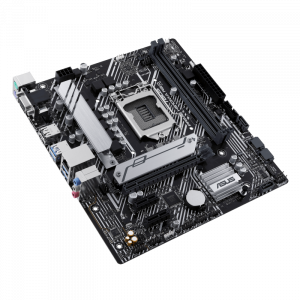

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
Print
Model: PRIME H510M-A R2.0
EAN: 4711387234891

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX

Manufacturer:
Asus
ASUS PRIME H510M-A R2.0, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS PRIME H510M-A R2.0. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-round protection

Product Properties

  • Model
  • PRIME H510M-A R2.0
  • EAN
  • 4711387234891
  • BIOS
  • BIOS memory size
  • 128 Mbit
  • BIOS type
  • UEFI AMI
  • Bullet points
  • Point
  • 5X Protection III: Multiple hardware safeguards for all-round protection
    Aura Sync RGB Lighting
    Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+
    Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
    Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
  • Expansion slots
  • Number of M.2 (M) slots
  • 1
  • PCI Express x1 (Gen 3.x) slots
  • 2
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel H510
  • Motherboard form factor
  • micro ATX
  • Windows operating systems supported
  • Windows 10 x64
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Audio connector
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 2
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 2
  • Supported memory clock speed (max)
  • 3200 MHz
  • Supported memory clock speeds
  • 2133,2400,2666,2800,2933,3000,3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No

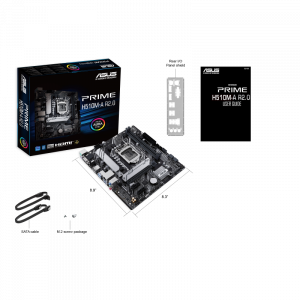

  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 270 mm
  • Package height
  • 51.5 mm
  • Package weight
  • 1.03 kg
  • Package width
  • 260 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1200 (Socket H5)
  • Supported processor sockets
  • LGA 1200 (Socket H5)

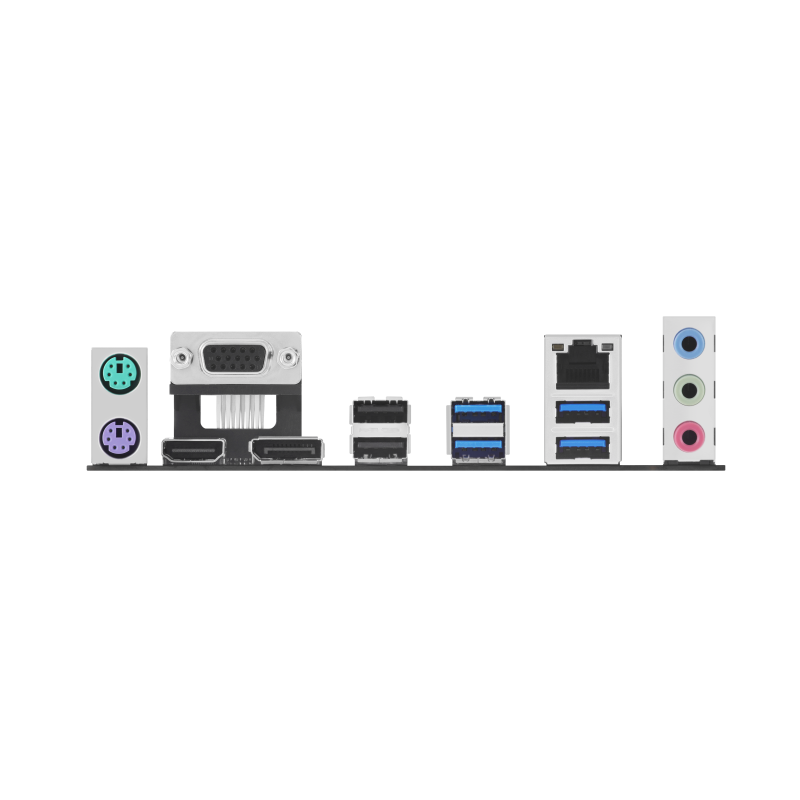

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • PS/2 ports quantity
  • 2
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 5
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 211 mm
  • Width
  • 226 mm
