Description

ASUS PRIME H610M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Product Properties

Manufacturer
Asus

Model
PRIME H610M-A WIFI

EAN
4711387301777

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Clear CMOS button
Yes

Bullet points

Point
Aura Sync RGB Lighting

Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

Ultrafast connectivity

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel H610

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

Memory

ECC сompatibility
Non-ECC

Memory channels
Dual-channel

Memory Slot Support
96 GB

Memory slots type
DIMM

Number of memory slots
2

Supported memory clock speed (max)
5600 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.0

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Packaging content

Cables included
SATA

Packaging data

Package depth
263 mm

Package height
51.5 mm

Package weight
1.07 kg

Package width
270 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

PS/2 ports quantity
2

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

VGA (D-Sub) ports quantity
1

WiFi-AP antenna jack
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
216 mm

Width
244 mm

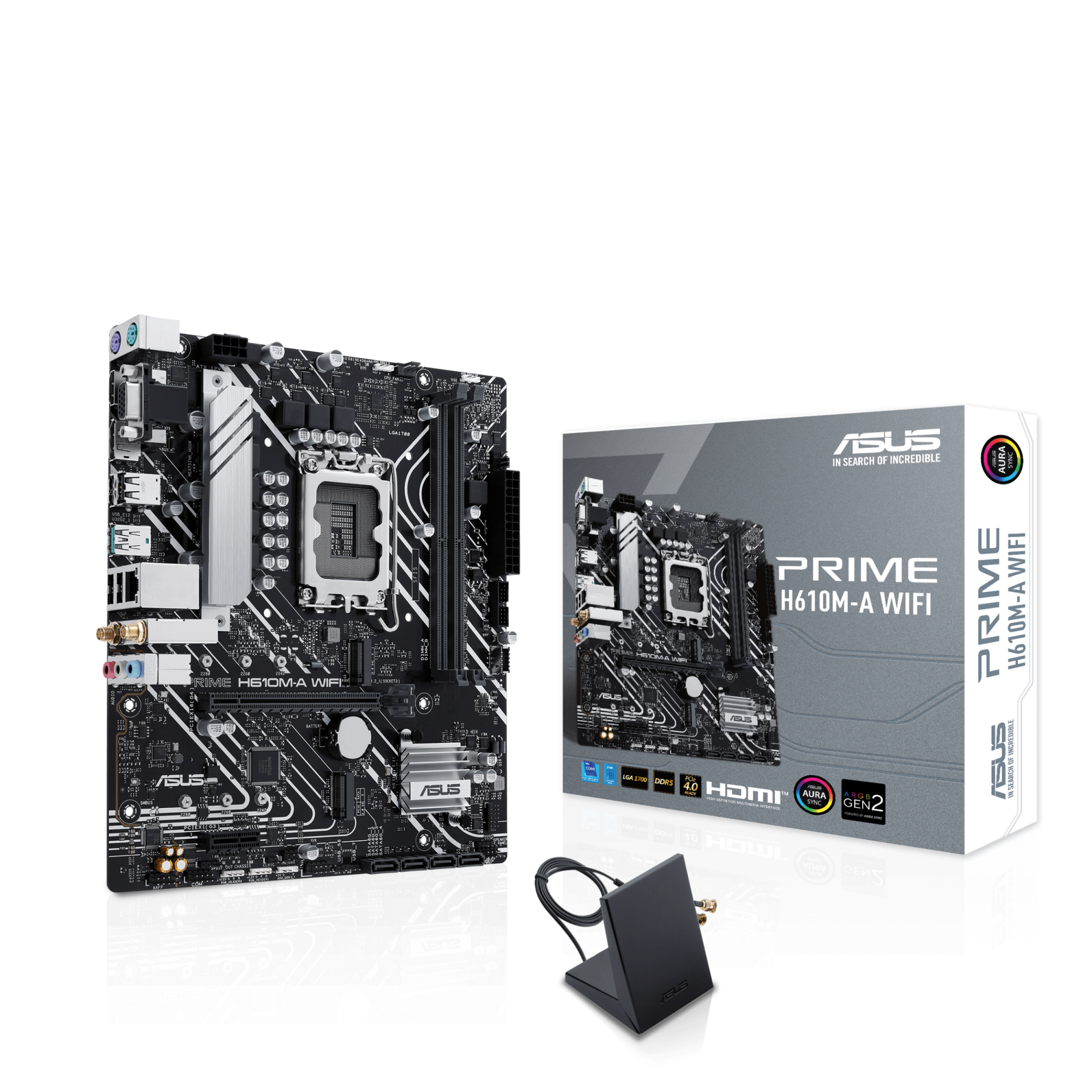

ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX
