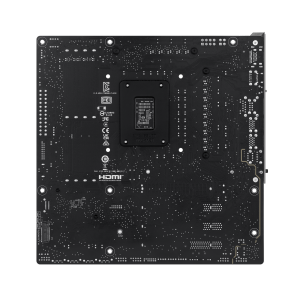

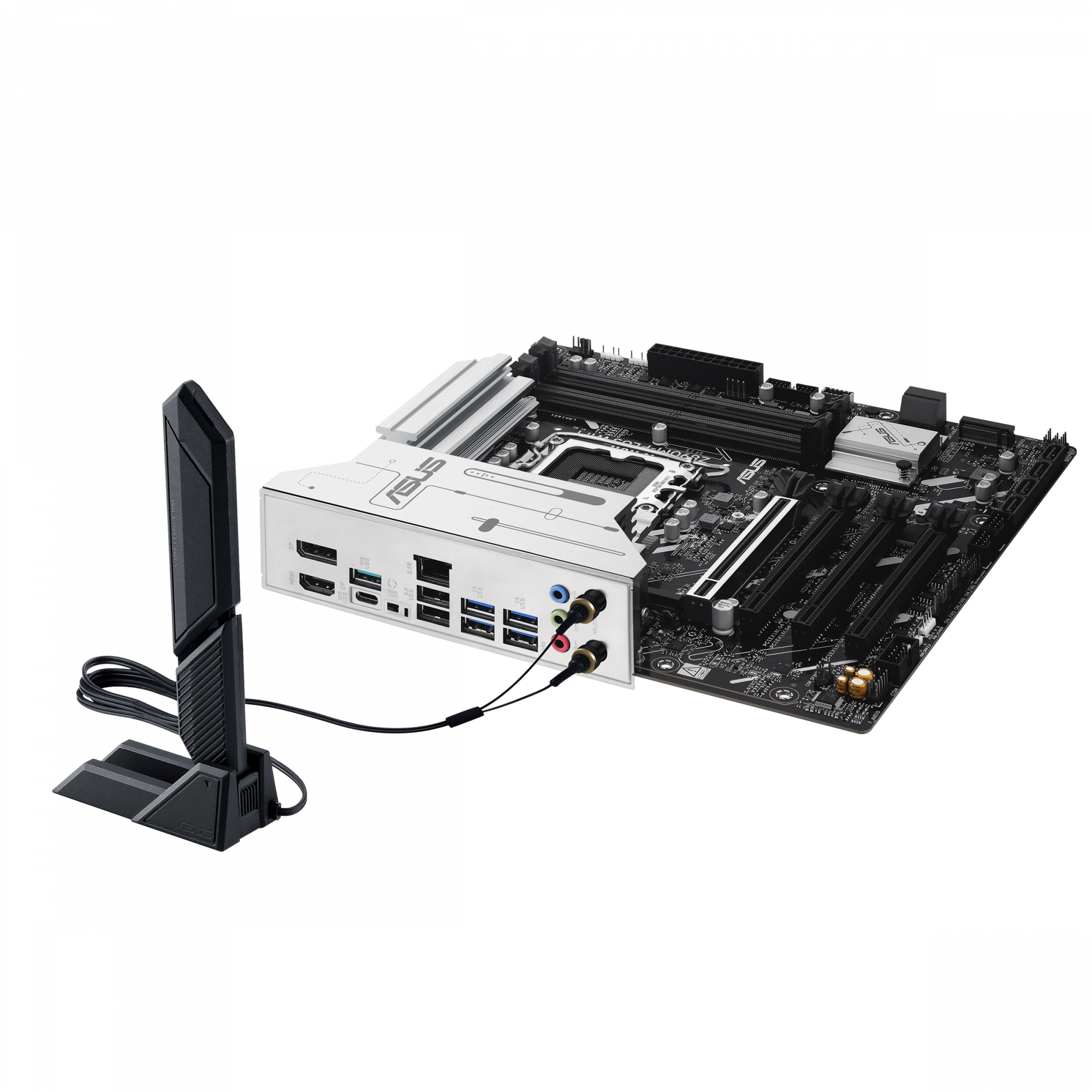

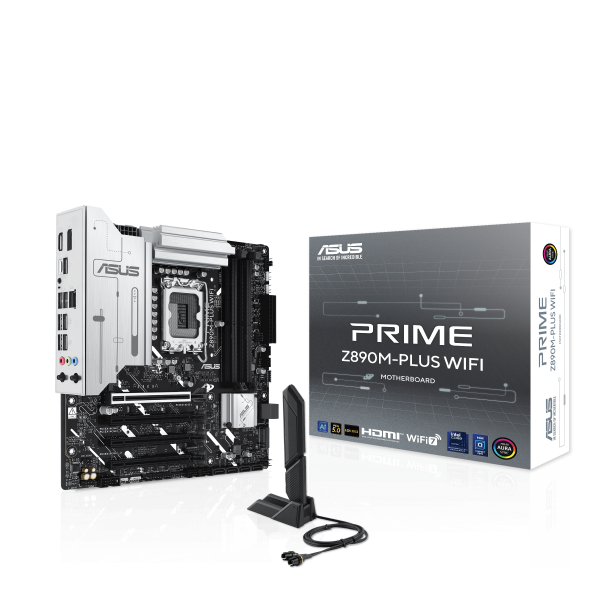

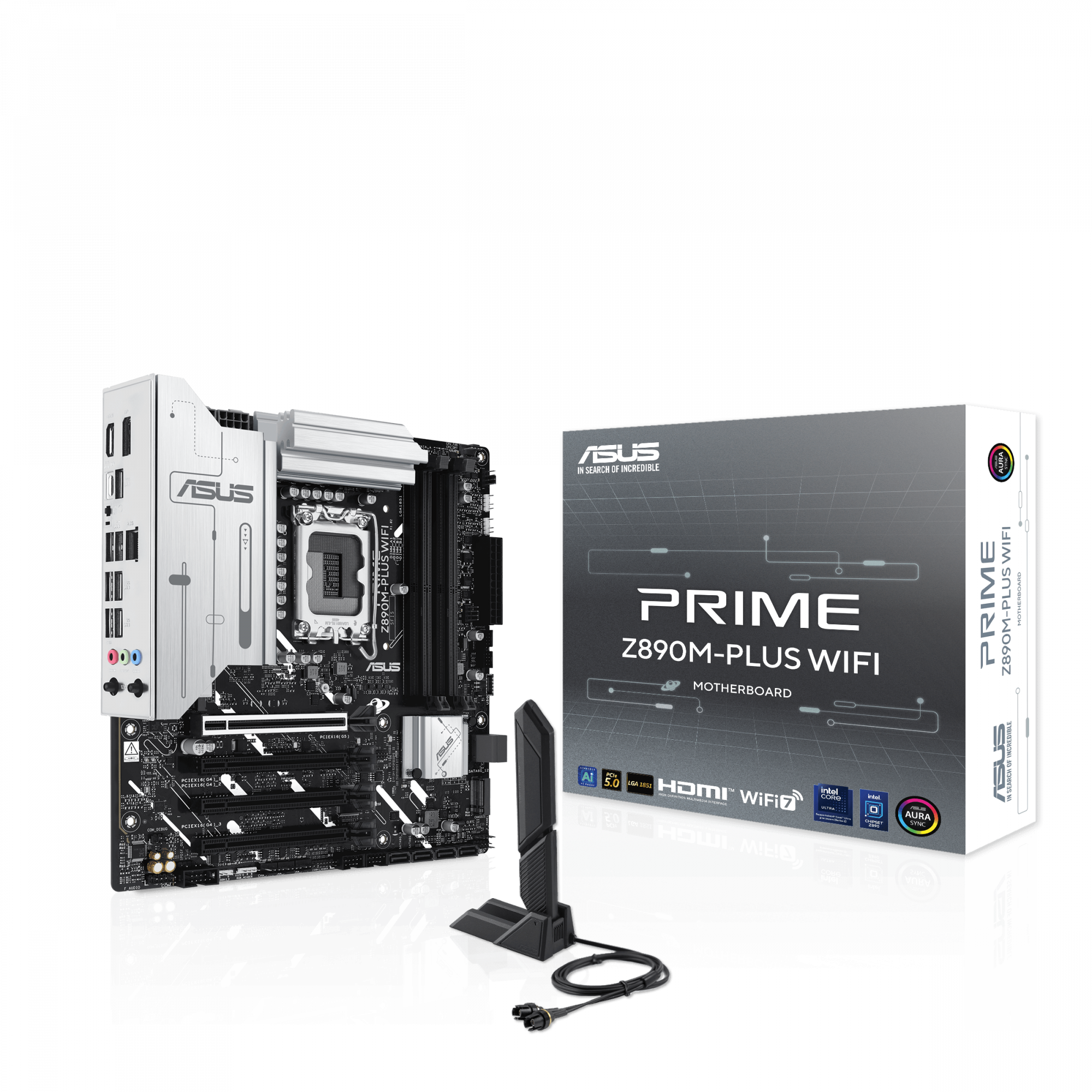

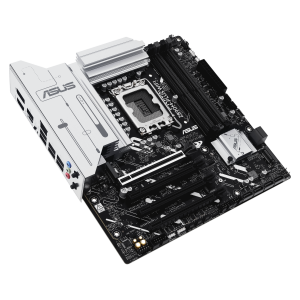

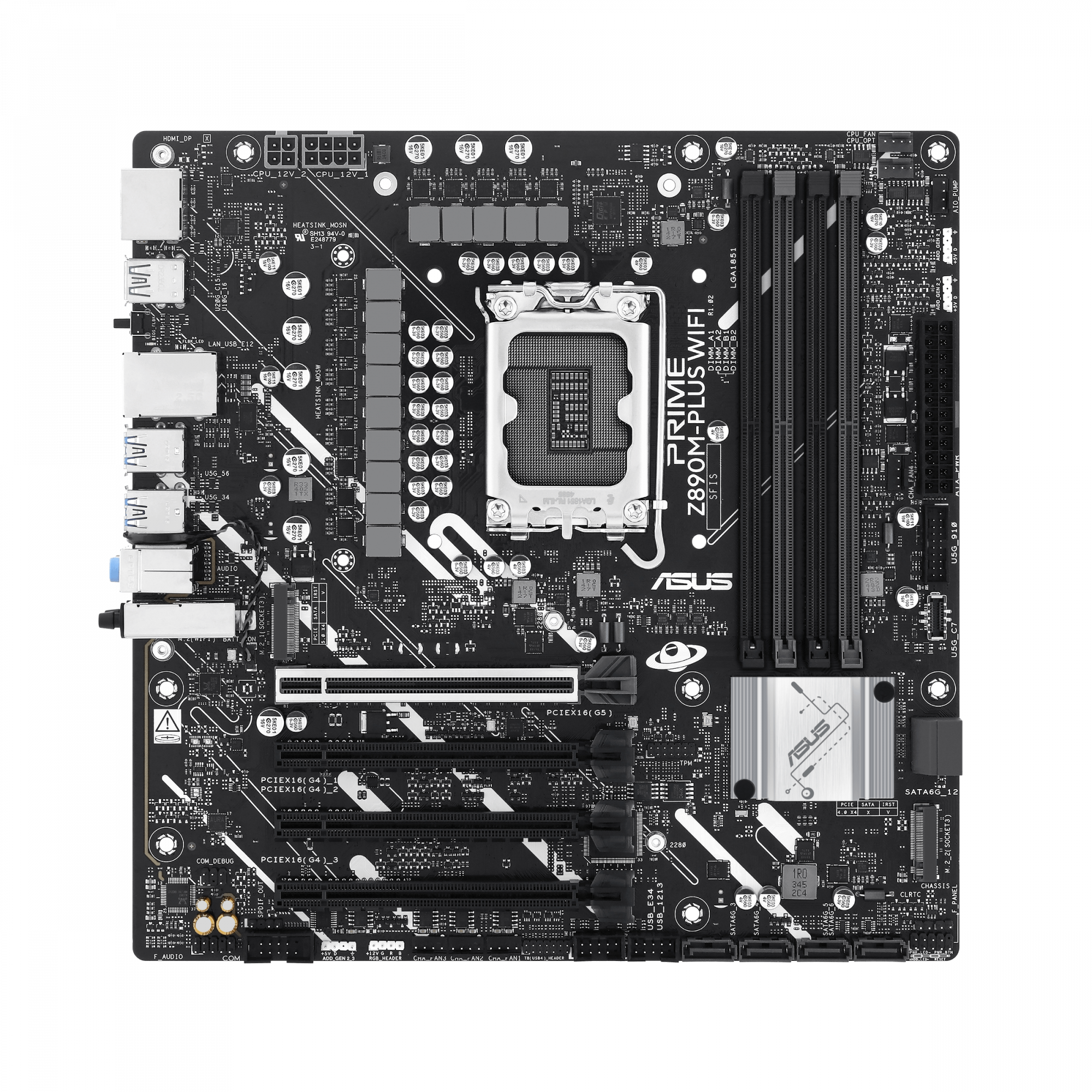

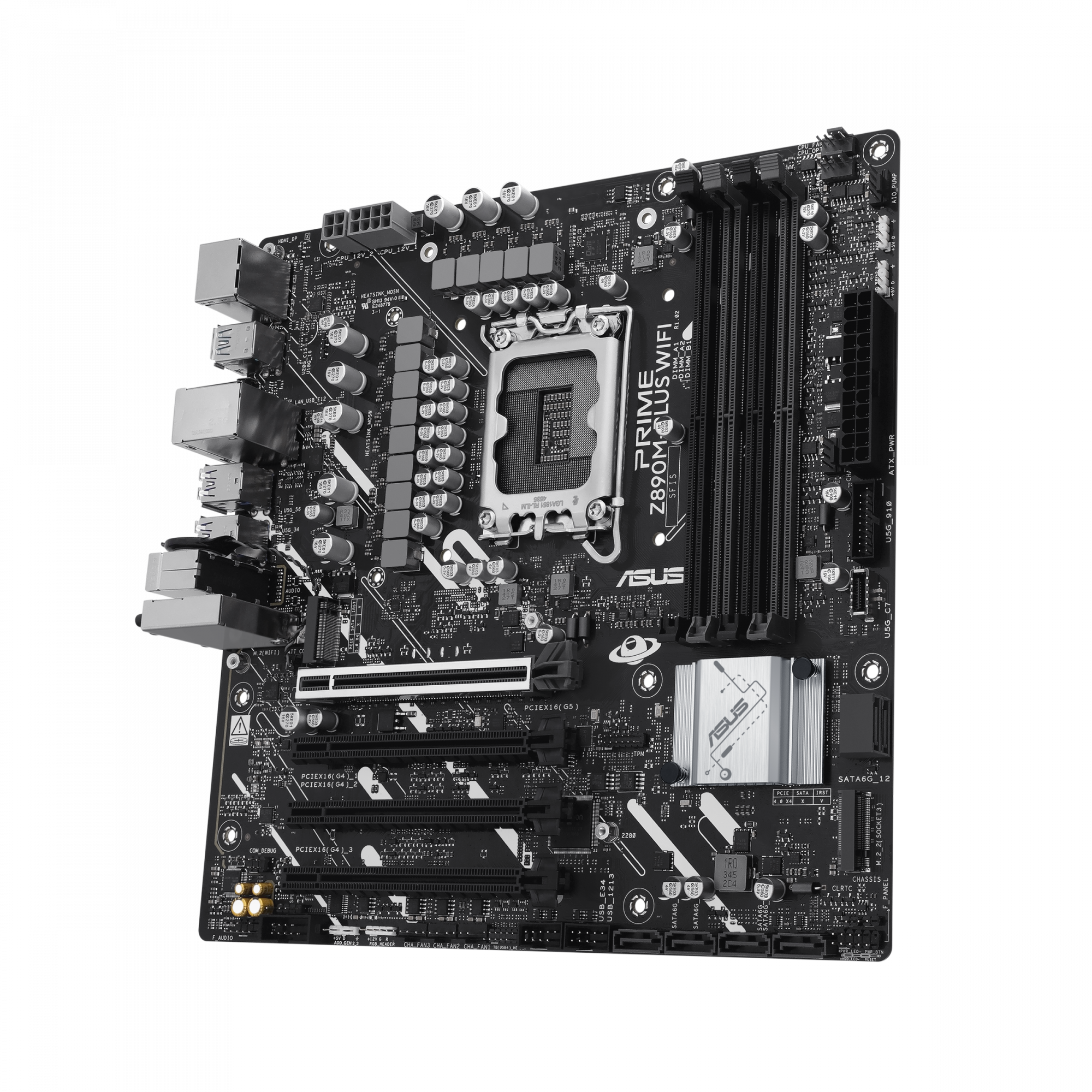

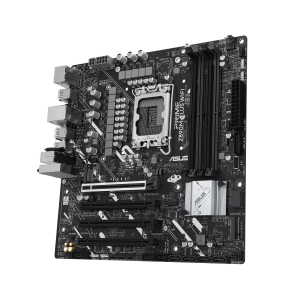

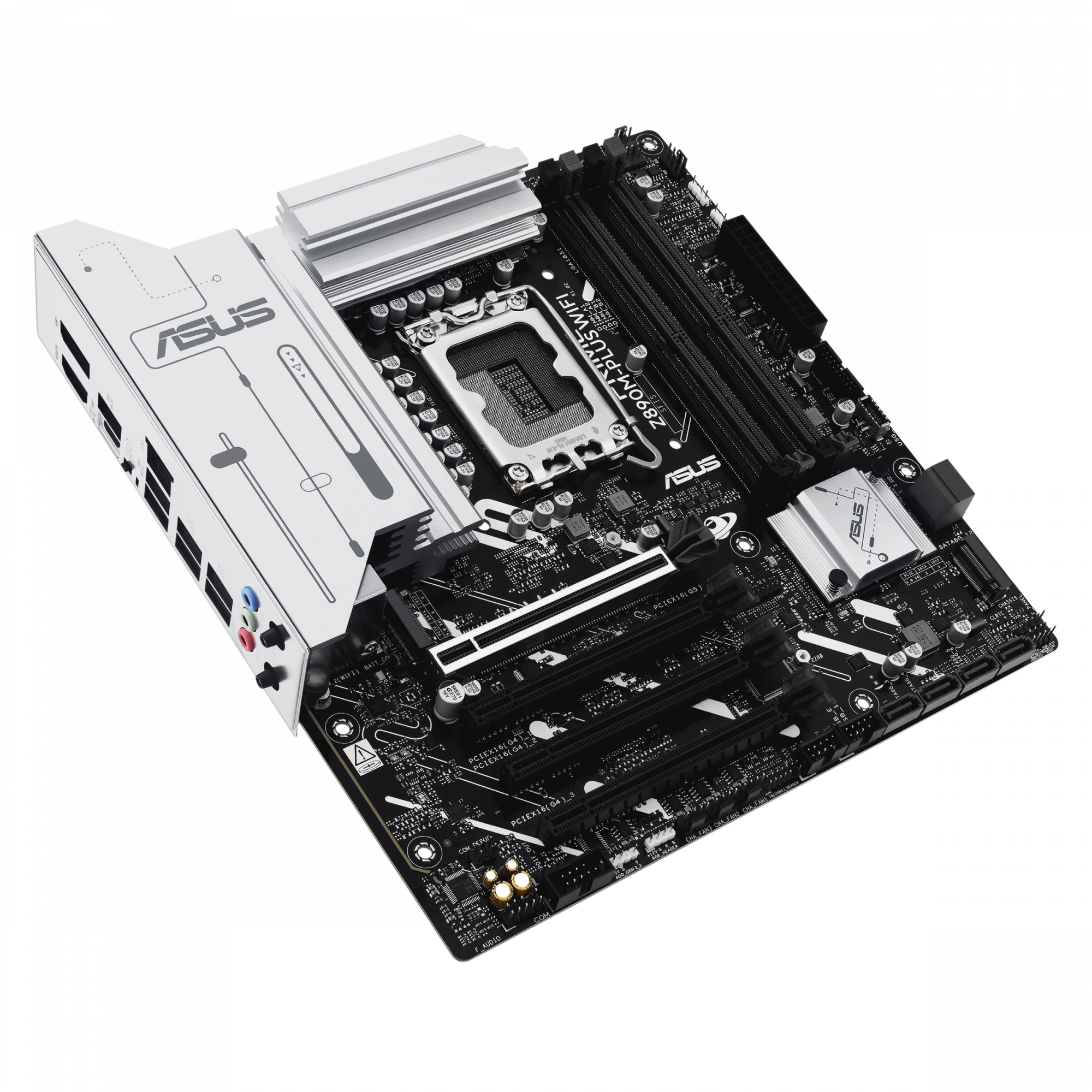

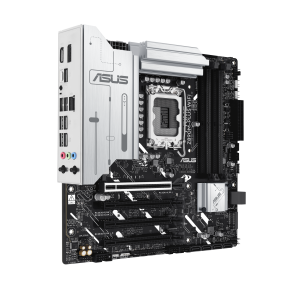

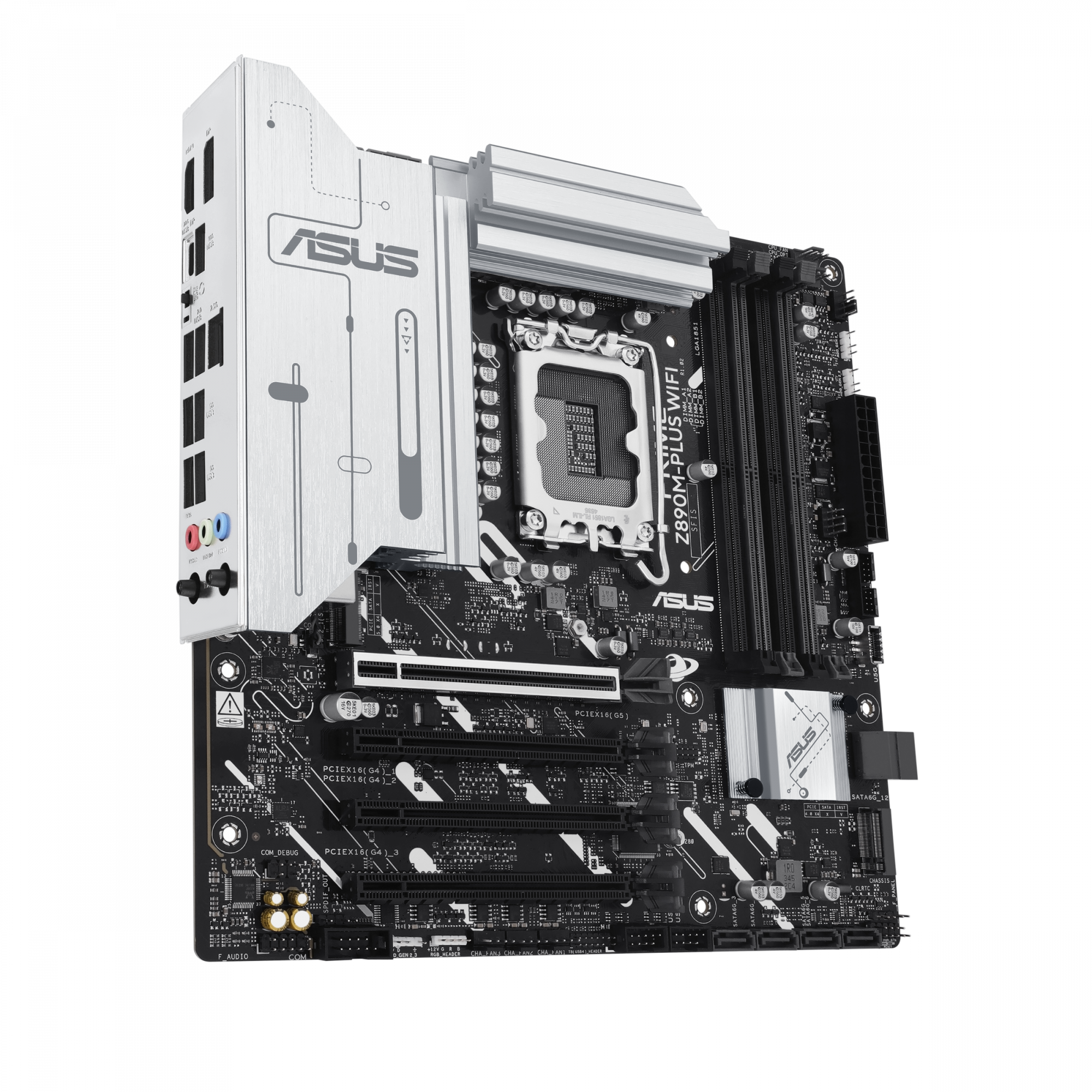

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
Print
Model: PRIME Z890M-PLUS W
EAN: 4711387755419

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX

Manufacturer:
Asus
ASUS PRIME Z890M-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 192 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS PRIME Z890M-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • PRIME Z890M-PLUS W
  • EAN
  • 4711387755419
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x16 (Gen 4.x) slots
  • 3
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel Z890
  • Motherboard form factor
  • micro ATX
  • Product colour
  • Aluminium, Black
  • Windows operating systems supported
  • Windows 11
  • Graphics
  • On-board graphics card
  • No
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 6
  • S/PDIF out connector
  • Yes
  • Thunderbolt headers
  • 1
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.4
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 7 (802.11be)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 7 (802.11be)
  • Other features
  • mSATA ports quantity
  • 0

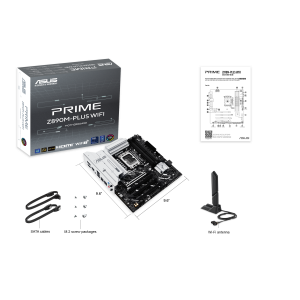

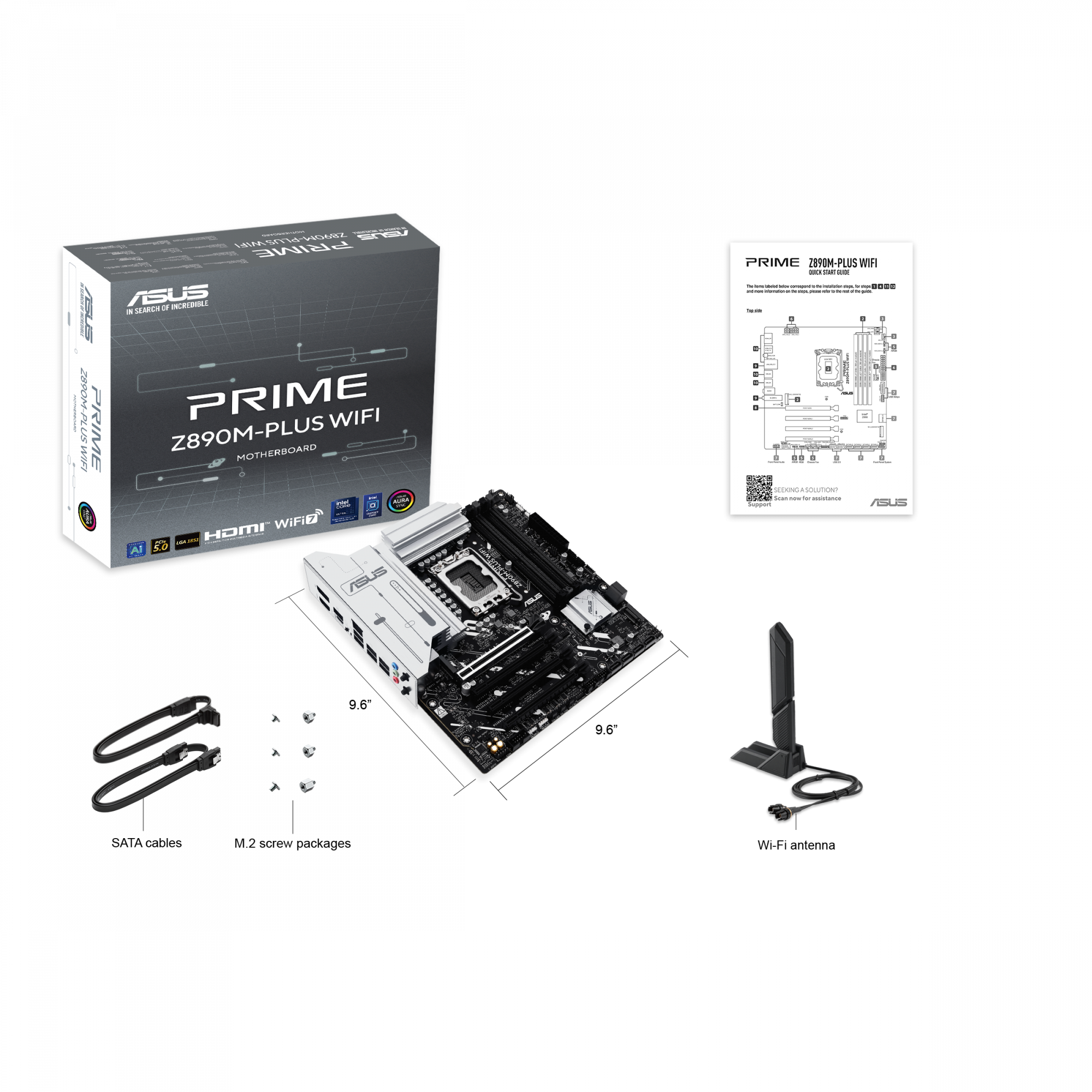

  • Packaging content
  • Cables included
  • SATA
  • Screws included
  • Yes
  • Packaging data
  • Package depth
  • 275 mm
  • Package height
  • 67.5 mm
  • Package weight
  • 1.64 kg
  • Package width
  • 275 mm
  • Processor
  • Compatible processor series
  • Intel Core Ultra (Series 2)
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1851 (Socket V1)
  • Supported processor sockets
  • LGA 1851

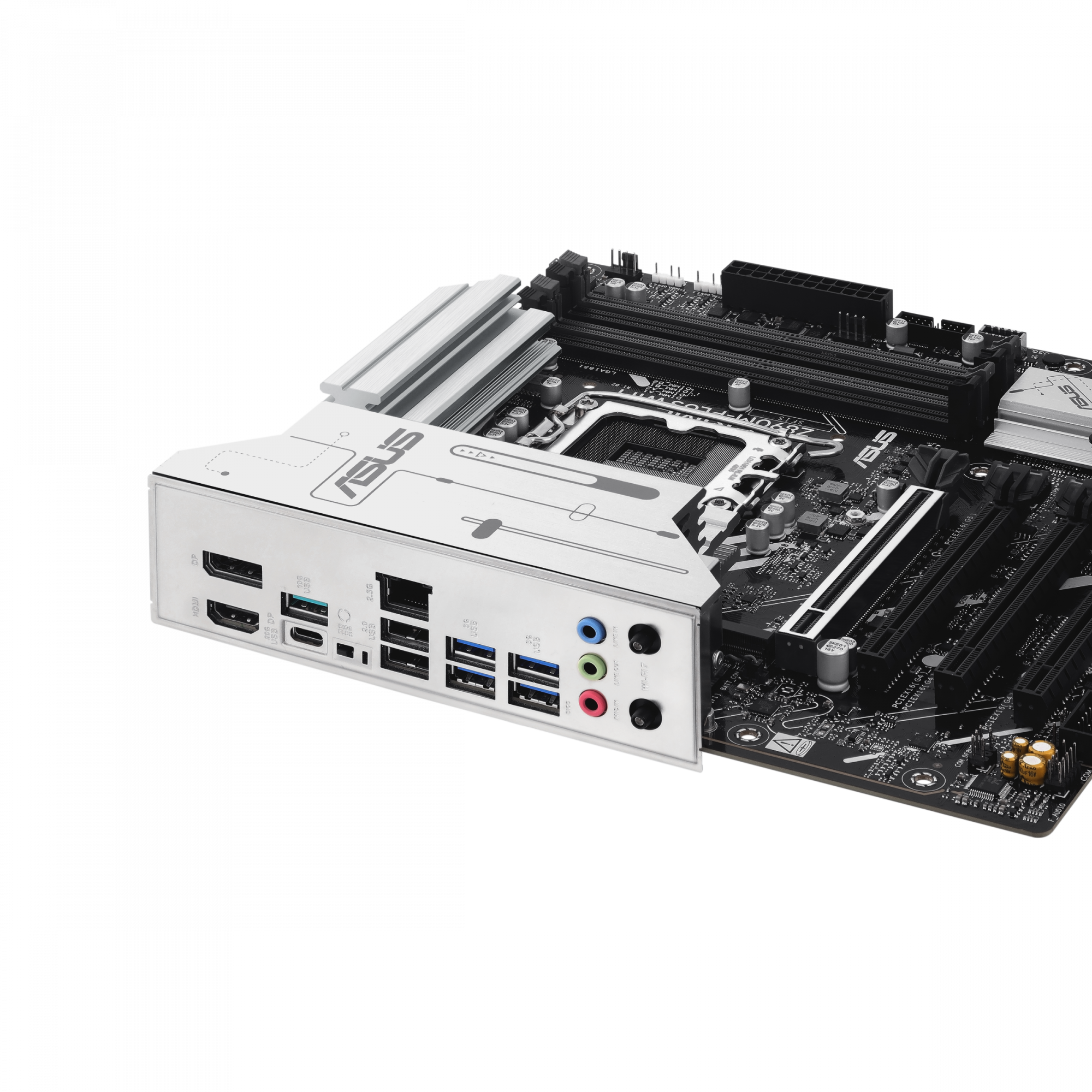

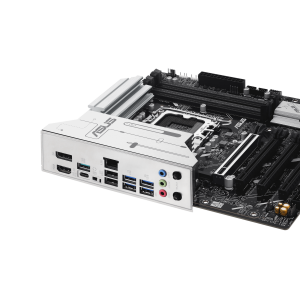

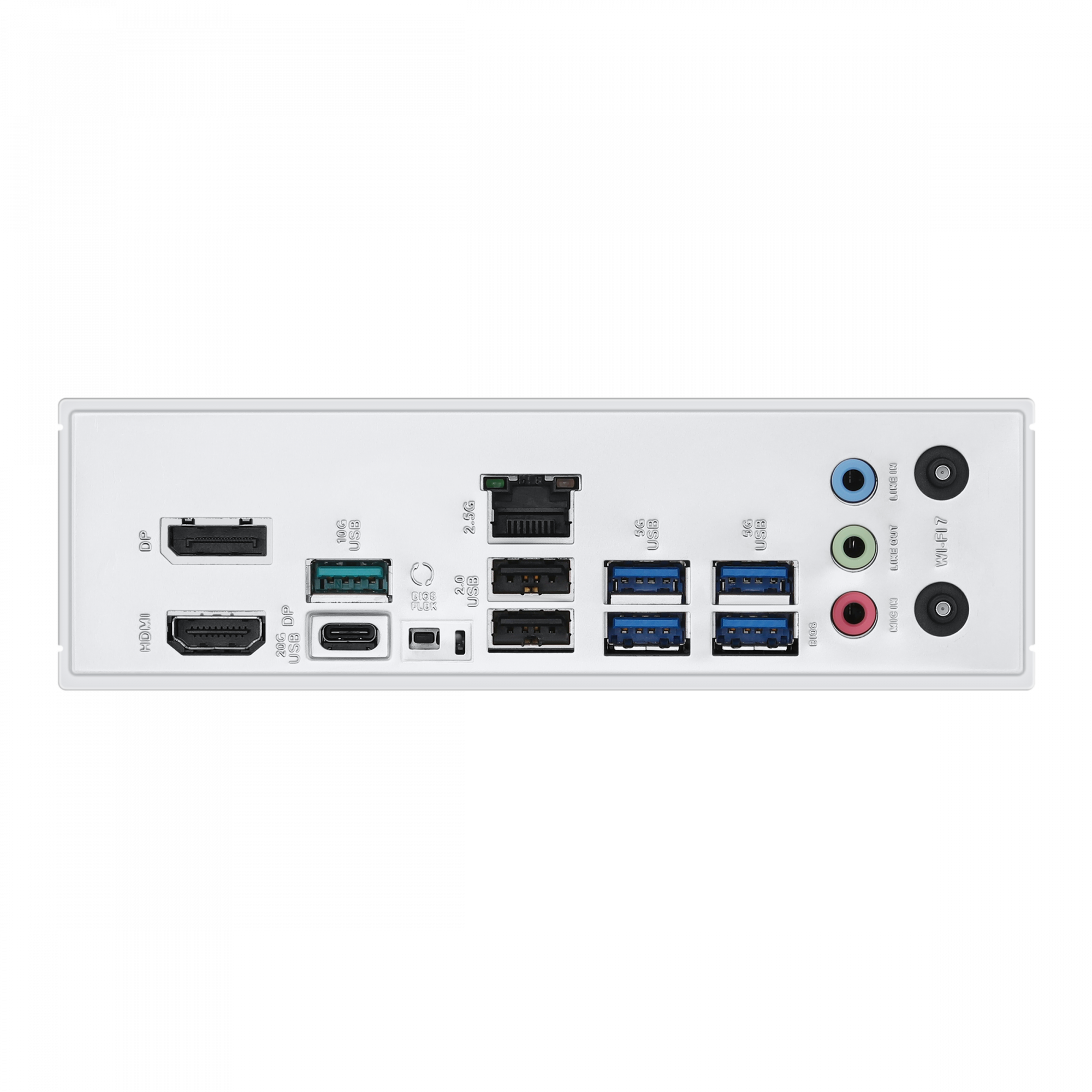

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Microphone in
  • Yes
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • WiFi-AP antenna jack
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 6
  • Number of storage drives supported
  • 9
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 244 mm
