Description

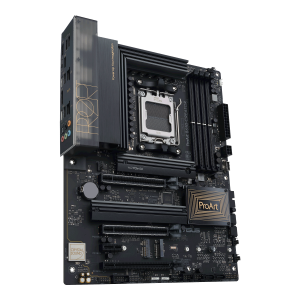

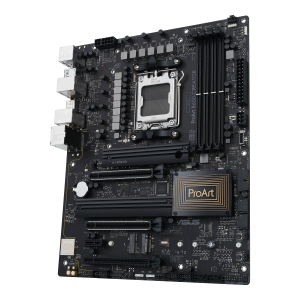

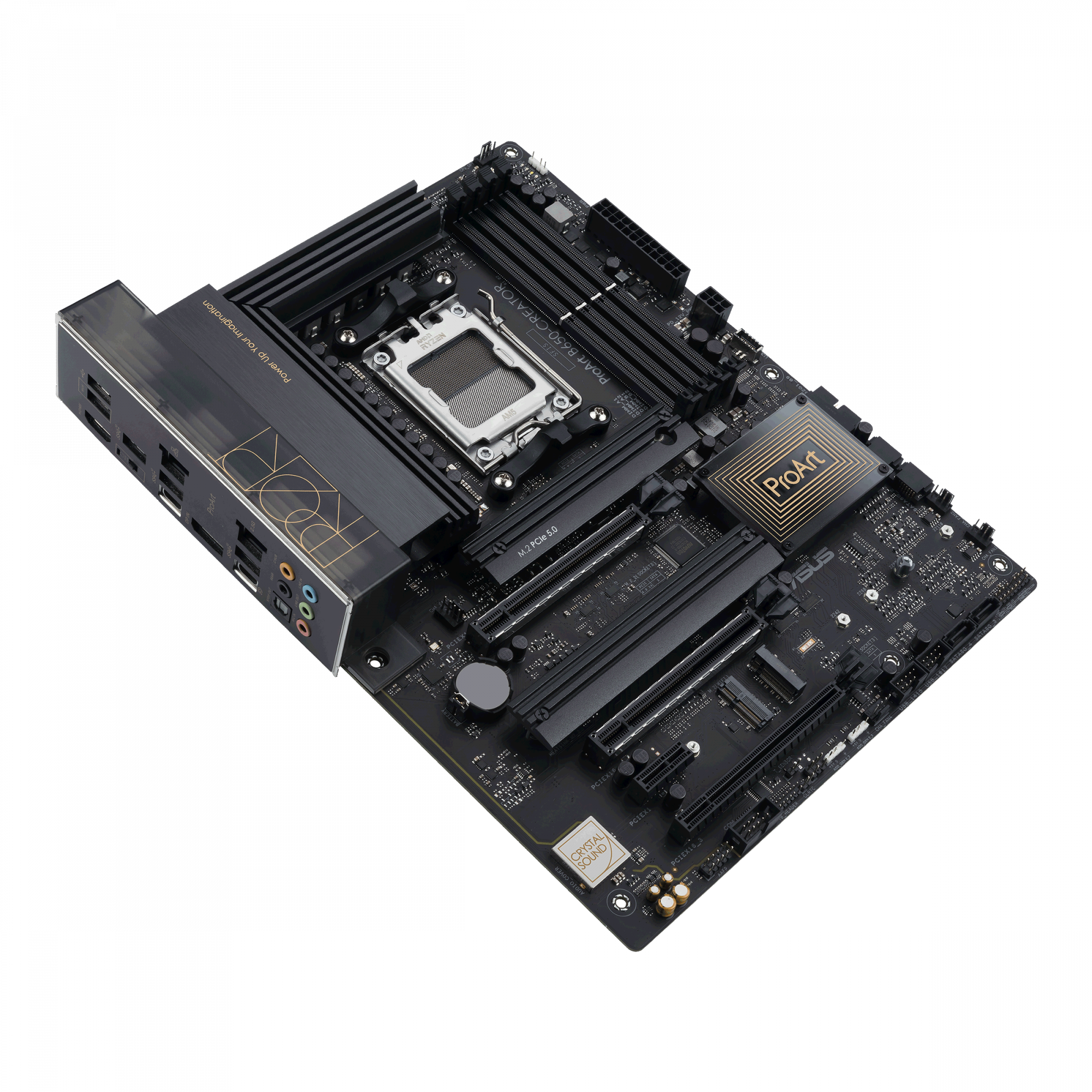

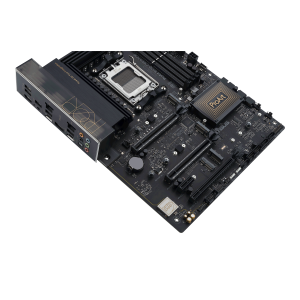

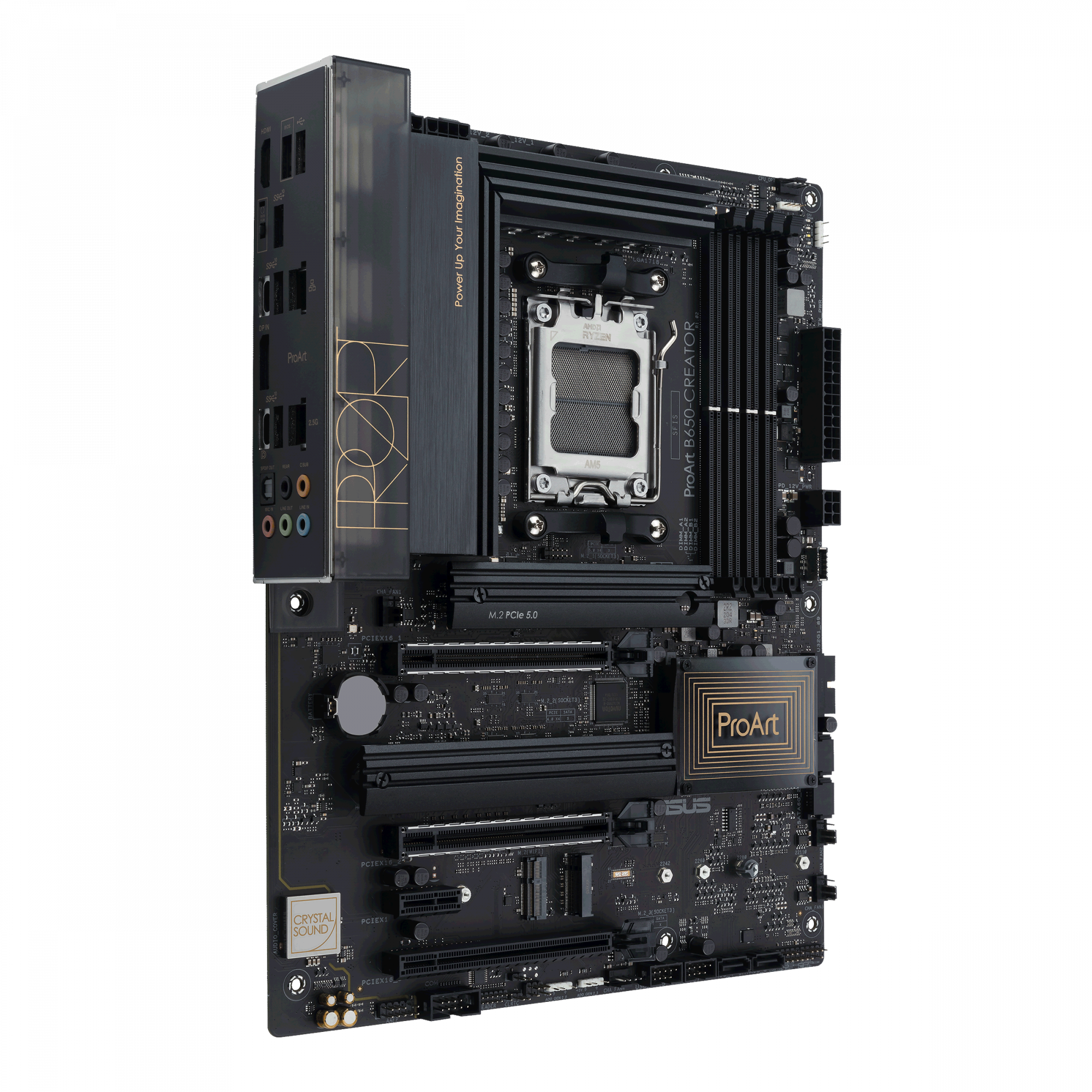

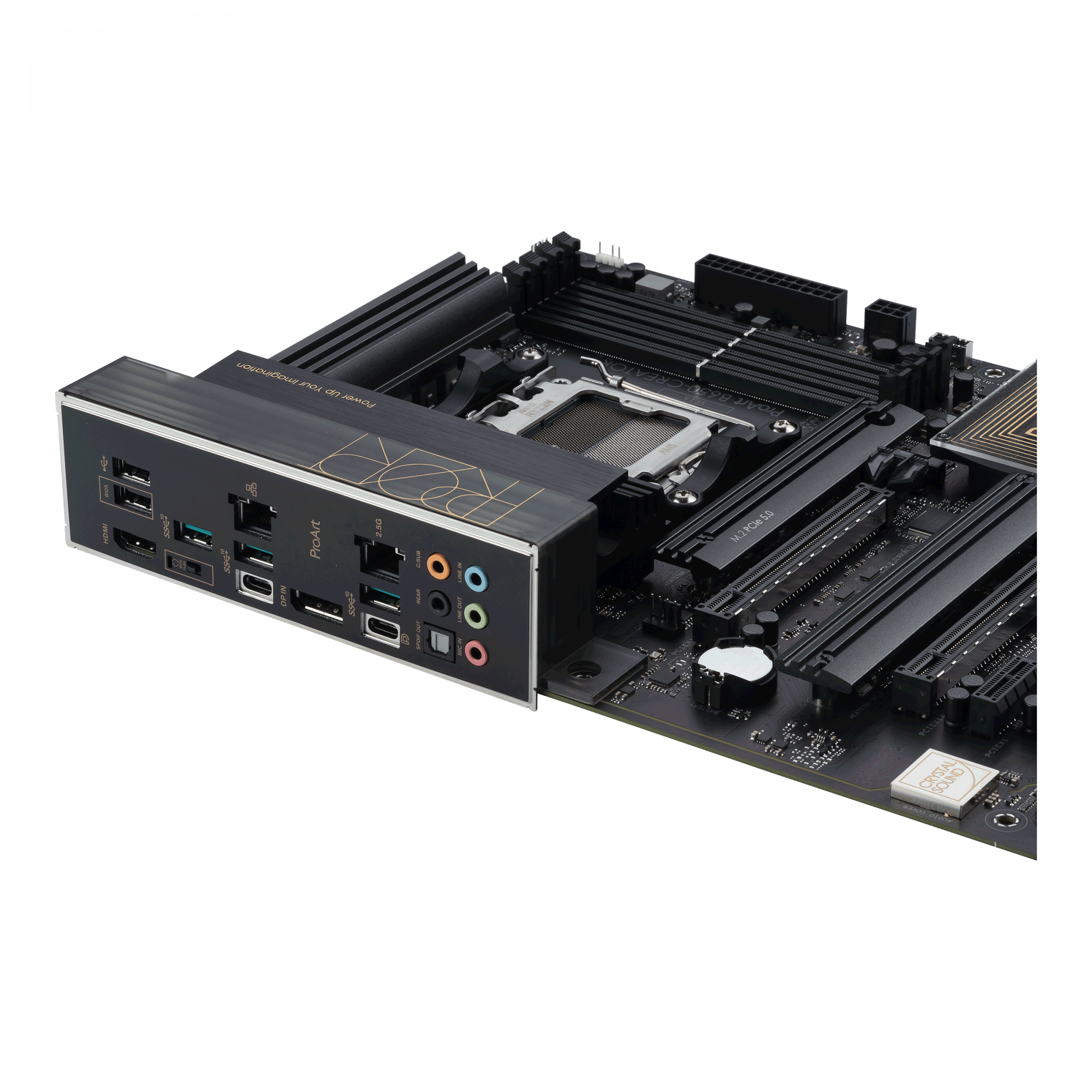

ASUS PROART B650-CREATOR. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
PROART B650-CREATO

EAN
4711081988090

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
3

PCI Express x16 (Gen 4.x) slots
3

PCI Express x4 (Gen 1.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B650

Motherboard form factor
ATX

Power source type
ATX

Windows operating systems supported
Windows 10, Windows 11 x64

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

ECC
Yes

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speed (max)
6400 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Back-to-BIOS button
Yes

Number of M.2 (E) slots
1

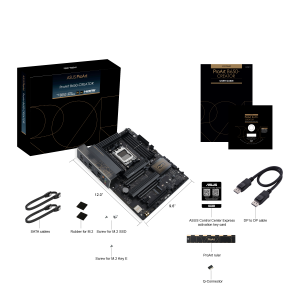

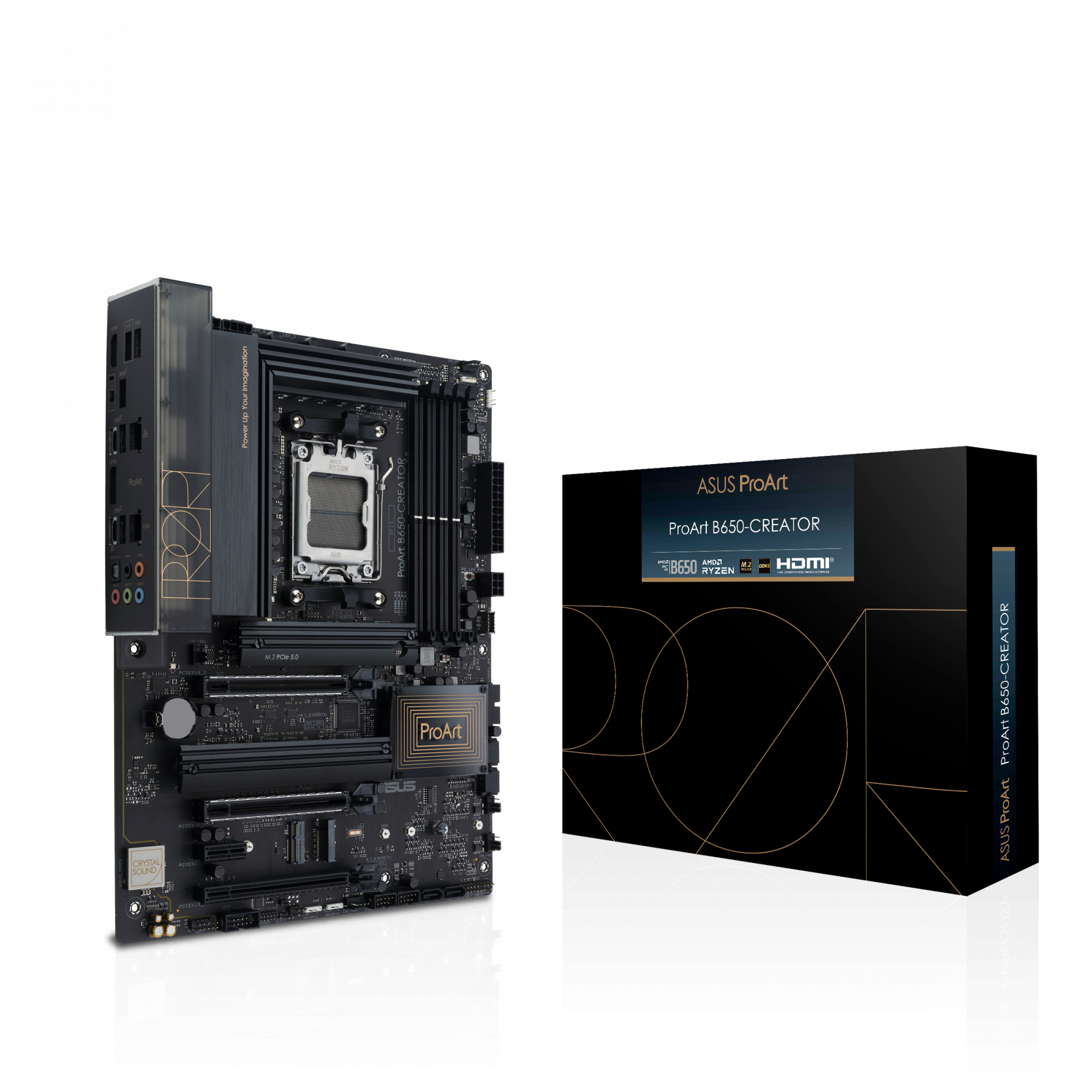

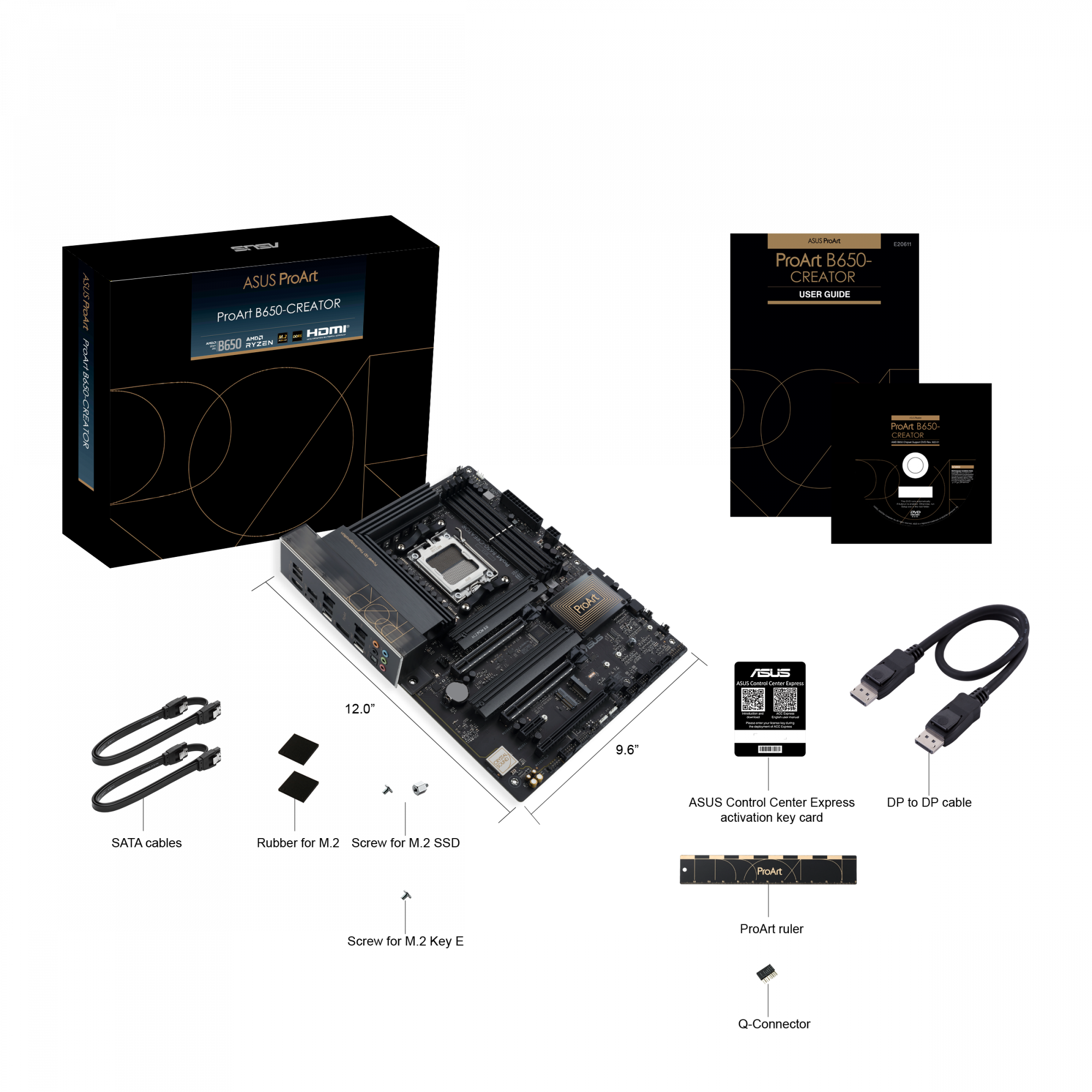

Packaging content

Cables included
SATA

User guide
Yes

Processor

Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

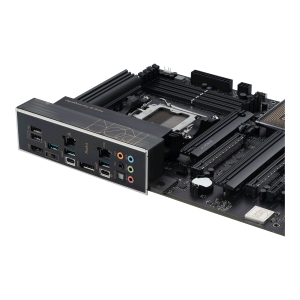

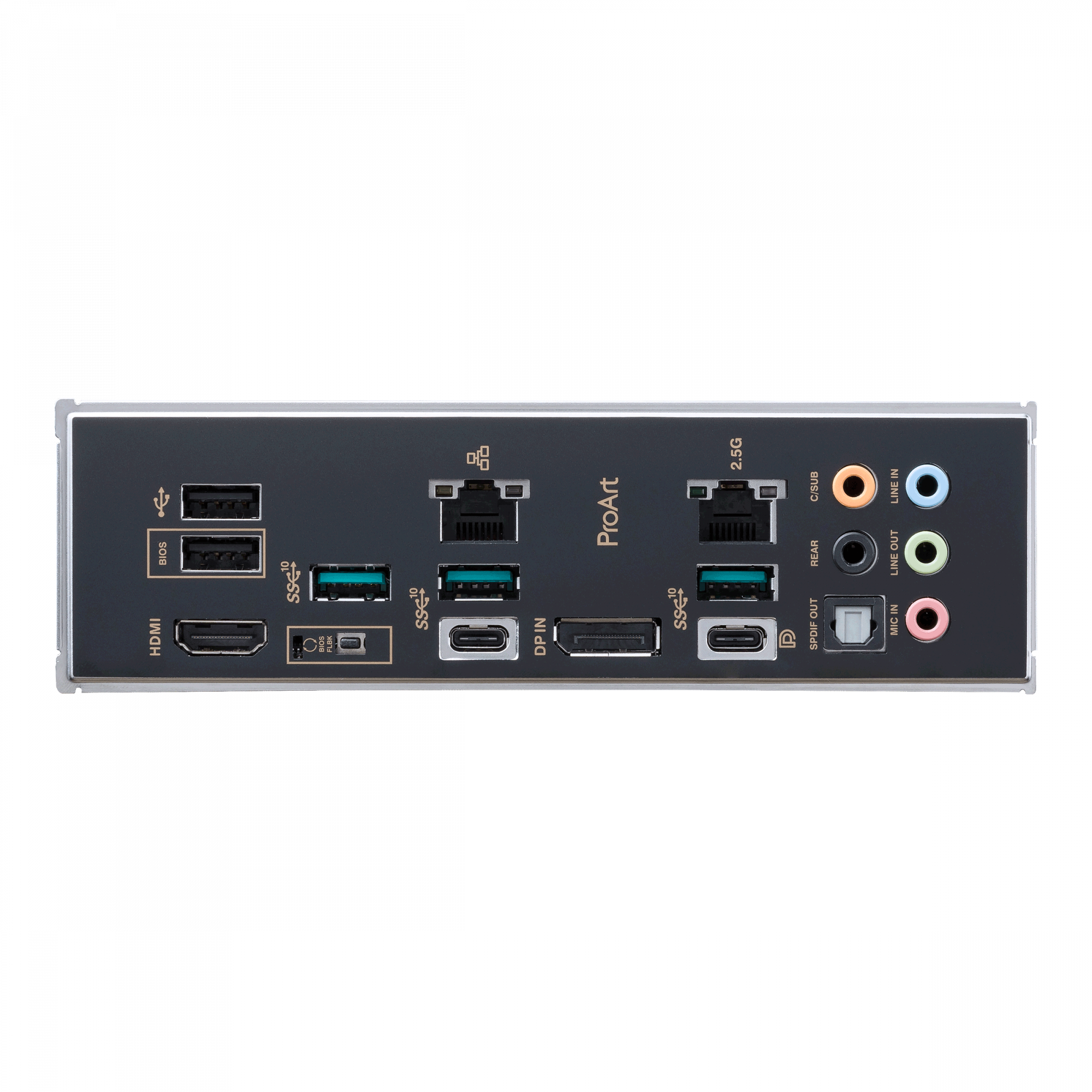

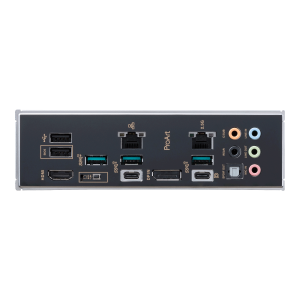

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
2

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

S/PDIF out port
Yes

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

Storage controllers

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

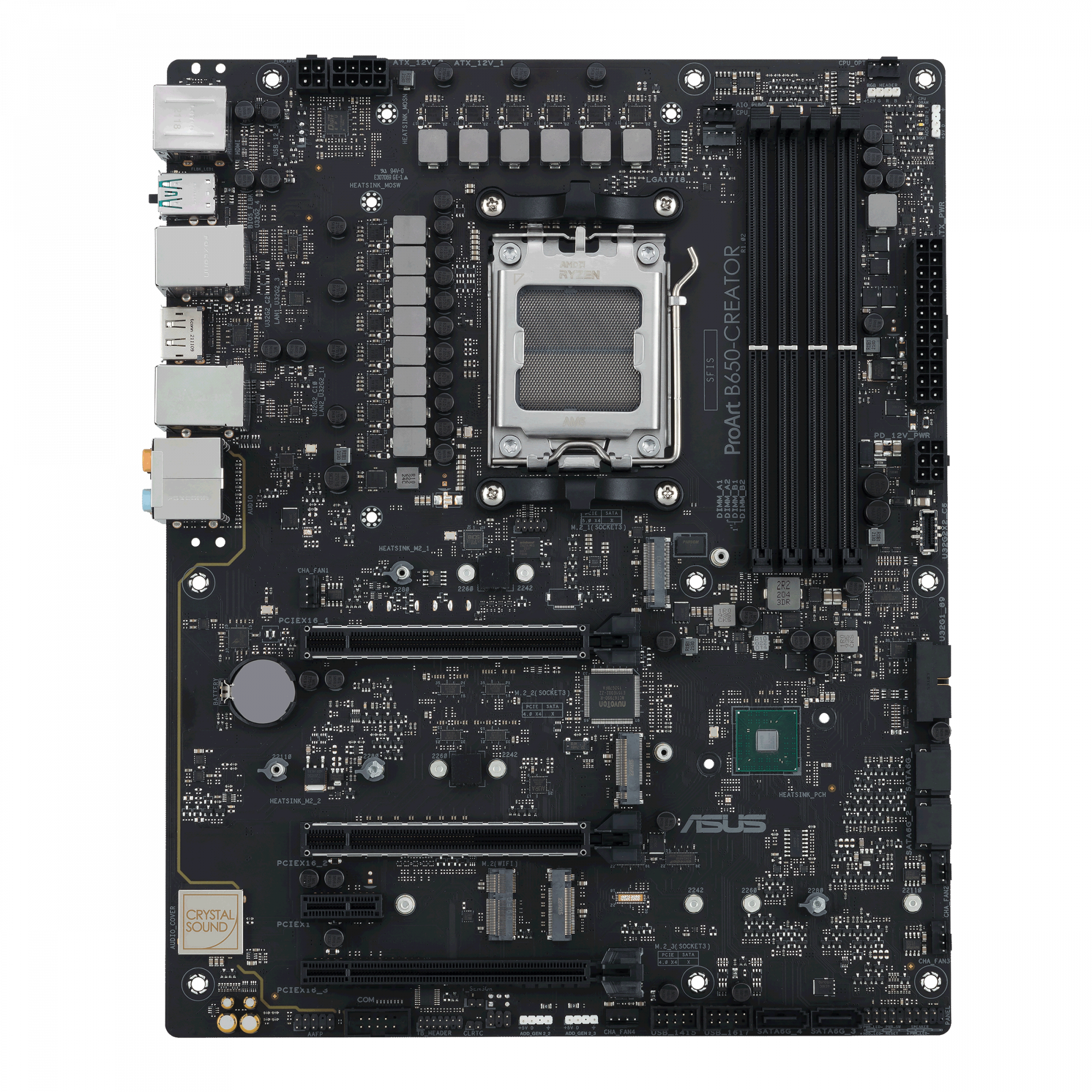

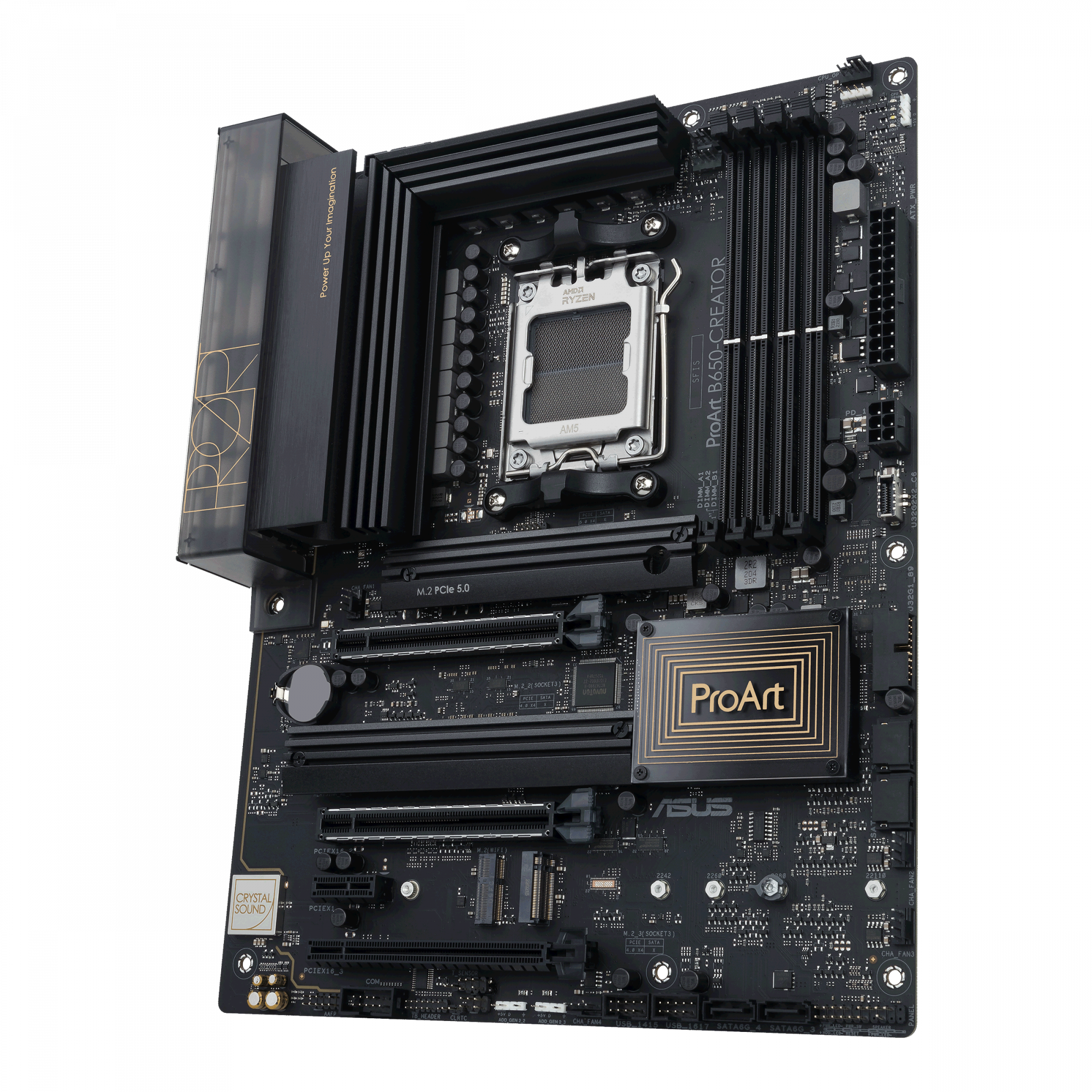

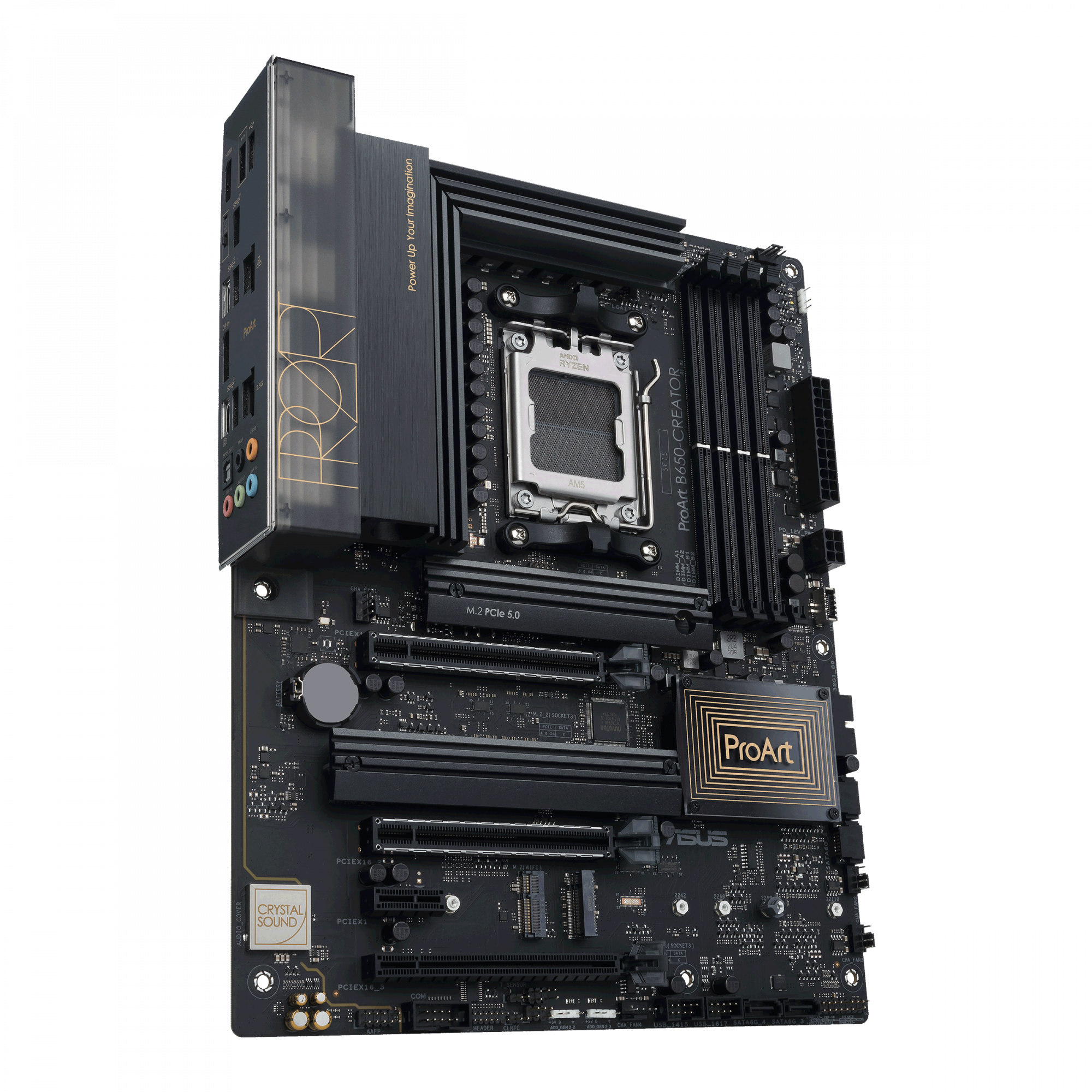

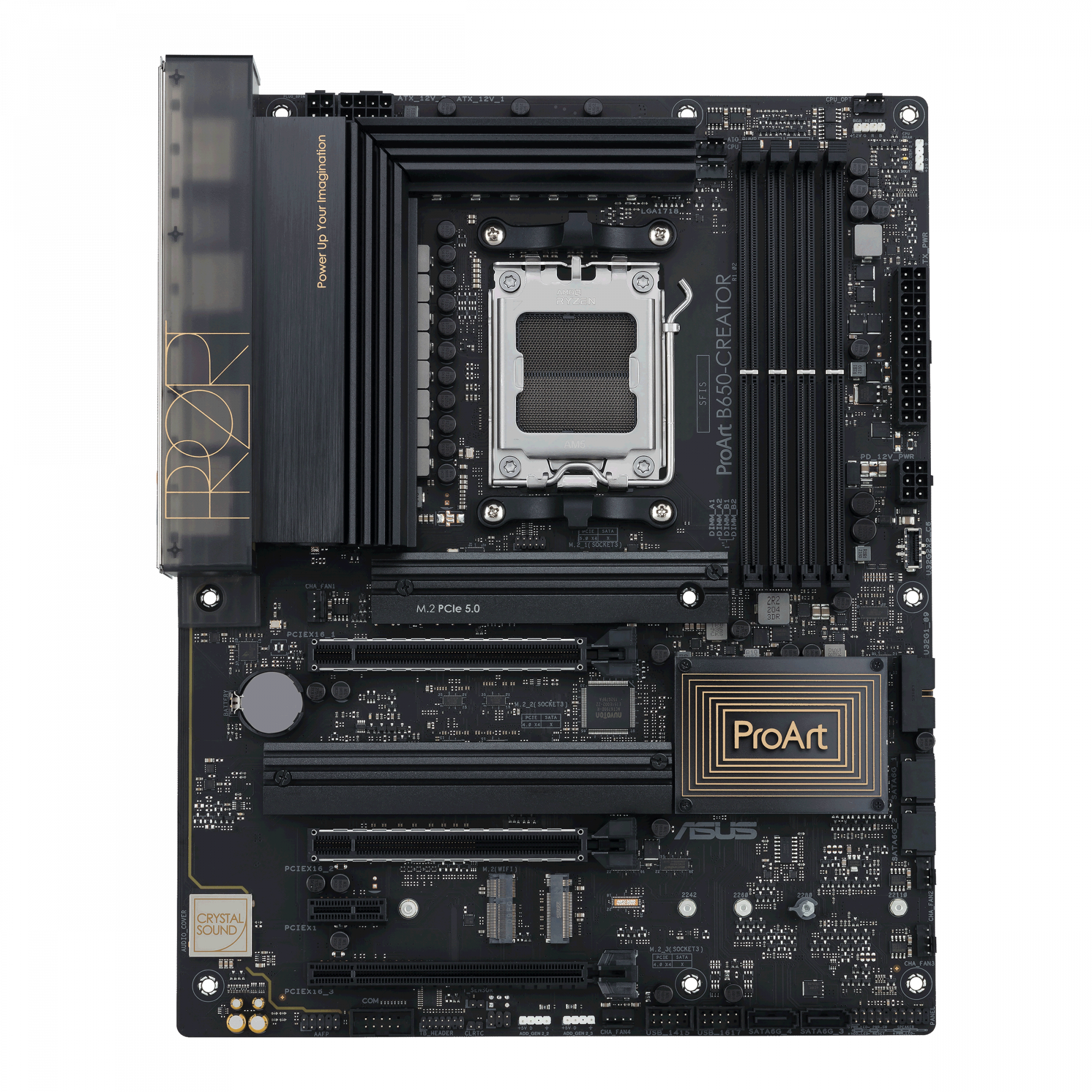

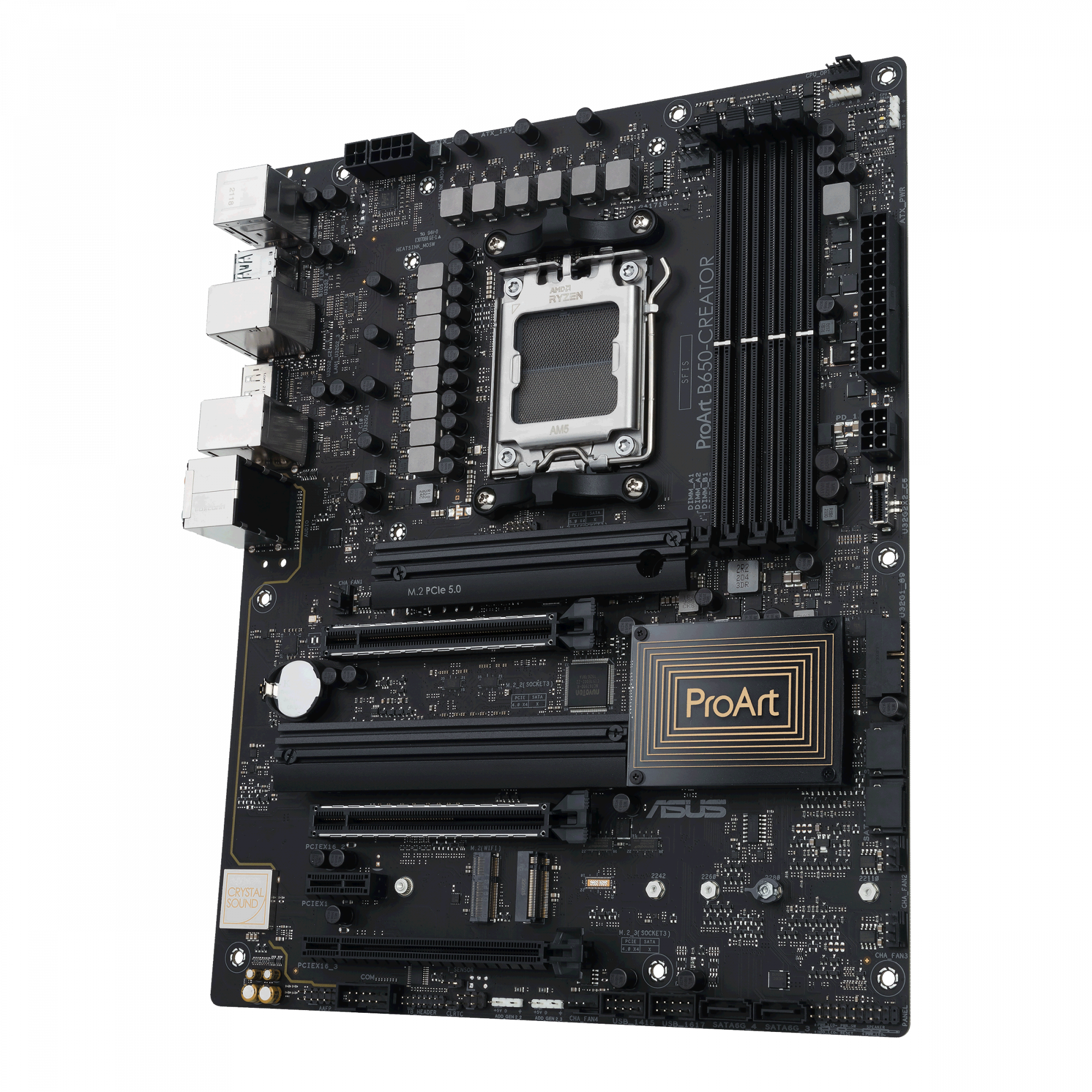

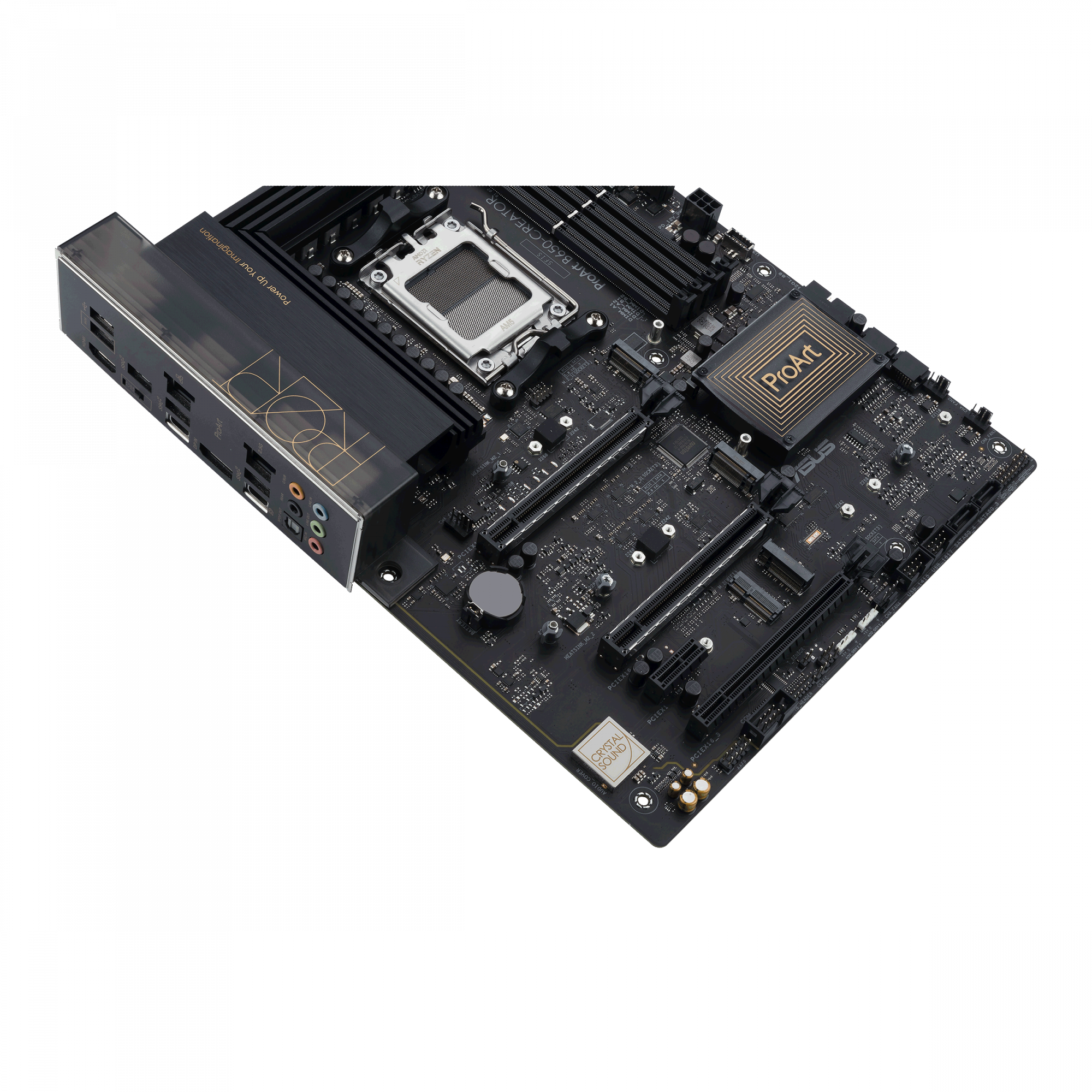

ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
