Description

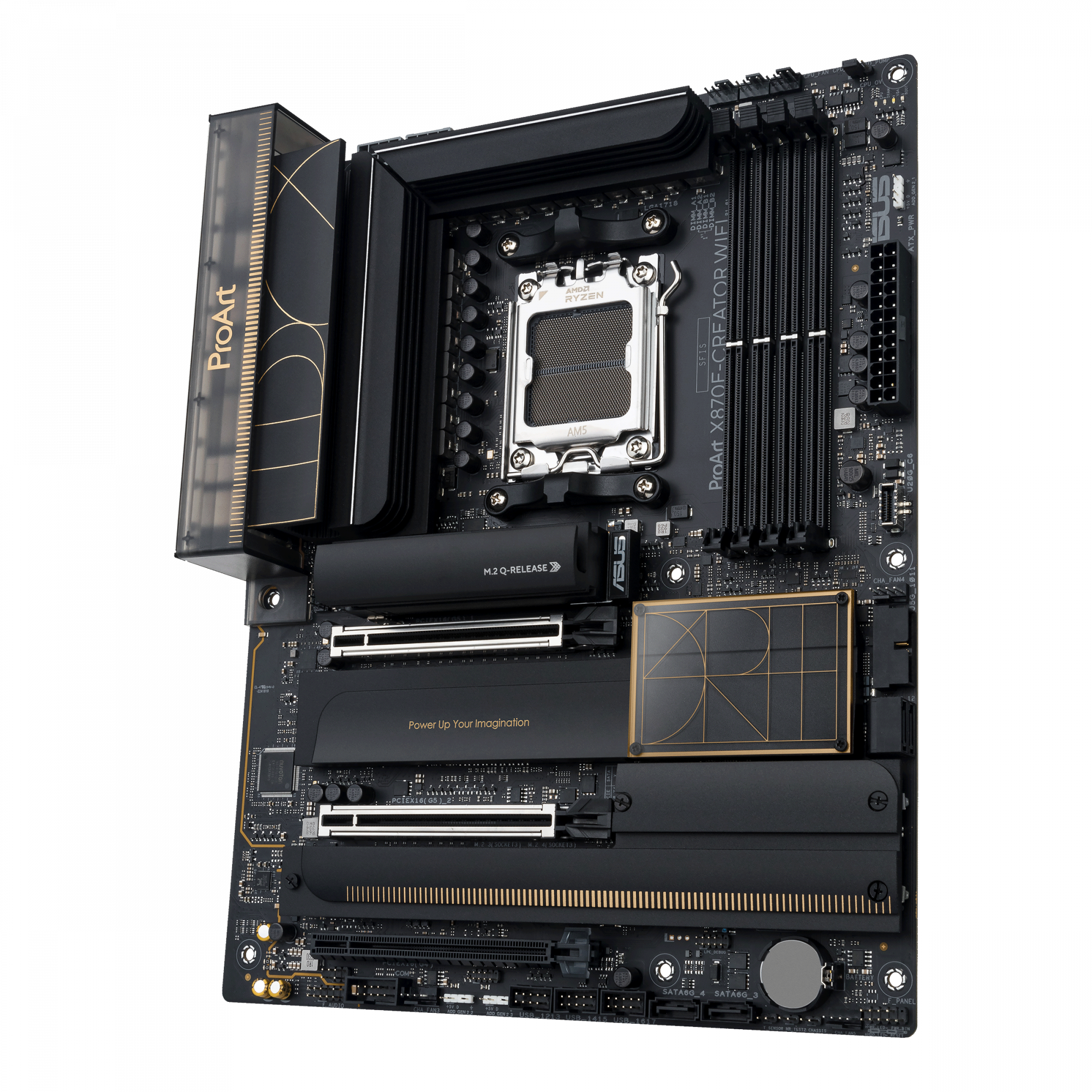

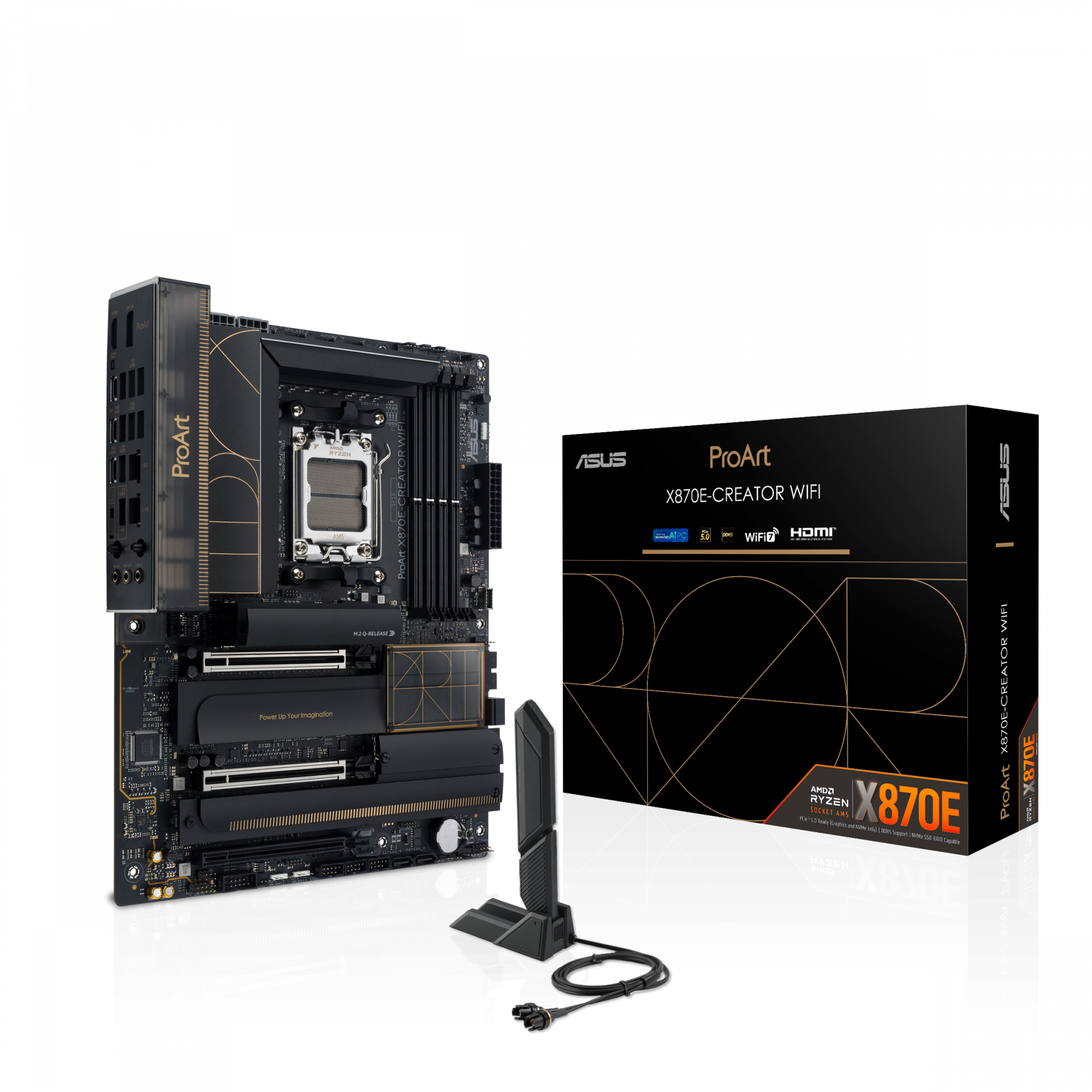

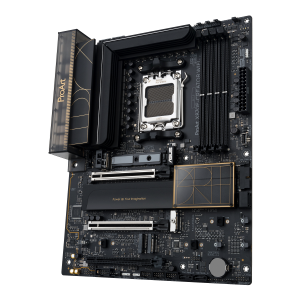

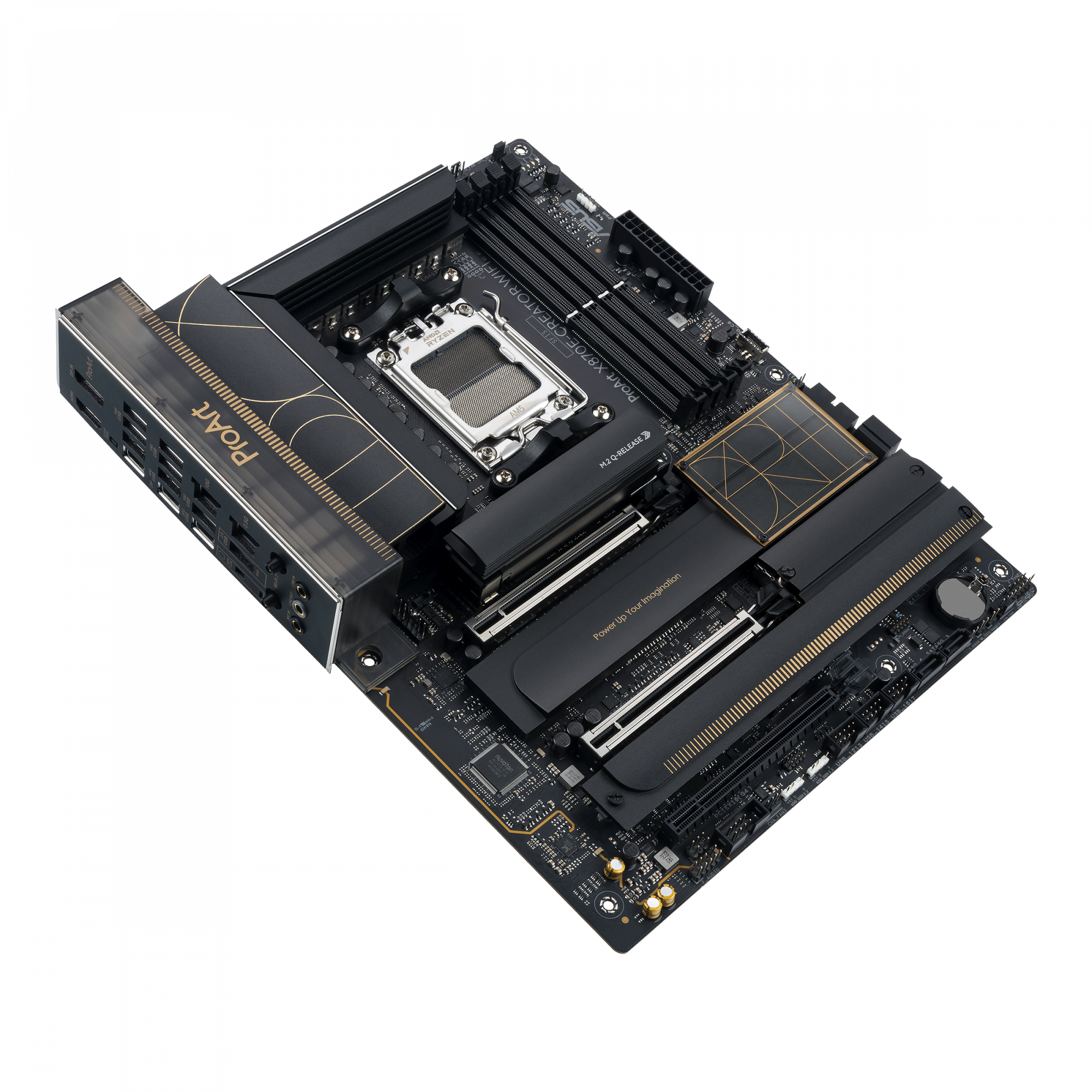

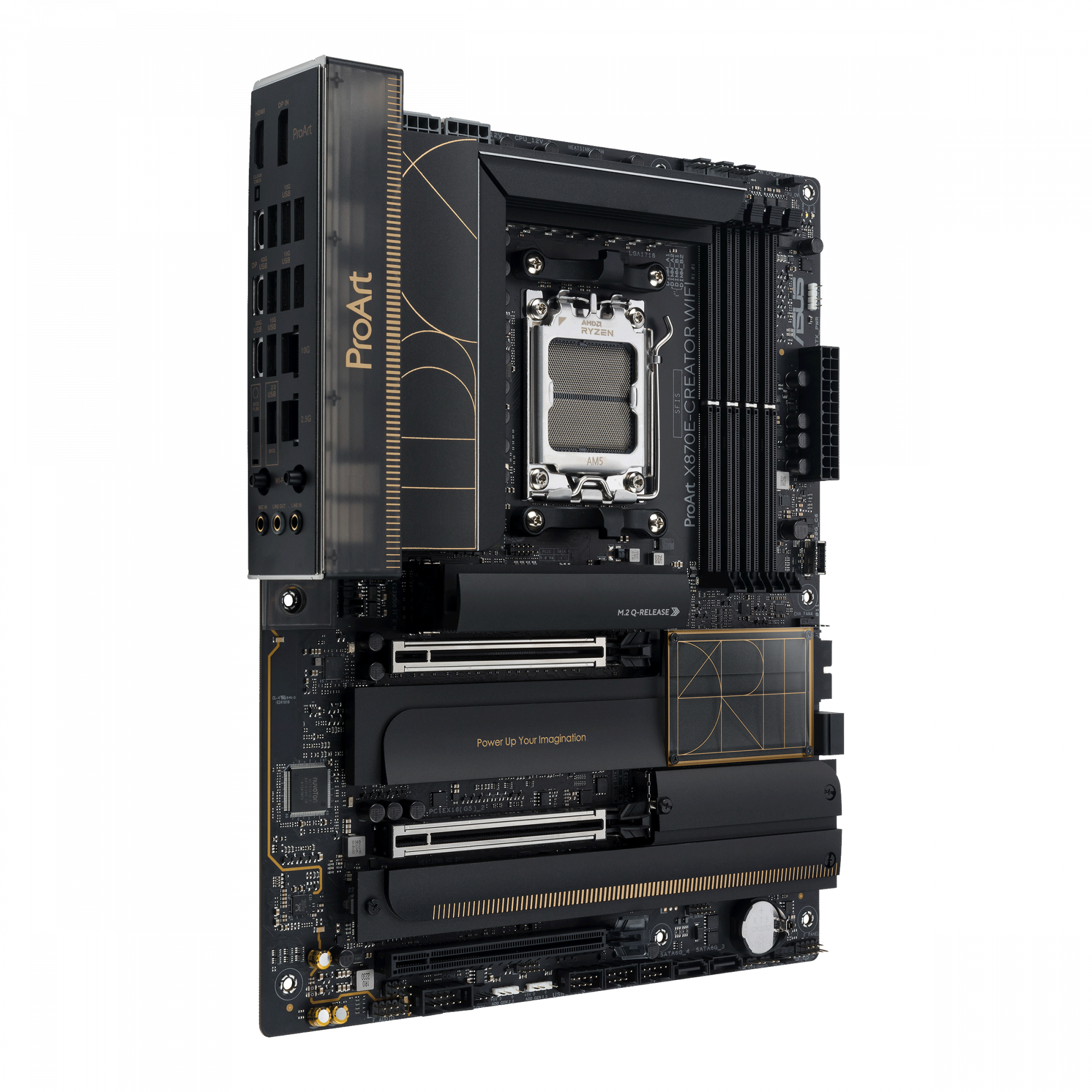

ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
PROART X870E-CREAT

EAN
4711387730775

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS button
Yes

Expansion slots

Number of M.2 (M) slots
4

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
2

Features

Audio chip
Realtek S1220A

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD X870E

Motherboard form factor
ATX

Windows operating systems supported
Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Chassis intrusion connector
Yes

CPU fan connector
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
5

Number of COM connectors
1

Number of SATA III connectors
4

USB 2.0 connectors
3

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

USB 3.2 Gen 2x2 connectors
1

Memory

ECC сompatibility
ECC & Non-ECC

Memory channels
Dual-channel

Memory Slot Support
192 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.4

Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 7 (802.11be)

Wi-Fi
Yes

Wi-Fi standards
Wi-Fi 7 (802.11be)

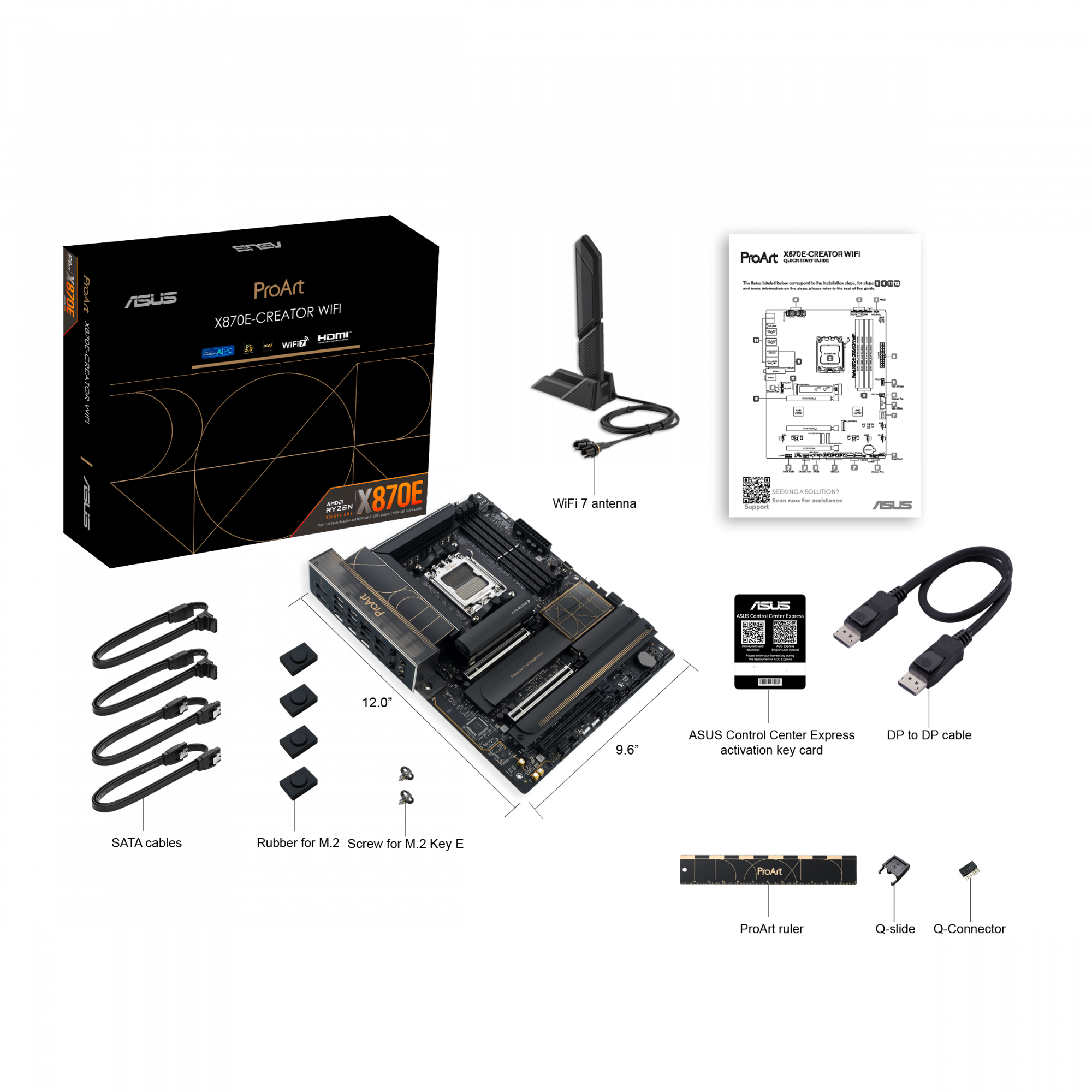

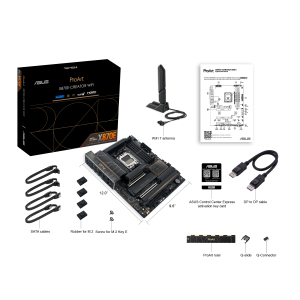

Packaging content

Cables included
DisplayPort, SATA

Processor

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

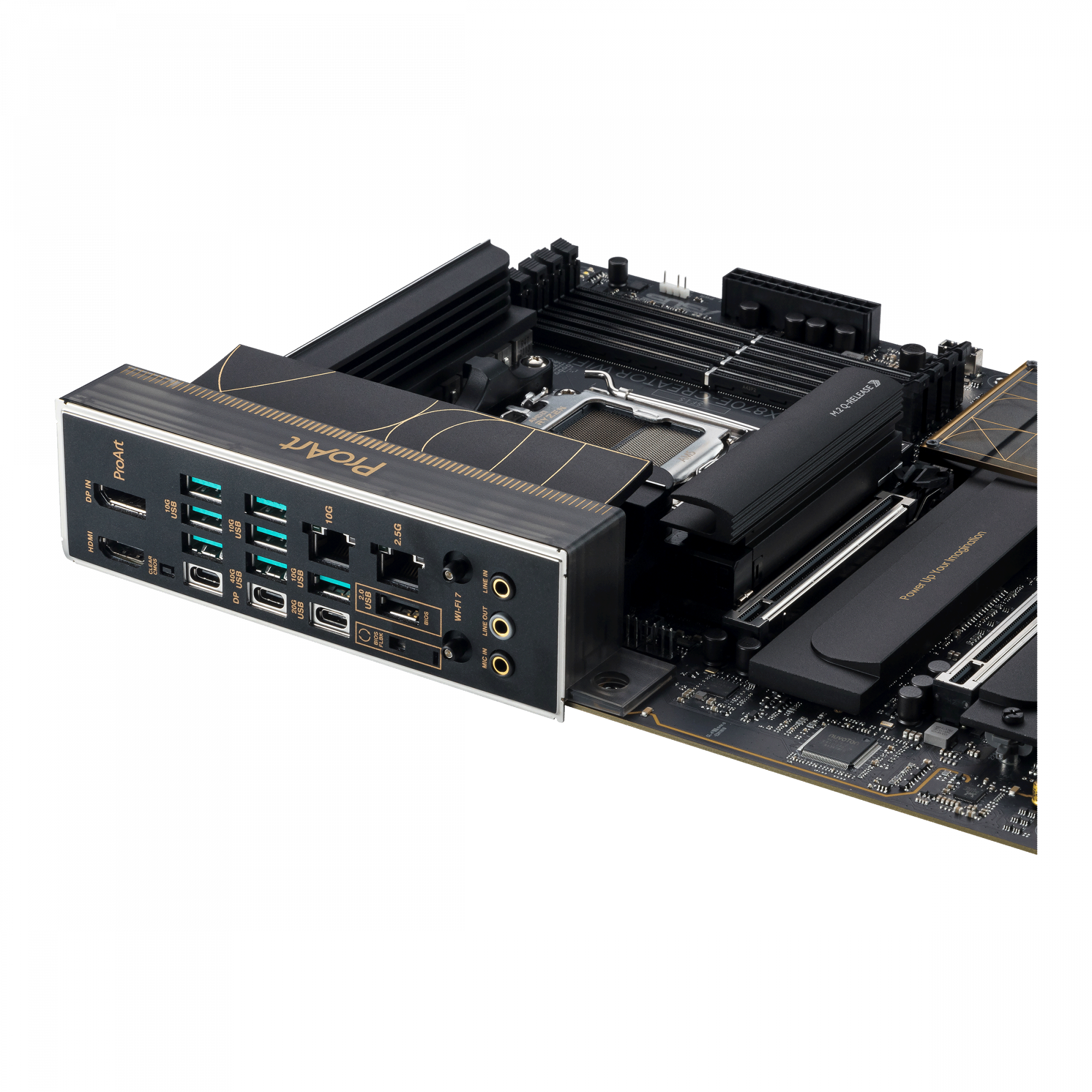

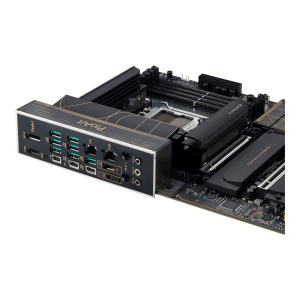

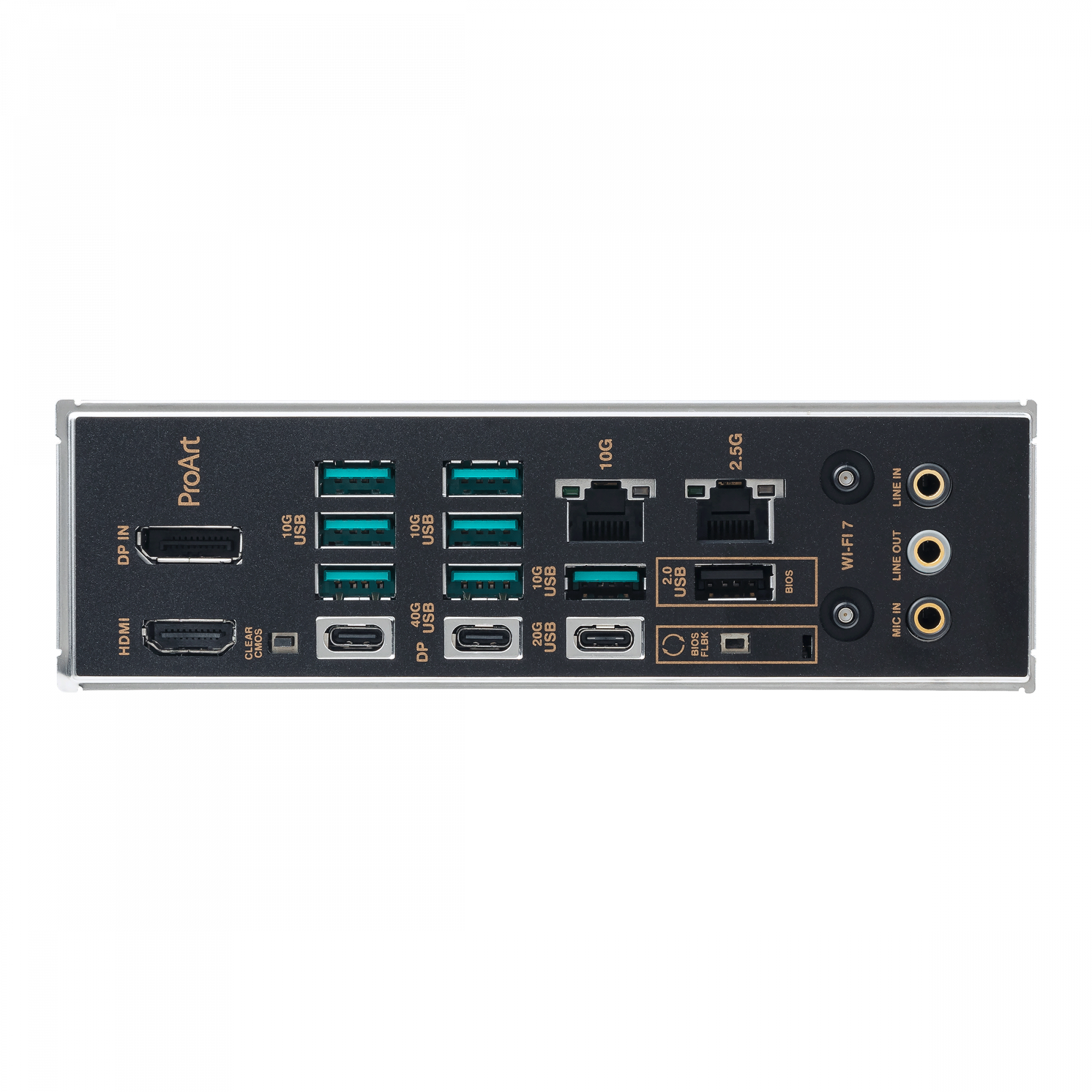

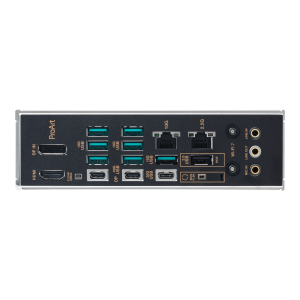

Rear panel I/O ports

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
2

HDMI ports quantity
1

Microphone in
Yes

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

USB 3.2 Gen 2x2 Type-C ports quantity
1

USB4 Gen 2x2 ports quantity
2

VGA (D-Sub) ports quantity
0

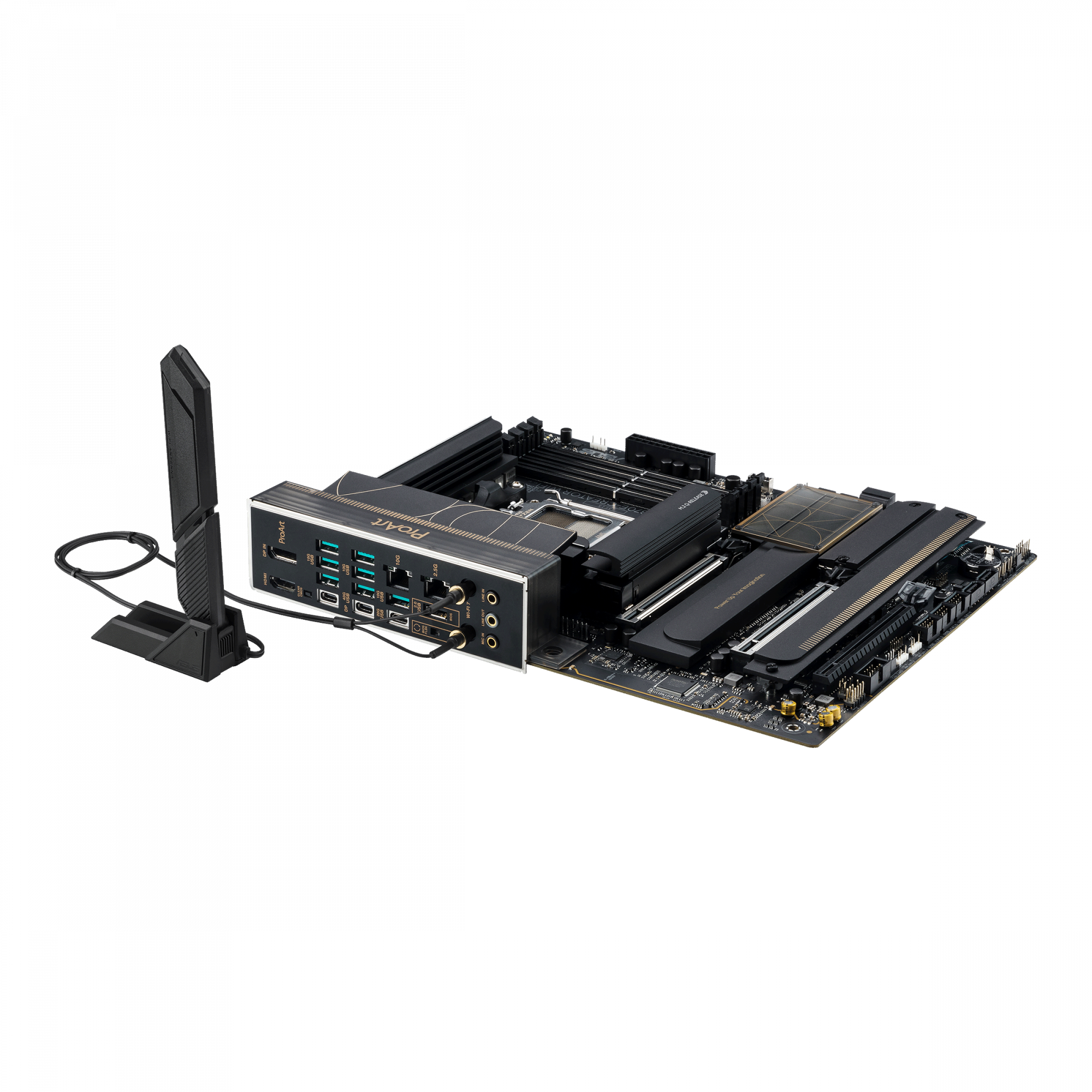

WiFi-AP antenna jack
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
8

RAID levels
0, 1, 10, 5

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

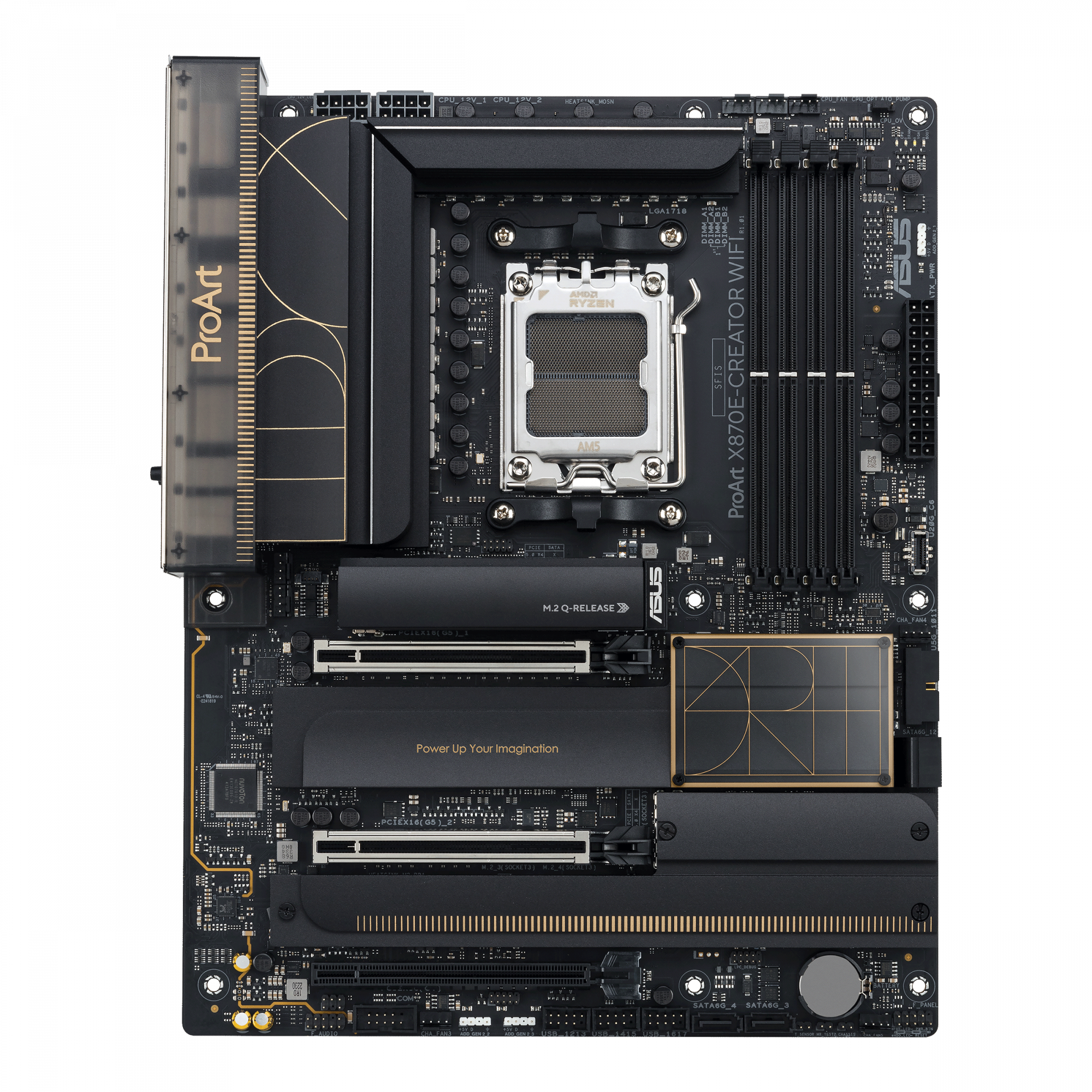

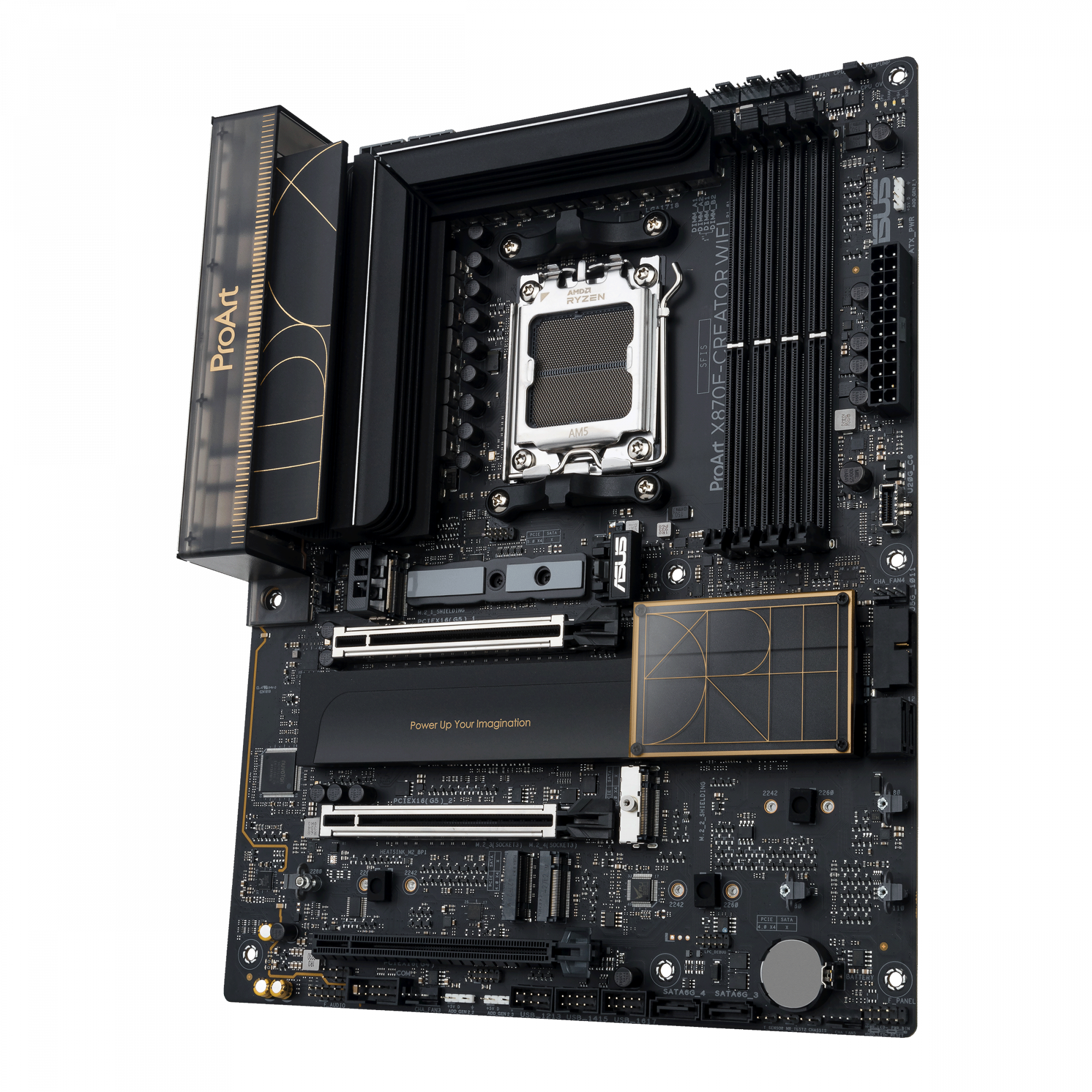

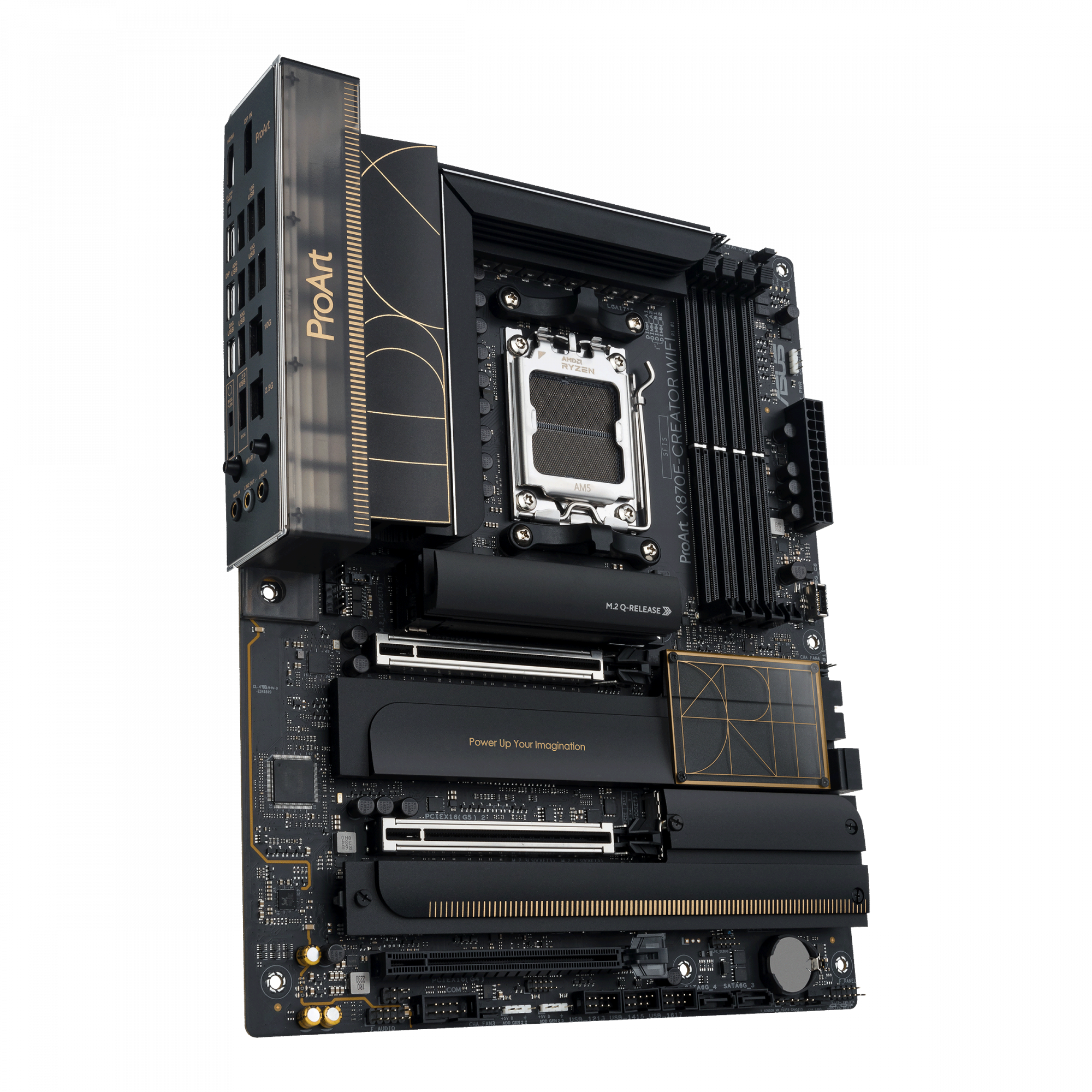

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
