Description

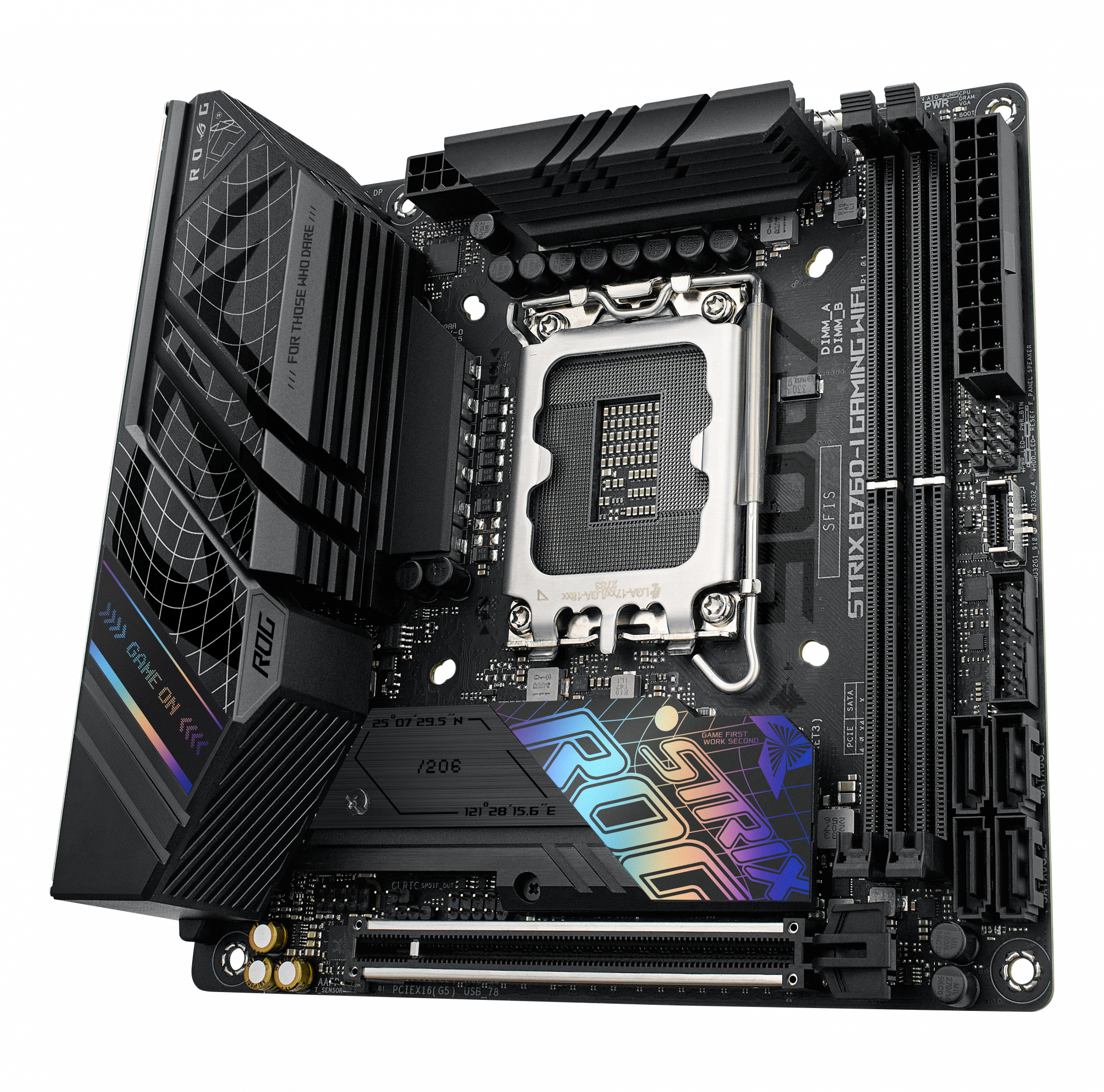

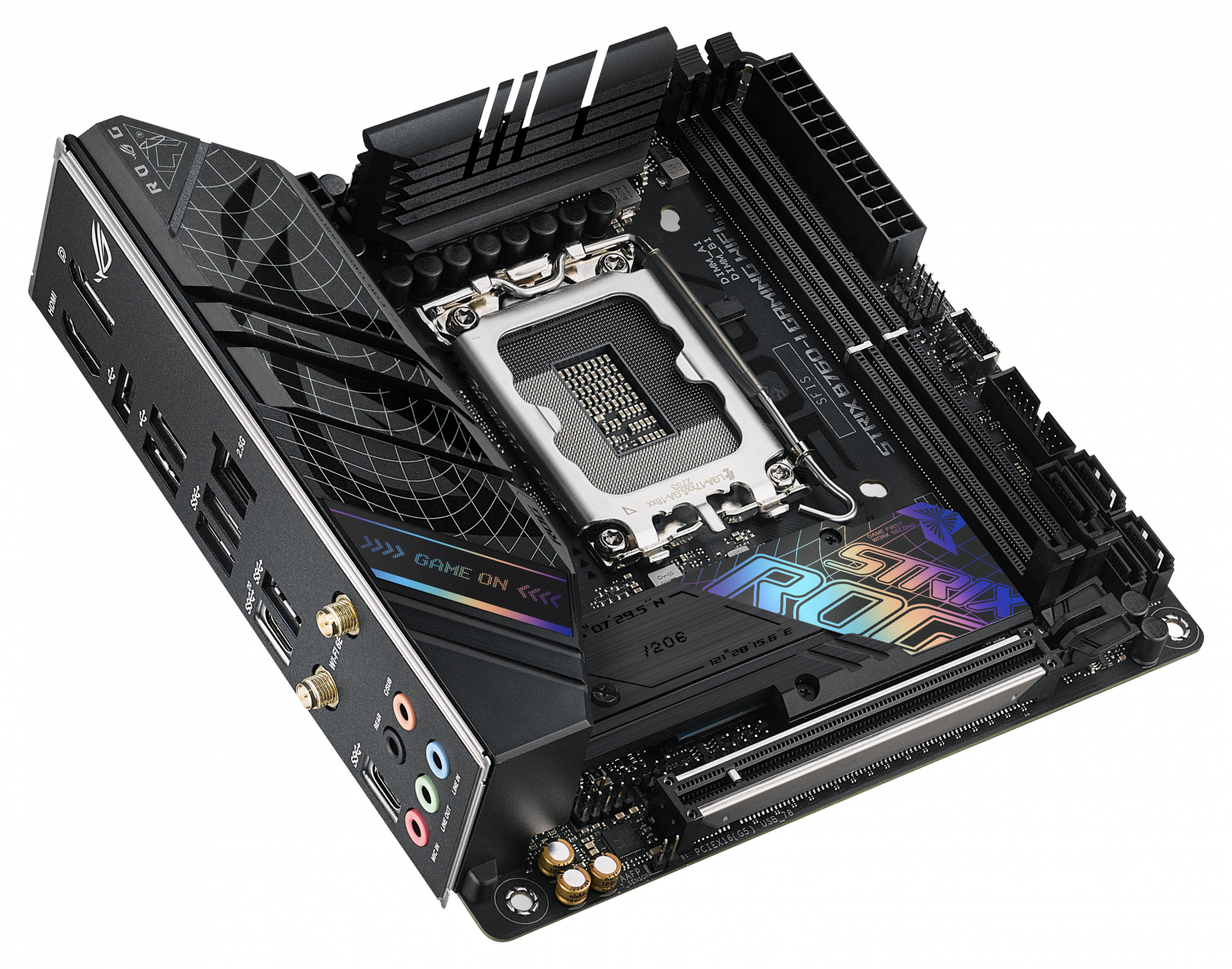

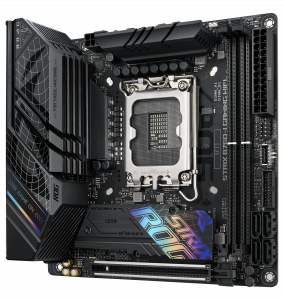

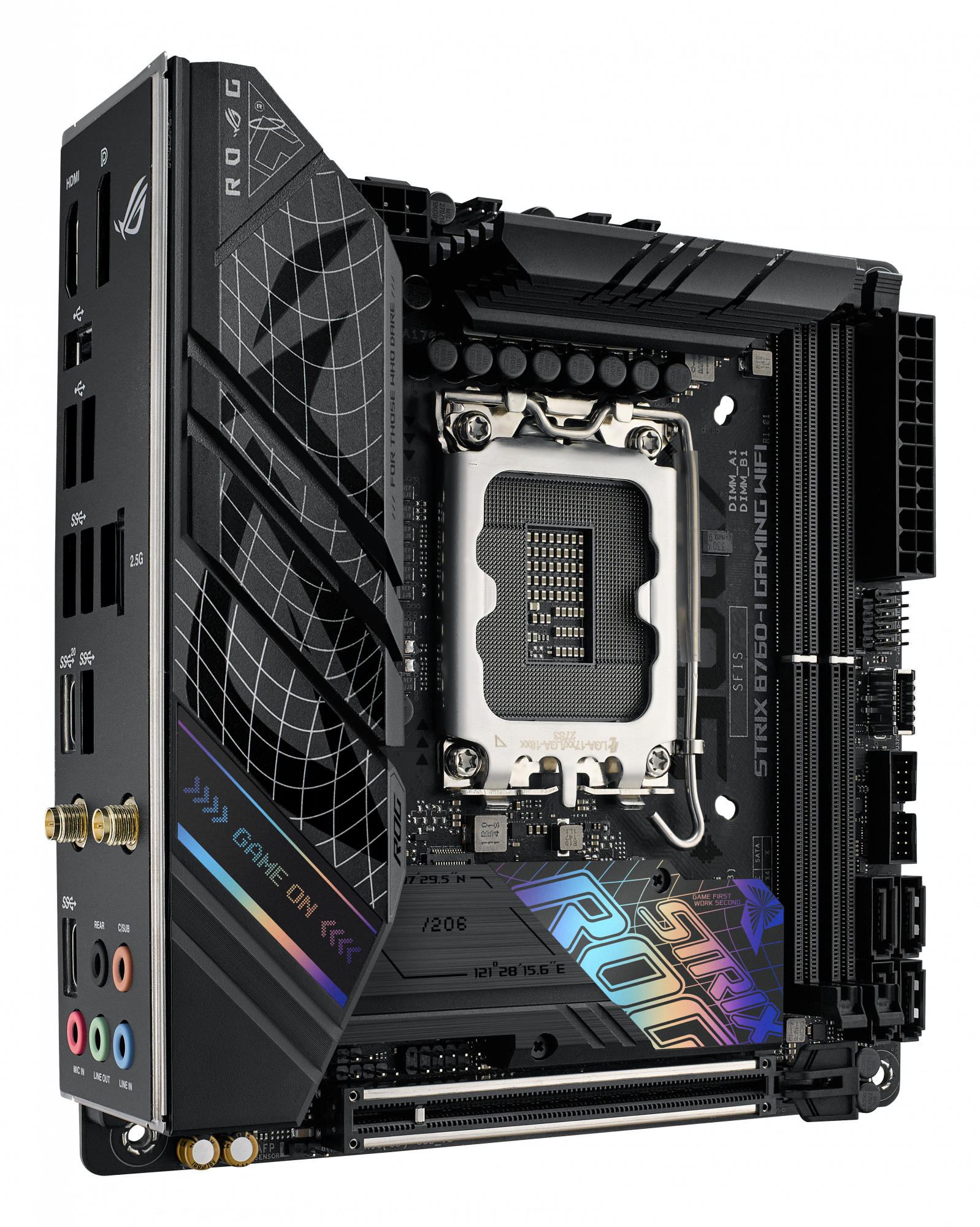

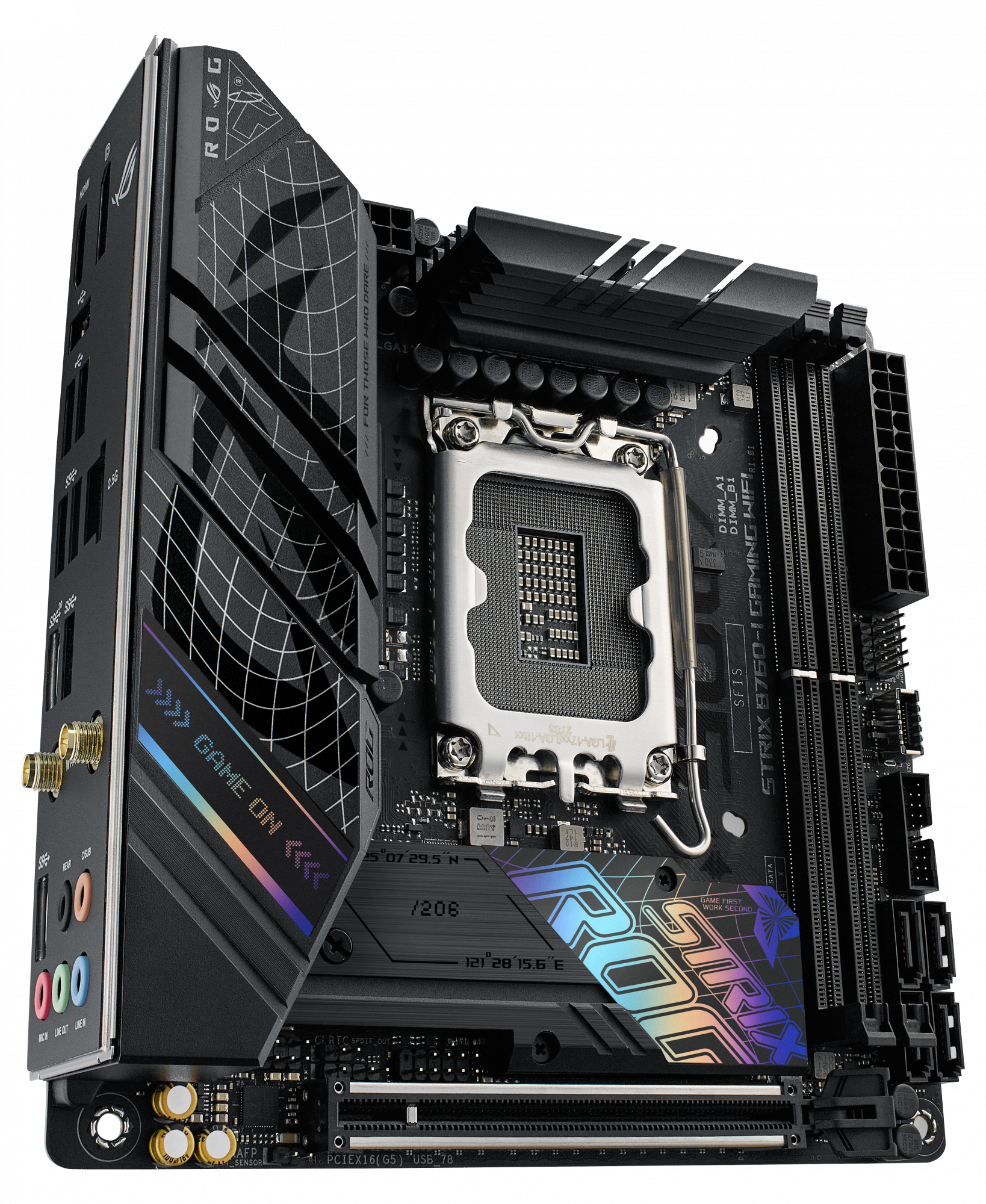

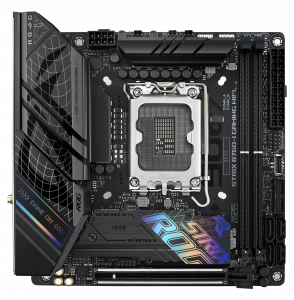

ASUS ROG STRIX B760-I GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
STRIX B760-I GAMIN

EAN
4711081997658

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
2

PCI Express x16 (Gen 5.x) slots
1

Features

Audio chip
SupremeFX S1220A

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B760

Motherboard form factor
mini ITX

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
1

Number of SATA III connectors
4

RGB
Yes

USB 2.0 connectors
1

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speed (max)
7600 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Other features

Weight
644 g

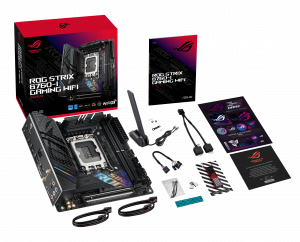

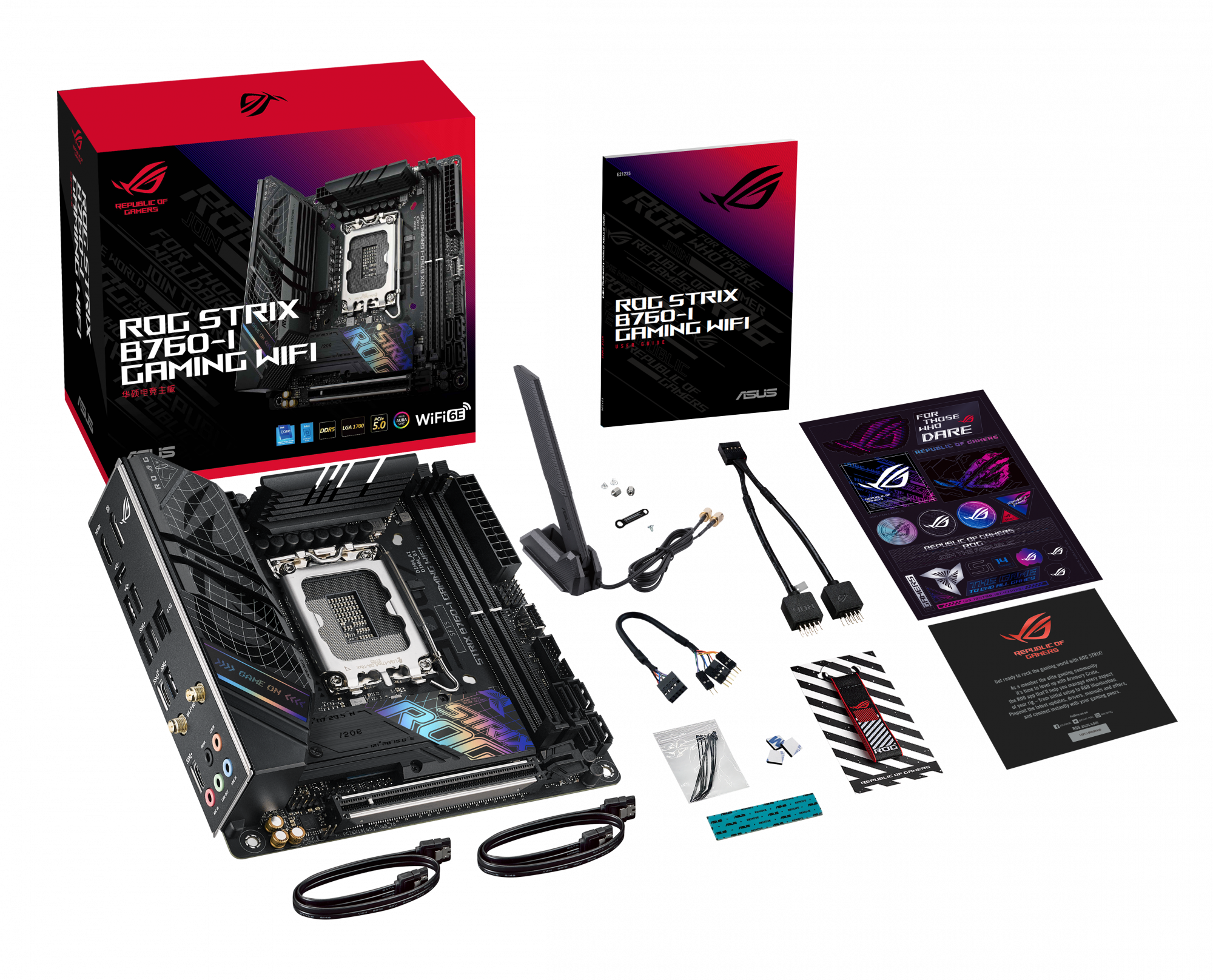

Packaging content

Cables included
SATA

User guide
Yes

Packaging data

Package depth
94 mm

Package height
185 mm

Package weight
1.28 kg

Package width
226 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

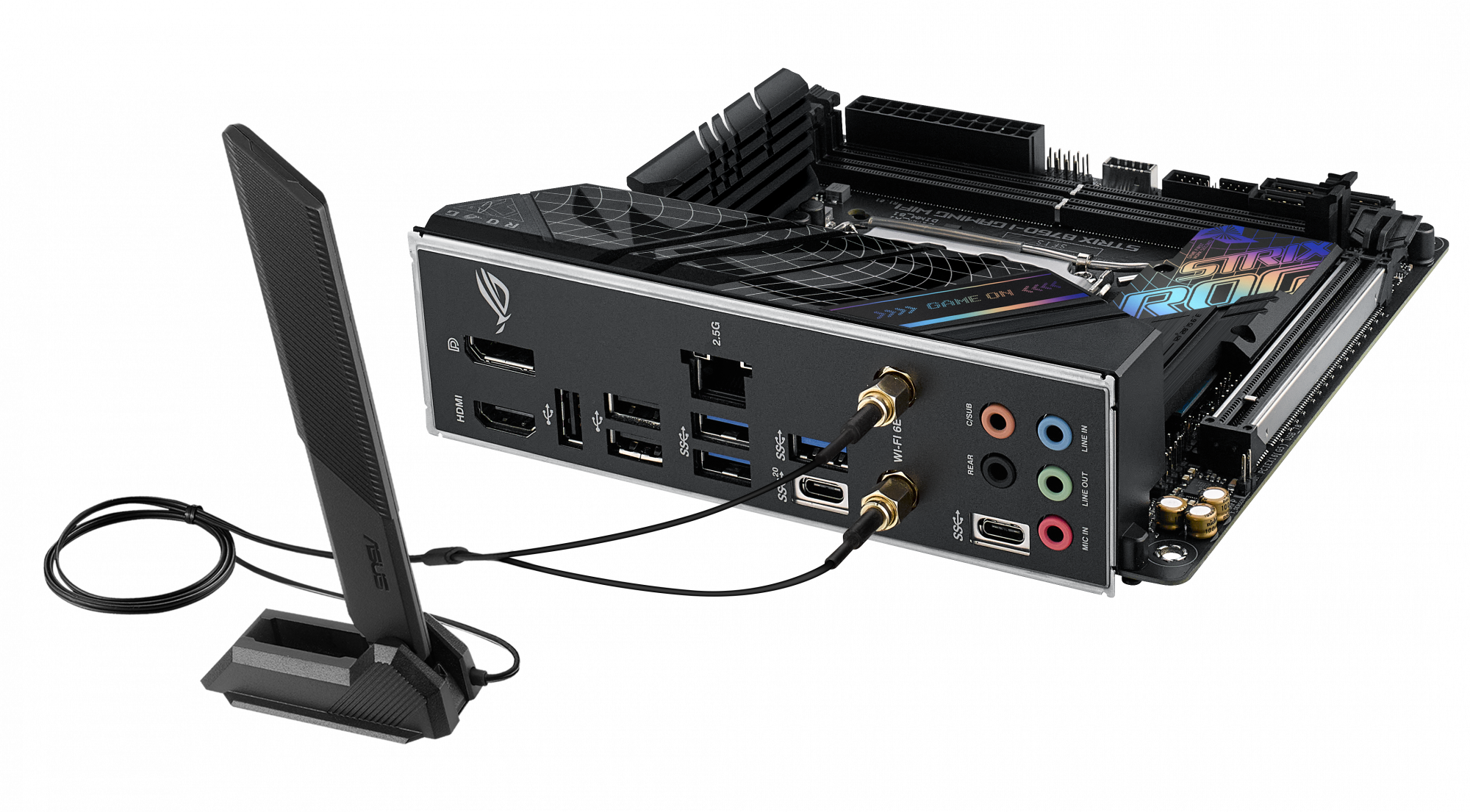

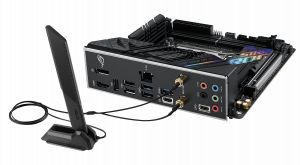

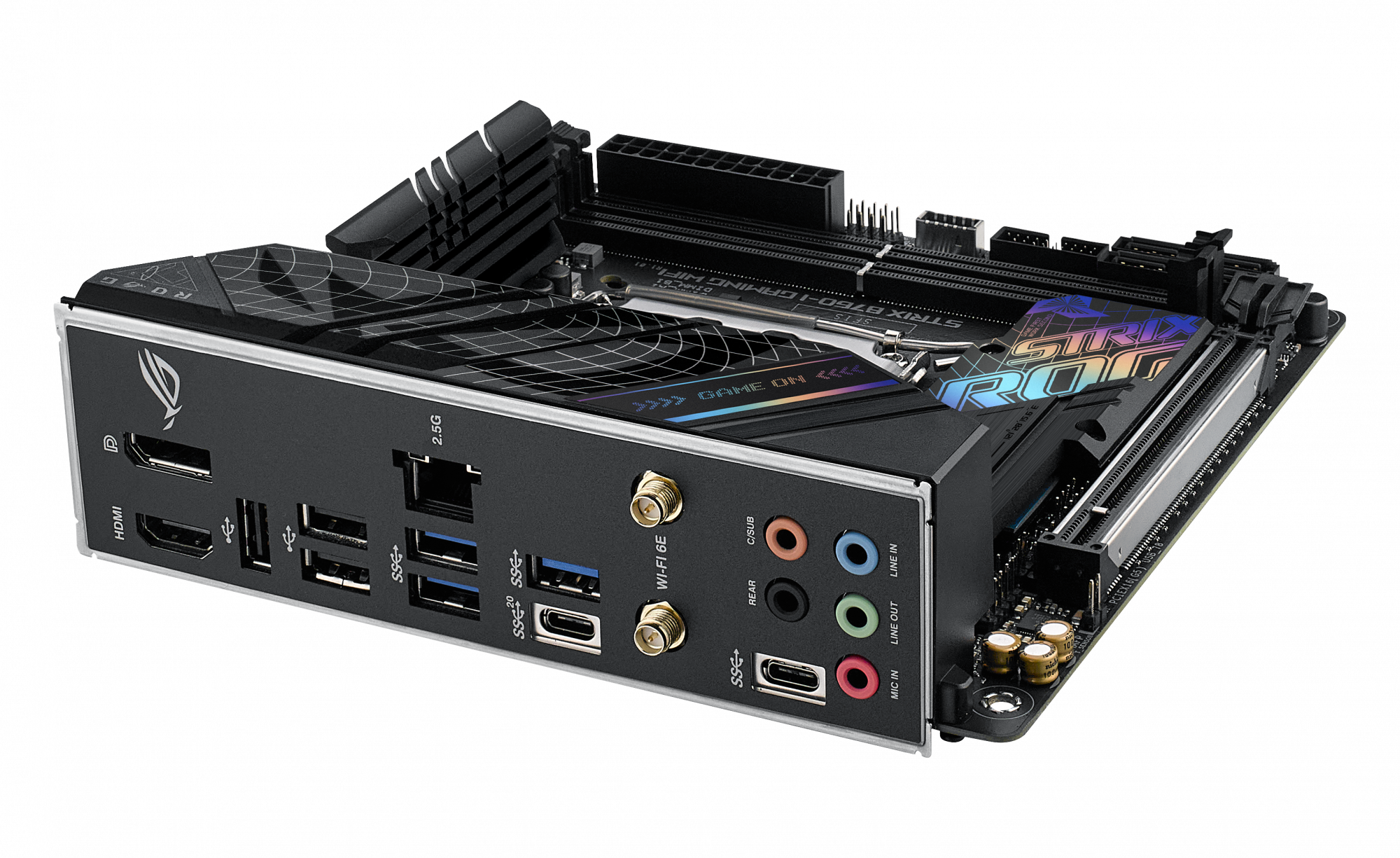

Rear panel I/O ports

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

USB 2.0 ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
170 mm

Height
50 mm

Width
170 mm

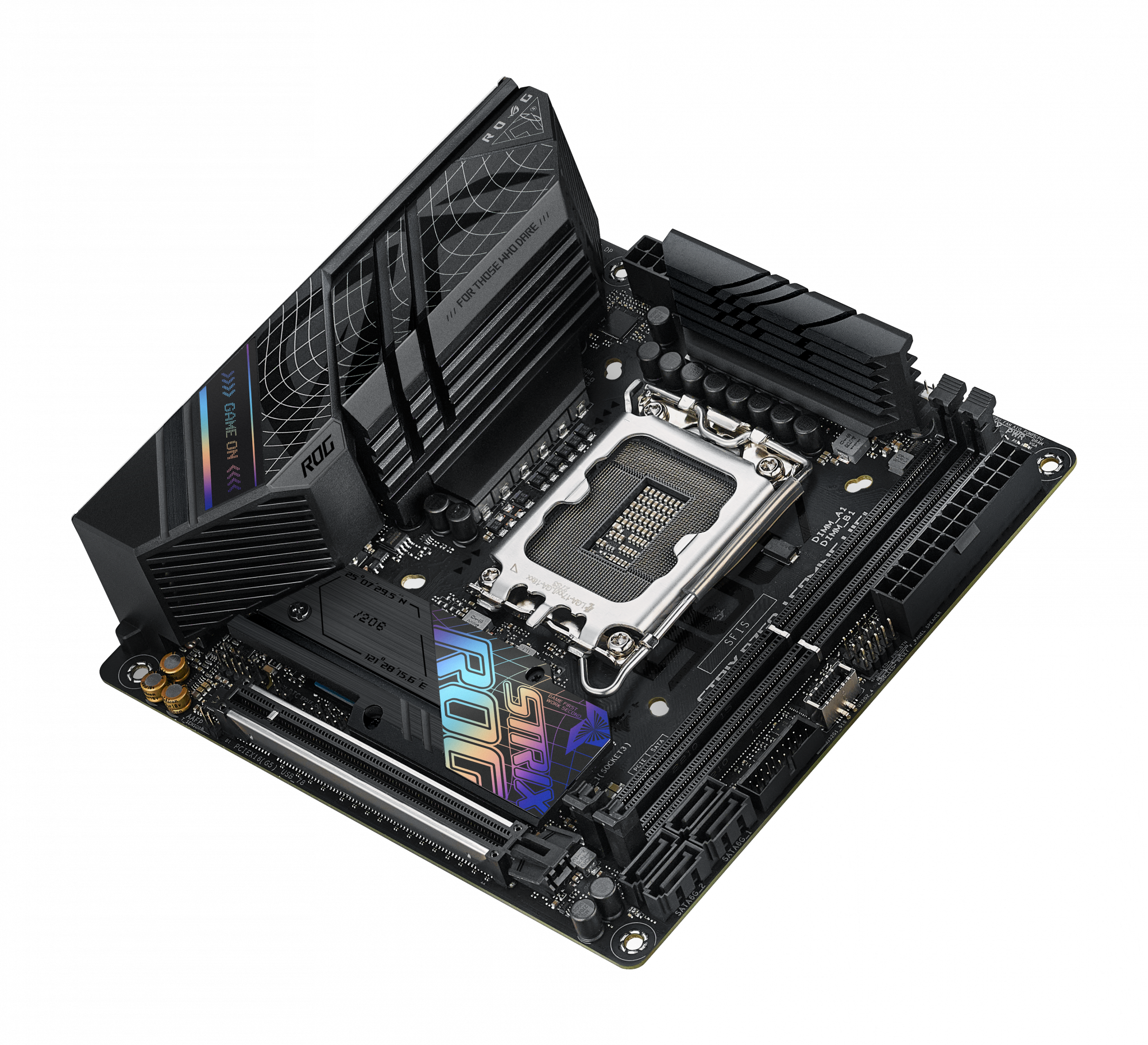

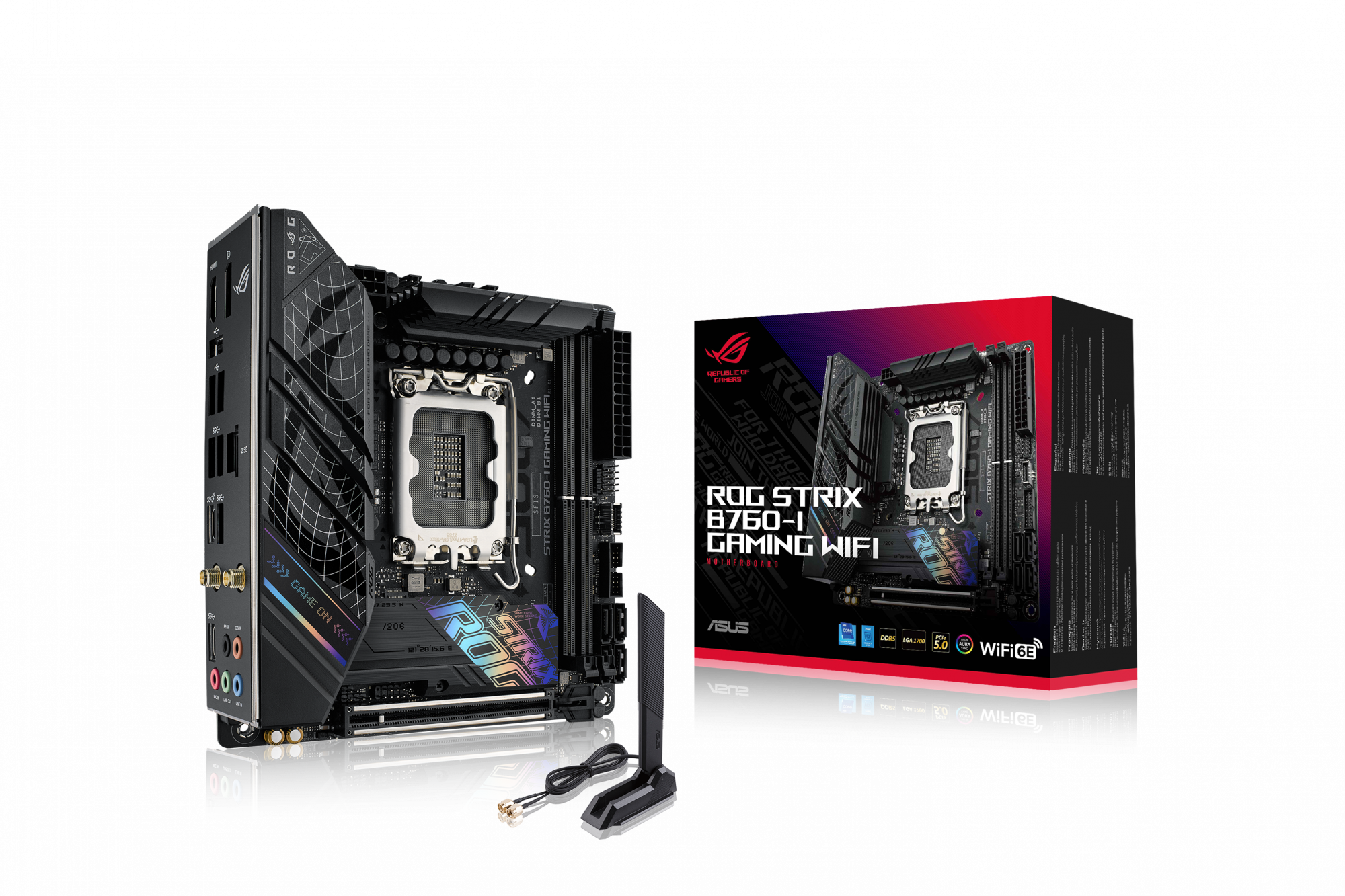

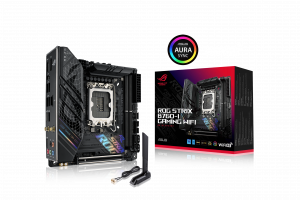

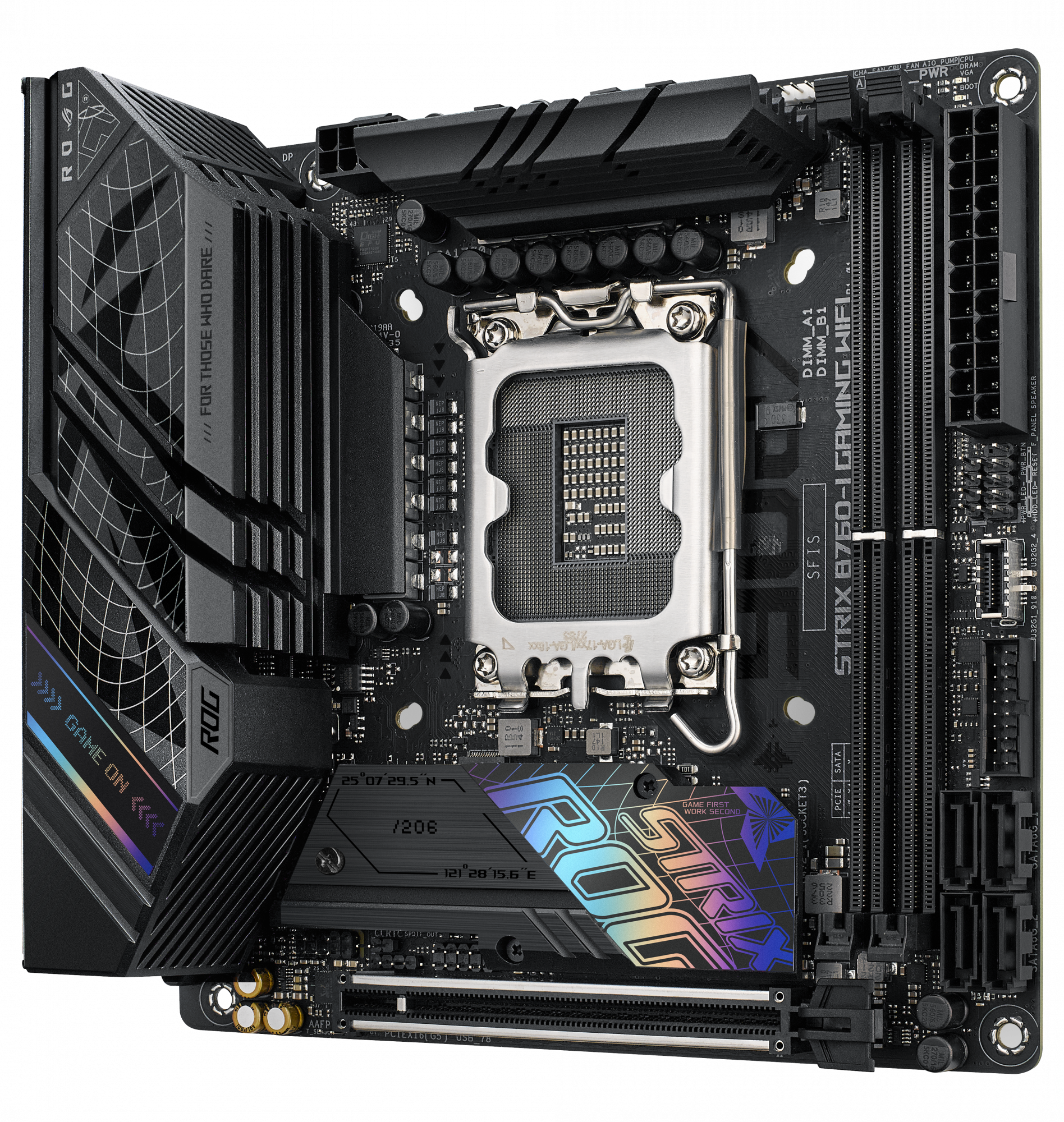

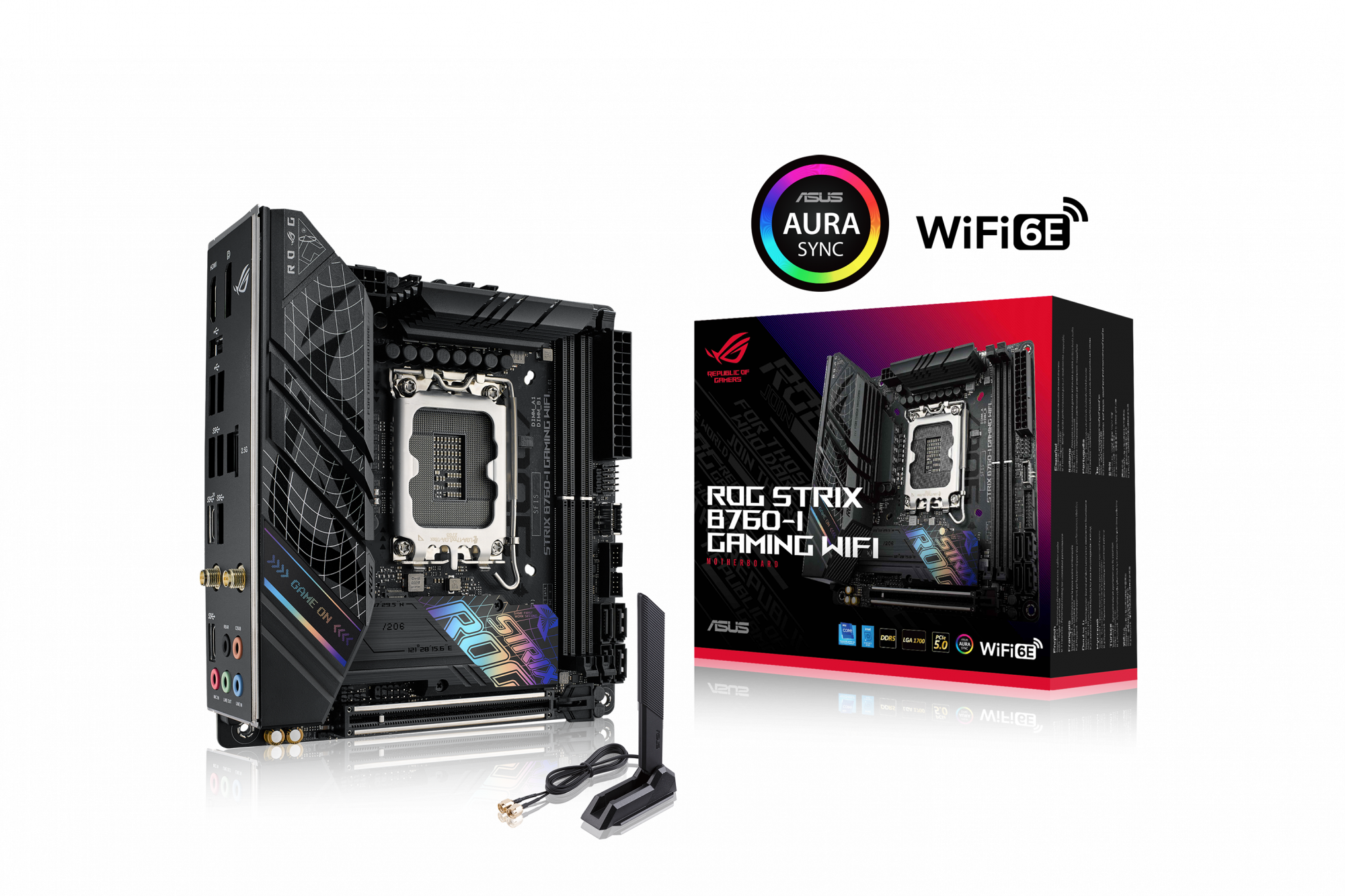

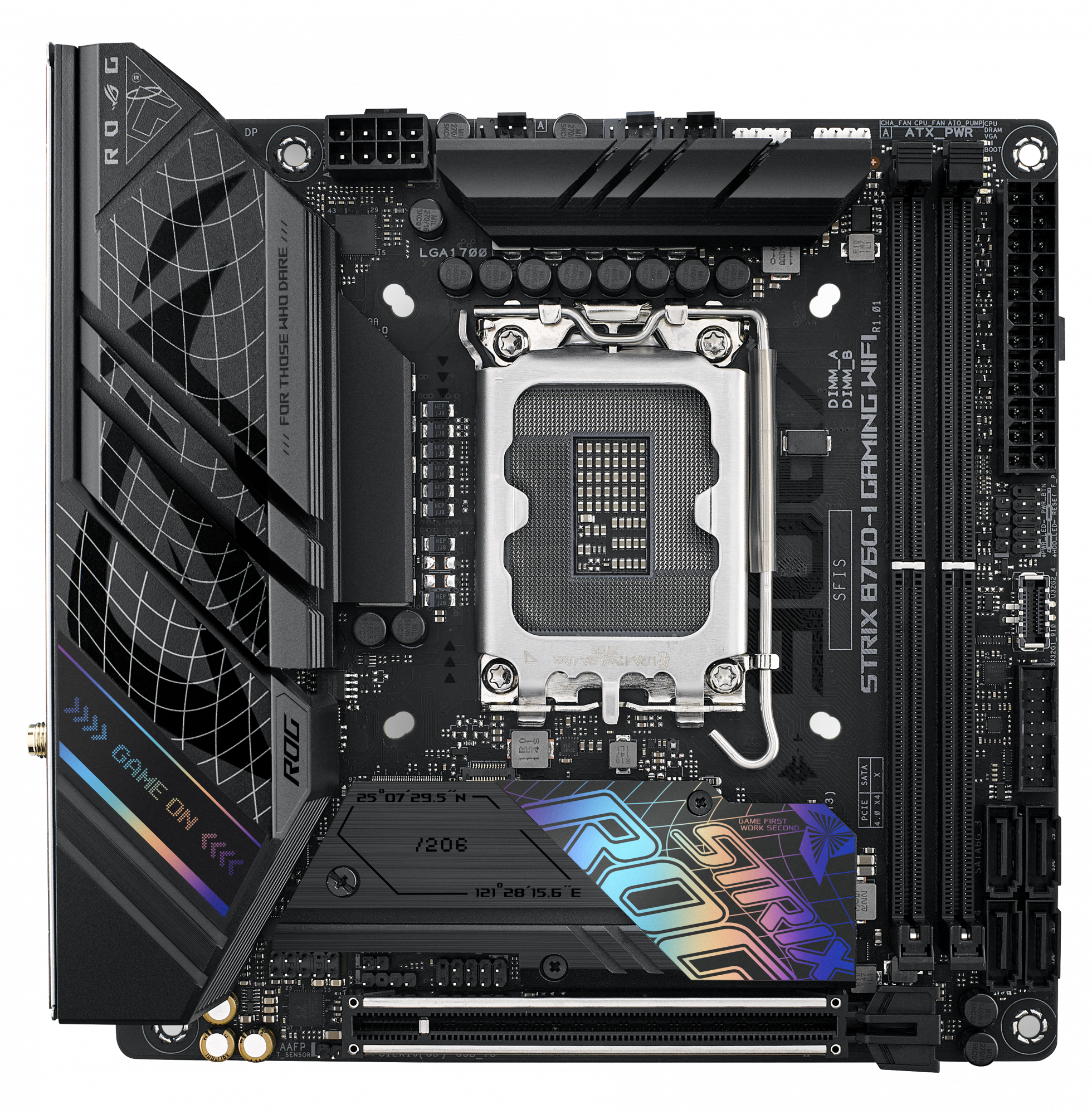

ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
