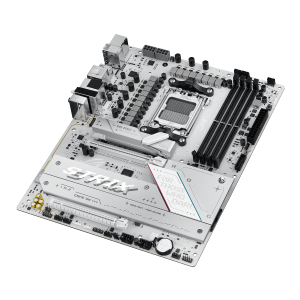

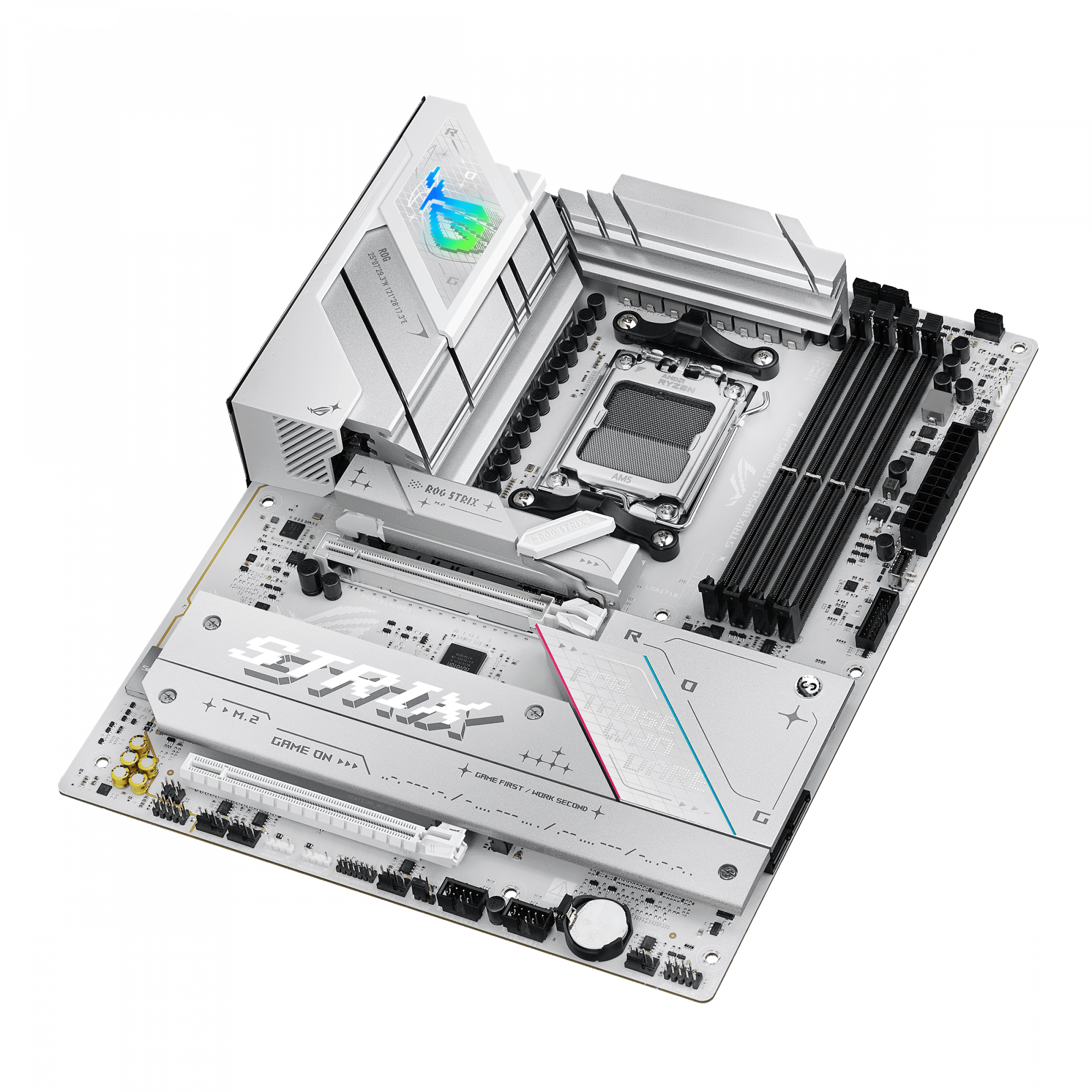

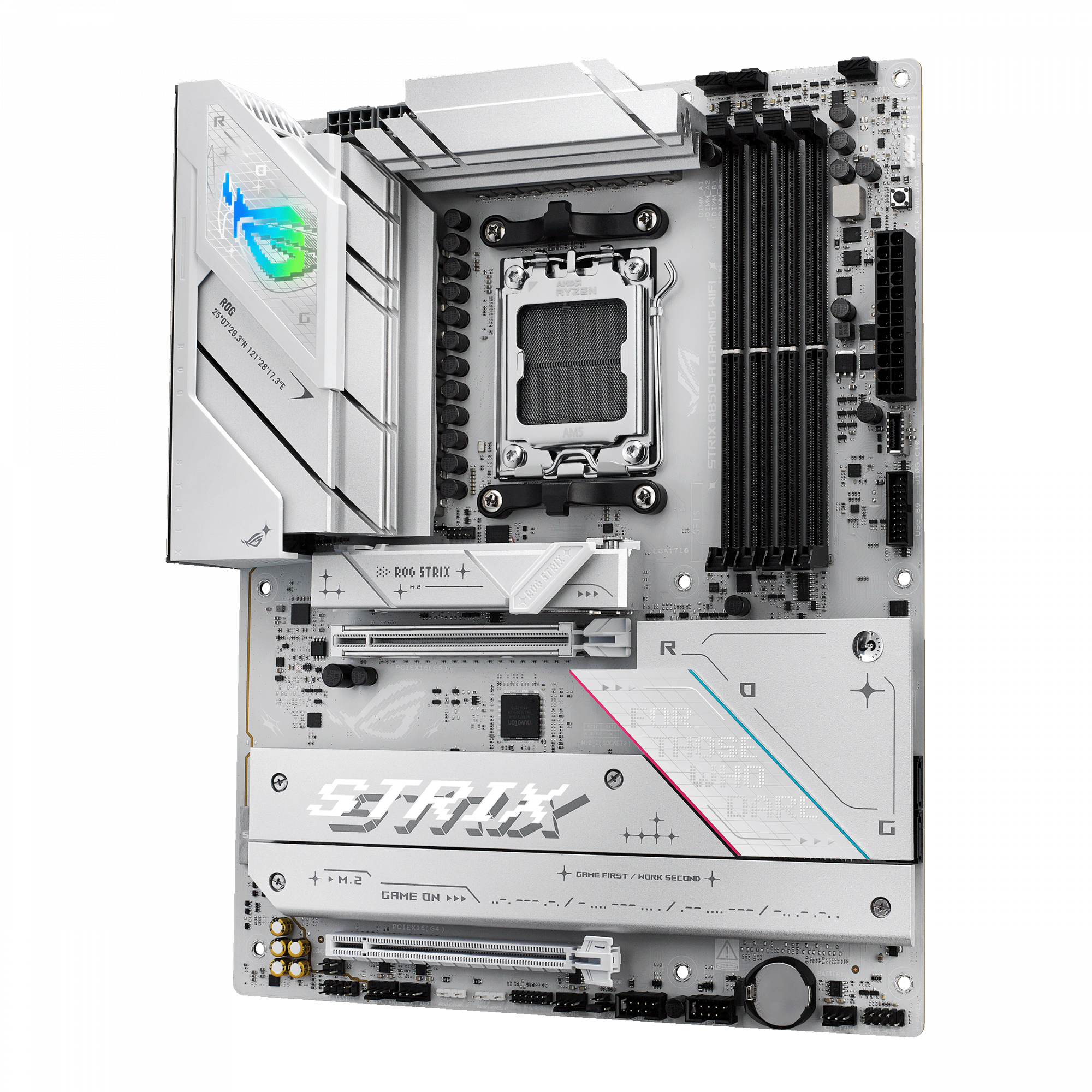

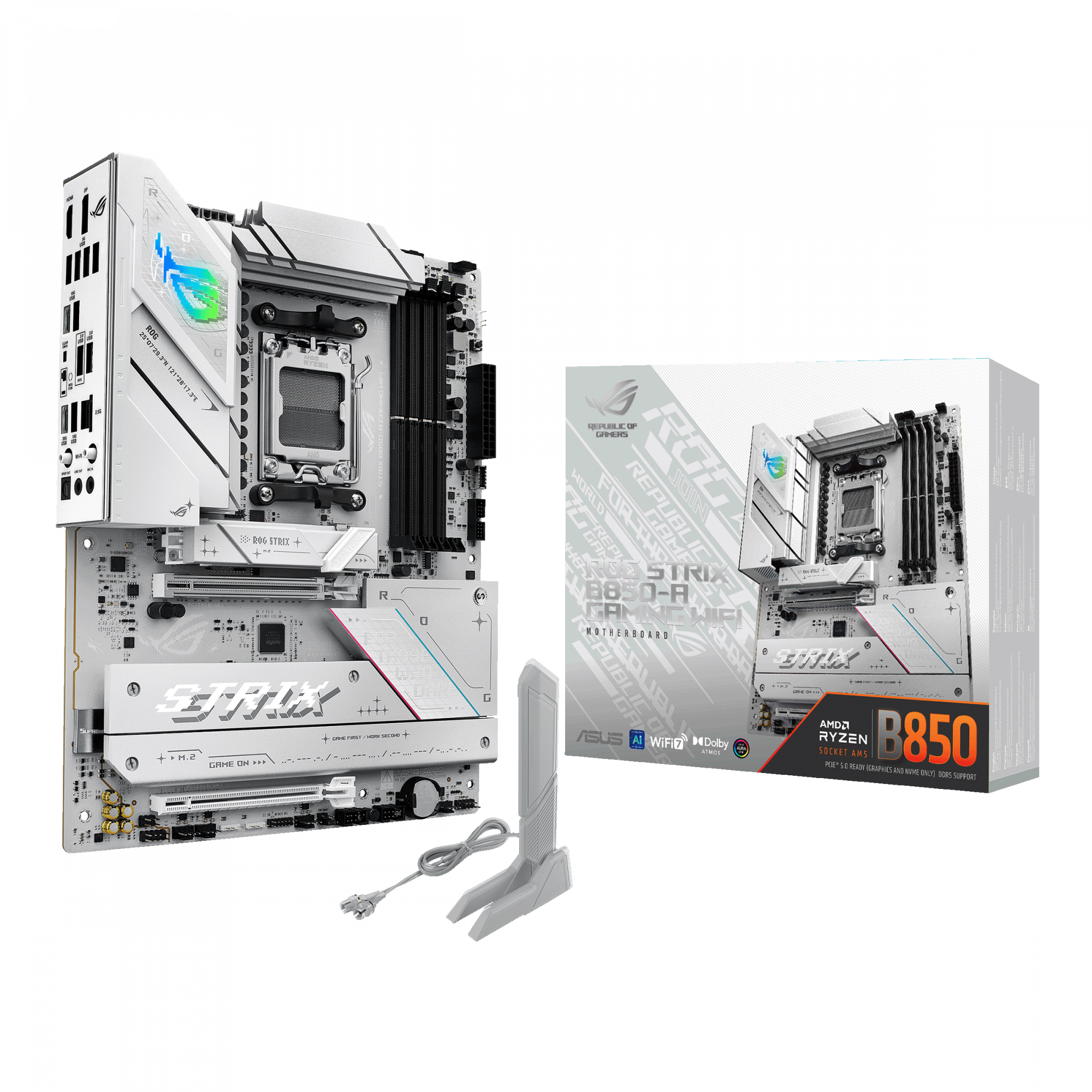

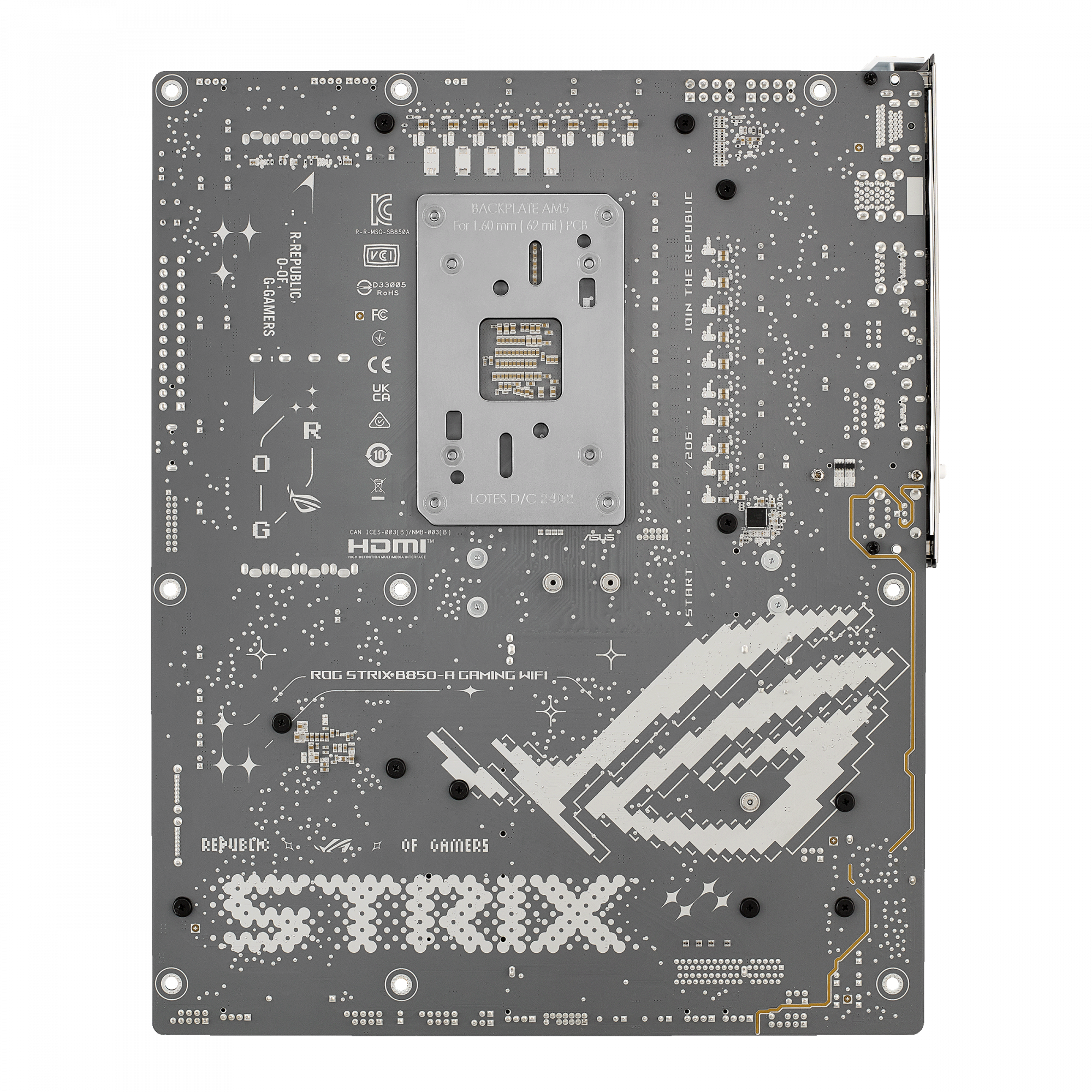

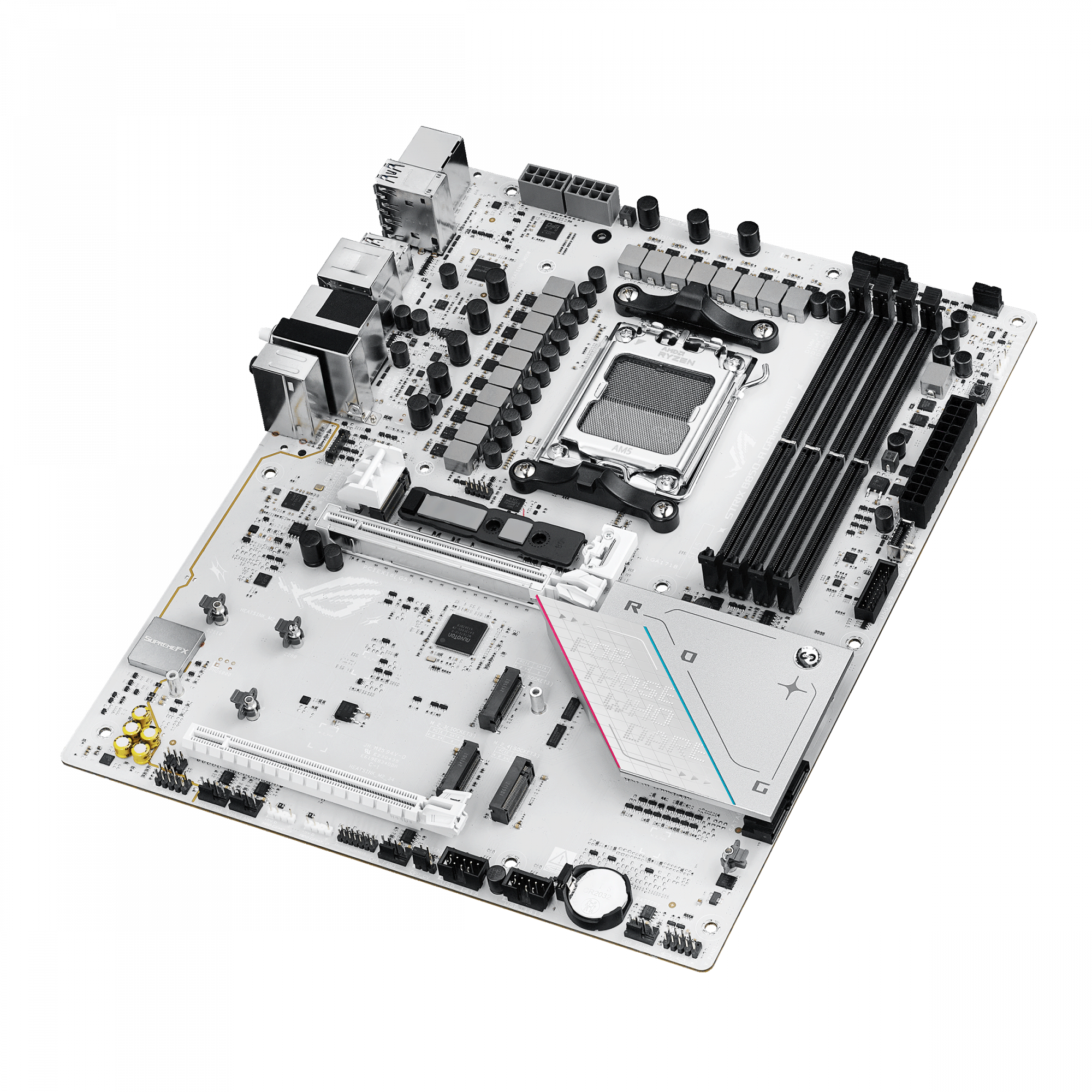

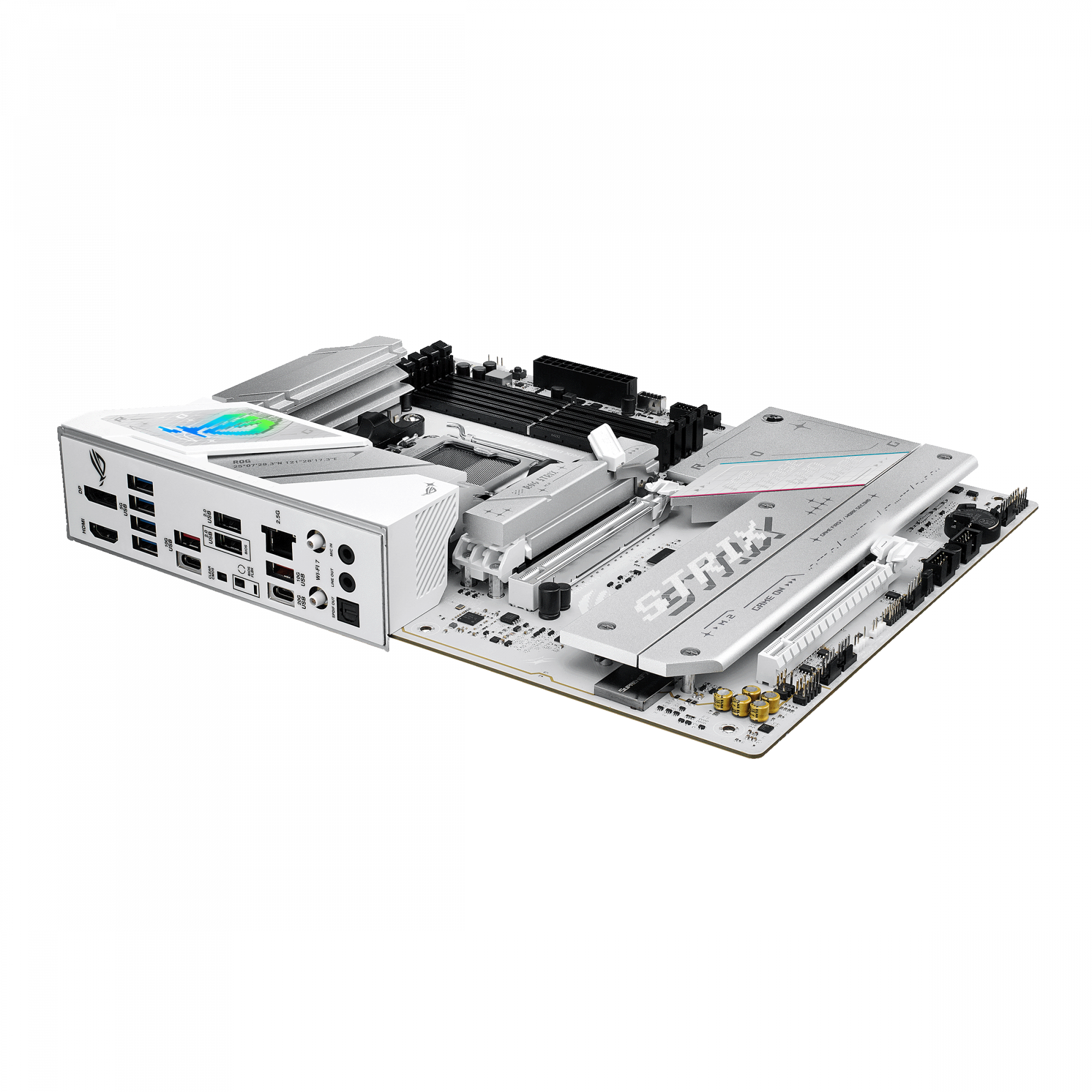

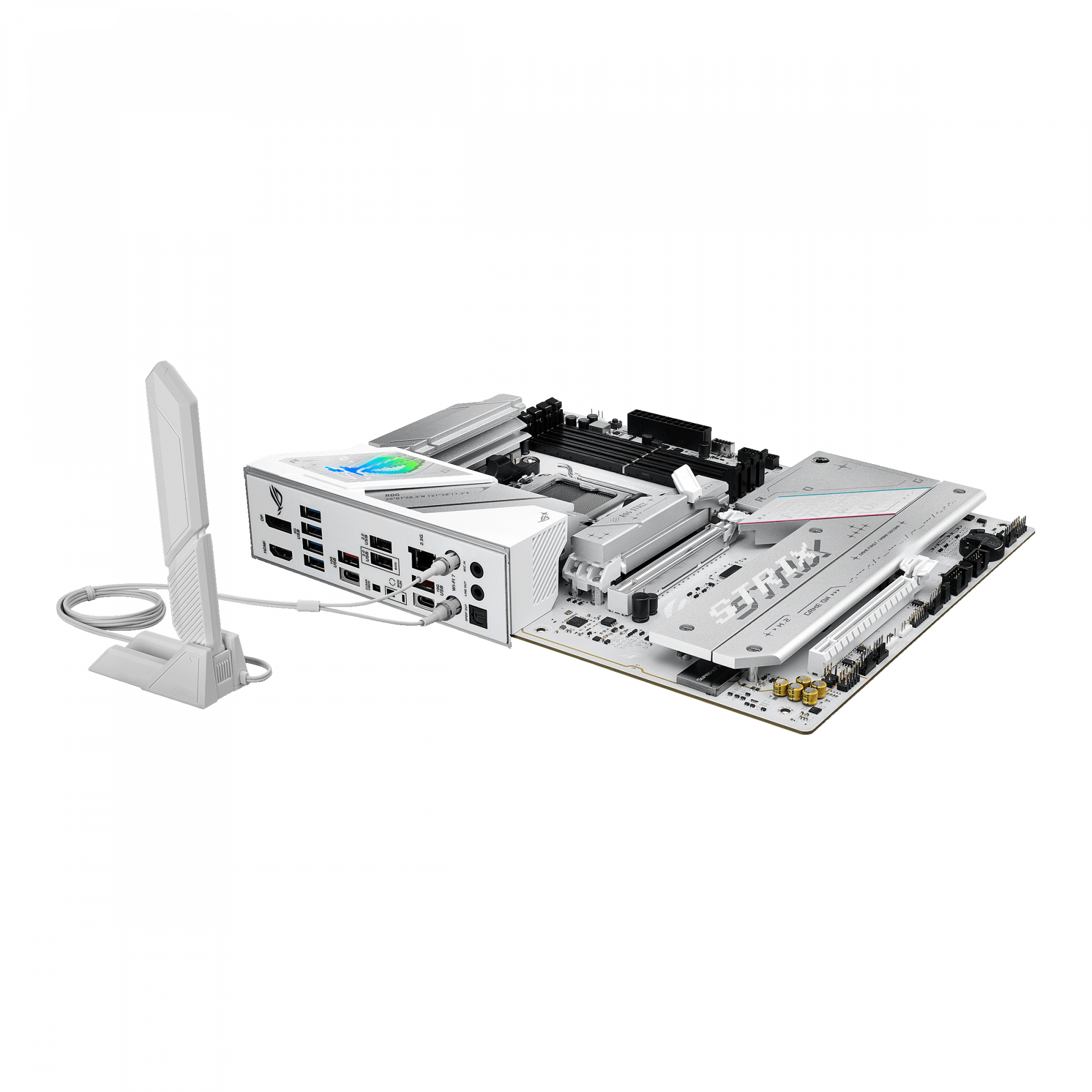

ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX
Print
Model: 90MB1J50-M0EAY0
EAN: 4711387772676

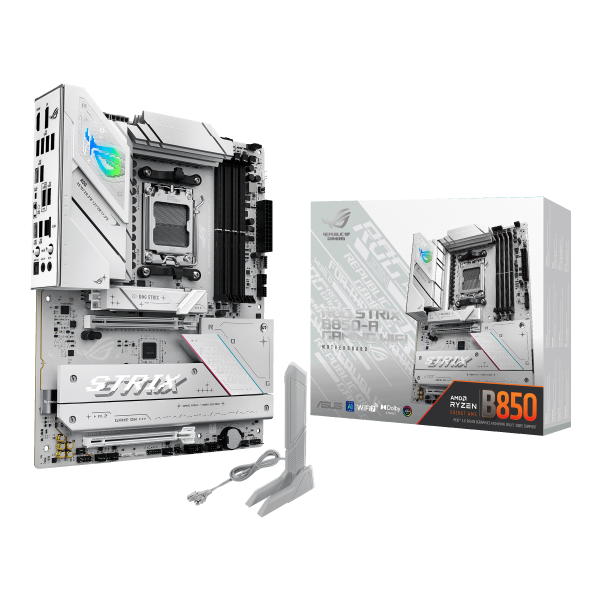

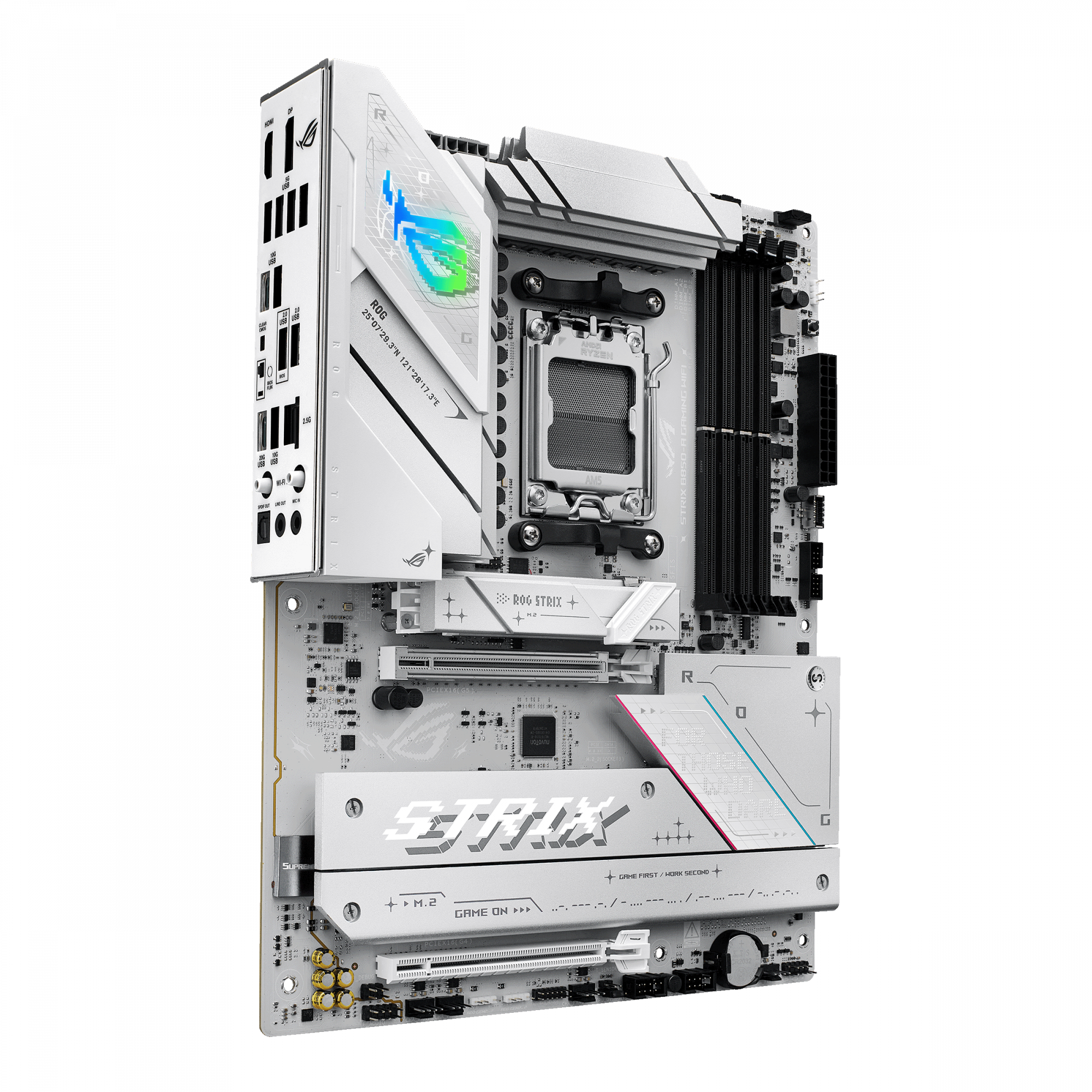

ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Socket AM5 ATX

Manufacturer:
Asus
ASUS ROG STRIX B850-A GAMING WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 192 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS ROG STRIX B850-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)

Product Properties

  • Model
  • 90MB1J50-M0EAY0
  • EAN
  • 4711387772676
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Clear CMOS button
  • Yes
  • Expansion slots
  • 1st M.2 highest PCI Express generation
  • 5.0
  • 1st M.2 largest key size
  • 2280
  • 2nd M.2 highest PCI Express generation
  • 4.0
  • 2nd M.2 largest key size
  • 22110
  • 3rd M.2 highest PCI Express generation
  • 4.0
  • 3rd M.2 largest key size
  • 2280
  • 4th M.2 highest PCI Express generation
  • 4.0
  • 4th M.2 largest key size
  • 2280
  • Number of M.2 (M) slots
  • 4
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio chip
  • Realtek ALC4080
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Motherboard chipset
  • AMD B850
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Product colour
  • White
  • Windows operating systems supported
  • Windows 11
  • Graphics
  • Maximum resolution
  • 7680 x 4320 pixels
  • On-board graphics card
  • No
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Front panel connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of CPU fan connectors
  • 2
  • Number of EPS power connectors (8-pin)
  • 2
  • Number of RGB LED pin headers
  • 3
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 2
  • Number of temperature sensor headers
  • 1
  • Number of water pump connectors
  • 1
  • RGB
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • ECC & Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 8000 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.4
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 7 (802.11be)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 7 (802.11be)
  • Other features
  • mSATA ports quantity
  • 0
  • Quick installation guide
  • Yes
  • Weight
  • 2.04 kg

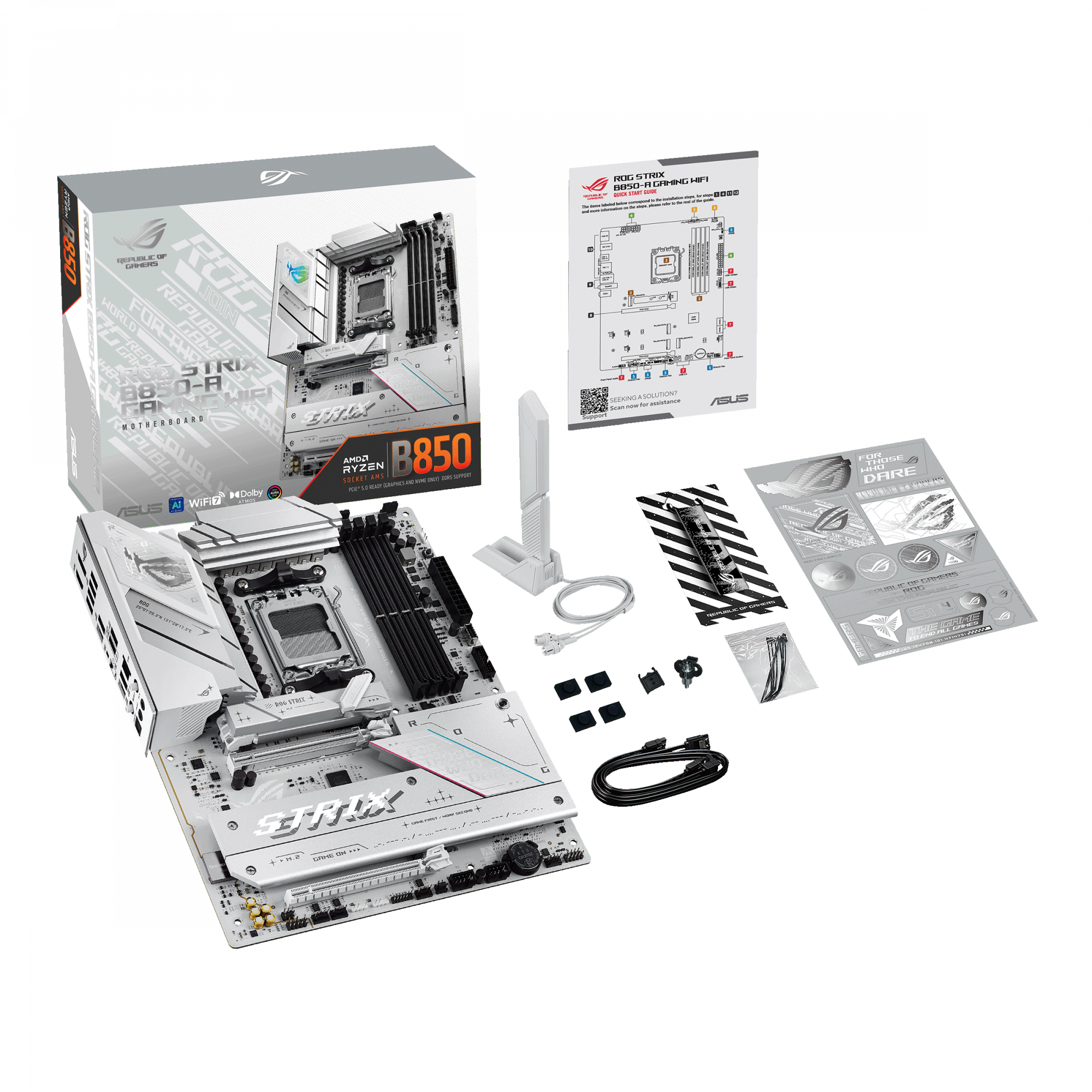

  • Packaging content
  • Antenna included
  • Yes
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 2.04 kg
  • Package width
  • 353 mm
  • Processor
  • Compatible processor series
  • AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM5
  • Supported processor sockets
  • Socket AM5

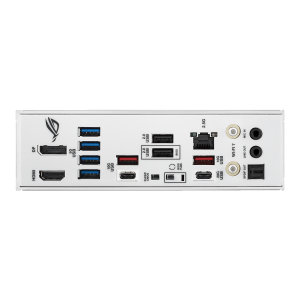

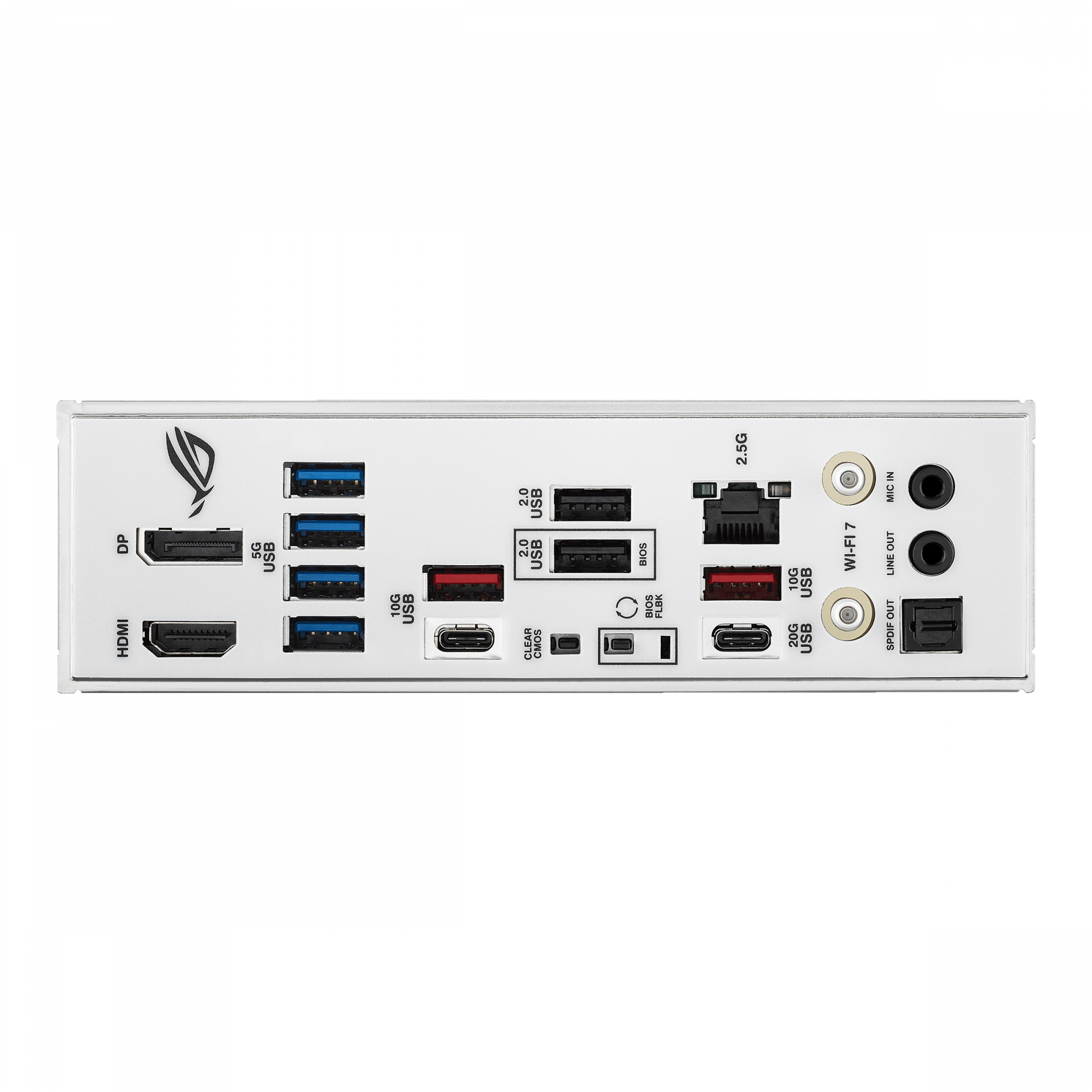

  • Rear panel I/O ports
  • Digital audio optical out
  • 1
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • S/PDIF out port
  • Yes
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • WiFi-AP antenna jack
  • 2
  • Storage controllers
  • Number of HDDs supported
  • 2
  • Number of storage drives supported
  • 6
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 305 mm
