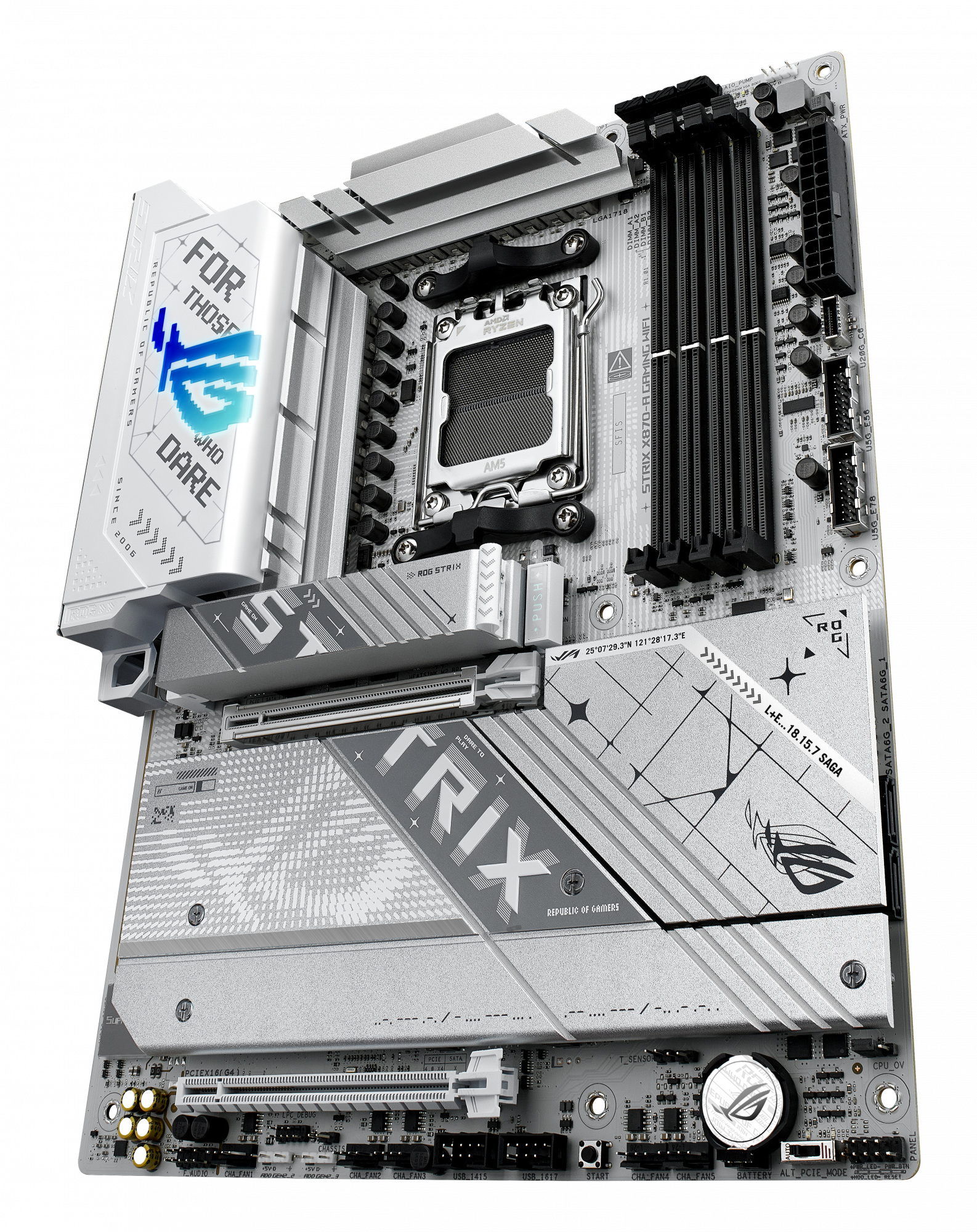

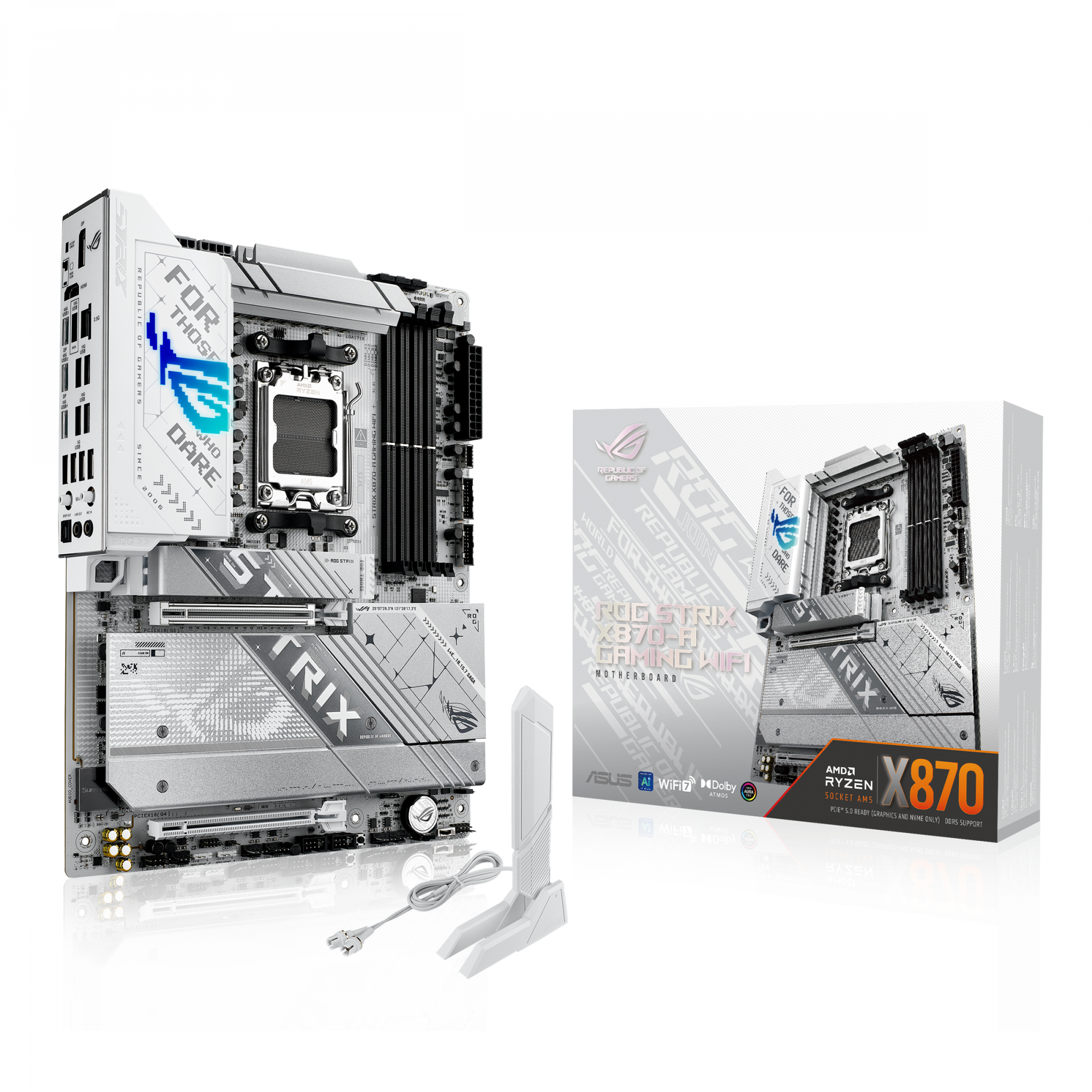

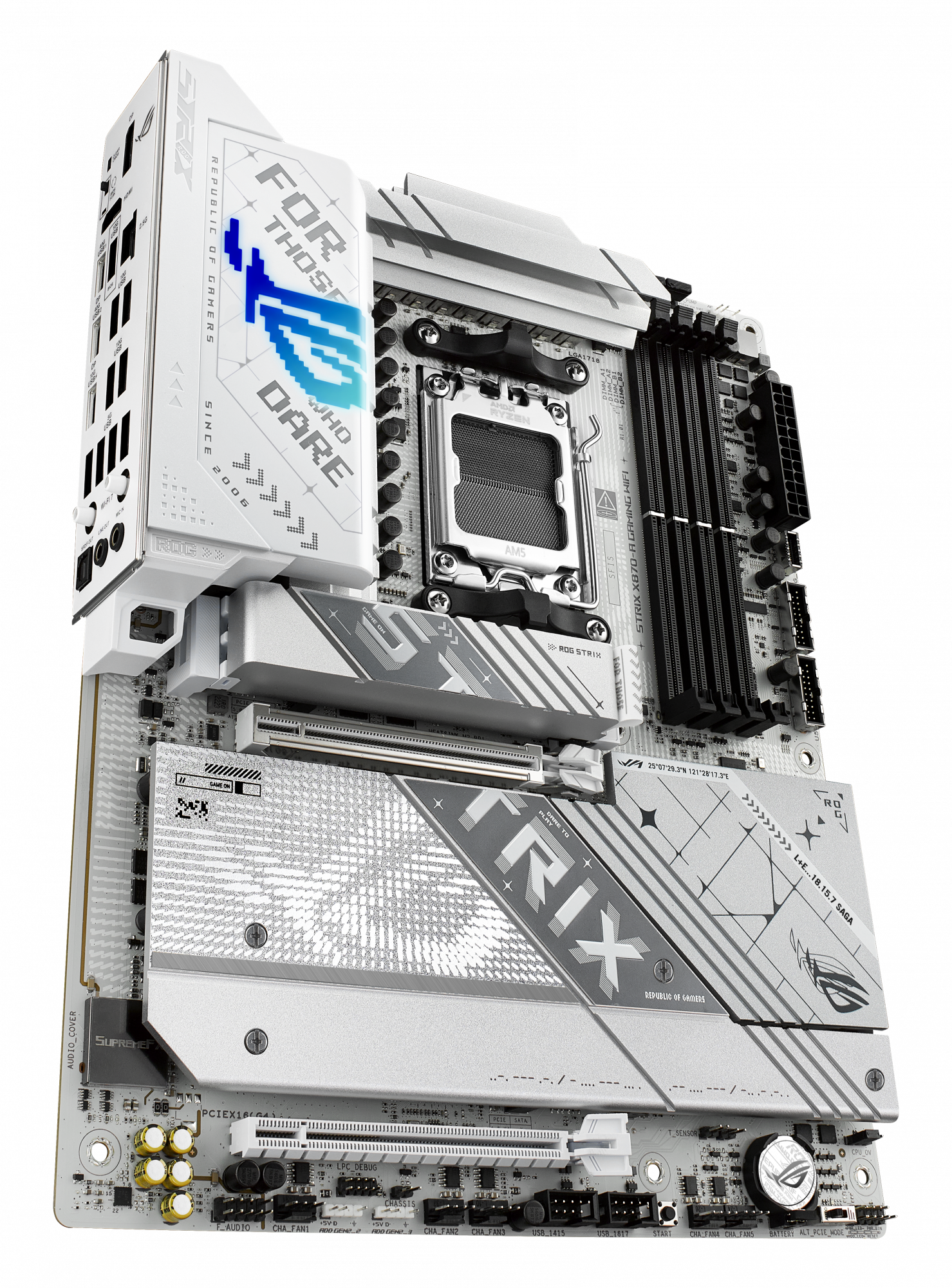

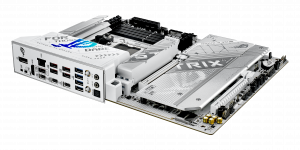

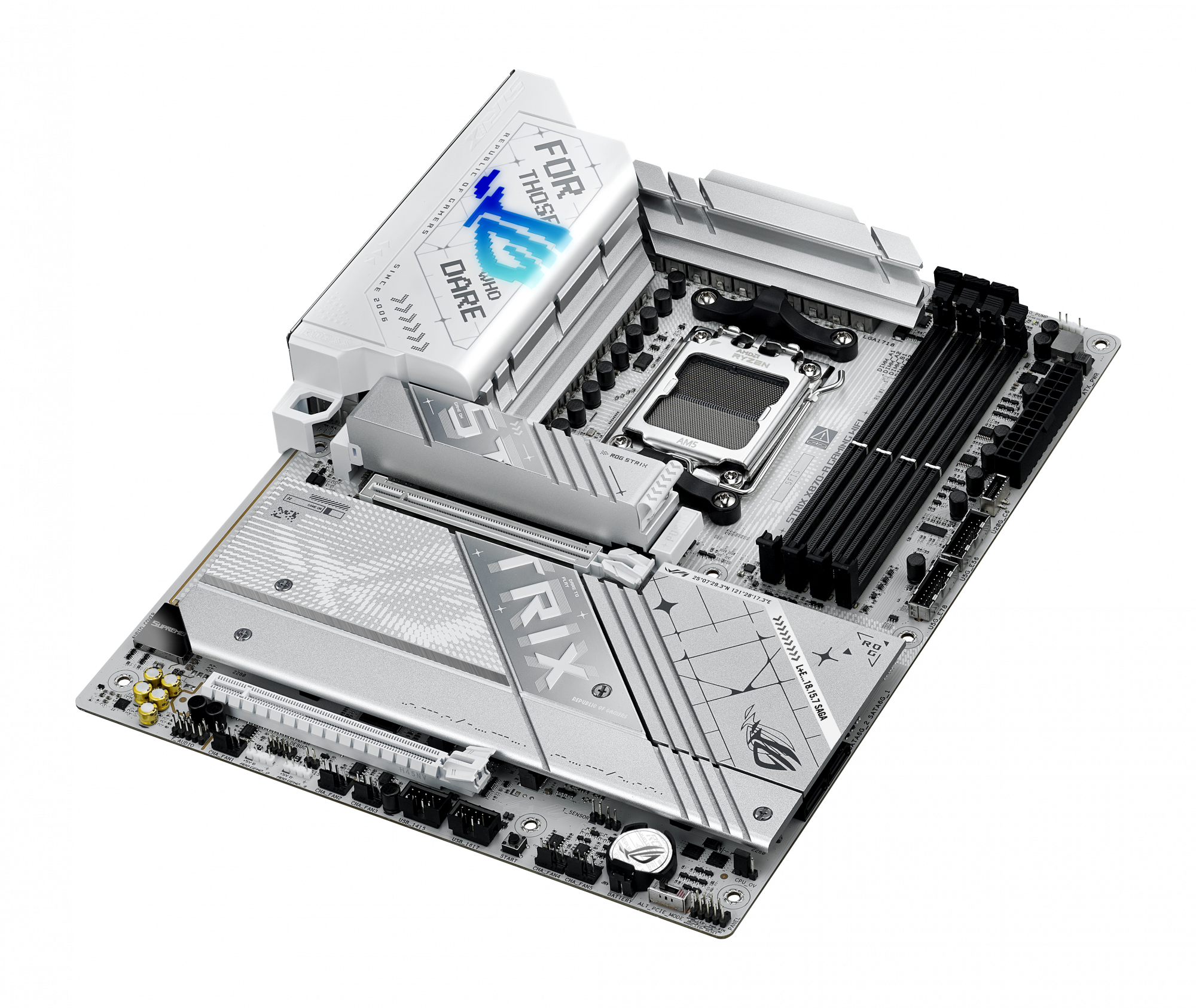

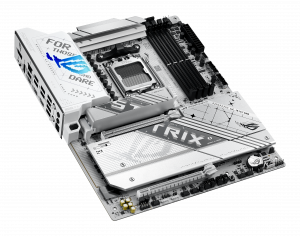

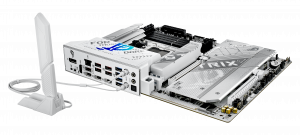

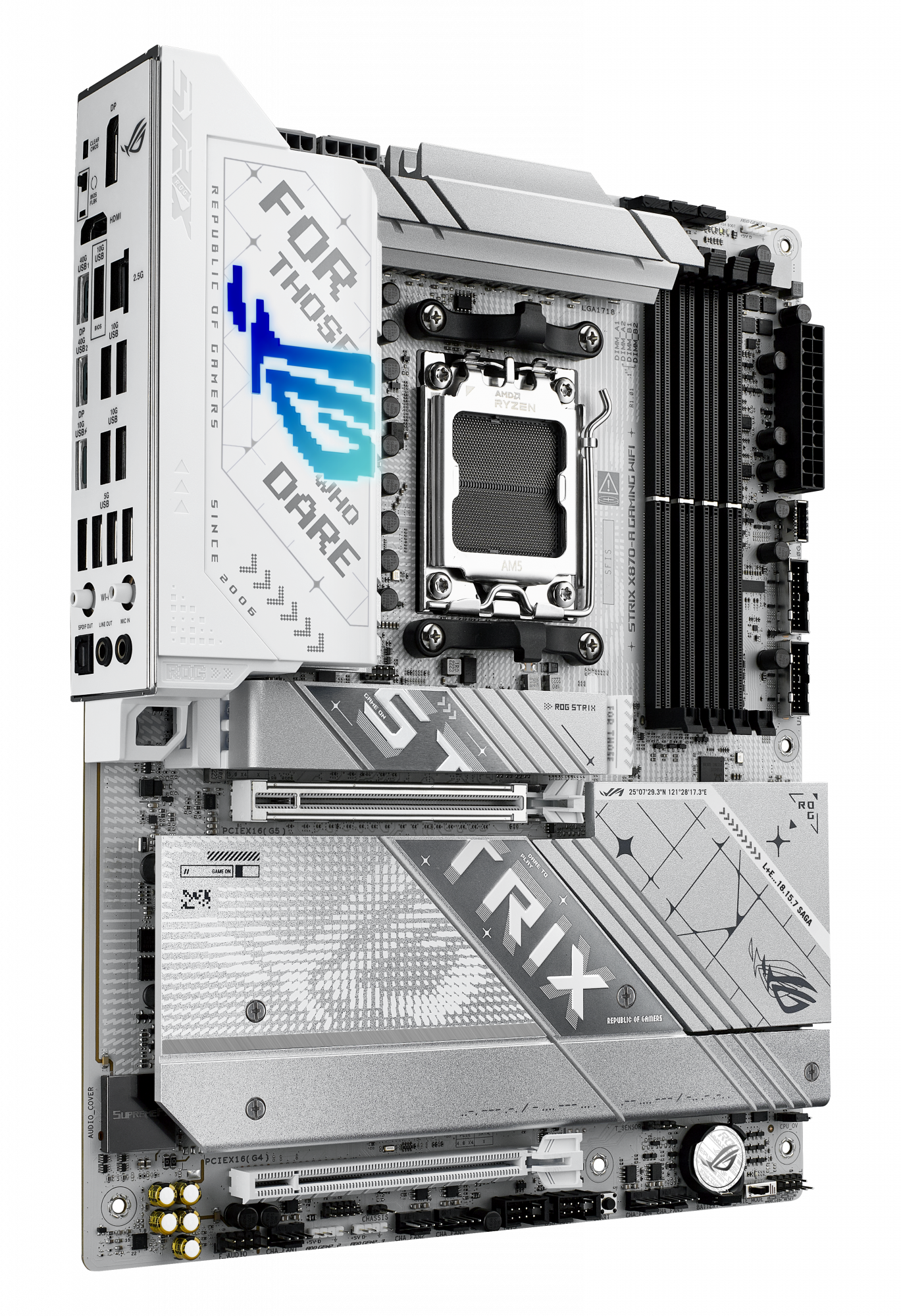

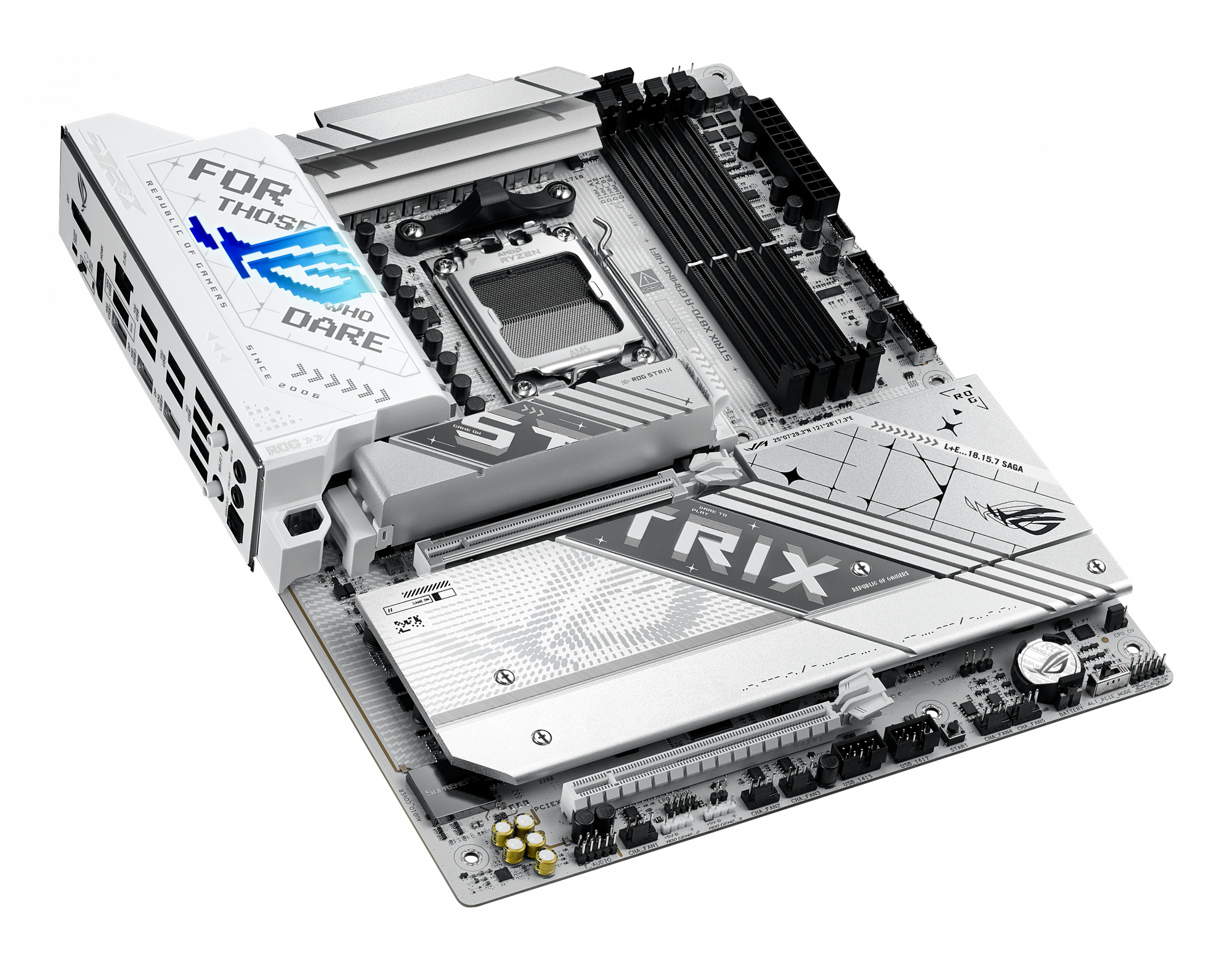

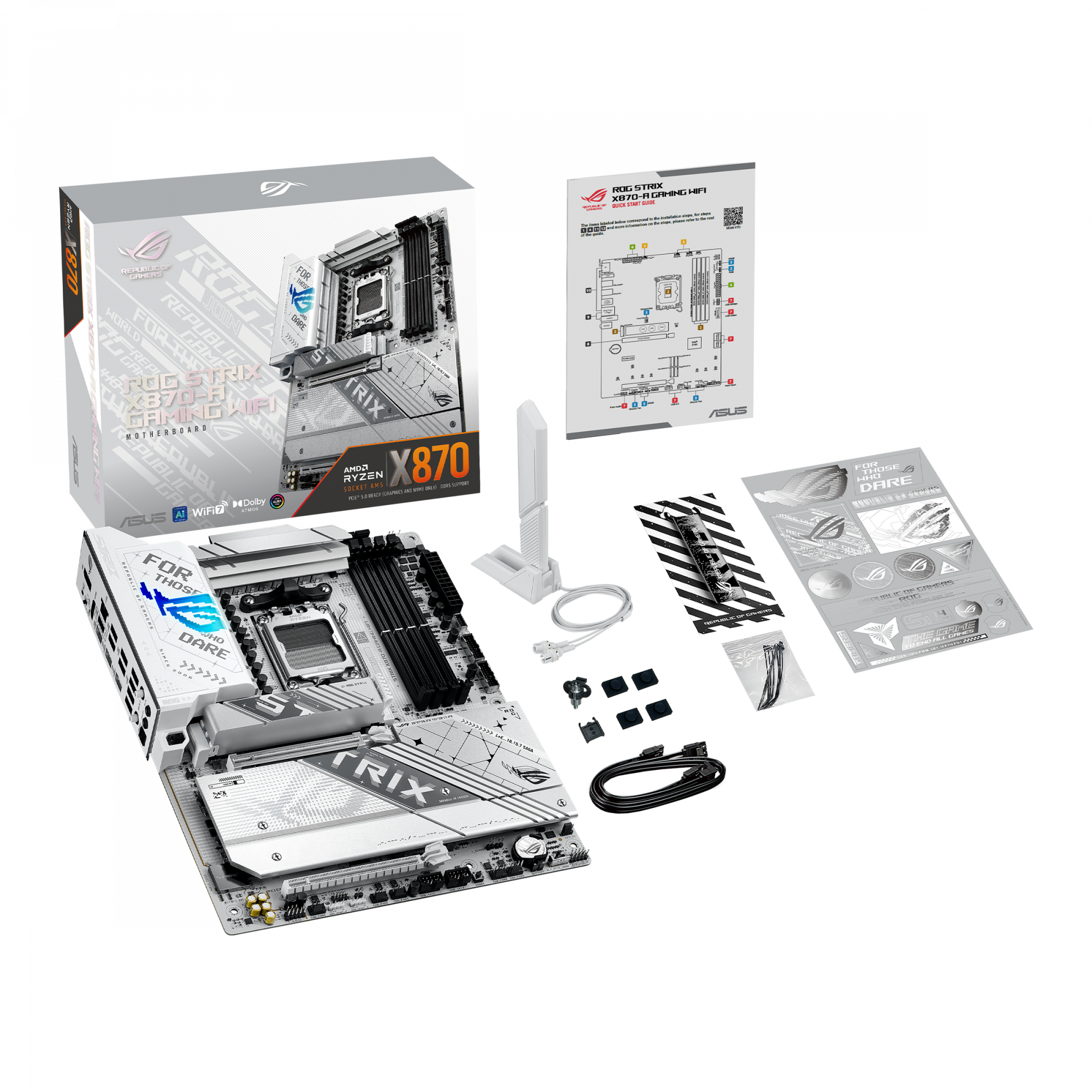

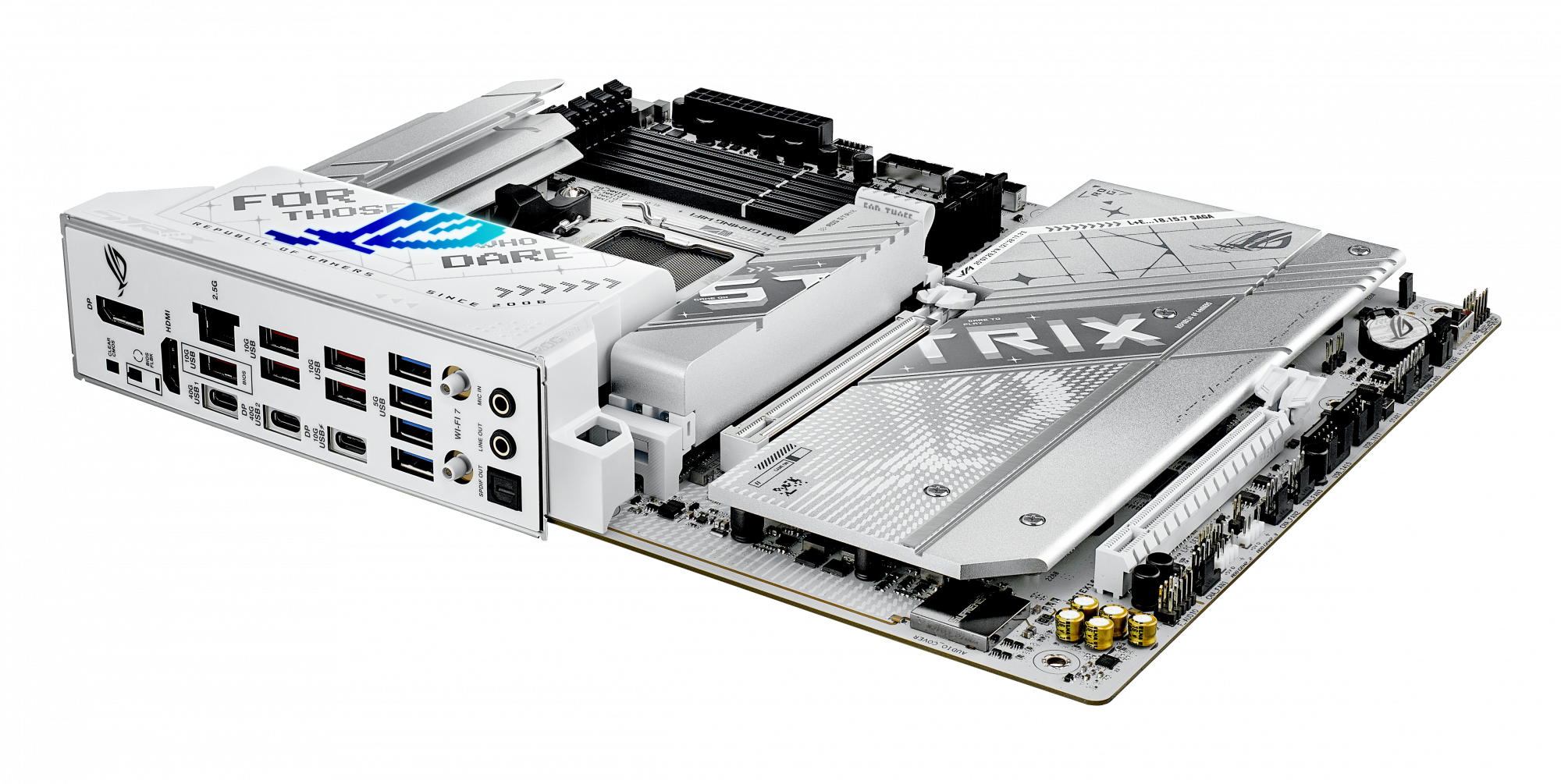

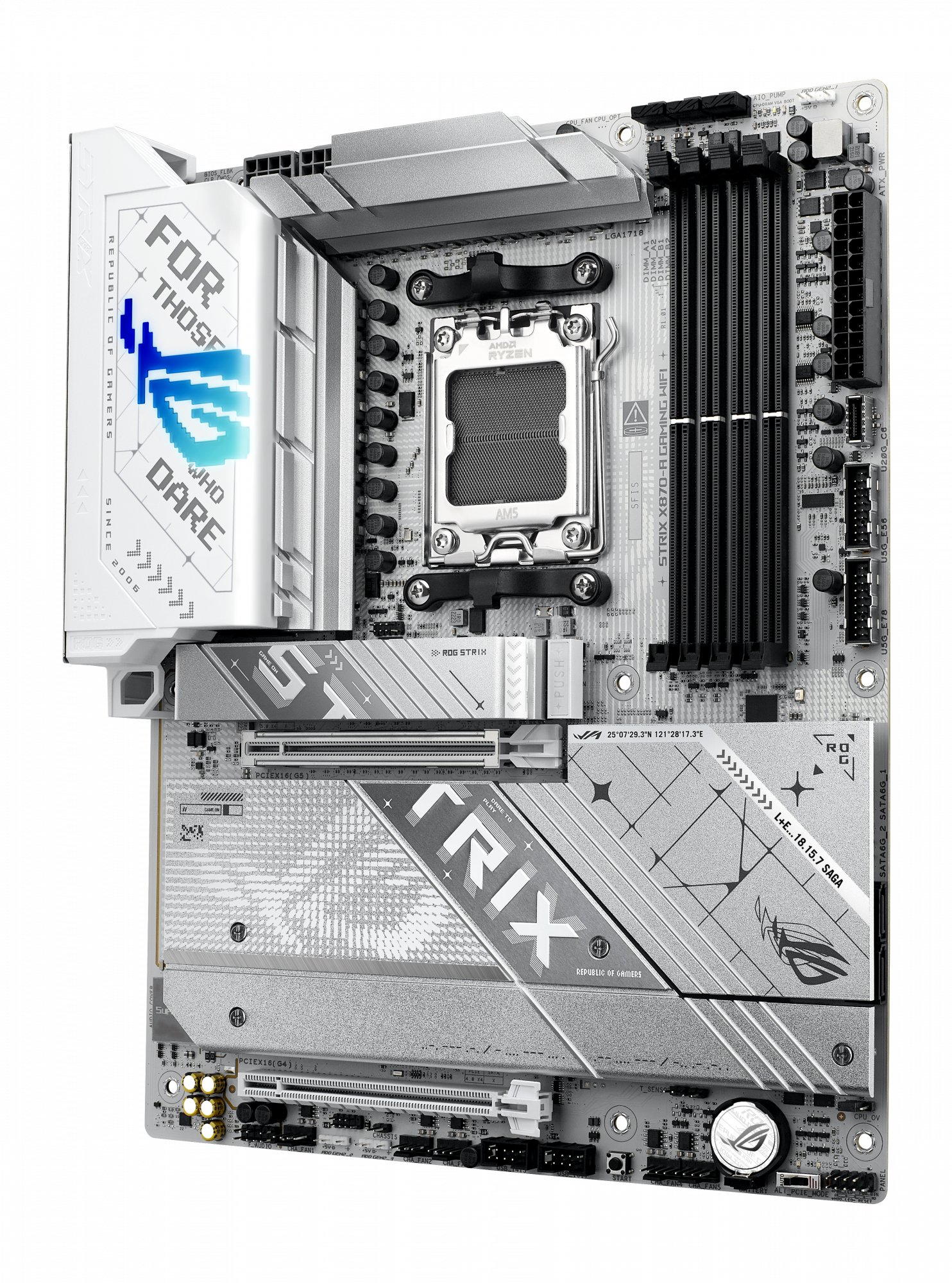

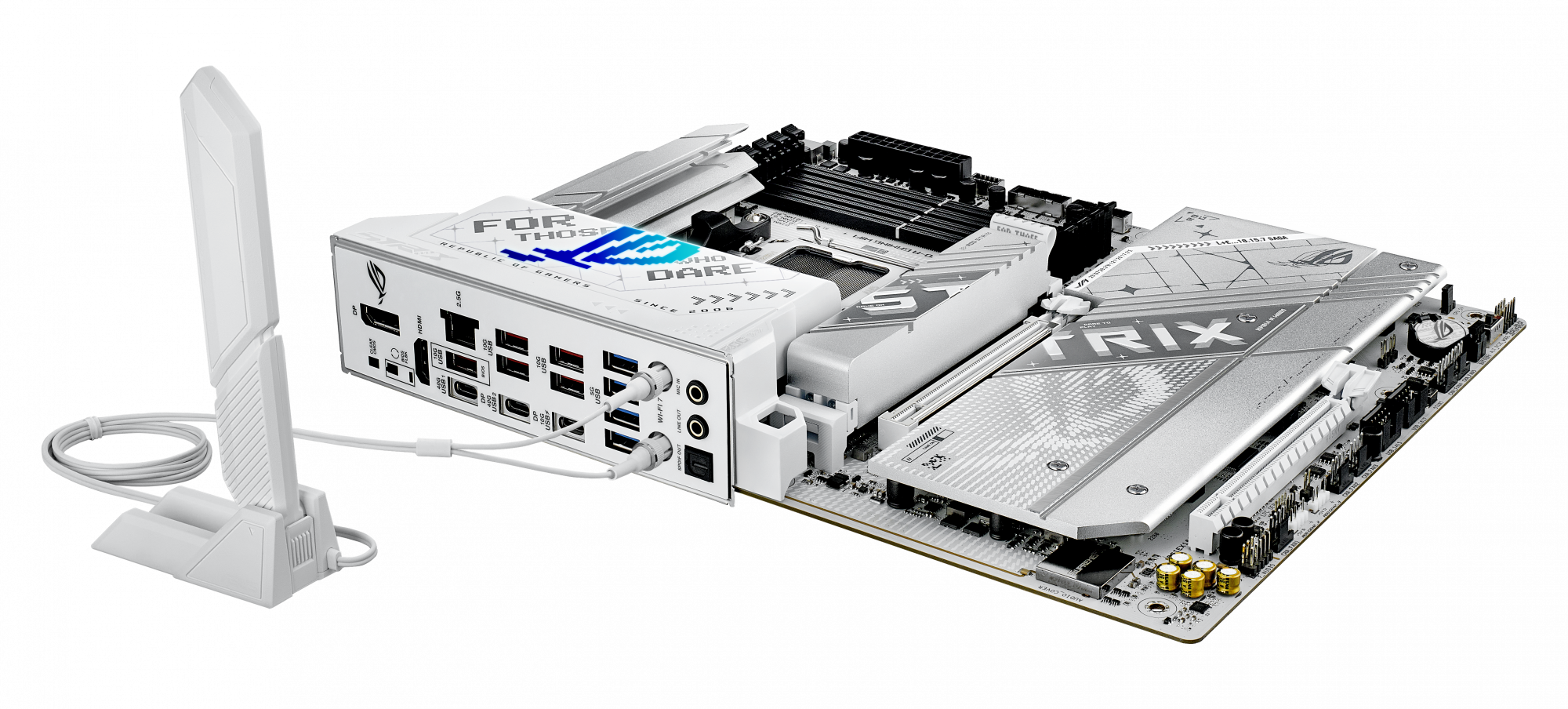

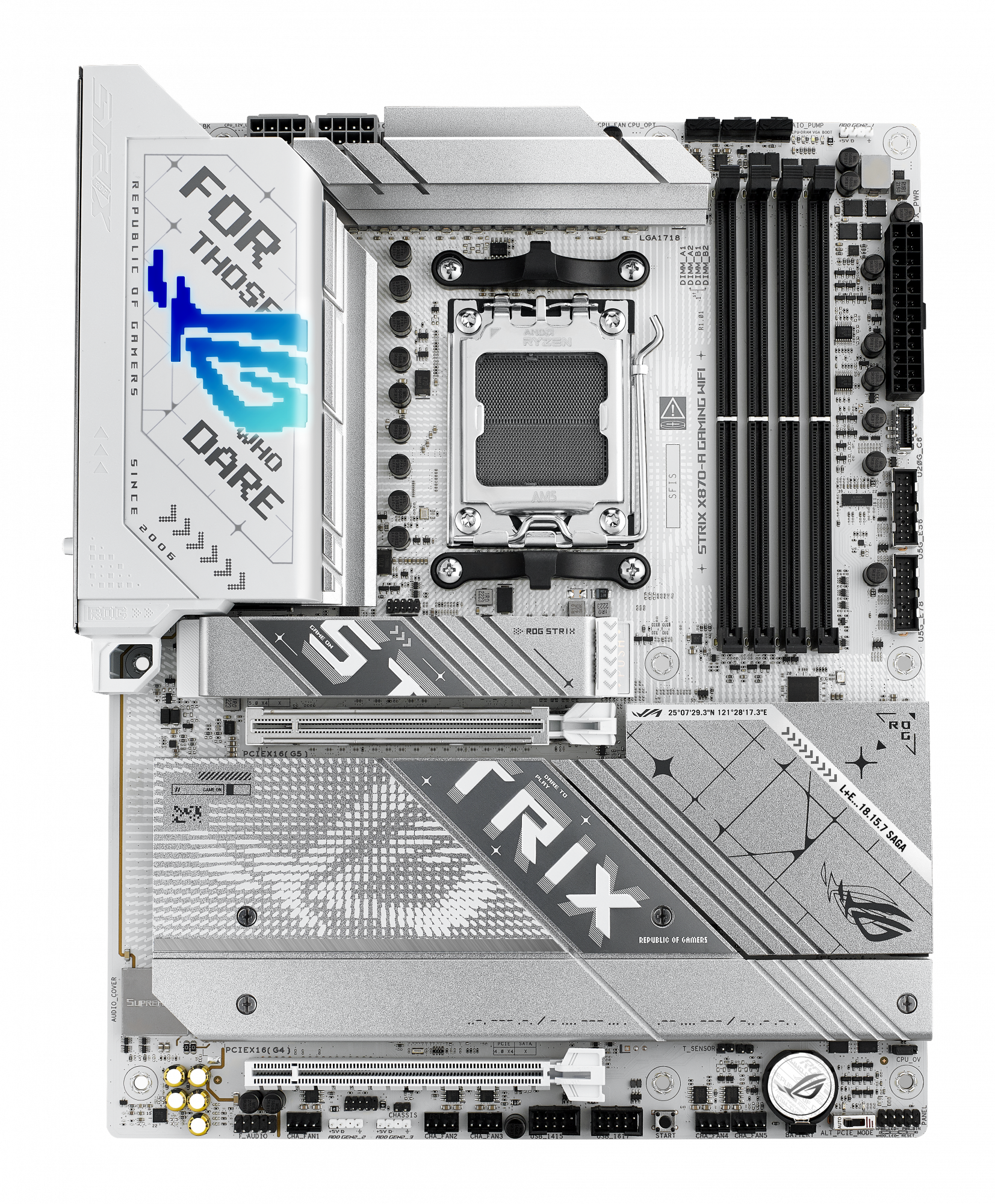

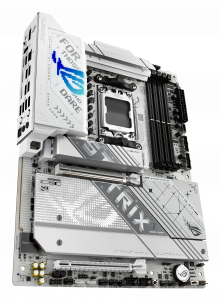

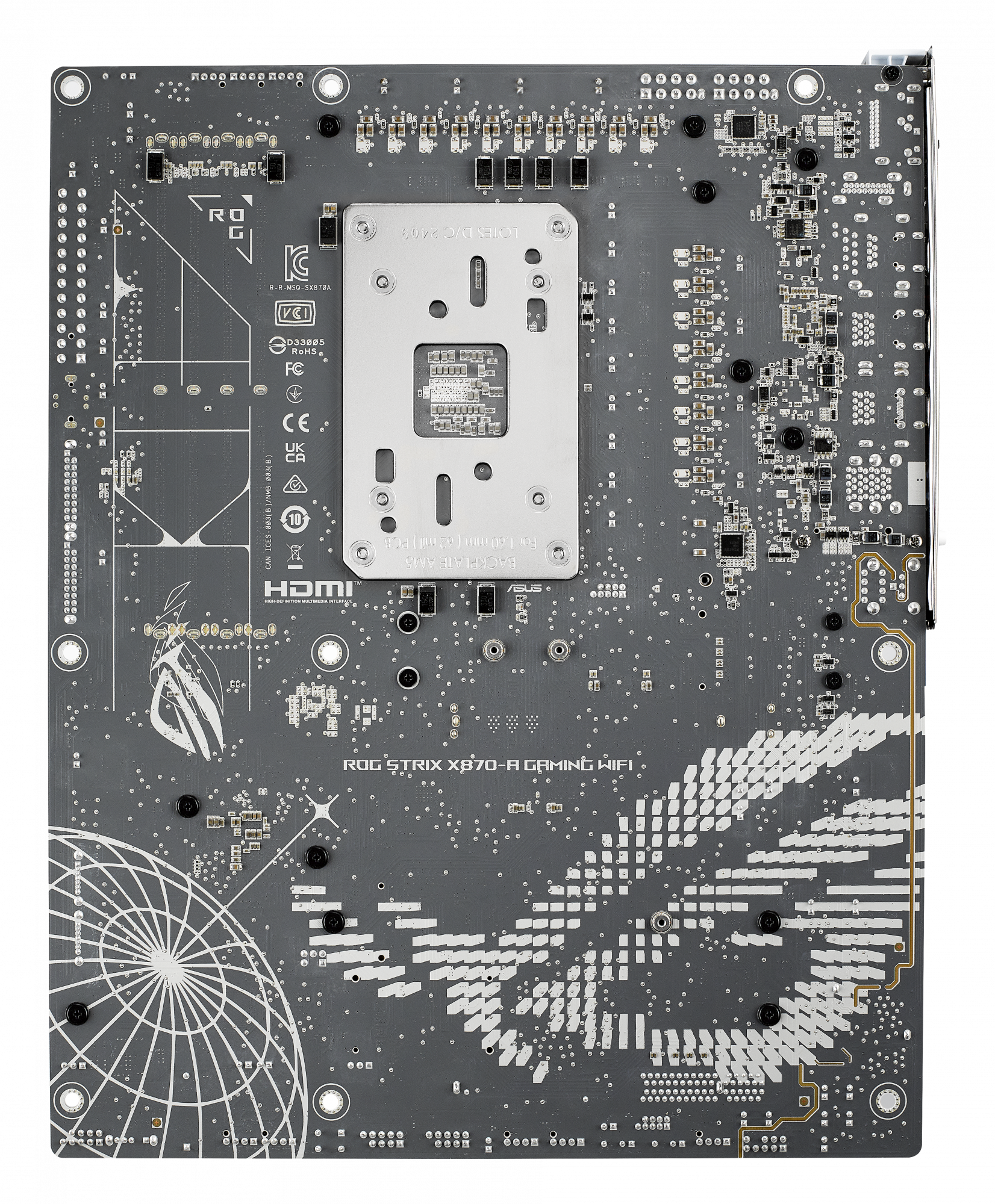

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
Print
Model: 90MB1IF0-M0EAY0
EAN: 4711387737859

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX

Manufacturer:
Asus
ASUS ROG STRIX X870-A GAMING WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS ROG STRIX X870-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

  • Model
  • 90MB1IF0-M0EAY0
  • EAN
  • 4711387737859
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Clear CMOS button
  • Yes
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x16 (Gen 4.x) slots
  • 2
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio chip
  • Realtek ALC4080
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Motherboard chipset
  • AMD X870
  • Motherboard form factor
  • ATX
  • Product colour
  • Aluminium
  • Windows operating systems supported
  • Windows 11
  • Graphics
  • On-board graphics card
  • No
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 5
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 2
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 0
  • USB 3.2 Gen 2x2 connectors
  • 1
  • Memory
  • ECC сompatibility
  • ECC & Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.4
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 7 (802.11be)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 7 (802.11be)
  • Other features
  • mSATA ports quantity
  • 0
  • Weight
  • 1.84 kg

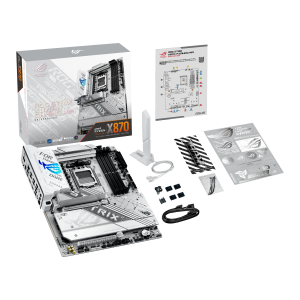

  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 2.32 kg
  • Package width
  • 353 mm
  • Processor
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM5
  • Supported processor sockets
  • Socket AM5

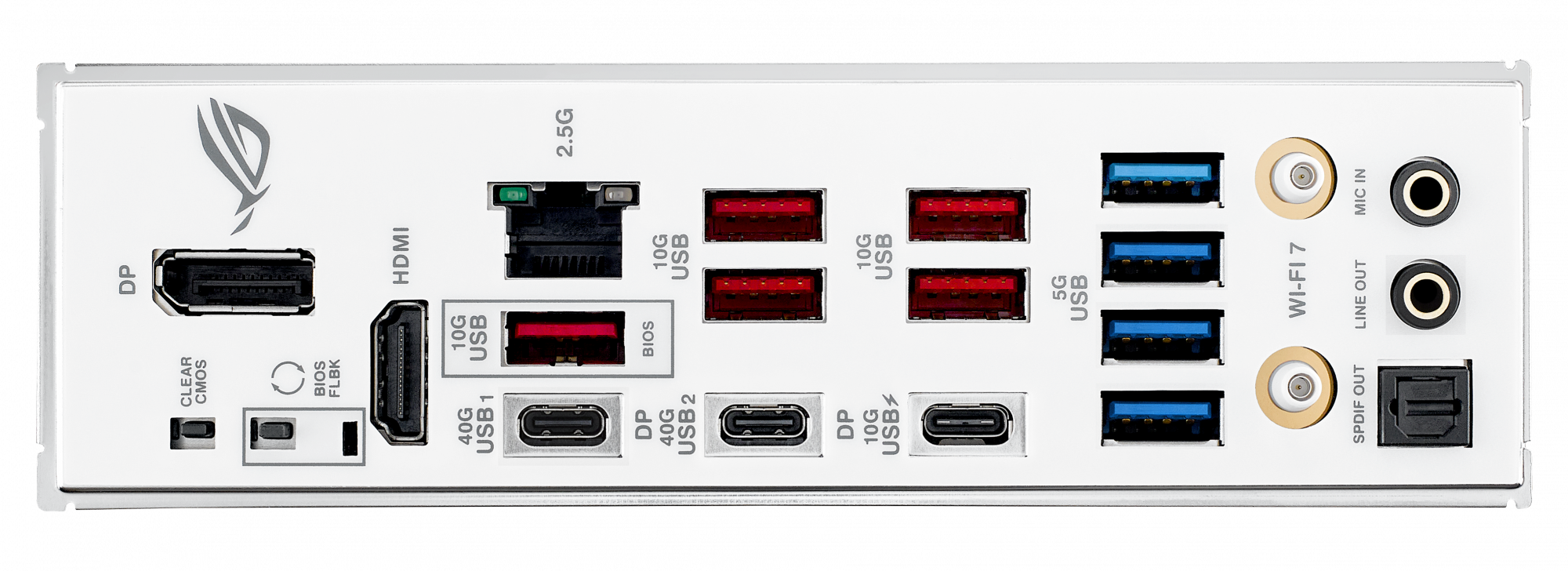

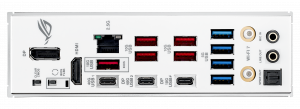

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 1
  • Microphone in
  • Yes
  • S/PDIF out port
  • Yes
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 5
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB4 Gen 2x2 ports quantity
  • 2
  • VGA (D-Sub) ports quantity
  • 0
  • WiFi-AP antenna jack
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 2
  • Number of storage drives supported
  • 6
  • RAID levels
  • 0, 1, 10, 5
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 50 mm
  • Width
  • 305 mm
