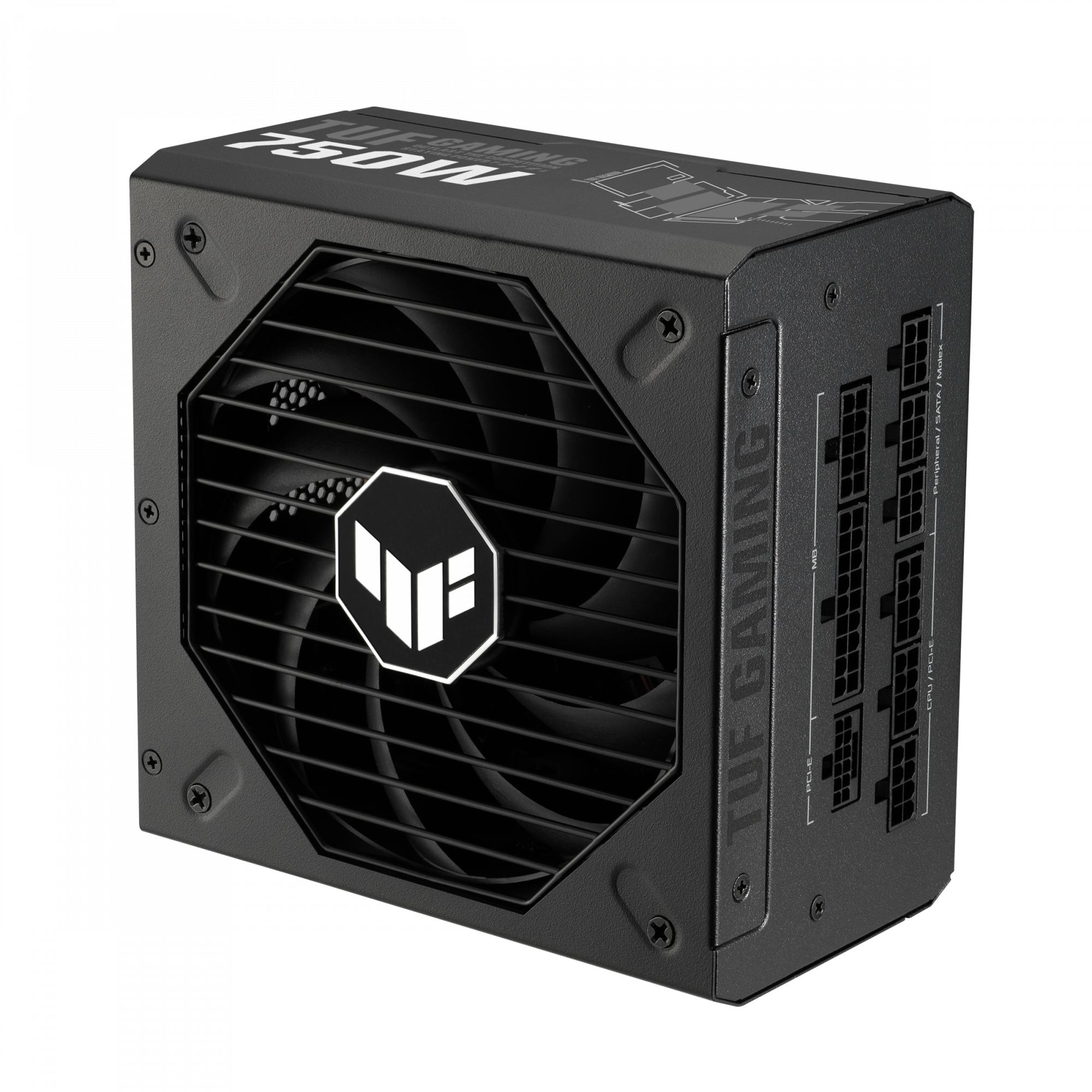

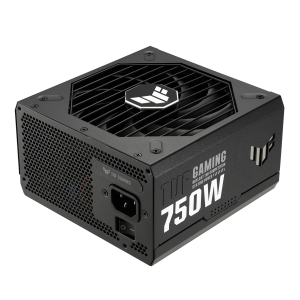

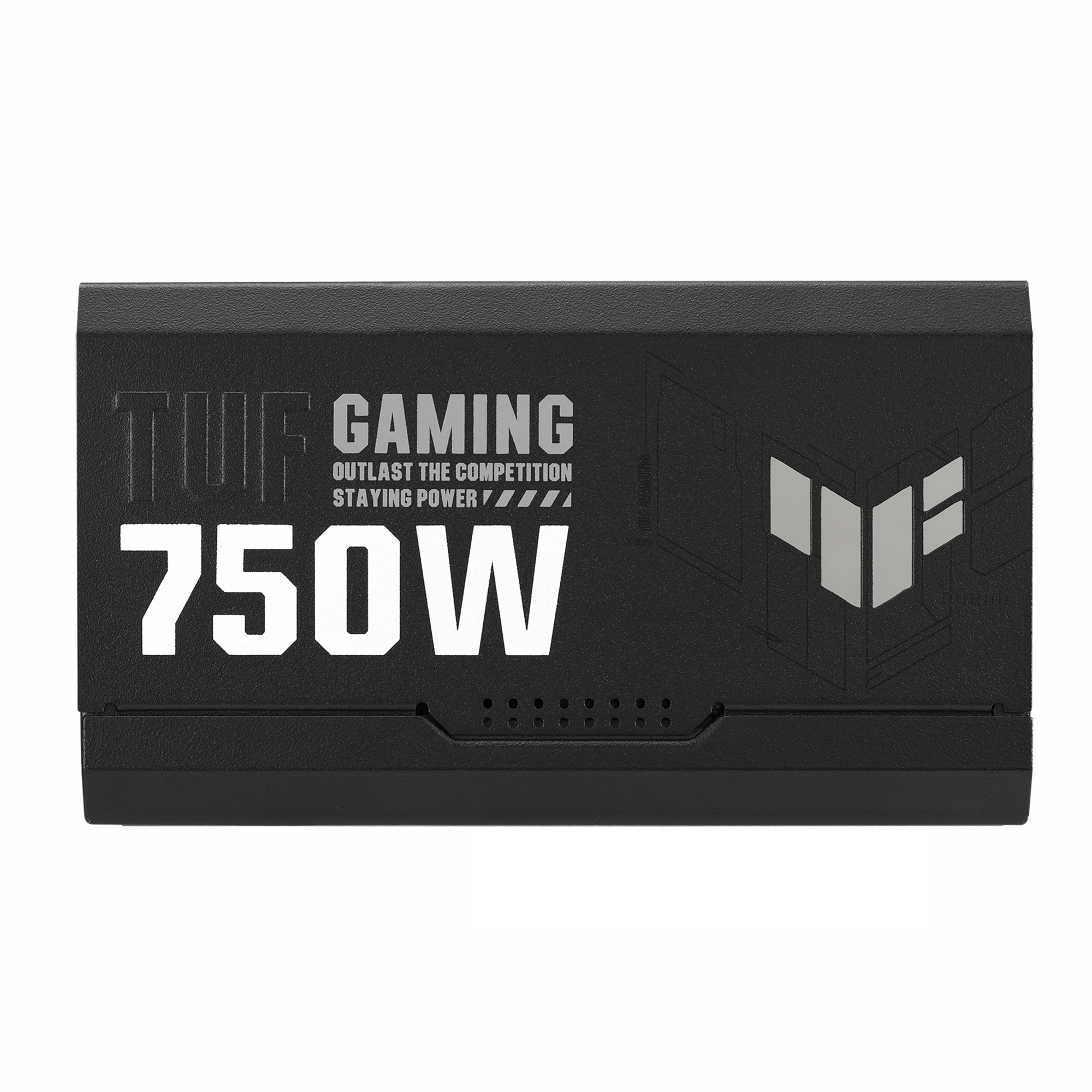

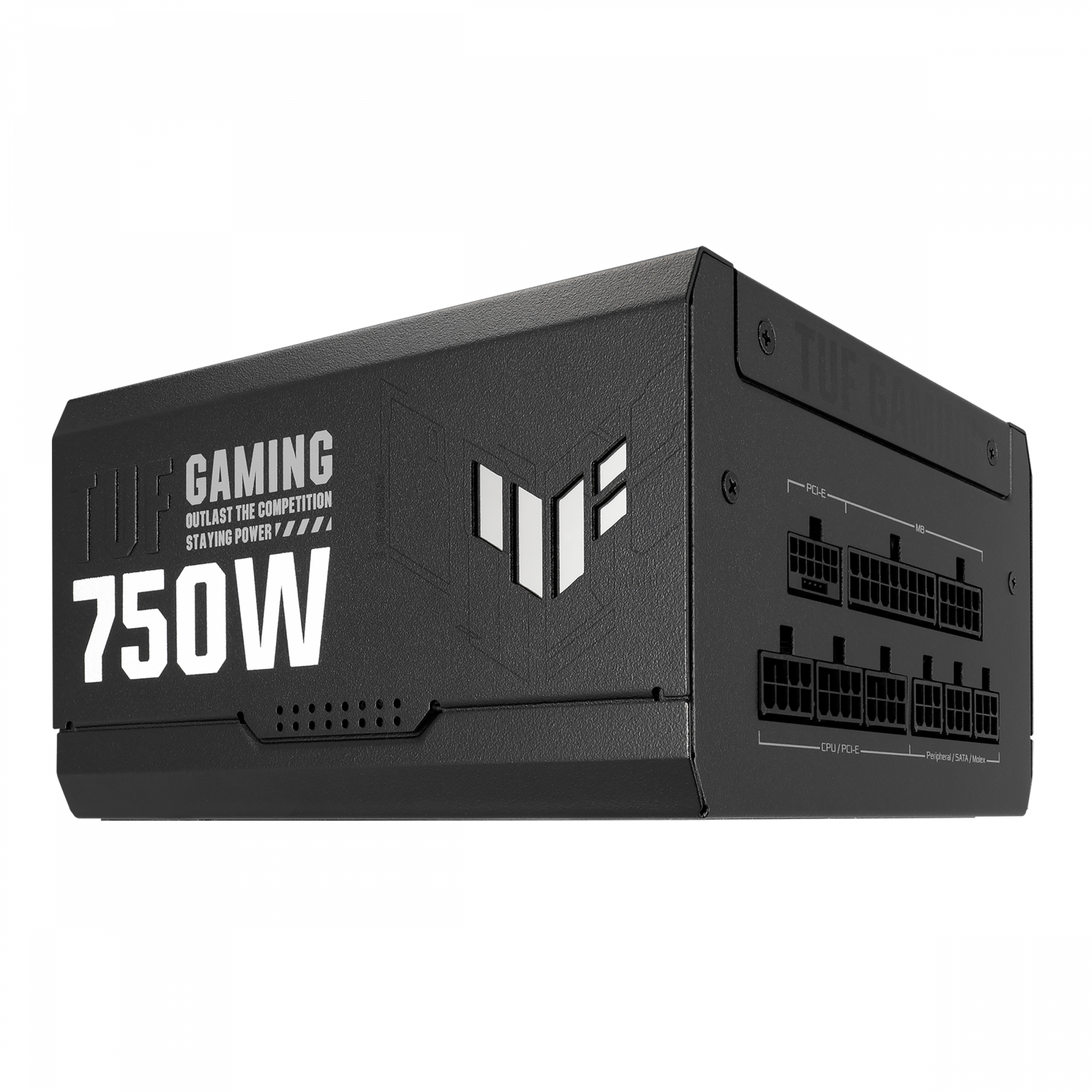

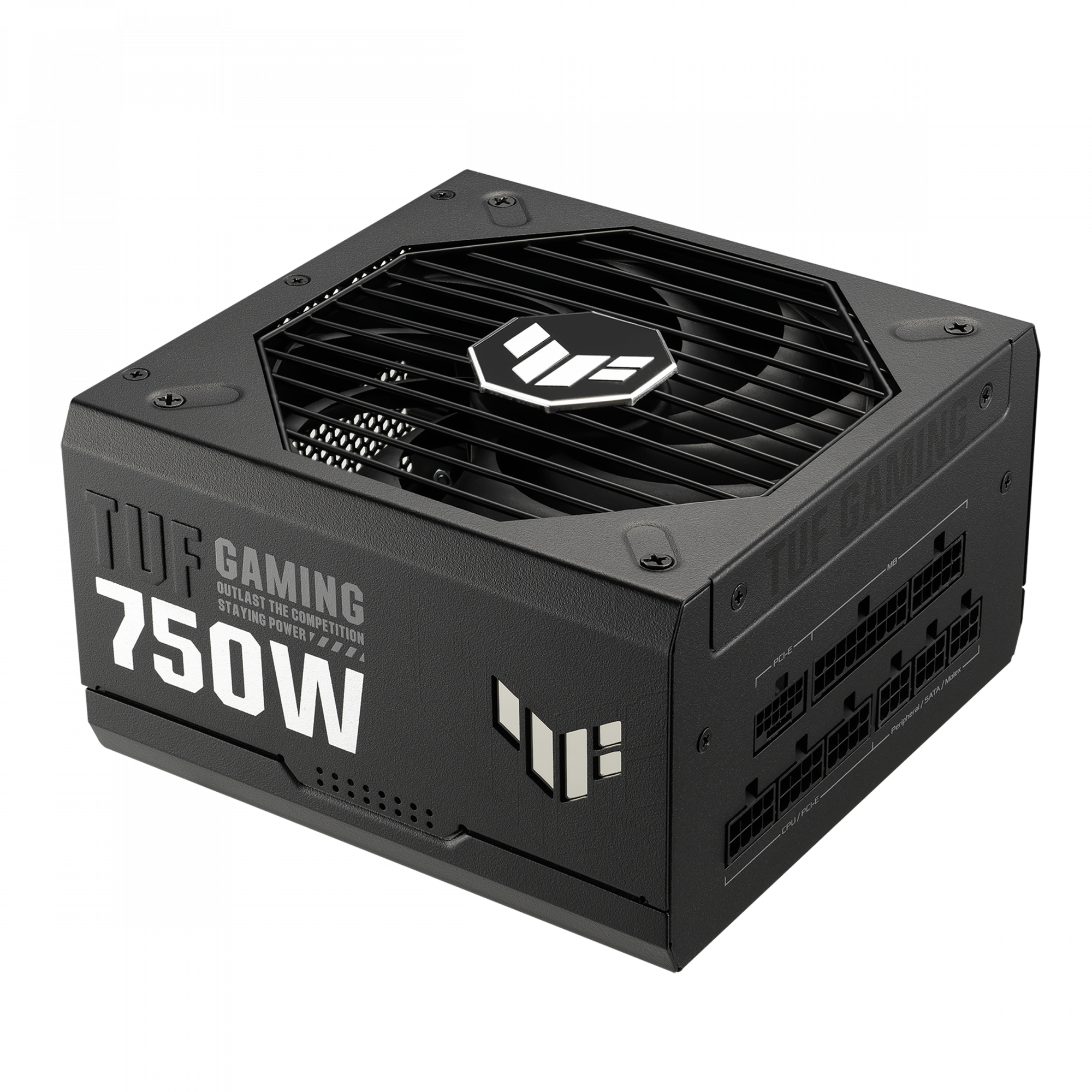

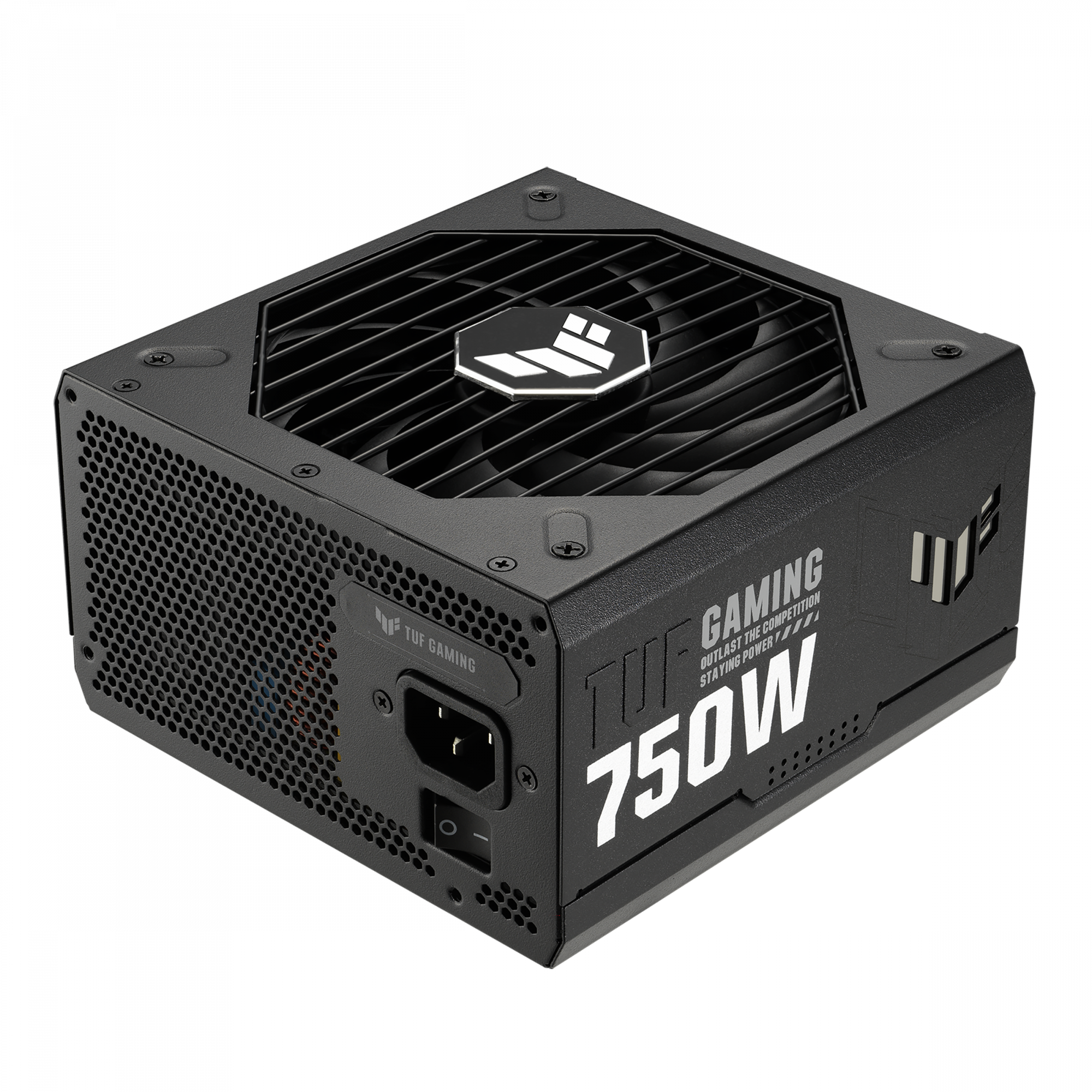

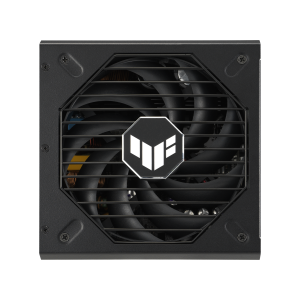

ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
Roll over image to zoom inClick to Open expanded view
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
Print
Model: 90YE00S3-B0NA00
EAN: 4711081786733

ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black

Manufacturer:
Asus
ASUS TUF Gaming 750W Gold, 750 W, 100 - 240 V, 130 W, 744 W, 130 W, 9.6 W
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS TUF Gaming 750W Gold. Total power: 750 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 130 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
  • Capacitors and chokes pass demanding tests to achieve Military-grade Certification
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • A protective PCB coating protects against moisture, dust, and extreme temperatures
  • An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components

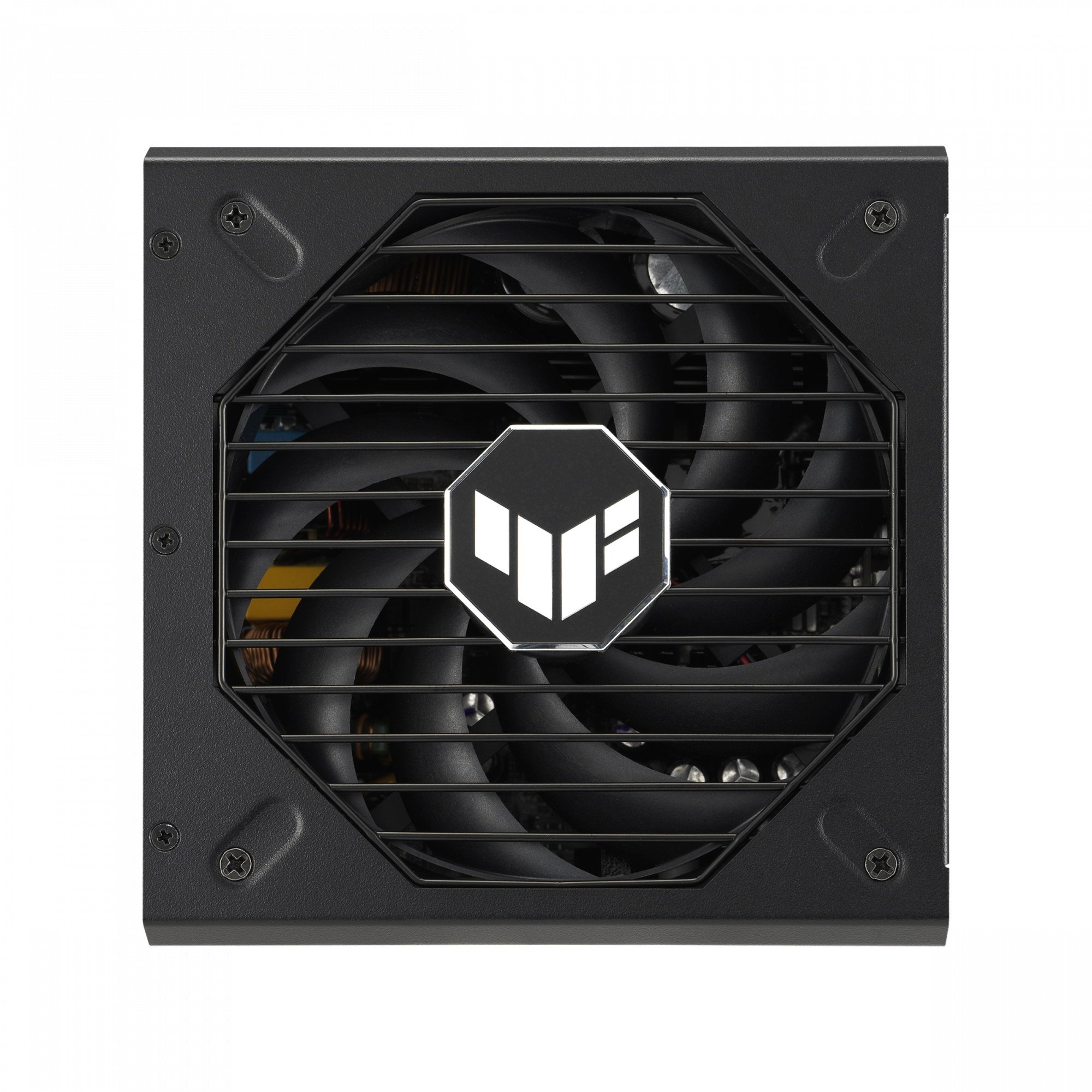

  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
  • Fully modular etched cables keep your rig neat and tidy

Product Properties

  • Model
  • 90YE00S3-B0NA00
  • EAN
  • 4711081786733
  • Bullet points
  • Point
  • A protective PCB coating protects against moisture, dust, and extreme temperatures
    An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
    Capacitors and chokes pass demanding tests to achieve Military-grade Certification
    Dual ball fan bearings can last up to twice as long as sleeve bearing designs
    Fully modular etched cables keep your rig neat and tidy
  • Certificates
  • Compliance certificates
  • RoHS
  • Design
  • Cooling type
  • Active
  • Fan diameter
  • 13.5 cm
  • Number of fans
  • 1 fan(s)
  • On/off switch
  • Yes
  • Product colour
  • Black
  • Packaging content
  • Cable tie(s) included
  • Yes
  • Cables included
  • AC, CPU, PCIe, Peripheral (Molex), SATA
  • Packaging data
  • Package depth
  • 200 mm
  • Package height
  • 108 mm
  • Package type
  • Box
  • Package weight
  • 3.07 kg
  • Package width
  • 310 mm
  • Performance
  • 80 PLUS certification
  • 80 PLUS Gold
  • ATX version
  • 3.0
  • Power supply unit (PSU) form factor
  • ATX
  • Purpose
  • PC
  • Ports & interfaces

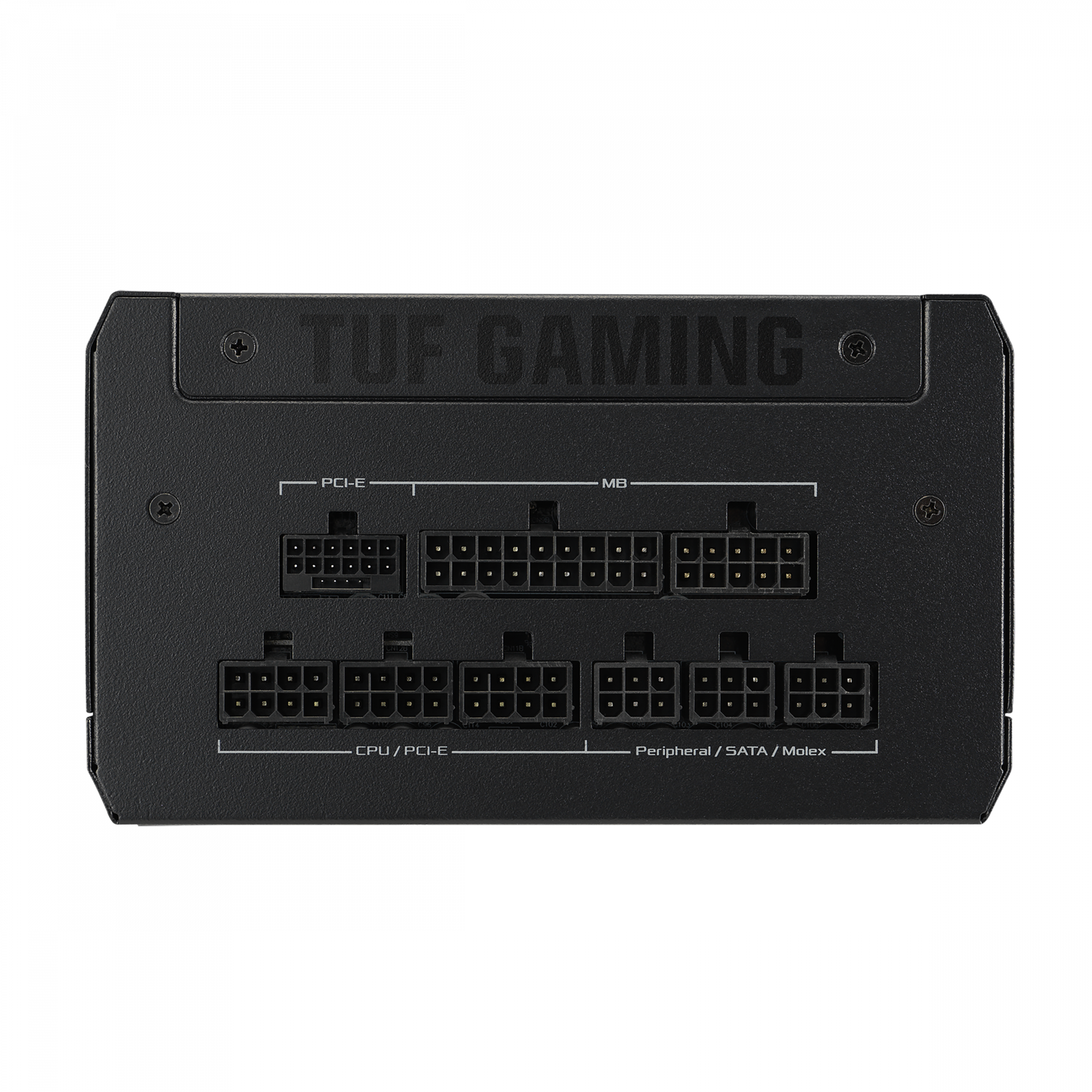

  • ATX power connector (20+4 pin)
  • Yes
  • Cabling type
  • Fully-Modular
  • CPU power cable length
  • 65 cm
  • CPU power connector (4+4 pin)
  • Yes
  • Motherboard power cable length
  • 61 cm
  • Motherboard power connector
  • 20+4 pin ATX
  • Number of SATA power connectors
  • 5
  • PCI Express power connectors (16-pin)
  • 1
  • PCI Express power connectors (8-pin)
  • 3
  • Peripheral (Molex) power cable length
  • 150,400 mm
  • Peripheral (Molex) power connectors (4-pin)
  • 4
  • SATA power cable length
  • 120,400 mm
  • Power
  • AC input voltage
  • 100 - 240 V
  • Combined power (+12V)
  • 744 W
  • Combined power (+3.3V)
  • 130 W
  • Combined power (+5V)
  • 130 W
  • Combined power (+5Vsb)
  • 15 W
  • Combined power (-12V)
  • 9.6 W
  • Efficiency
  • 92%
  • Max output current (+12V)
  • 62 A
  • Max output current (+3.3V)
  • 25 A
  • Max output current (+5V)
  • 25 A
  • Max output current (+5Vsb)
  • 3 A
  • Max output current (-12V)
  • 0.8 A
  • Power protection features
  • Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
  • Total power
  • 750 W
  • Technical details
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 150 mm
  • Height
  • 86 mm
  • Weight
  • 2.38 kg
  • Width
  • 150 mm
