Description

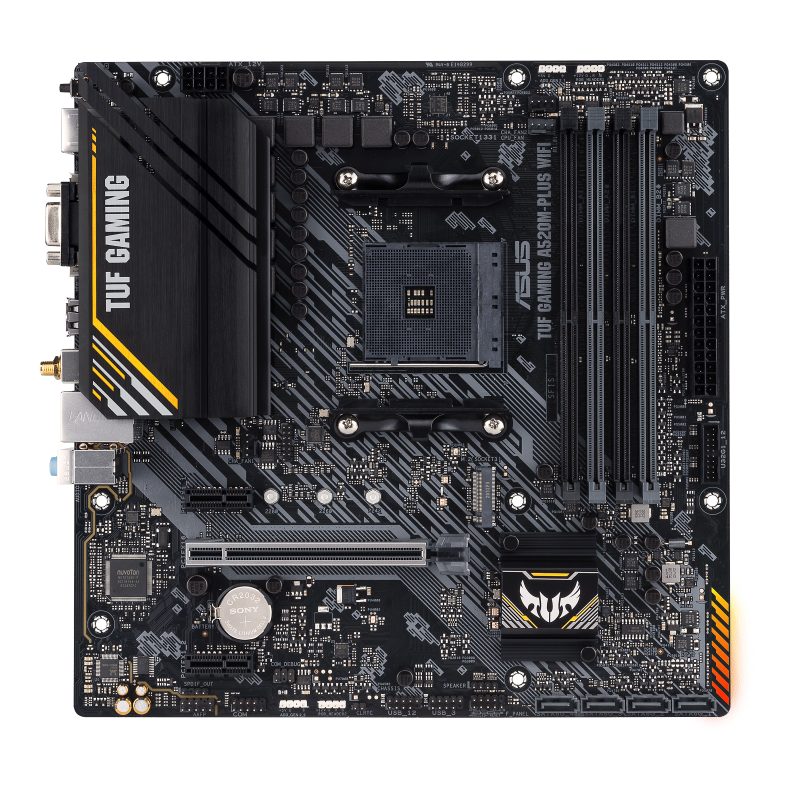

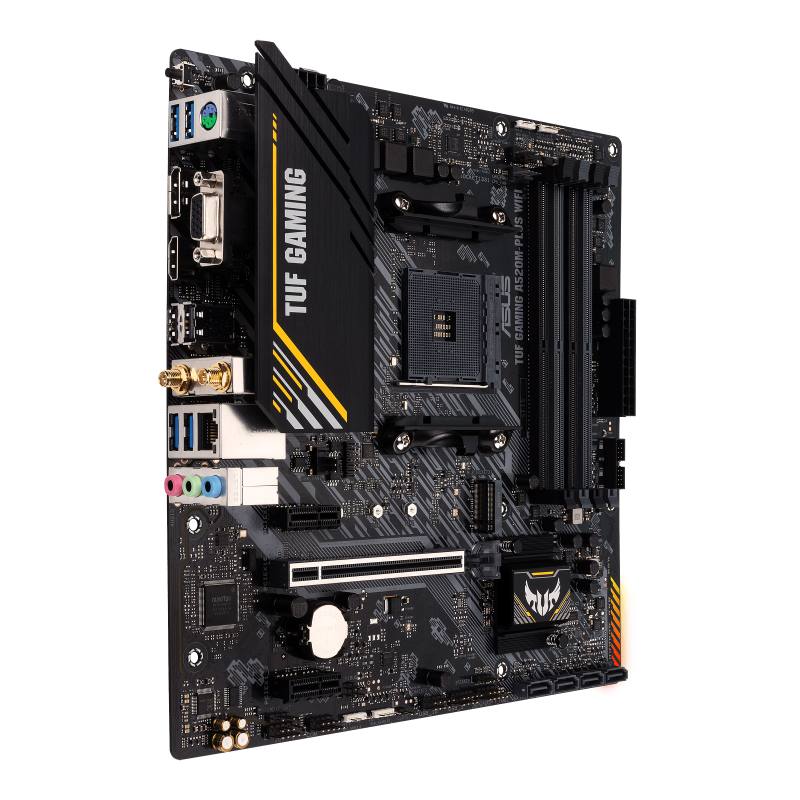

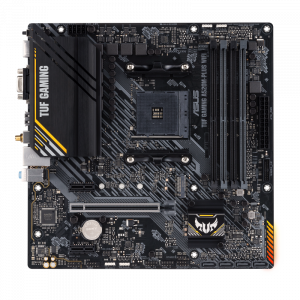

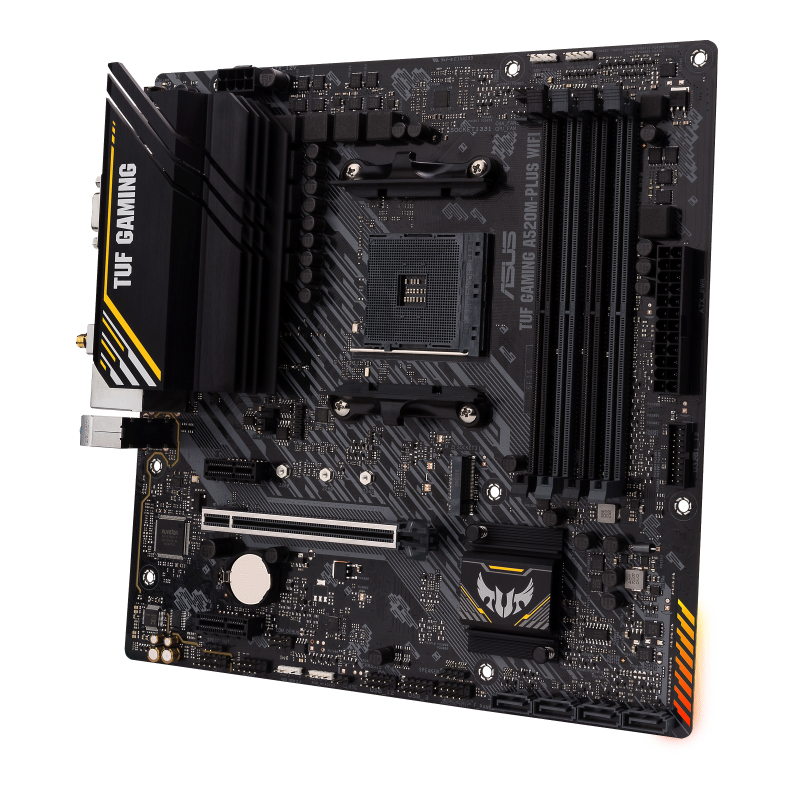

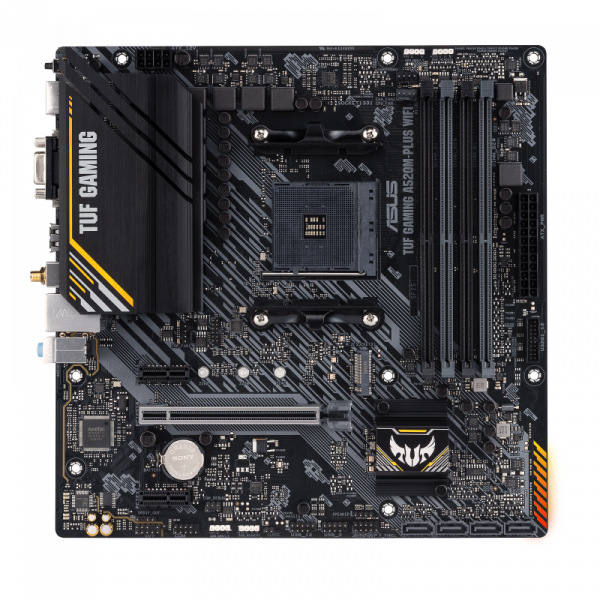

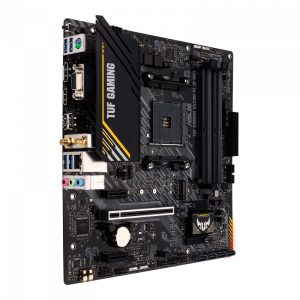

ASUS TUF GAMING A520M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology
Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Product Properties

Manufacturer
Asus

Model
TUF A520MPLUS WIFI

EAN
4711081154273

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

Bullet points

Point
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Aura Sync RGB

Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+

Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology

Expansion slots

Number of M.2 (M) slots
1

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 3.x) slots
1

Features

Audio chip
Realtek ALC887 / Realtek ALC897

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD A520

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64

Graphics

Maximum resolution
3840 x 2160 pixels

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of COM connectors
1

Number of Parallel ATA connectors
0

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

Logistics data

Harmonized System (HS) code
84733020

Memory

ECC сompatibility
ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.0

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wake-on-LAN ready
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN controller model
Realtek RTL8821CE

Other features

Weight
900 g

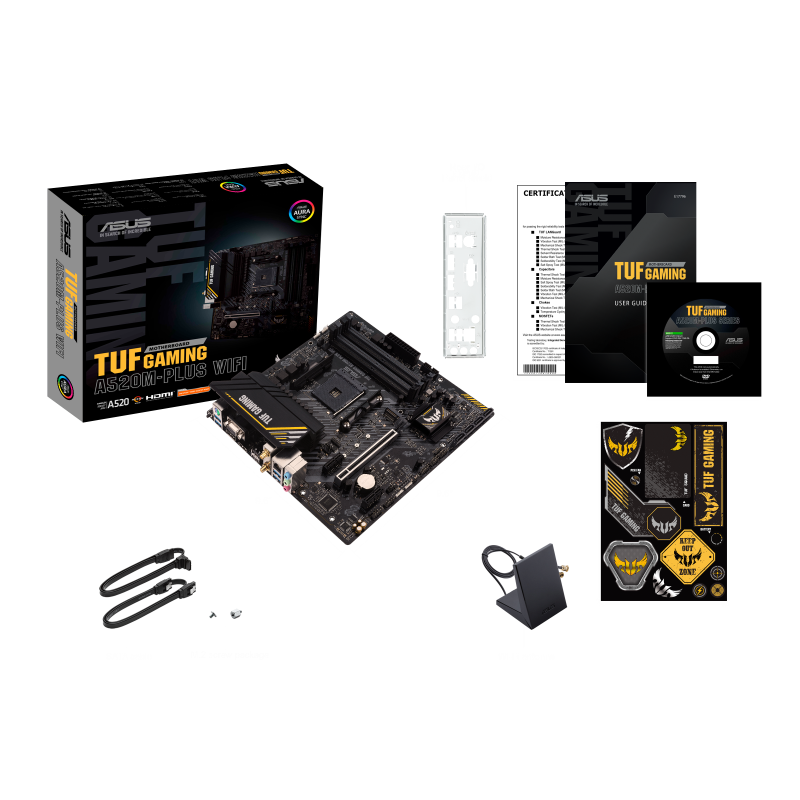

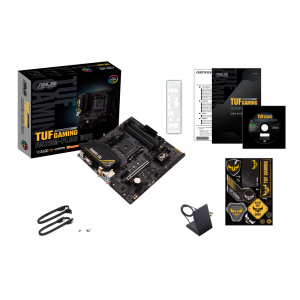

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Processor manufacturer
AMD

Processor socket
Socket AM4

Supported processor sockets
Socket AM4

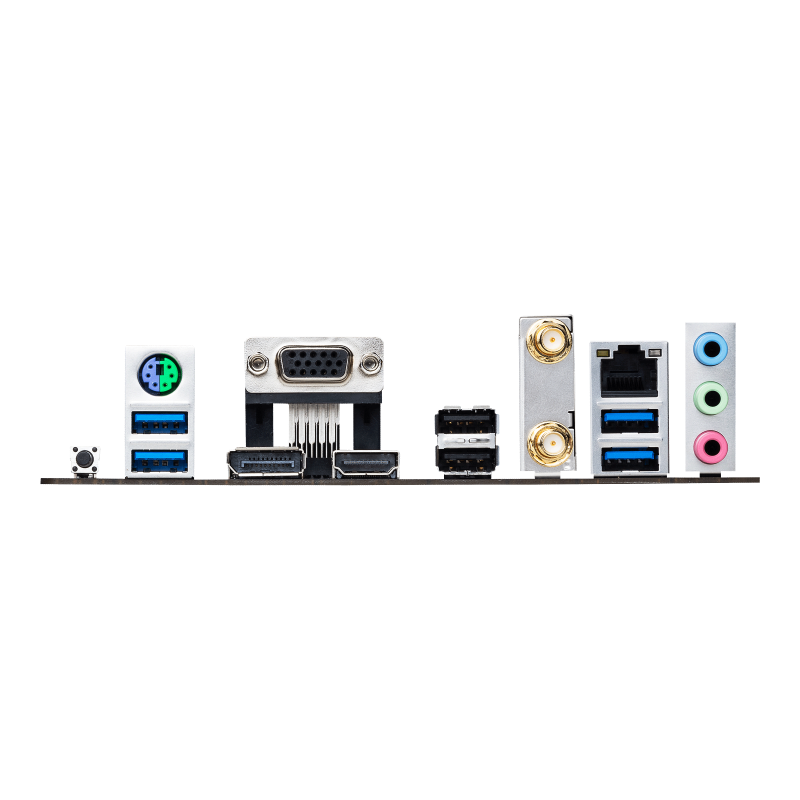

Rear panel I/O ports

DisplayPort version
1.2

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
3

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

USB connector type
USB Type-A

VGA (D-Sub) ports quantity
1

WiFi-AP antenna jack
1

Storage controllers

Number of storage drives supported
5

RAID levels
0, 1, 10

Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
67 mm

Width
244 mm

ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX
