Description

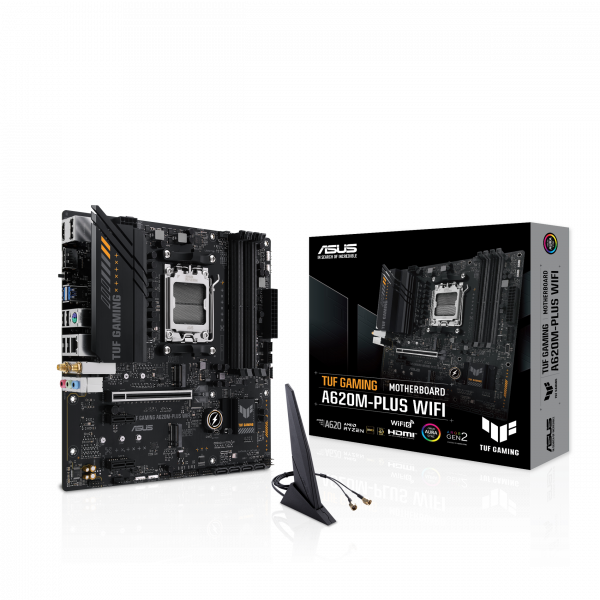

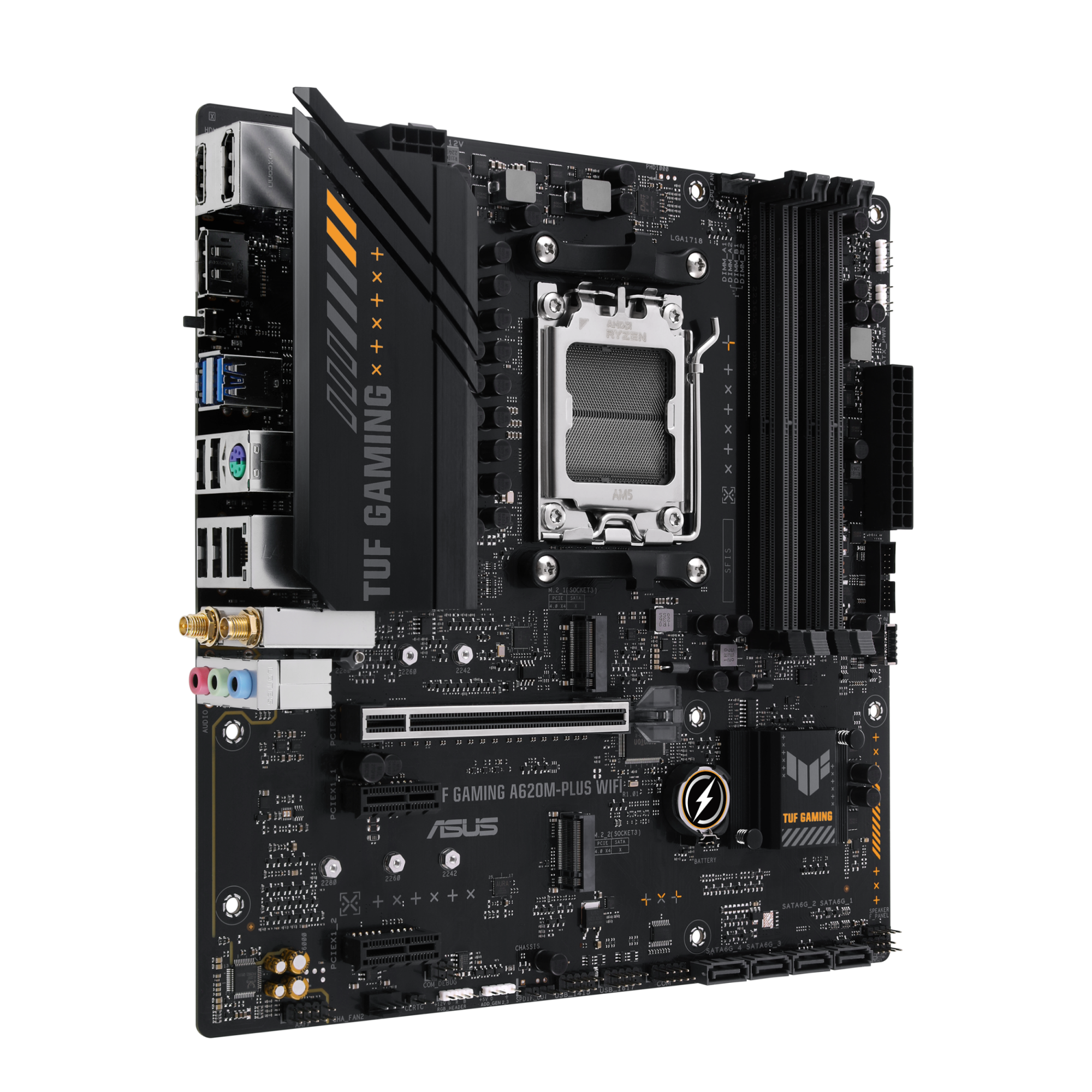

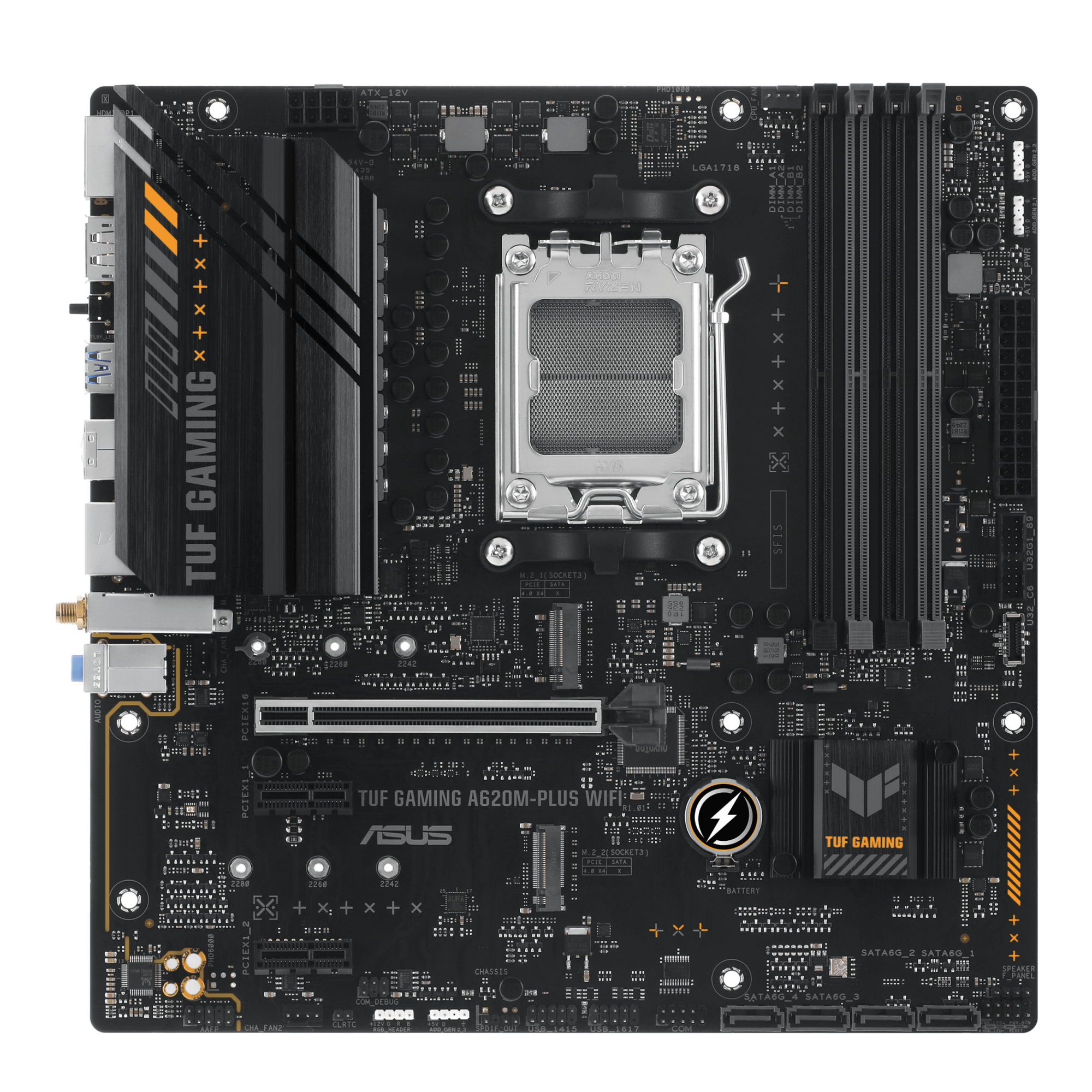

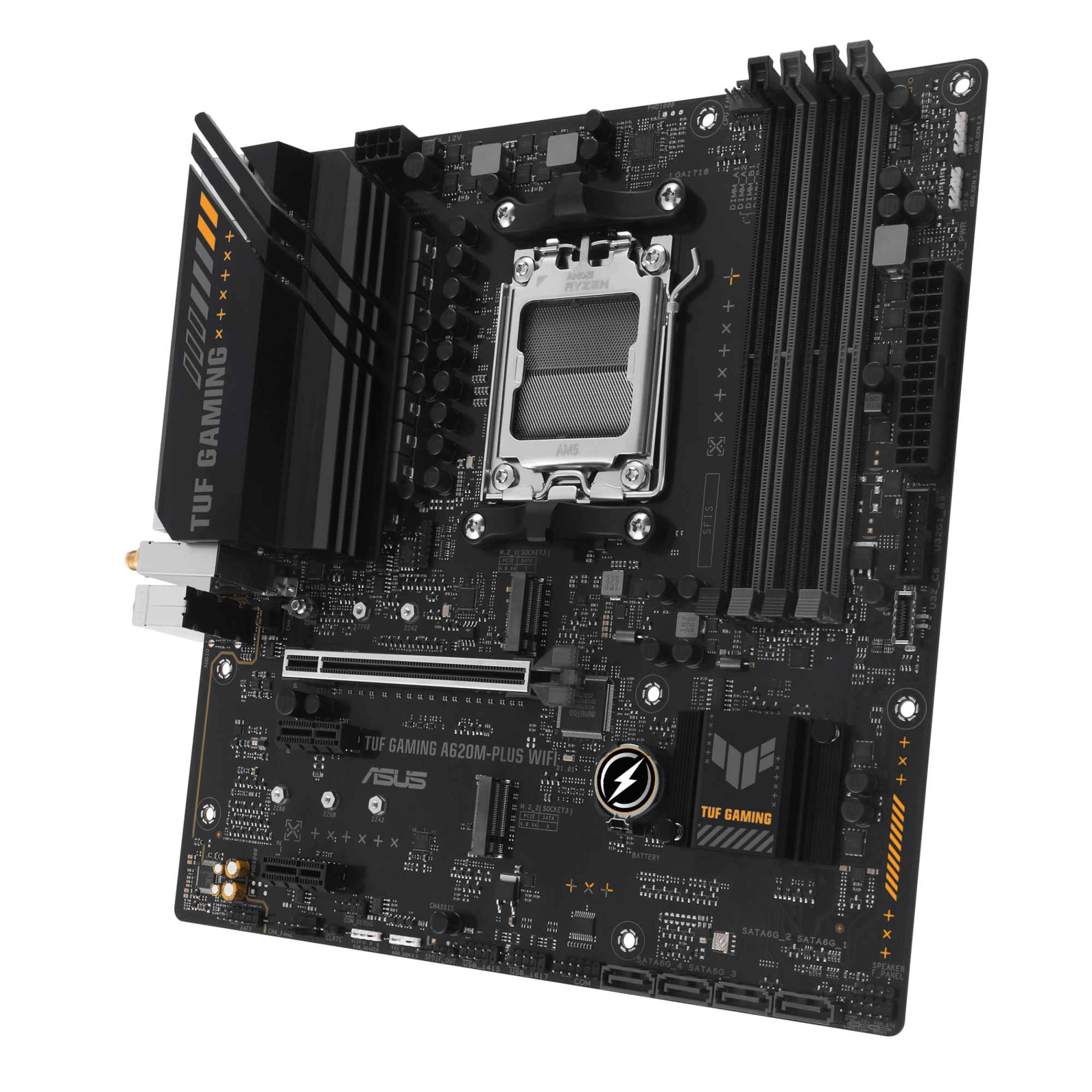

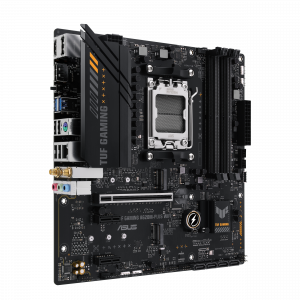

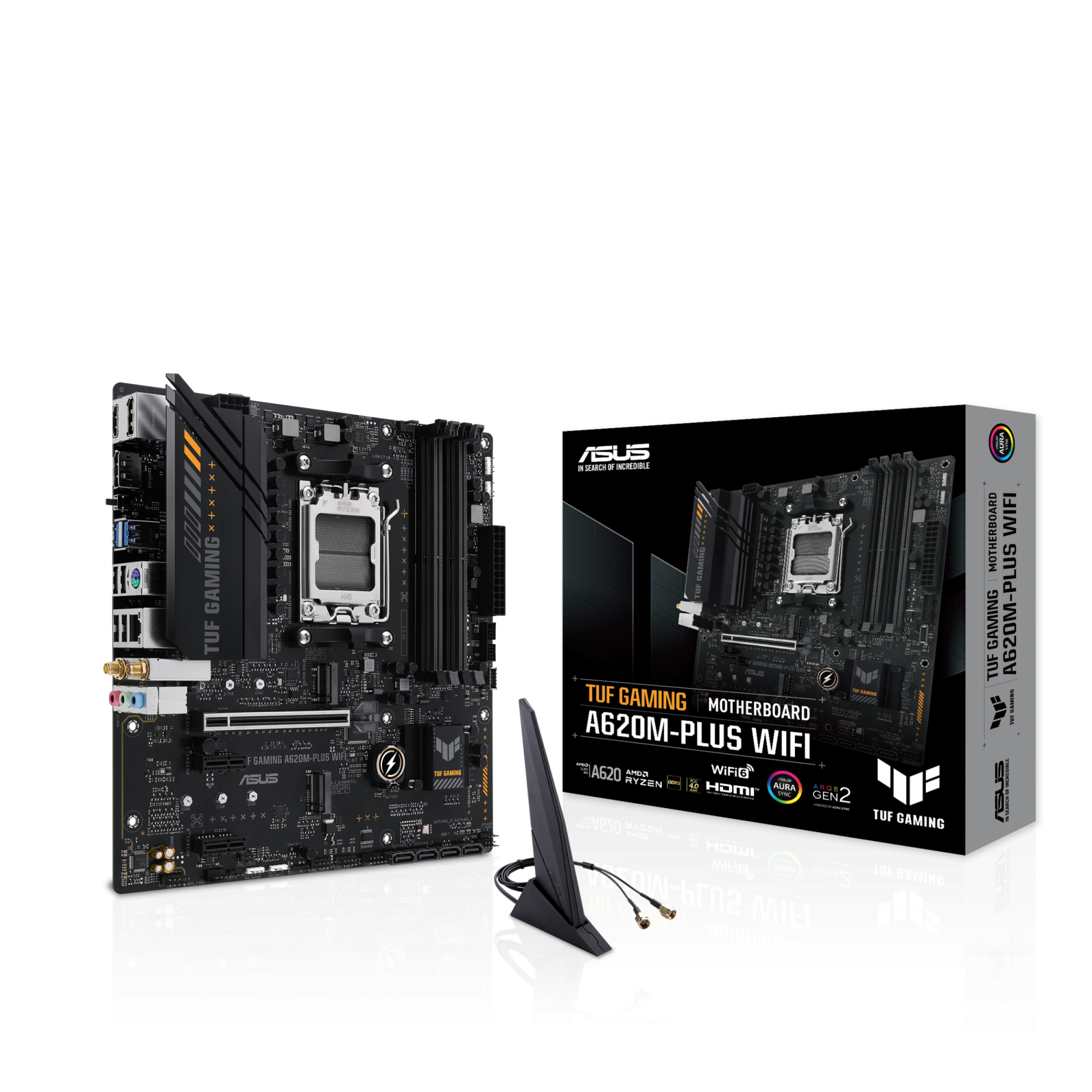

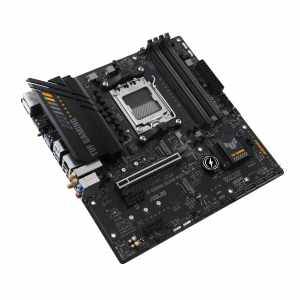

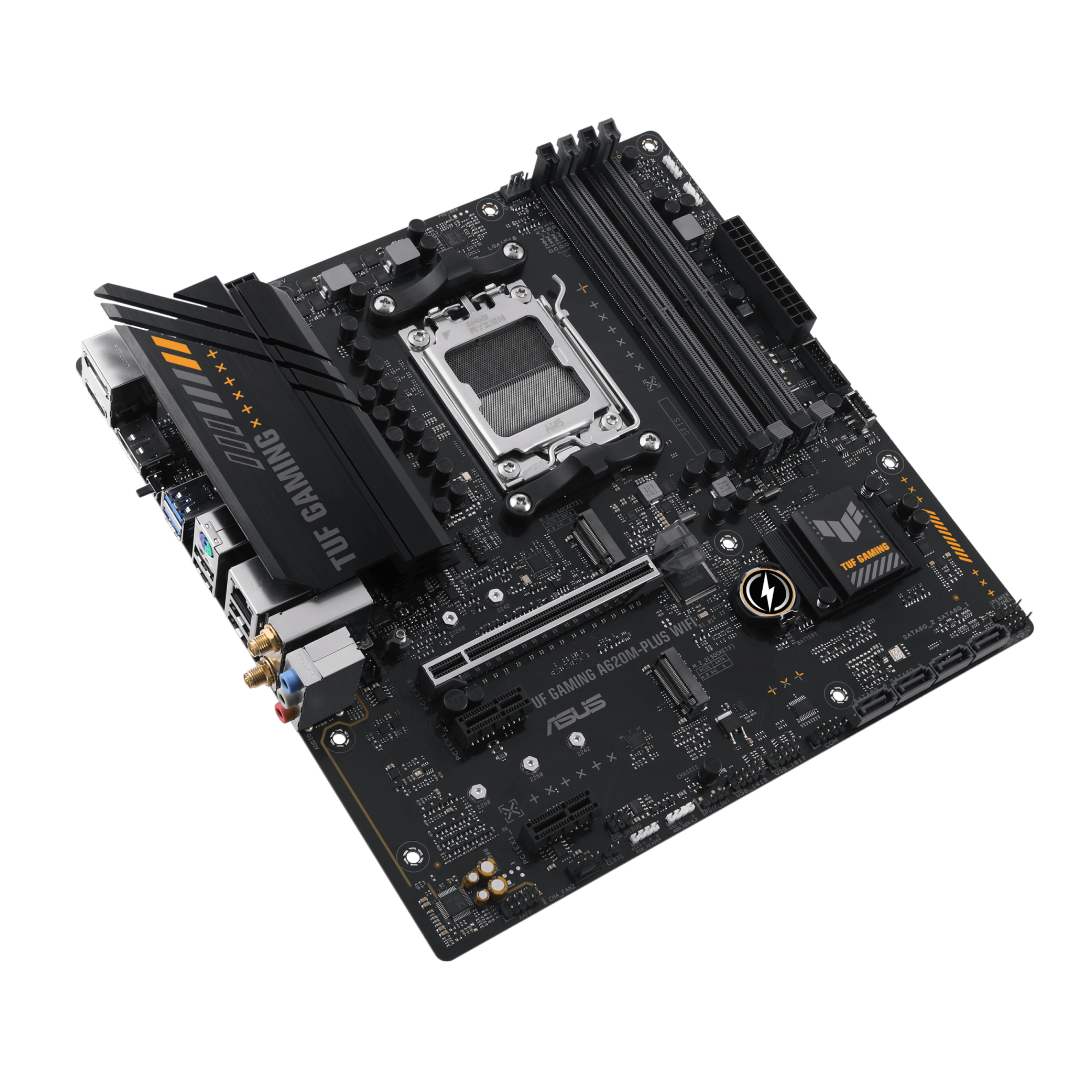

ASUS TUF GAMING A620M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
TUF A620MPLUS WIFI

EAN
4711387164266

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 3.x) slots
2

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Cooling type
Passive

Motherboard chipset
AMD A620

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Graphics

On-board graphics card
No

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2 (3.1 Gen 2) connectors
0

Memory

ECC сompatibility
ECC & Non-ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Number of memory slots
4

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

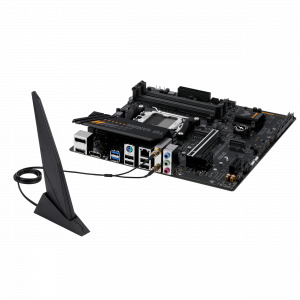

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

mSATA ports quantity
0

Weight
800 g

Packaging data

Package depth
275 mm

Package height
67.5 mm

Package weight
920 g

Package width
275 mm

Processor

Compatible processor series
AMD Ryzen 7000 Series

Processor manufacturer
AMD

Processor socket
Socket AM5

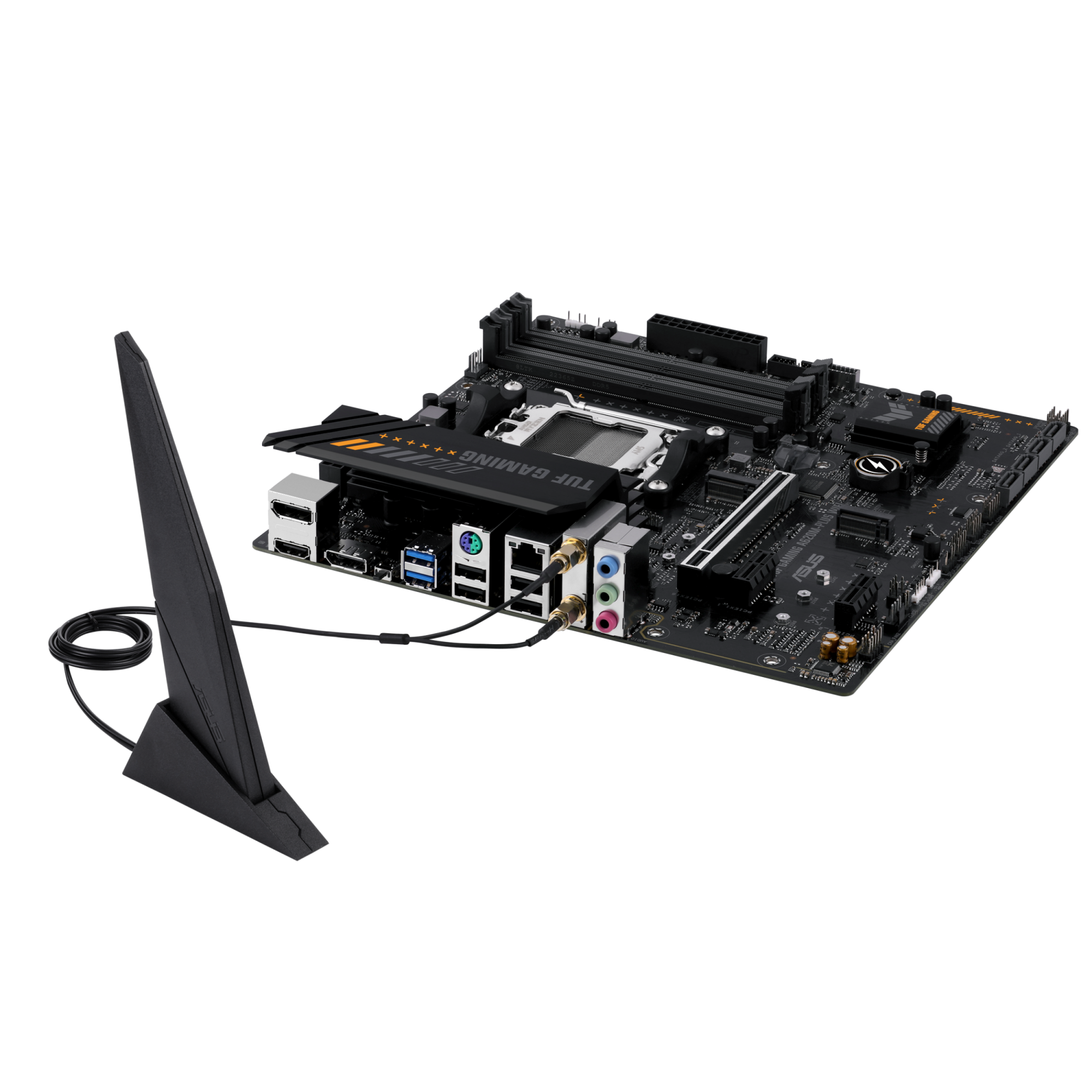

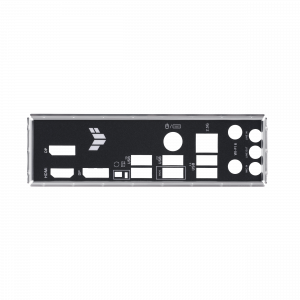

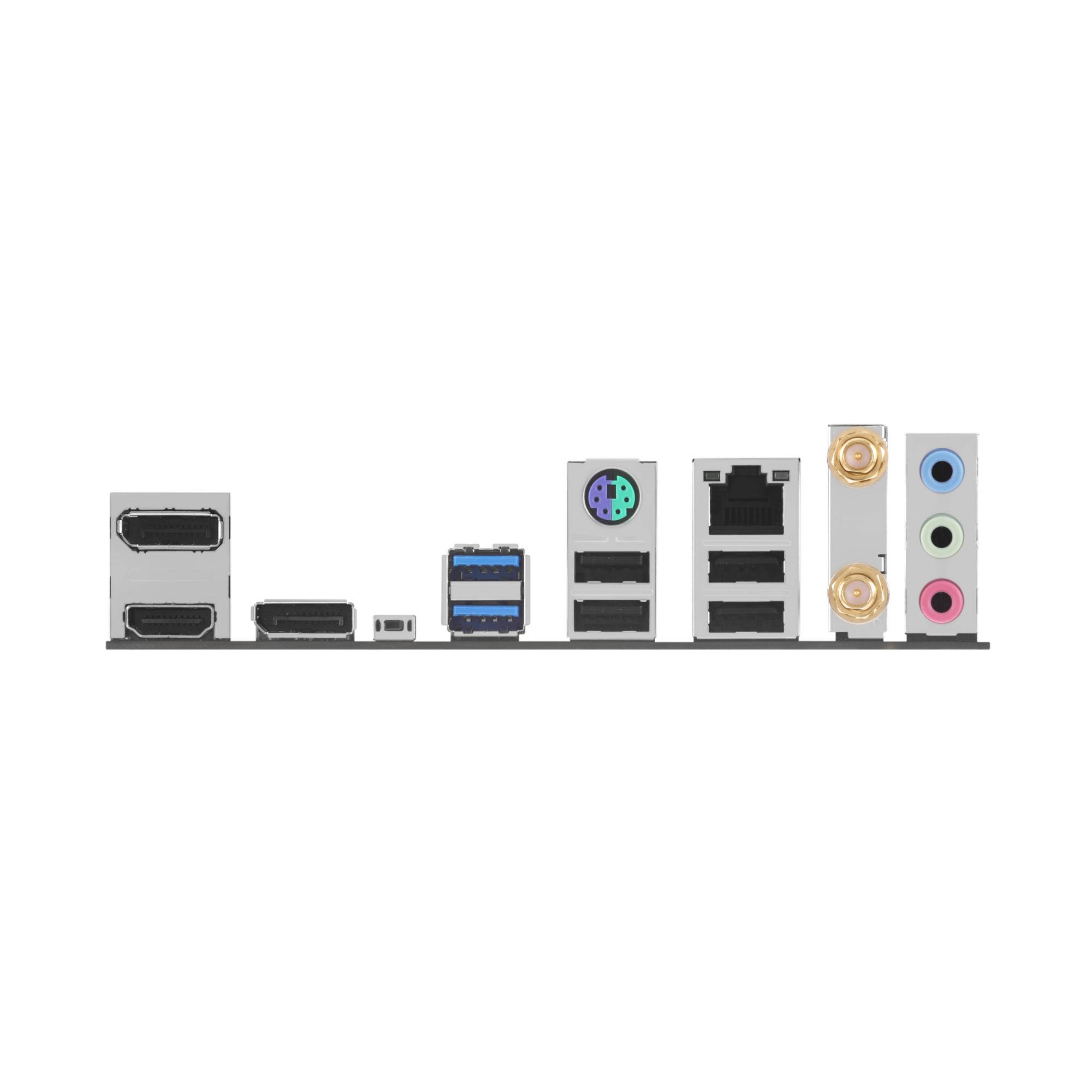

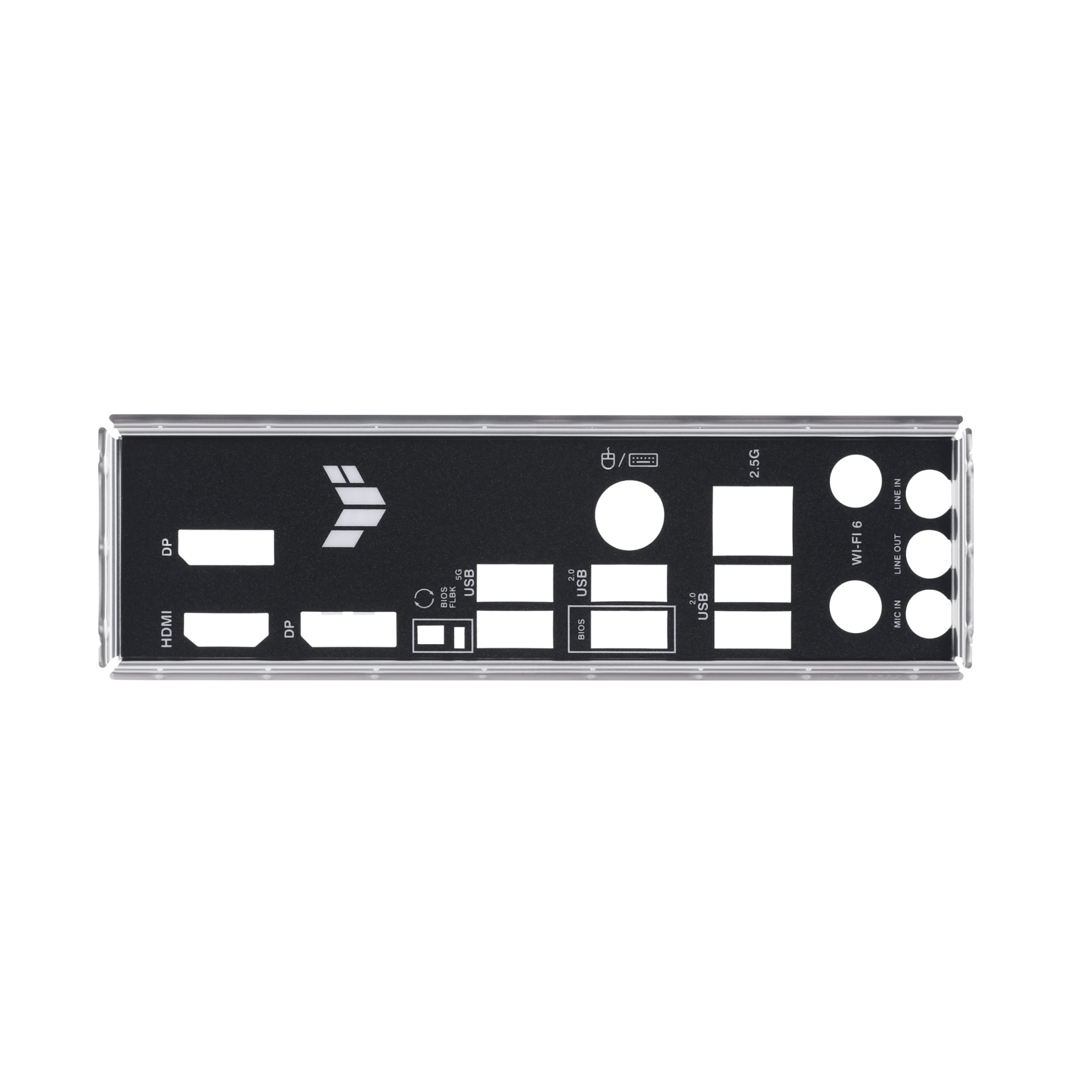

Rear panel I/O ports

DisplayPorts quantity
2

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0

VGA (D-Sub) ports quantity
0

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
50 mm

Width
244 mm

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
