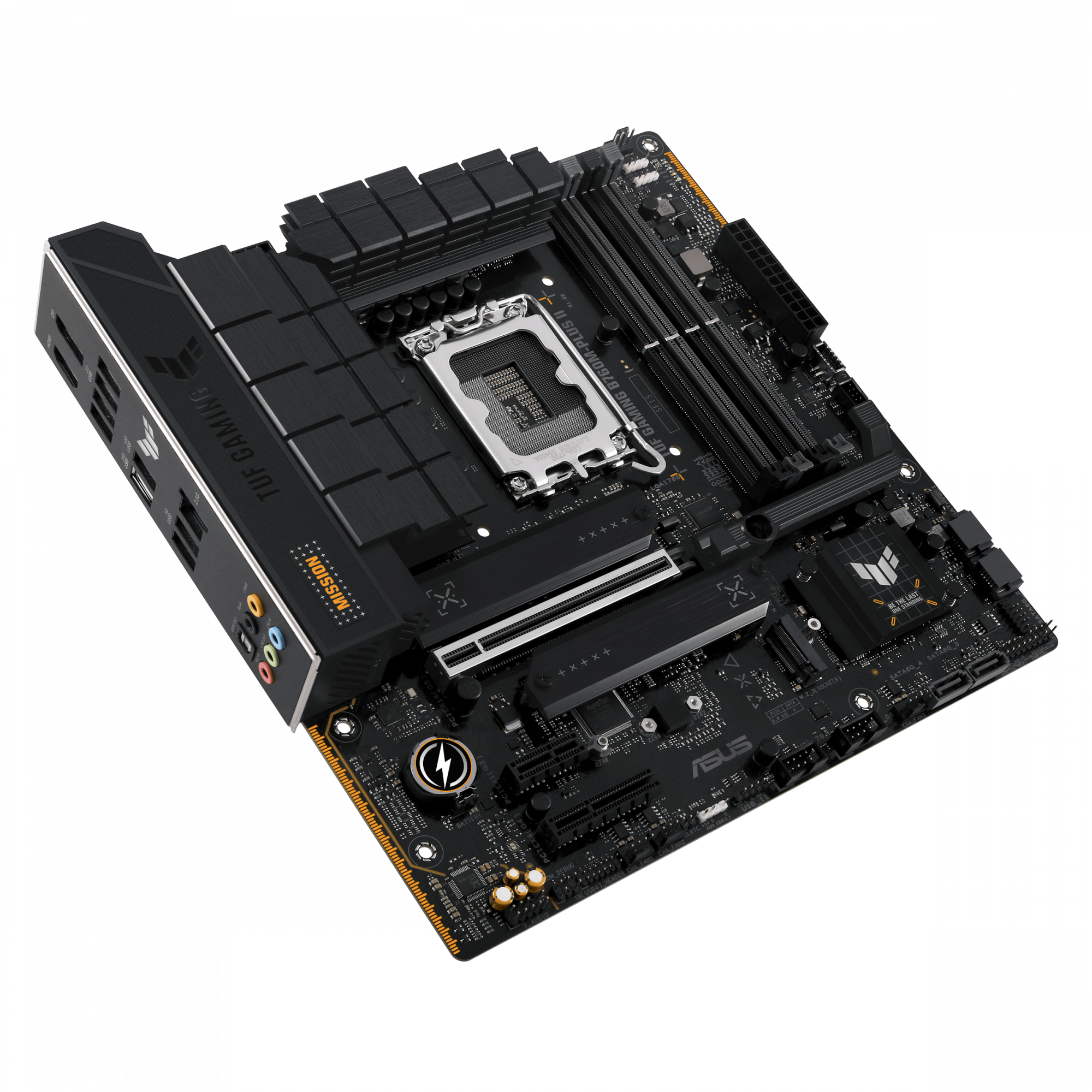

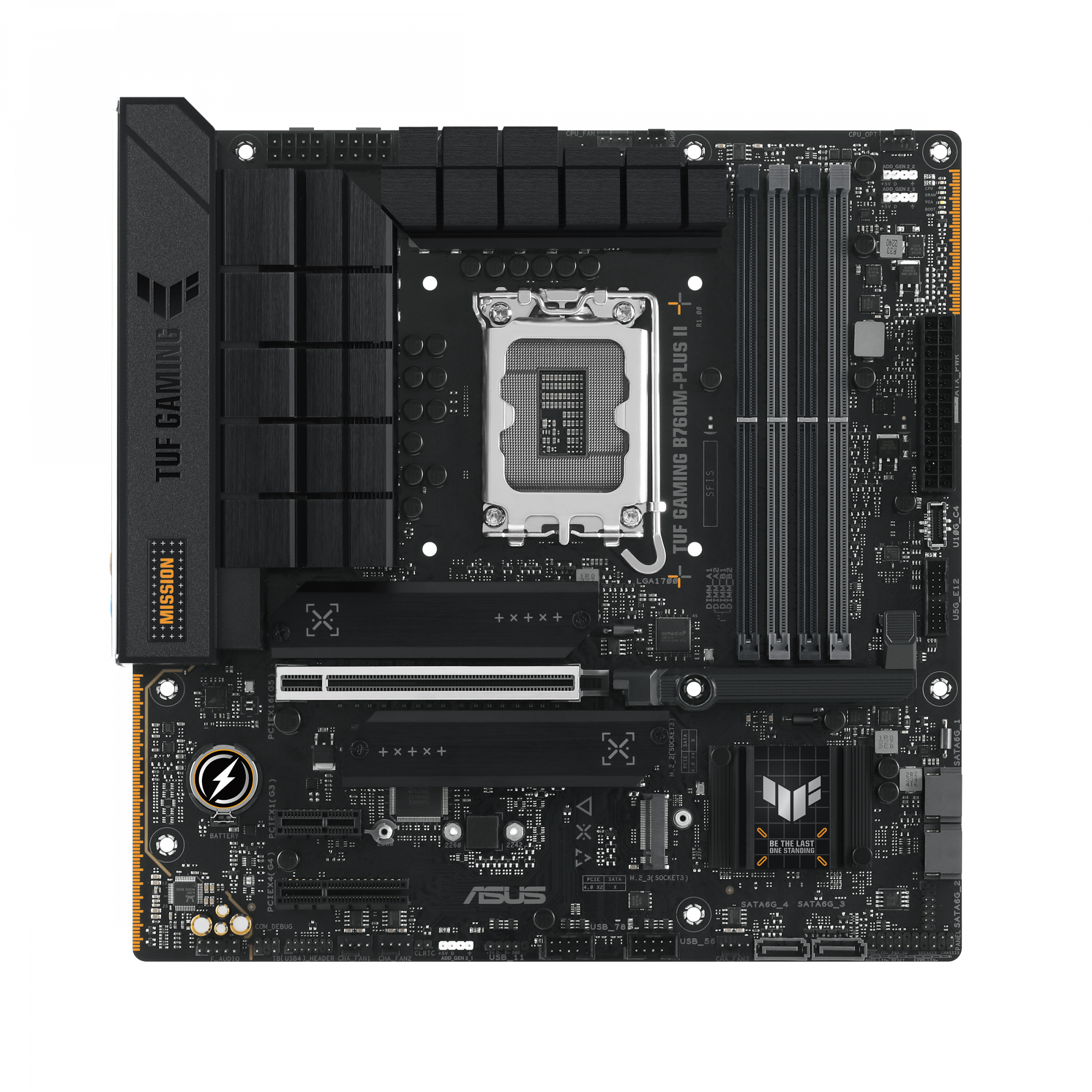

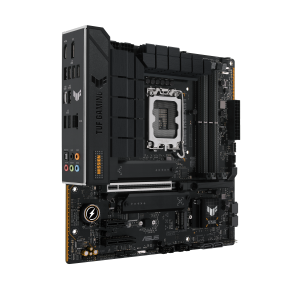

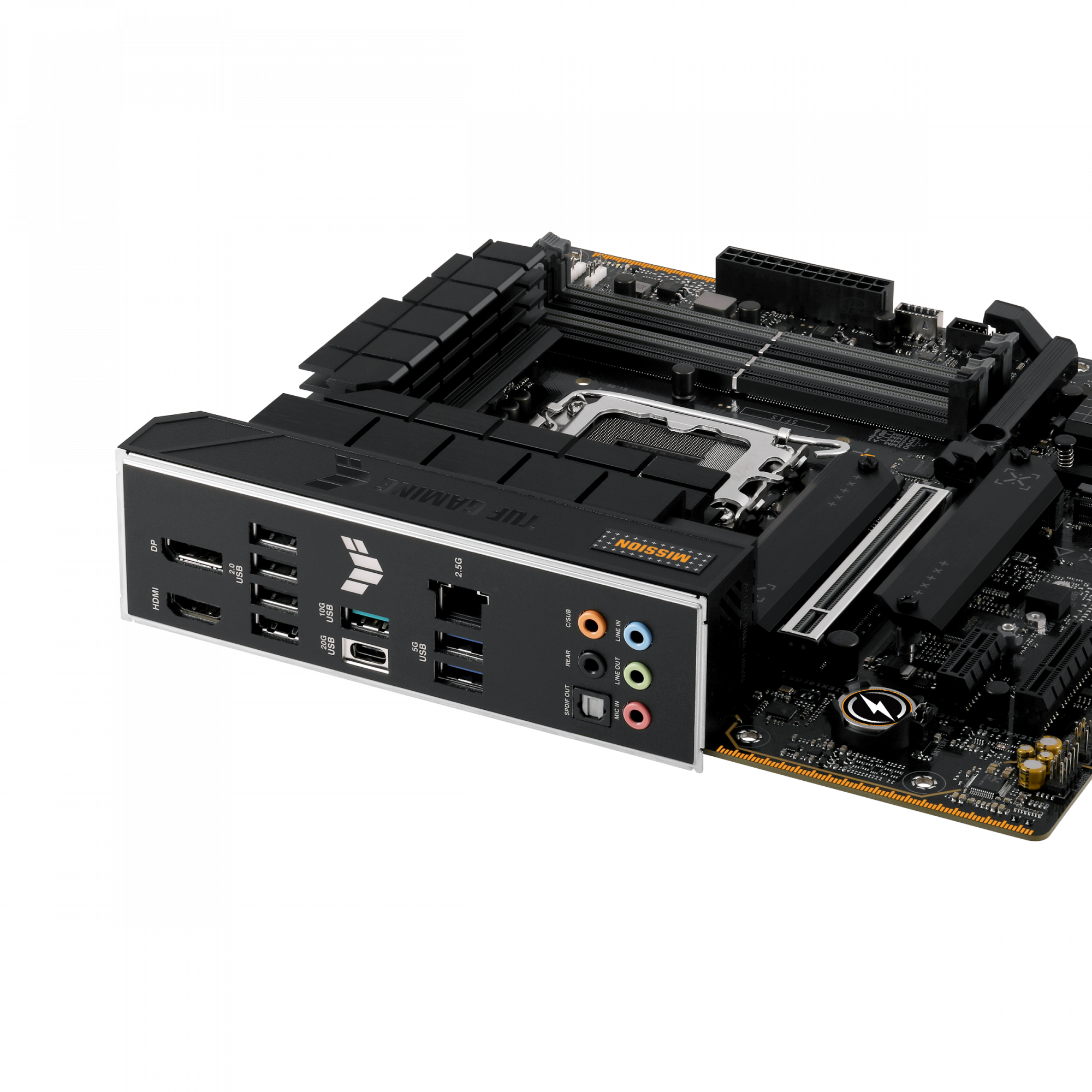

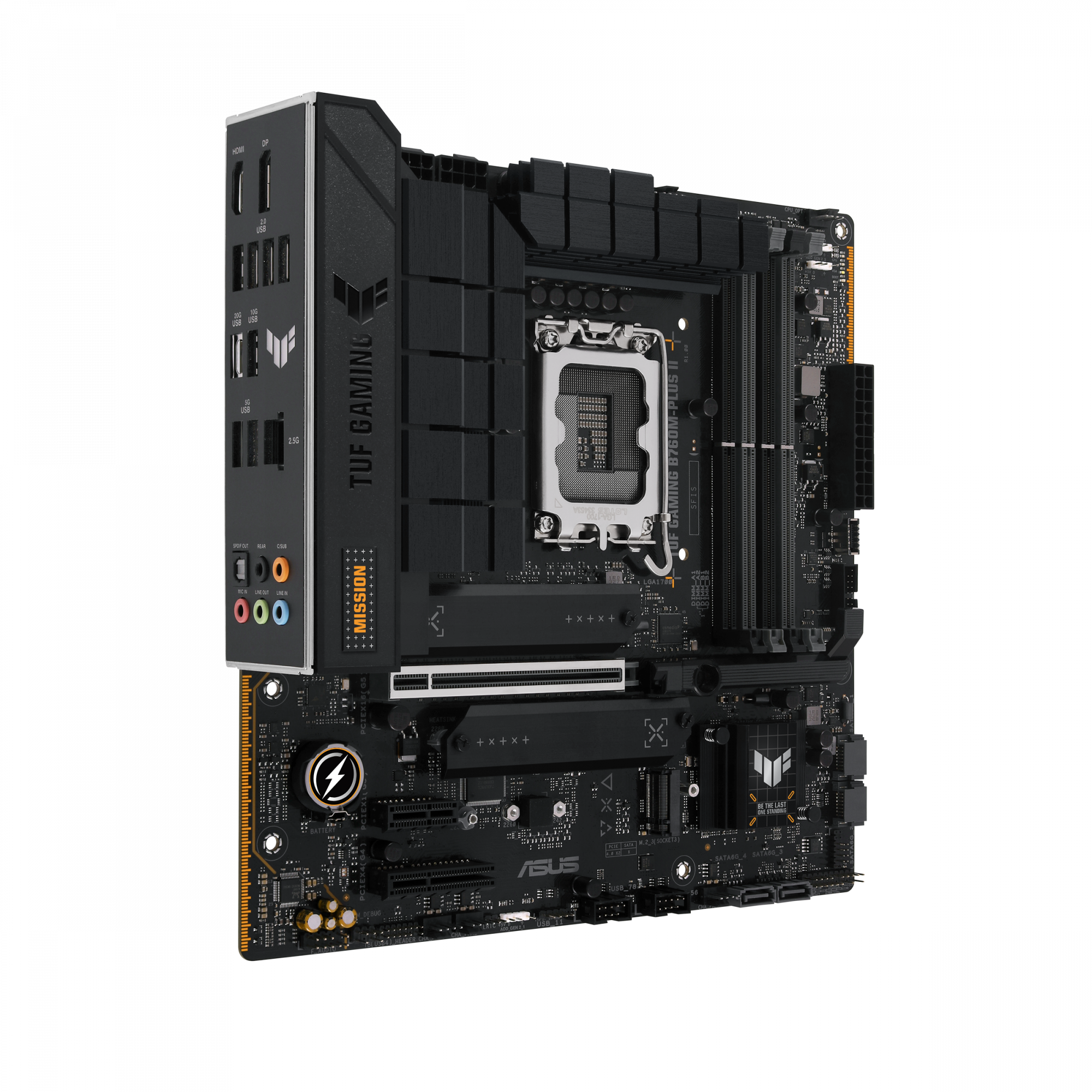

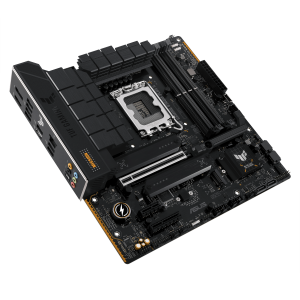

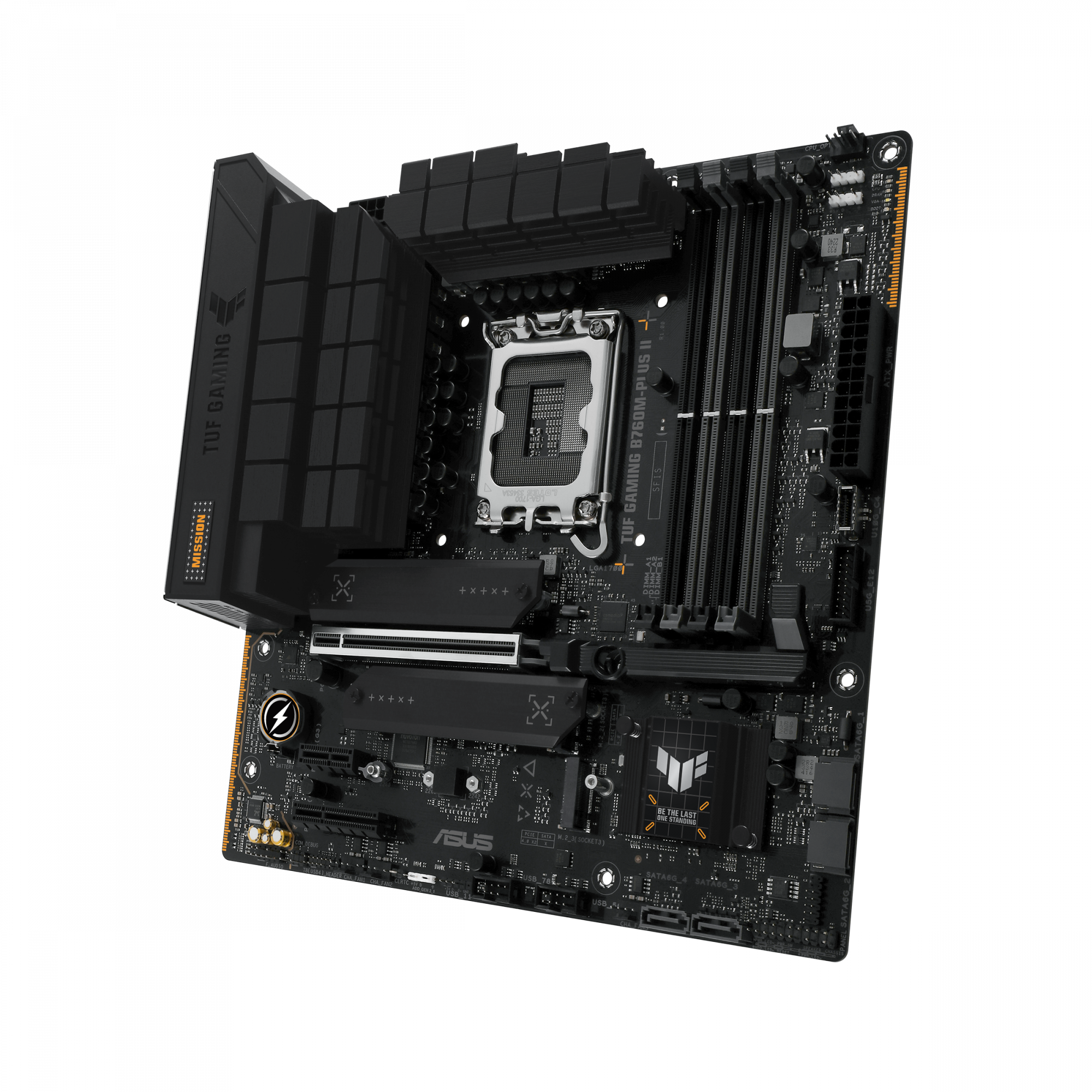

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
Roll over image to zoom inClick to Open expanded view
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX
Print
Model: TUF B760M-PLUS II
EAN: 4711387469798

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Manufacturer:
Asus
ASUS TUF GAMING B760M-PLUS II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • TUF B760M-PLUS II
  • EAN
  • 4711387469798
  • BIOS
  • BIOS memory size
  • 128 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x1 (Gen 3.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • PCI Express x4 (Gen 4.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel B760
  • Motherboard form factor
  • micro ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 3
  • Number of SATA III connectors
  • 4
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 7800 MHz
  • Supported memory clock speeds
  • 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features
  • Weight
  • 982 g
  • Packaging content
  • Cables included
  • SATA
  • Screws included
  • Yes
  • Packaging data
  • Package depth
  • 265 mm
  • Package height
  • 71 mm
  • Package weight
  • 1.65 kg
  • Package width
  • 280 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700

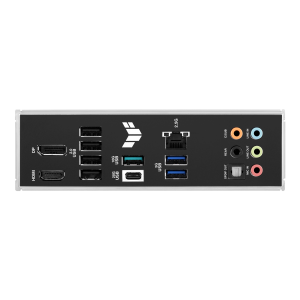

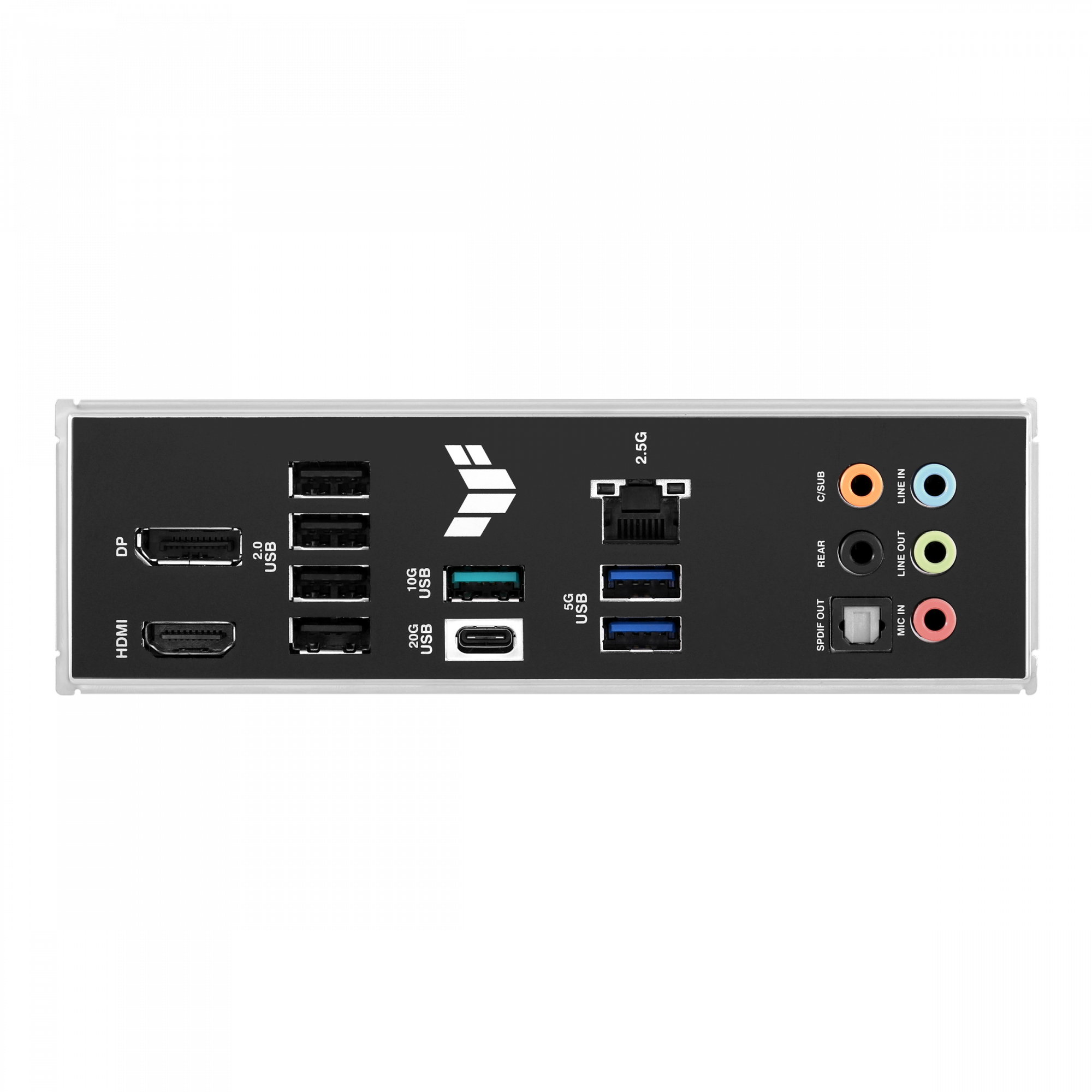

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 1
  • Microphone in
  • Yes
  • S/PDIF out port
  • Yes
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 7
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 50 mm
  • Width
  • 244 mm
