Description

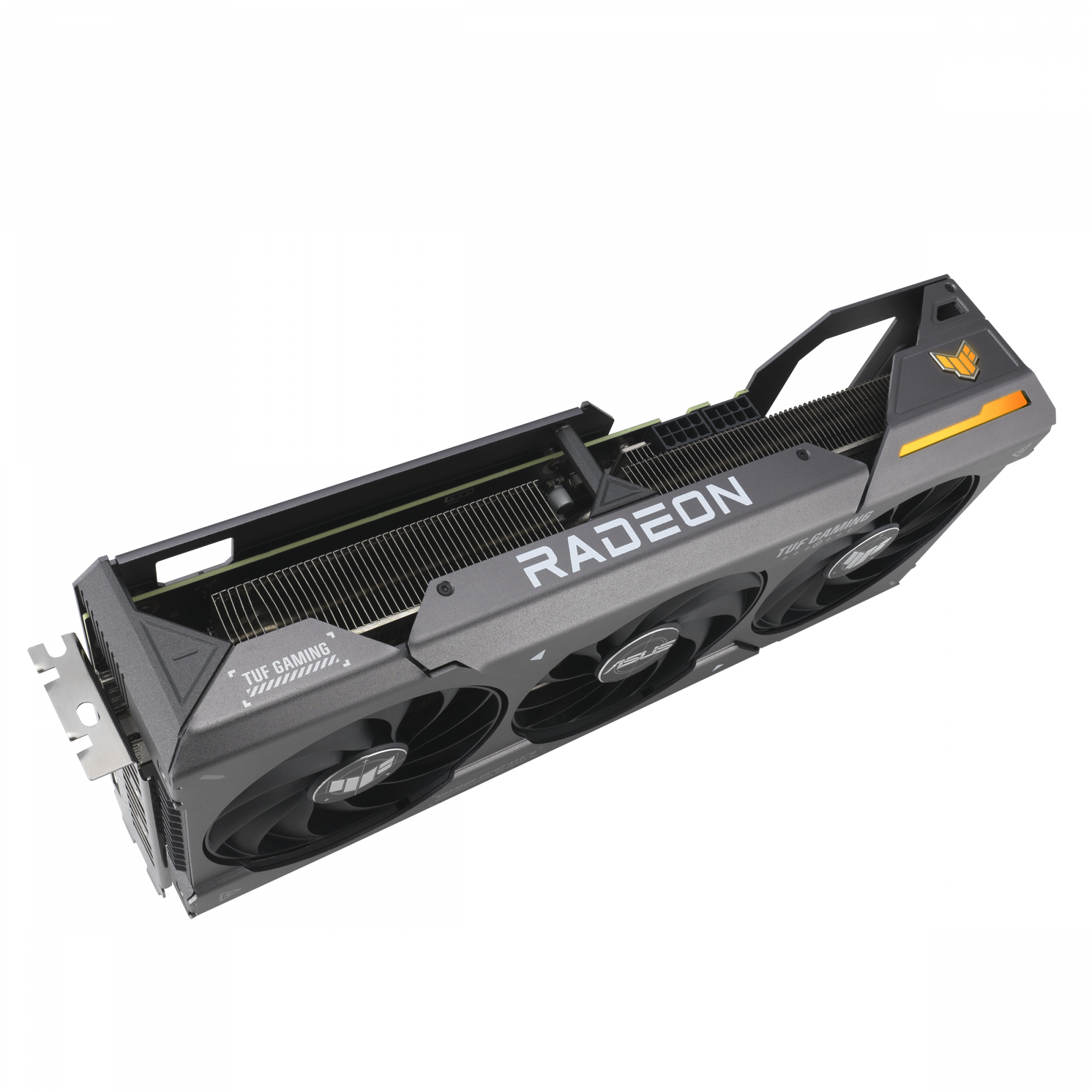

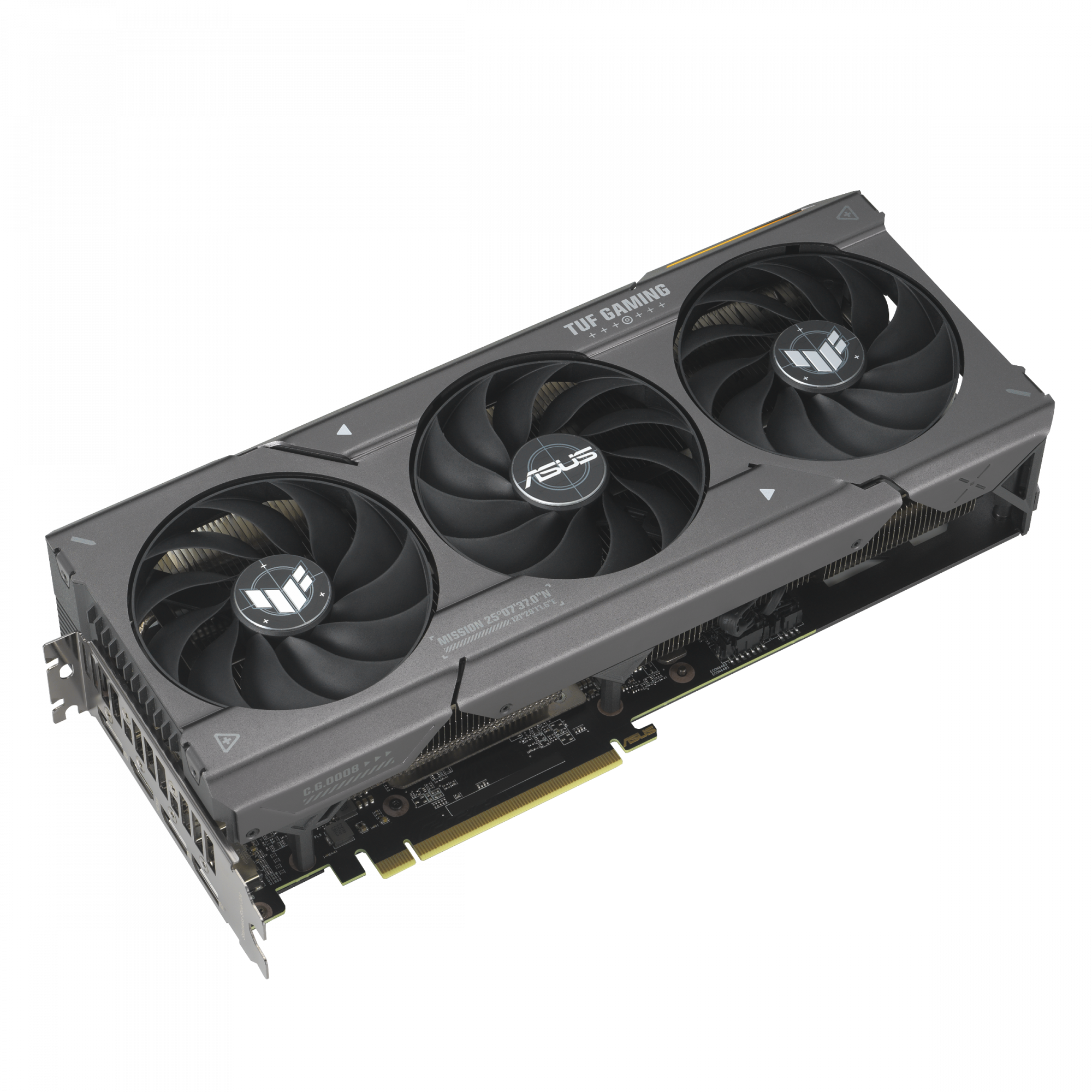

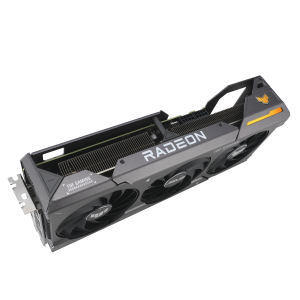

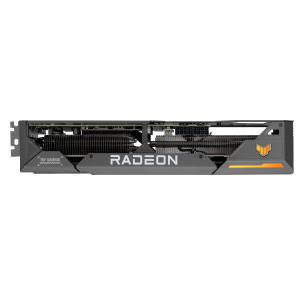

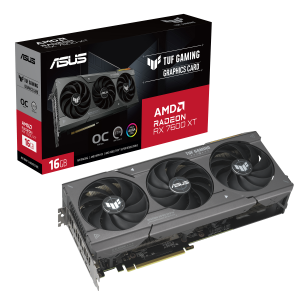

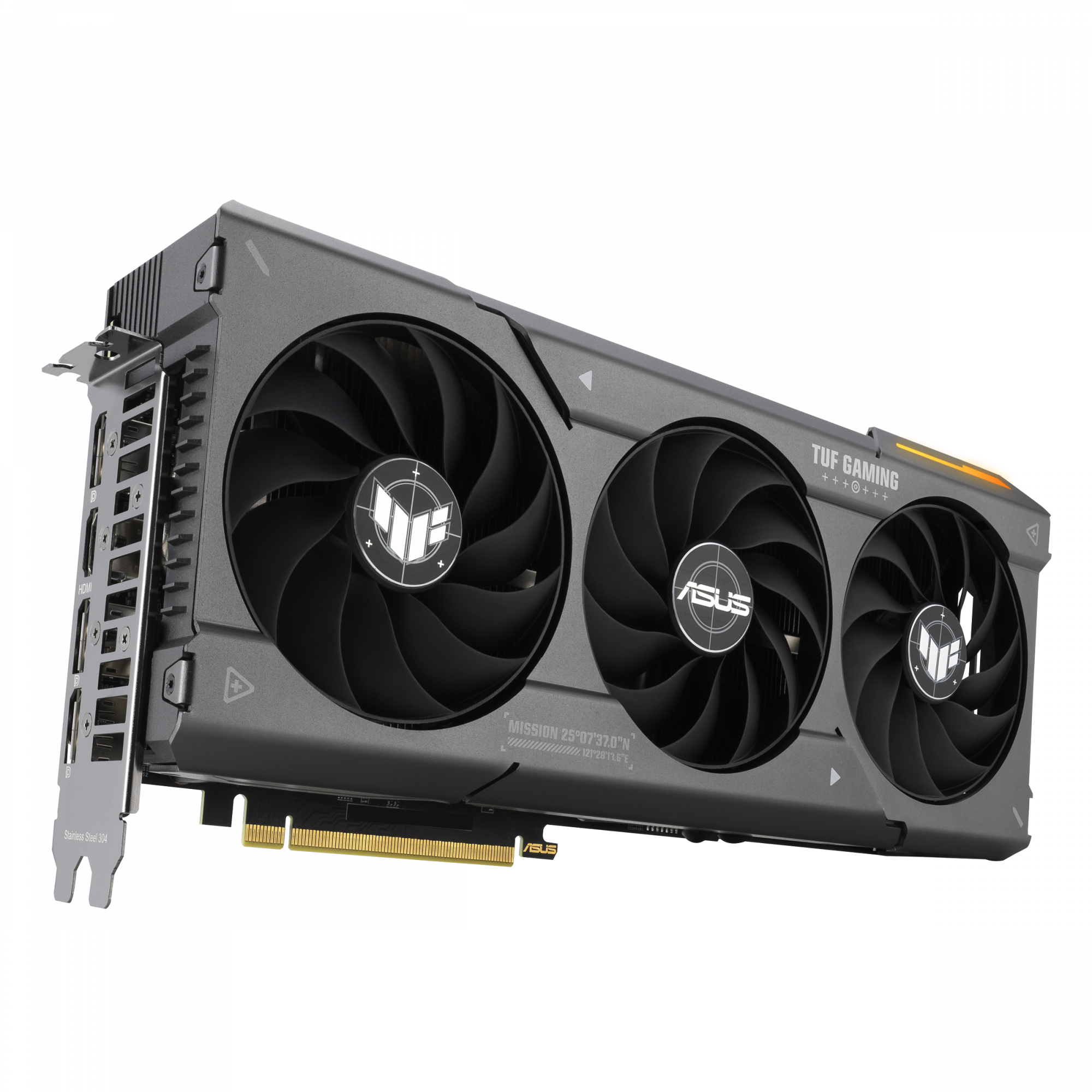

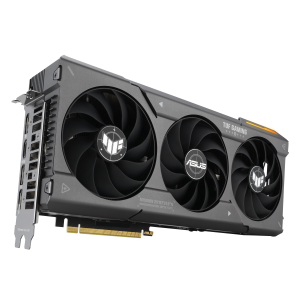

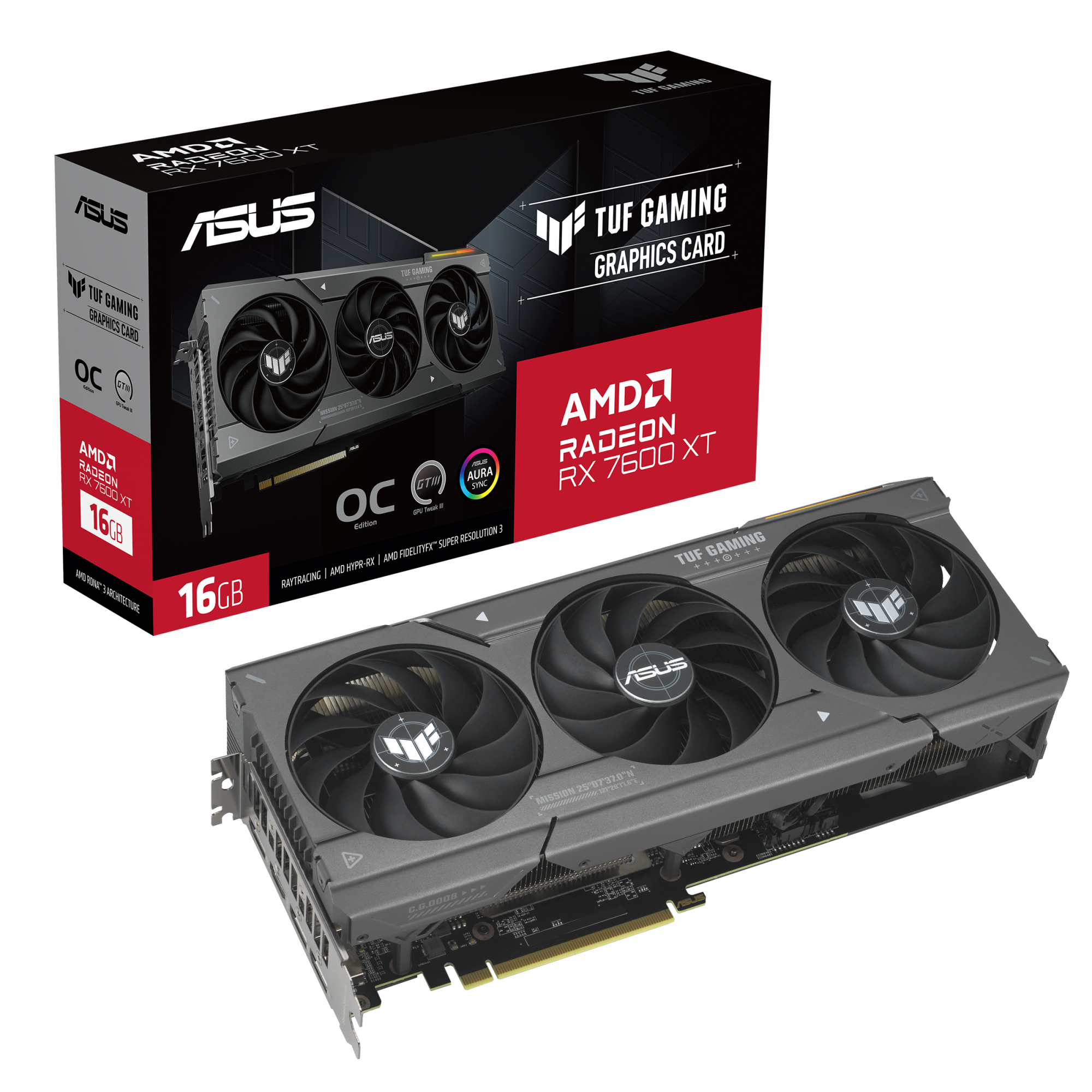

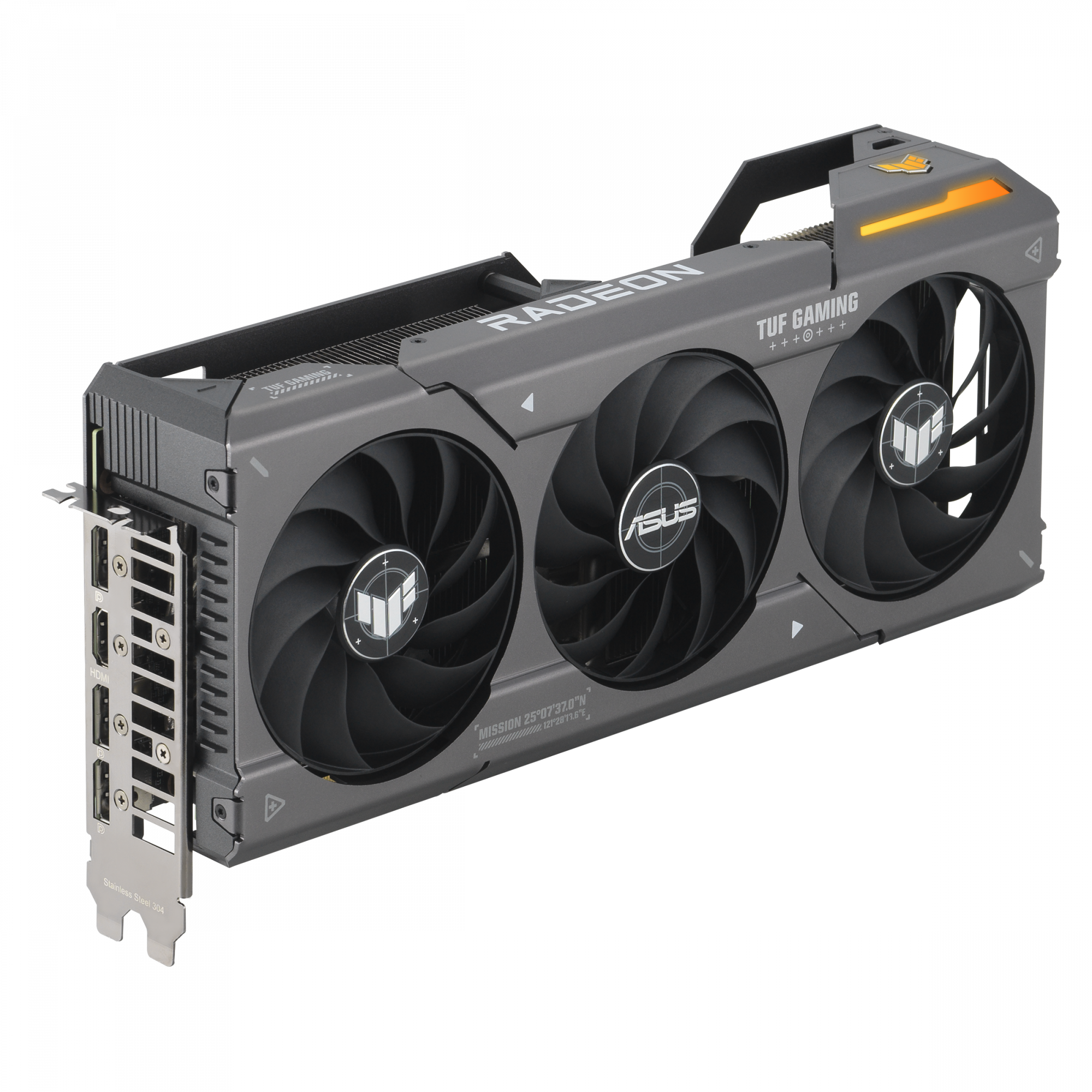

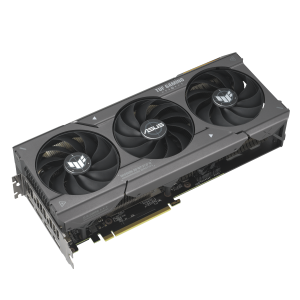

ASUS TUF Gaming TUF-RX7600XT-O16G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 7600 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

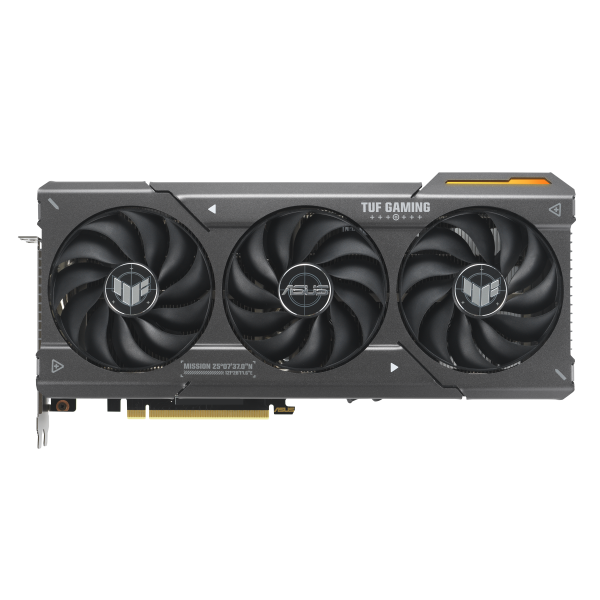

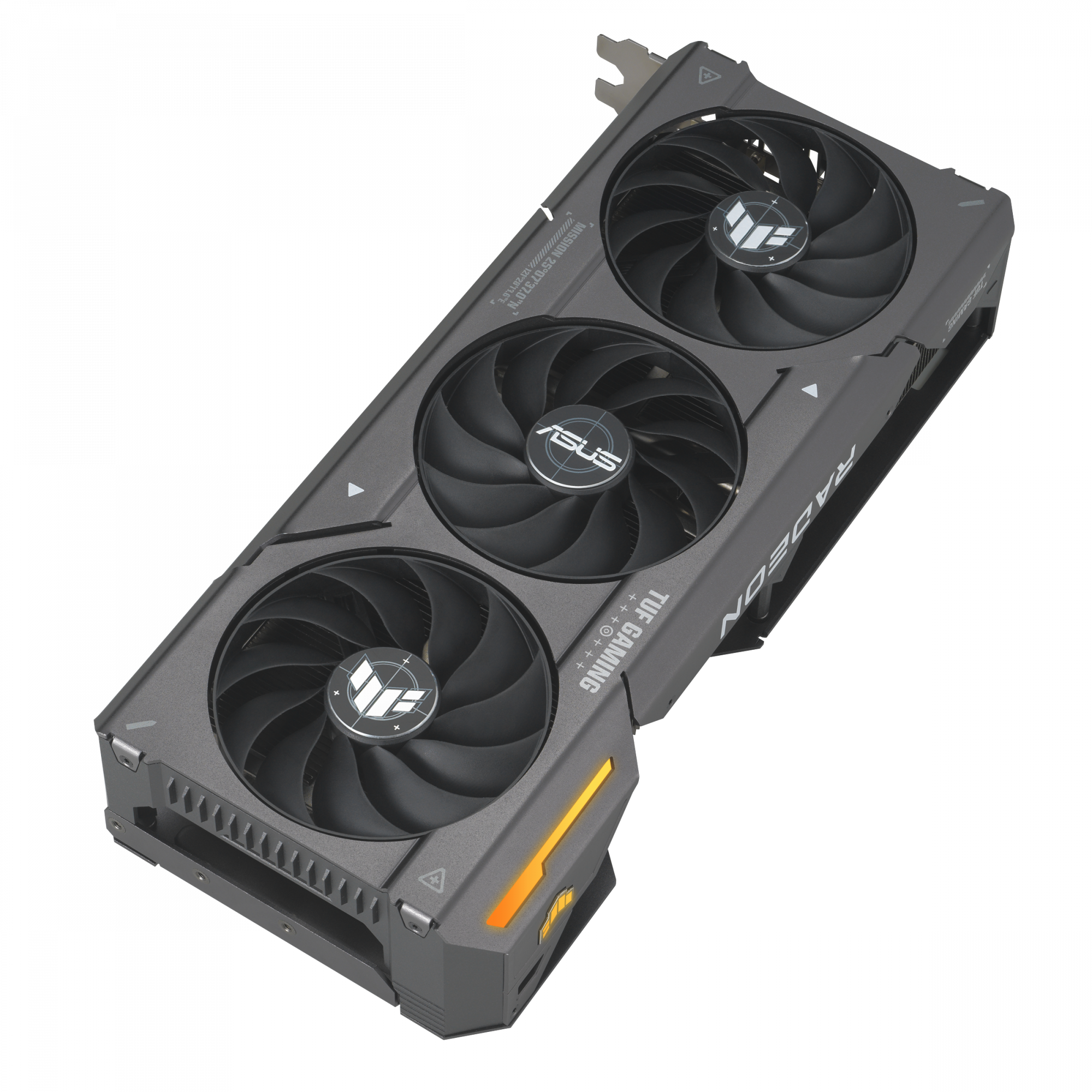

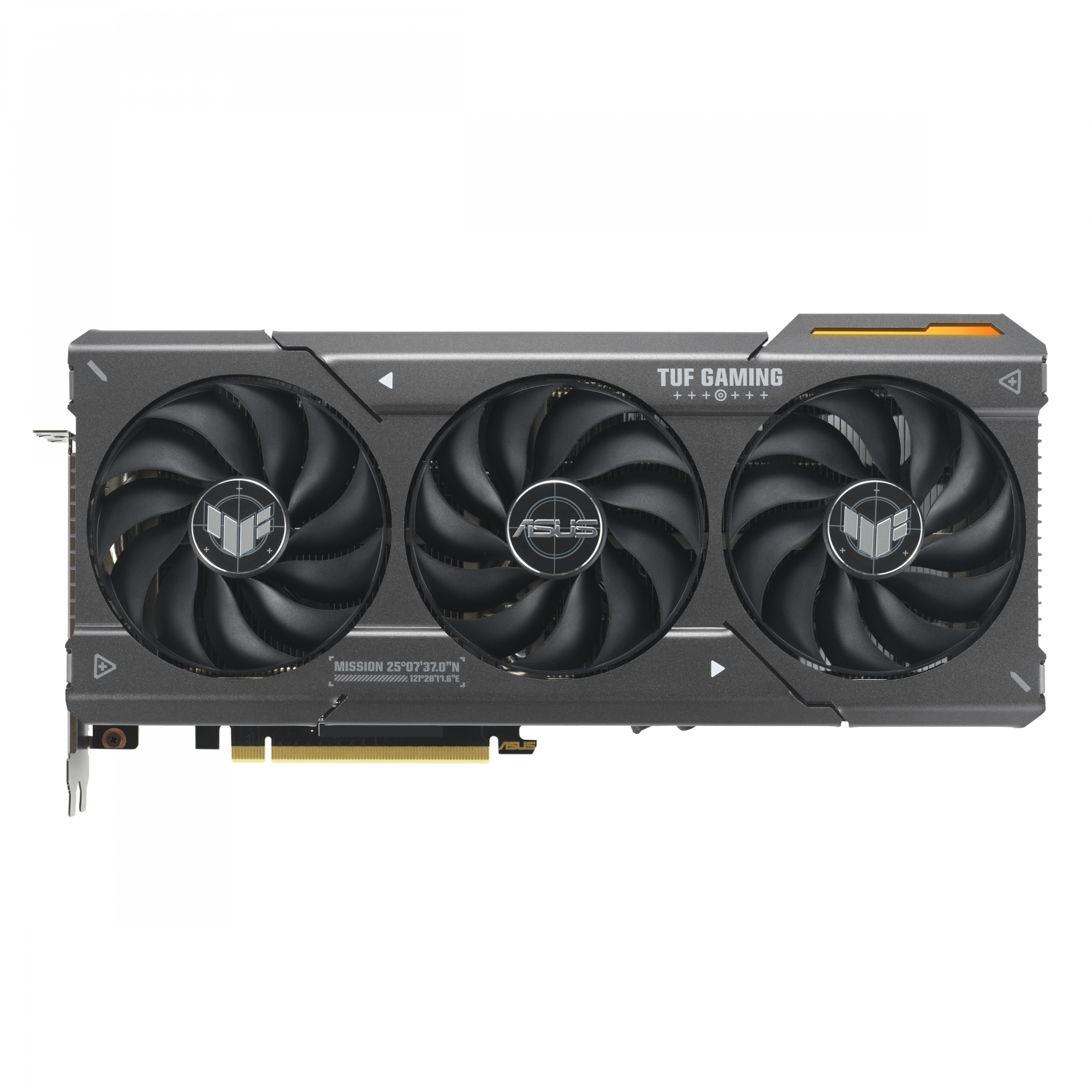

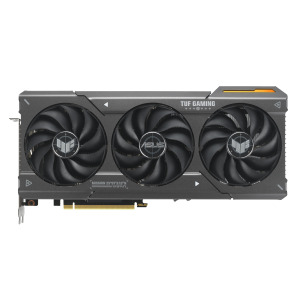

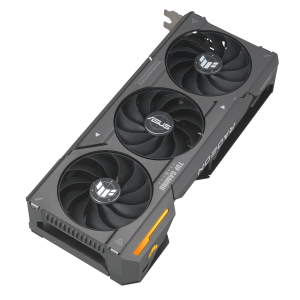

Axial-tech fan design: A smaller fan hub facilitates longer blades and a barrier ring that increases downward air pressure
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable

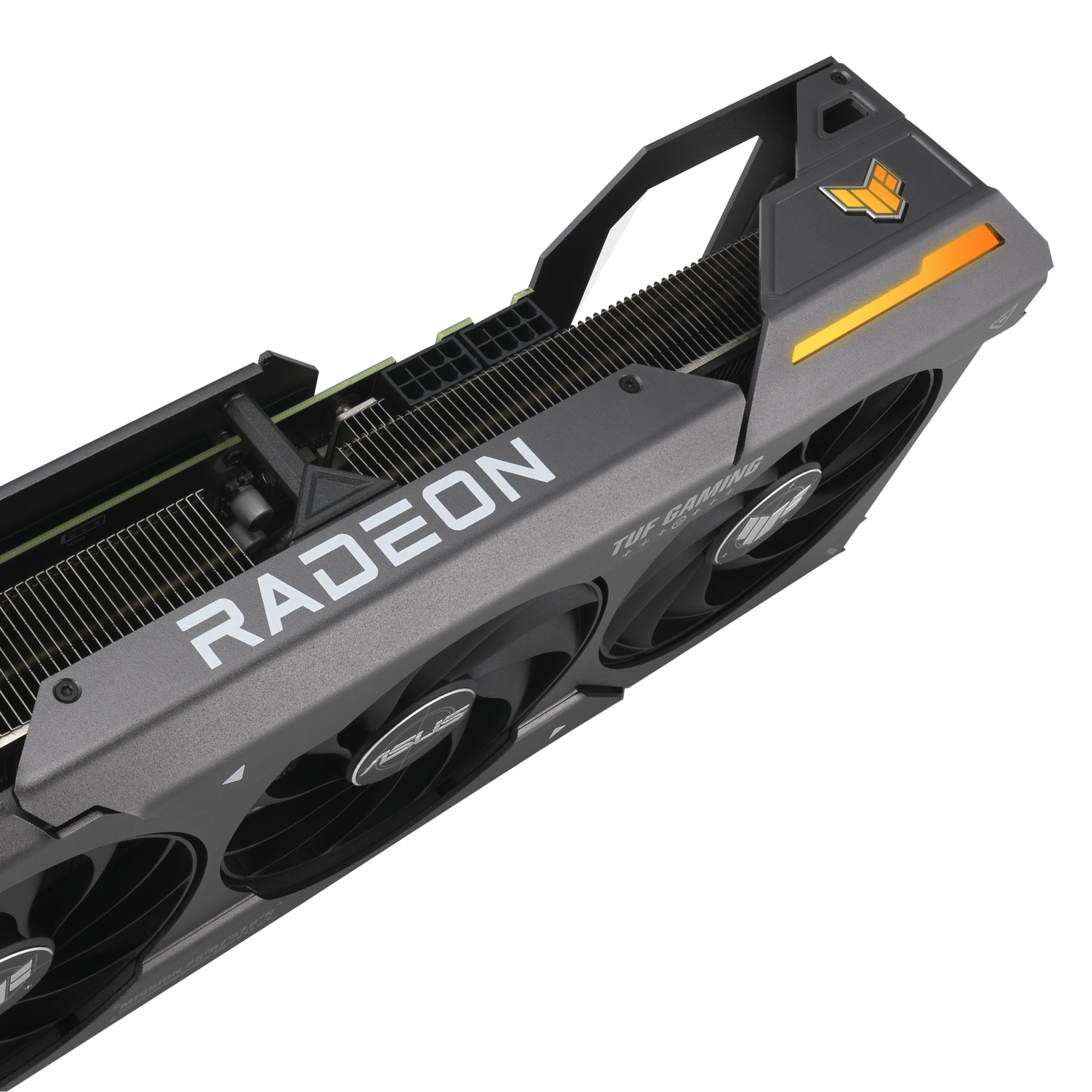

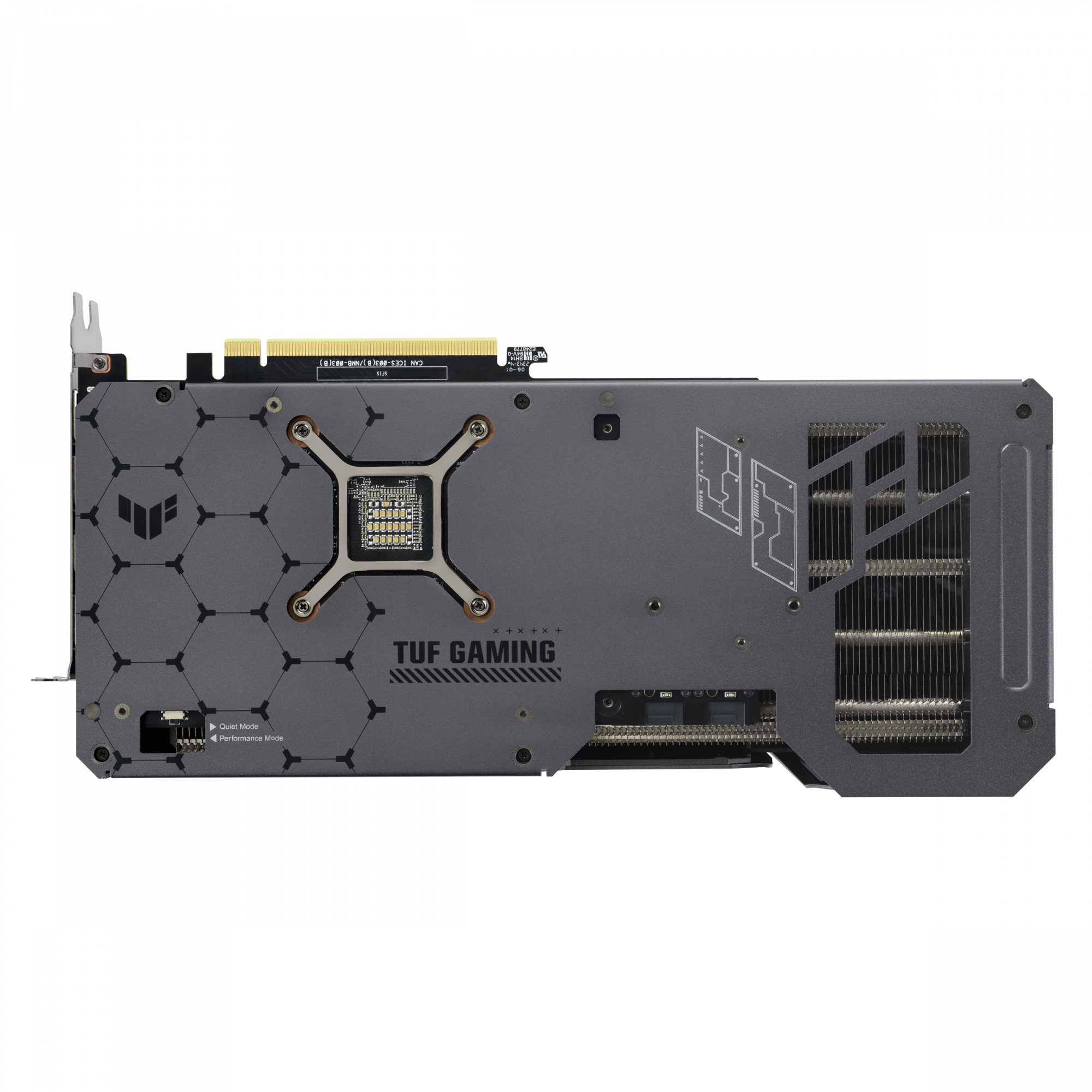

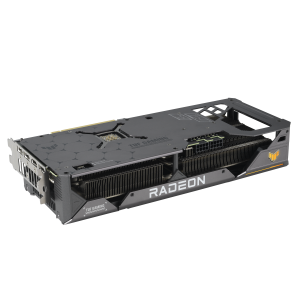

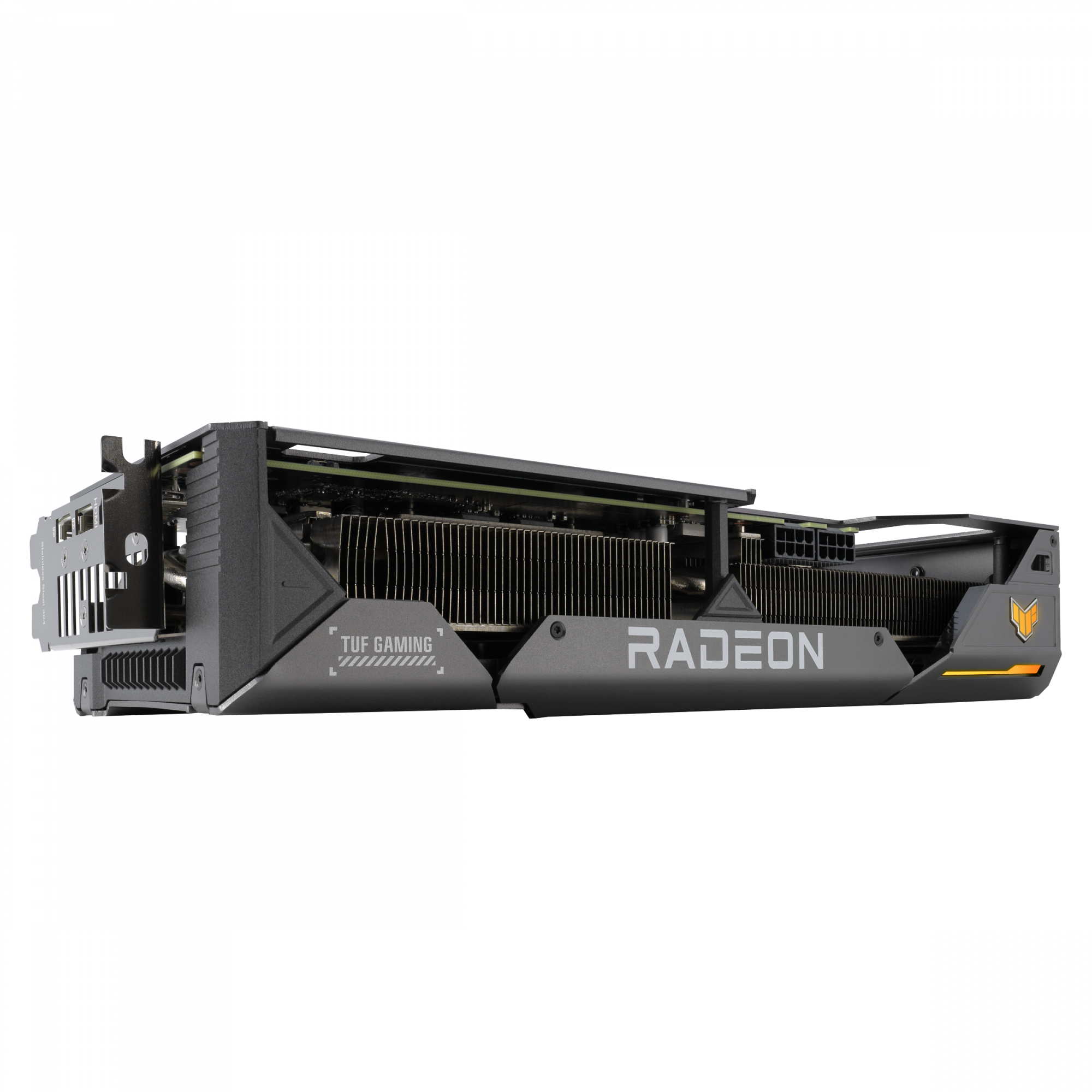

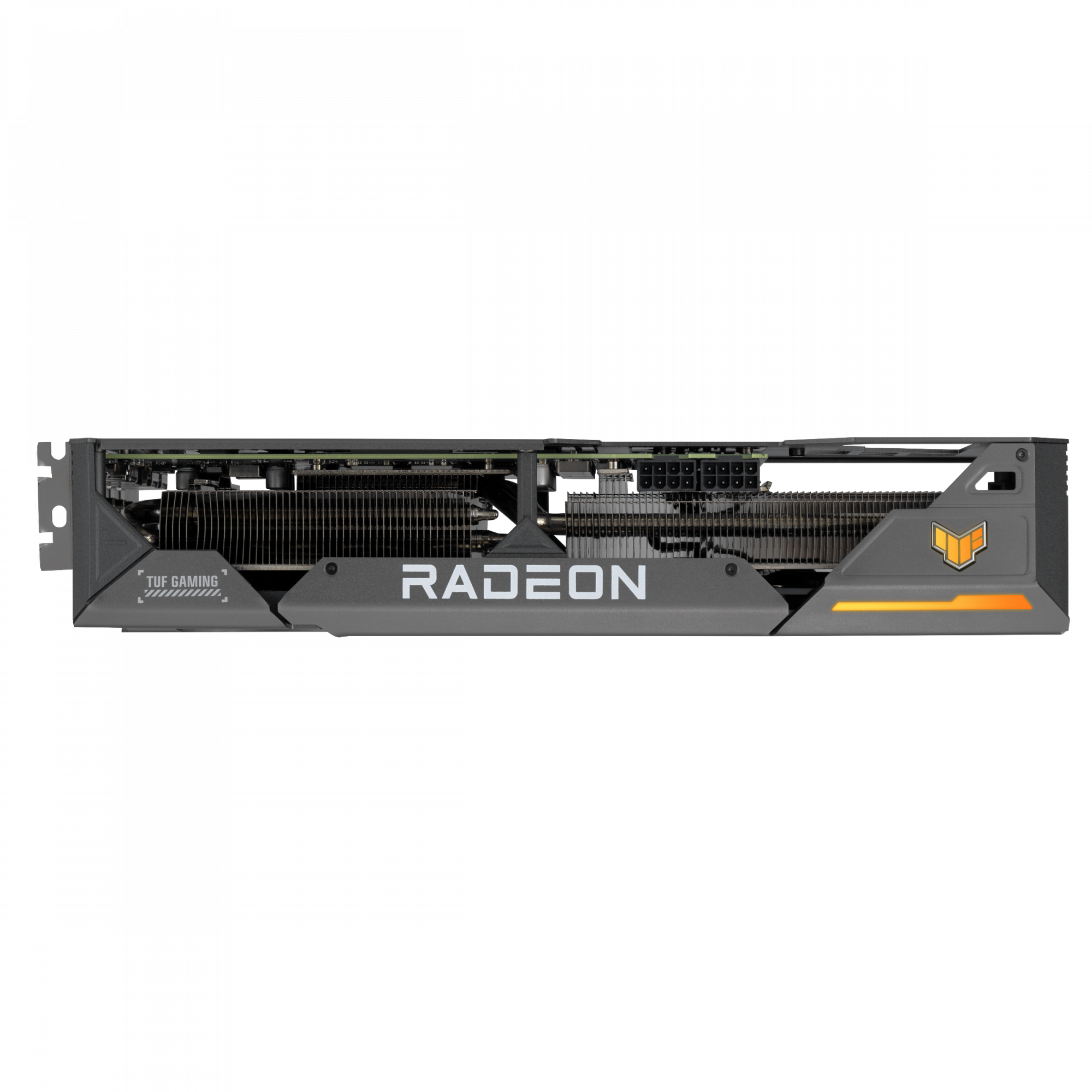

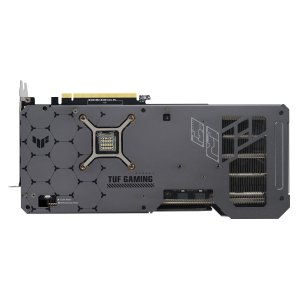

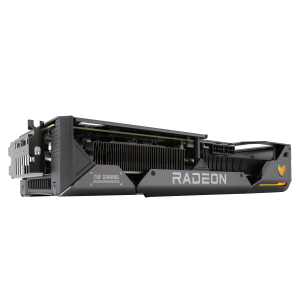

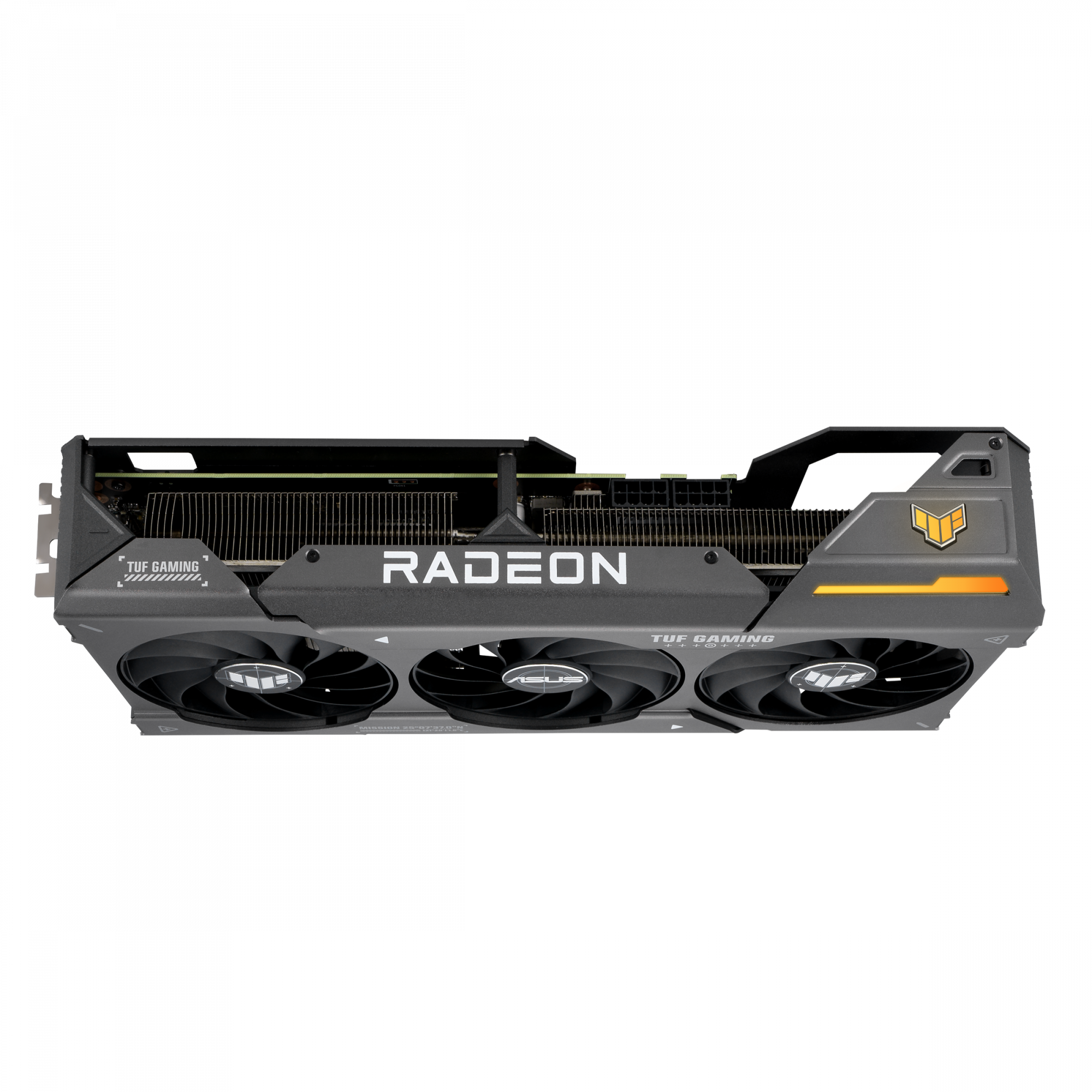

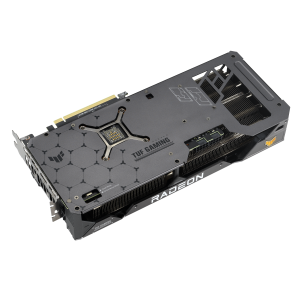

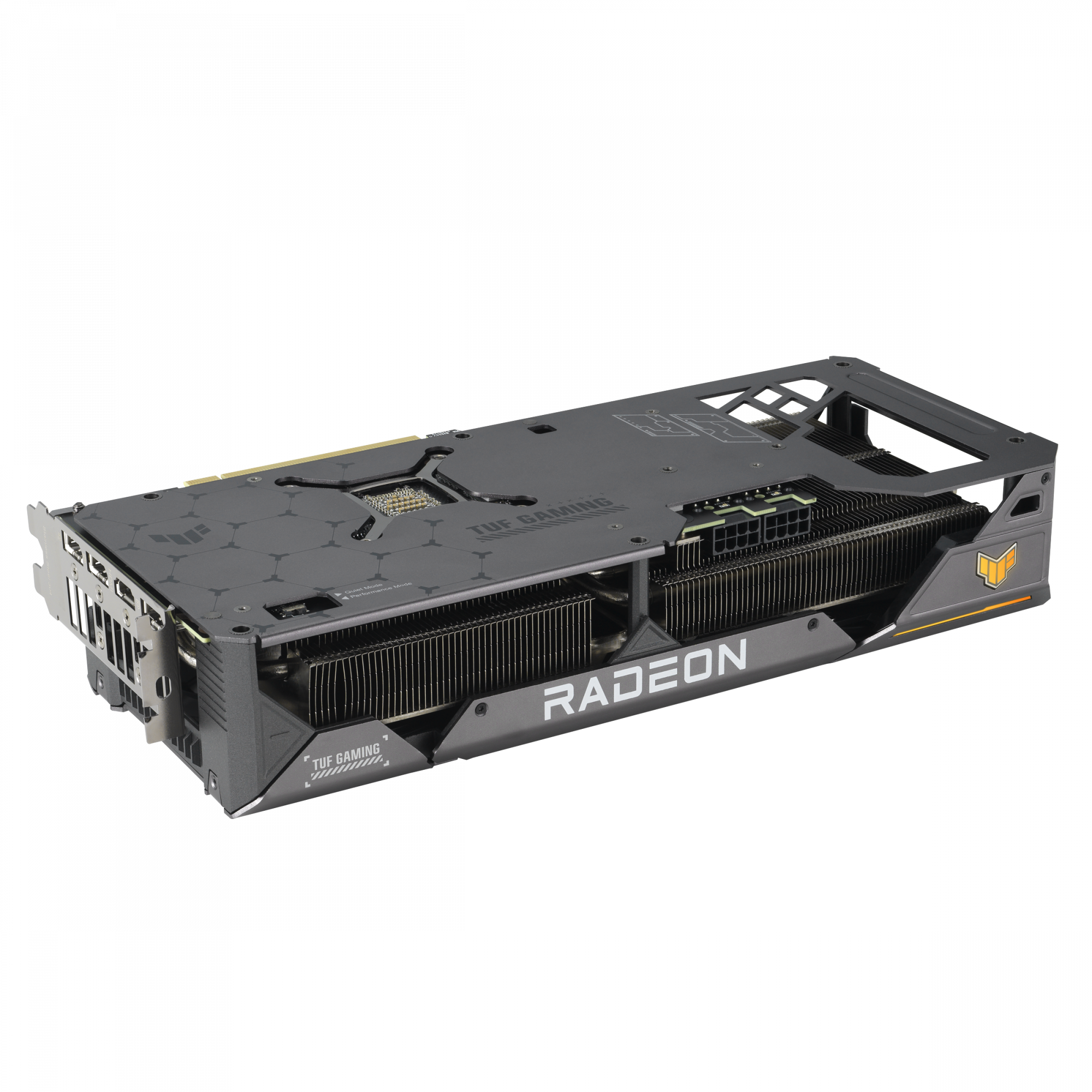

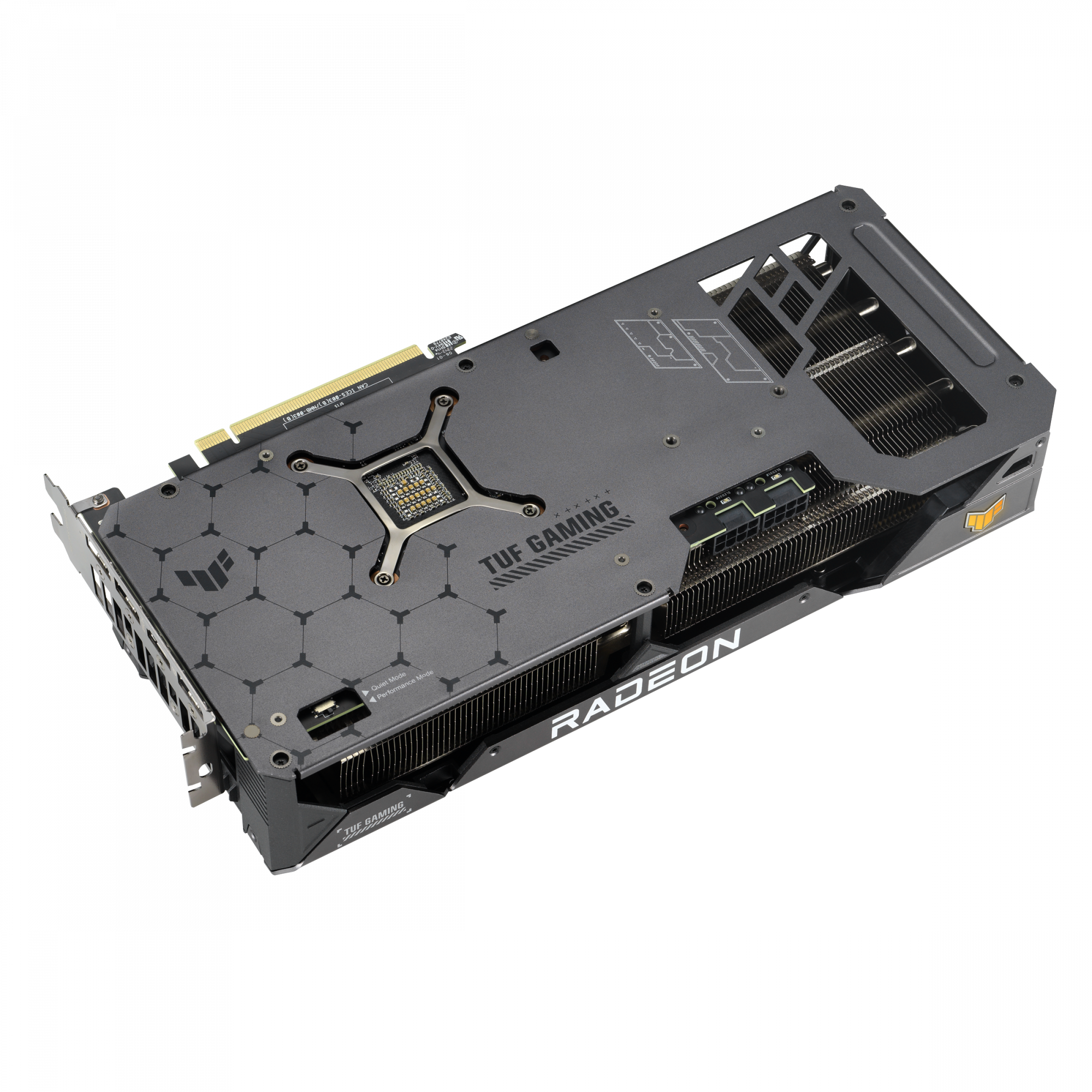

Metal exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Product Properties

Manufacturer
Asus

Model
TUF-RX7600XT-O16G-

EAN
4711387452295

Bullet points

Point
Auto-Extreme precision automated manufacturing for higher reliability

Axial-tech fan design

Dual Ball Fan Bearings last up to twice as long as conventional designs

Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation

Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Multi

Number of fans
3 fan(s)

Number of slots
2.96

Product colour
Black

Memory

Discrete graphics card memory
16 GB

Graphics card memory type
GDDR6

Memory bandwidth (max)
18 GB/s

Memory bus
128 bit

Packaging content

Manual
Yes

Packaging data

Package depth
227 mm

Package height
88 mm

Package type
Box

Package weight
1.92 kg

Package width
421 mm

Performance

AMD FreeSync
Yes

DirectX version
No

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

OpenGL version
4.6

TV tuner integrated
No

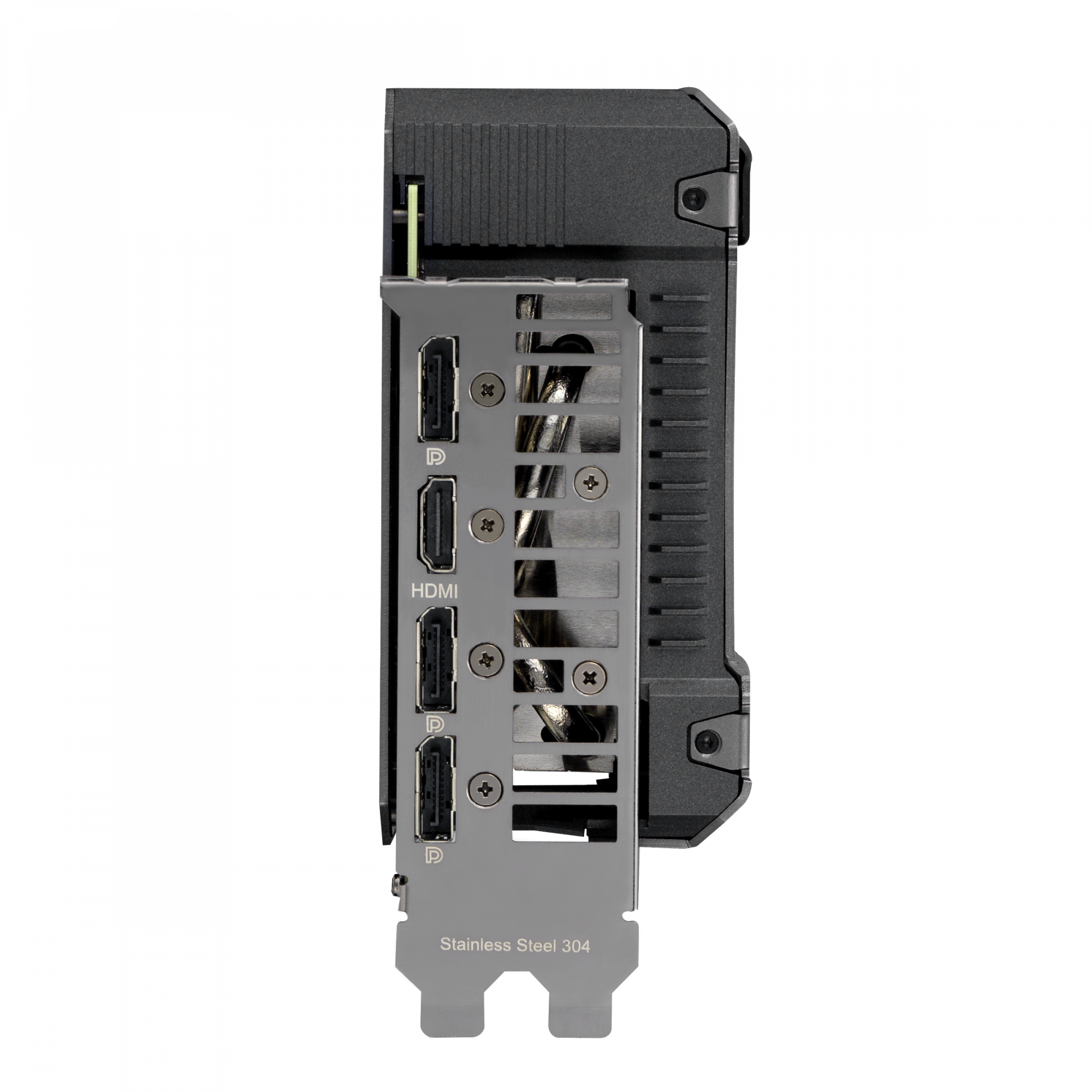

Ports & interfaces

DisplayPort version
2.1

DisplayPorts quantity
3

DVI-D ports quantity
0

DVI-I ports quantity
0

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Mini DisplayPorts quantity
0

Mini HDMI ports quantity
0

Thunderbolt 3 ports quantity
0

Power

Minimum system power supply
600 W

Supplementary power connectors
2x 8-pin

Processor

CUDA
No

Graphics processor
Radeon RX 7600 XT

Graphics processor family
AMD

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
2810 MHz

Processor boost clock speed (Gaming mode)
2559 MHz

Processor boost clock speed (OC mode)
2830 MHz

Stream processors
2048

System requirements

Windows operating systems supported
Yes

Weight & dimensions

Depth
59.2 mm

Height
142.8 mm

Length
300.2 mm

Weight
1.16 kg

ASUS TUF Gaming TUF-RX7600XT-O16G-GAMING AMD Radeon RX 7600 XT 16 GB GDDR6
