Product Properties

Manufacturer
Asus

Model
TUF X670EPLUS WIFI

EAN
4711081905738

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Mini PCI Express (Gen 1.x) slots
0

Mini PCI Express (Gen 2.x) slots
0

Mini PCI Express slot (full length)
0

Mini PCI Express slot (half-length)
0

Mini PCI Express slots
0

Number of M.2 (M) slots
4

PCI Express OCuLink connectors (NVMe support)
0

PCI Express x1 (Gen 2.x) slots
0

PCI Express x1 (Gen 3.x) slots
0

PCI Express x1 (Gen 4.x) slots
0

PCI Express x1 slots
0

PCI Express x16 (Gen 2.x) slots
0

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
0

PCI Express x16 (Gen 3.x) slots
0

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

PCI Express x16 slots
0

PCI Express x4 (Gen 1.x) slots
0

PCI Express x4 (Gen 2.x) slots
0

PCI Express x4 (Gen 4.x) slots
0

PCI Express x4 slots
1

PCI Express x8 (Gen 1.x) slots
0

PCI Express x8 slots
0

PCI slots
0

PCI-X slots
0

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD X670

Motherboard form factor
ATX

Power source type
ATX

Product colour
Black

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Maximum resolution
7680 x 4320 pixels

On-board graphics card
No

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Front panel connector
Yes

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
4

Peripheral (Molex) power connectors (4-pin)
1

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
3

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

USB 3.2 Gen 2x2 connectors
0

Memory

ECC сompatibility
ECC & Non-ECC

Memory channels
Dual-channel

Memory Slot Support
192 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speed (max)
6400 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Other features

mSATA ports quantity
0

Packaging content
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide

Special features
TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header

Packaging content

Cables included
SATA

Drivers included
Yes

User guide
Yes

Packaging data

Package depth
273 mm

Package height
68 mm

Package weight
2.55 kg

Package width
338 mm

Processor

Compatible processor series
AMD Ryzen 7000 Series

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

Rear panel I/O ports

DisplayPorts quantity
1

DVI-D ports quantity
0

DVI-I ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

PS/2 ports quantity
0

S/PDIF out port
No

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

USB4 Gen 2x2 ports quantity
0

USB4 Gen 3x2 ports quantity
0

VGA (D-Sub) ports quantity
0

Storage controllers

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

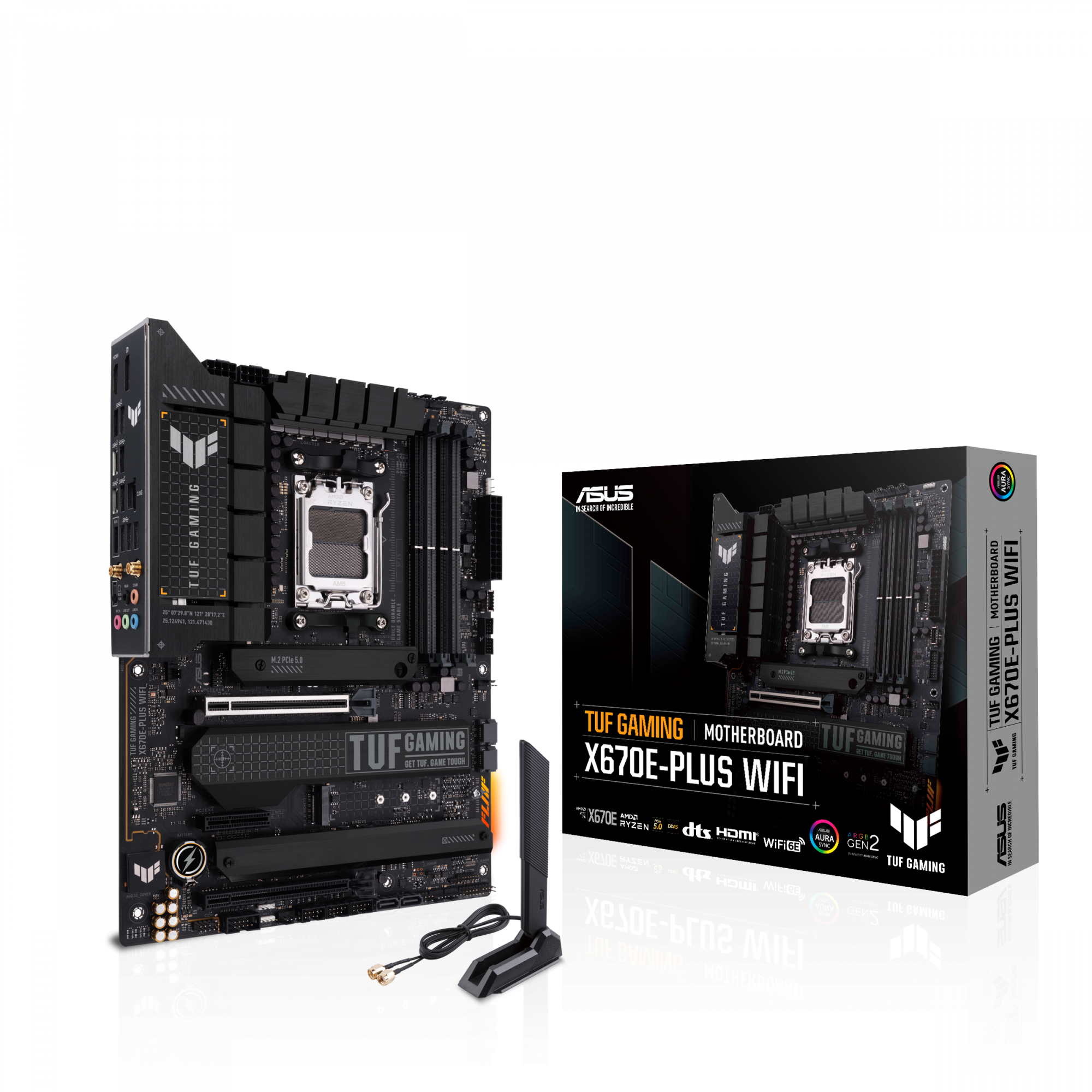

ASUS TUF GAMING X670E-PLUS WIFI AMD X670 Socket AM5 ATX
