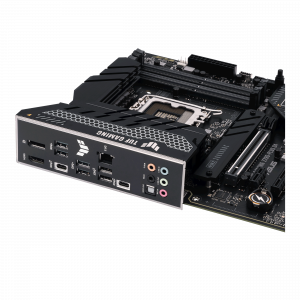

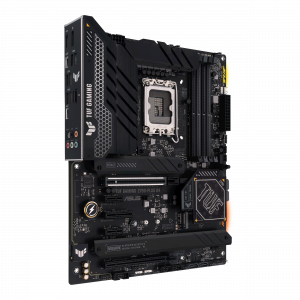

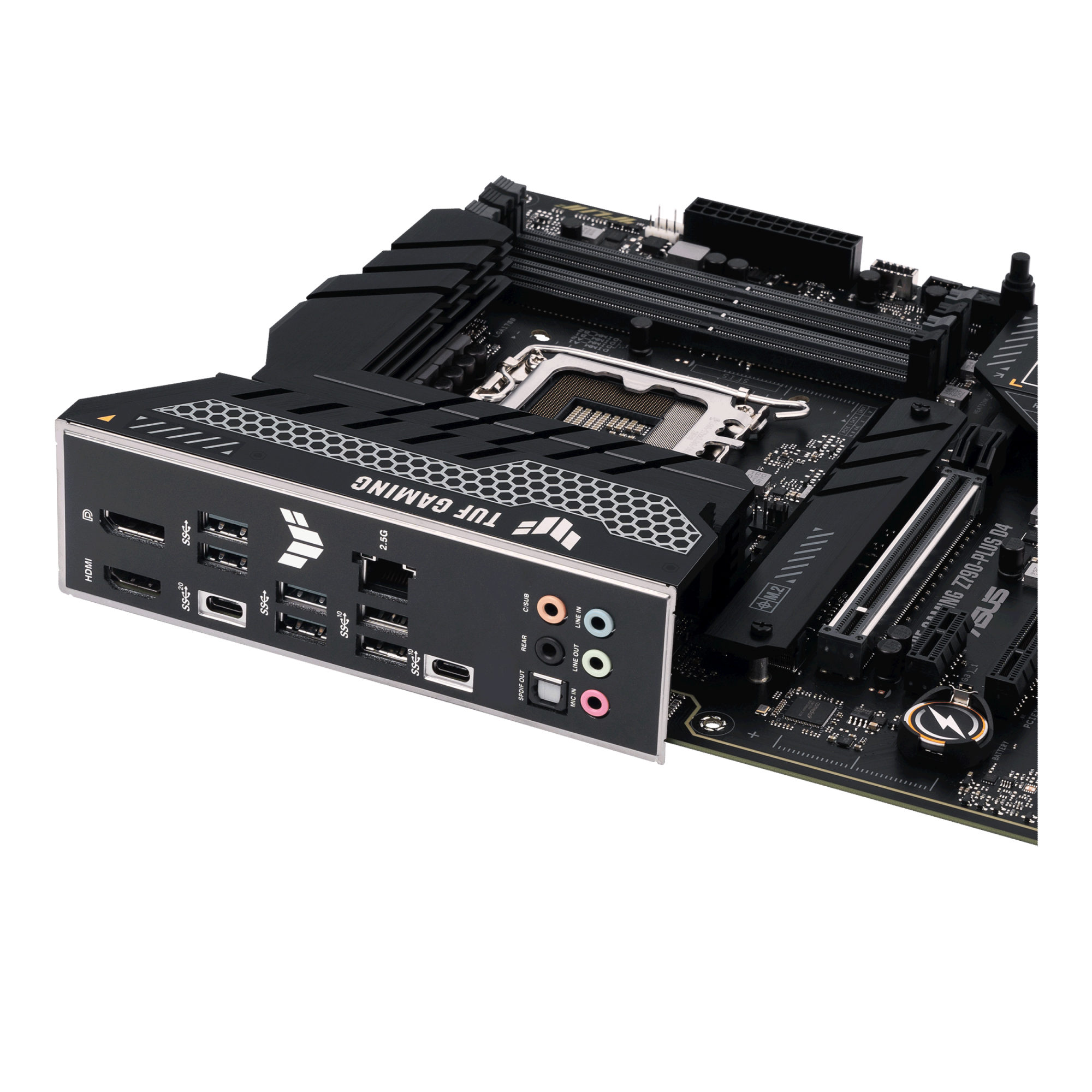

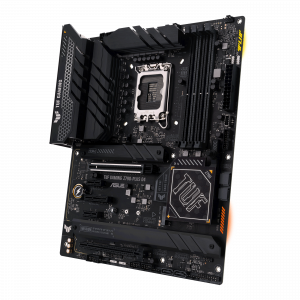

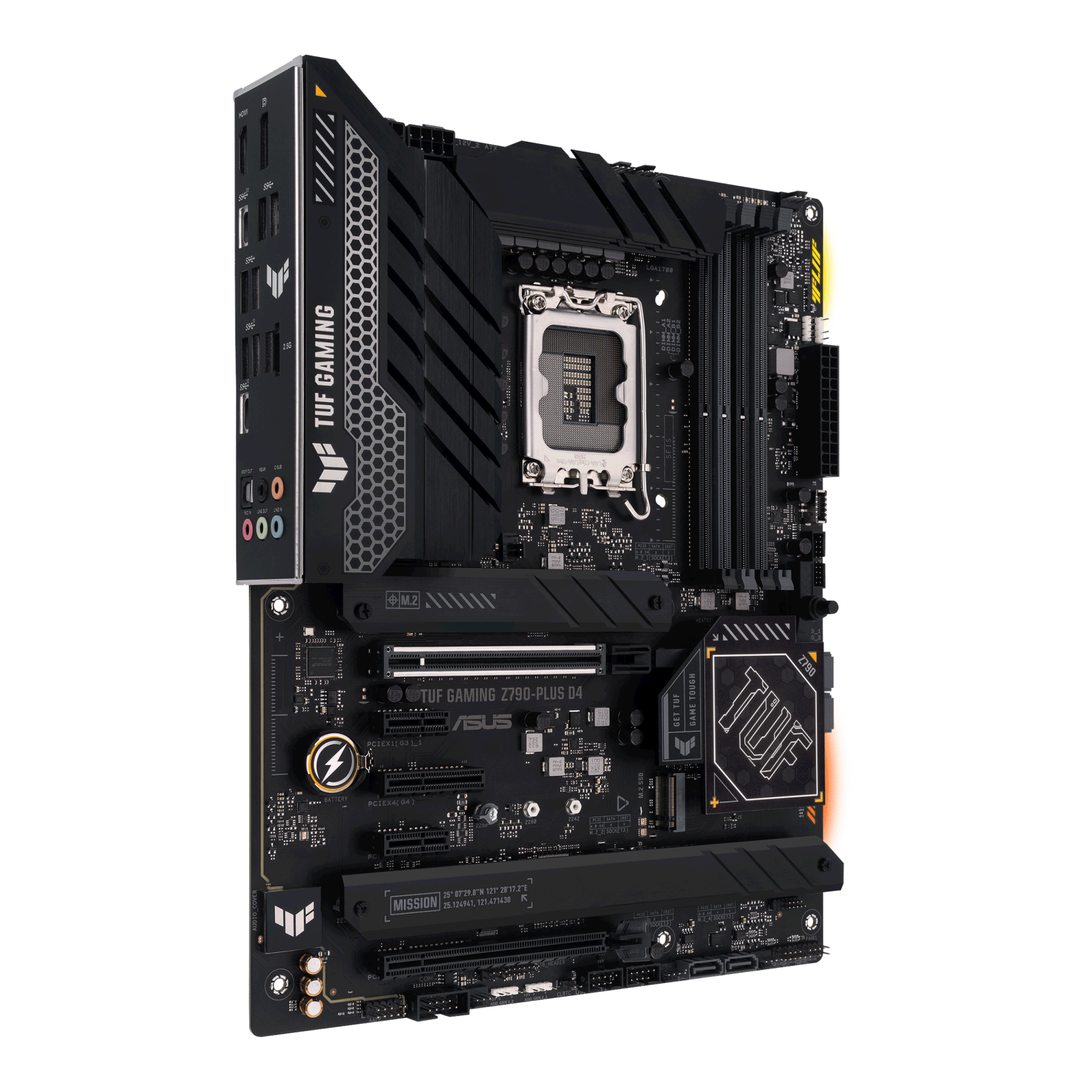

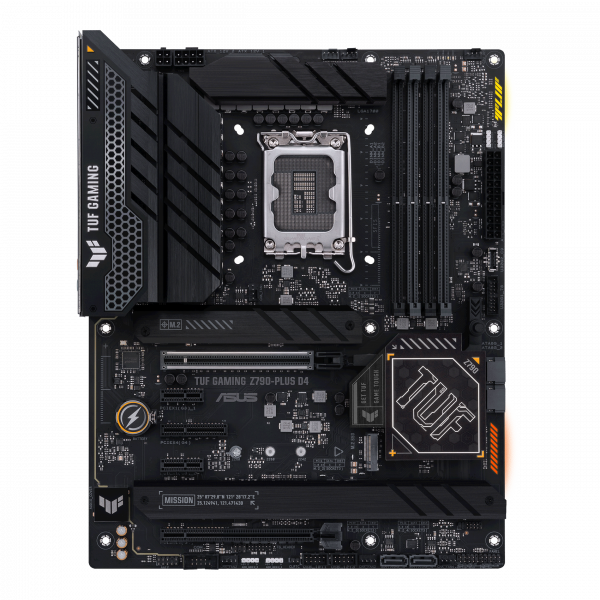

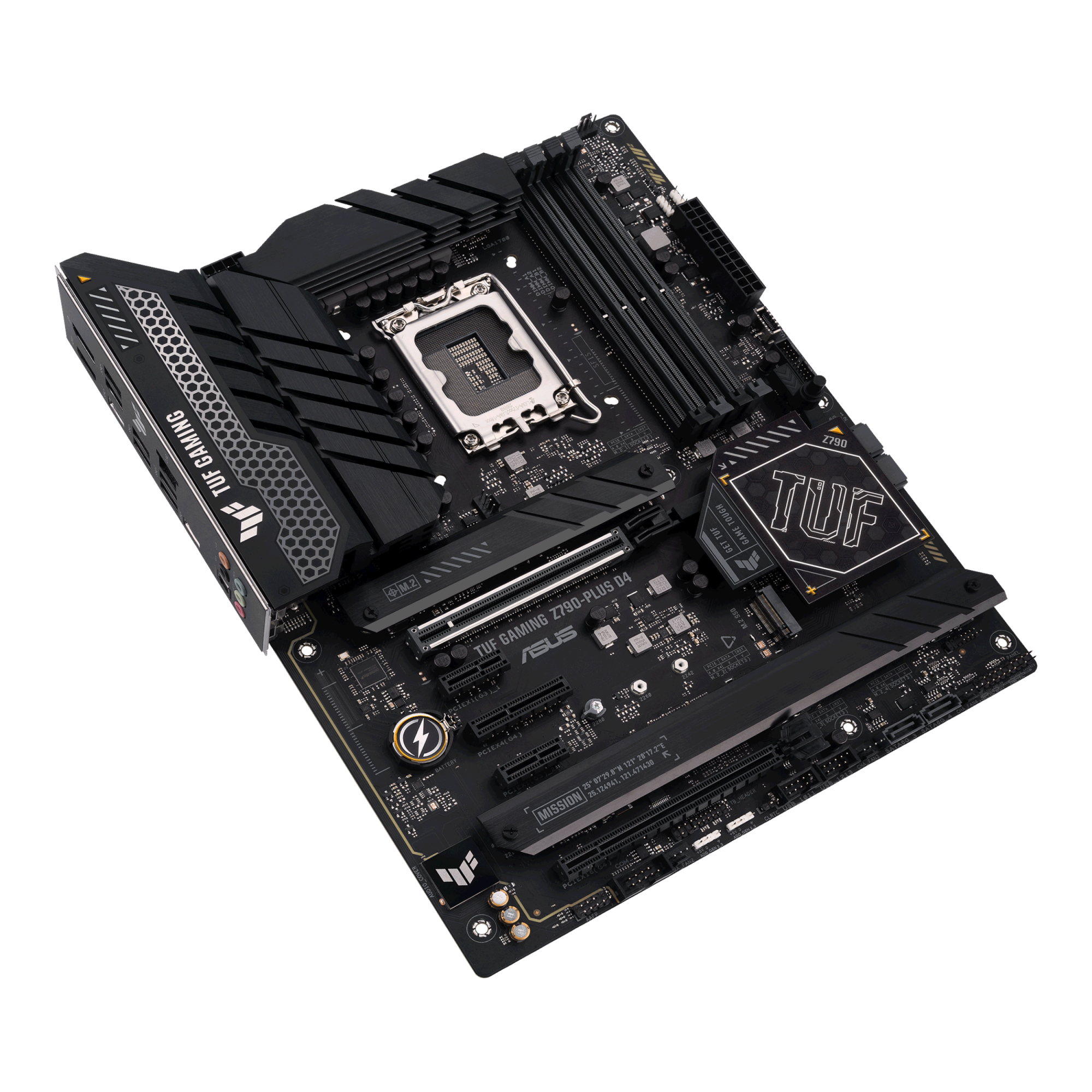

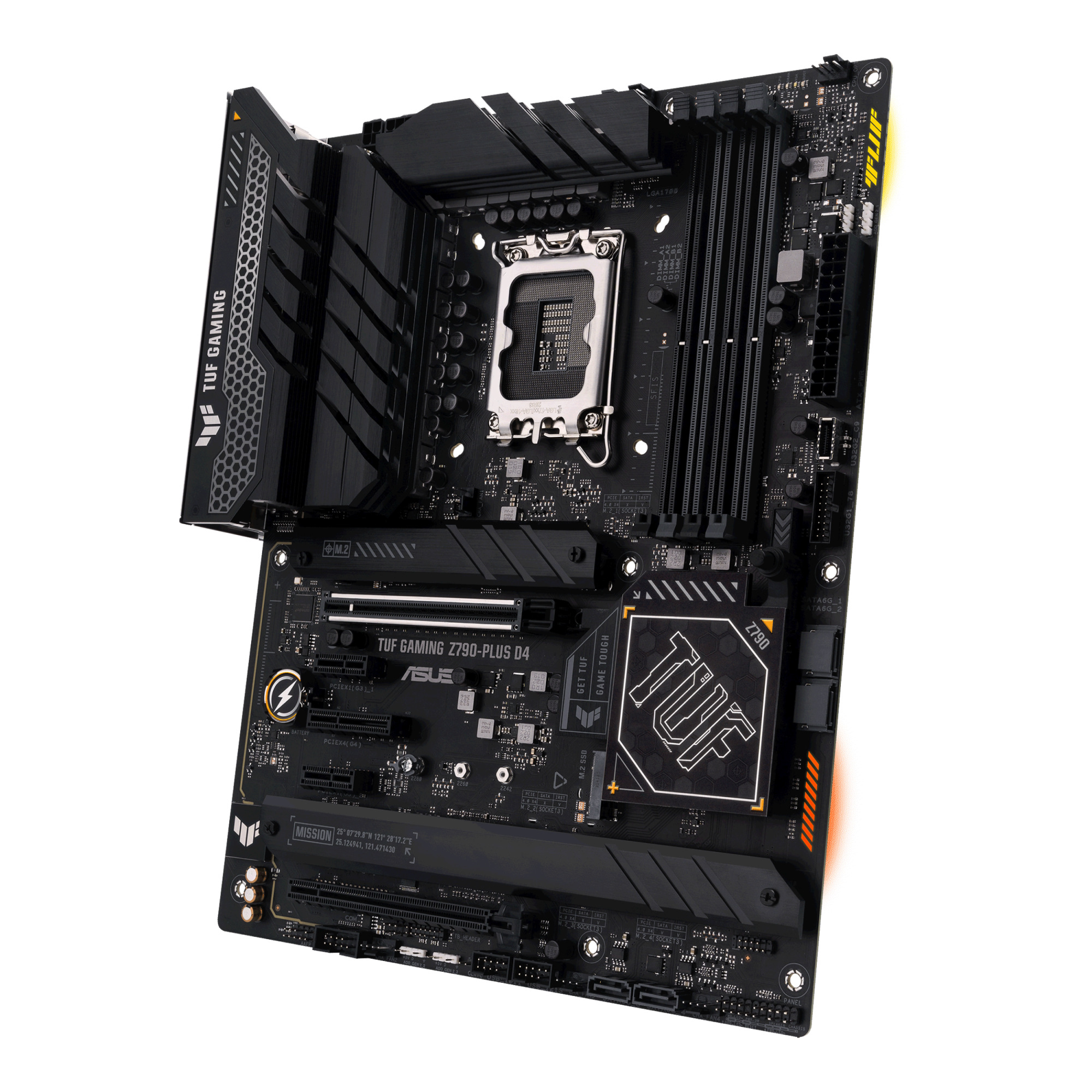

ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX
Print
Model: TUF GAMING Z790-PL
EAN: 4711081944973

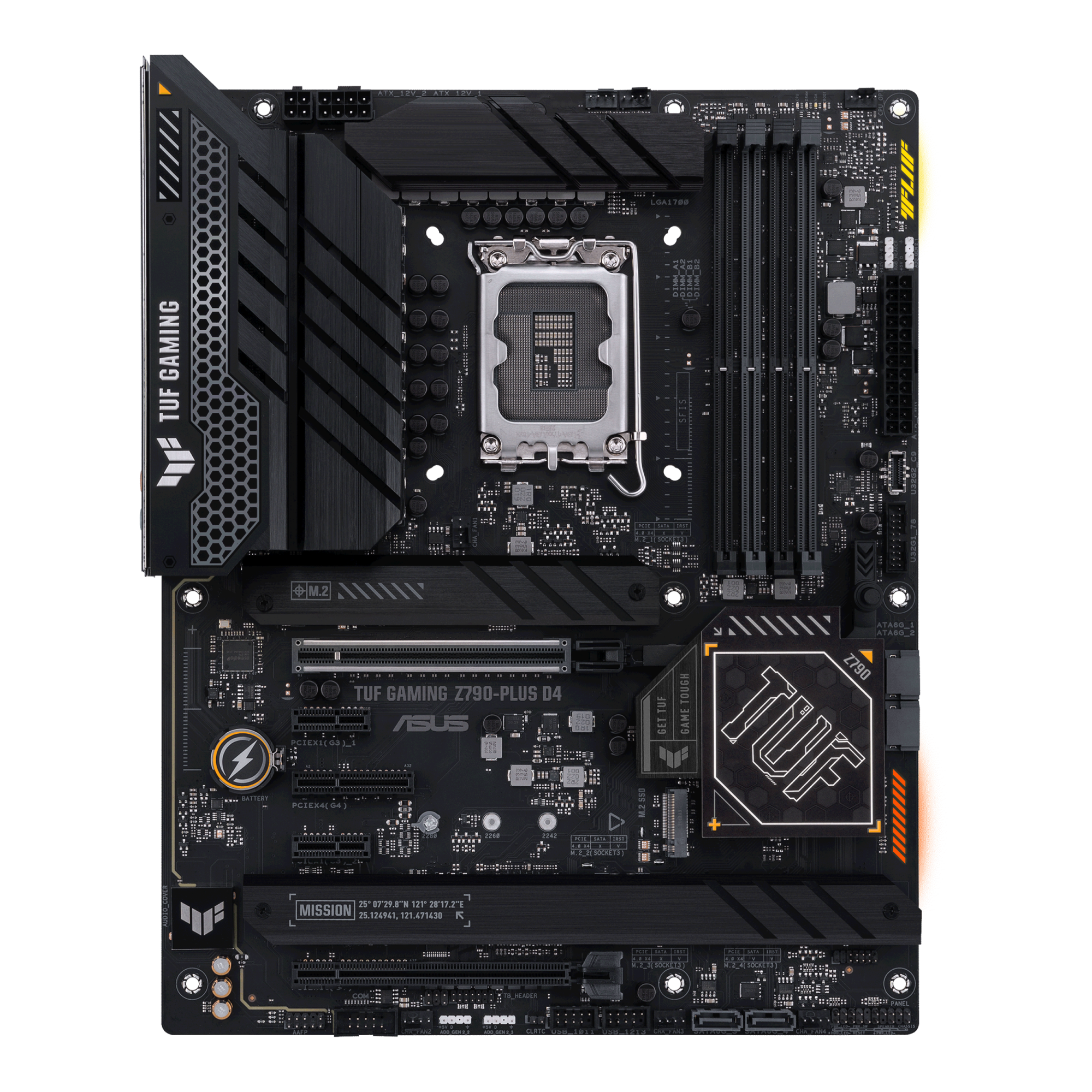

ASUS TUF GAMING Z790-PLUS D4 Intel Z790 LGA 1700 ATX

Manufacturer:
Asus
ASUS TUF GAMING Z790-PLUS D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS TUF GAMING Z790-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • TUF GAMING Z790-PL
  • EAN
  • 4711081944973
  • BIOS
  • BIOS memory size
  • 192 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x1 (Gen 3.x) slots
  • 2
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • PCI Express x4 (Gen 4.x) slots
  • 1
  • Features
  • Audio chip
  • Realtek S1220A
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel Z790
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11 x64
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 5333 MHz
  • Supported memory clock speeds
  • 5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features
  • Weight
  • 1.33 kg
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Package depth
  • 70 mm
  • Package height
  • 275 mm
  • Package weight
  • 2.14 kg
  • Package width
  • 340 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700
  • Rear panel I/O ports
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • S/PDIF out port
  • Yes
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • Storage controllers
  • Number of storage drives supported
  • 8
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 49 mm
  • Width
  • 305 mm
