Description

ASUS TUF GAMING Z790-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
TUF Z790-PLUS WIFI

EAN
4711387014509

BIOS

BIOS memory size
192 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
4

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

PCI Express x4 (Gen 4.x) slots
1

Features

Audio chip
Realtek S1220A

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel Z790

Motherboard form factor
ATX

Power source type
ATX

Product colour
Black

Windows operating systems supported
Windows 10, Windows 11

Graphics

On-board graphics card
No

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA connectors
0

Number of SATA II connectors
0

Number of SATA III connectors
4

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

ECC сompatibility
Non-ECC

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Number of memory slots
4

Supported memory clock speed (max)
7200 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

mSATA ports quantity
0

Packaging content

Cables included
SATA

User guide
Yes

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

DVI-D ports quantity
0

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

S/PDIF out port
Yes

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

VGA (D-Sub) ports quantity
0

WiFi-AP antenna jack
2

Storage controllers

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

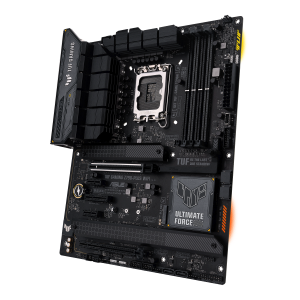

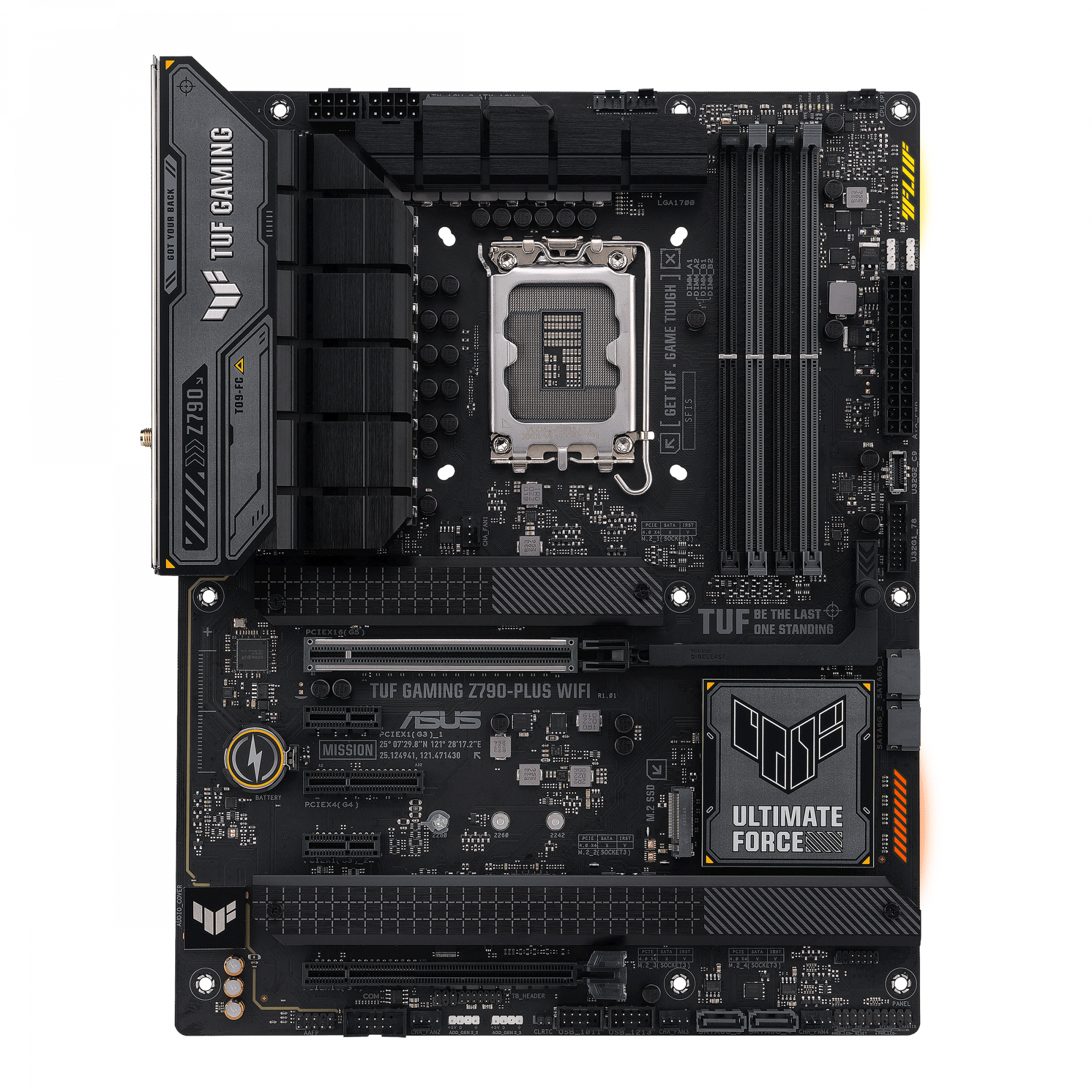

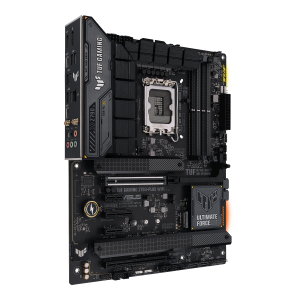

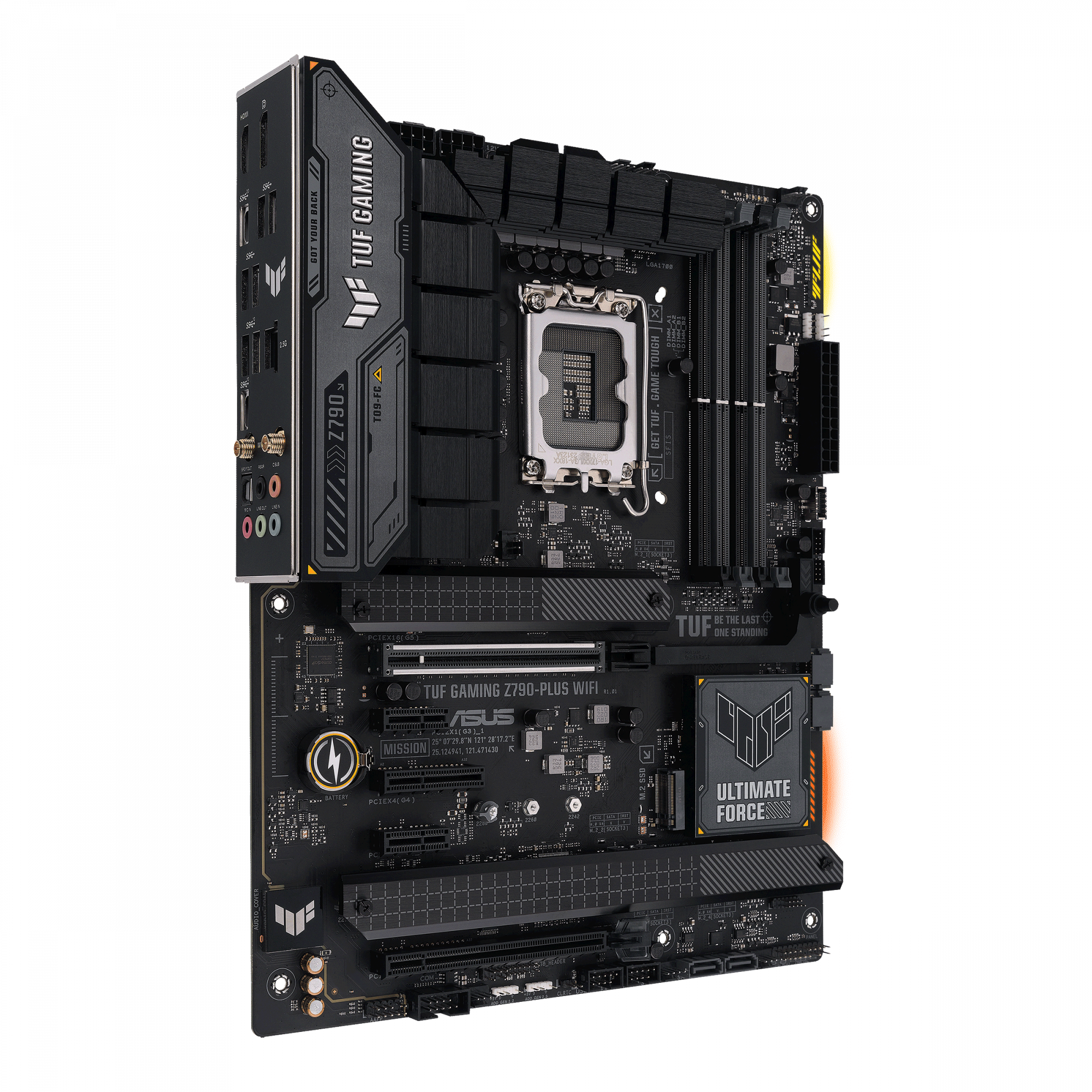

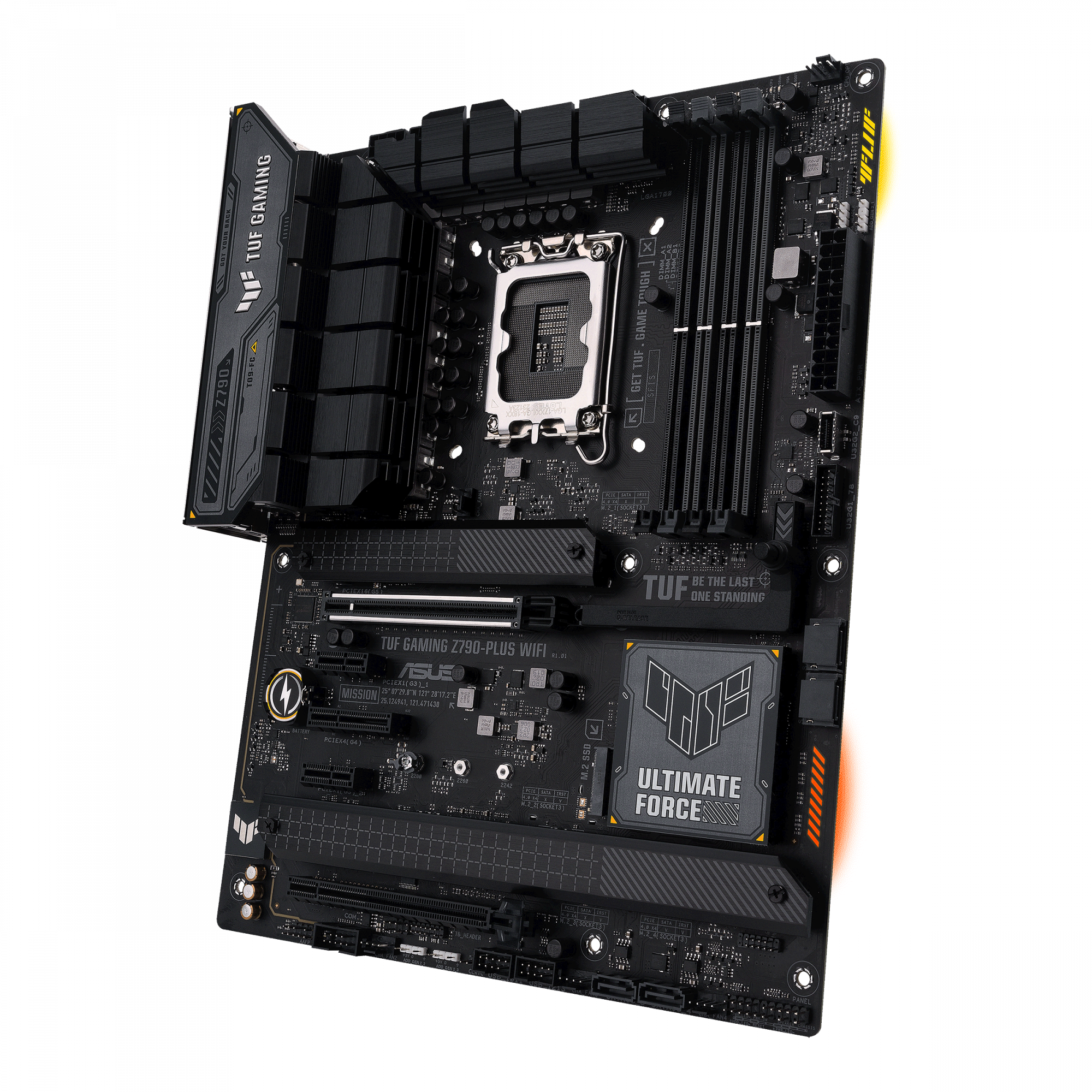

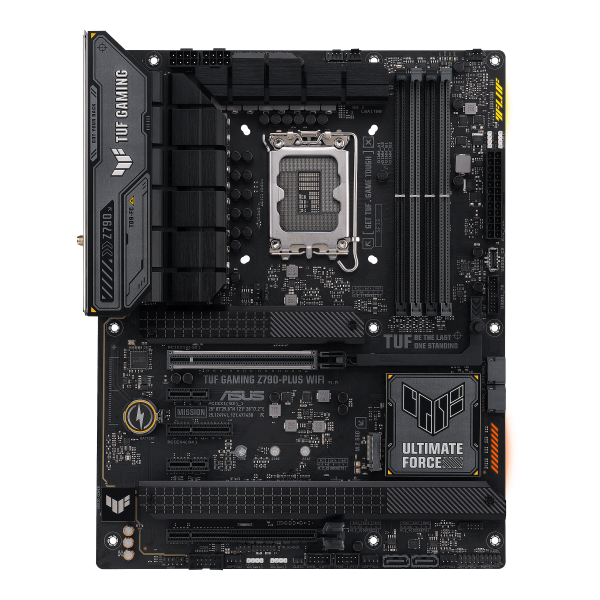

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
