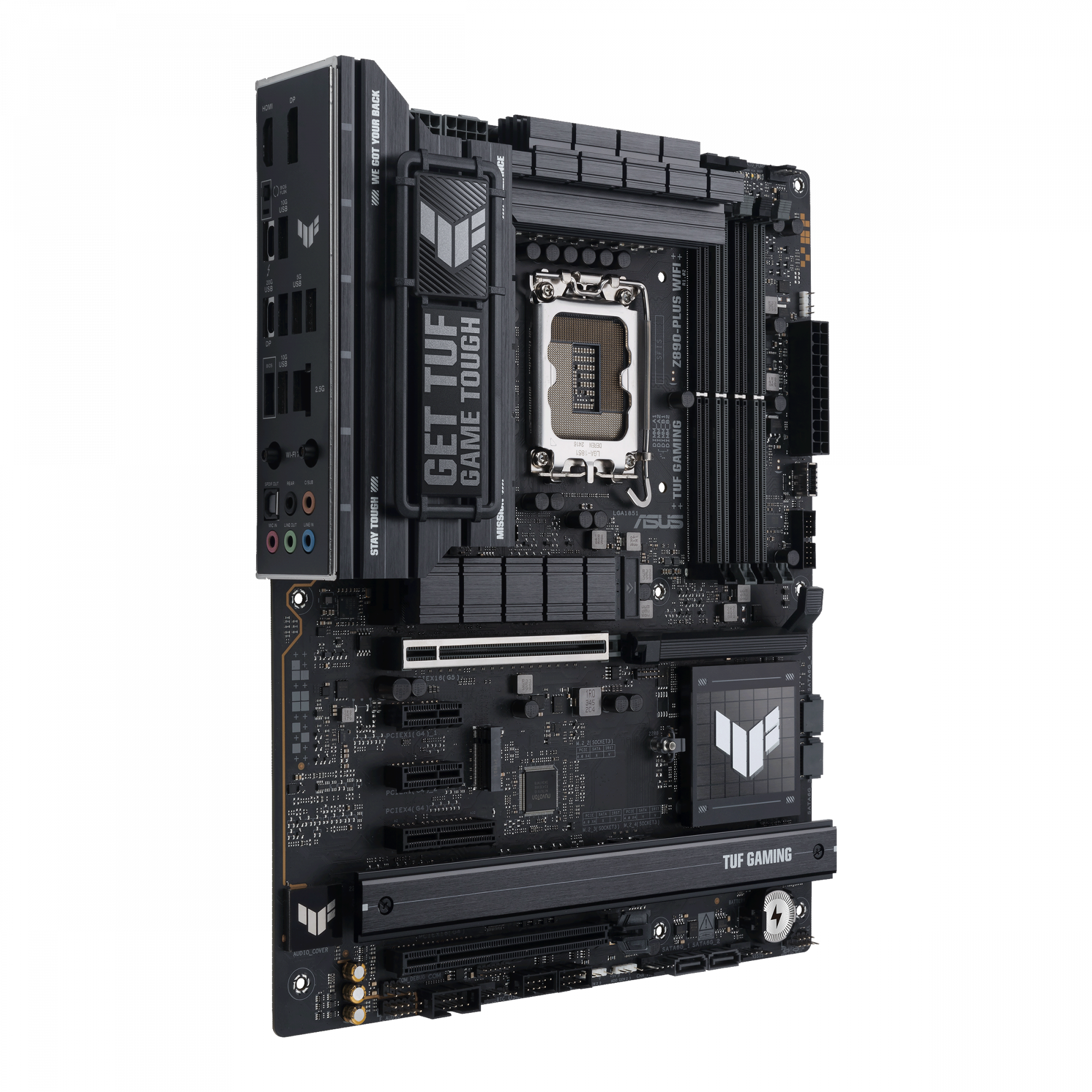

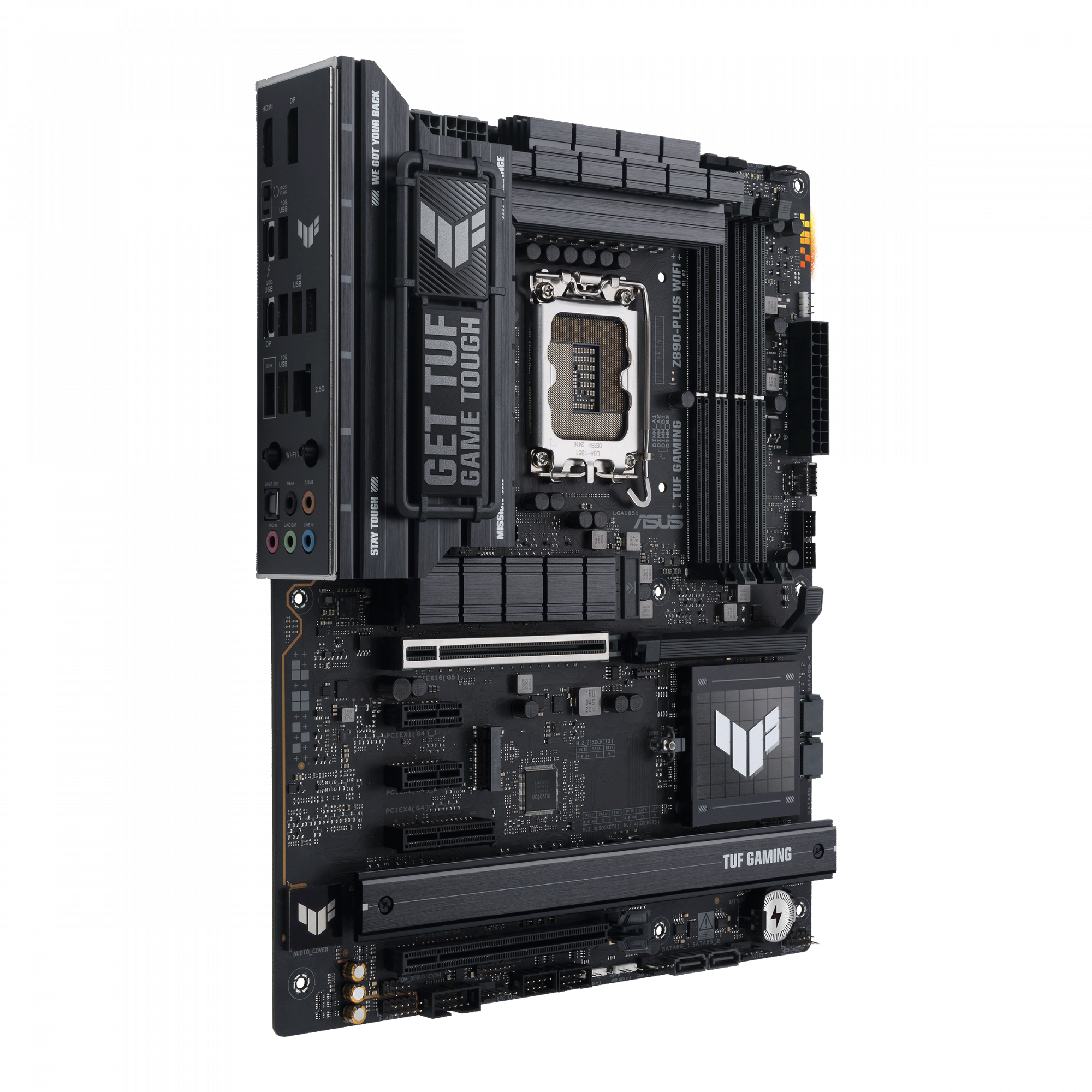

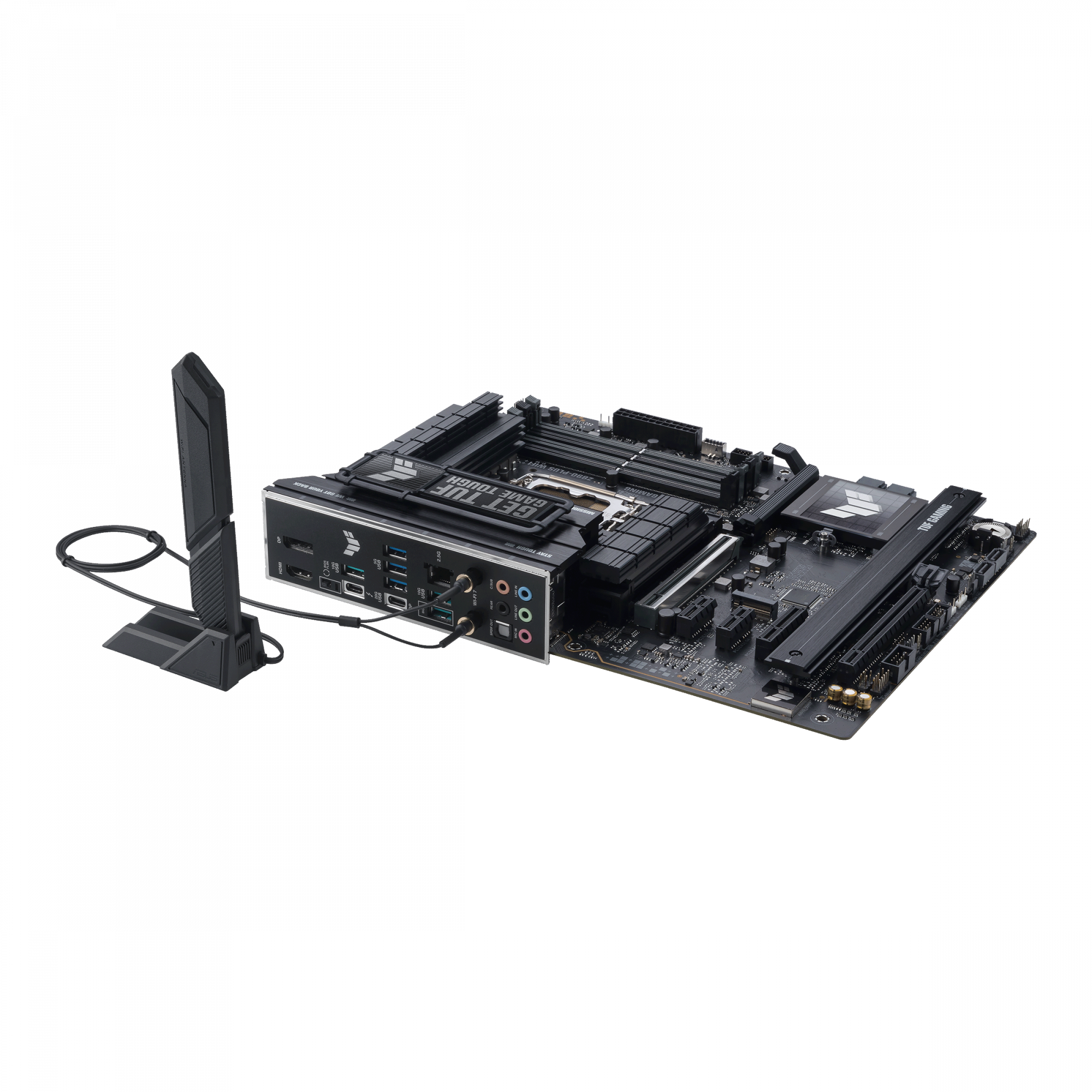

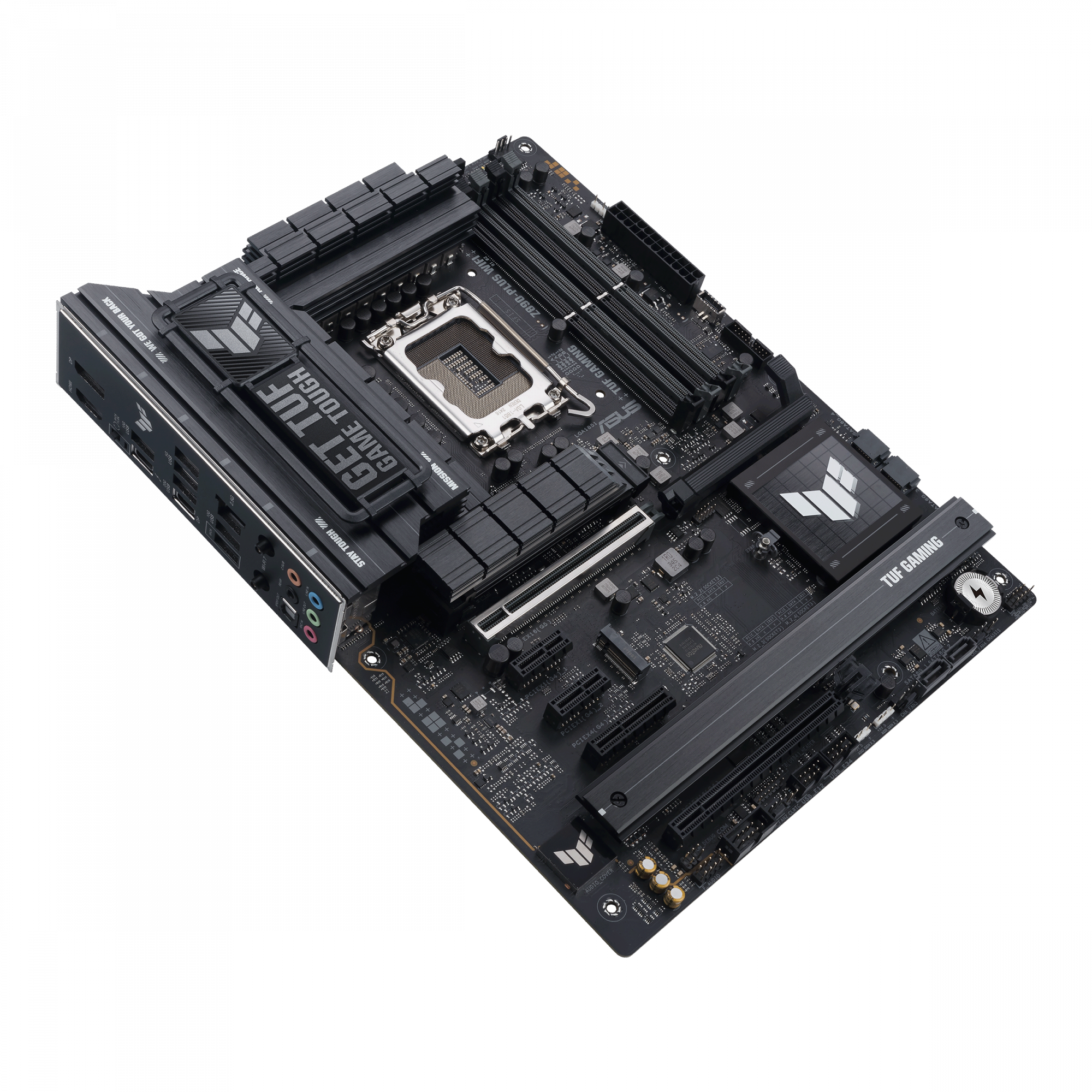

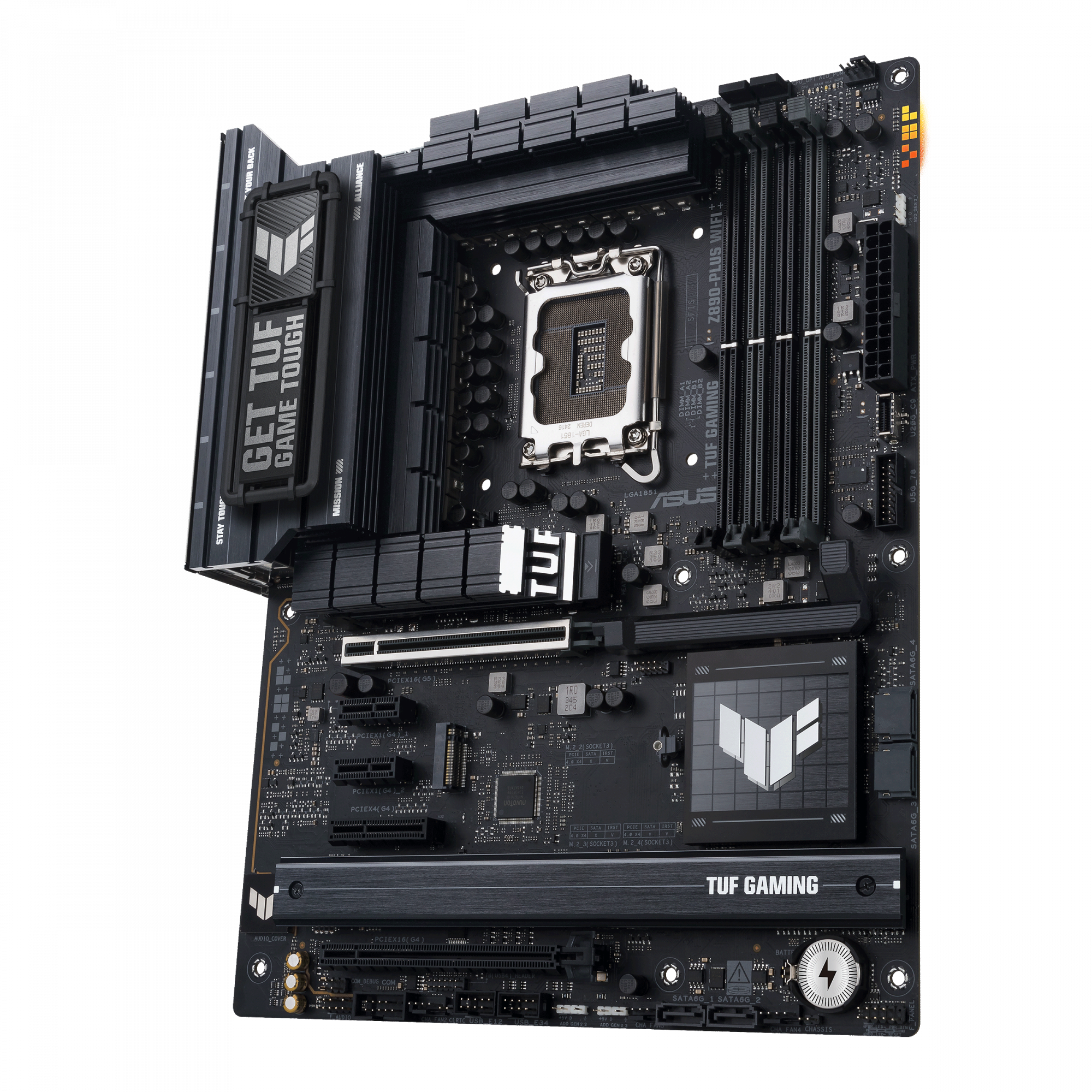

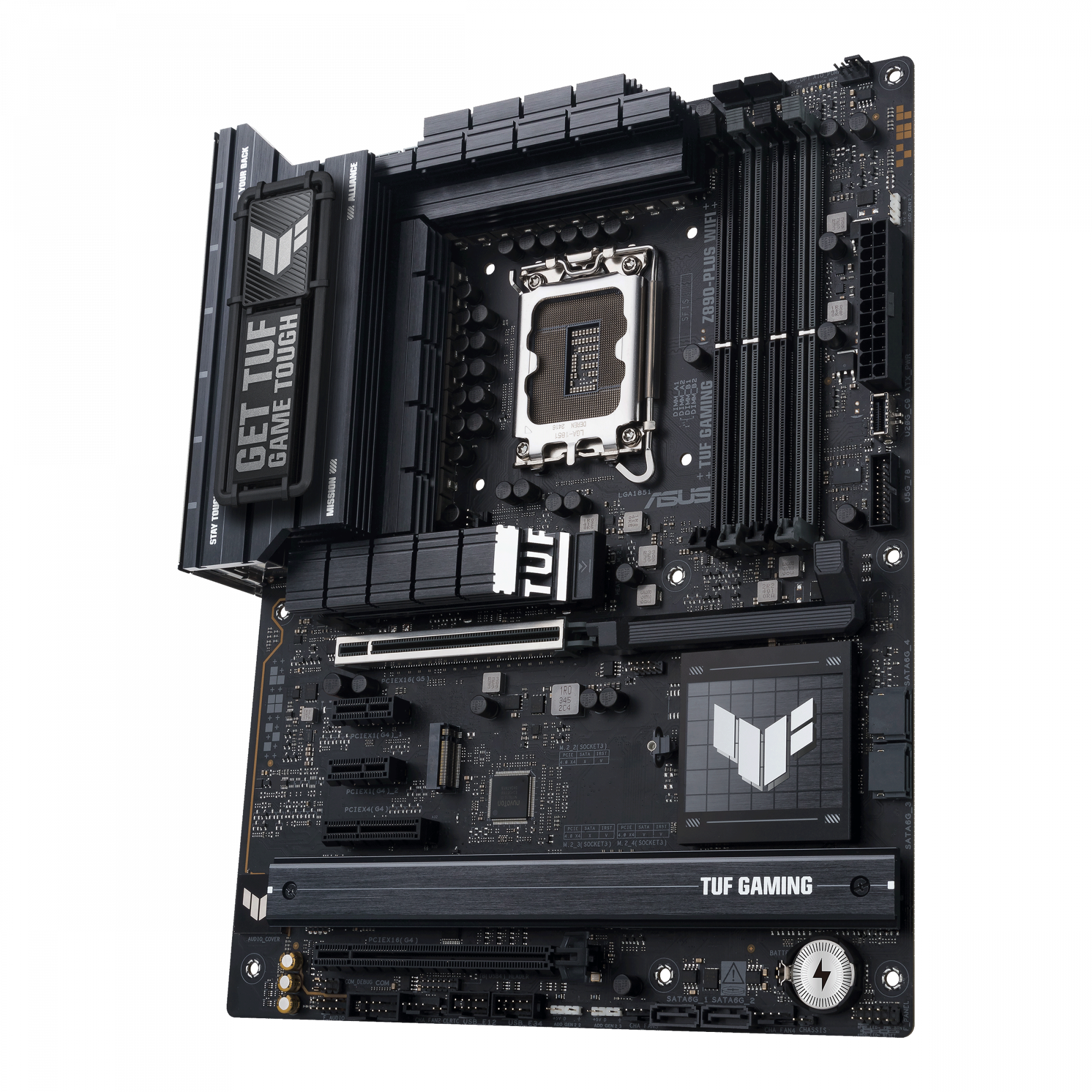

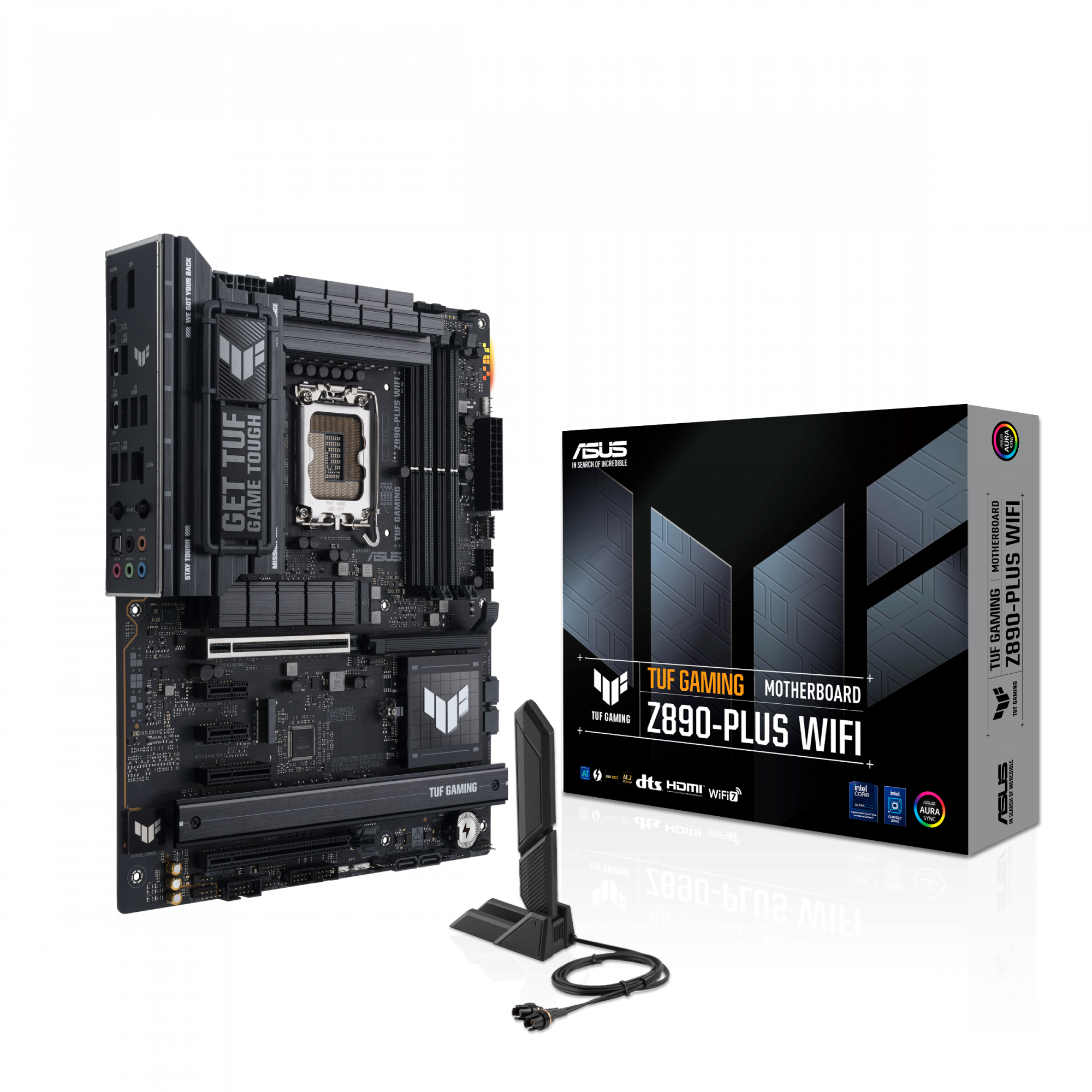

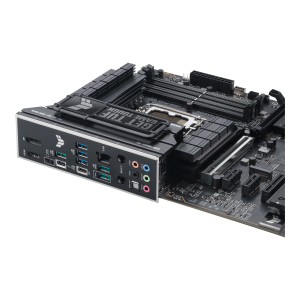

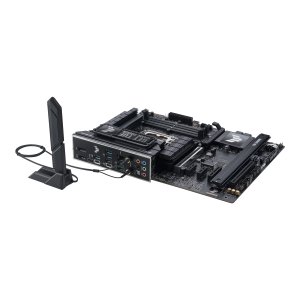

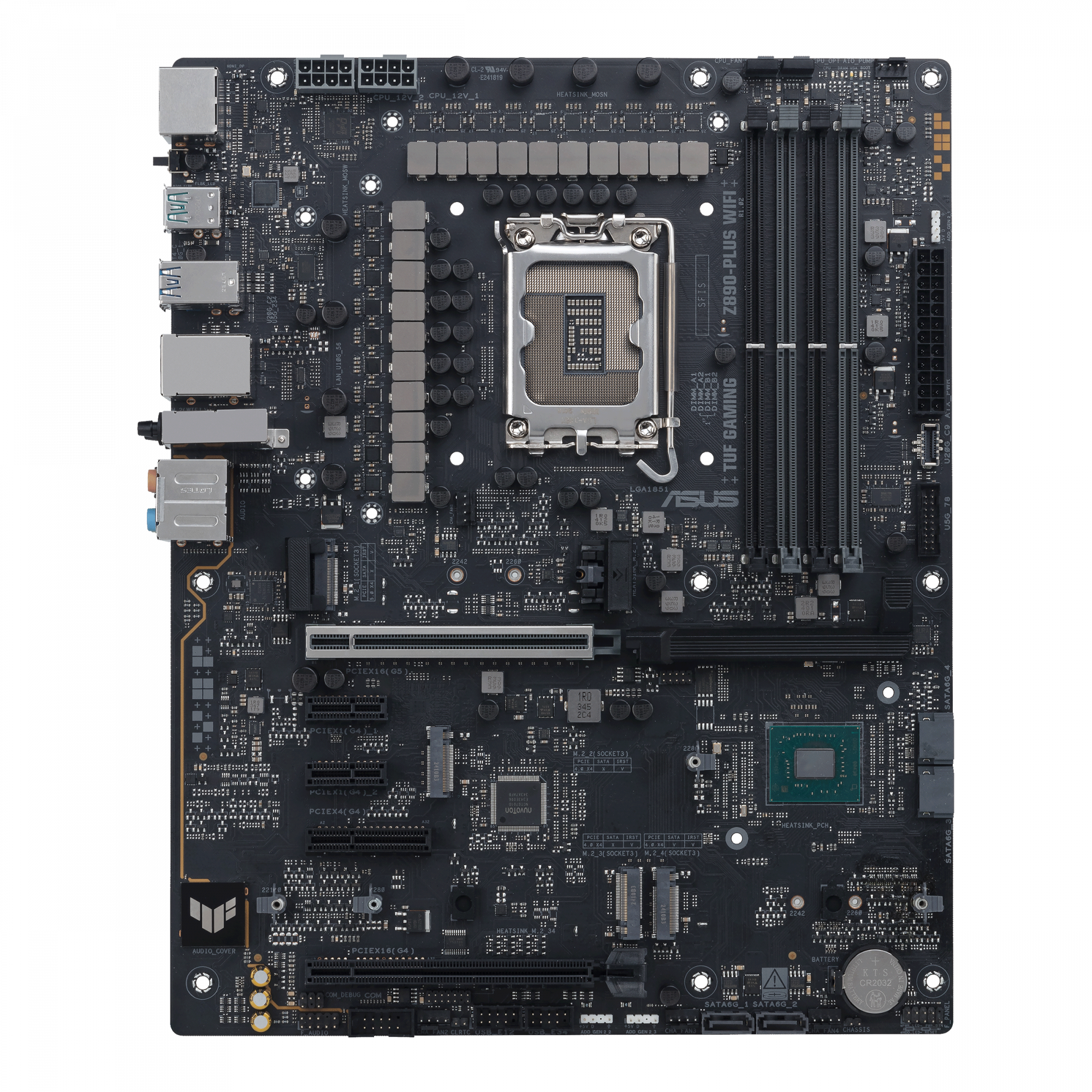

ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Roll over image to zoom inClick to Open expanded view
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Print
Model: 90MB1IQ0-M0EAY0
EAN: 4711387763926

ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX

Manufacturer:
Asus
ASUS TUF GAMING Z890-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS TUF GAMING Z890-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

  • Model
  • 90MB1IQ0-M0EAY0
  • EAN
  • 4711387763926
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • PCI Express x4 (Gen 1.x) slots
  • 2
  • PCI Express x4 (Gen 4.x) slots
  • 1
  • Features
  • Audio chip
  • Realtek ALC1220P
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Cooling type
  • Passive
  • Motherboard chipset
  • Intel Z890
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Product colour
  • Black
  • Windows operating systems supported
  • Windows 11
  • Graphics
  • On-board graphics card
  • No
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA connectors
  • 0
  • Number of SATA II connectors
  • 0
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC сompatibility
  • Non-ECC
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 192 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 8600 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.4
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Top Wi-Fi standard
  • Wi-Fi 7 (802.11be)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Other features
  • Back-to-BIOS button
  • Yes
  • mSATA ports quantity
  • 0
  • Quick installation guide
  • Yes

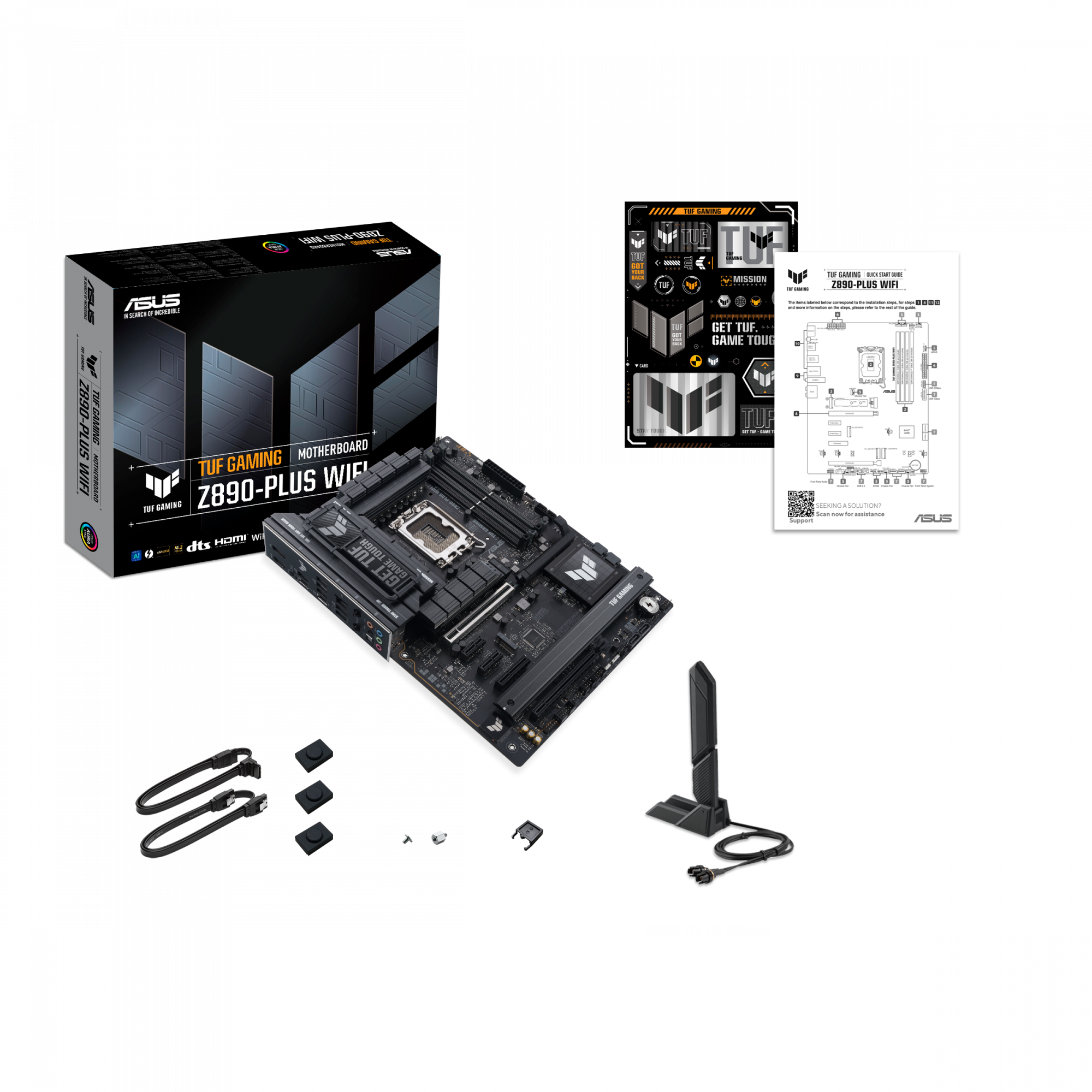

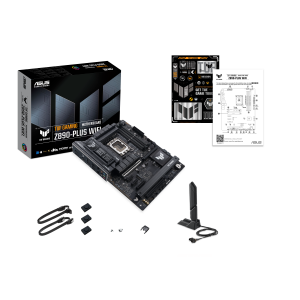

  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 2.34 kg
  • Package width
  • 353 mm
  • Processor
  • Compatible processor series
  • Intel Core Ultra (Series 2)
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1851 (Socket V1)

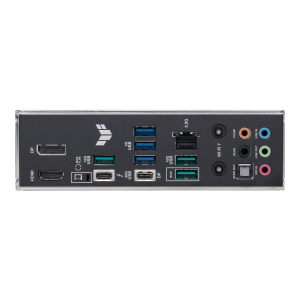

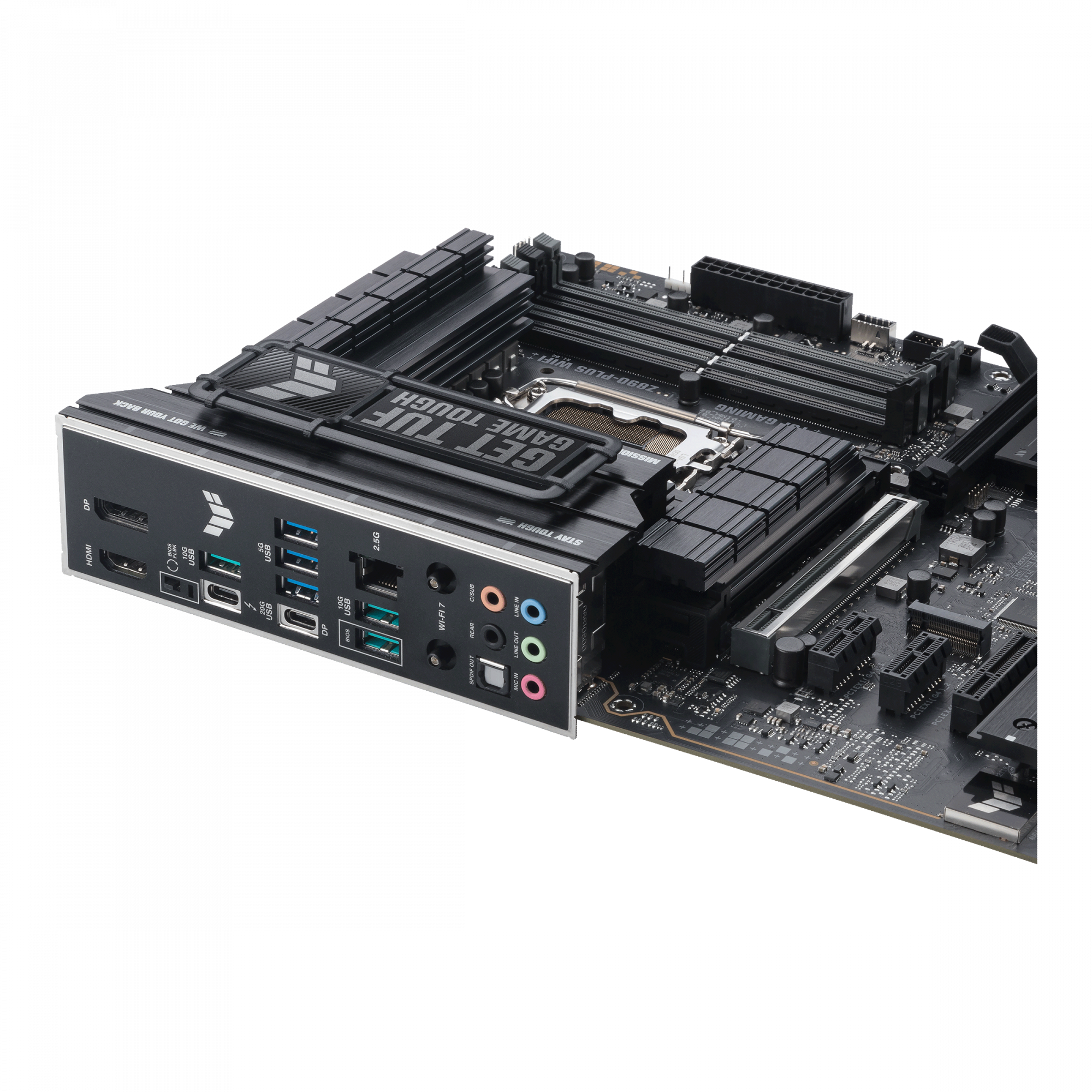

  • Rear panel I/O ports
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • DVI-D ports quantity
  • 0
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Line-in
  • Yes
  • S/PDIF out port
  • Yes
  • Thunderbolt ports quantity
  • 1
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 0
  • WiFi-AP antenna jack
  • 2
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 8
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 305 mm
