Model: 90XB0820-BDS000
EAN: 4711081799320

ASUS USB-C Mini Dock Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

Manufacturer:
Asus
ASUS USB-C Mini Dock, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, Black, 10 Gbit/s, 4K Ultra HD
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS USB-C Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.15 m. Windows operating systems supported: Windows 10, Windows 11. Width: 59 mm, Depth: 48 mm, Height: 11.3 mm
  • 48g lightweight with cable
  • 4K connectivity via HDMI
  • Up to 100 W Power Delivery of USB-C
  • Up to 7.5 W Output of USB-C
  • Up to 10 Gbps data transfers of both USB Type-A and USB-C
  • The coaxial cable provides 1.7x better coverage than traditional cables
Small in Size. Big on Features.
Small in Size. Big on Features.

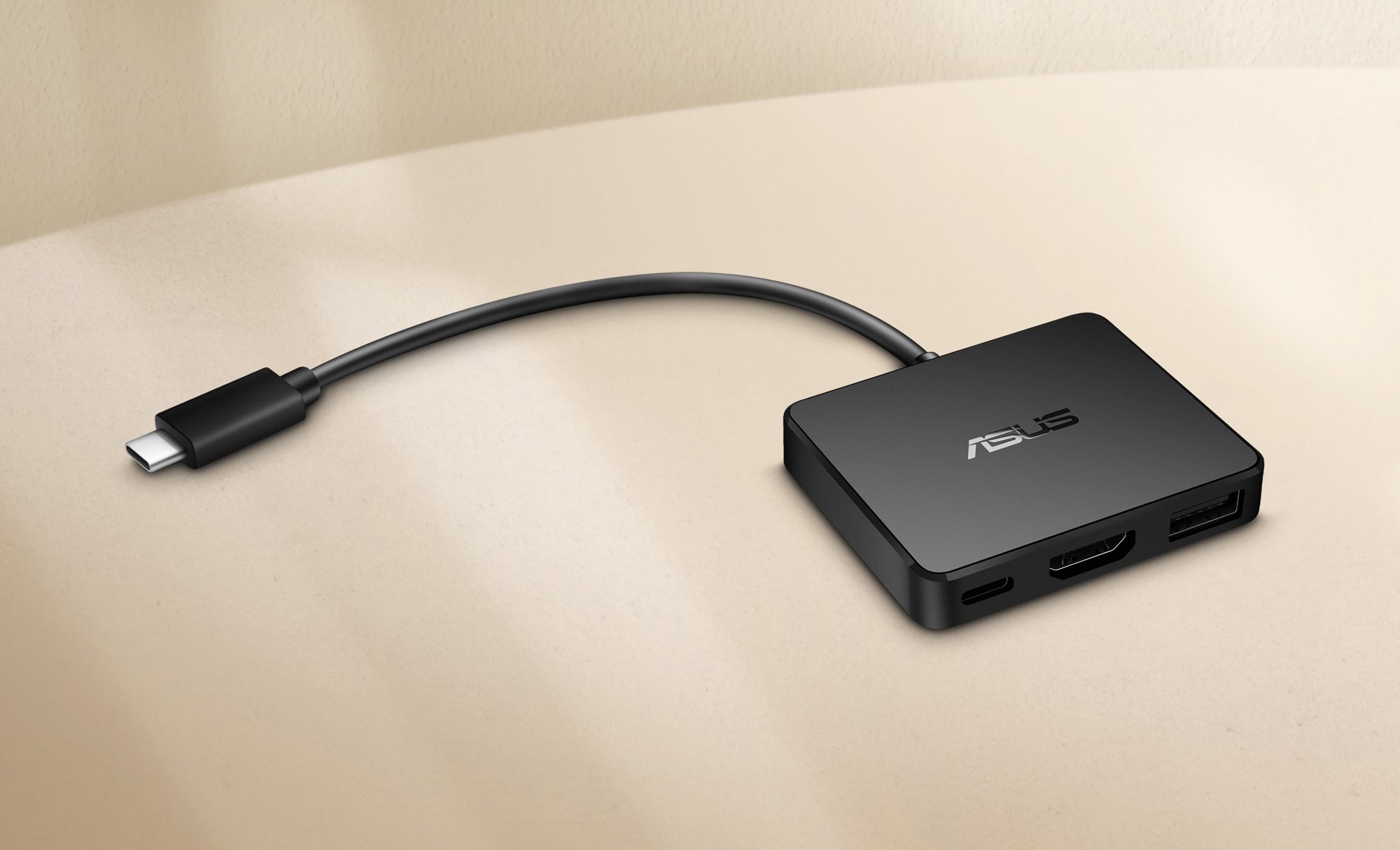

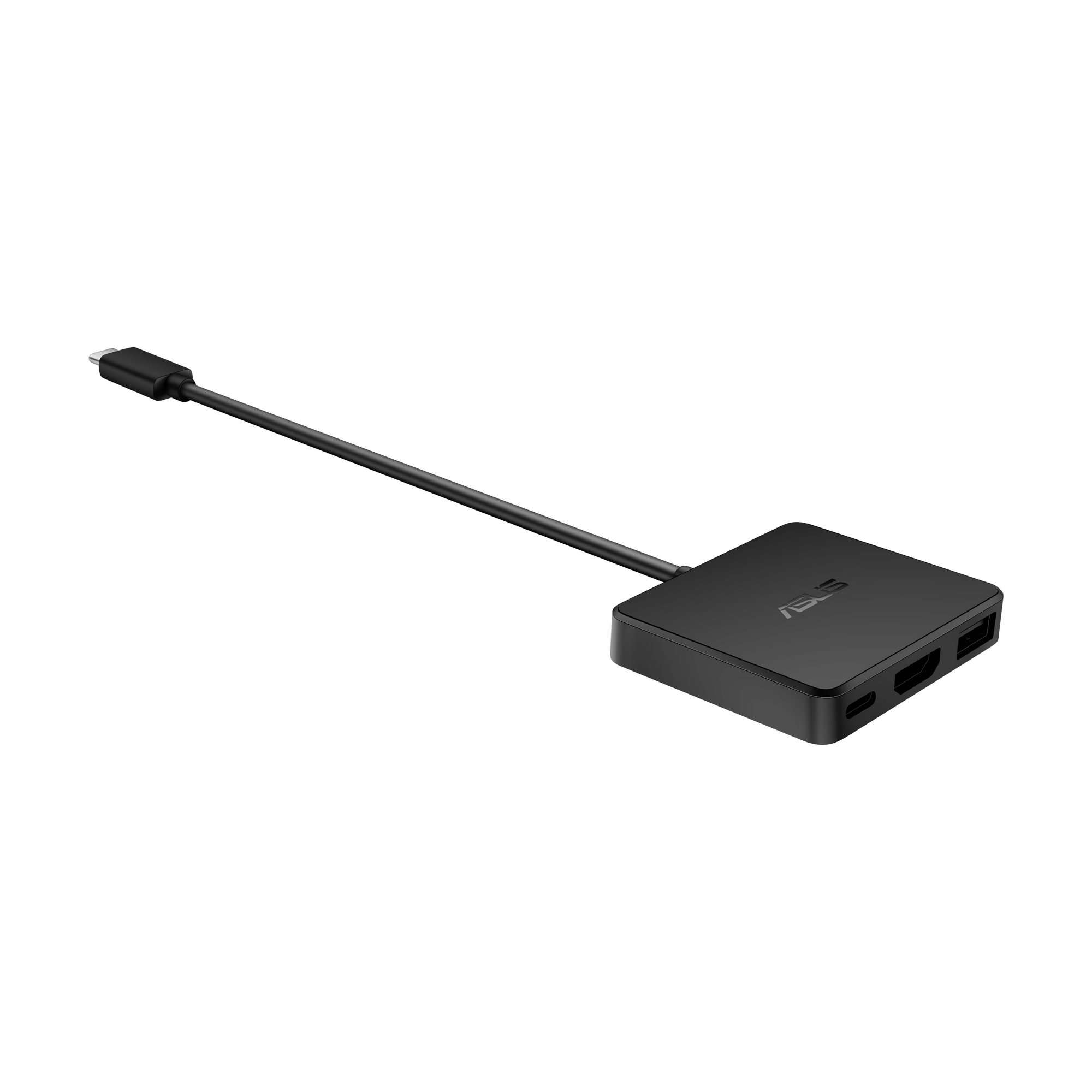

ASUS USB-C Mini Dock is a compact and lightweight USB-C® dock that gives PCs and laptops additional expandability options. It features a HDMI® with 4K output, USB Type-A and USB-C for up to 10 Gbps transfer speeds, plus up to 100 W power delivery passthrough.

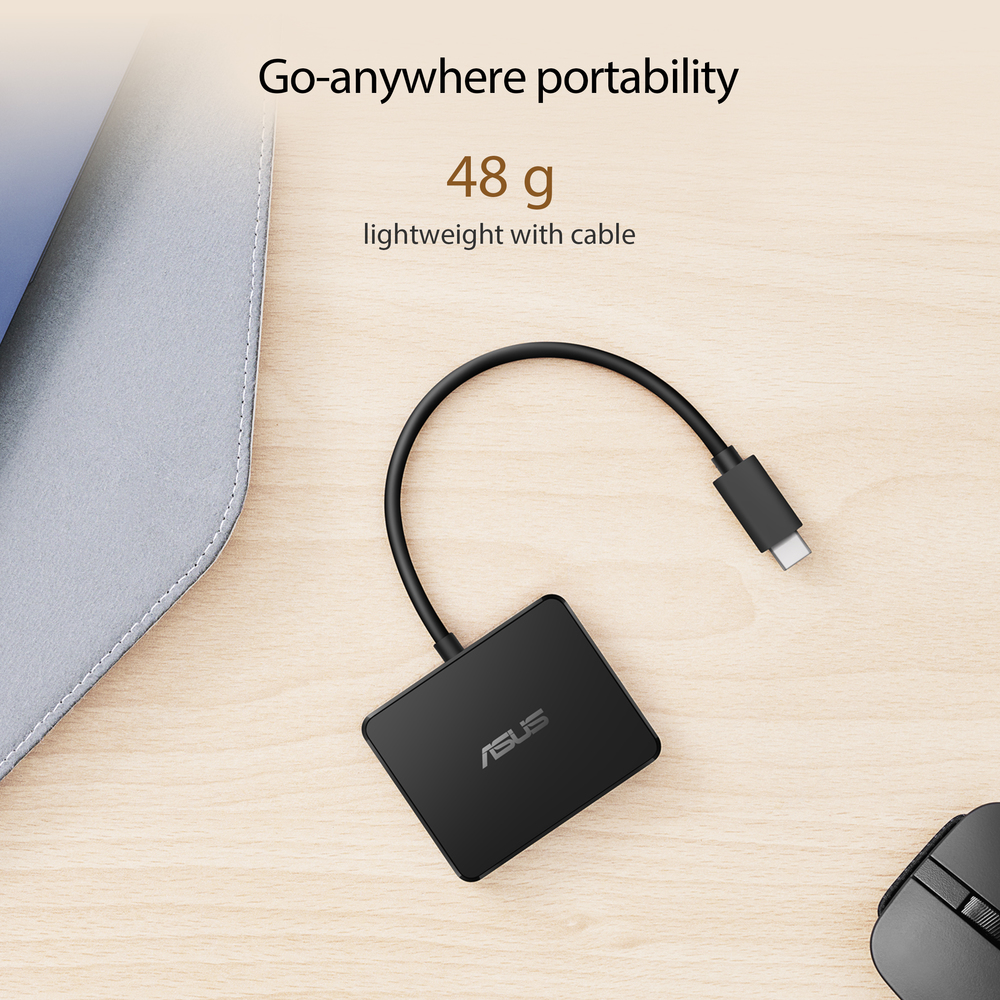

Go-anywhere portability
Go-anywhere portability
ASUS USB-C Mini Dock has a slim 11.35 mm profile and weighs just 48 g, making it perfect for on-the-go productivity.

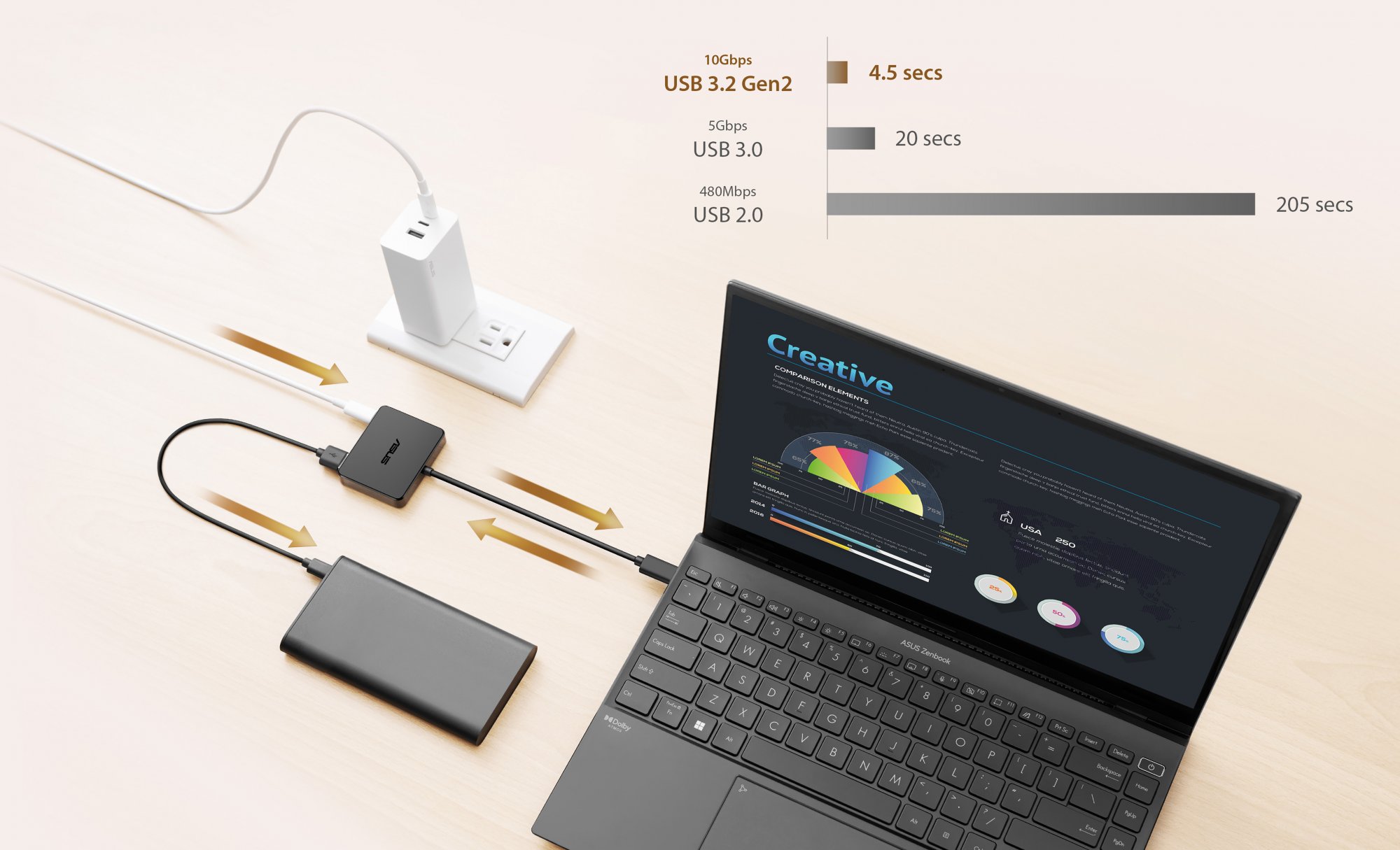

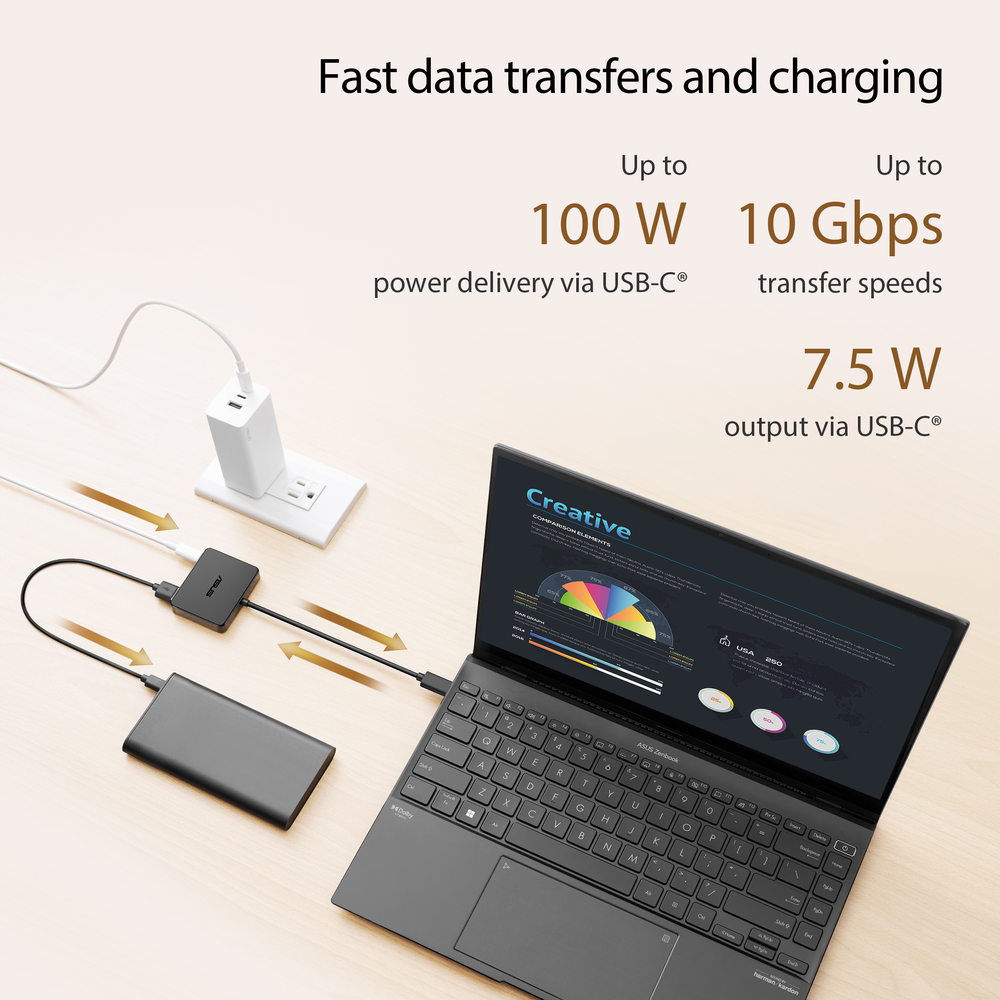

Fast data transfers and charging
Fast data transfers and charging
ASUS USB-C Mini Dock features 100 W power delivery passthrough via USB-C® — that’s enough to rapidly charge the latest laptops. ASUS USB-C Mini Dock offers up to 10 Gbps data transfer speeds via USB Type-A and USB-C® — up to 4x faster than USB 3.0 — so transferring large files or folders takes just seconds. Users can also use the USB ports to charge mobile phones and other devices.

* Chart depicts expected transfer time for 4 GB of data. Real-world performance may vary.

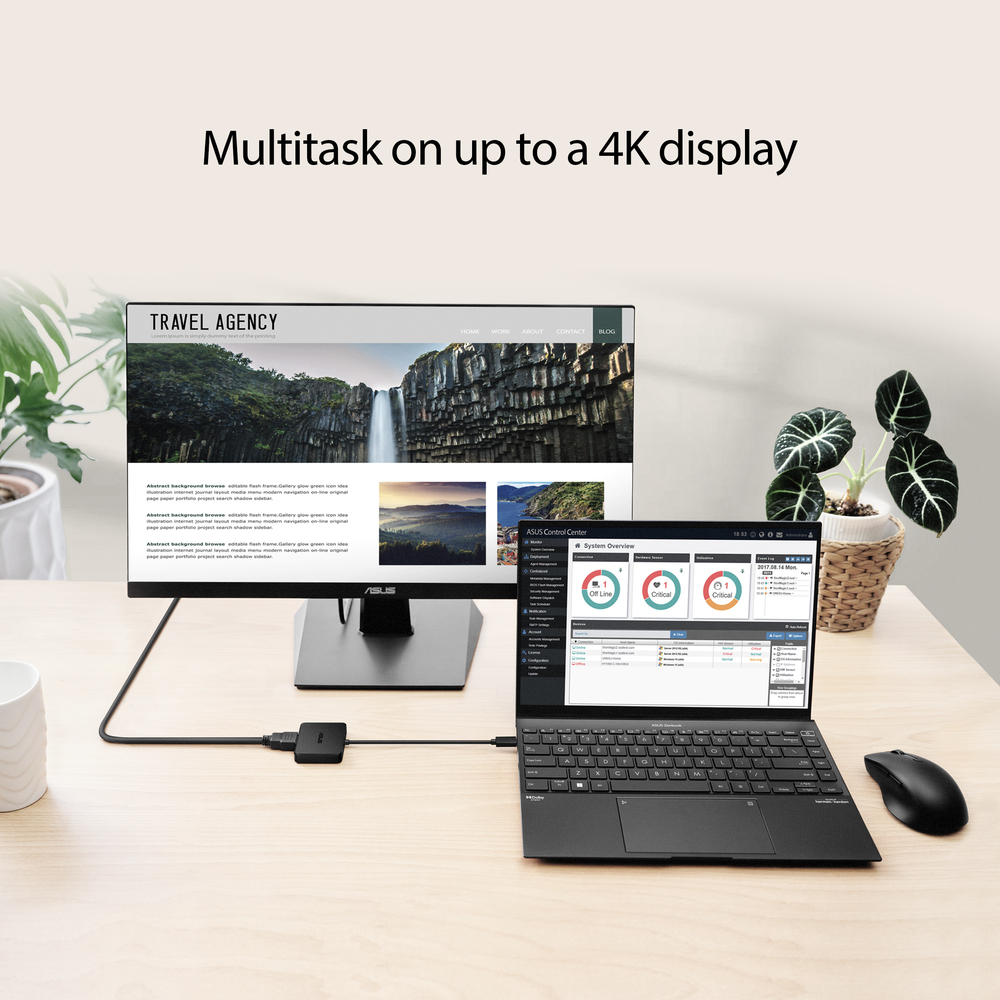

Multitask on up to a 4K display
Multitask on up to a 4K display

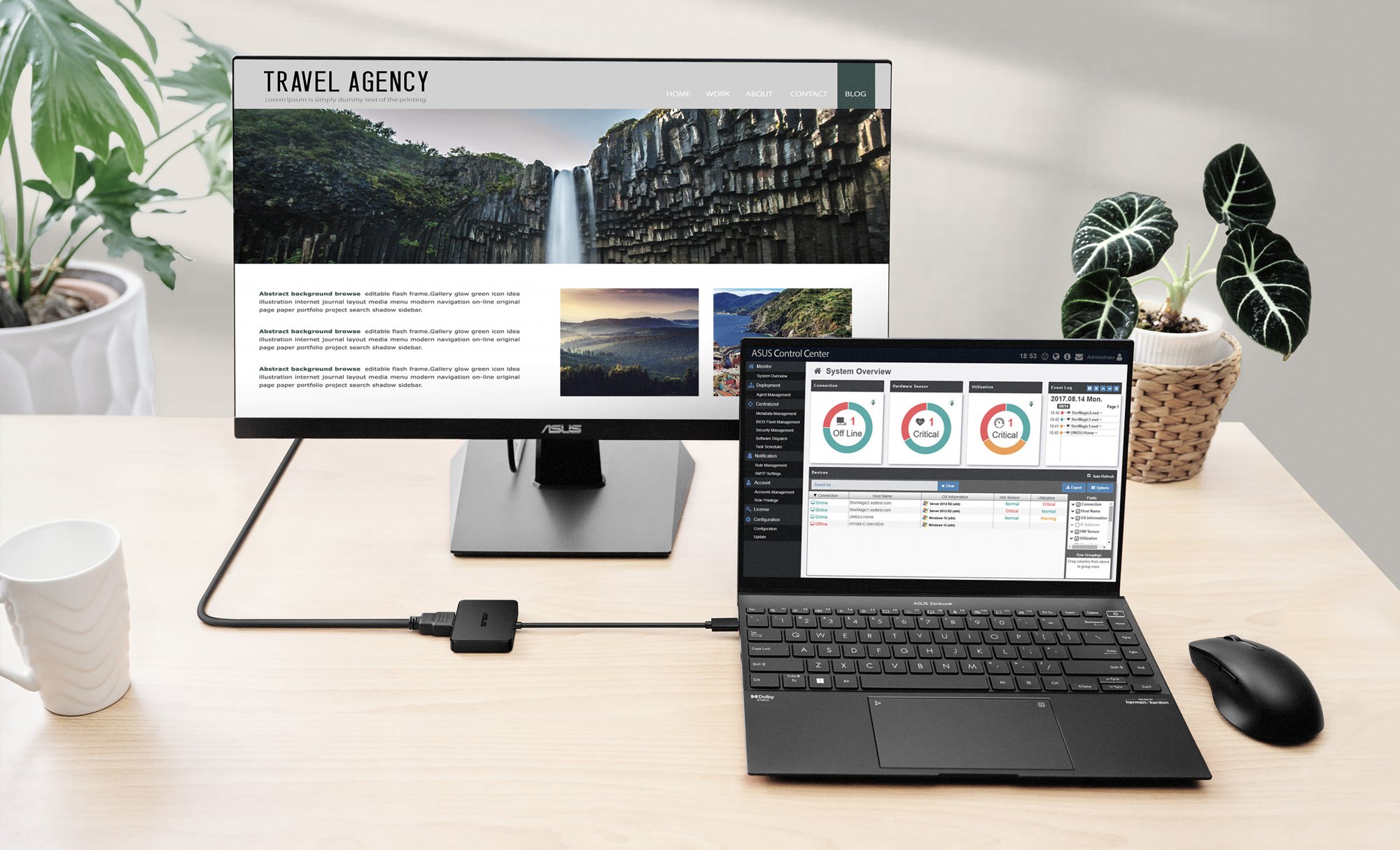

ASUS USB-C Mini Dock is able to support 2K video at 144 Hz, or up to a single 4K display, via HDMI to extend workspace for efficient multitasking.

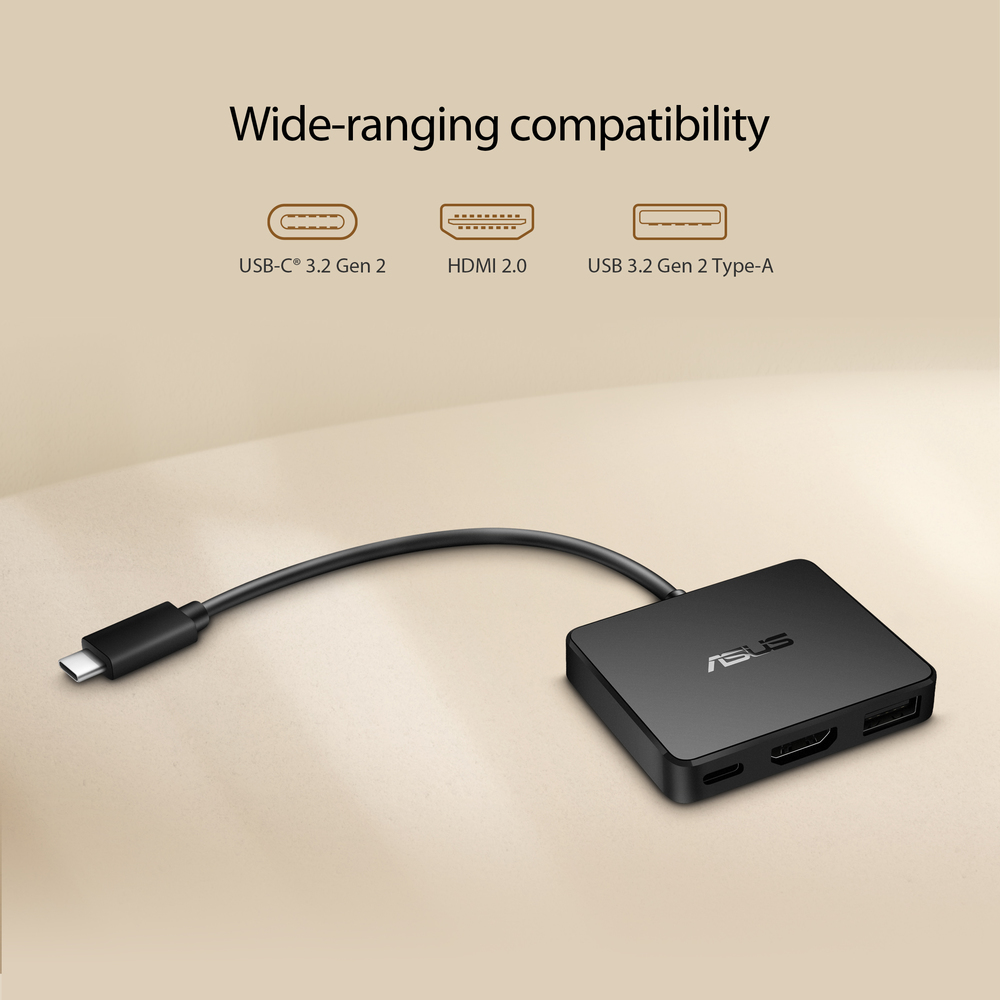

Wide-ranging compatibility
Wide-ranging compatibility

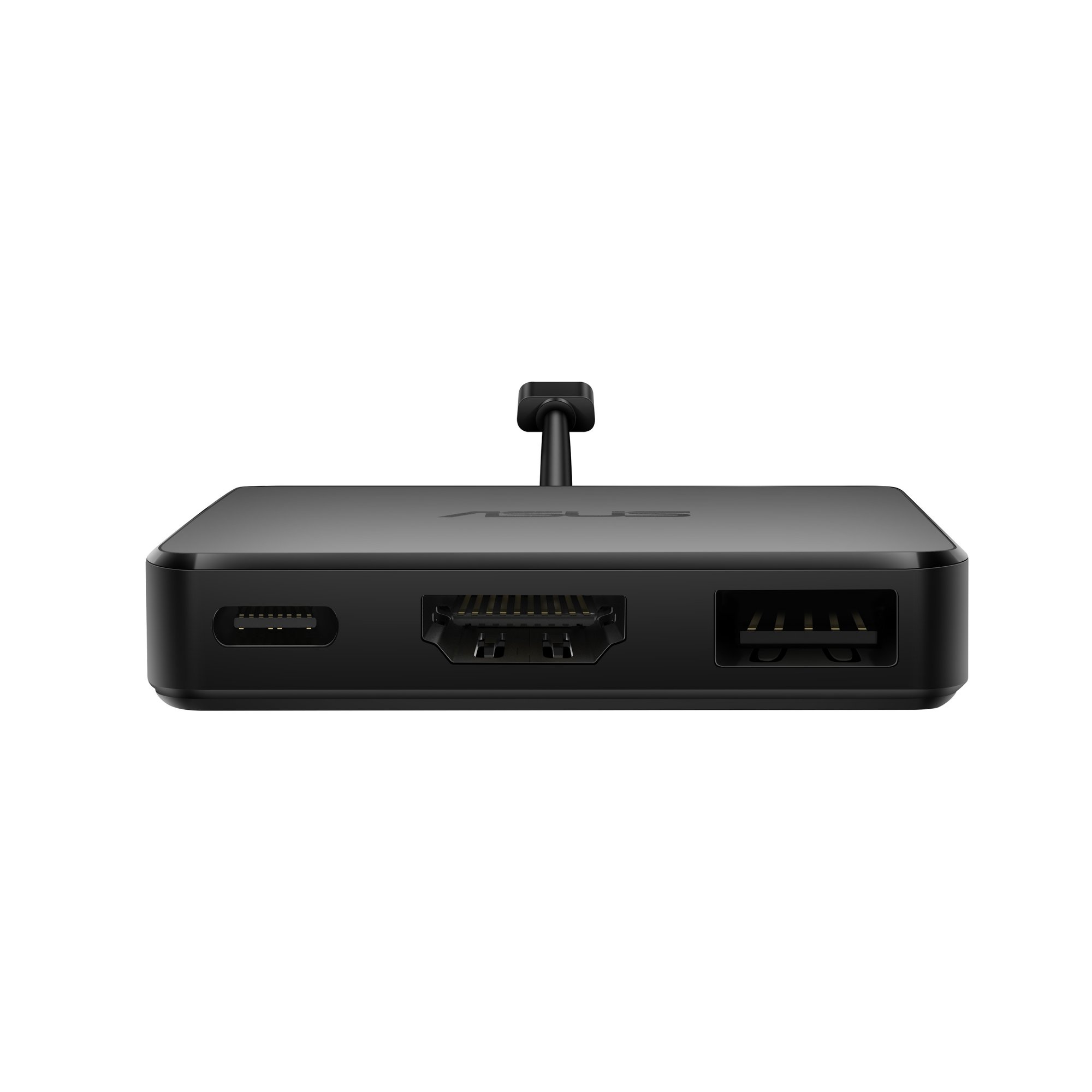

ASUS USB-C Mini Dock features an USB-C® port, USB Type-A port, and a HDMI port. Each I/O port has been tested to ensure product durability. Included overload force tests, durability tests, vibration tests, and operation at extremes of humidity, altitude and temperature.

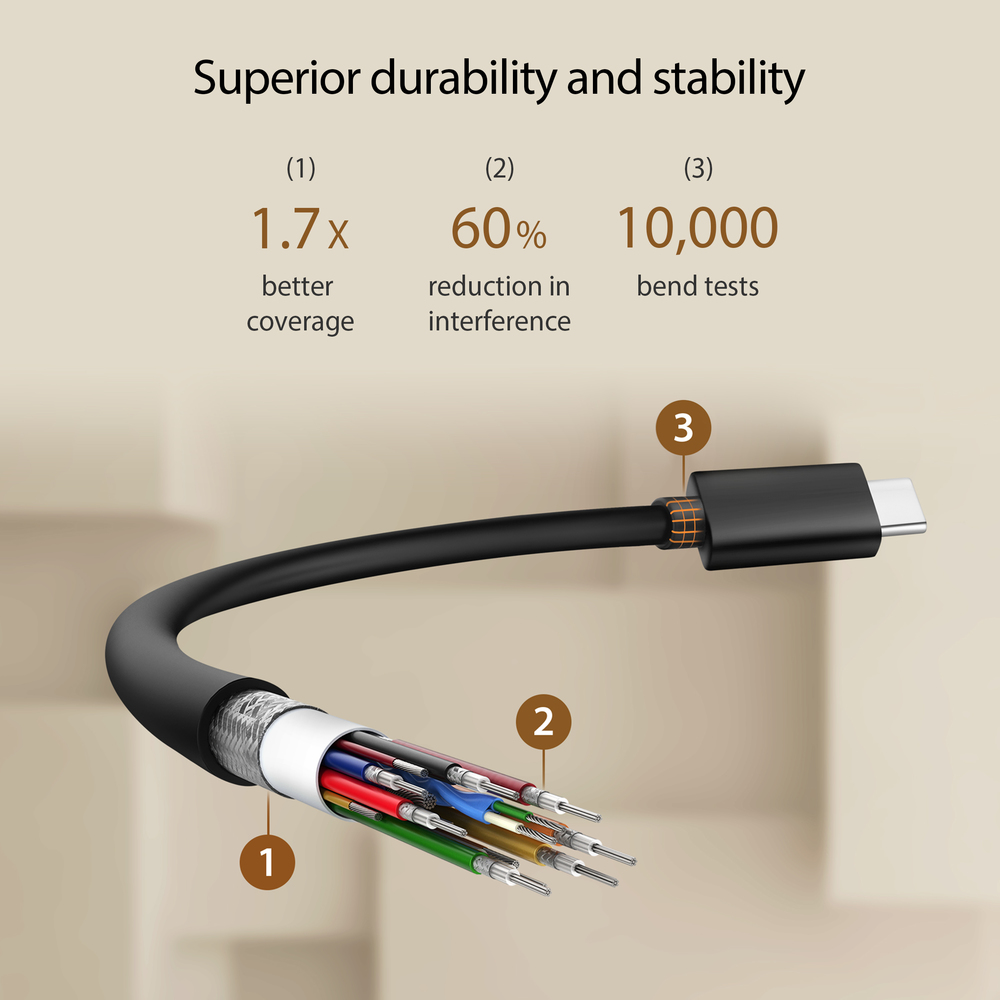

Superior durability and stability
Superior durability and stability
For improved strength and resilience ASUS USB-C Mini Dock has a connecting cable that’s shielded by an aluminum braid that provides up to 1.7x better coverage than standard cables. This minimizes the risk of signal attenuation, reducing interference by up to 60%, ensuring robust connections for any setup. The cable is also extremely durable, and has been lab-tested to withstand up to 10,000 bends and twists.

Product Properties

  • Model
  • 90XB0820-BDS000
  • EAN
  • 4711081799320
  • Bullet points
  • Point
  • 48g lightweight with cable
    4K connectivity via HDMI
    The coaxial cable provides 1.7x better coverage than traditional cables
    Up to 10 Gbps data transfers of both USB Type-A and USB-C
    Up to 100 W Power Delivery of USB-C
    Up to 7.5 W Output of USB-C
  • Network
  • Ethernet LAN
  • No
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 85%
  • Operating temperature (T-T)
  • 0 - 35 °C
  • Storage relative humidity (H-H)
  • 20 - 85%
  • Storage temperature (T-T)
  • -30 - 70 °C
  • Packaging data
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Card reader integrated
  • No
  • Data transfer rate
  • 10 Gbit/s
  • HD type
  • 4K Ultra HD
  • Housing material
  • Plastic
  • Maximum digital resolution
  • 3840 x 2160 pixels
  • Maximum refresh rate
  • 144 Hz
  • Number of displays supported
  • 2
  • Product colour
  • Black
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • HDMI ports
  • 1
  • HDMI version
  • 2.0
  • Headphone outputs
  • 0
  • Host interface
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  • Microphone in
  • No
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB Power Delivery (USB PD)
  • Yes
  • USB Power Delivery up to
  • 100 W
  • Power
  • Power source type
  • USB
  • USB cable length
  • 0.15 m
  • Software
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Weight & dimensions
  • Depth
  • 48 mm
  • Height
  • 11.3 mm
  • Weight
  • 48 g
  • Width
  • 59 mm
