Description

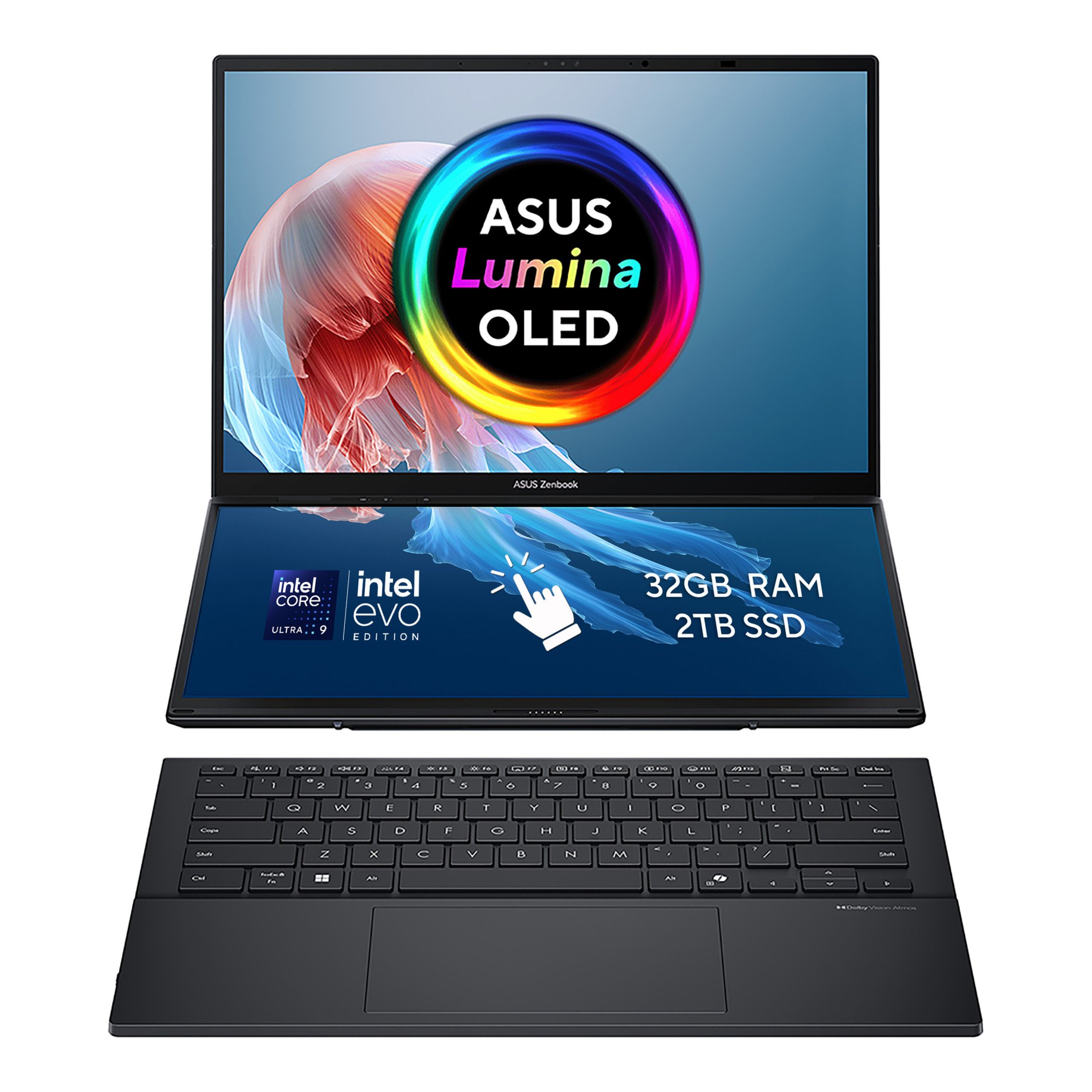

ASUS Zenbook Duo UX8406CA-PZ134W. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Grey

Windows 11 Home
Intel® Core™ Ultra 9 processor (Series 2)
Intel® Evo™ certified laptop
Thin and light: 14.6 mm, 1.65 kg (without keyboard)

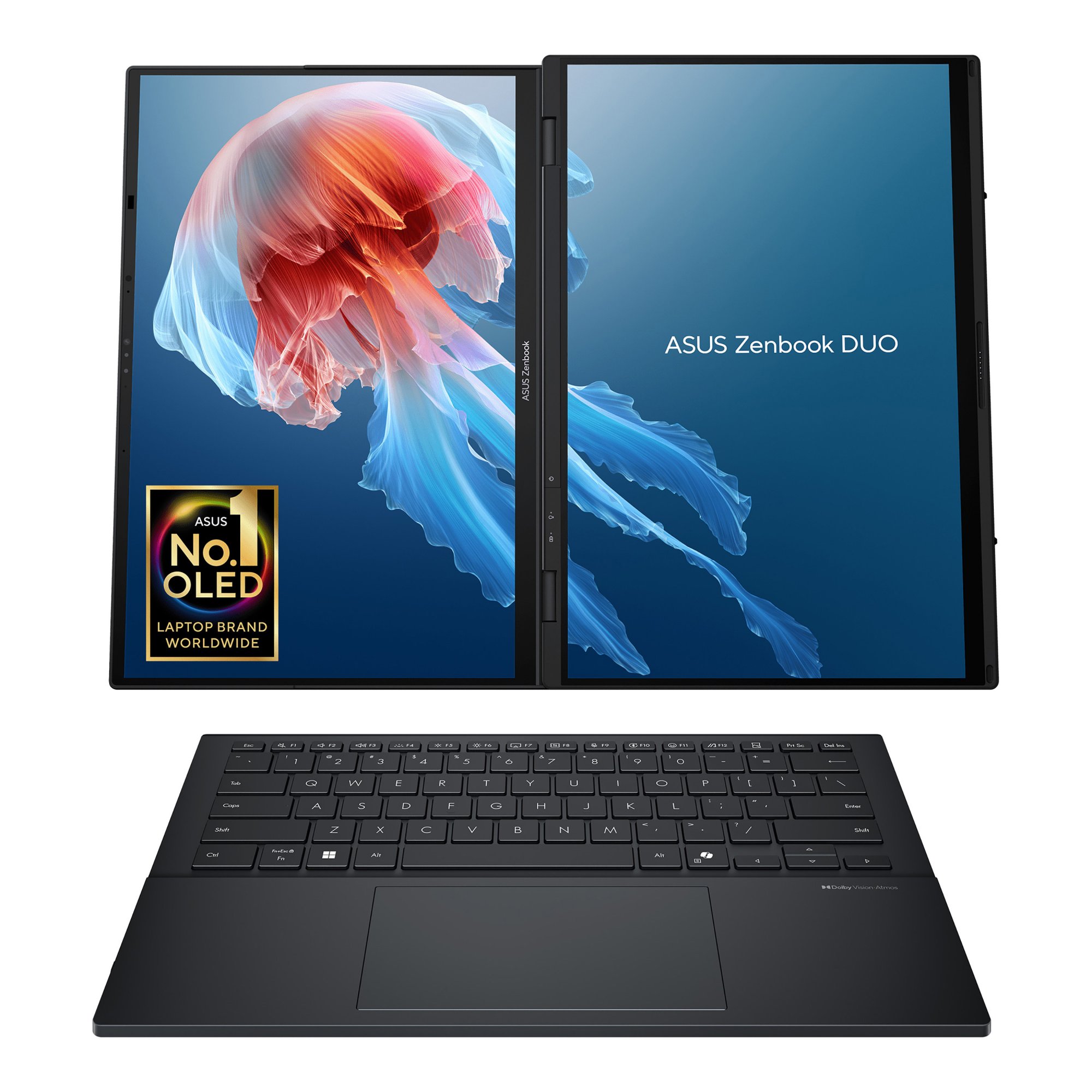

Dual 14” 3K 120 Hz OLED touchscreens

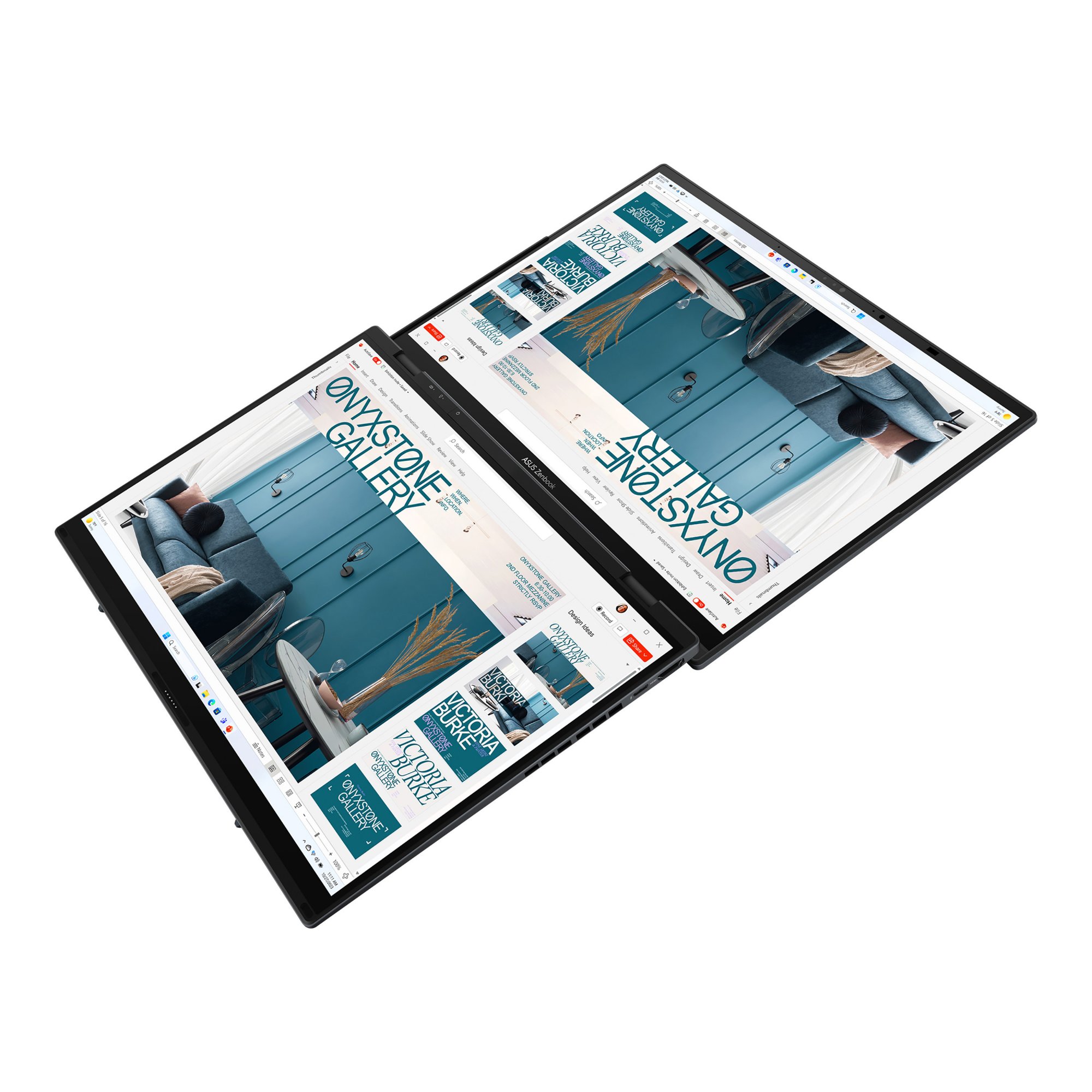

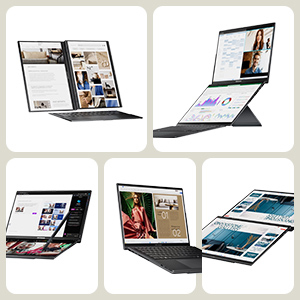

Versatile modes: Laptop Mode, Dual Screen Mode, Sharing Mode and Desktop Mode
Effective gestures and smart software
32 GB LPDDR5x RAM and 2 TB SSD
75 Wh battery

Let’s DUO it

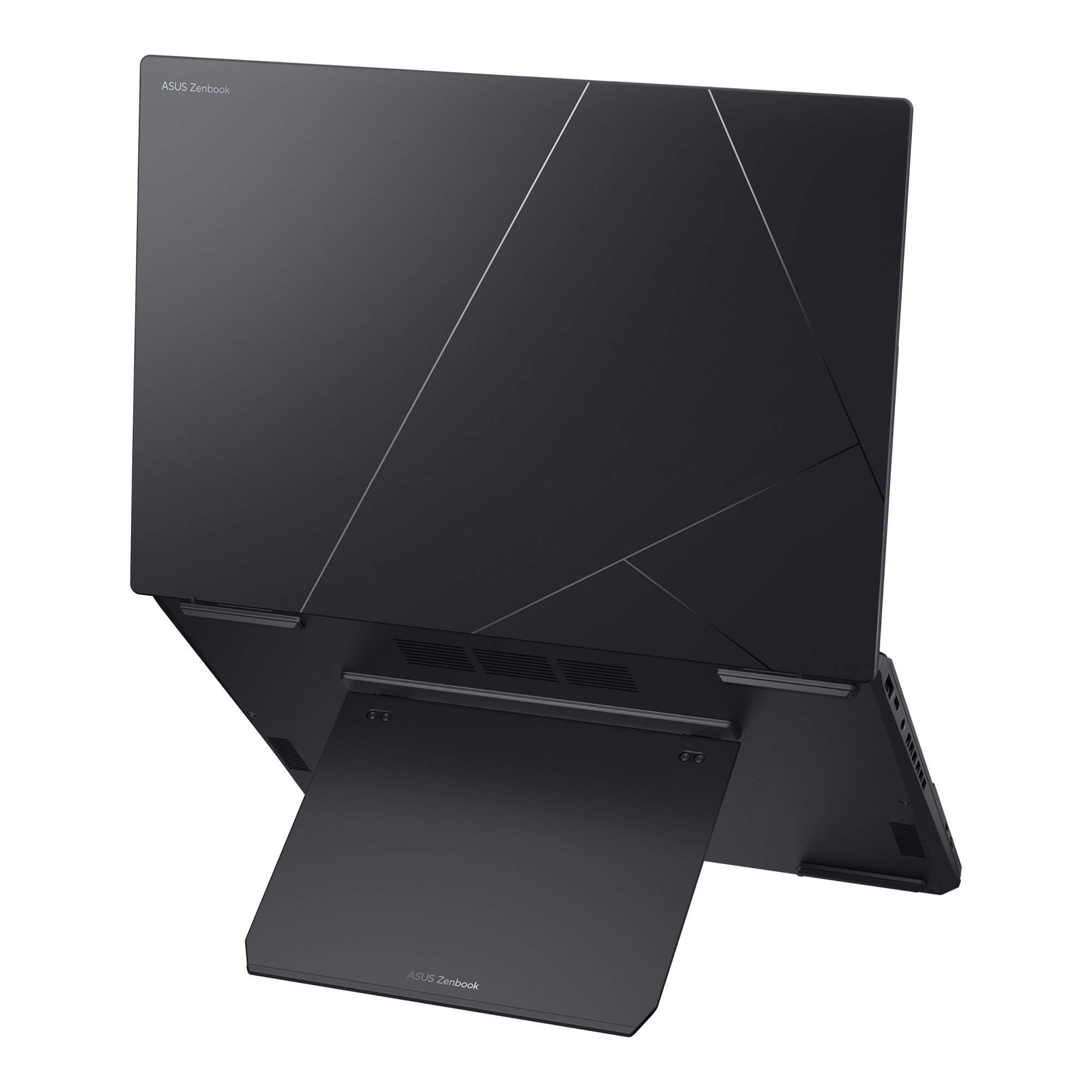

ASUS Zenbook DUO is a revolutionary dual-screen laptop, with two full-size OLED touchscreens, detachable full-size keyboard and built-in kickstand, — expertly combining multitasking versatility with superb mobility. With dual 14-inch 3K OLED 120 Hz displays, you can instantly expand your workspace to up to 19.8 inches. Outstanding performance is assured with an AI-powered Intel® Core™ Ultra 9 processor (Series 2) and 32 GB LPDDR5x memory, plus a 2 TB PCIe® 4.0 SSD. Paired with dedicated smart software, intuitive gesture control and an enhanced-lifespan 75 Wh battery, the easy-to-use Zenbook DUO maximises productivity, with zero fuss. Come on — Let’s DUO it.

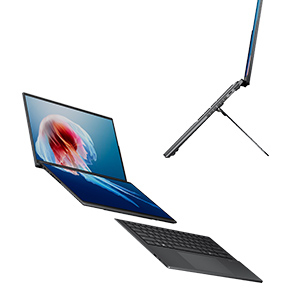

Portable DUO

Two stunning 14-inch ASUS Lumina OLED touchscreens provide up to 19.8 inches of workspace, instantly — all in one incredibly versatile, easily portable device.

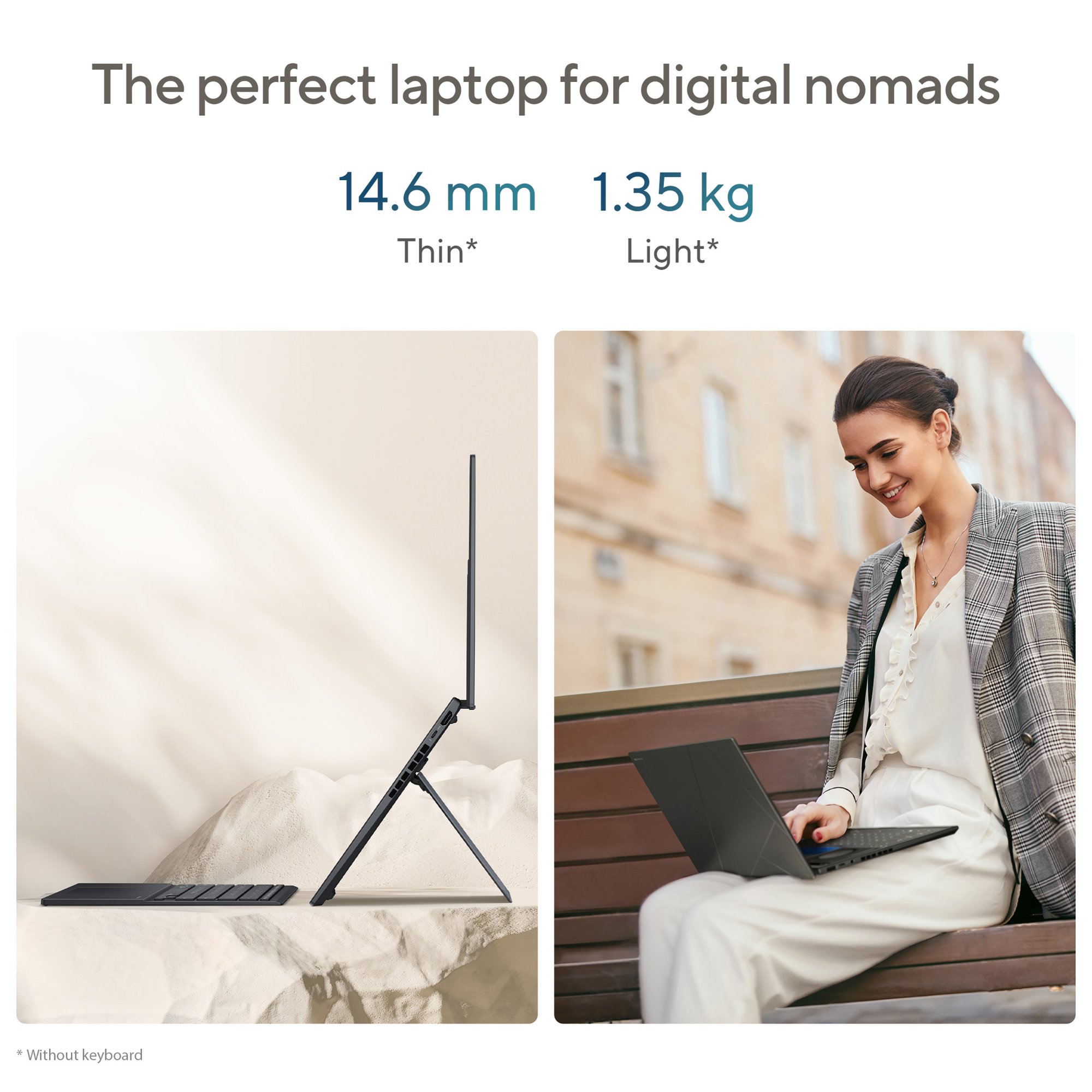

The perfect laptop for digital nomads

Zenbook DUO seamlessly blends the efficiency of a traditional laptop with the versatility of a multi-screen device — while still prioritising exceptional portability.

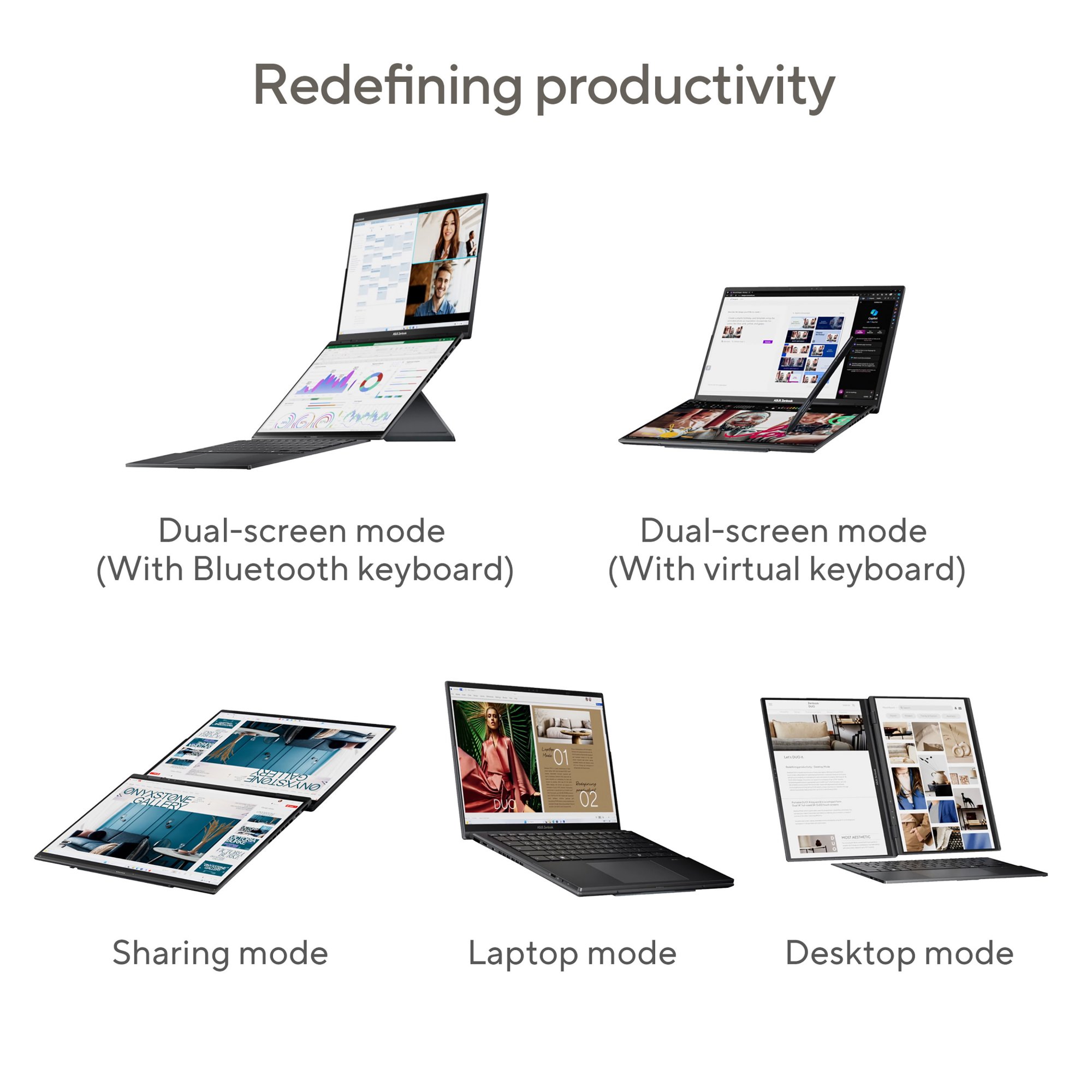

Redefining productivity

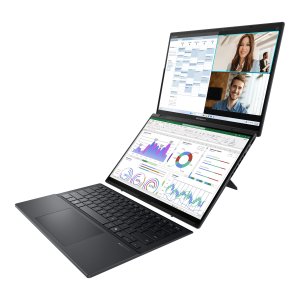

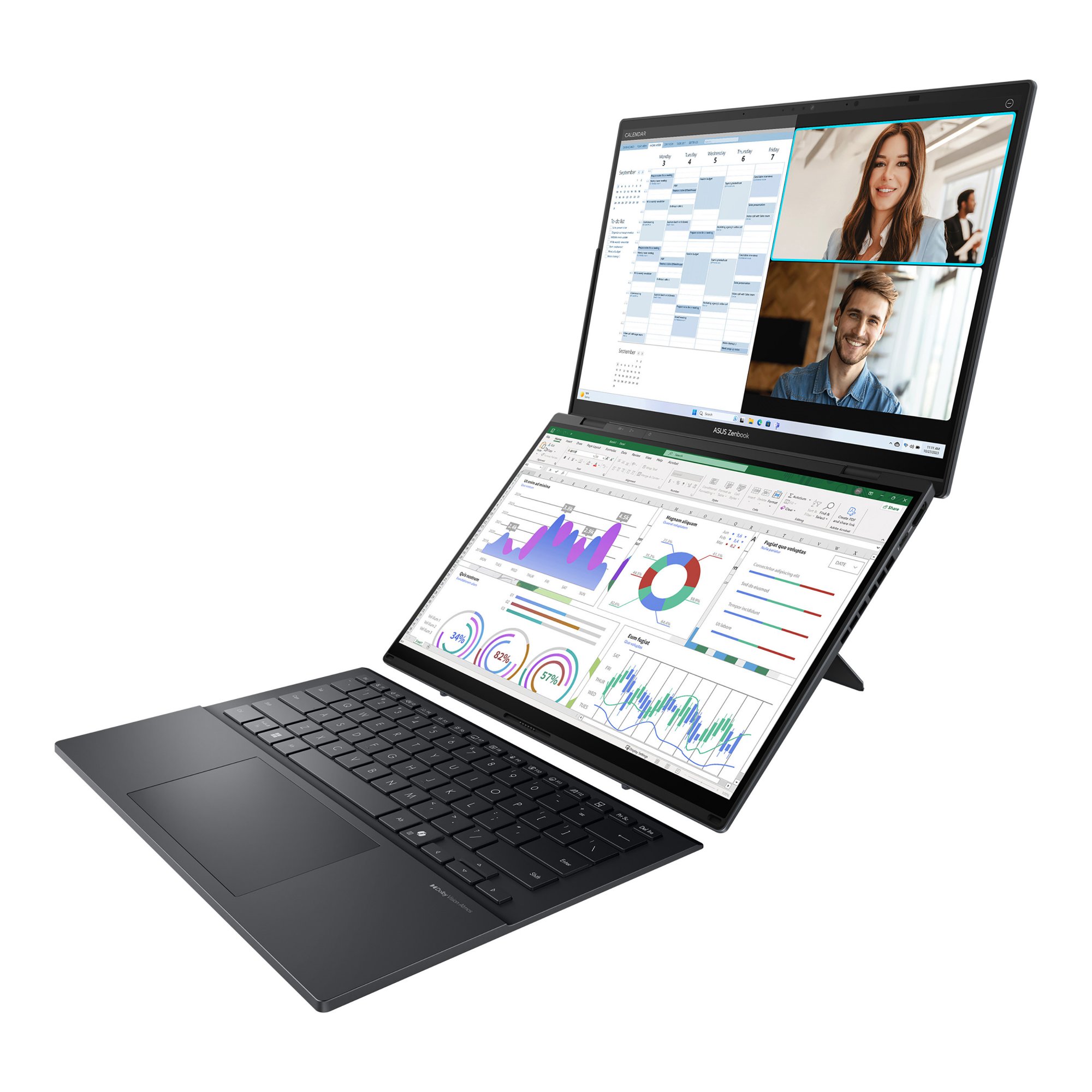

The versatile dual-screen design feels like using a desktop on the go, putting a huge workspace in ultraportable form.

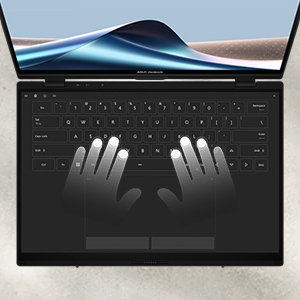

Smartphone-like gesture control

Delightful software features put convenience at your fingertips.

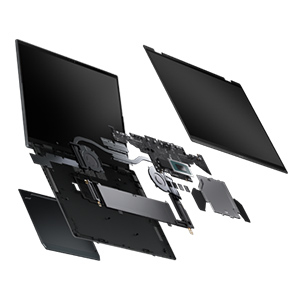

Advanced cooling system

All these powerful components need to be cooled effectively in order to reach their full potential. Zenbook DUO adds a heat spreader between the motherboard and the OLED panel as part of the advanced cooling system, which allows the CPU and GPU to run at up to a 35 W combined TDP, without throttling!

Product Properties

Manufacturer
Asus

Model
UX8406CA-PZ134W

EAN
4711387859650

Audio

Audio system
Smart Amp

Built-in microphone
Yes

Battery

Battery capacity
75 Wh

Battery technology
Lithium-Ion (Li-Ion)

Number of battery cells
4

Bullet points

Point
32 GB LPDDR5x RAM and 2 TB SSD

75 Wh battery

Dual 14” 3K 120 Hz OLED touchscreens

Effective gestures and smart software

Intel® Core™ Ultra 9 processor (Series 2)

Intel® Evo™ certified laptop

Thin and light: 14.6 mm, 1.65 kg (without keyboard)

Versatile modes: Laptop Mode, Dual Screen Mode, Sharing Mode and Desktop Mode

Windows 11 Home

Camera

Front camera
Yes

Front camera HD type
Full HD

Infrared (IR) camera
Yes

Design

Colour name
Inkwell Gray

Country of origin
China

Form factor
Convertible (Detachable)

Housing material
Aluminium, Magnesium

Market positioning
Home

Product colour
Grey

Product type
Hybrid (2-in-1)

Display

Colour gamut
100%

Contrast ratio (typical)
1000000:1

Display brightness
400 cd/m²

Display surface
Gloss

HD type
3K

High Dynamic Range (HDR) supported
Yes

High Dynamic Range (HDR) technology
DisplayHDR True Black 500

Max Refresh Rate
120 Hz

Maximum display brightness (HDR)
500 cd/m²

Native aspect ratio
16:10

Panel type
OLED

RGB colour space
DCI-P3

Screen Resolution
2880 x 1800 pixels

Screen Size
35.6 cm (14")

Touchscreen
Yes

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

Graphics card Open GL support
Yes

On-board GPU manufacturer
Intel

On-board graphics card
Yes

On-board graphics card 4K support
Yes

On-board graphics card 8K support
Yes

On-board graphics card family
Intel Arc Graphics

On-board graphics card model
Intel Arc 140T

Keyboard

Numeric keypad
No

Pointing device
Touchpad

Logistics data

Commodity Classification Automated Tracking System (CCATS)
8471300000

Memory

Internal memory type
LPDDR5x-SDRAM

Memory form factor
On-board

Memory Installed
32 GB

Memory layout (slots x size)
1 x 32 GB

Memory Slot Support
32 GB

Network

Antenna type
2x2

Bluetooth
Yes

Bluetooth version
5.4

Mobile network connection
No

Top Wi-Fi standard
Wi-Fi 7 (802.11be)

Wi-Fi standards
Wi-Fi 7 (802.11be)

Neural processor unit (NPU)

AI datatype support on NPU
Int8

AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

GPU performance up to
77 TOPs

Neural processor unit (NPU)
Intel AI Boost

NPU performance up to
13 TOPs

Sparsity support
Yes

Total processor performance up to
99 TOPs

Windows Studio effects support
Yes

Packaging content

AC adapter included
Yes

Stylus pen
Yes

Packaging data

Package depth
75 mm

Package height
284 mm

Package weight
3.67 kg

Package width
410 mm

Performance

Repairability index
9.4

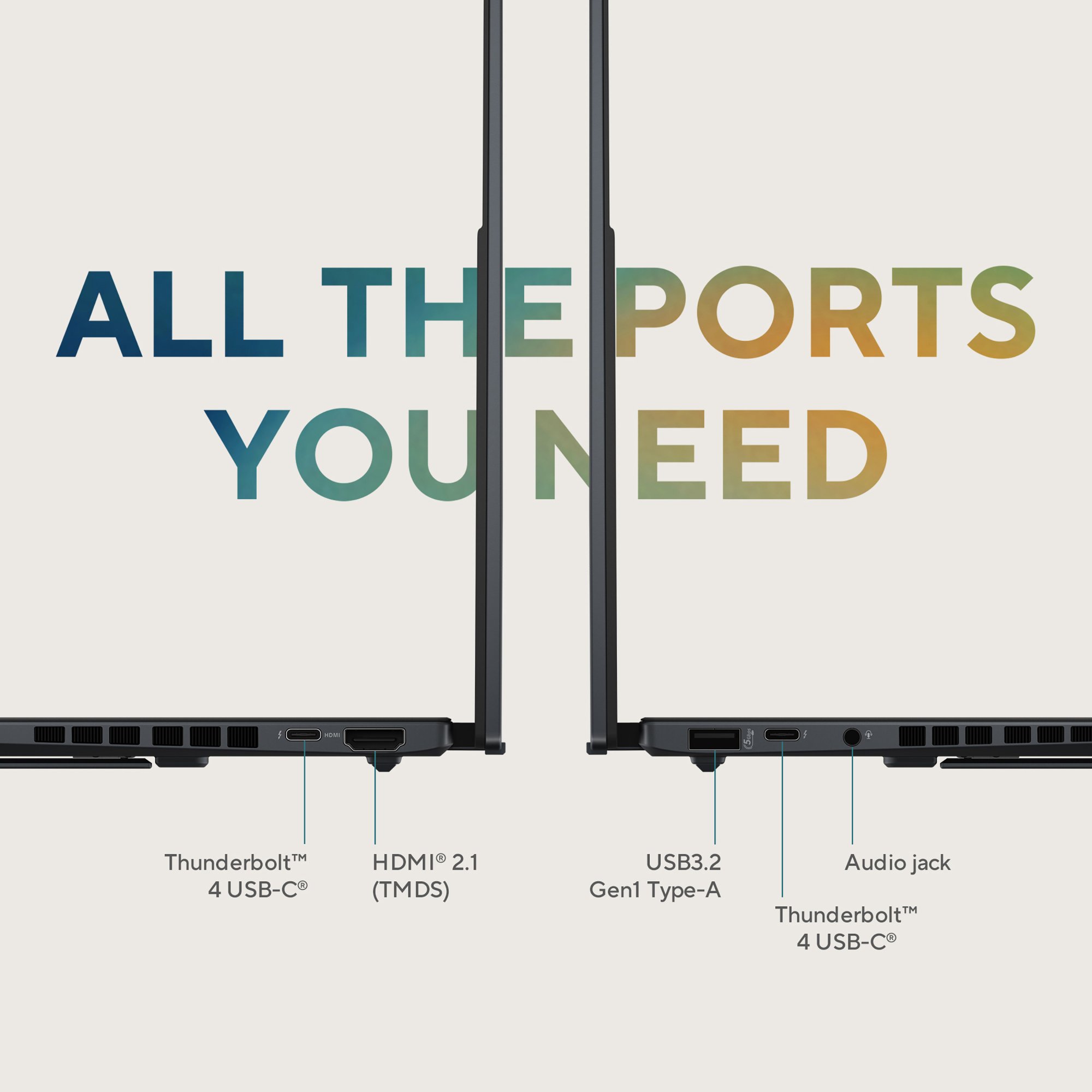

Ports & interfaces

Combo headphone/mic port
Yes

HDMI ports
1

HDMI version
2.1

Intel® Thunderbolt 4
Yes

Thunderbolt 4 ports quantity
2

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC adapter frequency
50 - 60 Hz

AC adapter input voltage
100 - 240 V

AC adapter output current
3.25 A

AC adapter output voltage
20 V

AC adapter power
65 W

USB Power Delivery (USB PD)
Yes

USB Type-C charging port
Yes

Processor

Efficient cores
8

Efficient-core base frequency
2.7 GHz

Efficient-core Max Turbo Frequency
4.5 GHz

Low Power Efficient-core Base Frequency
1000 MHz

Low Power Efficient-core Max Turbo Frequency
2.5 GHz

Low Power Efficient-cores
2

Maximum turbo power
115 W

Number of Cores
16

Performance cores
6

Performance-core base frequency
2.9 GHz

Performance-core Max Turbo Frequency
5.4 GHz

Processor
285H

Processor base power
45 W

Processor boost frequency
5.4 GHz

Processor cache
24 MB

Processor cache type
Smart Cache

Processor family
Intel Core Ultra 9

Processor generation
Intel Core Ultra (Series 2)

Processor manufacturer
Intel

Processor threads
16

Security

Trusted Platform Module (TPM)
Yes

Windows Hello
Yes

Software

Operating system architecture
64-bit

Operating system installed
Windows 11 Home

Trial software
1-month trial for new Microsoft 365 customers. Credit card required.

Storage

M.2 SSD size
2280 (22 x 80 mm)

Number of SSDs installed
1

NVMe
Yes

Optical drive type
No

SSD capacity
2 TB

SSD form factor
M.2

SSD interface
PCI Express 4.0

Storage Capacity
2 TB

Storage type
SSD

Total SSDs capacity
2 TB

Sustainability

Sustainability certificates
ENERGY STAR, EPEAT Gold

Weight & dimensions

Depth
217.9 mm

Height (front)
1.46 cm

Height (rear)
1.99 cm

Weight
1.65 kg

Width
313.5 mm

ASUS Zenbook Duo UX8406CA-PZ134W Intel Core Ultra 9 285H Hybrid (2-in-1) 35.6 cm (14") Touchscreen 3K 32 GB LPDDR5x-SDRAM 2 TB SSD Wi-Fi 7 (802.11be) Windows 11 Home Grey
