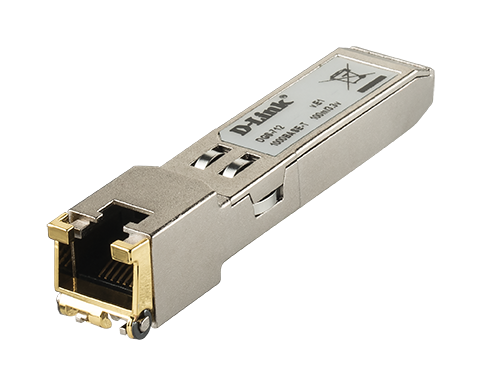

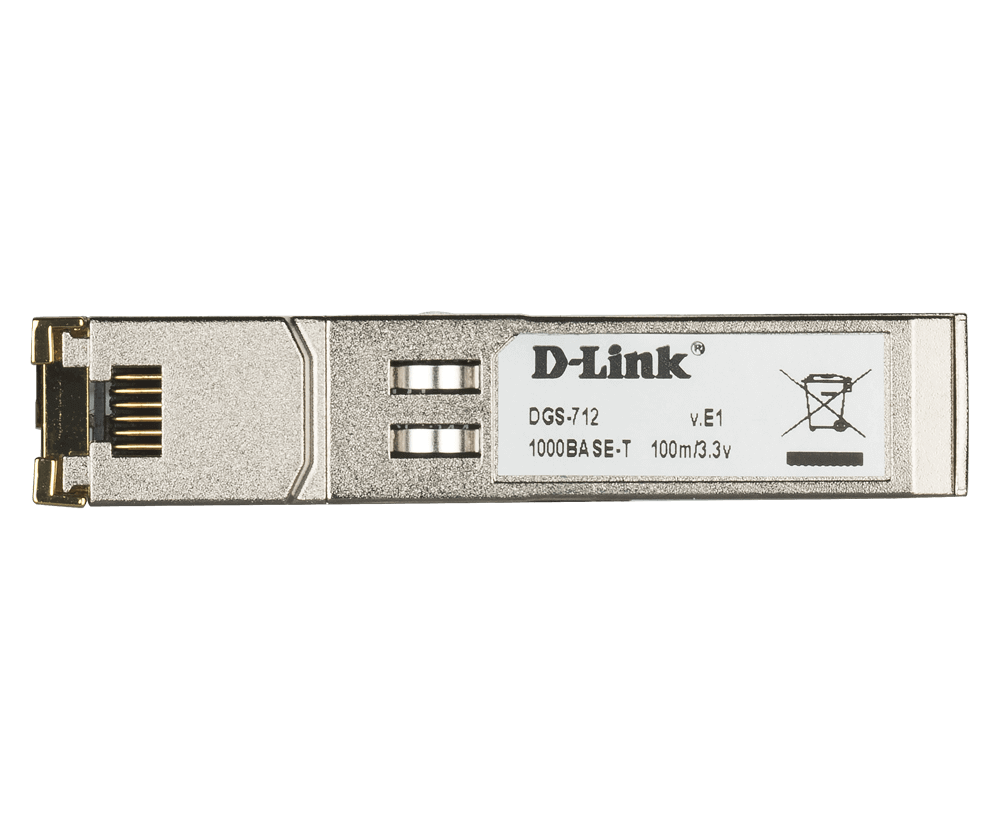

D-Link DGS-712 network transceiver module Copper 1000 Mbit/s SFP
Roll over image to zoom inClick to Open expanded view
D-Link DGS-712 network transceiver module Copper 1000 Mbit/s SFP
D-Link DGS-712 network transceiver module Copper 1000 Mbit/s SFP
Print
Model: DGS-712
EAN: 790069356117

D-Link DGS-712 network transceiver module Copper 1000 Mbit/s SFP

Manufacturer:
D-Link
D-Link DGS-712, Copper, 1000 Mbit/s, SFP, T, TX, 100 m, Gigabit Ethernet
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

D-Link DGS-712. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Metallic, Mean time between failures (MTBF): 5617000 h. Maximum voltage: 3.3 V. Safety: CSA, TUV, Certification: FCC Class A CE Class A VCCI Class A. Width: 13.7 mm, Depth: 70.2 mm, Height: 13.4 mm
  • Compliant with IEEE 802.3ab Gigabit Standard
  • MSA, RoHs Compliant
  • Maximum distance of 100 m
  • RJ-45 connector type

Product Properties

  • Model
  • DGS-712
  • EAN
  • 790069356117
  • Bullet points
  • Point
  • Compliant with IEEE 802.3ab Gigabit Standard
    Maximum distance of 100 m
    MSA, RoHs Compliant
    RJ-45 connector type
  • Certificates
  • Certification
  • FCC Class A CE Class A VCCI Class A
  • Safety
  • CSA, TUV
  • Features
  • Mean time between failures (MTBF)
  • 5617000 h
  • Product colour
  • Metallic
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Master (outer) cases per pallet (air)
  • 54 pc(s)
  • Master (outer) cases per pallet (sea)
  • 54 pc(s)
  • Pallet gross length
  • 102 cm
  • Pallet gross weight (air)
  • 246.8 kg
  • Pallet gross weight (sea)
  • 246.8 kg
  • Pallet gross width
  • 122 cm
  • Pallet height (air)
  • 199 cm
  • Pallet height (sea)
  • 199 cm
  • Products per pallet (air)
  • 2700 pc(s)
  • Products per pallet (sea)
  • 2700 pc(s)
  • Products per shipping (inner) case
  • 50 pc(s)
  • Shipping (inner) case gross weight
  • 4.2 kg
  • Shipping (inner) case height
  • 31 cm
  • Shipping (inner) case length
  • 36 cm
  • Shipping (inner) case net weight
  • 3.2 kg
  • Shipping (inner) case width
  • 26 cm
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 85 °C
  • Storage relative humidity (H-H)
  • 0 - 80%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Package depth
  • 131 mm
  • Package height
  • 49 mm
  • Package weight
  • 64 g
  • Package width
  • 74 mm
  • Performance
  • Copper ethernet cabling technology
  • 10BASE, 100BASE, 1000BASE
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Interface type
  • SFP
  • Maximum data transfer rate
  • 1000 Mbit/s
  • Maximum transfer distance
  • 100 m
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
  • SFP transceiver standard
  • T, TX
  • SFP transceiver type
  • Copper
  • Power
  • Maximum voltage
  • 3.3 V
  • Weight & dimensions
  • Depth
  • 70.2 mm
  • Height
  • 13.4 mm
  • Weight
  • 20 g
  • Width
  • 13.7 mm
