Description

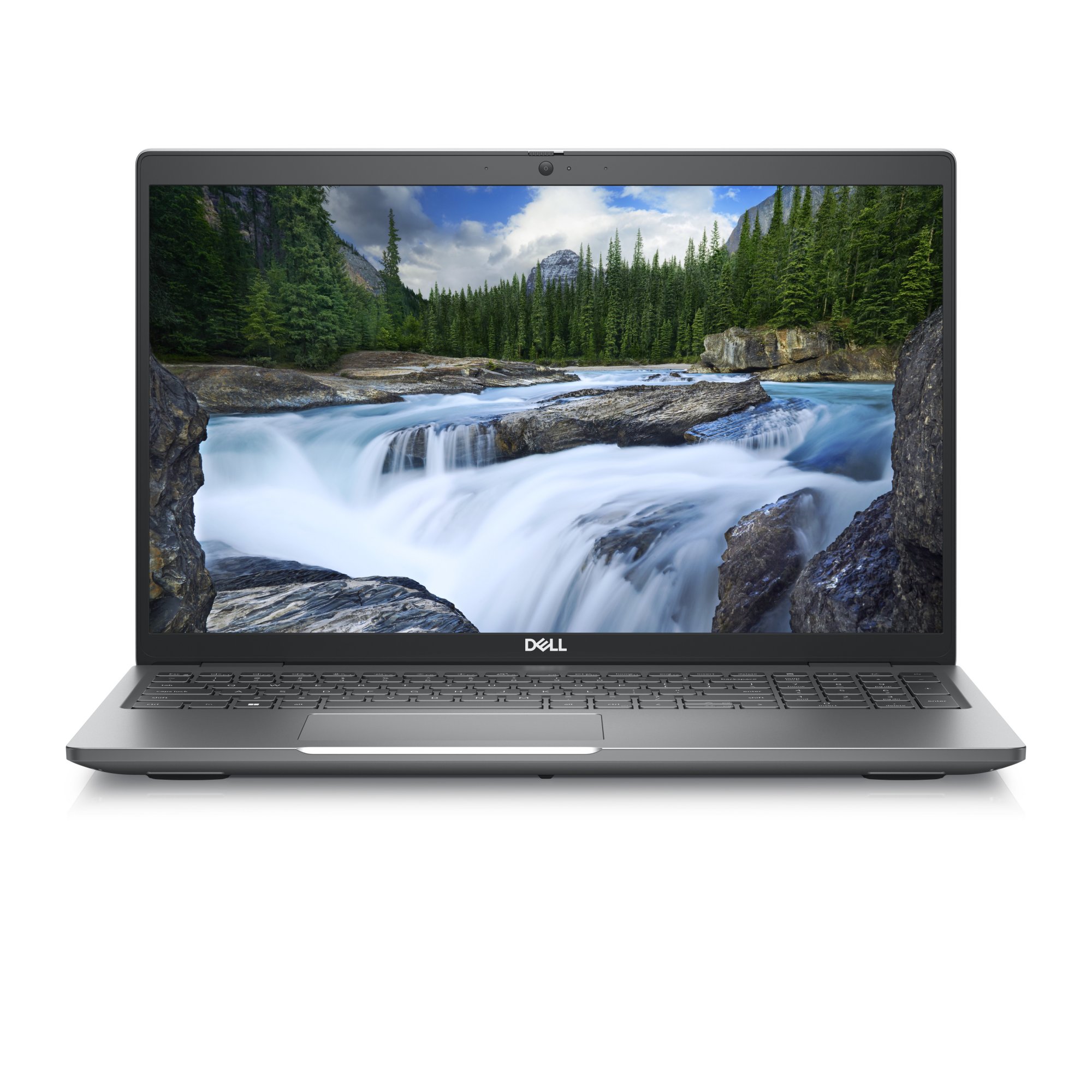

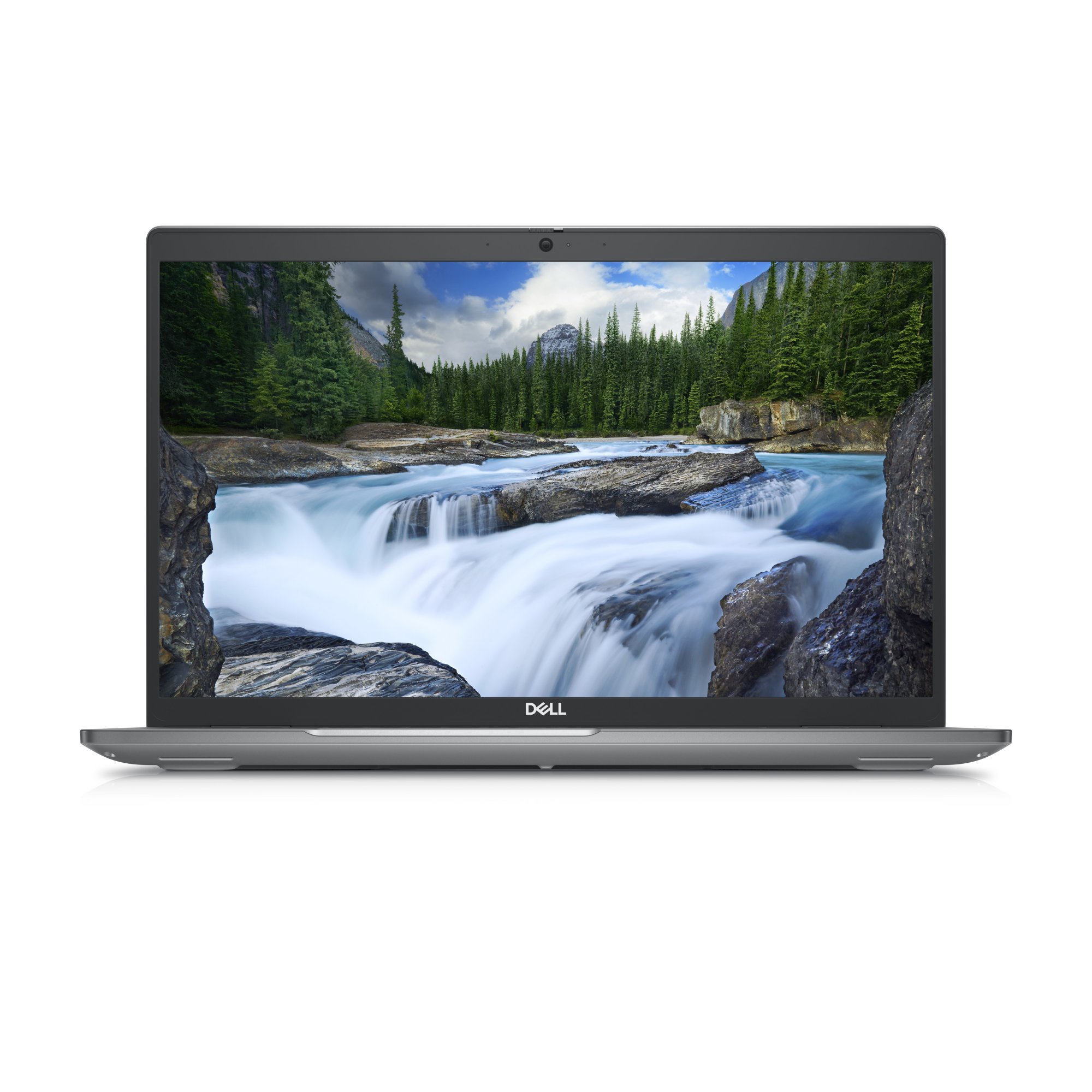

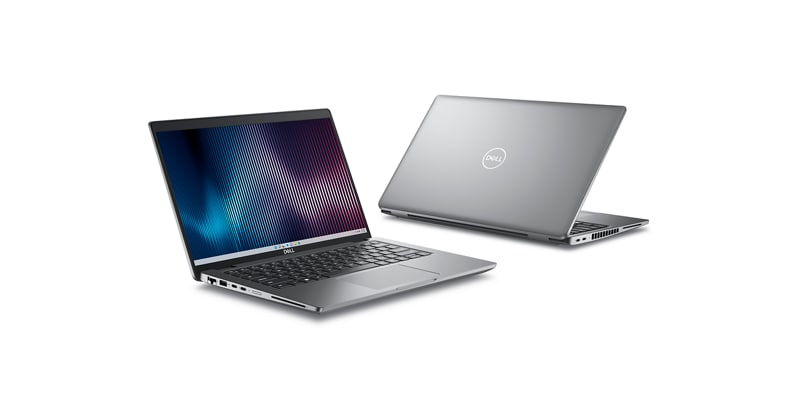

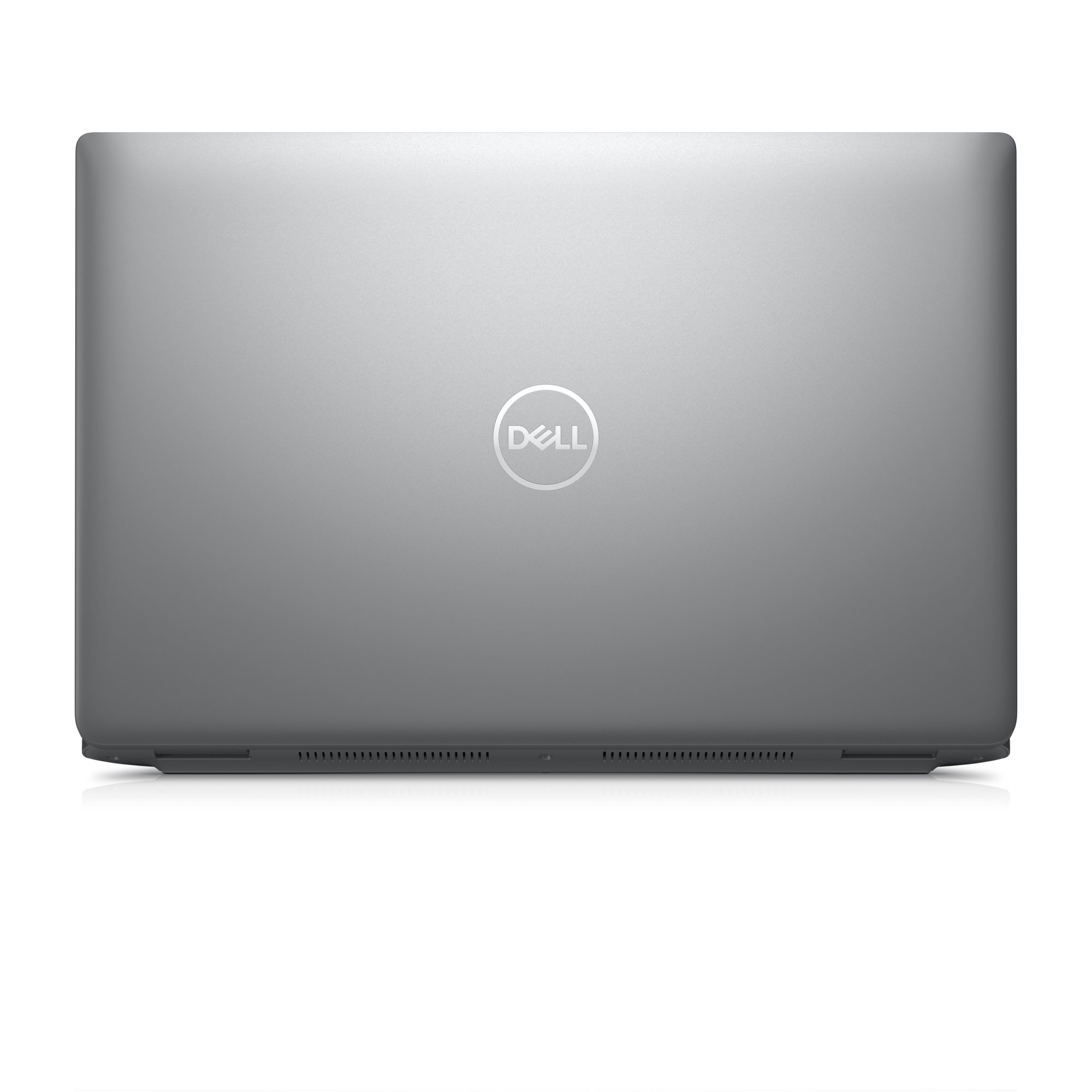

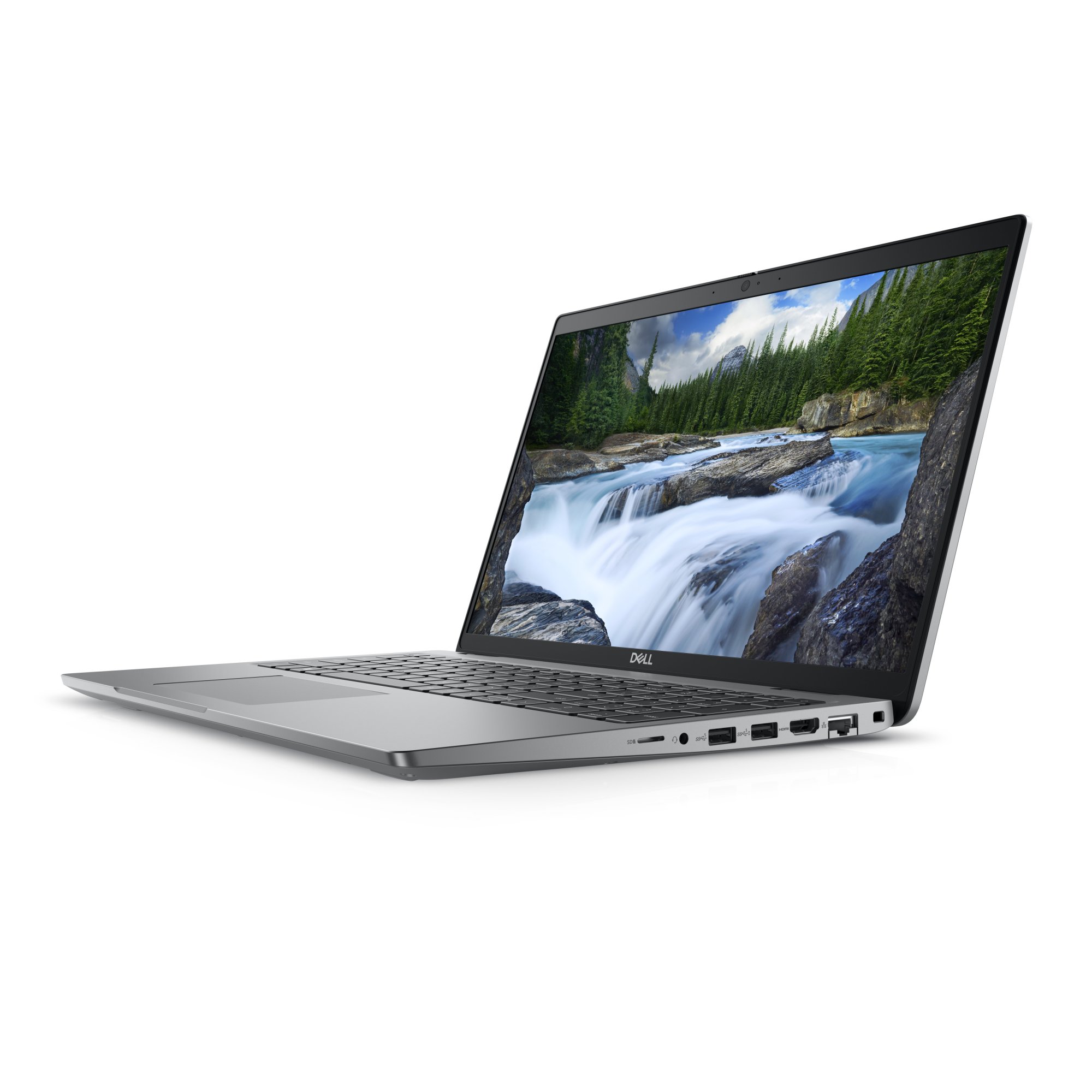

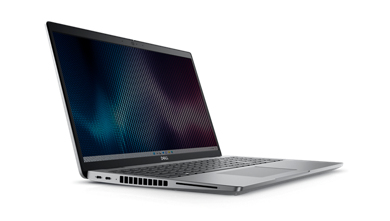

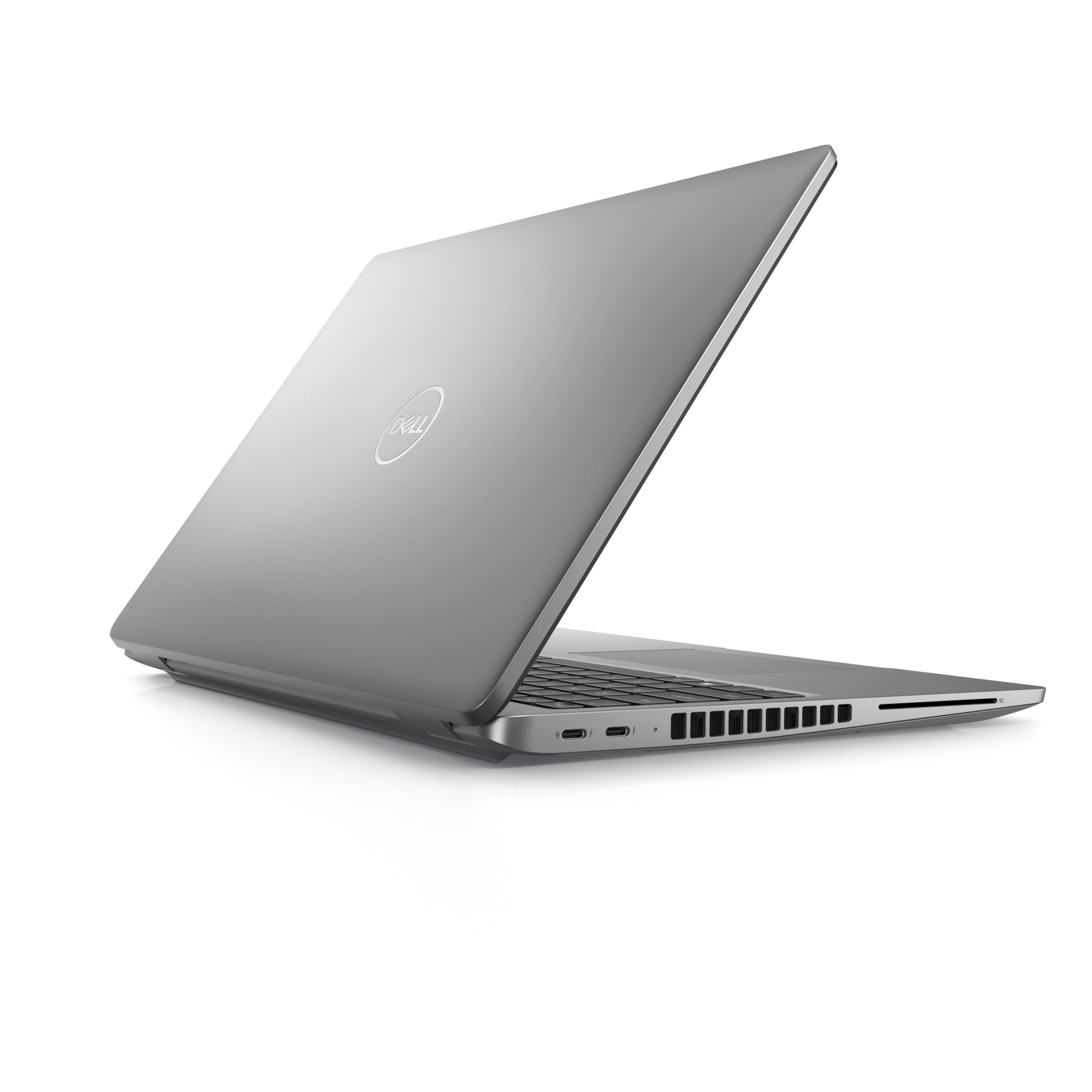

DELL Latitude 5540. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1335U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.61 kg

Windows 11 Pro 64-bit
Intel Core i5-1335U (12MB Cache)
39.6 cm (15.6") Full HD 1920 x 1080 IPS
8GB (3200MHz) DDR4-SDRAM (1 x 8) & 256GB SSD

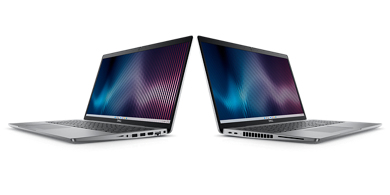

Maximum performance and scalability

Enable maximum productivity in more places and additional built-in hardware security with Intel vPro®, running on 13th Gen Intel® Core™ U-series or P-series processors
Fast response time and improved performance with optional DDR5 memory up to 64GB

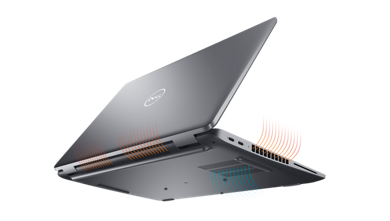

Advanced thermals with new larger fans that keep your device cool and quiet

NVIDIA® MX550 discrete graphic card options accelerate your laptop performance

Next-gen batteries with ExpressCharge analyze usage to extend run time and charge faster when you need a boost in power. Advanced Charge prevents overcharging to extend battery life

Ultimate security to work from anywhere

The industry's most secure commercial PCs offering Dell Safe ID, Dell SafeBIOS, fingerprint readers, TPM chip and lock slot options are tested and pass MIL-STD 810H tests
Intelligent privacy features from Dell Optimizer help keep sensitive data private
Onlooker detection notifies you when someone is peering at your screen and will texturize your screen
Look Away Detect knows when your focus is elsewhere and dims to further protect privacy and save battery life
ExpressSign-in detects your presence and wakes up your system and locks your PC when you walk away

Innovating with sustainability

‍Our most sustainable commercial PC developed with 64% more recycled and renewable plastics by weight than our previous generation models Made with 18% recycled and renewable plastic

100% recycled and renewable packaging with multipack options for even less waste

Innovative use of bio-based, ocean-bound and post-consumer recycled plastics throughout your device

Created for combining forces

Intelligent audio removes background noise on both ends of the call, while Voice Quality Monitoring hones in on the speaker

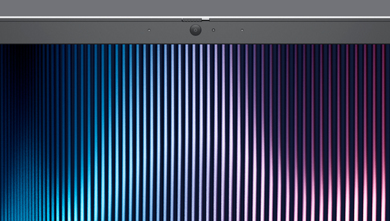

Enhanced FHD+IR camera developed to reflect and accentuate your reality with picture-perfect accuracy

Work from anywhere with outstanding battery life and choice of various battery options up to 54Whr

Experience uncompromised connectivity

Available Wi-Fi 6E and 4G LTE or 5G options make sure you’re always connected at the industry’s fastest speeds

ExpressConnect joins the best available network, prioritizes conferencing apps and delivers fast data and video downloads with the world's first simultaneous multi-network connection

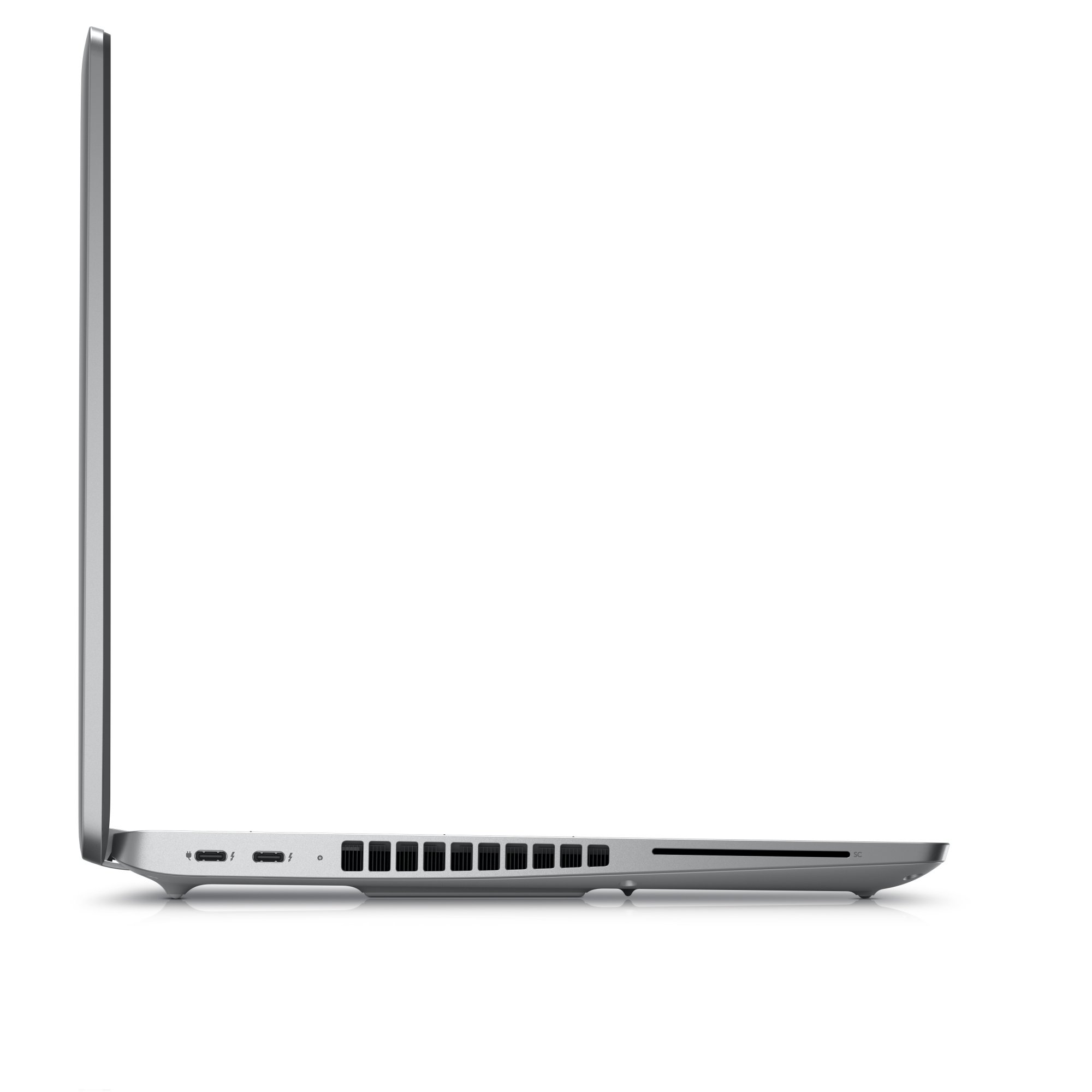

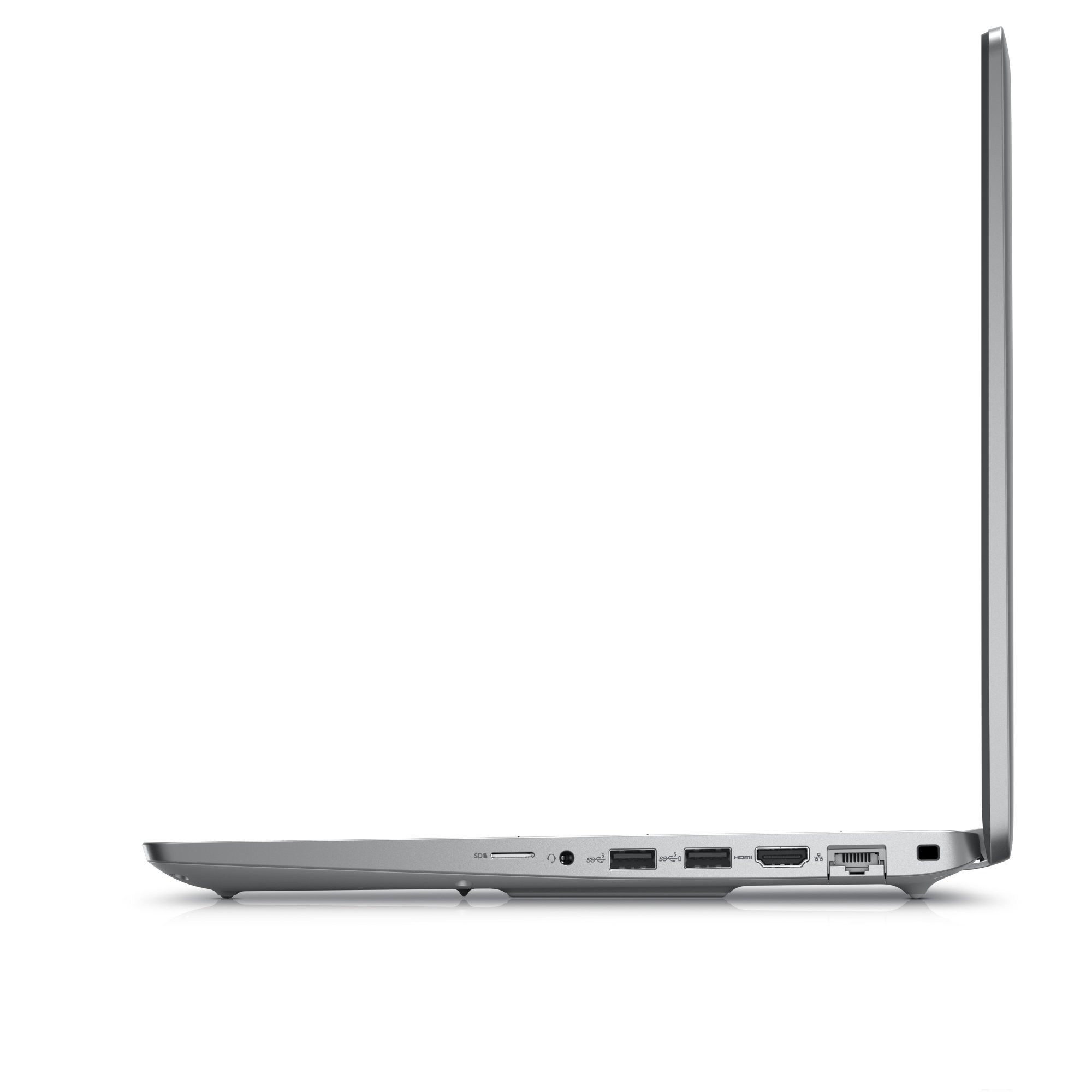

Quickly connect to peripherals with a broad range of ports including 2x USB Type C Thunderbolt™ 4.0 and HDMI 2.0

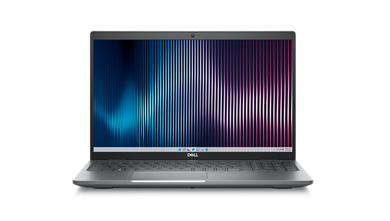

Work with incredible views

Optimized 16:9 screen with optional battery saving and low blue light display to maximize performance and keep your eyes comfortable

Wide array of panel choices including optional FHD Non-Touch 400 nit panel and FHD Touch 250 nit panel

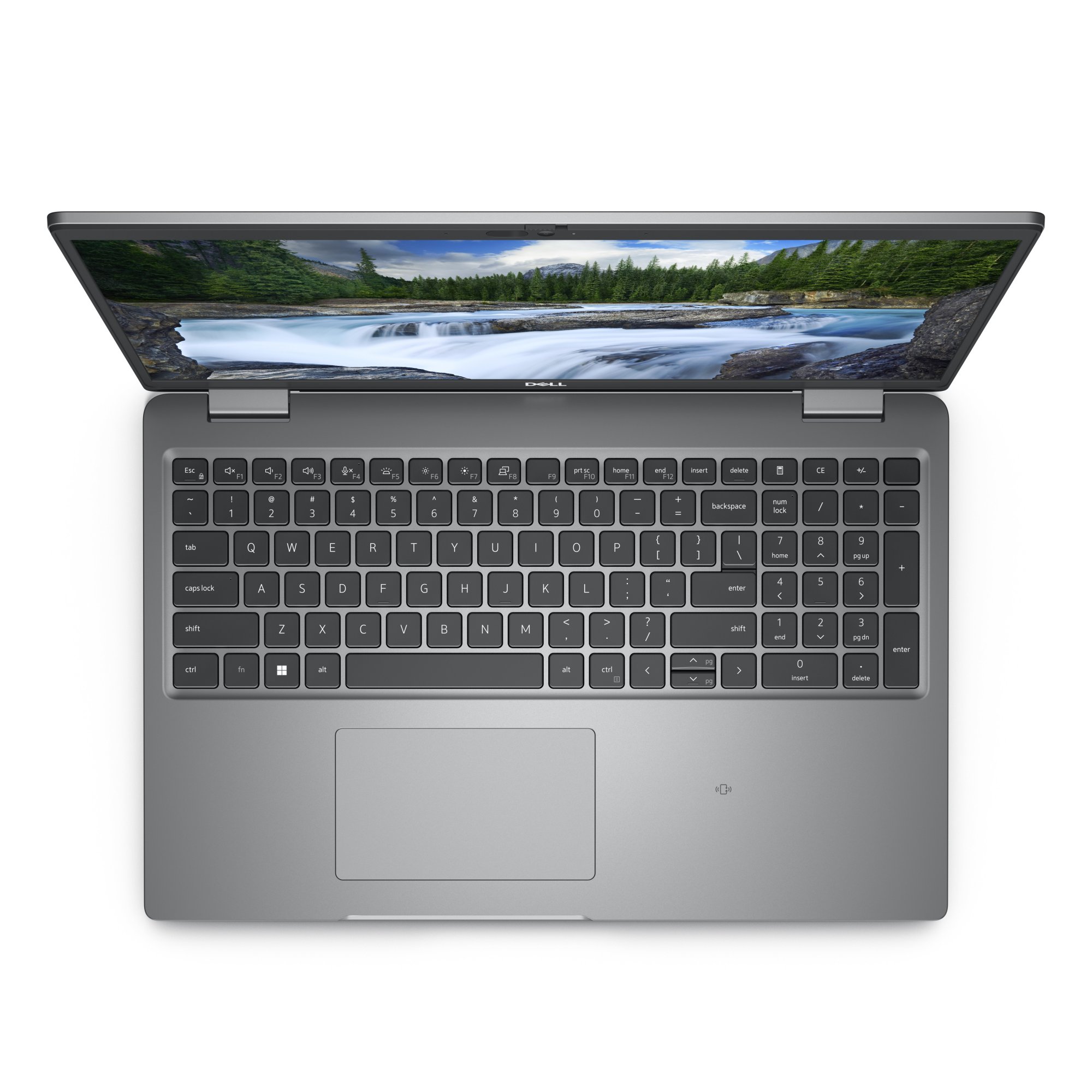

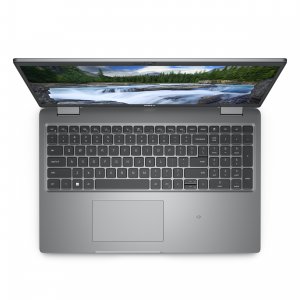

New premium clickpad with improved size, feel, noise for better productivity

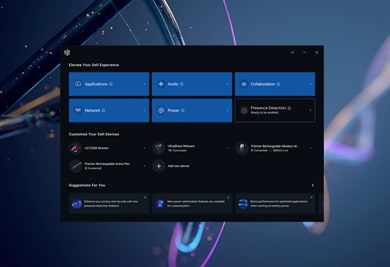

Dell Optimiser

Intelligence built around you - Automatically personalise and boost the performance of your Latitude and its entire ecosystem with Dell Optimiser, an AI-based optimisation software that learns and responds to the way you work
Personalised Performance - From pairing to charging, intelligence and machine learning elevate productivity by automating performance features across your entire ecosystem
Intelligent Collaboration - Get Dell's most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features all in one software
Safe, Secure and Manageable - With Dell Optimiser, optimisation and data collection follow a stringent process to ensure your privacy and security, designed to improve your PC experience continually. With modular installation, easily set up and customise Dell Optimiser features

Modern Workforce Solutions

Accelerate anywhere work experiences by modernizing how you deploy, manage and support devices with PC as a Service. Leverage both the built-in protections of the industry's most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month.

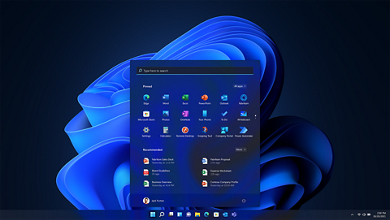

Windows 11 Pro - designed for hybrid work.

The most productive and secure version of Windows yet—but simple for IT.

ProSupport

Get 24x7 proactive, automated support and onsite service when you need it with Dell ProSupport. Let our team give you back valuable time so you can take care of business.

ProSupport Plus

Get anytime priority access to expert support with AI-driven predictive analytics and Accidental Damage Service to protect against drops, spills, surges and more.

Product Properties

Manufacturer
Dell

Model
GTPHK

EAN
5397184805961

Audio

Audio system
MaxxAudio

Built-in microphone
Yes

Number of built-in speakers
2

Number of microphones
2

Speaker power
2 W

Speakers manufacturer
Waves

Battery

Battery capacity
54 Wh

Battery technology
Lithium-Ion (Li-Ion)

Battery voltage
11.4 V

Battery weight
220 g

Fast charging
Yes

Number of battery cells
3

Bullet points

Point
39.6 cm (15.6") Full HD 1920 x 1080 IPS

8GB (3200MHz) DDR4-SDRAM (1 x 8) & 256GB SSD

Intel Core i5-1335U (12MB Cache)

Windows 11 Pro 64-bit

Camera

Front camera
Yes

Front camera HD type
Full HD

Front camera resolution
1920 x 1080 pixels

Front camera resolution (numeric)
2.07 MP

Infrared (IR) camera
Yes

Privacy camera
Yes

Privacy type
Privacy shutter

Video capturing speed
30 fps

Carbon footprint

Carbon emissions (End-of-Life)
2 kg of CO2e

Carbon emissions (Logistics)
12 kg of CO2e

Carbon emissions (Manufacturing)
272 kg of CO2e

Carbon emissions (Use)
36 kg of CO2e

PAIA version
1.3.2

Total carbon emissions (Standard deviation)
68 kg of CO2e

Total carbon emissions (w/o Use phase)
286 kg of CO2e

Total carbon footprint
321 kg of CO2e

Design

Form factor
Clamshell

Intel® vPro™ Platform Eligibility
Yes

Product colour
Grey

Product type
Laptop

Display

Anti-glare screen
Yes

Colour gamut
45%

Contrast ratio (typical)
700:1

Display brightness
250 cd/m²

Display response rise/fall
35 ms

HD type
Full HD

LED backlight
Yes

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
IPS

Pixel density
141 ppi

Pixel pitch
0.179 x 0.179 mm

RGB colour space
NTSC

Screen Resolution
1920 x 1080 pixels

Screen Size
39.6 cm (15.6")

Touchscreen
No

Graphics

Discrete graphics card
No

Discrete graphics card model
Not available

On-board GPU manufacturer
Intel

On-board graphics card
Yes

On-board graphics card model
Intel Iris Xe Graphics

Keyboard

Keyboard backlit
Yes

Keyboard language
UK English

Numeric keypad
Yes

Pointing device
Touchpad

Memory

Internal memory type
DDR4-SDRAM

Memory channels
Single-channel

Memory clock speed
3200 MHz

Memory form factor
SO-DIMM

Memory Installed
8 GB

Memory layout (slots x size)
1 x 8 GB

Memory Slot Support
64 GB

Memory slots
2x SO-DIMM

Non-ECC
Yes

Network

Antenna type
2x2

Bluetooth
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Mobile network connection
No

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi data rate (max)
2400 Mbit/s

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller manufacturer
Intel

WLAN controller model
Intel Wi-Fi 6E AX211

WWAN
Upgradable

Operational conditions

Non-operating altitude
-15.2 - 10668 m

Non-operating shock
160 G

Non-operating vibration
1.3 G

Operating altitude
-15.2 - 3048 m

Operating relative humidity (H-H)
10 - 90%

Operating shock
110 G

Operating temperature (T-T)
0 - 35 °C

Operating vibration
0.66 G

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 65 °C

Performance

Ambient light sensor
Yes

Ports & interfaces

Charging port type
USB Type-C

Combo headphone/mic port
Yes

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

HDMI version
2.0

Intel® Thunderbolt 4
Yes

Number of USB ports with PowerShare support
1

PowerShare
Yes

Thunderbolt 4 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB Power Delivery
Yes

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC adapter frequency
50/60 Hz

AC adapter input voltage
100 - 200 V

AC adapter power
65 W

USB charging current
3.25 A

USB charging voltage
20,5,9,15 V

Processor

Configurable TDP-down
12 W

Efficient-core boost frequency
3.4 GHz

Maximum turbo power
55 W

Number of Cores
10

Processor
i5-1335U

Processor base power
15 W

Processor boost frequency
4.6 GHz

Processor cache
12 MB

Processor cache type
Smart Cache

Processor family
Intel® Core™ i5

Processor generation
13th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor special features

CPU configuration (max)
1

Embedded options available
No

Execute Disable Bit
Yes

Intel Flex Memory Access
Yes

Intel Trusted Execution Technology
Yes

Intel Virtualization Technology (VT-x)
Yes

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel VT-x with Extended Page Tables (EPT)
Yes

Security

Cable lock slot
Yes

Cable lock slot type
Wedge

Fingerprint reader
Yes

Smart card reader
Yes

Trusted Platform Module (TPM)
Yes

Trusted Platform Module (TPM) version
2.0

Software

Bundled software
Windows System Driver

Operating system architecture
64-bit

Operating system installed
Windows 11 Pro

Operating system language
Multilingual

Trial software
No Microsoft Office License Included 30 day Trial Offer Only

Storage

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC

Number of SSDs installed
1

NVMe
Yes

Optical drive type
No

SSD capacity
256 GB

SSD form factor
M.2

SSD interface
PCI Express 4.0

SSD performance class
35

Storage Capacity
256 GB

Storage type
SSD

Total SSDs capacity
256 GB

Sustainability

Sustainability certificates
TCO

Weight & dimensions

Depth
233.3 mm

Height (front)
2.08 cm

Height (rear)
2.28 cm

Weight
1.61 kg

Width
357.8 mm

DELL Latitude 5540 Laptop 39.6 cm (15.6") Full HD Intel® Core™ i5 i5-1335U 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
