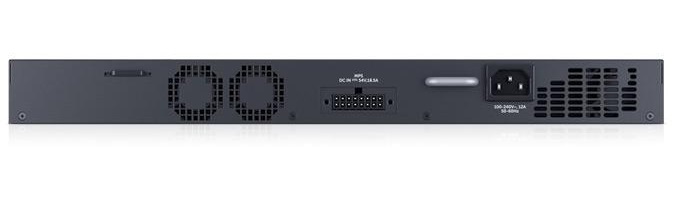

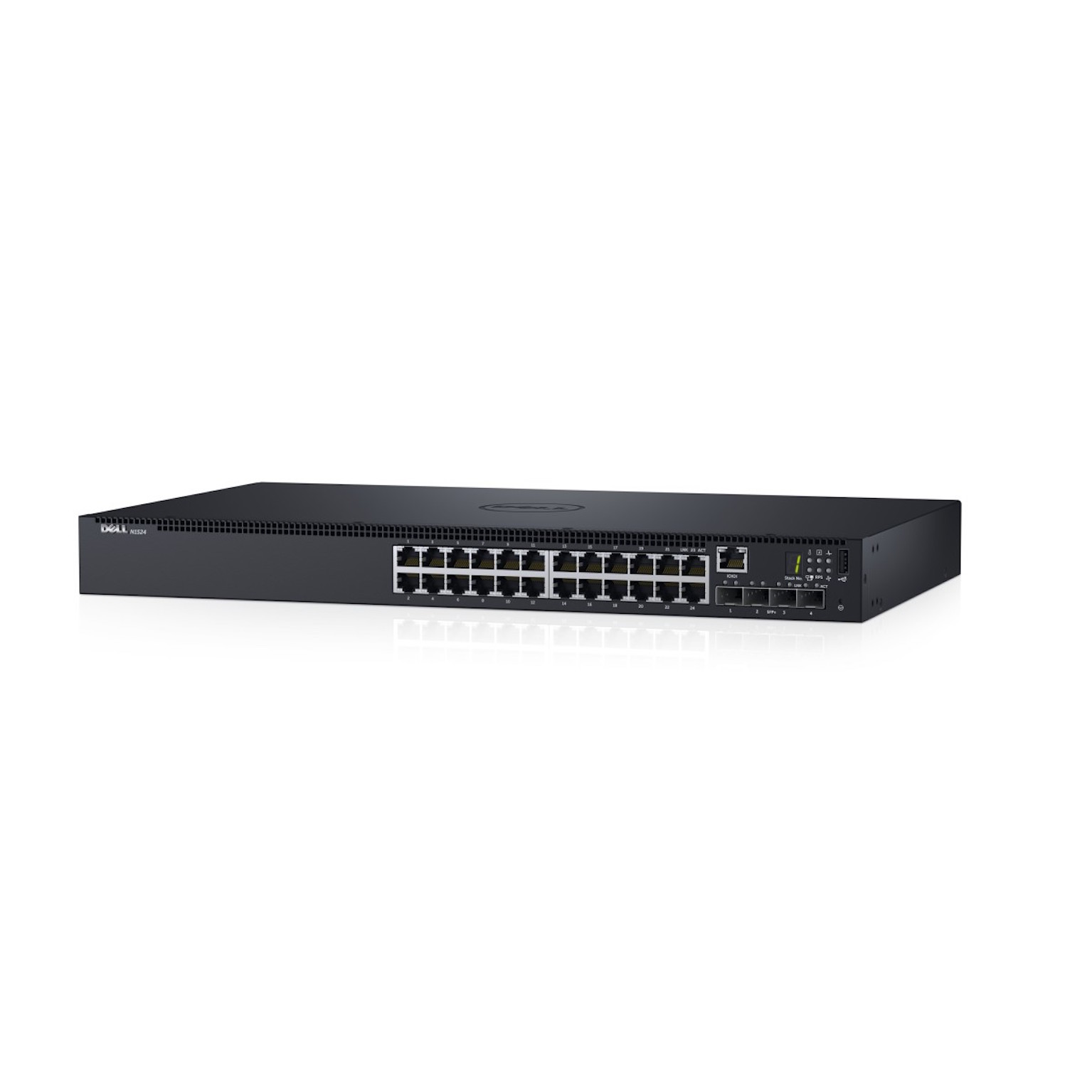

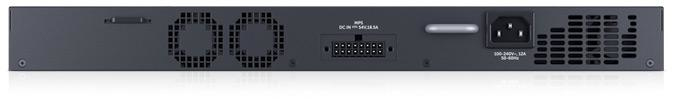

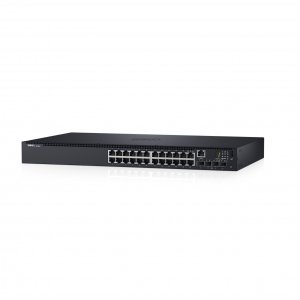

DELL N1524 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Roll over image to zoom inClick to Open expanded view
Model: 210-AEVX

DELL N1524 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Manufacturer:
Dell
DELL N1524, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Please log in to see your price
Related products

Description

DELL N1524. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE.... Rack mounting, Form factor: 1U
Update your network access
Update your network access
The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via a 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address.
Deliver clean power to network devices with PoE+ support
Deliver clean power to network devices with PoE+ support
The Dell Networking N1500 Series has options for up to 48 Power-over-Ethernet Plus (PoE+) ports. You can attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.
Designed for efficiency
Designed for efficiency
Built to help keep operating costs down, the N1500 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Improve your overall efficiency with these great features: 80 Plus-certified efficient integrated power supply Redundant variable-speed cooling fans Energy-efficient Ethernet and low-power physical layer (PHYs) to help reduce power to inactive ports and idle links
Deploy with confidence at any scale
Deploy with confidence at any scale

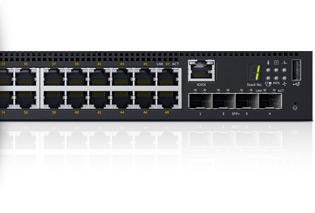

With high throughput and capacity to handle unexpected workloads, the N1500 Series switches are ideal solutions for fast-growing GbE networks that require high-density aggregation with seamless redundancy and availability. Take advantage of the following features: Data rates up to 176Gbps (full duplex) and a forwarding rate of up to 164Mpps Four 10GbE SFP+ ports for high-speed uplinks and a stacking architecture up to four units at 40Gbps Switch stacks up to 200 1GbE ports that can be managed from a single screen or IP address

Product Properties

  • Model
  • 210-AEVX
  • Data transmission
  • MAC address table
  • 16000 entries
  • Packet buffer memory
  • 1.5 MB
  • Switching capacity
  • 128 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Black
  • Rack mounting
  • Y
  • Stackable
  • Y
  • Management features
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Y
  • Network
  • Auto MDI/MDI-X
  • Y
  • Broadcast storm control
  • Y
  • Flow control support
  • Y
  • Full duplex
  • Y
  • Networking standards
  • IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Number of VLANs
  • 512
  • VLAN support
  • Y
  • Operational conditions
  • Heat dissipation
  • 103.1 BTU/h
  • Operating relative humidity (H-H)
  • -40 - 65%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Performance
  • Flash memory
  • 256 MB
  • Maximum cable length
  • 3 m
  • Physical stacking (units)
  • 4
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • Power consumption (typical)
  • 40 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Weight & dimensions
  • Depth
  • 257 mm
  • Height
  • 43.5 mm
  • Weight
  • 3 kg
  • Width
  • 440 mm
