Description

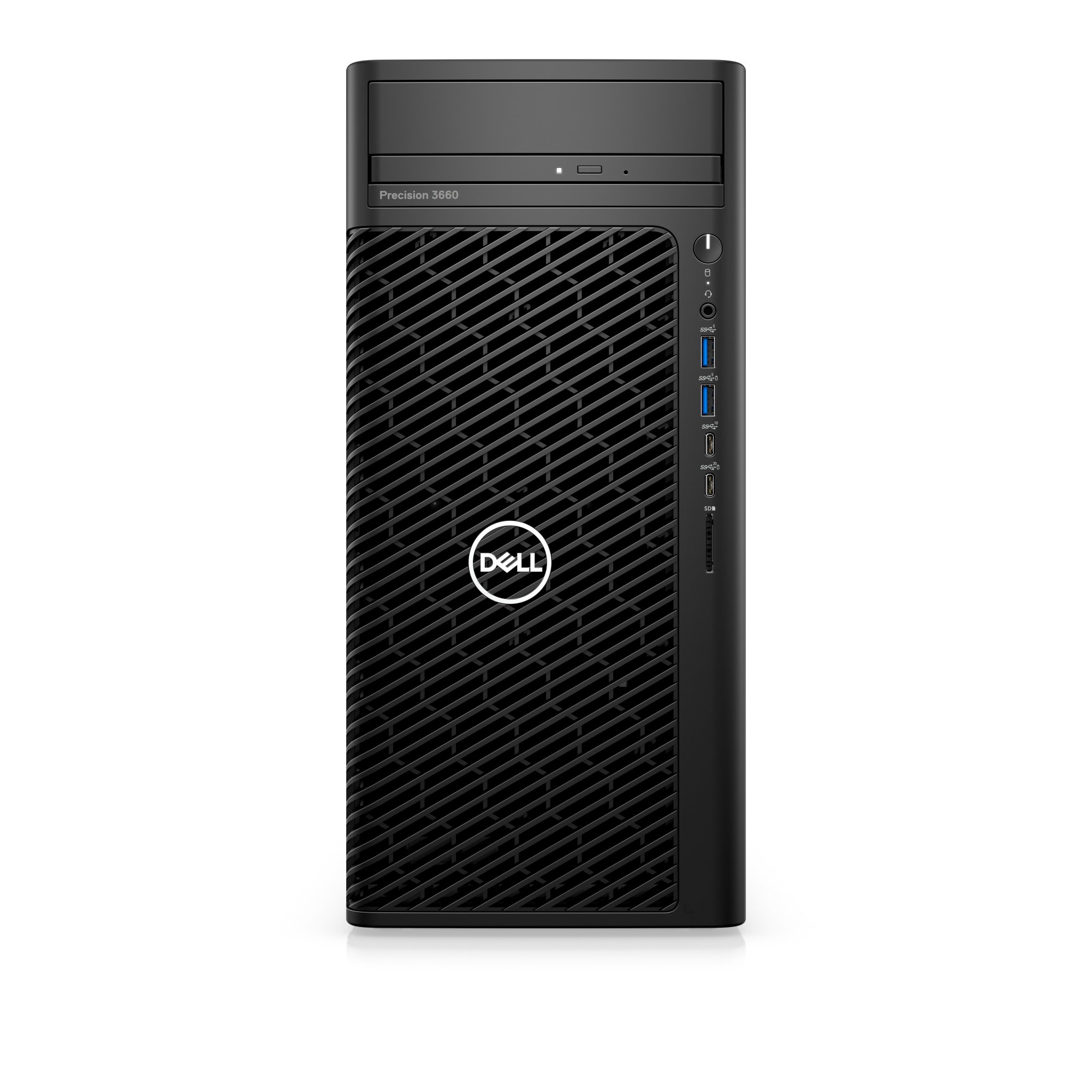

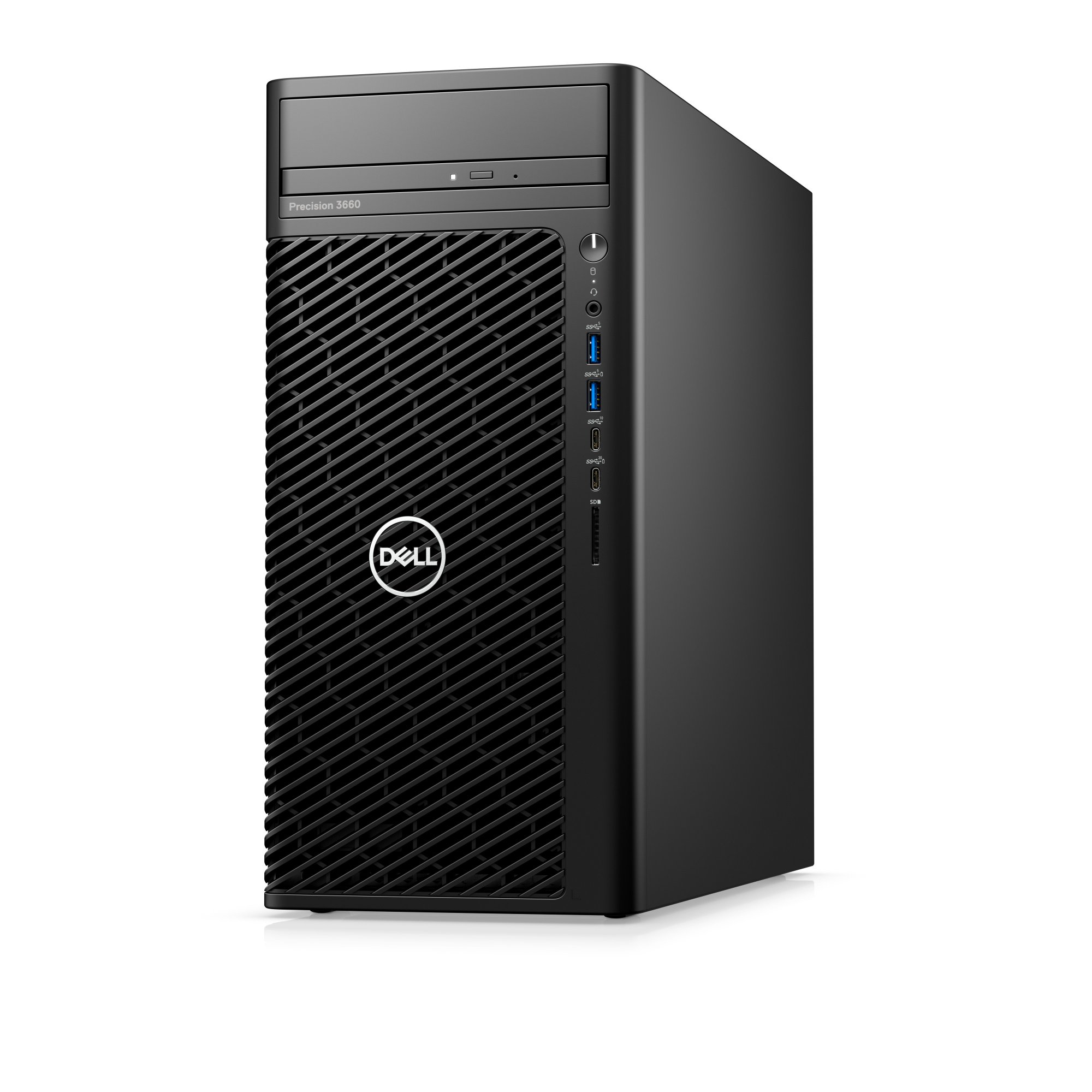

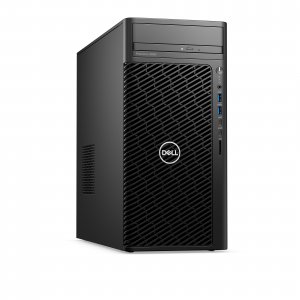

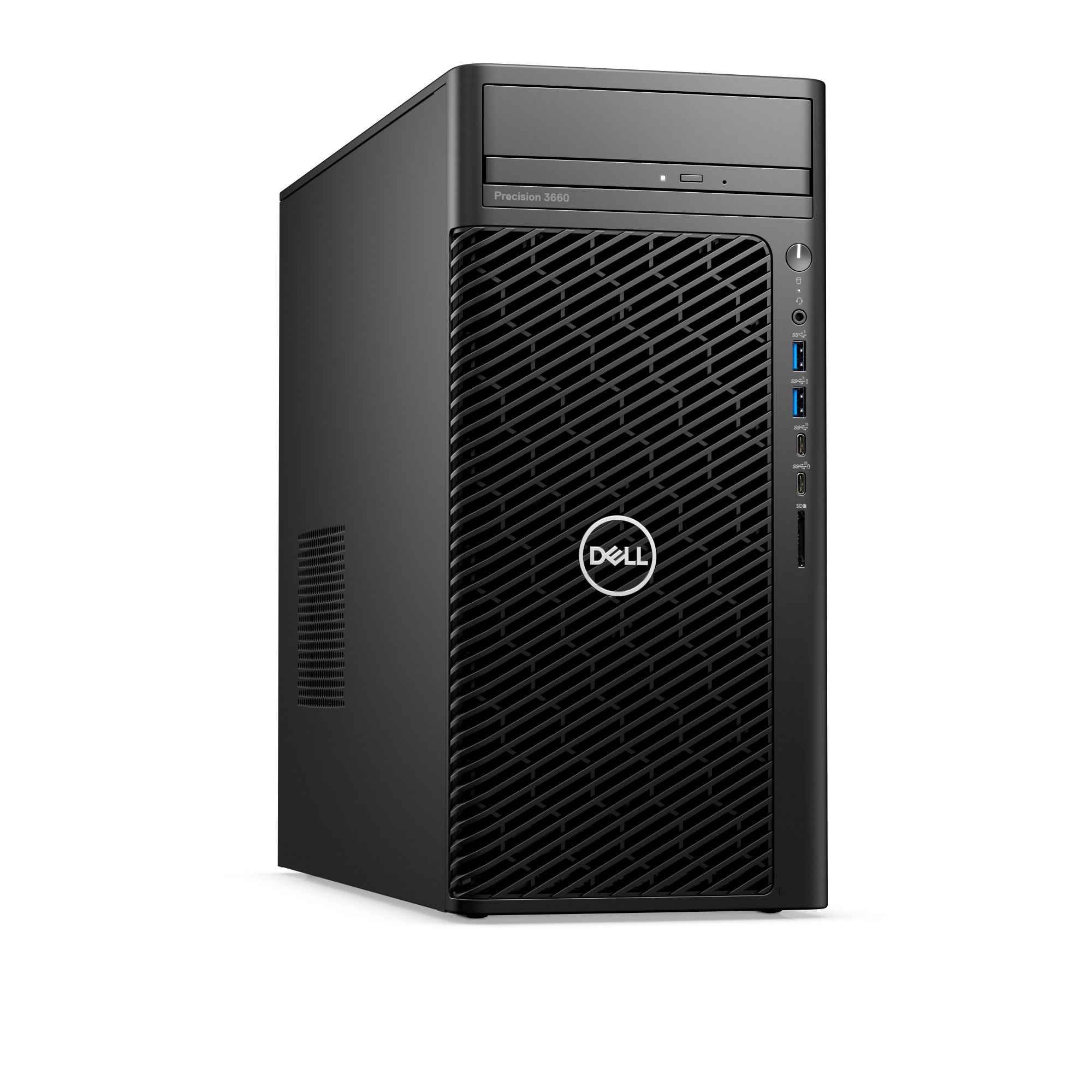

DELL Precision 3660. Processor family: Intel® Core™ i7, Processor model: i7-13700. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4400 MHz. Total storage capacity: 1 TB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 770, Discrete graphics card model: NVIDIA T1000. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 500 W. Chassis type: Tower. Product type: Workstation

Windows 11 Pro 64-bit
Intel Core i7-13700 (30MB Cache)
NVIDIA T1000 (4GB GDDR6)
32GB (4400MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD

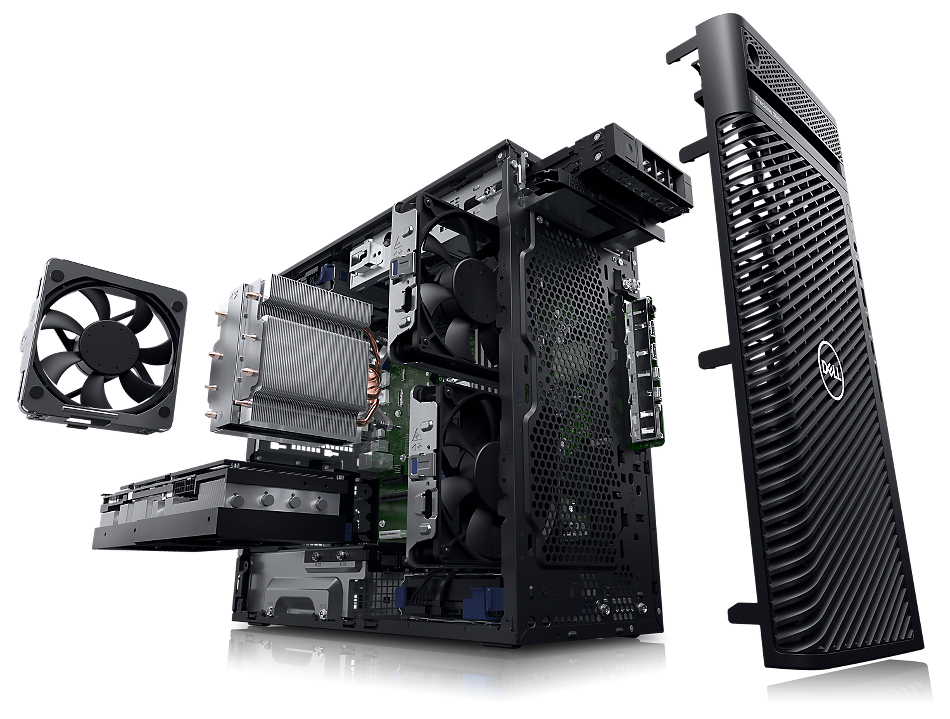

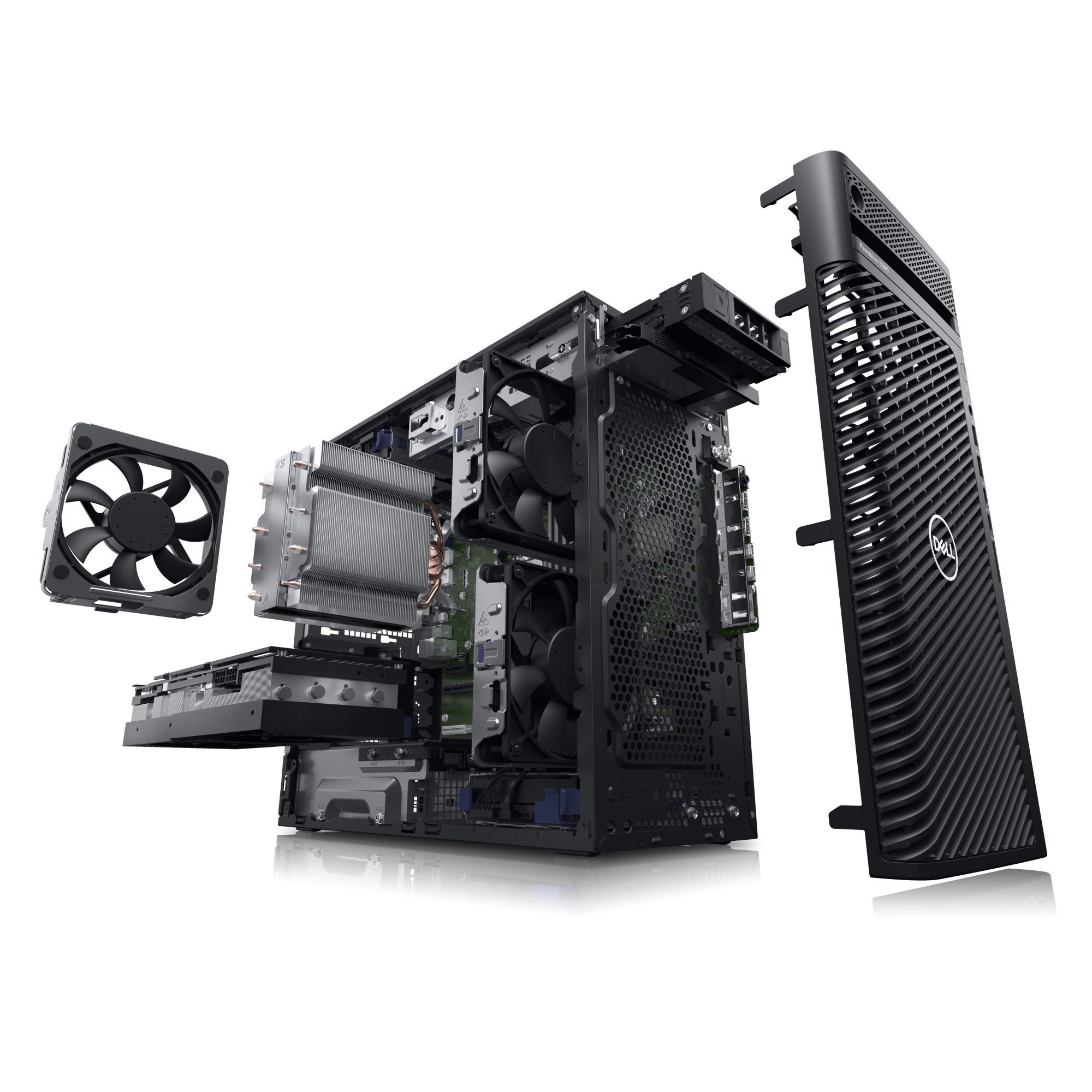

Extreme scalability in mini-tower design

CPU cooling option
Get improved cooling with Advanced Air and Premium Liquid Coolers.

Lockable, removable front storage
Secure and accessible data storage.

Faster ports
Easy access to ports (up to 20Gbps).

Removable power supply
Use the release to easily remove the power supply.

Powerful performance

You won’t believe your eyes

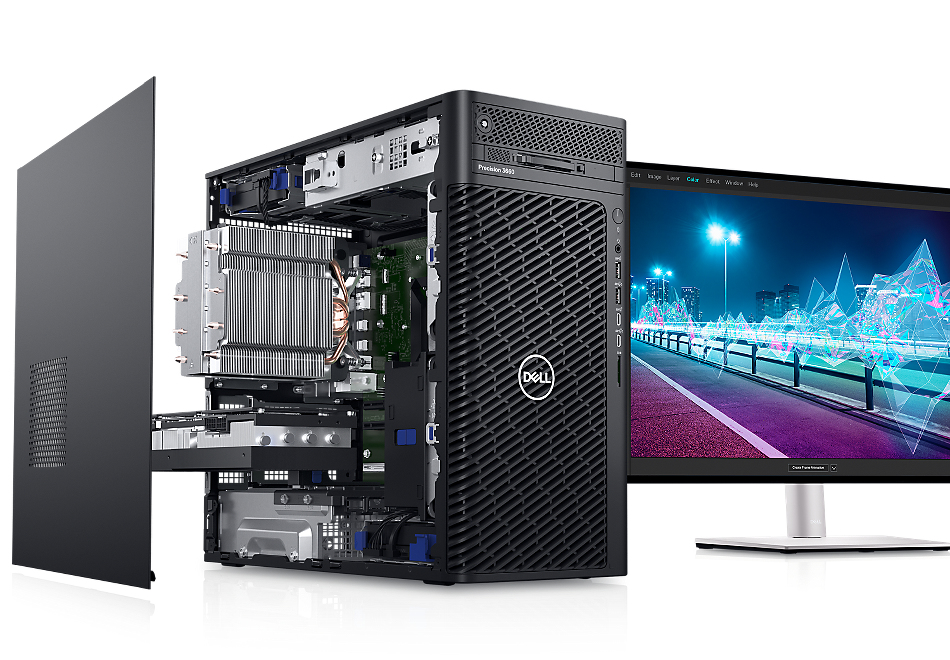

Whether you’re working on website design or CAD, Intel integrated graphics or up to AMD Radeon Pro or NVIDIA pro graphics (up to 350W) ensure a smooth and elevated visual experience every time.

Slowing down isn’t an option
125W 12th Gen Intel Core™ processors. Up to 128GB or up to 4400MHz DDR5 memory. Up to 28TB of RAID-capable storage.

Convenient connectivity
Integrated Wi-Fi 6 and Bluetooth 5.2 with vPro.

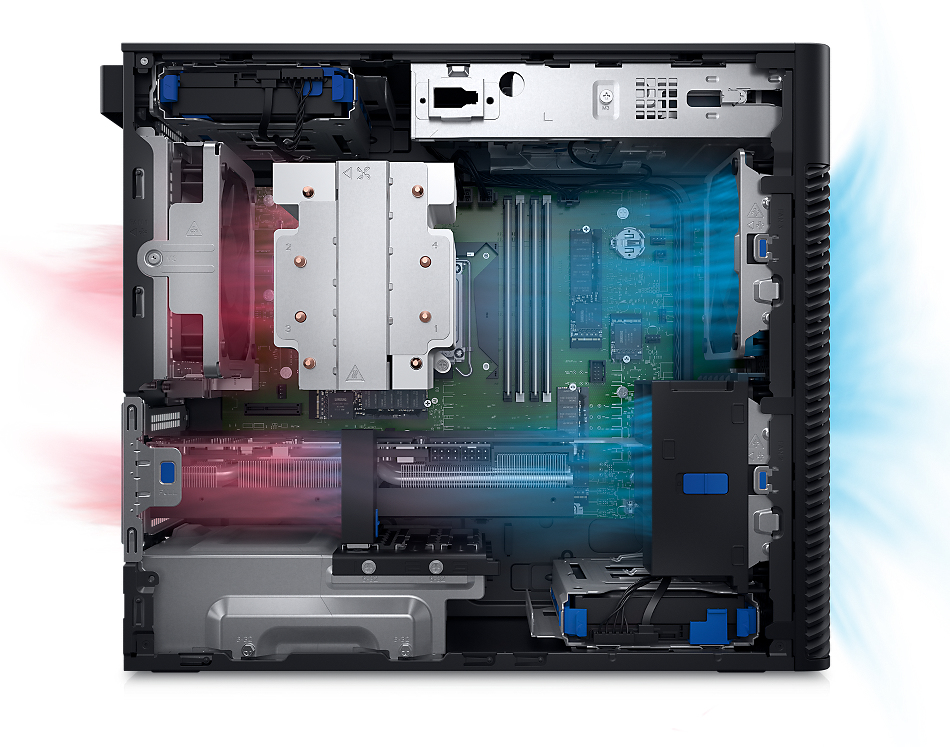

Optional air and liquid cooling

The flow of air or liquid keeps your internals cool, and your workspace silent, so your creativity is never interrupted. Advanced thermals help to keep your system running at peak performance.

Reliable Memory Technology Pro

Works with ECC memory to detect bad memory, correct errors, map out bad memory sectors and report.

Independent Software Vendor (ISV) certification

Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly.

Product Properties

Manufacturer
Dell

Model
09VNP

EAN
5397184773963

Bullet points

Point
32GB (4400MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD

Intel Core i7-13700 (30MB Cache)

NVIDIA T1000 (4GB GDDR6)

Windows 11 Pro 64-bit

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Chassis type
Tower

Intel® vPro™ Platform Eligibility
Y

Placement supported
Vertical

Product colour
Black

Expansion slots

PCI Express x16 slots
1

PCI Express x4 (Gen 3.x) slots
1

PCI Express x4 (Gen 4.x) slots
1

Graphics

Discrete graphics card
Y

Discrete graphics card memory
4 GB

Discrete graphics card model
NVIDIA T1000

Discrete graphics memory type
GDDR6

On-board graphics card
Y

On-board graphics card model
Intel UHD Graphics 770

Memory

Internal memory type
DDR5-SDRAM

Memory clock speed
4400 MHz

Memory Installed
32 GB

Memory layout (slots x size)
2 x 16 GB

Memory Slot Support
128 GB

Memory slots
4x DIMM

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Wi-Fi
N

Operational conditions

Non-operating altitude
-15.2 - 10668 m

Non-operating shock
105 G

Non-operating vibration
2 G

Operating altitude
-15.2 - 3048 m

Operating relative humidity (H-H)
20 - 85%

Operating shock
40 G

Operating temperature (T-T)
10 - 35 °C

Operating vibration
0.52 G

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 65 °C

Packaging content

Cables included
AC

Display included
N

Input device model
KB216,MS116

Keyboard connectivity
Wired

Keyboard included on selected markets only
Y

Mouse connectivity
Wired

Mouse included on selected markets only
Y

Performance

Audio chip
Realtek ALC3246-CG

Market positioning
Business

Product type
Workstation

Trusted Platform Module (TPM)
Y

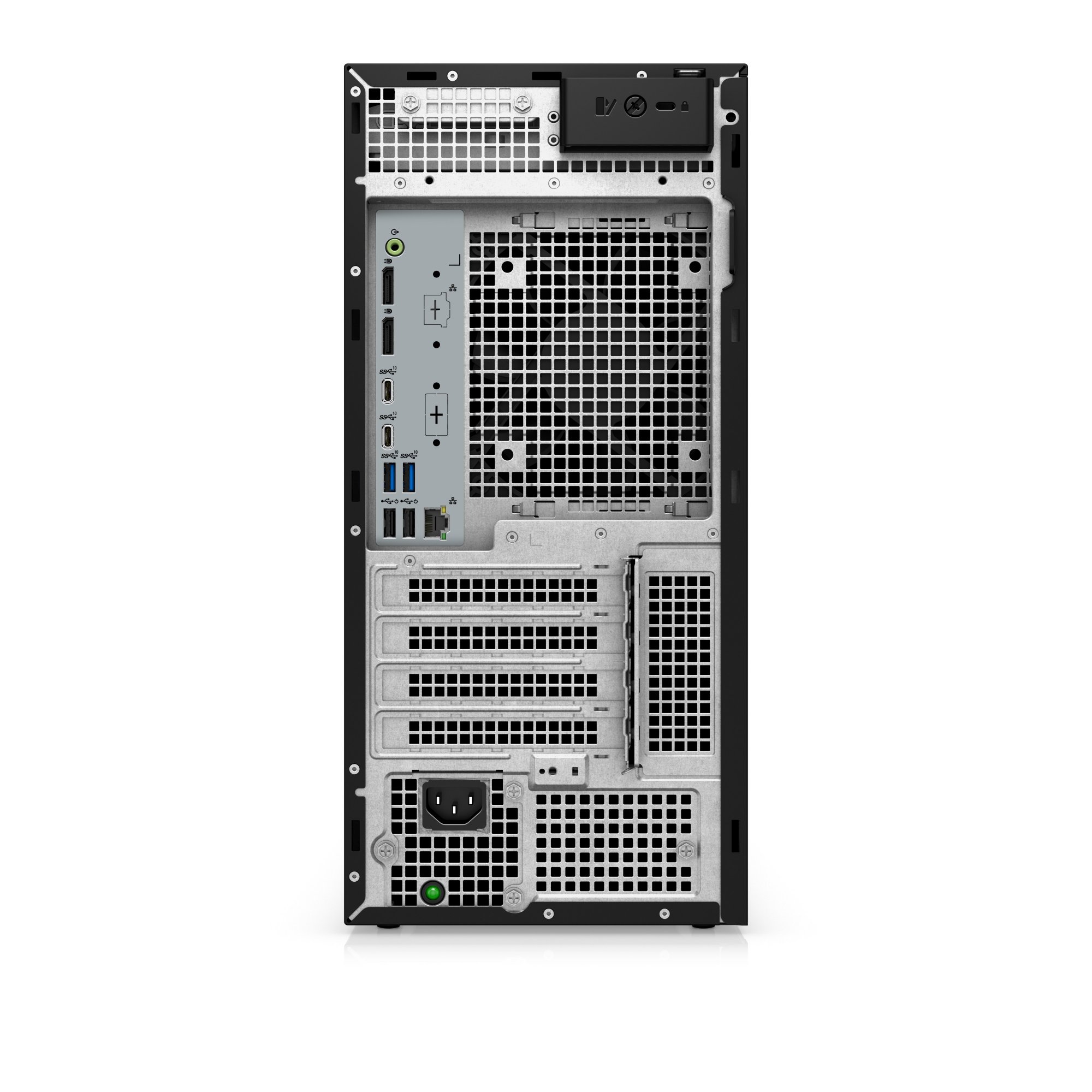

Ports & interfaces

Combo headphone/mic port
Y

DisplayPort version
1.4

DisplayPorts quantity
2

Ethernet LAN (RJ-45) ports
1

Line-out
Y

Number of USB ports with PowerShare support
2

PowerShare
Y

SATA Ports
5

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3

USB 3.2 Gen 2x2 Type-C ports quantity
1

Power

80 PLUS certification
80 PLUS Platinum

Power supply
500 W

Power supply input frequency
47/63 Hz

Power supply input voltage
90 - 264 V

Processor

Bus type
DMI4

Efficient-core base frequency
1.5 GHz

Number of Cores
16

Number of processors installed
1

Performance-core base frequency
2.1 GHz

Performance-core Max Turbo Frequency
5.2 GHz

Processor
i7-13700

Processor cache
30 MB

Processor cache type
Smart Cache

Processor family
Intel® Core™ i7

Processor generation
13th gen Intel® Core™ i7

Processor manufacturer
Intel

Processor threads
24

Processor special features

CPU configuration (max)
1

Software

Operating system architecture
64-bit

Operating system installed
Windows 11 Pro

Operating system language
Multilingual

Trial software
No Microsoft Office License Included 30 day Trial Offer Only

Storage

Card reader integrated
Y

Compatible memory cards
SD, SDHC, SDXC

Number of SSDs installed
1

NVMe
Y

Optical drive type
DVD±RW

SSD capacity
1 TB

SSD form factor
M.2

SSD interface
PCI Express

SSD performance class
40

Storage Capacity
1 TB

Storage type
SSD

Total SSDs capacity
1 TB

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth
420.2 mm

Height
369.3 mm

Width
173 mm

DELL Precision 3660 i7-13700 Tower Intel® Core™ i7 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Workstation Black
