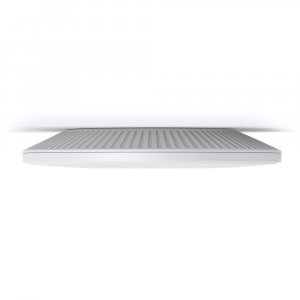

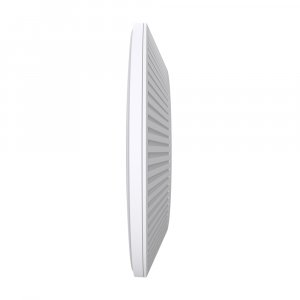

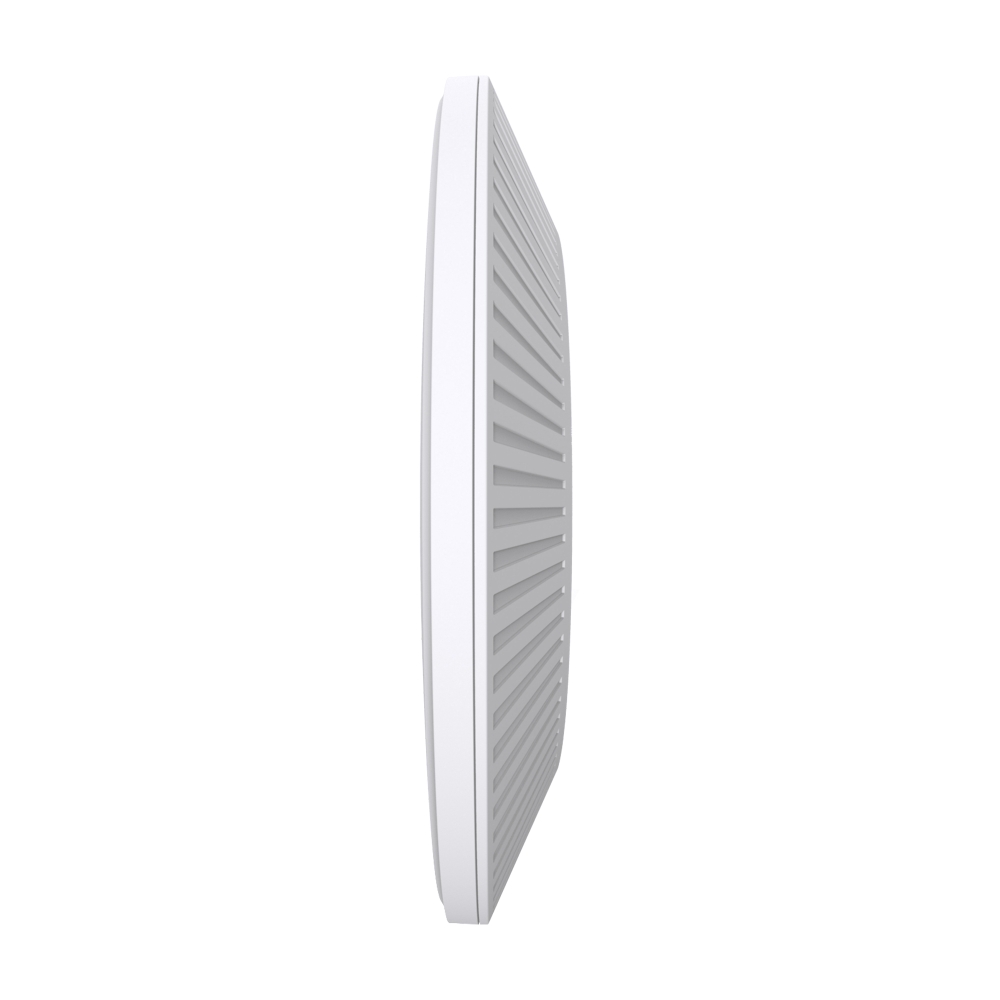

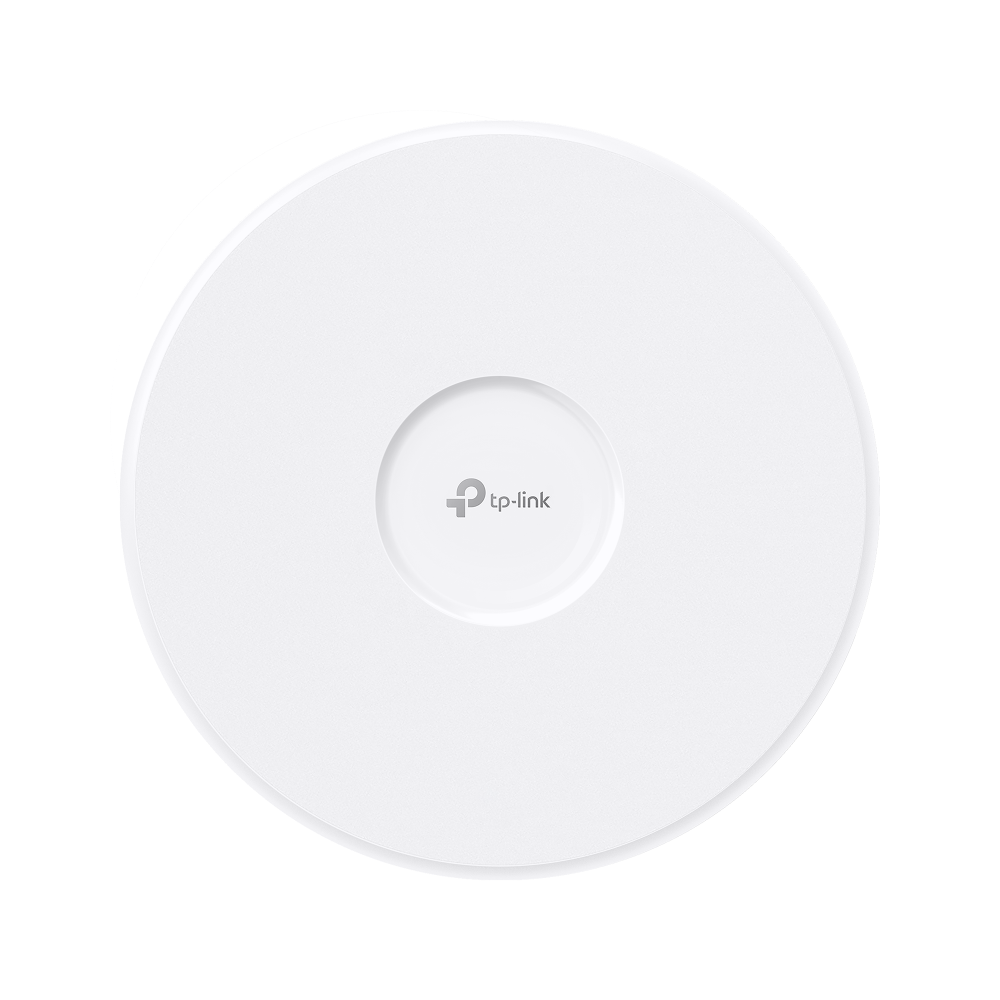

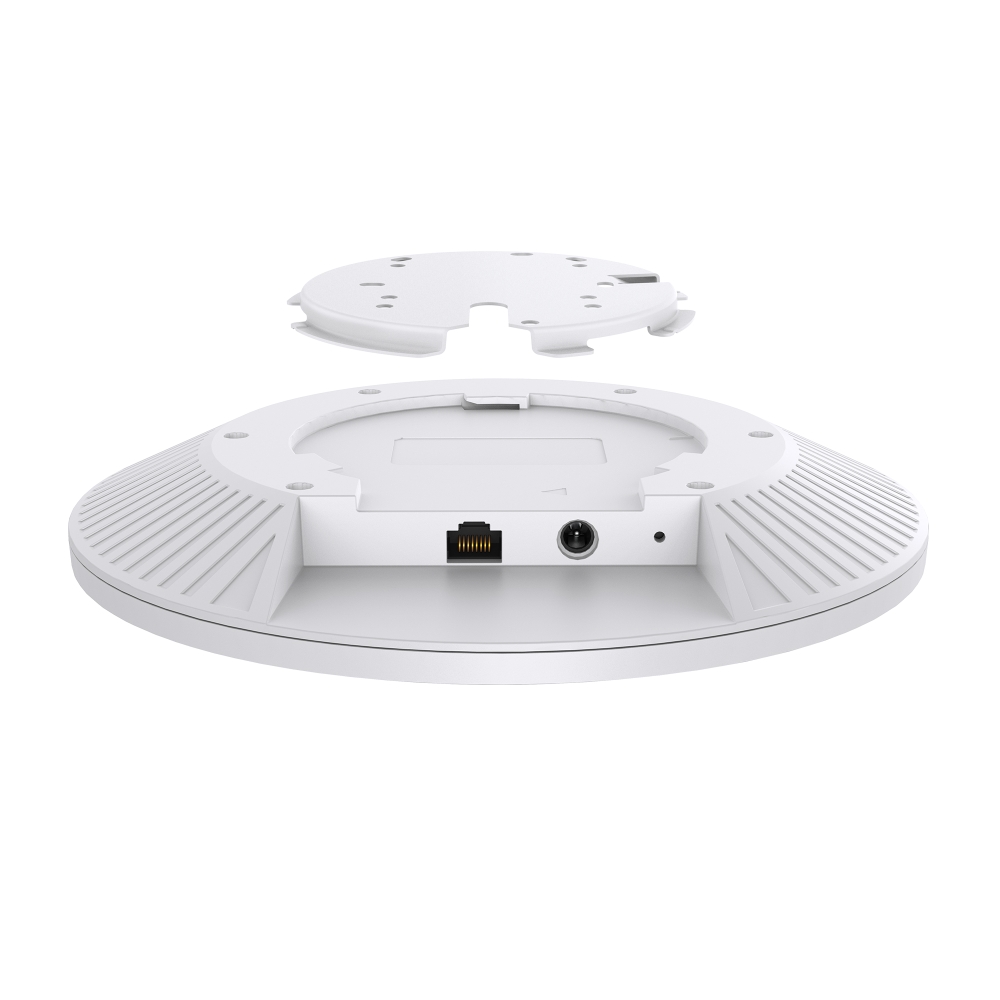

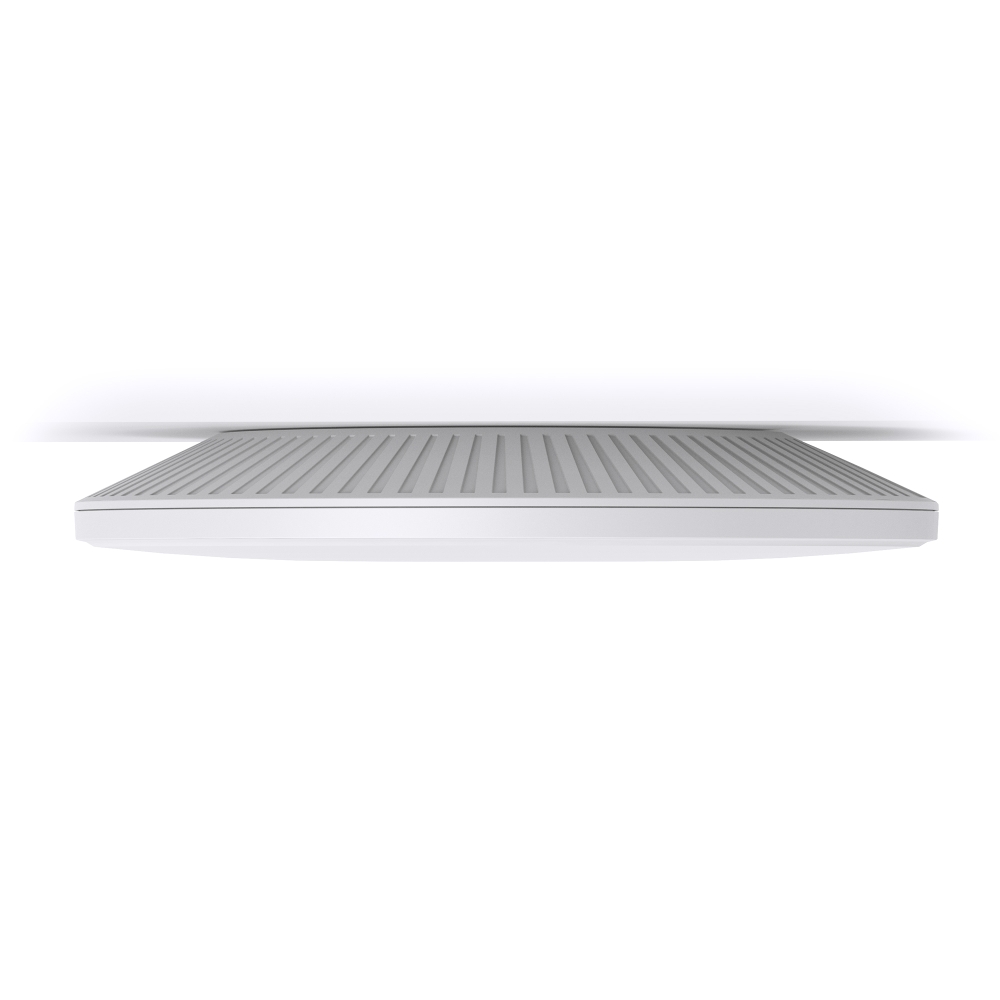

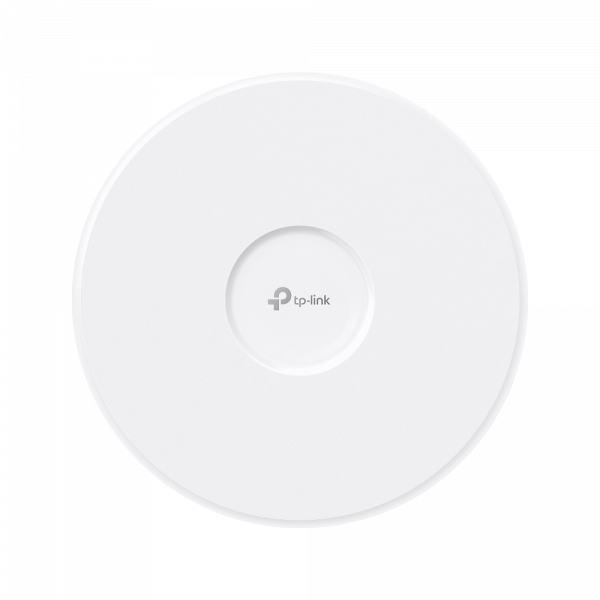

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Roll over image to zoom inClick to Open expanded view
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Print
Model: EAP773
EAN: 4895252506518

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Manufacturer:
TP-LINK
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 9300 Mbit/s, SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, 10,100,1000,10000 Mbit/s
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 9300 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White
  • BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds
  • Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network
  • Advanced Functions: Supports centralized management, mesh, and AI roaming

Product Properties

  • Model
  • EAP773
  • EAN
  • 4895252506518
  • Antenna
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7
    320 MHz Bandwidth
    Advanced Functions: Supports centralized management, mesh, and AI roaming
    BE9300 Tri-Band Wi-Fi 7
    Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi
    Low Latency and Interference
  • Design
  • LED indicators
  • Yes
  • Placement
  • Ceiling, Wall
  • Product colour
  • White
  • Reset button
  • Yes
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • 6 GHz
  • Yes
  • Airtime Fairness (ATF)
  • Yes
  • Automatic channel scanning
  • Yes
  • Automatic channel selection
  • Yes
  • Band steering
  • Yes
  • BeamForming
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000,10000 Mbit/s
  • Fit AP mode features
  • Mesh networking
  • Flow control support
  • Yes
  • Frequency band
  • 2.4 - 6 GHz
  • Maximum data transfer rate
  • 9300 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 574 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 2880 Mbit/s
  • Maximum data transfer rate (6 GHz)
  • 5760 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
  • Number of users
  • 128 user(s)
  • Quality of Service (QoS) support
  • Yes
  • Rate limiting
  • Yes
  • Spread spectrum method
  • OFDMA
  • VLAN support
  • Yes
  • Management features
  • Firmware upgradeable
  • Yes
  • Syslog
  • Yes
  • Web-based management
  • Yes
  • Packaging content
  • Mounting kit
  • Yes
  • Quantity per pack
  • 1 pc(s)
  • Quick start guide
  • Yes
  • Packaging data
  • Package type
  • Box
  • Ports & interfaces
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 2.0 ports quantity
  • 0
  • Power
  • DC voltage range
  • 12 V
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • MAC address filtering
  • Yes
  • Remote Authentication Dial-In User Service (RADIUS)
  • Yes
  • Security algorithms
  • SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
  • Weight & dimensions
  • Depth
  • 220 mm
  • Height
  • 32.5 mm
  • Width
  • 220 mm
