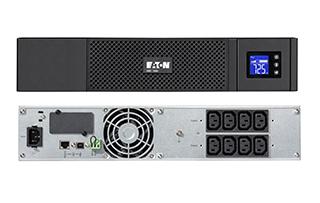

Eaton 5SC 1500I RACK2U Line-Interactive 1.5 kVA 1050 W 8 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Model: 5SC1500IR
EAN: 743172088338

Eaton 5SC 1500I RACK2U Line-Interactive 1.5 kVA 1050 W 8 AC outlet(s)

Manufacturer:
Eaton
Eaton 5SC 1500I RACK2U, Line-Interactive, 1.5 kVA, 1050 W, 184 V, 276 V, 45/65 Hz
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 5SC 1500I RACK2U. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1050 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 405 mm, Height: 86.2 mm

Product Properties

  • Model
  • 5SC1500IR
  • EAN
  • 743172088338
  • Design
  • Certification
  • IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
  • Display type
  • LED
  • Form factor
  • Rackmount
  • Product colour
  • Black
  • Rack capacity
  • 2U
  • Features
  • Input frequency
  • 45/65 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 184 V
  • Noise level
  • 45 dB
  • Output frequency regulation
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 220 V
  • Output power
  • 1050 W
  • Output power capacity
  • 1.5 kVA
  • Power protection features
  • Overdischarge
  • UPS topology
  • Line-Interactive
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Ports & interfaces
  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 8 AC outlet(s)
  • Power plug
  • C14 coupler
  • Serial interface
  • Y
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 1
  • USB port
  • Y
  • Technical details
  • Harmonized System (HS) code
  • 85078000
  • Weight & dimensions
  • Depth
  • 405 mm
  • Height
  • 86.2 mm
  • Weight
  • 17.8 kg
  • Width
  • 440 mm
