Description

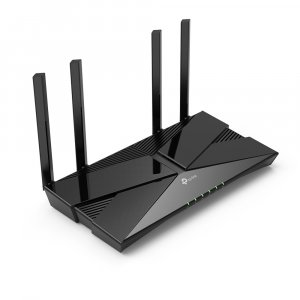

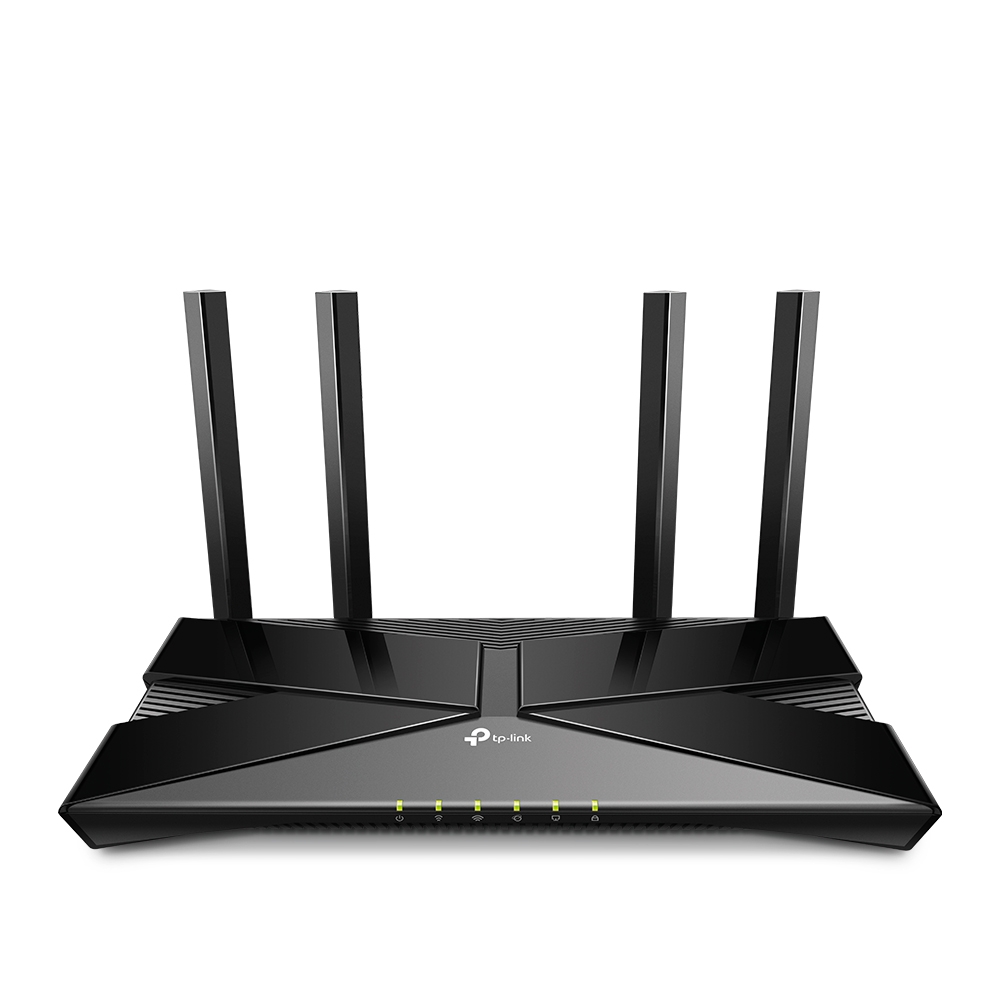

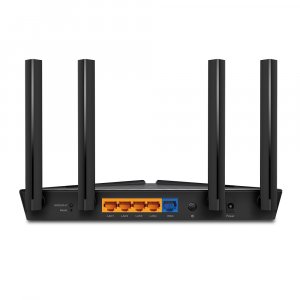

TP-Link AX1800 Dual Band Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: SSID, WPA, WPA2, WPA3, Firewall security: SPI. Supported network protocols: IPv4, IPv6

Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps
Dual-Band Wi-Fi 6: Equipped with the latest WiFi 6 wireless technology for faster speeds, greater capacity, and reduced network congestion
Connect More Devices: WiFi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag
Extensive Coverage: Beamforming, and four antennas combine to deliver focused reception to devices far away
EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology
Easy Setup: Set up your router in minutes with the powerful TP-Link Aginet App
TR-069 Remote Management: TR-098, TR-181, TR-111, TR-104 and TR-143 are supported

Product Properties

Manufacturer
TP-LINK

Model
EX220

EAN
4897098686232

Antenna

Antenna design
External

Antenna gain level (max)
5 dBi

Antennas quantity
4

Transmit power
CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz) FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz)

Bullet points

Point
Connect More Devices

Dual-Band Wi-Fi 6

Easy Setup: Set up your router in minutes with the powerful TP-Link Aginet App

EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology

Extensive Coverage

Next-Gen 1.8 Gbps Speeds

TR-069 Remote Management: TR-098, TR-181, TR-111, TR-104 and TR-143 are supported

Certificates

Certification
FCC

Compliance certificates
CE

Design

Built-in display
No

Indication light
Yes

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Management features

MIMO
Yes

MU-MIMO technology
Yes

Reset button
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Wireless statistics
Yes

WPS push button
Yes

Mobile network

Network

Cabling technology
10/100/1000Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Port forwarding
Yes

Port triggering
Yes

VPN Passthrough
Yes

VPN support
PPTP, OpenVPN, IPSec

Wireless radio
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 60 °C

Other features

Input current
1 A

Input voltage
12 V

Packaging content

AC adapter included
Yes

Antenna included
Yes

Cables included
LAN (RJ-45)

Quick installation guide
Yes

Packaging data

Number of products included
1 pc(s)

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
4

Power

External power adapter
Yes

Power source type
DC

Protocols

DHCP client
Yes

DHCP server
Yes

Supported network protocols
IPv4, IPv6

Universal Plug and Play (UPnP)
Yes

Security

Access Control List (ACL)
Yes

DMZ support
Yes

DoS attack prevention
Yes

Firewall
Yes

Firewall security
SPI

Guest access
Yes

Schedule access
Yes

Security algorithms
SSID, WPA, WPA2, WPA3

Stateful Packet Inspection (SPI)
Yes

Sustainability

Sustainability compliance
Yes

System requirements

Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Yes

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Weight & dimensions

Depth
135 mm

Height
41.6 mm

Width
260.2 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)
574 Mbit/s

WLAN data transfer rate (max)
1800 Mbit/s

WLAN data transfer rate (second band)
1201 Mbit/s
