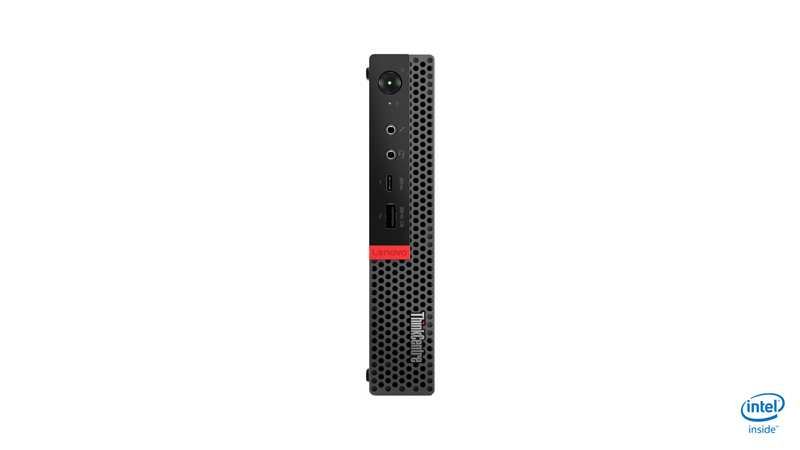

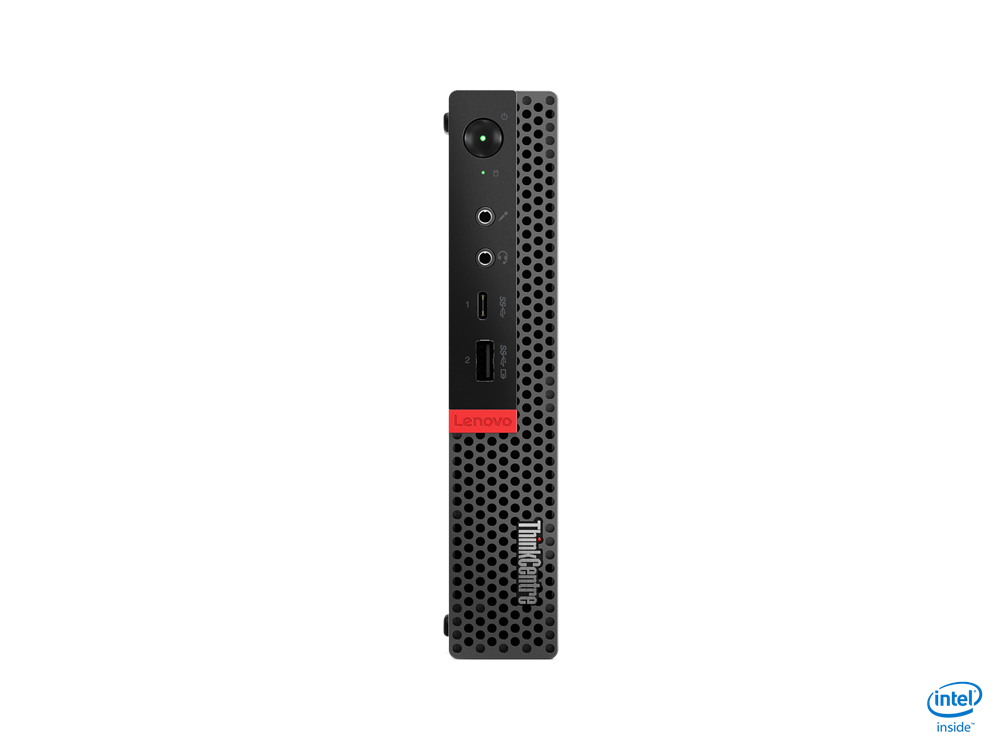

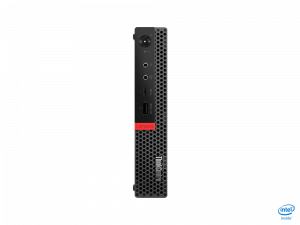

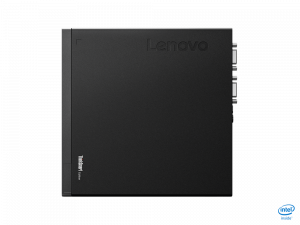

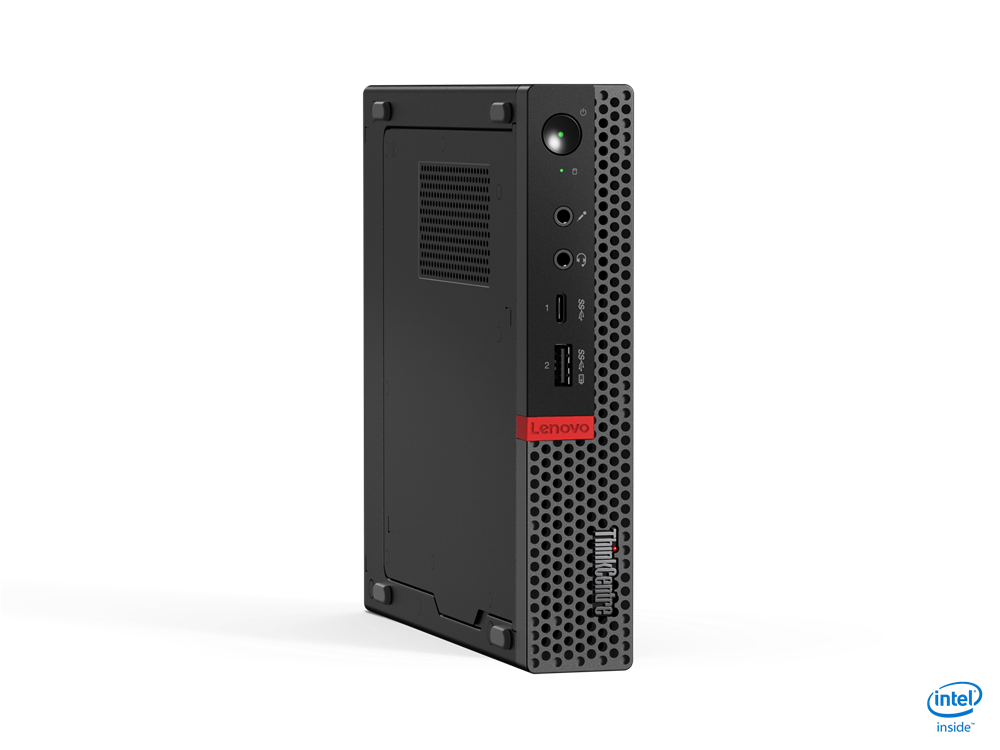

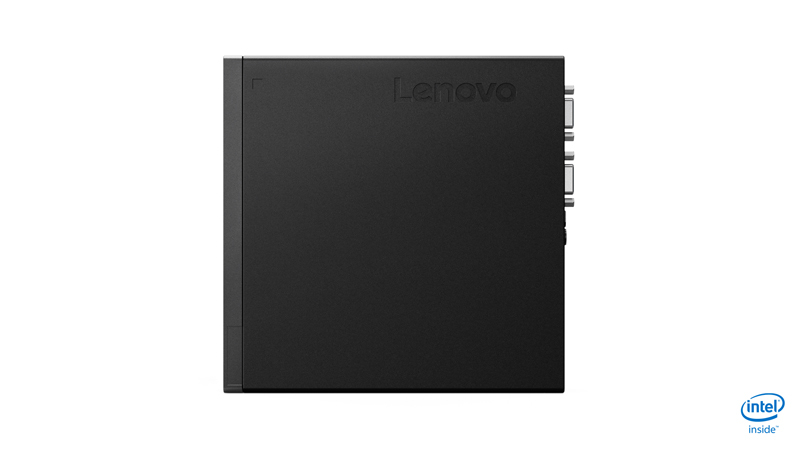

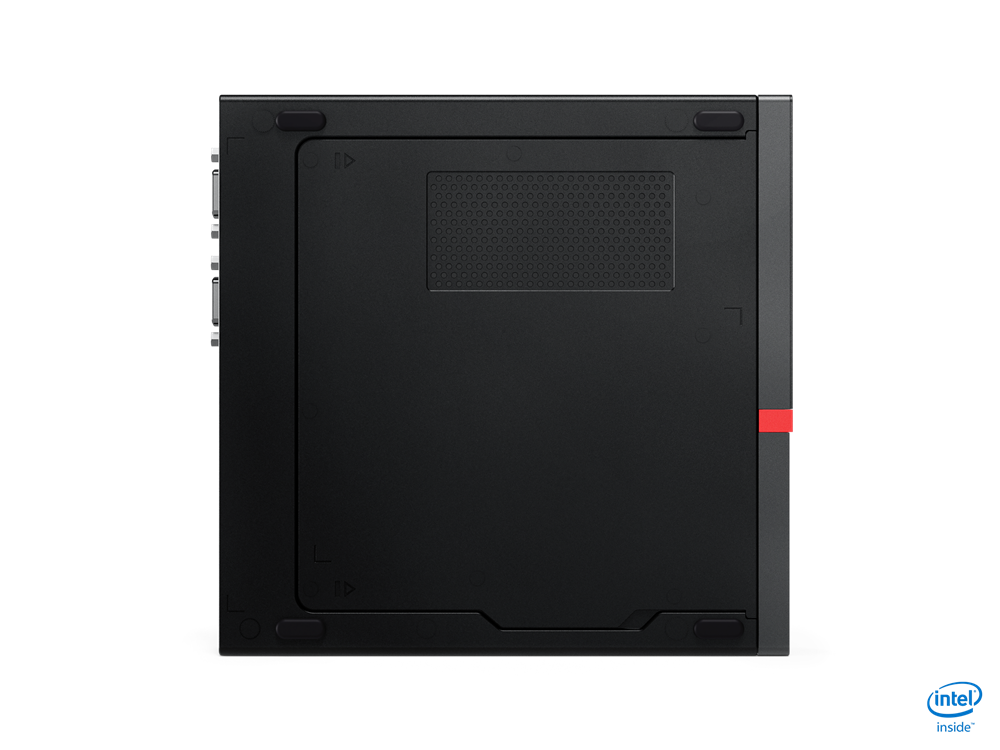

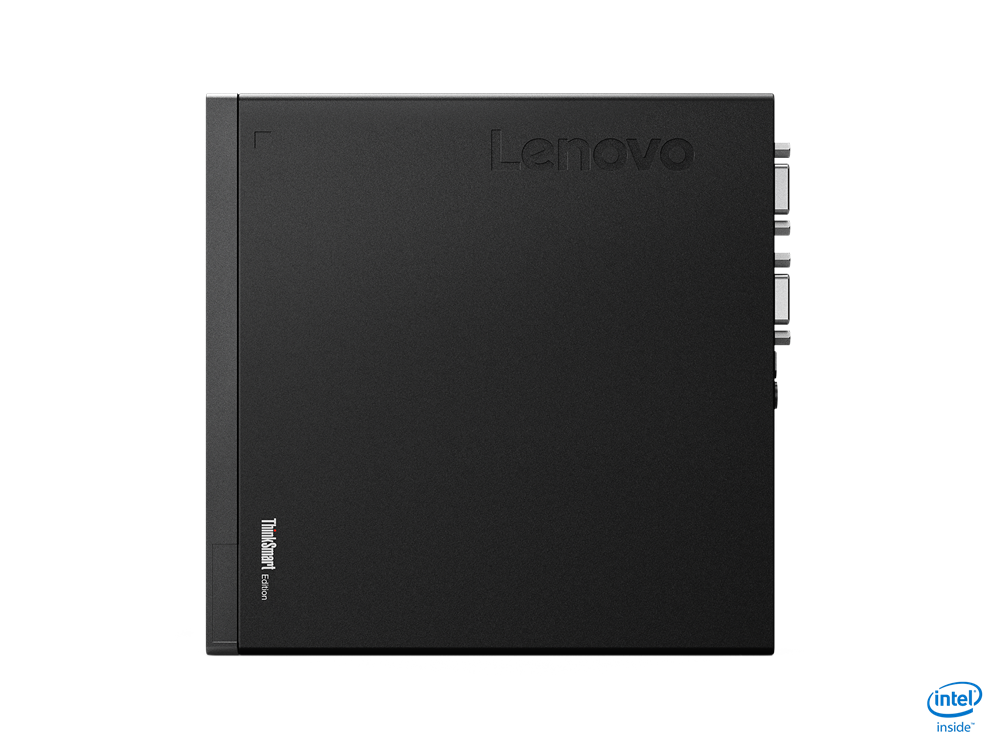

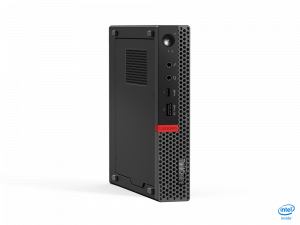

Lenovo ThinkSmart Edition Tiny M920q for Zoom Rooms with 3 Year Premier Support
Roll over image to zoom inClick to Open expanded view
Model: 10T10009UK
EAN: 194632648096

Lenovo ThinkSmart Edition Tiny M920q for Zoom Rooms with 3 Year Premier Support

Manufacturer:
Lenovo
Lenovo ThinkSmart Edition Tiny M920q for Zoom Rooms with 3 Year Premier Support, 2 GHz, Intel® Core™ i7, i7-9700T, 16 GB, 128 GB, Windows 10 IoT Enterprise
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge. Click here for details
Related products

Description

Lenovo ThinkSmart Edition Tiny M920q for Zoom Rooms with 3 Year Premier Support. Processor frequency: 2 GHz, Processor family: Intel® Core™ i7, Processor model: i7-9700T. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 2666 MHz. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630. Operating system installed: Windows 10 IoT Enterprise, Operating system architecture: 64-bit. Power supply: 135 W. Chassis type: mini PC. Product type: Mini PC. Product colour: Black
  • Intel Core i7-9700T (8C/8T, 2.0/4.3GHz, 12MB)
  • 2x 8GB SO-DIMM DDR4-2666
  • 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
  • Intel UHD Graphics 630
  • Windows 10 IoT Enterprise

Product Properties

  • Model
  • 10T10009UK
  • EAN
  • 194632648096
  • Bullet points
  • Point
  • 1x 128GB SSD M.2 2242 PCIe 3.0x2 NVMe
    2x 8GB SO-DIMM DDR4-2666
    Intel Core i7-9700T (8C/8T, 2.0/4.3GHz, 12MB)
    Intel UHD Graphics 630
    Windows 10 IoT Enterprise
  • Certificates
  • Certification
  • MIL-STD-810G
  • Design
  • Cable lock slot
  • Y
  • Cable lock slot type
  • Kensington
  • Chassis type
  • mini PC
  • Colour name
  • Black
  • Intel® vPro™ Platform Eligibility
  • Y
  • Placement supported
  • Horizontal/Vertical
  • Product colour
  • Black
  • VESA mounting
  • Y
  • Volume
  • 1 L
  • Graphics
  • Discrete graphics card
  • N
  • Discrete graphics card model
  • Not available
  • Maximum on-board graphics card memory
  • 64 GB
  • Number of displays supported (on-board graphics)
  • 3
  • On-board graphics card
  • Y
  • On-board graphics card base frequency
  • 350 MHz
  • On-board graphics card DirectX version
  • 12.0
  • On-board graphics card dynamic frequency (max)
  • 1200 MHz
  • On-board graphics card ID
  • 0x3E98
  • On-board graphics card model
  • Intel® UHD Graphics 630
  • On-board graphics card OpenGL version
  • 4.5
  • Memory
  • Internal memory type
  • DDR4-SDRAM
  • Memory clock speed
  • 2666 MHz
  • Memory Installed
  • 16 GB
  • Memory layout (slots x size)
  • 2 x 8 GB
  • Memory Slot Support
  • 32 GB
  • Memory slots
  • 2x SO-DIMM
  • Network
  • Antenna type
  • 2x2
  • Bluetooth
  • Y
  • Bluetooth version
  • 5.0
  • Cabling technology
  • 10/100/1000Base-T(X)
  • Ethernet LAN
  • Y
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Top Wi-Fi standard
  • Wi-Fi 5 (802.11ac)
  • Wi-Fi
  • Y
  • Wi-Fi standards
  • 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
  • WLAN controller manufacturer
  • Intel
  • WLAN controller model
  • Intel Dual Band Wireless-AC 9560
  • Packaging content
  • Display included
  • N
  • Keyboard included
  • Y
  • Mouse included
  • Y
  • VESA mount included
  • Y
  • Performance
  • Audio chip
  • Realtek ALC233VB2
  • Audio system
  • High Definition Audio
  • Motherboard chipset
  • Intel Q370
  • Number of speakers
  • 1
  • Password protection
  • Y
  • Product type
  • Mini PC
  • Trusted Platform Module (TPM)
  • Y

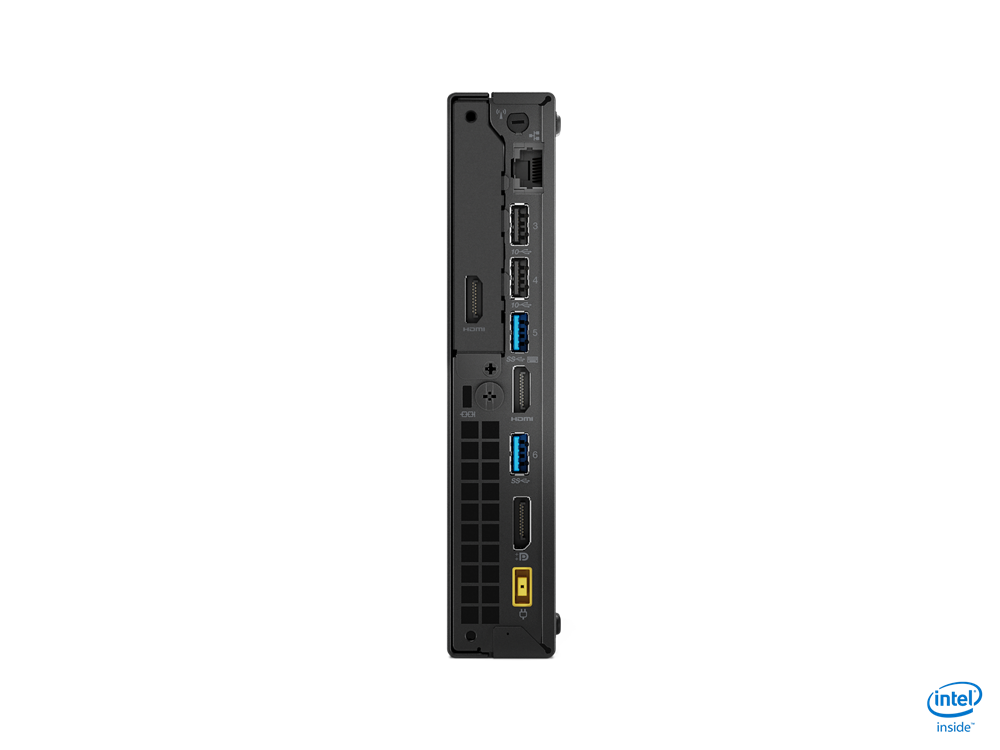

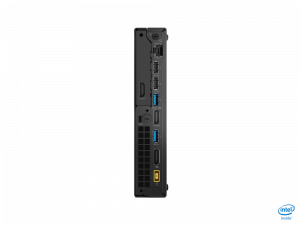

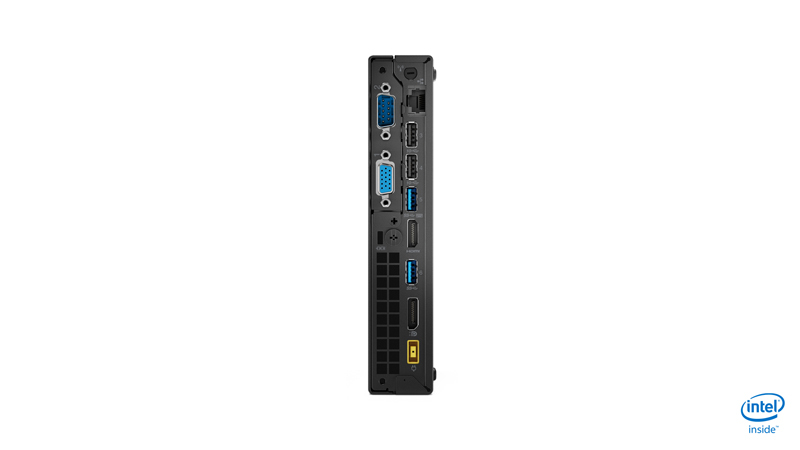

  • Ports & interfaces
  • Combo headphone/mic port
  • Y
  • DisplayPorts quantity
  • 1
  • DVI port
  • N
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports
  • 1
  • Headphone outputs
  • 1
  • Microphone in
  • Y
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • Power
  • Power supply
  • 135 W
  • Processor
  • Configurable TDP-down
  • 25 W
  • Configurable TDP-down frequency
  • 1.5 GHz
  • Maximum internal memory supported by processor
  • 128 GB
  • Maximum number of PCI Express lanes
  • 16
  • Memory bandwidth supported by processor (max)
  • 41.6 GB/s
  • Memory clock speeds supported by processor
  • 2666 MHz
  • Memory types supported by processor
  • DDR4-SDRAM
  • Number of Cores
  • 8
  • Number of processors installed
  • 1
  • PCI Express configurations
  • 1x16,2x8,1x8+2x4
  • PCI Express slots version
  • 3.0
  • Processor
  • i7-9700T
  • Processor boost frequency
  • 4.3 GHz
  • Processor cache
  • 12 MB
  • Processor cache type
  • Smart Cache
  • Processor codename
  • Coffee Lake
  • Processor family
  • Intel® Core™ i7
  • Processor frequency
  • 2 GHz
  • Processor generation
  • 9th gen Intel® Core™ i7
  • Processor lithography
  • 14 nm
  • Processor manufacturer
  • Intel
  • Processor operating modes
  • 64-bit
  • Processor socket
  • LGA 1151 (Socket H4)
  • Processor threads
  • 8
  • System bus rate
  • 8 GT/s
  • Thermal Design Power (TDP)
  • 35 W
  • Tjunction
  • 100 °C
  • Processor special features
  • CPU configuration (max)
  • 1
  • Embedded options available
  • N
  • Enhanced Intel SpeedStep Technology
  • Y
  • Execute Disable Bit
  • Y
  • Idle States
  • Y
  • Intel 64
  • Y
  • Intel Clear Video Technology
  • Y
  • Intel Software Guard Extensions (Intel SGX)
  • Y
  • Intel Stable Image Platform Program (SIPP)
  • Y
  • Intel Trusted Execution Technology
  • Y
  • Intel TSX-NI
  • Y
  • Intel Virtualization Technology (VT-x)
  • Y
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Y
  • Intel VT-x with Extended Page Tables (EPT)
  • Y
  • Intel® AES New Instructions (Intel® AES-NI)
  • Y
  • Intel® Clear Video HD Technology (Intel® CVT HD)
  • Y
  • Intel® Hyper Threading Technology (Intel® HT Technology)
  • N
  • Intel® Identity Protection Technology (Intel® IPT)
  • Y
  • Intel® InTru™ 3D Technology
  • Y
  • Intel® OS Guard
  • Y
  • Intel® Quick Sync Video Technology
  • Y
  • Intel® Secure Key
  • Y
  • Intel® Turbo Boost Technology
  • 2.0
  • Processor ARK ID
  • 191048
  • Processor package size
  • 37.5 x 37.5 mm
  • Scalability
  • 1S
  • Supported instruction sets
  • SSE4.1,SSE4.2,AVX 2.0
  • Thermal Monitoring Technologies
  • Y
  • Thermal solution specification
  • PCG 2015A
  • Software
  • Operating system architecture
  • 64-bit
  • Operating system installed
  • Windows 10 IoT Enterprise
  • Storage
  • Card reader integrated
  • N
  • Number of SSDs installed
  • 1
  • Number of storage drives installed
  • 1
  • Optical drive type
  • N
  • SSD capacity
  • 128 GB
  • SSD form factor
  • M.2
  • SSD interface
  • PCI Express
  • Storage Capacity
  • 128 GB
  • Storage type
  • SSD
  • Total SSDs capacity
  • 128 GB
  • Sustainability
  • Sustainability certificates
  • RoHS, ENERGY STAR
  • Weight & dimensions
  • Depth
  • 182.9 mm
  • Height
  • 34.5 mm
  • Weight
  • 1.32 kg
  • Width
  • 179 mm
