Description

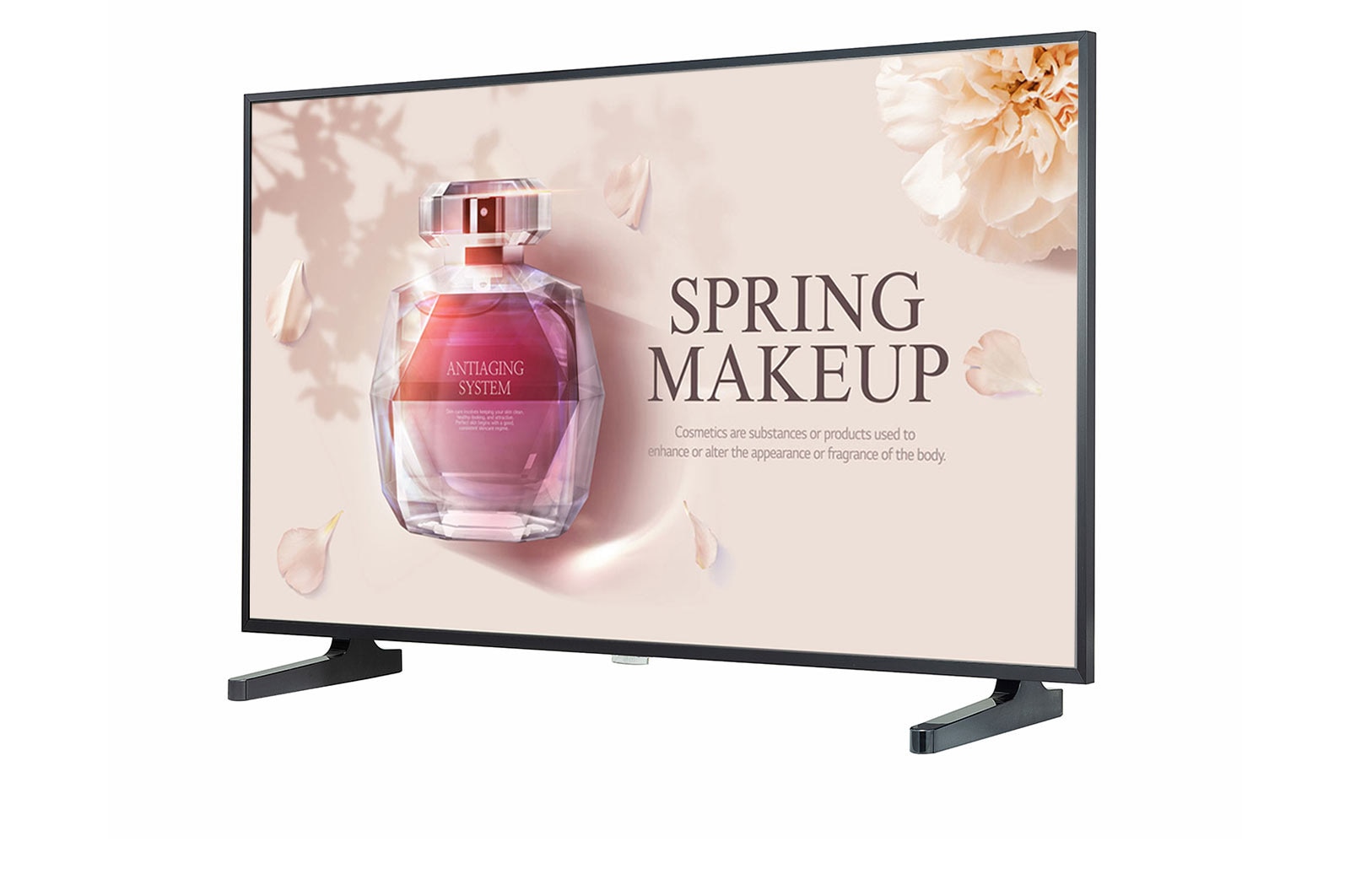

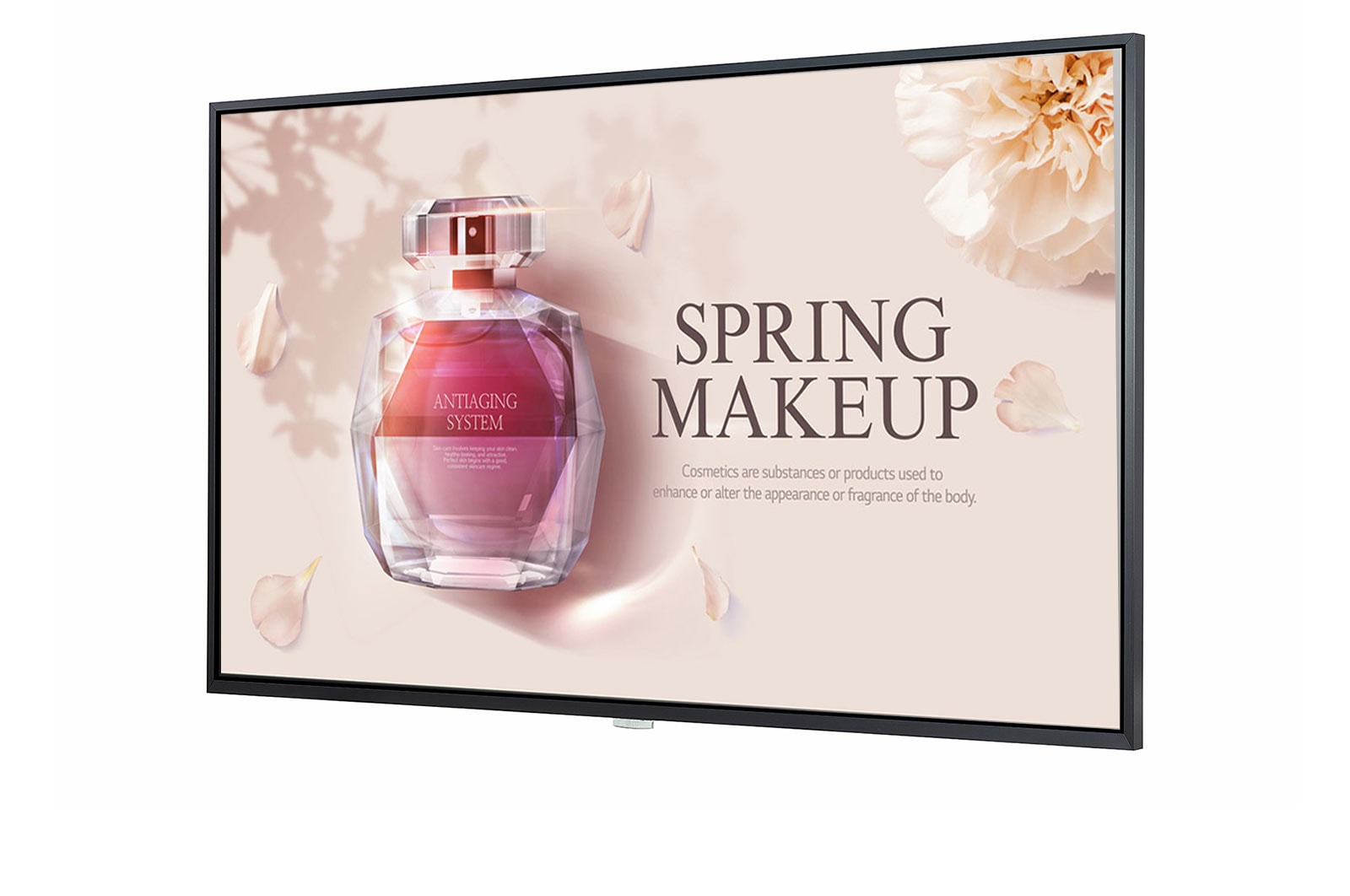

LG 49UH7F-H Digital signage display 124.5 cm (49') IPS Wi-Fi 700 cd/m² 4K Ultra HD Black Web OS 24/7. Product design: Digital signage flat panel. Display diagonal: 124.5 cm (49"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Web OS. Product colour: Black

Brightness(Typ.) : 700 cd/m²
Surface Treatement (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker

Product Properties

Manufacturer
LG

Model
49UH7F-H.AEK

EAN
8806091238313

Audio

Built-in speaker(s)
Yes

Bullet points

Point
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)

Brightness(Typ.) : 700 cd/m²

Built-in Speaker

Depth : 39.9 mm

Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR

Surface Treatement (Haze) : 28%

Computer system

Internal memory
8 GB

Operating System
Web OS

Design

Bezel width (bottom)
1.44 cm

Bezel width (side)
9.9 mm

Bezel width (top)
9.9 mm

Orientation
Horizontal/Vertical

Panel mounting interface
300 x 300 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Yes

Display

Contrast ratio (dynamic)
500000:1

Contrast ratio (typical)
1000:1

Display brightness
700 cd/m²

Display number of colours
1.07 billion colours

Haze rate
28%

HD type
4K Ultra HD

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
124.5 cm (49")

Screen Type
124.46 cm

Screen Type
IPS

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Logistics data

Harmonized System (HS) code
85285210

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Packaging content

Cables included
AC, HDMI

Remote control included
Yes

Tilt adjustment
Yes

Performance

HDCP
Yes

HDCP version
1.4/2.2

International Protection (IP) code
IP5X

Operating hours (hours/days)
24/7

Picture-in-Picture
Yes

Purpose
Retail

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

DisplayPorts in
1

DisplayPorts out
1

DisplayPorts quantity
2

DVI-D ports quantity
1

Ethernet LAN
Yes

HDMI ports
3

Remote (IR) input
1

RS-232C
Yes

USB port
Yes

USB ports quantity
1

USB version
2.0

Wi-Fi
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
114 kWh

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Heat dissipation
341.21 BTU/h

Power consumption (typical)
100 W

Weight & dimensions

Depth (with stand)
290 mm

Display depth
39.9 mm

Display height
644.5 mm

Display weight
15.4 kg

Display width
1098.6 mm

Height (with stand)
694.3 mm

Width (with stand)
1098.6 mm
