Product Properties

Manufacturer
LG

Model
55EF5K-L

EAN
8806091779861

Audio

Built-in speaker(s)
No

Bullet points

Point
Brightness: 150/400nit (APL 100%/25%)

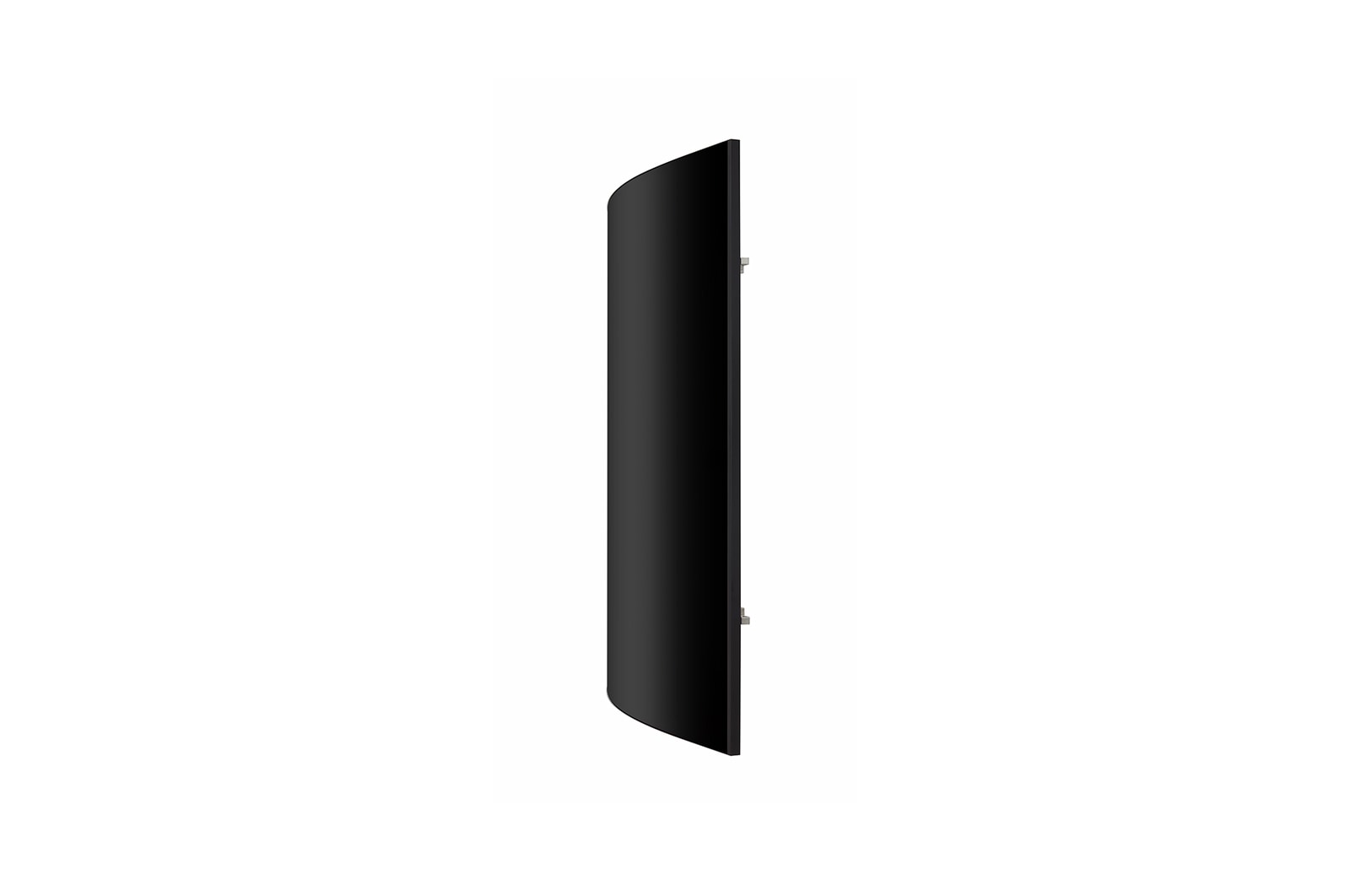

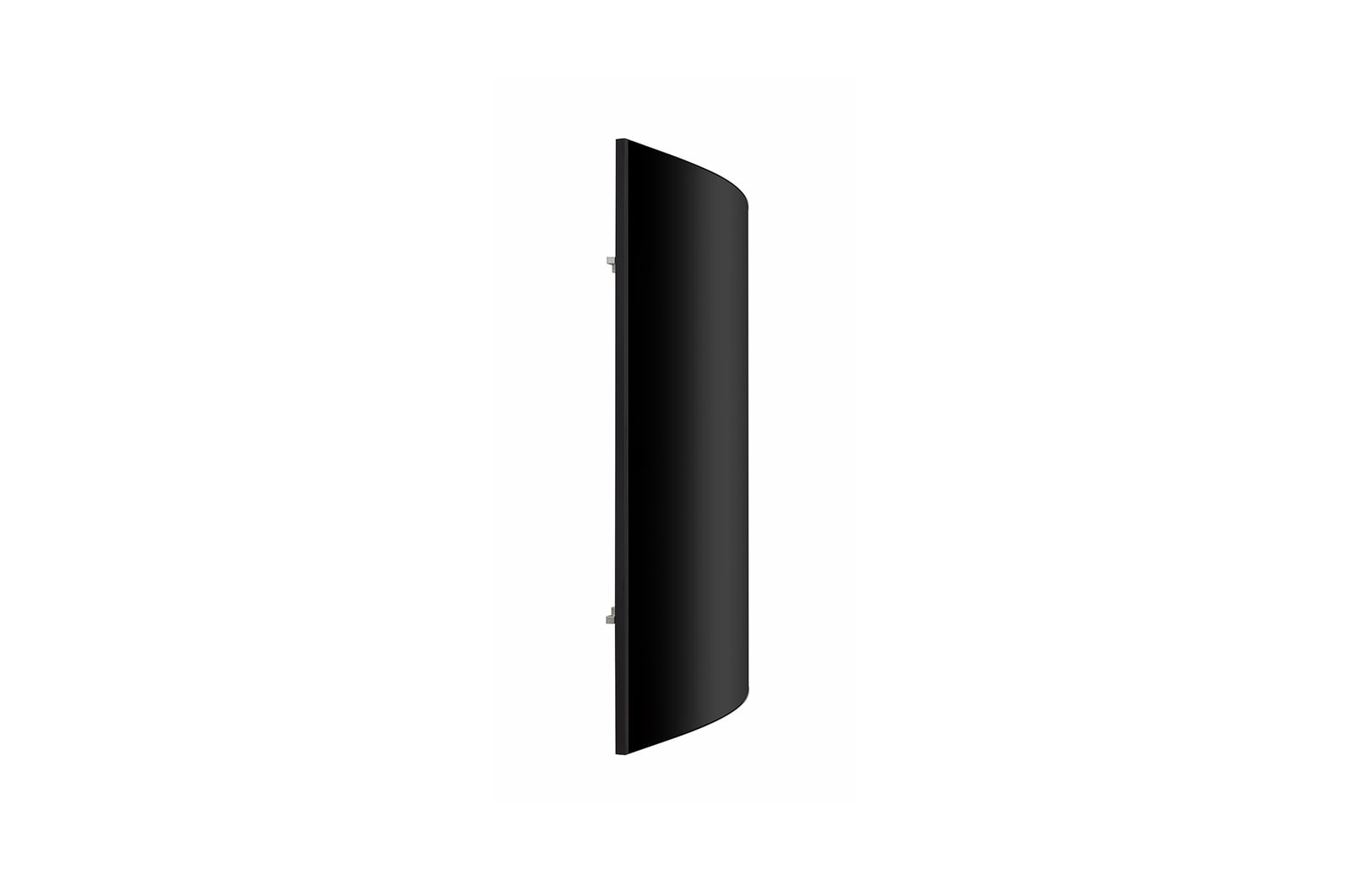

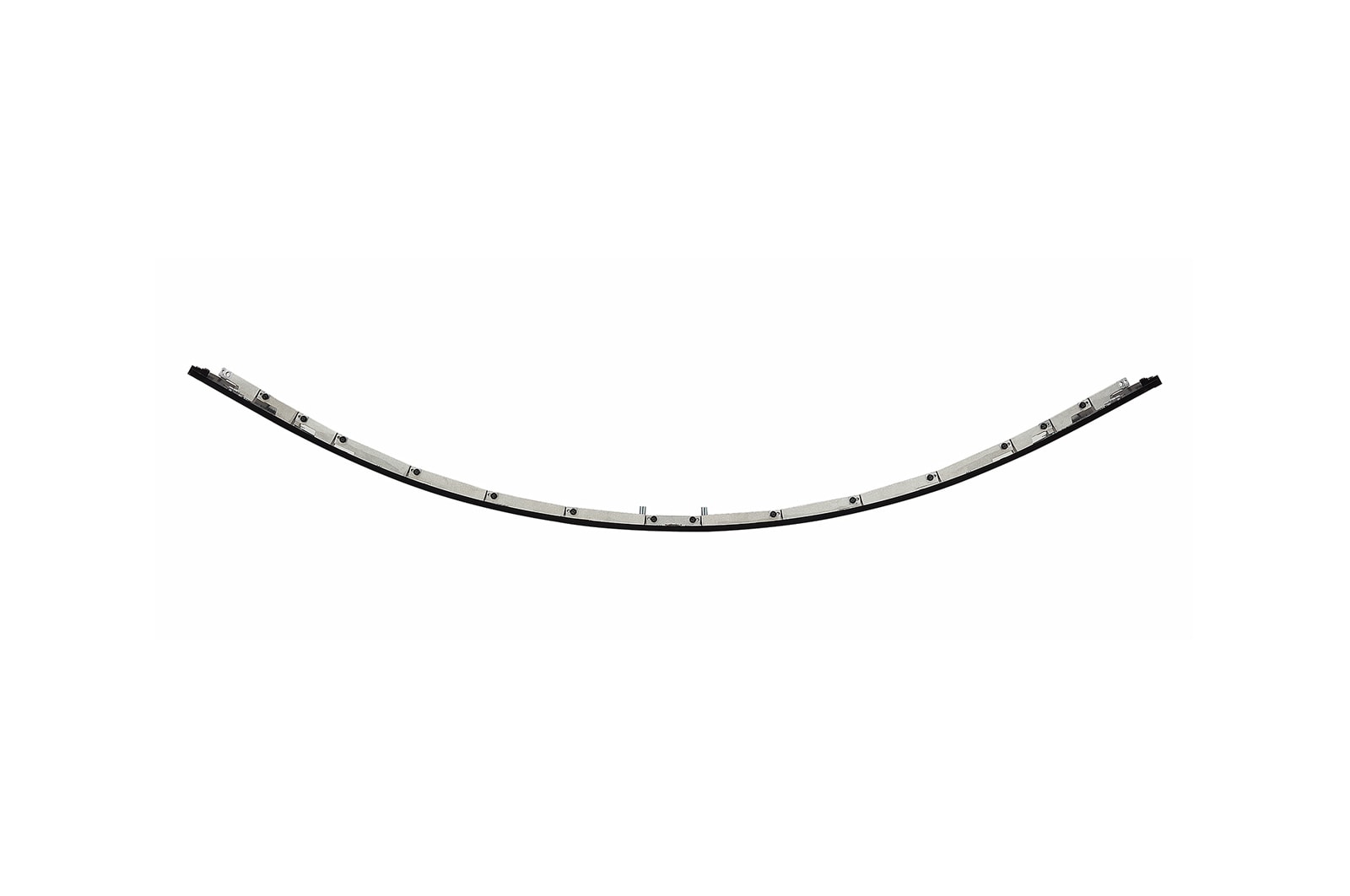

Curvature: ~1,000R(Concave/Convex)

Depth: 12.4 mm (Head Only)

Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Certificates

Certification
IEC 60950-1 / EN 60950-1 / UL 60950-1 / FCC Class "A" / CE / KC / ErP

Computer system

Internal storage capacity
16 GB

Operating System
Web OS

Design

Mounting type
Wall

Orientation
Horizontal

Placement supported
Indoor

Product colour
Black

Screen shape
Curved

VESA mounting
No

Display

Colour depth
10 bit

Colour gamut
120%

Contrast ratio (dynamic)
150000:1

Display brightness
400 cd/m²

Display number of colours
1.07 billion colours

HD type
Full HD

Native aspect ratio
16:9

Native refresh rate
60 Hz

Number of displays
1

Panel life
30000 h

Response time
1 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
139.7 cm (55")

Screen Type
OLED

Surface hardness
2H

Touchscreen
No

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Features

Heat dissipation (max)
1085 BTU/h

Suitable for indoor use
Yes

Wall mountable
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Other features

Other features
webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion

Packaging content

Batteries included
Yes

Cables included
AC, DisplayPort, LAN (RJ-45), RS-232

Mounting kit
Yes

Remote control included
Yes

Stand colour
Grey

Stand included
Yes

Packaging data

Package depth
252 mm

Package height
842 mm

Package weight
17 kg

Package width
1360 mm

Performance

HDCP
Yes

HDCP version
1.4

Multi-display supported
Yes

Number of OSD languages
20

On Screen Display (OSD)
Yes

On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish

Operating hours (hours/days)
18/7

Purpose
Commercial

Ports & interfaces

DisplayPorts in
1

DisplayPorts out
1

DisplayPorts quantity
2

DVI port
No

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

HDMI ports
1

Infrared data port
Yes

PC Audio out
Yes

Remote (IR) input
1

Remote (IR) output
1

RS-232C
Yes

USB connector type
USB Type-A

USB port
Yes

USB ports quantity
1

USB version
2.0

Wi-Fi
No

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
116 kWh

Energy efficiency class (SDR)
G

Energy efficiency scale
A to G

Heat dissipation
1054 BTU/h

Power consumption (off)
0.5 W

Power consumption (standby)
0.5 W

Power consumption (typical)
309 W

Weight & dimensions

Base depth
5.73 cm

Base height
35.3 cm

Base weight
3.5 kg

Base width
41.3 cm

Display depth
38 mm

Display height
696.2 mm

Display weight
5.8 kg

Display width
1224.9 mm

Weight (with stand)
9.3 kg

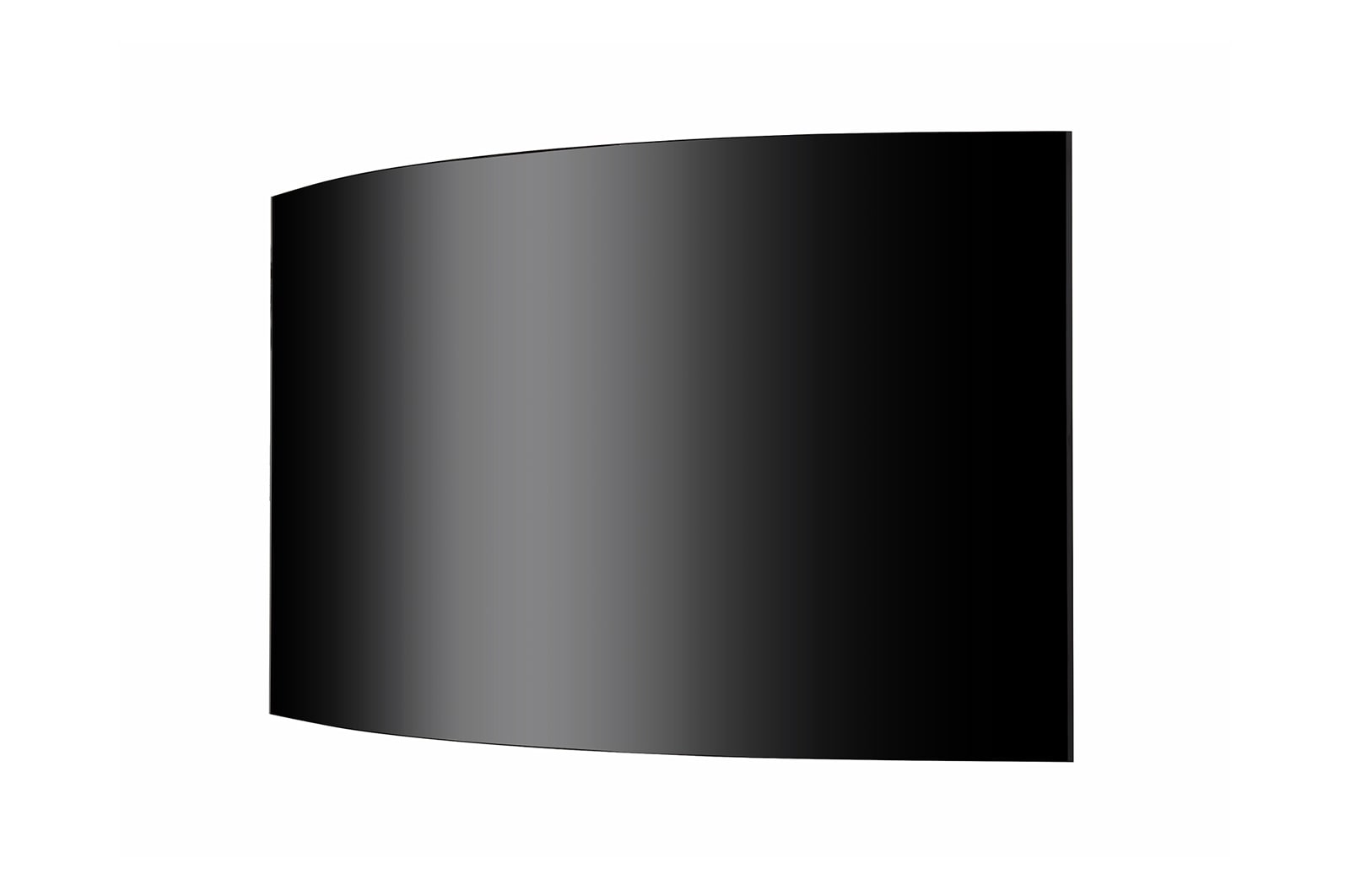

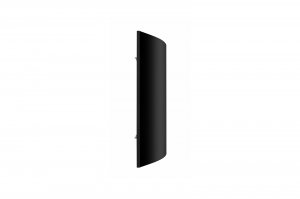

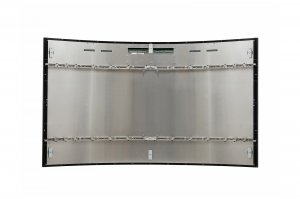

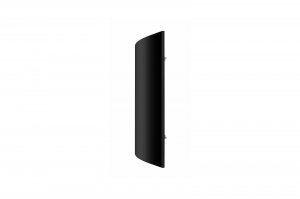

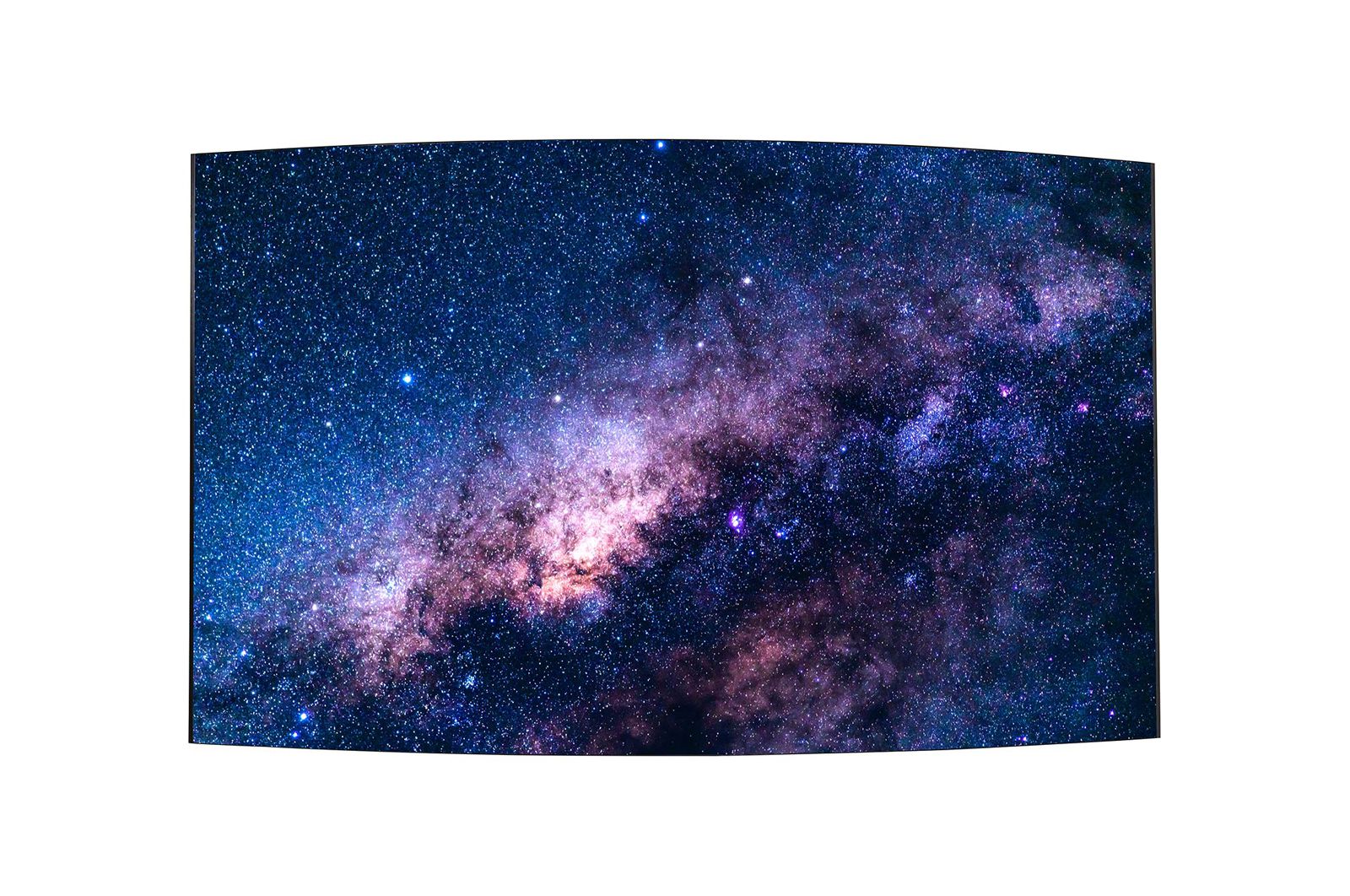

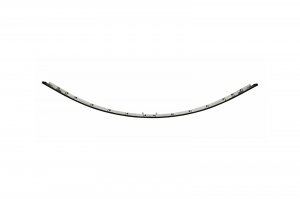

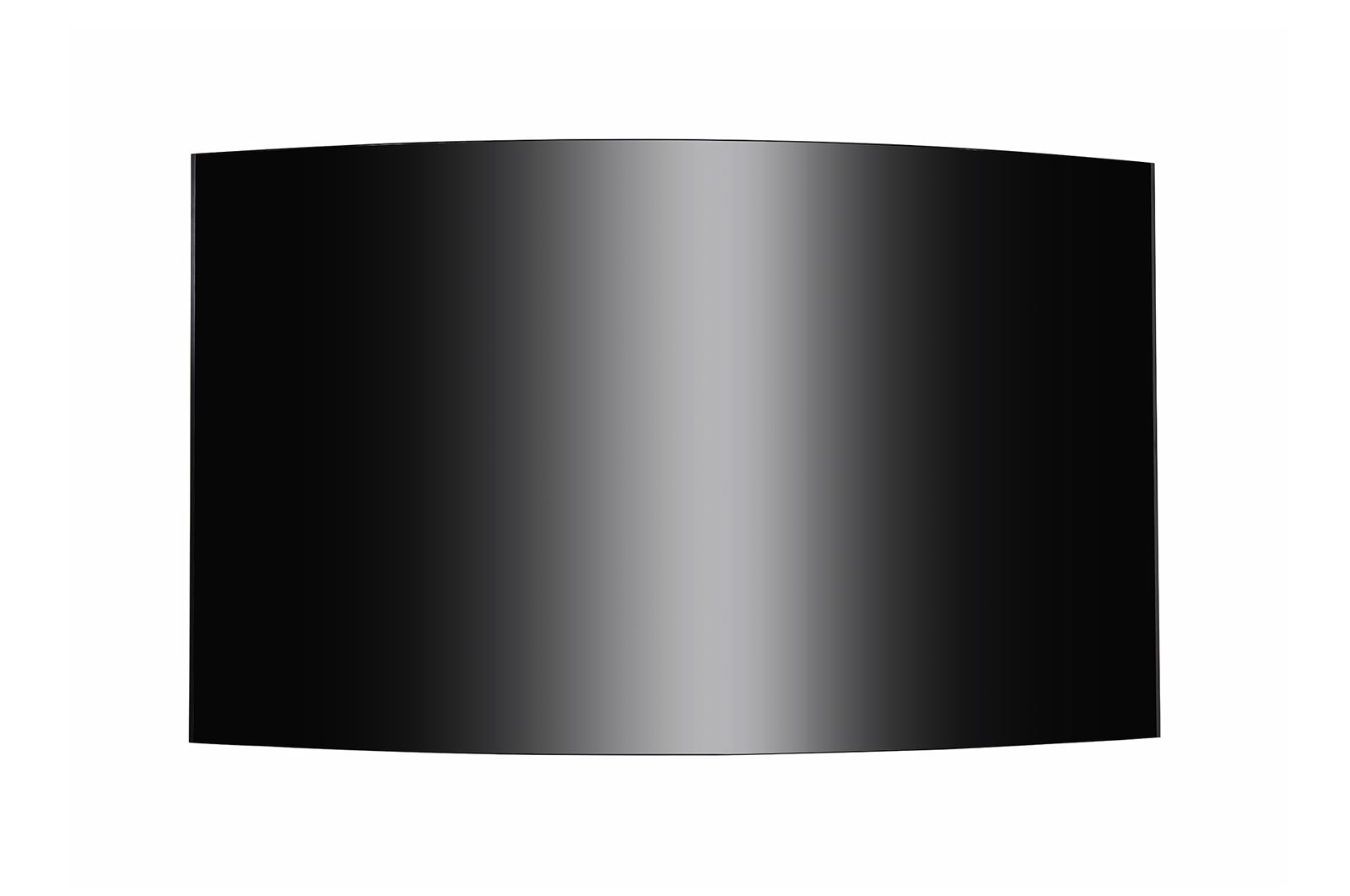

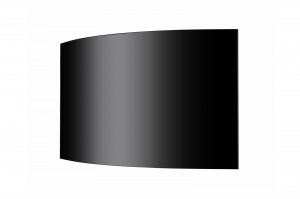

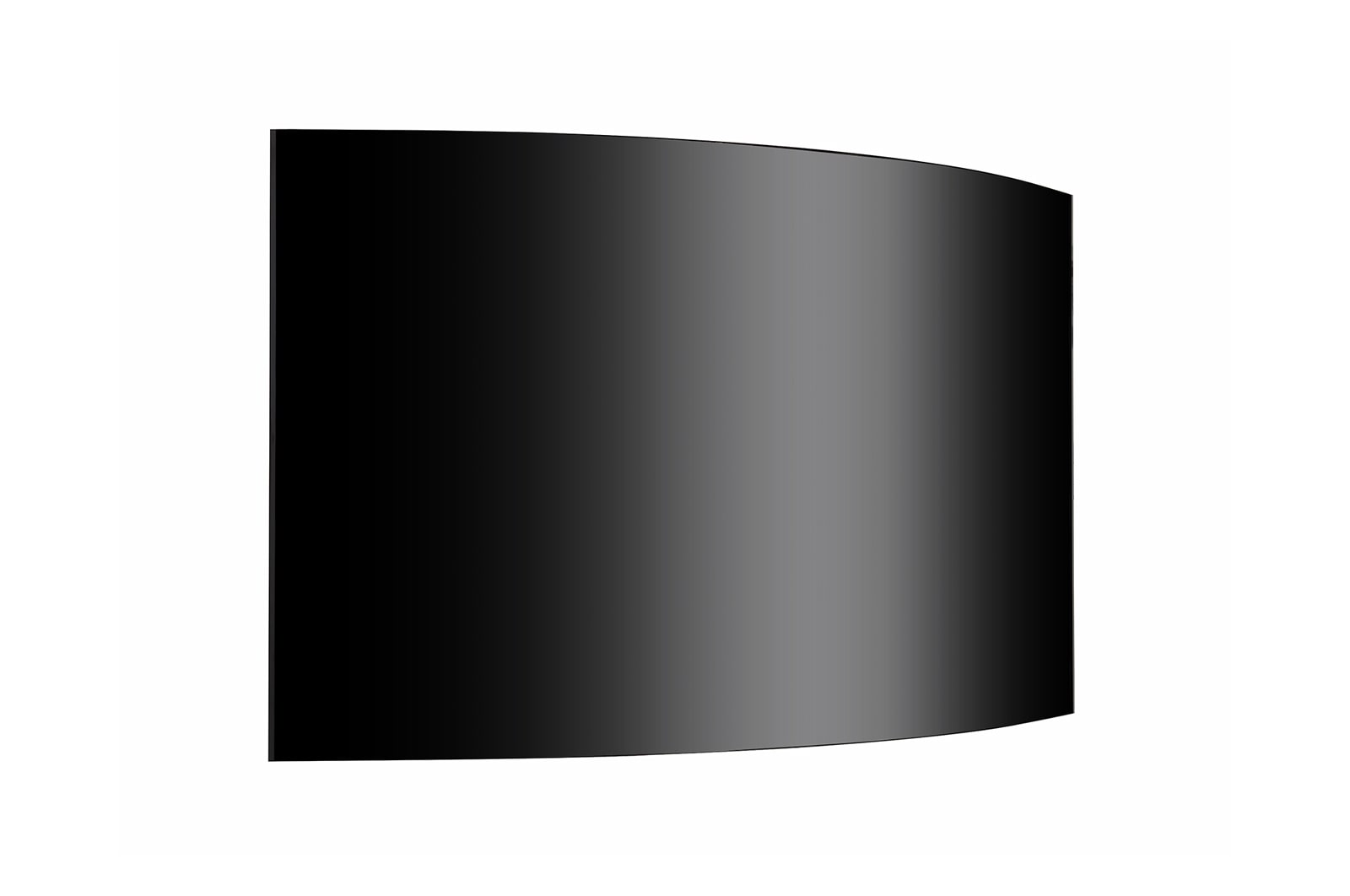

LG 55EF5K-L Signage Display 139.7 cm (55") OLED 400 cd/m² Full HD Black Web OS 18/7
