Description

Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: Graphite

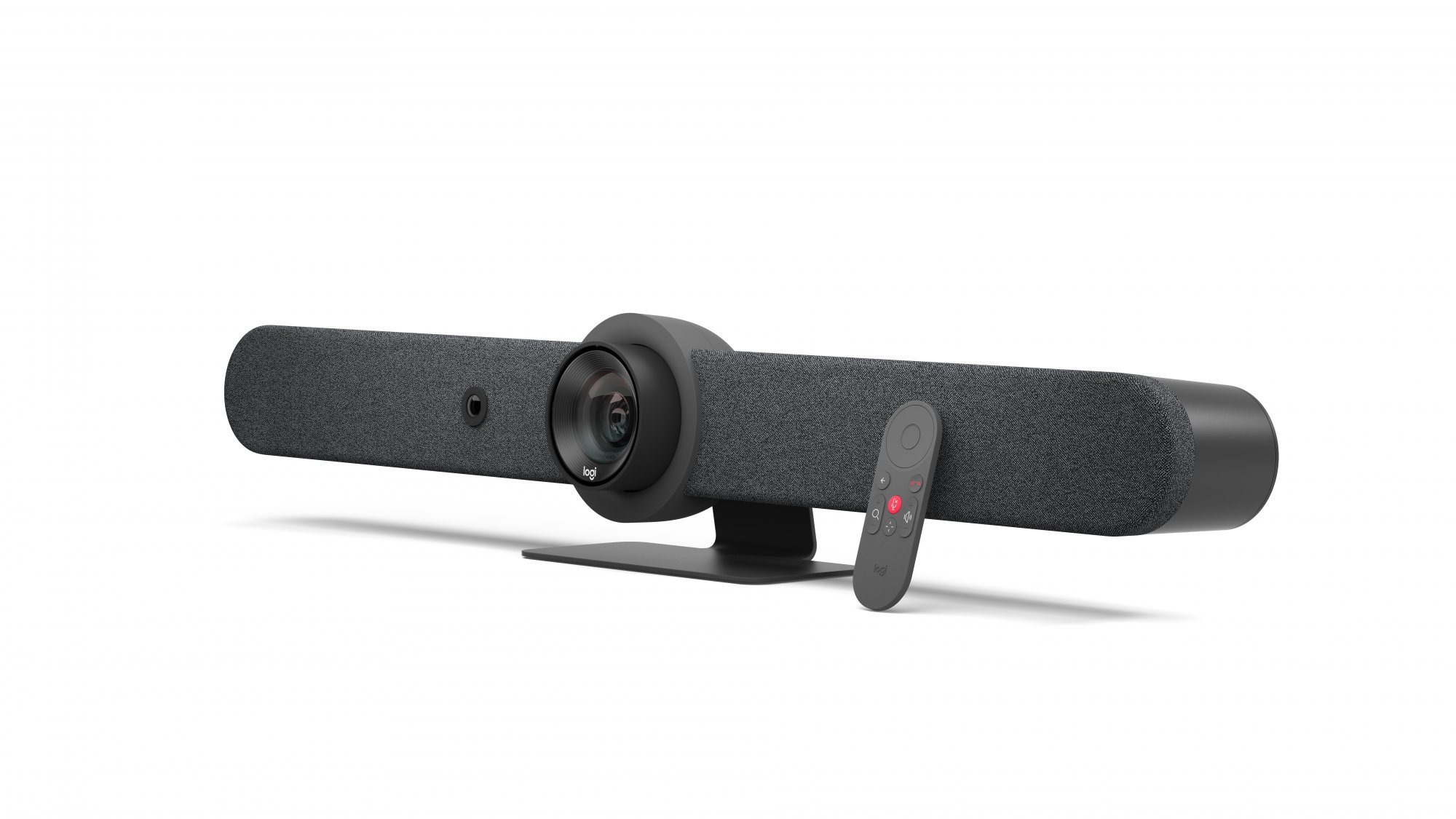

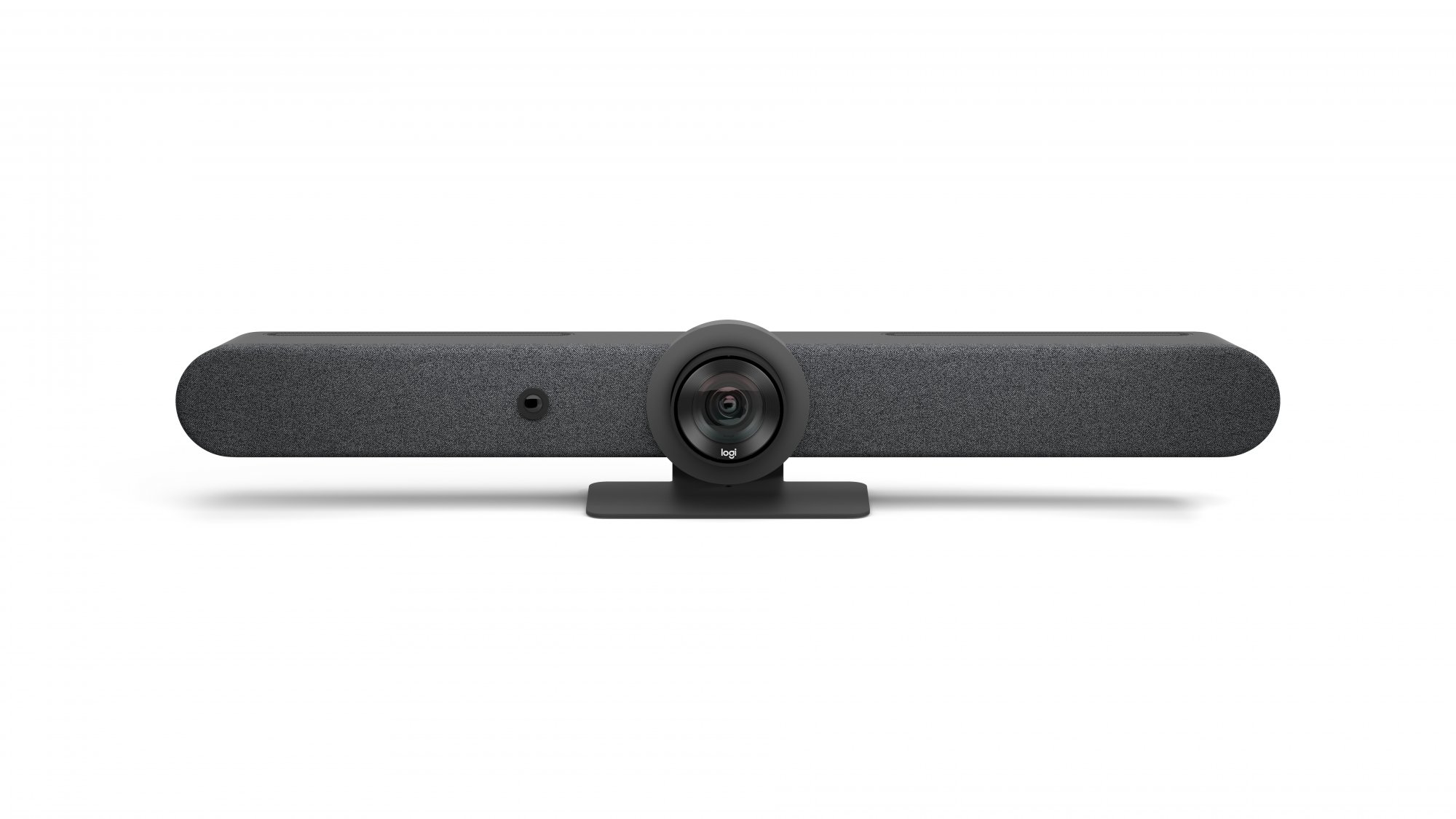

All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.

Product Properties

Manufacturer
Logitech

Model
960-001312

EAN
5099206089334

Audio

Audio beamforming
Y

Built-in speaker(s)
Y

Echo cancellation
Y

Line-out impedance
4 Ω

Microphone pick-up range
4.5 m

Noise reduction
Y

Output level
92/99 dB

Output voltage Total Harmonic Distortion (THD)
2%

RMS rated power
8 W

Sample rates
0 - 48 kHz

Battery

Battery capacity
0.675 Wh

Camera

Diagonal field of view
90°

Digital zoom
3x

Horizontal field of view
82.1°

Optical zoom
5x

Remote control interface
Bluetooth

Vertical field of view
52.2°

Zoom capability
Y

Computer system

Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Windows operating systems supported
Windows 10, Windows 11

Features

Telepresence
N

Interface module

Interface module Ethernet LAN (RJ-45) ports
1

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case gross weight
9.9 kg

Master (outer) case height
231 mm

Master (outer) case length
1004 mm

Master (outer) case width
220 mm

Microphone

Microphone direction type
Omnidirectional

Microphone frequency
90 - 16000 Hz

Microphone sensitivity
-36 dB

Number of microphones
6

Sound pressure level (max)
90 dB

Network

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

Security algorithms
128-bit AES

Supported network protocols
IPv4, IPv6

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Heat dissipation
64 BTU/h

Operating relative humidity (H-H)
10 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Y

Cables included
AC, DC, HDMI, USB Type-A to USB Type-C

HDMI cable length
2 m

Packaging content
Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation

Power cable length
2.5 m

Quick start guide
Y

Remote control included
Y

Performance

Pan range
-25 - 25°

Product colour
Graphite

Product type
Group video conferencing system

PTZ control
Y

Tilt angle range
-15 - 15°

Ports & interfaces

DC-in jack
Y

Ethernet LAN (RJ-45) ports
1

HDMI input ports quantity
1

HDMI output ports quantity
2

HDMI ports
3

Microphone in
Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB connector type
USB Type-A, USB Type-C

Power

AC input voltage
100 - 240 V

Battery capacity
220 mAh

Battery technology
Lithium

Current
4.754 A

DC input voltage
19 V

Number of batteries supported
2

Power plug type
Type G

Power source type
AC

Video

HD type
4K Ultra HD

Maximum frame rate
30 fps

Supported video modes
576p, 720p, 900p, 1440p, 2160p

Weight & dimensions

Depth
160 mm

Height
164 mm

Package depth
989 mm

Package height
218 mm

Package weight
9.29 kg

Package width
207 mm

Weight
7.08 kg

Width
910 mm
