Description

NEC ME403U PROJECTOR. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 10000 h, Service life of light source (economic mode): 20000 h. Focus: Manual, Focal length range: 17.2–27.7, Aperture range (F-F): 1.5 - 2.08. Analog signal format system: NTSC, PAL, PAL 60, SECAM, Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160, Video colour modes: DICOM simulation mode. Serial interface type: RS-232

Minimized cost of ownership – due to long lamp life and filter exchange intervals
Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker
Display content that demands attention – with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience
Future-proof input management – thanks to 4K@30 Hz input processing
Wide array of flexible application scenarios – thanks to multi-source conferencing and efficient split-screen operation supported by a wide future-ready range of digital connectivity

Product Properties

Manufacturer
NEC

Model
60005221

EAN
5028695614345

Bullet points

Point
Future-proof input management – thanks to 4K@30 Hz input processing

Minimized cost of ownership – due to long lamp life and filter exchange intervals

Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Product colour
White

Product type
Standard throw projector

Features

Noise level
37 dB

Noise level (economic mode)
29 dB

Number of OSD languages
29

On Screen Display (OSD)
Yes

Password protection
Yes

Lens system

Aperture range (F-F)
1.5 - 2.08

Focal length range
17.2–27.7

Focus
Manual

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Lamp power
225 W

Lamp power (economic mode)
151 W

Light source type
Lamp

Service life of light source
10000 h

Service life of light source (economic mode)
20000 h

Logistics data

Harmonized System (HS) code
85286200

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
20 - 80%

Storage temperature (T-T)
-10 - 50 °C

Packaging content

Batteries included
Yes

Remote control included
Yes

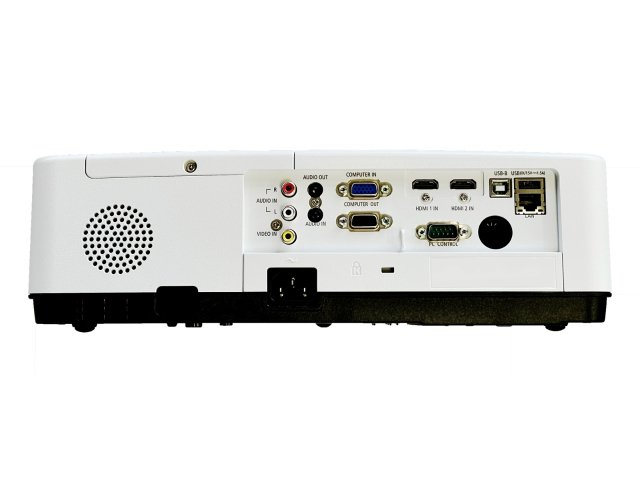

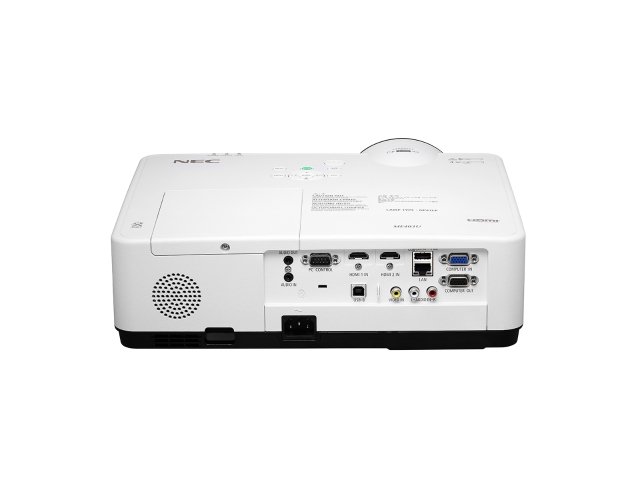

Ports & interfaces

Audio (L/R) in
1

Audio (L/R) out
1

Component video (YPbPr/YCbCr) in
1

DVI port
No

HDMI ports
2

Serial interface type
RS-232

USB 2.0 ports quantity
2

USB 2.0 Type-A ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Auto power off
Yes

Power consumption (economy mode)
220 W

Power consumption (max)
305 W

Power consumption (standby)
0.5 W

Power source
AC

Projector

Contrast ratio (typical)
16000:1

Horizontal scan range
15 - 100 kHz

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Native aspect ratio
16:10

Projection distance
0.75 - 12.88 m

Projection technology
3LCD

Projector brightness
4000 ANSI lumens

Projector brightness (economic mode)
3000 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
762 - 7620 mm (30 - 300")

Vertical scan range
24 - 85 Hz

Technical details

Compliance certificates
CE, RoHS, WEEE

Sustainability certificates
ErP

Video

Analog signal format system
NTSC, PAL, PAL 60, SECAM

Full HD
Yes

Supported graphics resolutions
1920 x 1200 (WUXGA), 3840 x 2160

Video colour modes
DICOM simulation mode

Weight & dimensions

Depth
261 mm

Height
104.6 mm

Weight
3.5 kg

Width
345 mm

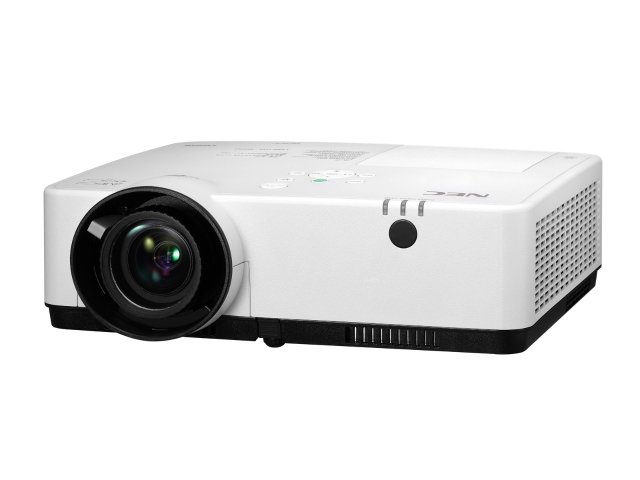

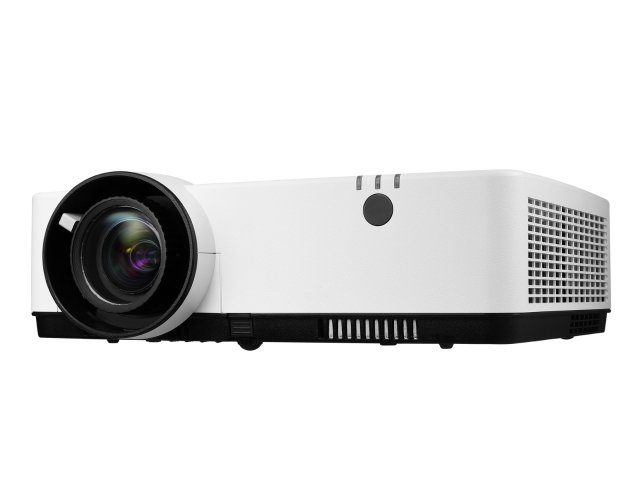

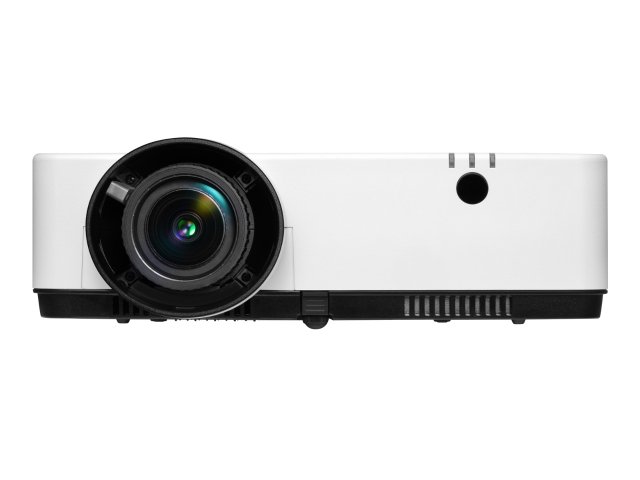

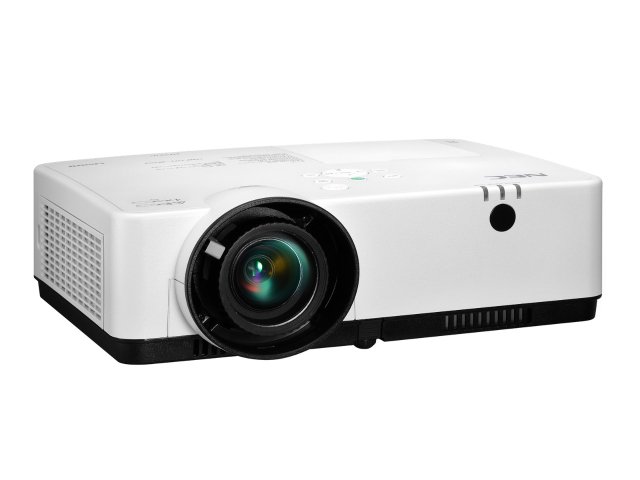

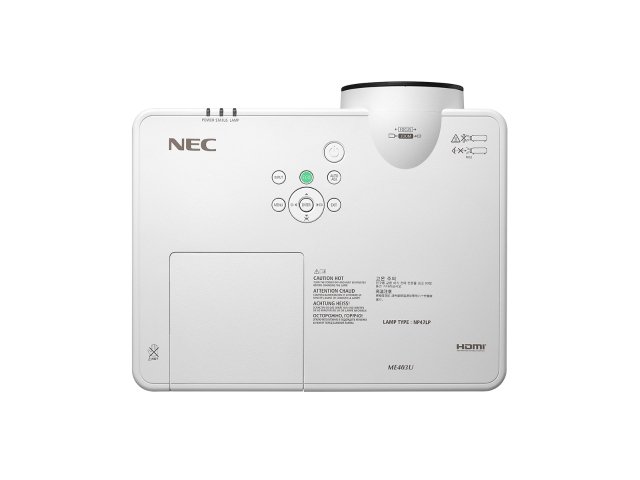

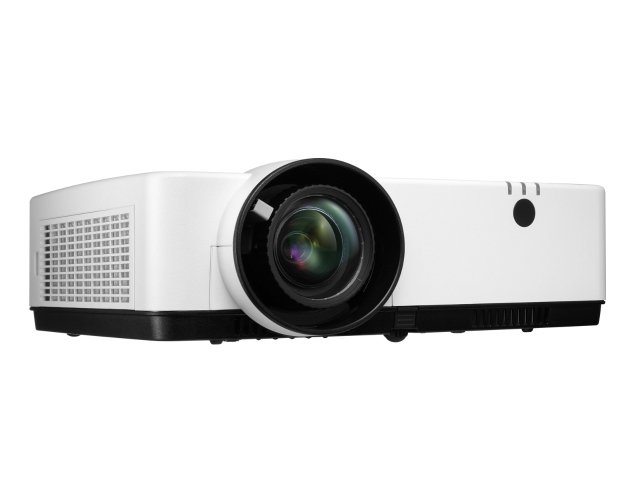

NEC ME403U PROJECTOR Standard throw projector 4000 ANSI lumens 3LCD WUXGA (1920x1200) White
